Buy Pallet Trucks Online | Jungheinrich PROFISHOP

Pallet trucks – Versatile helpers in warehouses, logistics and sales

Pallet trucks are used to lift, transport, and lower pallets and other goods that can be accessed quickly and easily underneath and close to the ground. This is why pallet and pump trucks and pallet jacks are among the most important tools in companies where loads are moved on a regular basis. Our portfolio includes manual and electric lift trucks as well as models for special applications, and our buying guide will help you find the right model for your needs. Read on to learn more.

Table of contents

Pallet truck overview
What to consider when buying a pallet truck?
Our pallet truck models in detail
Hand pallet trucks for special tasks
FAQ for pallet trucks

1. Pallet truck overview

Our pallet truck range includes the following models:

Hand Pallet Truck

Electric Pallet Truck (semi- or full electric)

Scissor Lift Pallet Truck

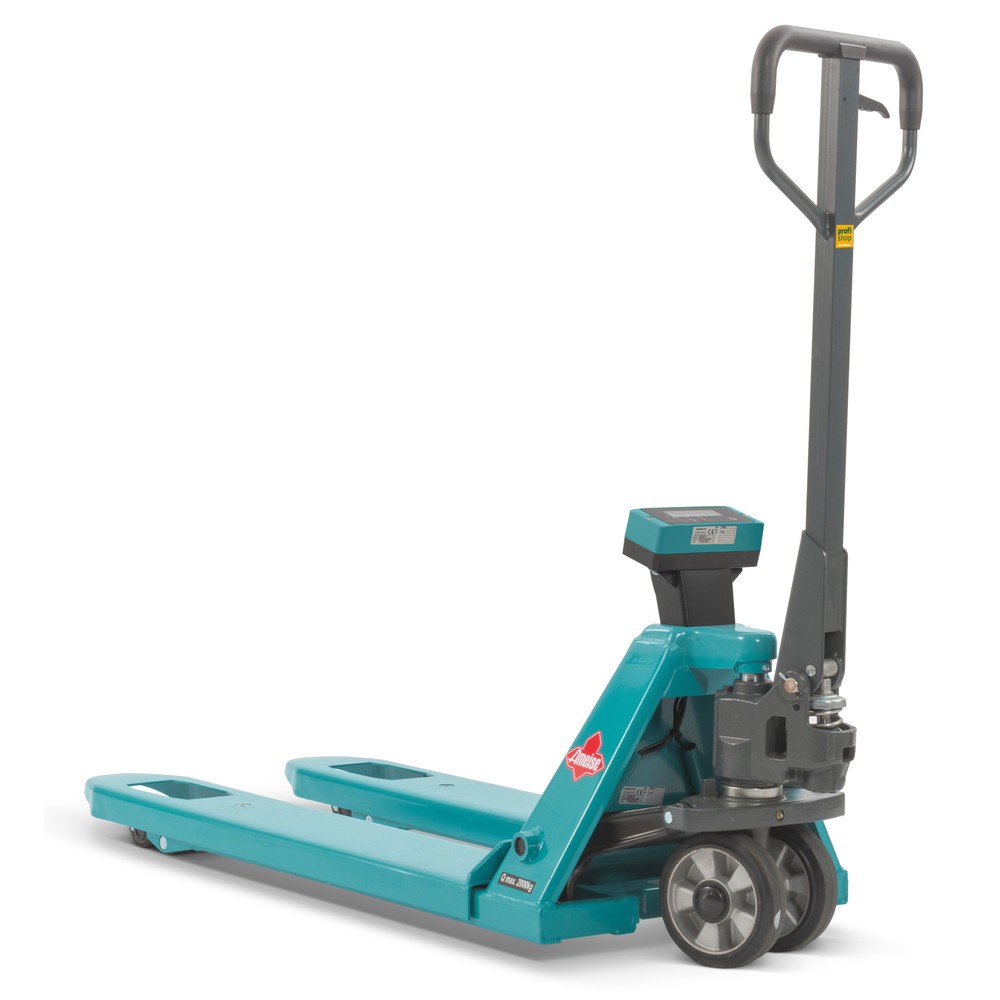

Pallet Truck with Scales

Flat Pallet Truck (low-floor hand pallet truck)

Display Pallet Trucks

Mini Pallet Truck

Four-Way Pallet Truck

Extra Narrow Pallet Truck

Complementing our range of listed pallet trucks are stacker trucks. Thanks to their lifting mast, these are not only suitable for horizontal, but also for vertical transport of goods: With their help, goods can also be stored in heavy-duty racks and shelving systems, for example.

To the table of contents

2. What to consider when buying a pallet truck?

There are several important factors to consider when choosing your new pump truck. Support for this is provided by an initial functional analysis. Using this, you will define exactly which characteristics your pallet truck must meet. The following questions will help you to create a precise requirement profile:

Where should the pallet truck be used?
Which drive is required for driving and lifting functions?
What is the maximum load weight that should be transported?
What fork length and width are required?
How often will the pallet truck be used?
Do you want to cover long distances with the pallet truck, and do you therefore need a model with rider operation?
Which tires are suitable for the terrain you are driving on?
Are special functions such as a quick lift, crawl speed button, or a weighing function required to work more efficiently?

Working environment for pallet trucks

The decisive criterion for selecting a pallet jacks and trucks is the working environment in which the industrial truck is primarily to be used.

Working Environment	Specification	Suitable Truck Type
Dry indoor and outdoor areas	Indoor areas, e.g., in supermarkets, warehouses or sales rooms Dry, level outdoor areas, e.g., in external warehouses or delivery zones	Hand pallet truck Semi-electric pallet trucks Fully electric pallet trucks
Indoor and outdoor areas with condensation	Humid environments, e.g., cold stores or greenhouses, fruit stores	Stainless steel pallet trucks Pallet truck with hot-dip galvanizing and galvanizing
Indoor areas with specific security requirements	Areas with strict hygiene regulations, e.g., slaughterhouses, food factories or medical laboratories Cleanrooms Explosive environments, e.g., in electrical engineering Environments where corrosive chemicals are handled, e.g., in the manufacture of cleaning materials or building materials	Stainless steel pallet truck Pallet truck with antistatic steering wheel Pallet truck with additional equipment for explosive zones
Interiors with limited turning and manoeuvring options	Small storage areas, e.g., narrow storage rooms, overseas containers, narrow corridors	mini pallet trucks extra narrow pallet trucks Hand pallet trucks and electric pallet trucks with particularly short forks
Demanding outdoor areas	Environments with excessive exposure to dirt, dust, or oil, e.g., on construction sites, trade, interior renovation or during demolition work uneven surfaces, e.g., on arable land	Terrain lift trucks
Multipurpose use	Use as a worktable, e.g., on production lines or in the workshop	Scissor lift trucks

Pallet lifters for special tasks

In addition to pallet trucks for classic areas of application, our range also includes variants for special tasks:

Pallet Truck Tasks	Suitable Truck Type
Transporting and weighing goods	Electric pallet truck with scales Hand pallet truck with scales Scissor lift truck with scales
Transverse pick-up of Euro pallets	All pallet trucks with special fork widths
Acceptance of non-standardised pallets	Flat pallet truck for goods close to the ground Extra slim hand pallet truck for narrow special pallets Display pallet lifter for CHEP, display or quarter pallets Manual and electric lift trucks with special fork widths
Picking up long goods	Four-way pallet truck Manual lift trucks with extra-long forks
Transport of sensitive or fragile goods	Manual or electric lift trucks with a special lowering valve for particularly sensitive lowering

To the table of contents

Drive and lift type

When selecting the appropriate drive or lift type, the following generally applies: The larger the loads, the longer the distances to be covered, and the more frequently the loads must be lifted, the more likely your choice should be a pallet lifter with electric travel and/or lift drive.

However, the decision in favour of a purely manual or semi- or fully electric lift truck should not only be made about the most effective work processes possible since ergonomic factors should also be taken into account when making the choice.

All-electric lift trucks reduce the physical strain on the operator to a minimum, allowing you and your employees to work ergonomically and efficiently. But even with purely manual lift trucks, you don't have to sacrifice ergonomic comfort. Technical developments such as an optimized hydraulic system can reduce the amount of force required for pumping, while chrome-plated axles, sliding bushings on the wheels, or smooth-running wheel bearings make it easier to start up, brake and manoeuvre in tight spaces.

Drive	Features	Application
Manual drive	Lift truck is operated manually via the tiller for both travel and lifting Powerful hydraulics support the lift	Ideally suited for short transport distances
Semi-electric drive	Travel movement is electrically driven Lifting is done by manually operated drawbar strokes Lowering is done via manually operated lowering valve	Suitable for longer transport distances
Full electric drive	Both lift and travel motors operate electrically from the vehicle battery	Easy and effort-saving moving as well as lifting and lowering possible Suitable for longer distances and frequent lifting work (depending on model)

Load capacity

Jungheinrich AM 22 hand pallet truck, fork length 1,150 mm

The maximum load that a pallet truck can transport plays a decisive role in the purchase. The average weight of the loads to be transported on a regular basis as well as expected peak loads should therefore be decisive for the selection of the lift truck. You can tell whether the lift truck model is suitable for the loads that occur in your business by looking at the load capacity of the device—this indicates the maximum load up to which the trucks may be loaded. To ensure that the pallet trucks are not overloaded, many of our models include an overload protection device.

Unlike high lift trucks where, depending on the lifting height, a distinction is made between rated capacity and actual load capacity, this can be ignored for low lift trucks—provided the load centre distance is considered and the load is evenly distributed. An exception to this can be pallet trucks with extra-long forks.

Fork Lengths and fork carrying widths

Pallet trucks are available with different fork lengths and fork carrying widths. Thanks to our range of models, we offer a large selection of different fork lengths, especially for hand pallet trucks. For special applications, lift trucks with special fork carrying widths are also available in our online store. You determine the right fork variant for your needs based on the loads transported in your company:

Load	Example	Corresponding dimensions of the forks
Standard	Euro Pallets	Standard fork length from 1,150 mm Standard fork carrying width from 520-540 mm
Small	General cargo like cartons or boxes Display pallets Half pallets Quarter pallets (CHEP pallets)	Short forks between 800 and 1,000 mm Extra narrow fork carrying width from 380-450 mm
Special sizes	Pallets with excess width or length Picking up of several pallets at the same time Transverse pick-up of Euro pallets	Extra-long forks from 1,207-2,100 mm Extra-wide forks carrying widths from 670-685 mm

To the table of contents

Advantages of short fork lengths:

High manoeuvrability, small turning radius
Ideal for use in narrow aisles
Suitable for taking along in truck or van

Advantages of extra-long fork lengths:

Simultaneous pick-up of several pallets accelerates pallet handling
Also possible to pick up pallets crosswise

Please note: For models with extra-long forks, the load capacity may decrease as the fork length increases.

Intensity of use

Depending on how often, how long, and how intensively you want to use your new lift truck, it makes sense to purchase an industrial truck with a suitable scope of performance.

Especially for electric pallet trucks, the maximum usage duration is decisive for the purchase. This describes the period over which an electric pallet truck can be used in one-, two-, or three-shift operation:

One-shift operation: corresponds to a light intensity of use, covering approximately 500 to 1,000 hours of operation per year.
Two-shift operation: corresponds to a medium intensity of use, covering approx. 1,000 to 1,700 operating hours per year.
Three-shift operation: corresponds to an intensive operating intensity of more than 1,700 operating hours per year.

In the case of hand pallet trucks, the possible operating intensity is determined by the hydraulics or the hydraulic pump installed. Depending on the design and materials of construction, this pump reaches a certain maximum number of lifting cycles before it shows signs of wear. Depending on the model, between 3,500 and 10,000 stroke cycles are possible. In addition, the intensity of use is also determined by the robustness and workmanship of the materials and components used.

Tires

Solid rubber steering wheel for Ameise® / BASIC / Economic pallet trucks

Hand pallet trucks are usually equipped with two swivel wheels and at least two fork rollers. Electric pallet trucks, on the other hand, have a 3-, 4-, or 5-point chassis, depending on the model series, which has a drive wheel, support wheels and fork rollers. For particularly high loads, the fork rollers are also offered in a tandem version.

These double rollers distribute the weight better, which is why they are particularly suitable for use on uneven ground or when negotiating speed bumps. This results in smooth running and stability when moving the load and also reduces wear on the individual rollers. Smooth-running wheels and rollers, on the other hand, increase usage efficiency—infeed rollers in the fork tip also make it easier to enter and exit the pallet.

To wheels and rollers

Which material used within the wheels on pallet trucks for warehouses depends heavily on the application and environmental conditions. Factors to consider include:

Load capacity of the floor
Floor condition (paved/unpaved, degree of contamination, floor covering)
Floor inclination
Noise level
Hygiene requirements
Climatic conditions
Starting and rolling resistance
Impact load
Environmental influences such as wetness, chemicals, or oils
Ambient temperature
Electrical conductivity requirements

You can select pallet lifters at Jungheinrich PROFISHOP individually with the castors and wheels that correspond to the respective maximum load and application. Wheels and castors for lift trucks are available from us in the following materials:

Roller Material	Features	Usage	Lift Truck
Polyurethane	Particularly flexible and resistant Quiet, low-noise operation Shock-absorbing Low wear High load capacity Long service life Low rolling resistance Non-marking Temperature resistant from -20 °c to +80 °c Oil and grease resistant	For frequent use on hard and sensitive floors	Hand pallet truck Semi- and fully electric pallet trucks Scissor lift trucks Stainless steel pallet trucks Cradle pallet truck
Thermoplastic Polyurethane TPU	Is gentle on floors that must not be subjected to heavy loads Does not leave contact discoloration Very smooth running Shock absorbing Low wear High load capacity Long service life Low rolling resistance Temperature resistant from -20 °C to +80 °C Oil and grease resistant Resistant to many aggressive media (alkalis and acids)	For rough and uneven floors	Electric low lift truck
Nylon	Non chalking Resistant to acids and alkalis Low wear Hard and abrasion resistant Temperature resistant from -40 °c to +90 °c High running noise More susceptible to impact High surface pressure Low rolling resistance	Food and chemical industry On smooth and even floors · On soft or pressure-sensitive floors (e.g., tiles) only suitable to a limited extent	Hand pallet truck Scissor lift truck Stainless steel pallet truck Cradle pallet truck
Solid Rubber	Good floor adhesion even on rough, uneven, damp, and smooth floors Particularly resistant High running smoothness High elasticity Not susceptible to impact Good load distribution Temperature resistant from -5 °c to +80 °c Higher running resistance Slightly chalking	For environments where smooth running is required, e.g. When loading goods at night For applications requiring special traction, e.g. On uneven floors, for outdoor use in damp conditions or for use on ramps	Hand pallet truck Scissor lift truck Cradle lift truck Off-road pallet truck (rubber tires with air suspension)

You can reorder worn wheels and casters online at any time. The same applies if, for example, you want to optimize the drive of your vehicle with other caster wheels or fork rollers. We offer an extensive range of replacement wheels and castors.

To the table of contents

3. Our pallet truck models in detail

Below you will find more detailed information on the pallet truck models available from us and their range of functions. Helpful accessories or additional functions for the various low-lift pallet trucks are available on request. Please feel free to contact our competent technical consultants if required.

Hand pallet truck

Pallet trucks with hand-hydraulically operated lift for horizontal load transport of pallets, transport boxes, and wire mesh boxes have been around since 1929. Despite many innovations in the field of pallet trucks, these versatile industrial trucks are still classics. No wonder: hand pallet trucks are easy to operate and uncomplicated in function, operation, and maintenance.

The basic principle of their operation has always remained unchanged. The pallet truck consists of a fork with two forks, which picks up the load, and a steering tiller, which is used to manually steer and move the industrial truck over short distances. Repeated pumping with the tiller activates the hydraulic pump and causes the fork to be raised until the ground clearance required for load transport is achieved. To lower, a lever on the handle is operated, which releases the hydraulic pump and lowers the fork back to ground level. Hand pallet trucks can be pulled or pushed and turned on the spot.

To hand pallet trucks

Hand pallet trucks are also known as: hand forklift trucks, forklift trucks, manual forklift trucks, manual pallet trucks.

Parameter	Details
Drive type	Manual
Type of stroke	Hand-hydraulic
Load capacity	2,000–2,500 kg For heavy duty transport Also models with 3,000–3,500 kg capacity available
Fork length	1,150 mm for standard models Models with extra-long and extra short forks also available
Optional equipment and accessories (depending on model series)	Noise-reduced equipment Lift truck dock Antistatic steering wheel Steel steering wheels and fork rollers Parking brake Driving and parking brake Folding frame Inox axles with grease nipple Quick lift Special painting according to RAL table
Application	Transport and relocation of medium-heavy, under-ride goods, merchandise, and pallets Mobile use Can be used in indoor areas Also applicable in dry outdoor areas
Advantages	Low maintenance requirements Cost-effective in purchase and maintenance No need for annual inspection Can be used without forklift license Independent of power sources and batteries
Disadvantages	High effort required for travel and lifting movements Low handling speed: limited performance range

To the table of contents

Electric pallet trucks

Jungheinrich EJE M15 electric lithium-ion pallet truck with scale

Depending on the model, an electric pallet mover is equipped with one or two electric motors. Depending on the equipment, this allows loads to be transported, lifted, and lowered more quickly and with less effort. Control is via the multifunction tiller head. A particularly compact design also enables manoeuvring in the smallest of spaces and is facilitated by the optional crawl speed button. Thanks to the electric drive, electric pallet trucks can be moved more precisely and sensitively than manual industrial trucks.

We offer electric pallet trucks in two variants:

Semi-electric: Here, the driving of the lift truck is taken over by a drive motor. The lifting and lowering of the loads is done manually. These pallet trucks are also known as: semi-electric low-lift pallet trucks, semi-electric pallet trucks, semi-electric pallet trucks, electric hand pallet trucks, semi-electric pallet trucks.
All-electric: In this case, both the lifting and travel and lowering functions are operated by electric motors. Lift trucks with full electric drive are also known as: electric low-lift pallet truck, all-electric pallet truck.

Depending on the model, electric low-lift pallet forks at Jungheinrich PROFISHOP are available with a drive via a DC or three-phase motor, and are powered by either high-performance lead-acid, maintenance-free lead-gel batteries or innovative lithium-ion batteries. The electric truck is "refuelled" by charging the battery with a battery charger. Usually, the units are equipped with an integrated charger. This allows the battery to be charged at any 230 V socket. When charging the battery, certain specifications must be observed depending on the battery type. These can usually be found in the operating instructions.

To electric pallet trucks

Electric hand pallet truck

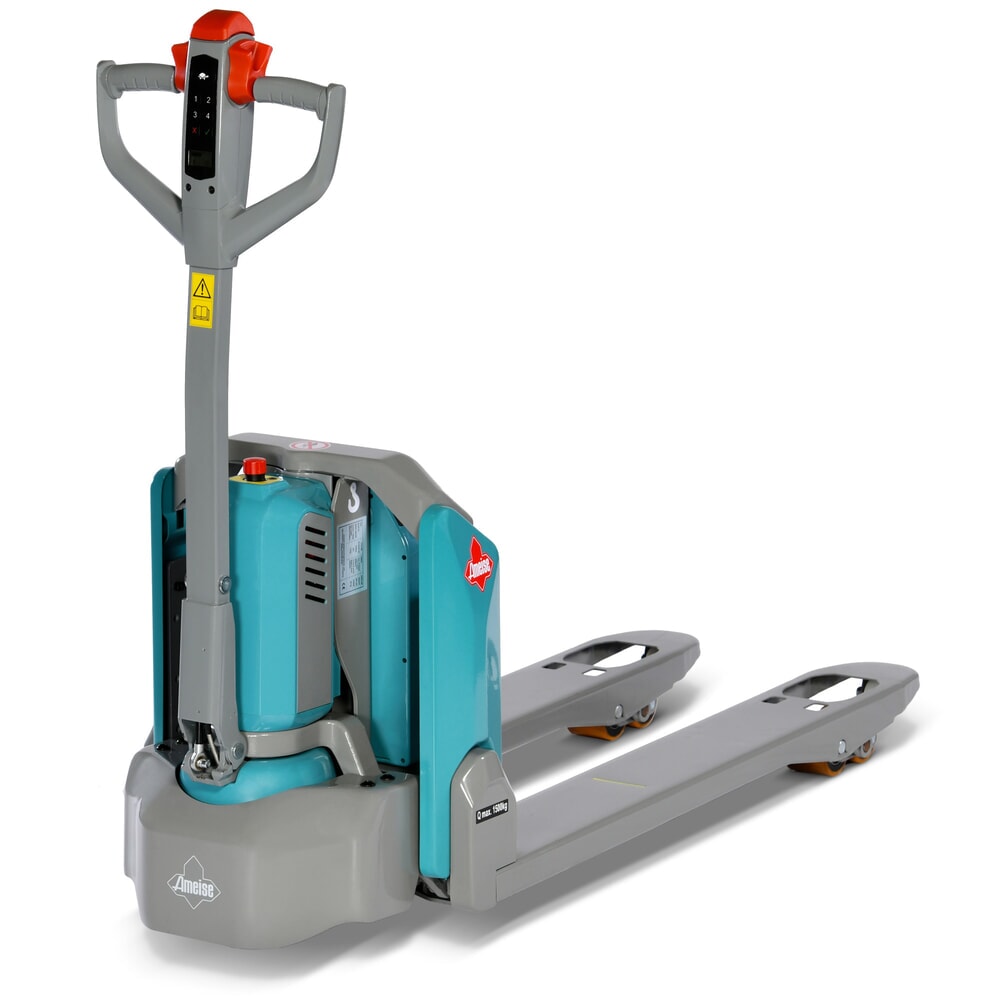

Ameise® PTE 1.5 electric pallet truck - lithium-ion, load capacity 1,500 kg

These pallet truck models with semi- or fully electric drive are solid entry-level models in pedestrian operation, suitable exclusively for light-duty use over short distances indoors or, depending on the model, indoors and outdoors (if dry). In contrast to our electric low-lift pallet trucks, these electric pallet trucks are less powerful and robust.

Parameter	Details
Drive type	Electric
Lifting type	Depending on model hand- or electro-hydraulic
Load capacity	Depending on model up to approx. 1,500 kg
Fork lengths	Depending on model with 800, 1,000 or 1,150 mm
Special equipment and accessories (depending on model series)	Side support rollers Spare battery
Application	Transport and relocation of pallets, unit loads, goods and transport boxes with high load weights that can be moved underneath the machine
Advantages	Use without forklift license possible High handling speeds without operator fatigue Low maintenance Emission-free
Disadvantages	Not suitable for multi-shift operation or continuous use Not designed for stacking operation

Electric low-lift pallet truck

Jungheinrich EJE M13 electric pallet truck, lithium-ion

These powerful and robust electric pallet trolleys with all-electric operation are available both as a variant for drawbar-guided pedestrian operation and for pedestrian operation with side seat or driver's stand-on platform. Depending on the series, they are suitable for light-duty applications indoors as well as for demanding indoor and outdoor applications and for truck-mounted applications. The electric low-lift trucks always have a 5-point chassis to ensure the greatest possible driving and cornering stability. The drive wheel is located centrally under the drawbar. The support rollers located to the side of the drive wheel prevent the vehicle from rocking on uneven ground.

Parameter	Details
Drive type	Electric
Type of stroke	Electro-hydraulic
Nominal load	1,300–1,500 kg 1,400–2,000 kg
Fork lengths
