Technical details

Ameise® PTM 2.0 hand pallet truck, capacity 2,000 kg, fork length 1,150 mm, nylon

  1. Aisle width
    1792 mm
  2. Brand
    Ameise®
  3. Capacity
    2000 kg
  4. Chassis RAL colour
    RAL 5018 turquoise blue
  5. Chassis surface
    powder-coated
  6. Control panel
    right-handed
  7. Drive
    manual
  8. Face of forks length
    390 mm
  9. Fork height
    48 mm
  10. Fork length
    1.150 mm

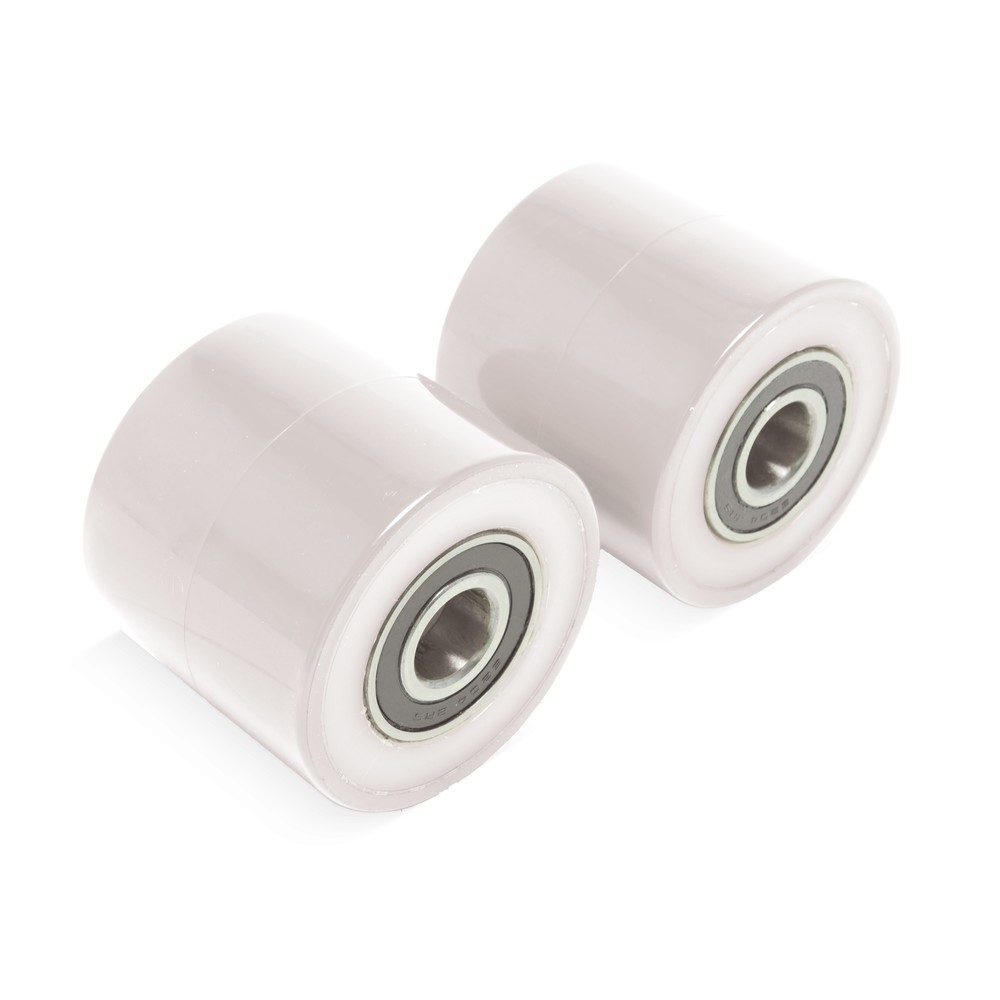

  11. Fork roller diameter
    80 mm
  12. Fork roller equipment
    Single
  13. Fork roller material
    Nylon
  14. Fork roller width
    93 mm
  15. Fork support width
    540 mm
  16. Fork width
    160 mm
  17. Grease nipple
    Yes
  18. Ground clearance
    37 mm
  19. Handle fittings
    Steel
  20. Hydraulic oil quantity
    0.3 l
  21. Hydraulic oil type
    Mineral oil
  22. Hydraulic oil viscosity acc. to ISO-VG
    32
  23. Infeed rollers
    Yes
  24. Lift
    115 mm
  25. Lift height per pump stroke
    7,5 mm
  26. Lift range
    85 - 200 mm
  27. Load centre
    600 mm
  28. Lowering speed with/without load
    0,09 / 0,02 m/s
  29. Model
    Ameise® HPT A20
  30. Net weight
    65 kg
  31. Operator type
    Manual
  32. Overall length
    1540 mm
  33. Overall width
    540 mm
  34. Pallet truck material
    Steel
  35. Pump strokes to lift pallet
    7.5
  36. Pump strokes to max. lift height
    15
  37. Route
    Short distance
  38. Section
    Performance
  39. Steering lock
    205 °

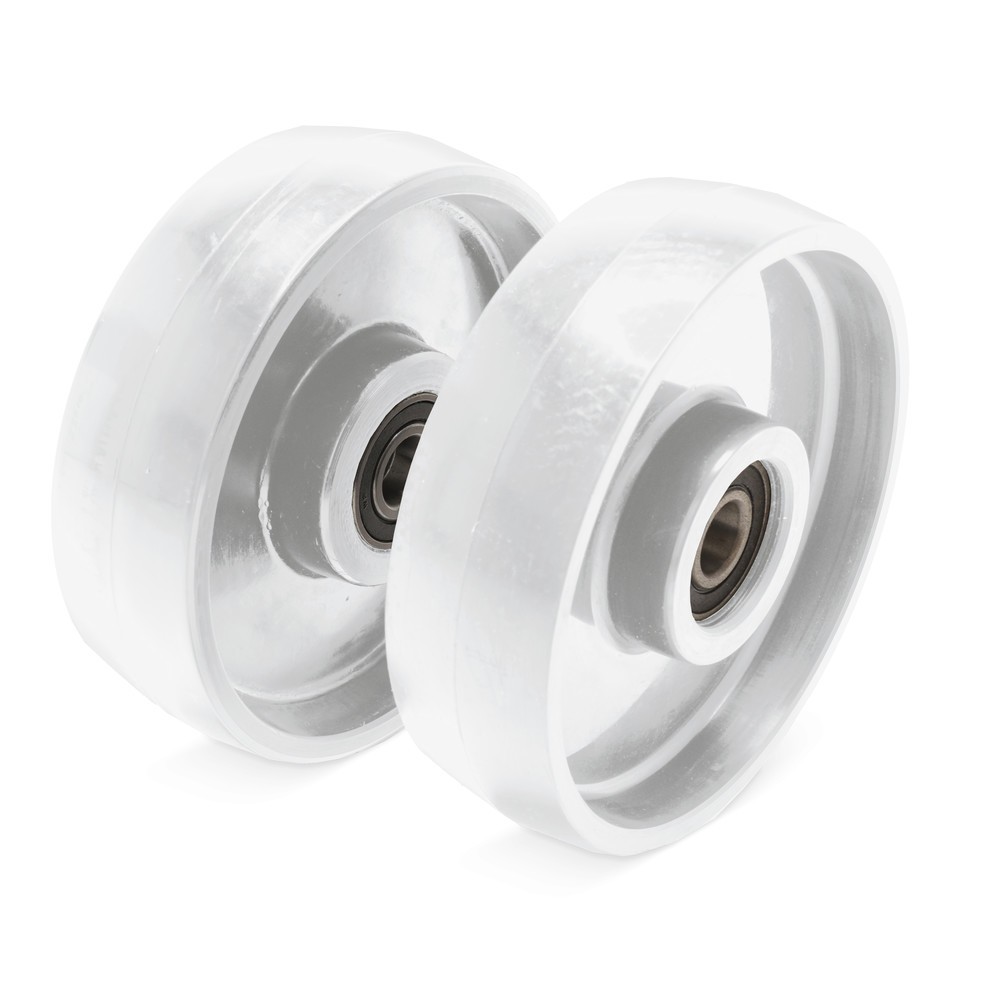

  40. Steering wheel diameter
    200 mm
  41. Steering wheel material
    Nylon
  42. Steering wheel width
    50 mm
  43. Temperature range
    5 - 40 °C
  44. Tiller RAL colour
    RAL 7016 anthracite grey
  45. Tiller height
    1250 mm
  46. Tiller surface
    powder-coated
  47. Turning radius
    1275 mm

Item description

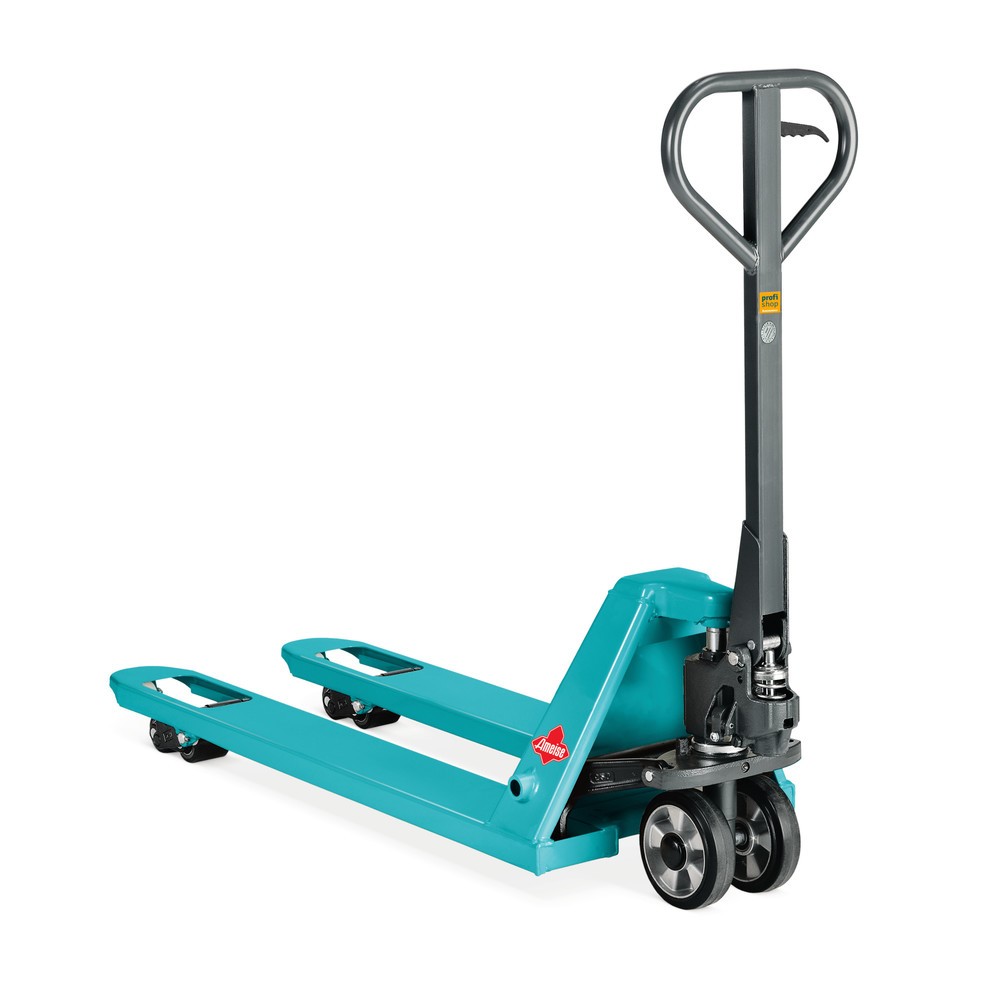

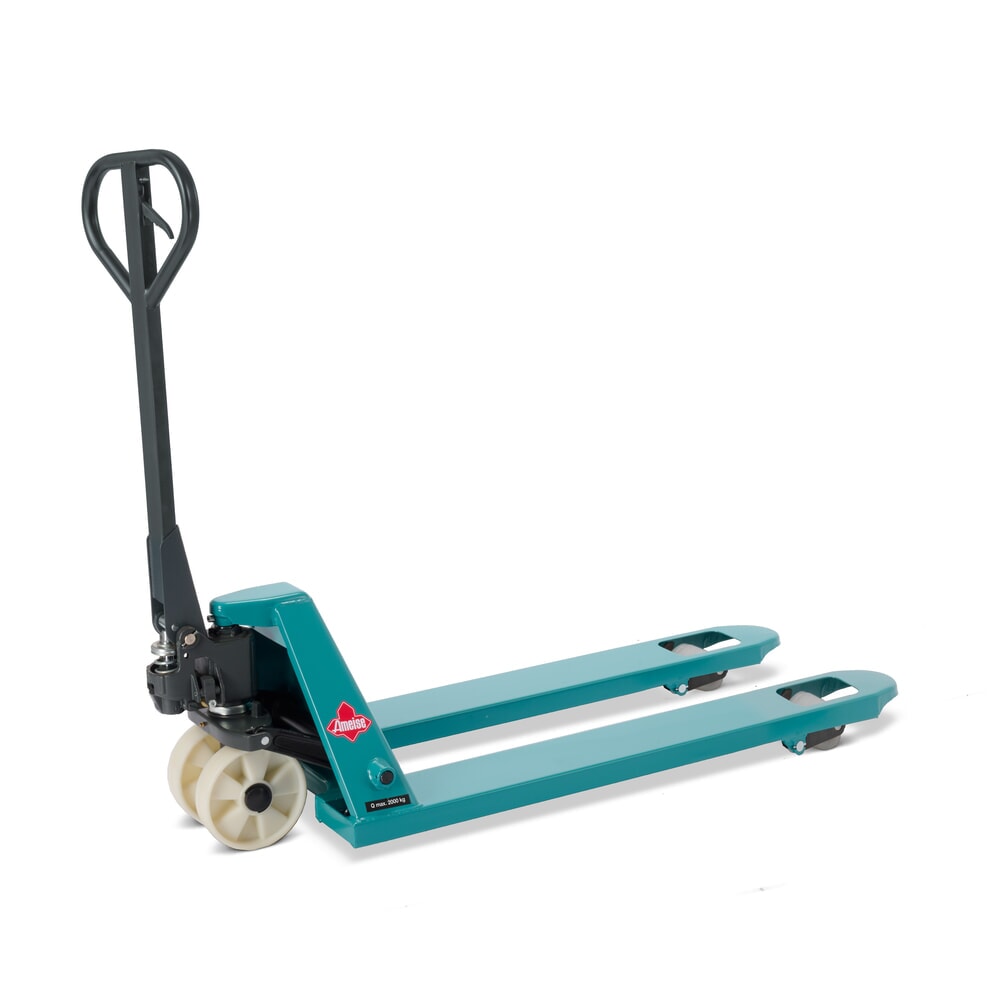

Ameise® PTM 2.0 hand pallet truck, capacity 2,000 kg, fork length 1,150 mm, nylon

With a fork length of 1150 mm and capacity of 2000 kg, the Ameise® hand pallet truck is the industry standard for a wide variety of industry sectors. This robust, reliable all-rounder is ideal for transporting Euro pallets and is proven in continuous daily use.
  • Durable high-performance hydraulic pump

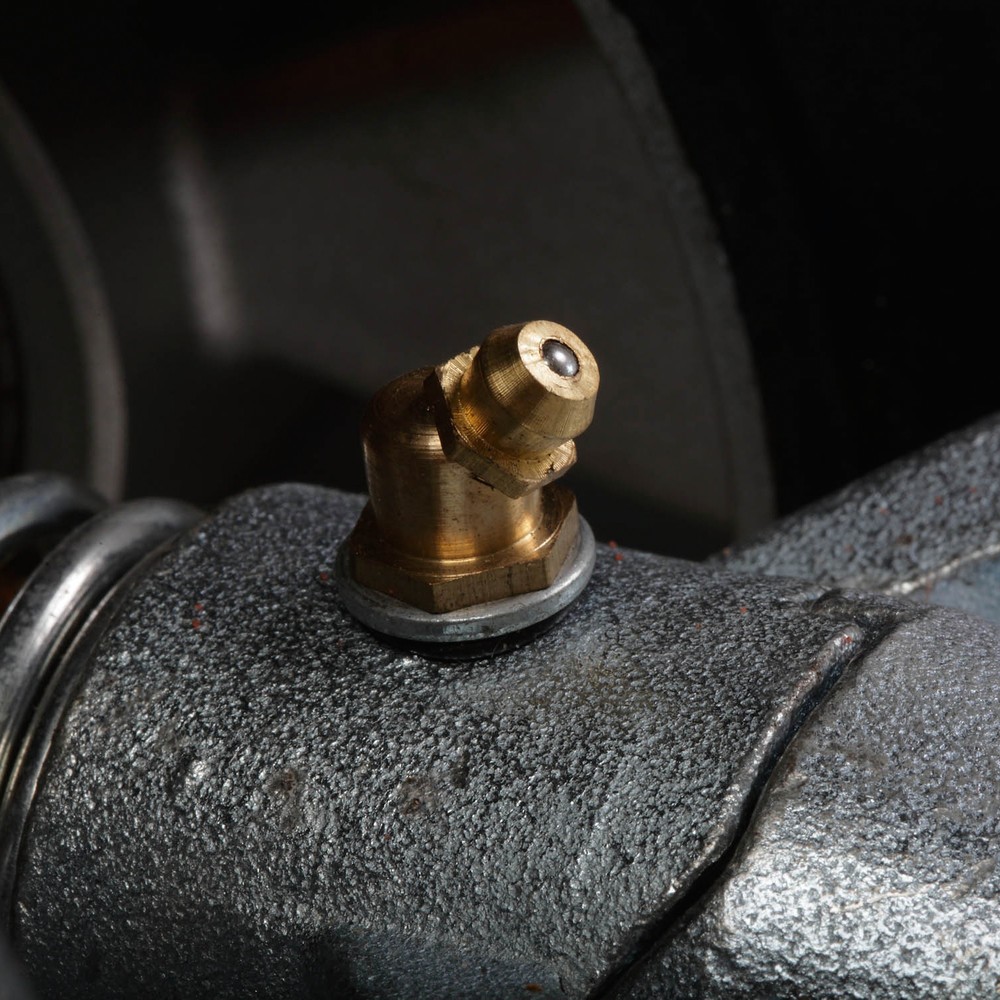

  • Low maintenance thanks to grease nipples
  • Reinforced sectional steel frame effectively retains its shape
  • Easy to manoeuvre in the tightest of spaces
  • Easy pallet insertion thanks to entry and exit rollers
Reliable industry standard for continuous use in everyday pallet transport

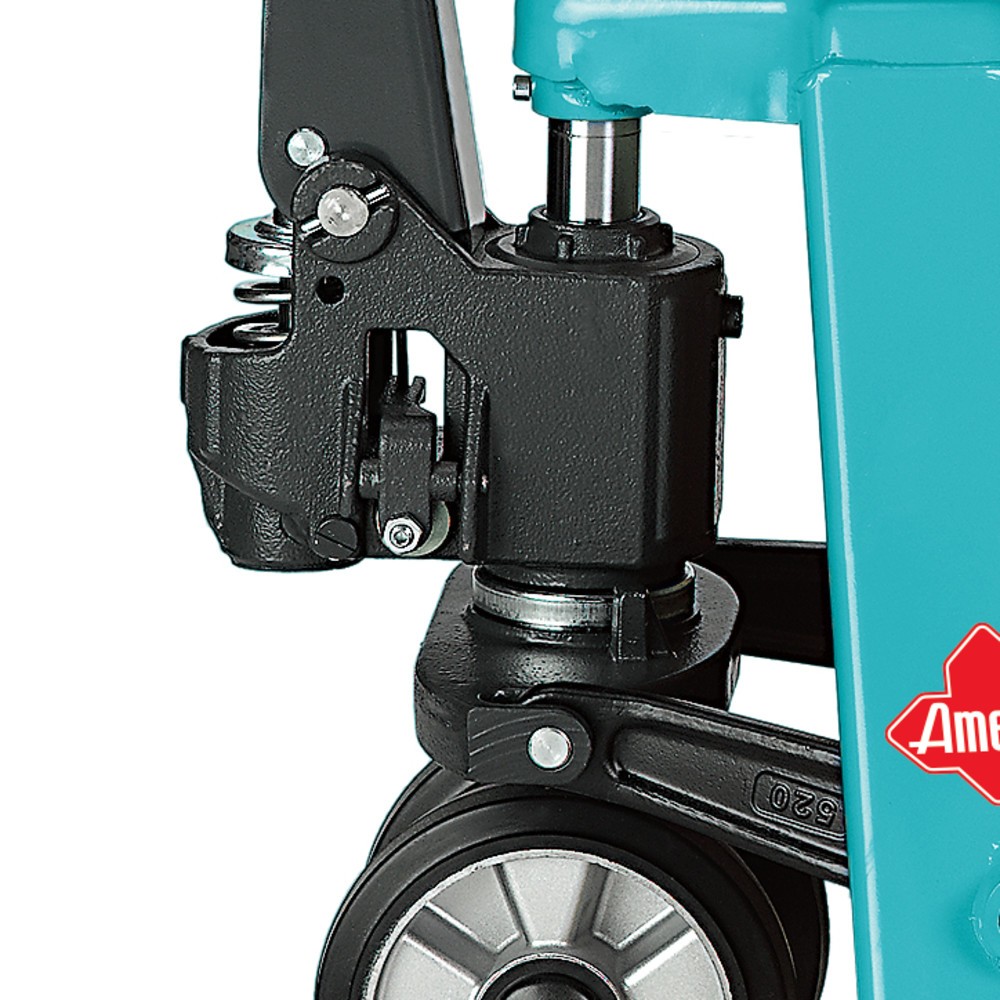

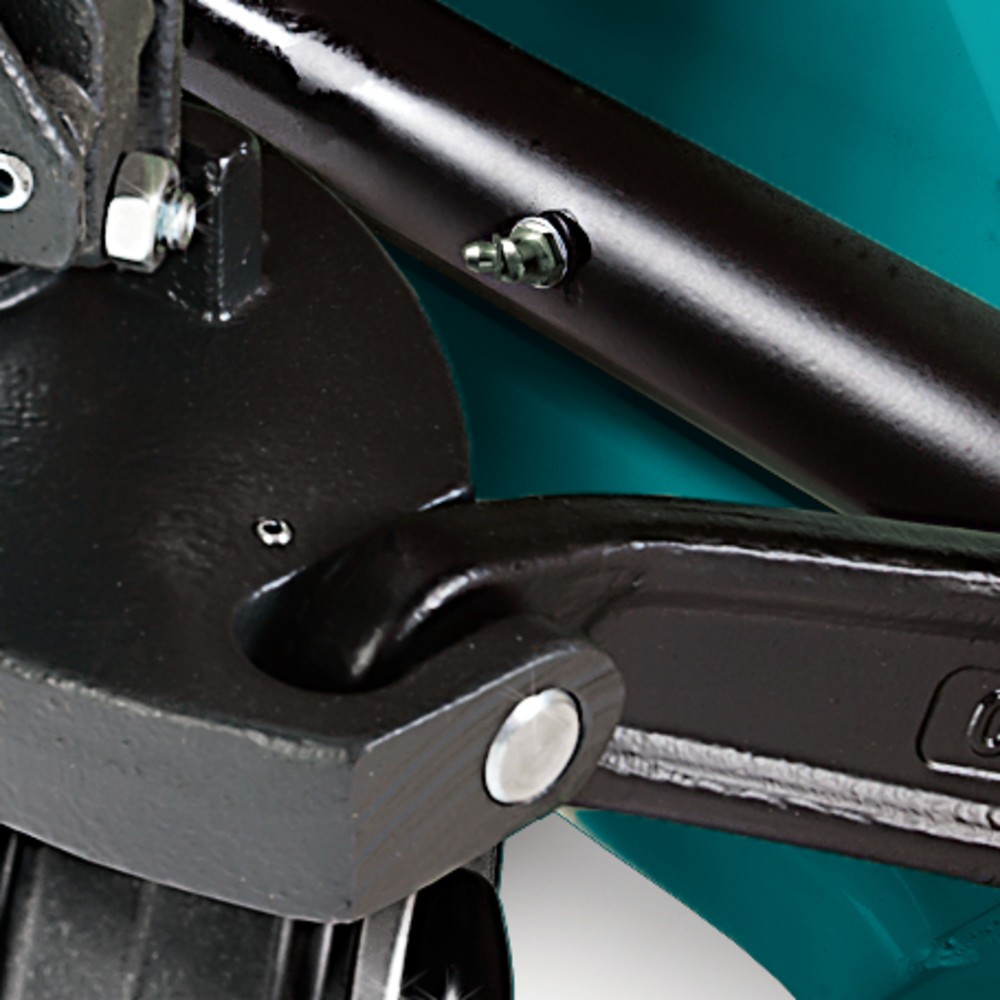

The Ameise® hand pallet truck with standard fork length and 2000 kg capacity offers robust quality for continues daily use. This is ensured by the durable high-performance hydraulic pump made from high-quality steel with chrome-plated pressure pistons. The maintenance-free manual hydraulics are characterised by their oil-tight and waterproof hydraulic system. The sectional steel frame with its welded construction is torsion-free and extremely hard-wearing, thus allowing the pallet truck to retain its shape even under the heaviest loads. A reinforced tiller ensures utmost stability and safety when turning and manoeuvring the truck. Grease nipples are provided for easy maintenance.

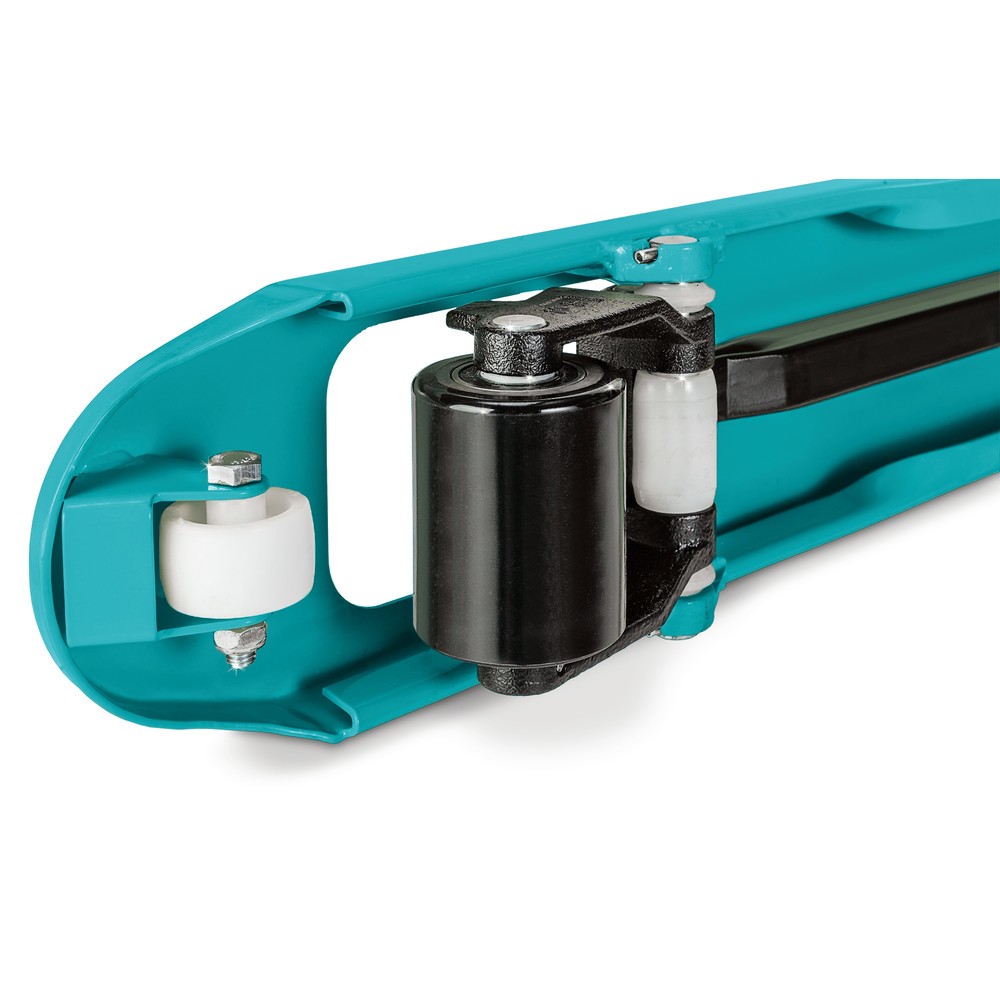

The ergonomic handle allows you to raise, move and lower your pallets with ease. The lowering speed of the load can be adjusted with fully variable precision via the hand lever. The tiller features a 210° steering angle, allowing the Ameise® pallet truck to be manoeuvred with ease in even the tightest of spaces. The fork tips feature additional entry and exit rollers for easy insertion and retraction from the pallet.

The Ameise® hand pallet truck with standard fork length is available with a range of different tyres and roller types. A solid steel parking brake is available as an optional accessory and is ideal for securing loads on sloping surfaces.

Thanks to its reliable, tried-and-tested quality, the Ameise® hand pallet truck with 1150 mm fork length and 2000 kg capacity has established itself as the industry standard. Order the all-rounder from our shop in your desired configuration.
