Item number:
601307
Jungheinrich EJE 114i electric pallet truck, load capacity 1,400 kg, fork length 1,150 mm
Efficient pallet handling with high performance and lithium-ion battery
70 Working days
Free shipping from £50 (plus VAT)
Secure data protection
Personal purchasing advice
Technical details
Jungheinrich EJE 114i electric pallet truck, load capacity 1,400 kg, fork length 1,150 mm
Article number: 601307 | EAN/GTIN: 4055091323381
| Access system | Pin-Code |
| Additional wheel width | 40 mm |
| Aisle width | 2066 mm |
| Battery capacity | 100 Ah/per unit |
| Battery charging time | 2.83 h |
| Battery type | Lithium-ion |
| Battery voltage | 25.6 V/per unit |
| Battery weight | 35 kg |
| Brake | generator |
| Brand | Jungheinrich |
| Capacity | 1400 kg |
| Charger | integrated |
| Chassis surface | powder-coated |
| Colour chassis | Jungheinrich yellow |
| Control panel | two-handed |
| Creep speed button | Yes |
| Display | 2" Display |
| Drive | electric |
| Drive control type | AC speed control |
| Drive motor power | 1.1 kW |
| Drive wheel diameter front | 230 |
| Drive wheel material | Polyurethane (PU) |
| Drive wheel width front | 70 mm |
| Face of forks length | 425 mm |
| Fork height | 55 mm |
| Fork length | 1150 mm |
| Fork roller diameter | 85 mm |
| Fork roller material | Polyurethane (PU) |
| Fork roller width | 95 mm |
| Fork support width | 513 mm |
| Fork width | 150 mm |
| Ground clearance | 30 mm |
| Hour meter | Yes |
| Lift | 122 mm |
| Lift motor output | 1.2 kW |
| Lift range | 85 - 207 mm |
| Lift speed with/without load | 0,03 / 0,03 m/s |
| Load centre | 600 mm |
| Lowering speed with/without load | 0,05 / 0,02 m/s |
| Material | Steel |
| Model | Jungheinrich EJE 114i |
| Net weight | 302 kg |
| Net weight incl. battery | 337 kg |
| No. of batteries | 1 |
| Noise level as per EN 12053 (operator's ear) | 61 dB(A) |
| Operator type | Pedestrian |
| Overall length | 1575 mm |
| Overall width | 720 mm |
| Place of manufacture | Made in Germany |
| ProTracLink | Yes |
| Route | Short distance |
| Section | Professional |
| Spare wheel diameter | 100 mm |
| Steigfähigkeit mit/ohne Last | 8 / 20 % |
| Telematics box | Yes |
| Temperature range | -30 - 50 °C |
| Tiller RAL colour | RAL 7016 anthracite grey |
| Tiller height | 690 - 1235 mm |
| Tiller surface | powder-coated |
| Travel speed, laden/unladen | 6 / 6 km/h |
| Turning radius | 1364 mm |
| quality seal | LI-ION technology |
Product Notes
Warning and safety information
Data sheets & instructions
Manufacturer information
Jungheinrich AG
Friedrich-Ebert-Damm 129
Hamburg
Deutschland
products@jungheinrich.de
Item description
Jungheinrich EJE 114i electric pallet truck, load capacity 1,400 kg, fork length 1,150 mm
Article number: 601307 | EAN/GTIN: 4055091323381
The Jungheinrich EJE 114i is a premium device "Made in Germany". The electric pallet truck with lithium-ion battery impresses with its high performance, innovative technology, ergonomics and high safety standards. This makes it the ideal tool for efficient pallet handling and high productivity during the internal transport of loads weighing up to 1,400 kg. Thanks to its particularly compact dimensions, the EJE 114i excels in confined and weight-sensitive areas. The maintenance-free lithium-ion battery impresses with its constant performance levels, short charging times and long service life.
- Powerful performance and robust construction
- Load capacity: up to 1,400 kg
- Premium quality "Made in Germany"
- High productivity in pallet handling, also suitable for transport on an HGV
- Low overall height, small turning circle, compact dimensions
- Safe use in confined and weight-sensitive areas

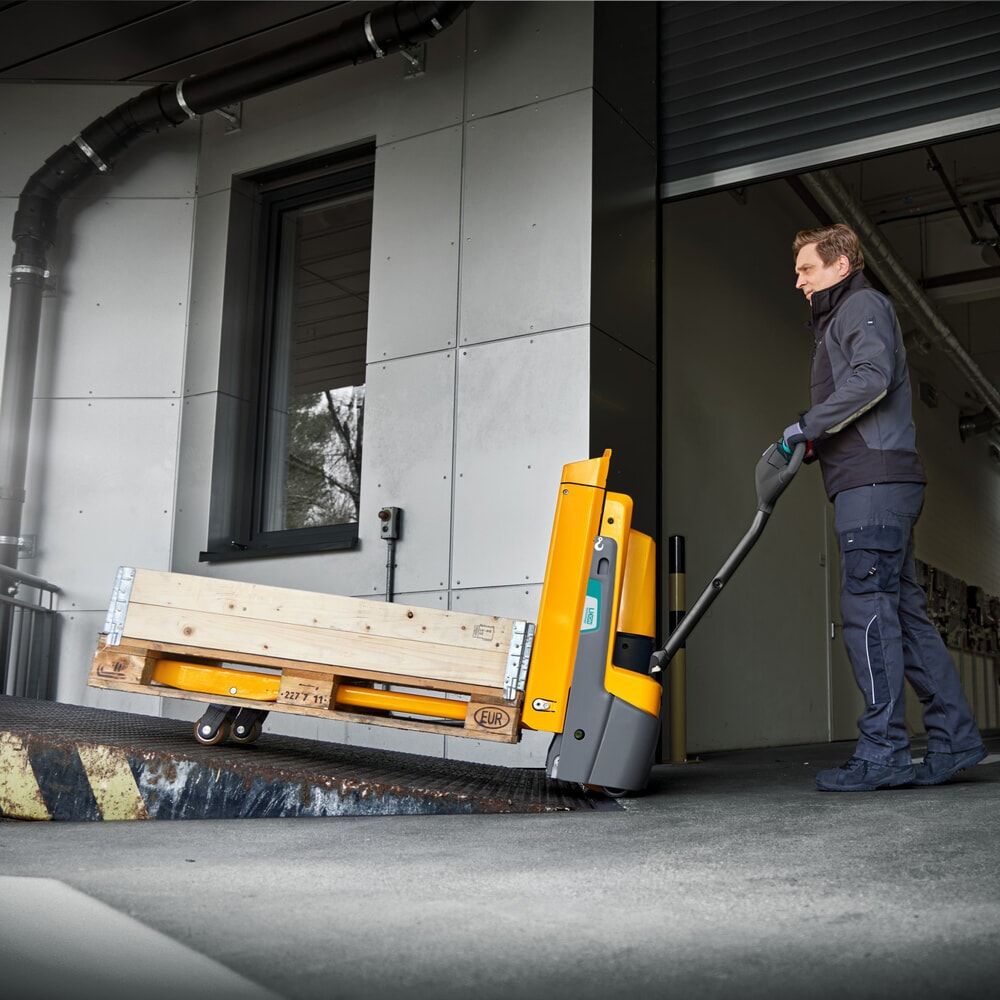

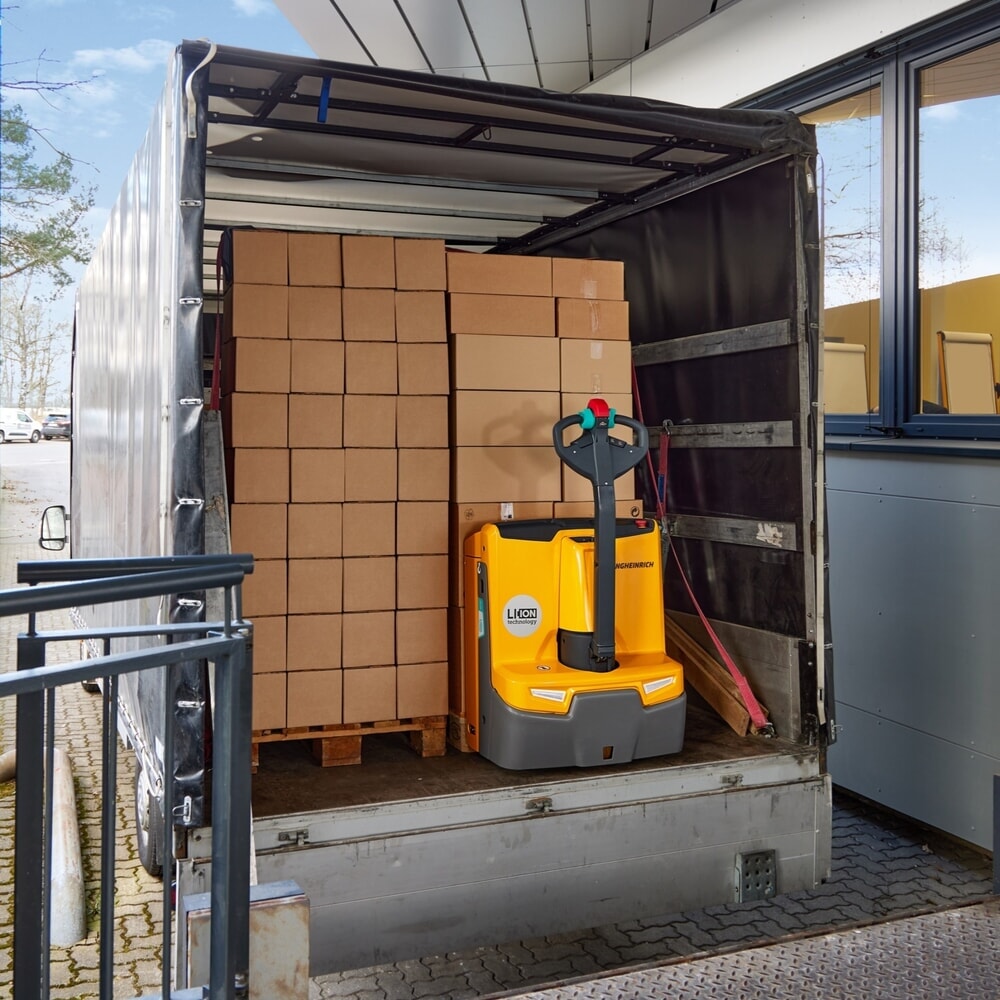

- Ideal for loading and unloading lorries as well as for transport on an HGV
- Maintenance-free 100 Ah lithium-ion battery
- Lithium iron phosphate cell technology (LiFePO)
- Jungheinrich Li-ion Guarantee Plus for up to 8 years warranty
- Powerful on-board charger for easy rapid and intermediate charging
- 3 selectable travel speeds up to 6 km/h
- ProTracLink system for outstanding stability
- Slow travel button for safe operation in tight spaces
- PIN code access protects against unauthorised use

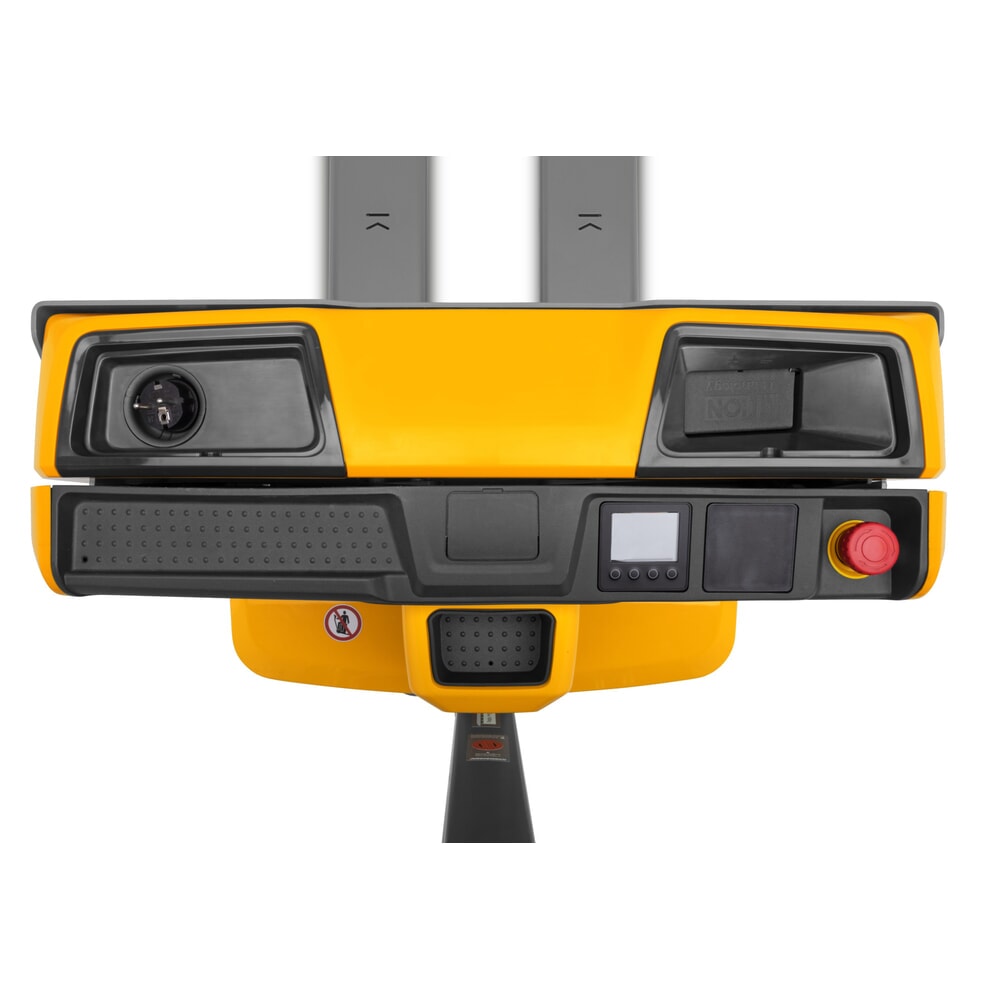

- 2" display provides information on truck and battery status
The performance class with lithium-ion battery combines efficiency, safety and robustness
The EJE 114i represents Jungheinrich's performance class and impresses with its high performance, innovative technology and premium quality "Made in Germany". The electric pallet truck with lithium-ion battery makes light work of transporting loads weighing up to 1,400 kg across short distances. The compact truck design and very short headlength make the lithium-ion pallet truck particularly light and manoeuvrable. This makes the electric pallet truck ideal for safe use in confined and weight-sensitive areas. Whether in warehouses, branch operations, on tail lifts, for loading and unloading lorries, or when transported on an HGV – the EJE 114i is versatile, all-round device for demanding applications.
The electric pallet truck impresses with its ease of use thanks to a simple and intuitive operating concept. You activate the pallet truck using a PIN code and control all travel and lifting functions via the ergonomic multifunction tiller head, which can be operated with either hand. The clear switch layout with its intuitive colour system and rocker switches ensures comfortable operation in every tiller position. Important control instruments such as the battery charge level, operating hour counter, travel speed and status messages are always in your field of vision on the 2" display. The fork arms feature markings to assist with transverse pallet pick-up. This enables optimal positioning and prevents damage to the pallets.
The EJE 114i electric pallet truck provides ideal conditions for safe working. The low height ensures optimal all-round visibility and excellent manoeuvrability. When space is at a premium, you can activate the slow travel button and manoeuvre the electric pallet truck safely and conveniently with the tiller raised and the speed automatically reduced. The fully encased housing provides reliable protection against foot injuries. An easily accessible emergency disconnect switch and the collision safety switch integrated in the tiller head ensure optimum protection in dangerous situations.
The sprung and cushioned support wheels are linked to a coupling unit via the ProTracLink traction aid. This ensures excellent stability when cornering as well as on poor, bumpy ground and on ramps. The equalising force is always distributed according to the current travel situation: evenly during straight-ahead travel and concentrated on the outer support wheel when cornering.
The EJE 114i from Jungheinrich provides you with everything you need to ensure rapid, energy-efficient and cost-effective goods turnover. The encapsulation of the controls and connectors according to IP 54 protects against dust and moisture and thus ensures maximum reliability. 3 travel programmes allow you to set an individual travel speed up to 6 km/h. When activated, the truck always starts with the last travel programme to be used.

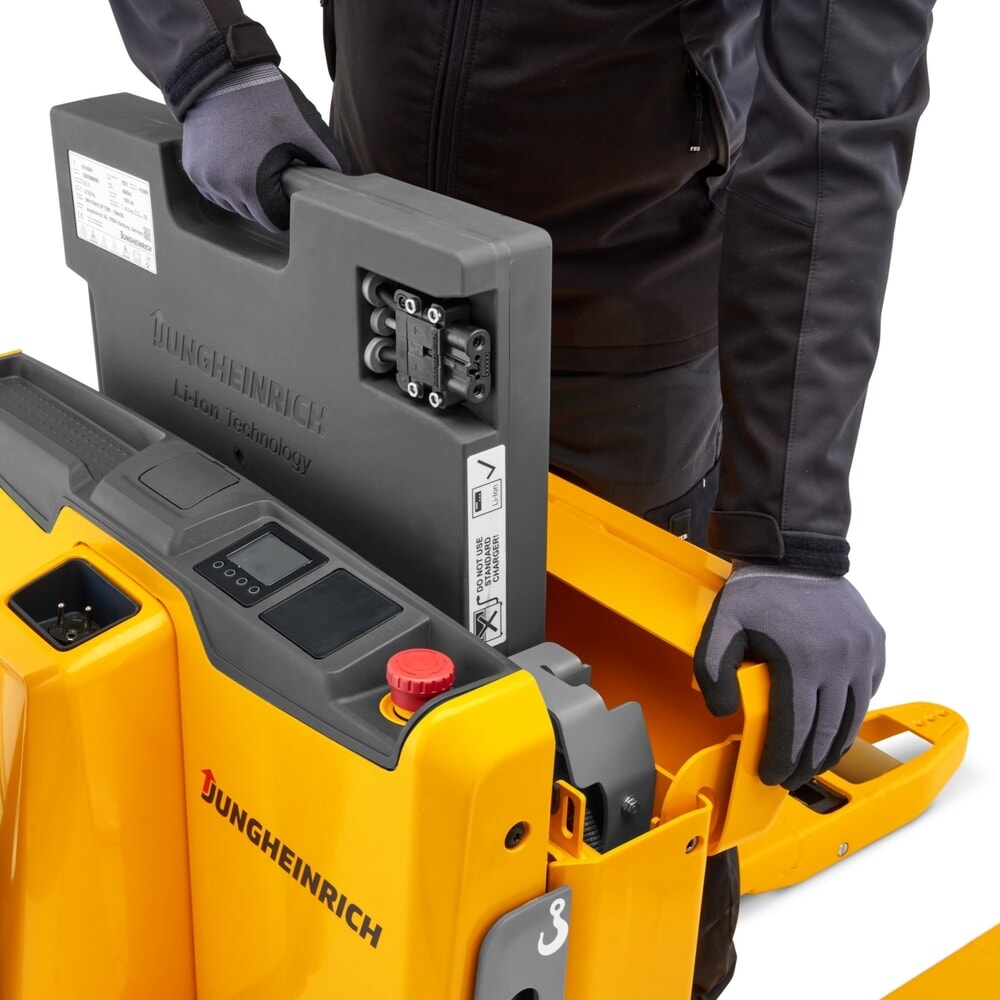

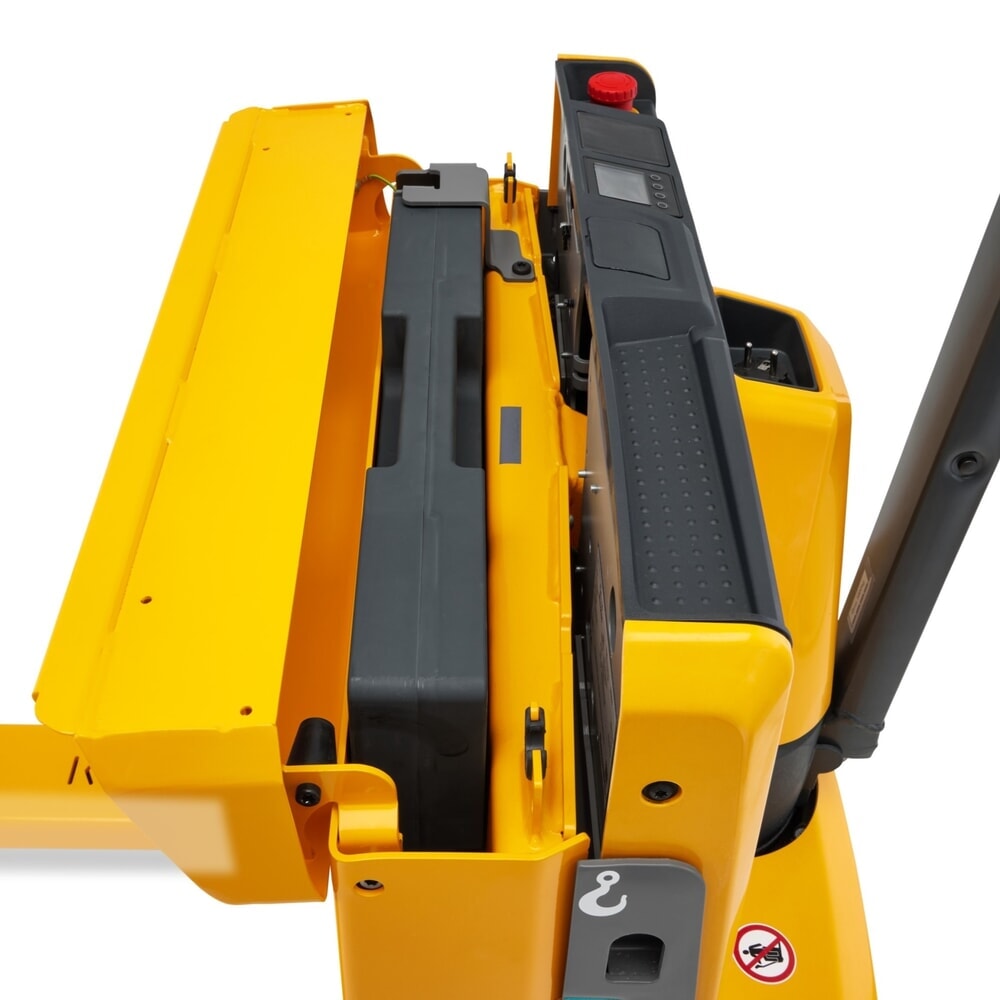

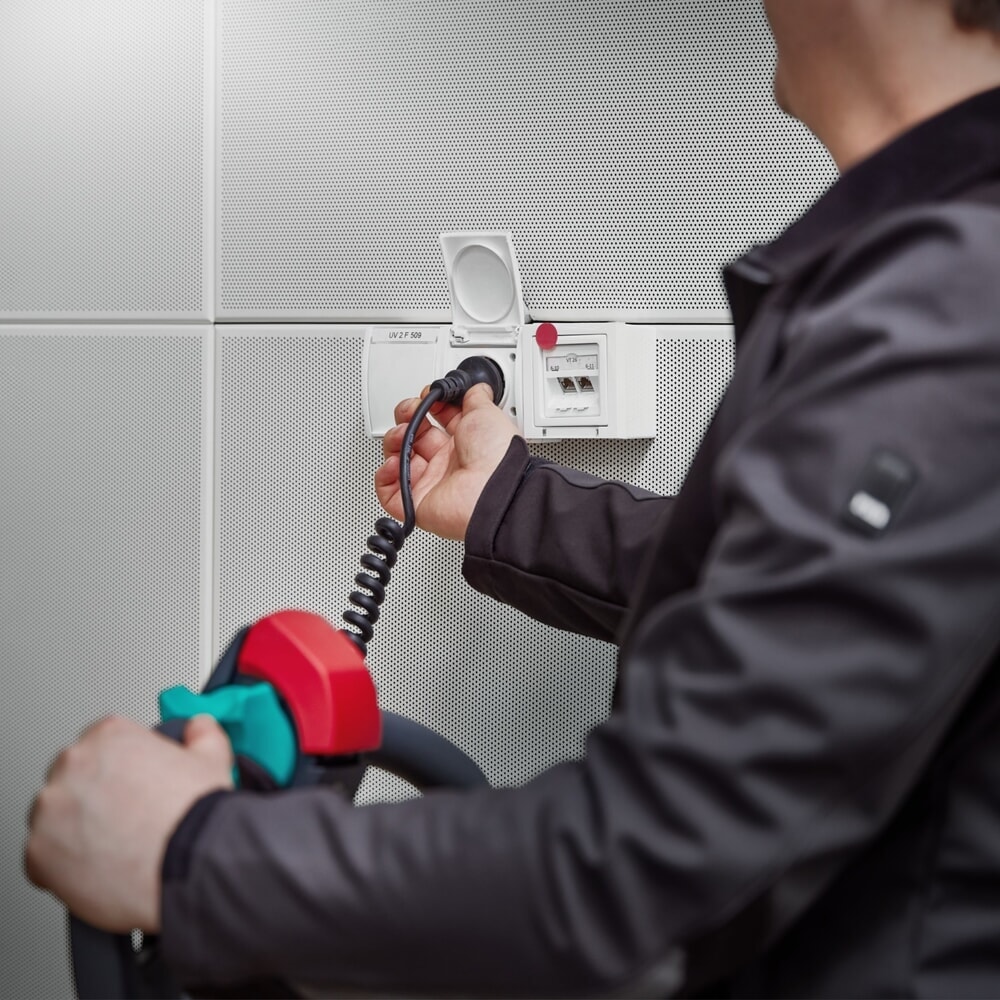

The necessary energy is provided by the powerful 100 Ah lithium-ion battery, which impresses with its consistently high performance. It is characterised by low energy consumption and, in comparison to lead-acid batteries, is maintenance-free and offers a three times longer service life. Another plus point: With the Jungheinrich Li-ion Guarantee Plus, Jungheinrich offers a long-term performance promise of up to 8 years on its high-quality lithium-ion batteries. Simple rapid and intermediate charging of the battery is possible without memory effect, thereby ensuring maximum availability and flexibility of your lithium-ion pallet truck at all times. Thanks to the powerful on-board charger, the battery can be easily recharged via any 230-V socket.
All Jungheinrich electric pallet trucks are attended to by our outstanding Jungheinrich service. With more than 3000 service engineers worldwide, we guarantee a partner in your vicinity at all times along with an optimum spare parts supply.
The Jungheinrich EJE 114i electric pallet truck is ideal for demanding applications. Order the versatile premium pallet truck with a load capacity of 1,400 kg from our shop today.
