Item number:
161193
Hand pallet truck BASIC , capacity 2,000 kg, fork length 1,150 mm, nylon
Proven quality at an optimum price
Free shipping from £50 (plus VAT)
Secure data protection
Personal purchasing advice
Technical details
Hand pallet truck BASIC , capacity 2,000 kg, fork length 1,150 mm, nylon
Article number: 161193 | EAN/GTIN: 4055091126494
| Aisle width | 1782 mm |
| Brand | BASIC |
| Capacity | 2000 kg |
| Chassis RAL colour | RAL 2002 blood orange |
| Chassis surface | powder-coated |
| Control panel | right-handed |
| Drive | manual |
| Face of forks length | 371 mm |
| Fork height | 48 mm |
| Fork length | 1150 mm |
| Fork roller diameter | 80 mm |
| Fork roller equipment | Single |
| Fork roller material | Nylon |
| Fork roller width | 93 mm |
| Fork support width | 540 mm |
| Fork width | 160 mm |
| Grease nipple | Yes |
| Ground clearance | 37 mm |
| Handle fittings | Steel |
| Hydraulic oil quantity | 0.3 l |
| Hydraulic oil type | Mineral oil |
| Hydraulic oil viscosity acc. to ISO-VG | 32 |
| Infeed rollers | Yes |
| Lift | 115 mm |
| Lift height per pump stroke | 7,5 mm |
| Lift range | 85 - 200 mm |
| Load centre | 600 mm |
| Lowering speed with/without load | 0,09 / 0,02 m/s |
| Model | BASIC HPT D20 |
| Net weight | 64 kg |
| Operator type | Manual |
| Overall length | 1521 mm |
| Overall width | 540 mm |
| Pallet truck material | Steel |
| Pump strokes to max. lift height | 15 |
| Route | Short distance |
| Section | Starter |
| Steering lock | 210 ° |
| Steering wheel diameter | 200 mm |
| Steering wheel material | Nylon |
| Steering wheel width | 50 mm |
| Temperature range | 5 - 40 °C |
| Tiller RAL colour | RAL 7016 anthracite grey |
| Tiller height | 1230 mm |
| Tiller surface | powder-coated |
| Turning radius | 1251 mm |
Item description
Hand pallet truck BASIC , capacity 2,000 kg, fork length 1,150 mm, nylon
Article number: 161193 | EAN/GTIN: 4055091126494

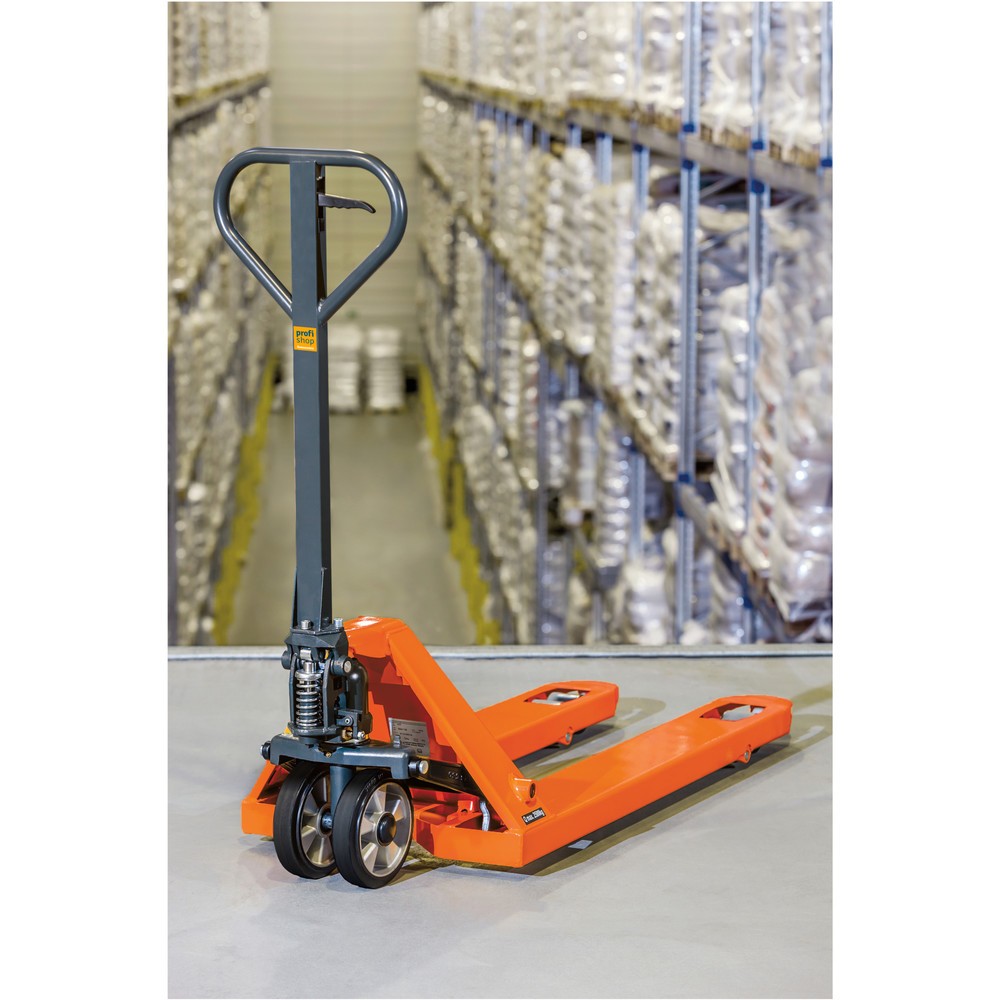

The hand pallet truck BASIC is a dependable aid for your pallet transport needs. This entry-level model offers tried-and-tested quality at an affordable price. The pallet truck is robust, reliable, easy to manoeuvre and simple to operate. A number of versions are available to suit different applications.
- Maintenance-free lift hydraulics
- High agility thanks to 210° steering angle
- Entry and exit rollers for easy lifting of pallets
- Available with 2000 or 2500 kg capacity
The entry-level model with an outstanding price/performance ratio
This pallet truck from our BASIC series combines quality with an affordable price. The BASIC hand pallet truck is cost-effective and reliable. The lift hydraulics are maintenance-free, meaning that you will not incur any additional costs.
Thanks to the 210° steering angle, the pallet truck is highly agile and easy to manoeuvre. The large handle enables straightforward manual lifting and moving of your pallets. The hand lever allows you to lower the load with fully variable precision.

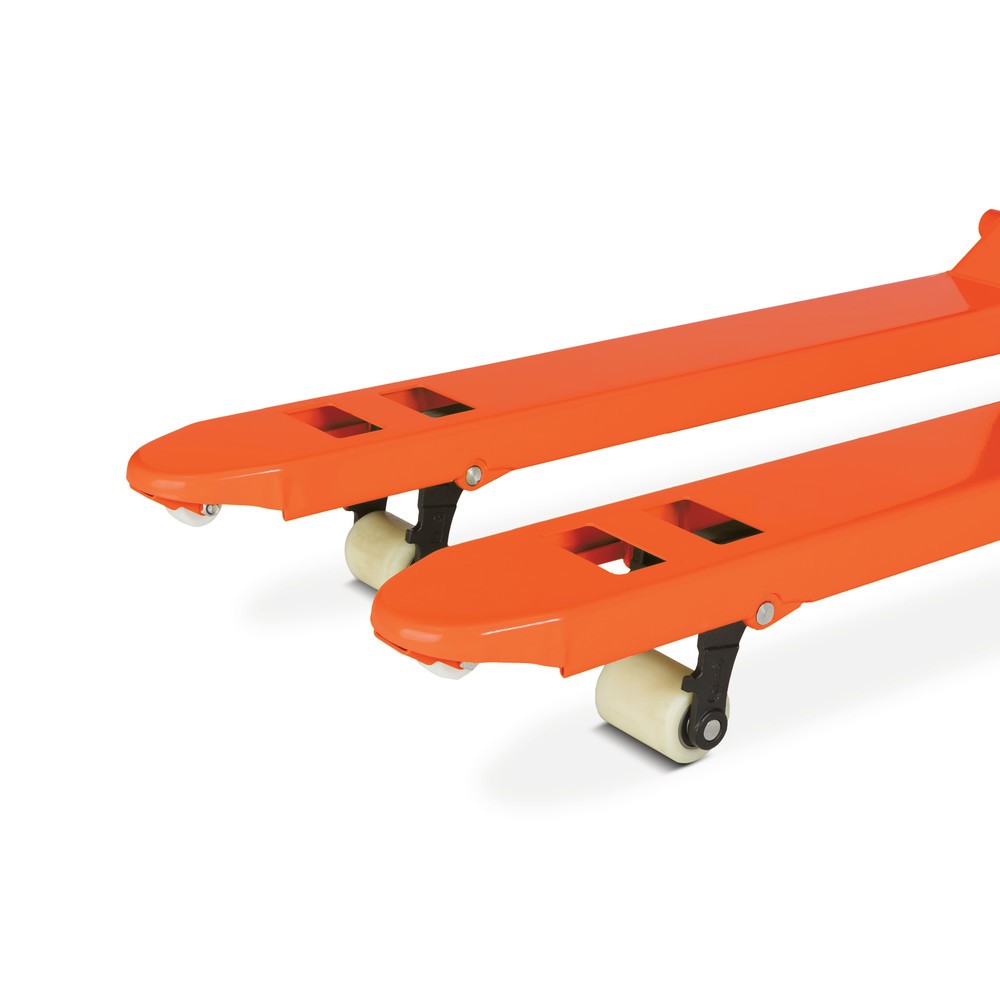

The steel frame is robust and torsion-free, meaning that it retains its shape even when subjected to heavy loads. Entry and exit rollers ensure easy pallet insertion. Depending on the ground conditions and your specific application, you can choose between different tyre materials and roller configurations.
We offer the hand pallet truck BASIC with a capacity of 2000 or 2500 kg.
Order the hand pallet truck from our shop in your chosen configuration.
This pallet truck from our BASIC series combines quality with an affordable price. The BASIC hand pallet truck is cost-effective and reliable. The lift hydraulics are maintenance-free, meaning that you will not incur any additional costs.
Thanks to the 210° steering angle, the pallet truck is highly agile and easy to manoeuvre. The large handle enables straightforward manual lifting and moving of your pallets. The hand lever allows you to lower the load with fully variable precision.
The steel frame is robust and torsion-free, meaning that it retains its shape even when subjected to heavy loads. Entry and exit rollers ensure easy pallet insertion. Depending on the ground conditions and your specific application, you can choose between different tyre materials and roller configurations.
We offer the hand pallet truck BASIC with a capacity of 2000 or 2500 kg.
Order the hand pallet truck from our shop in your chosen configuration.
