Item number:
602805

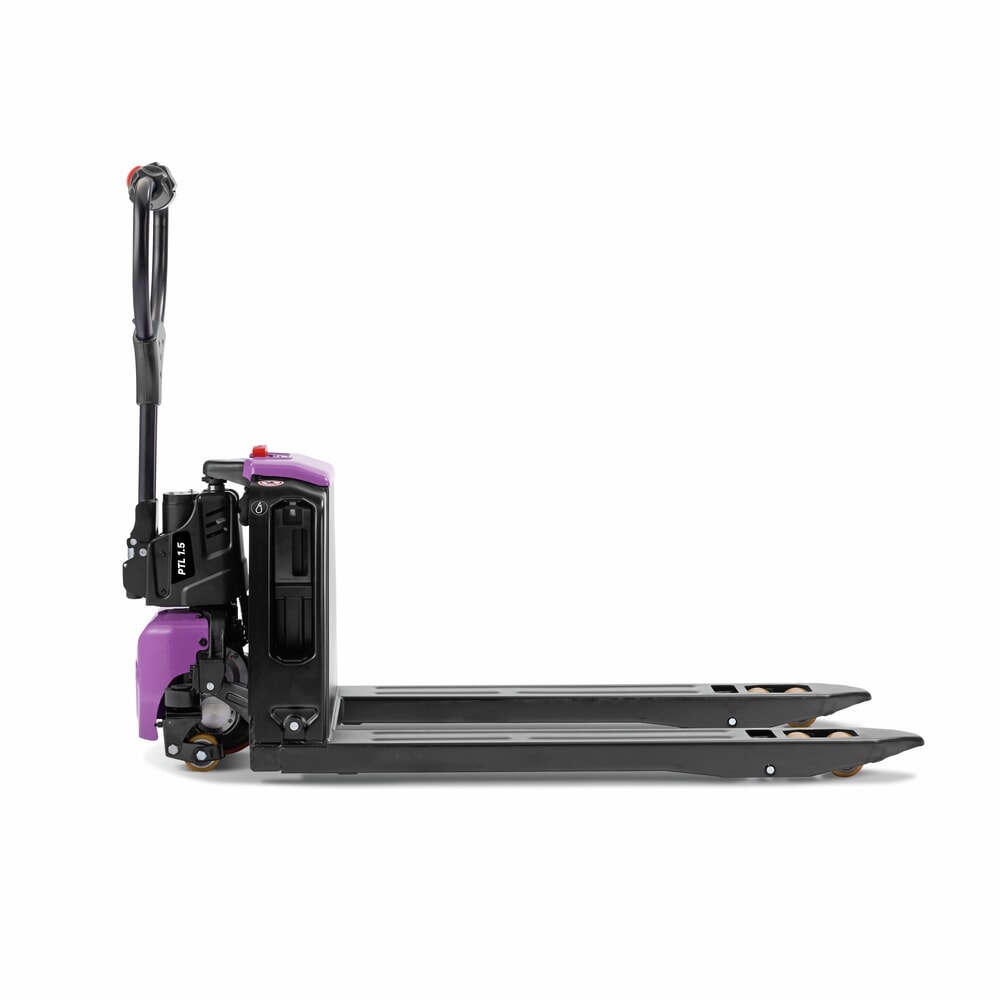

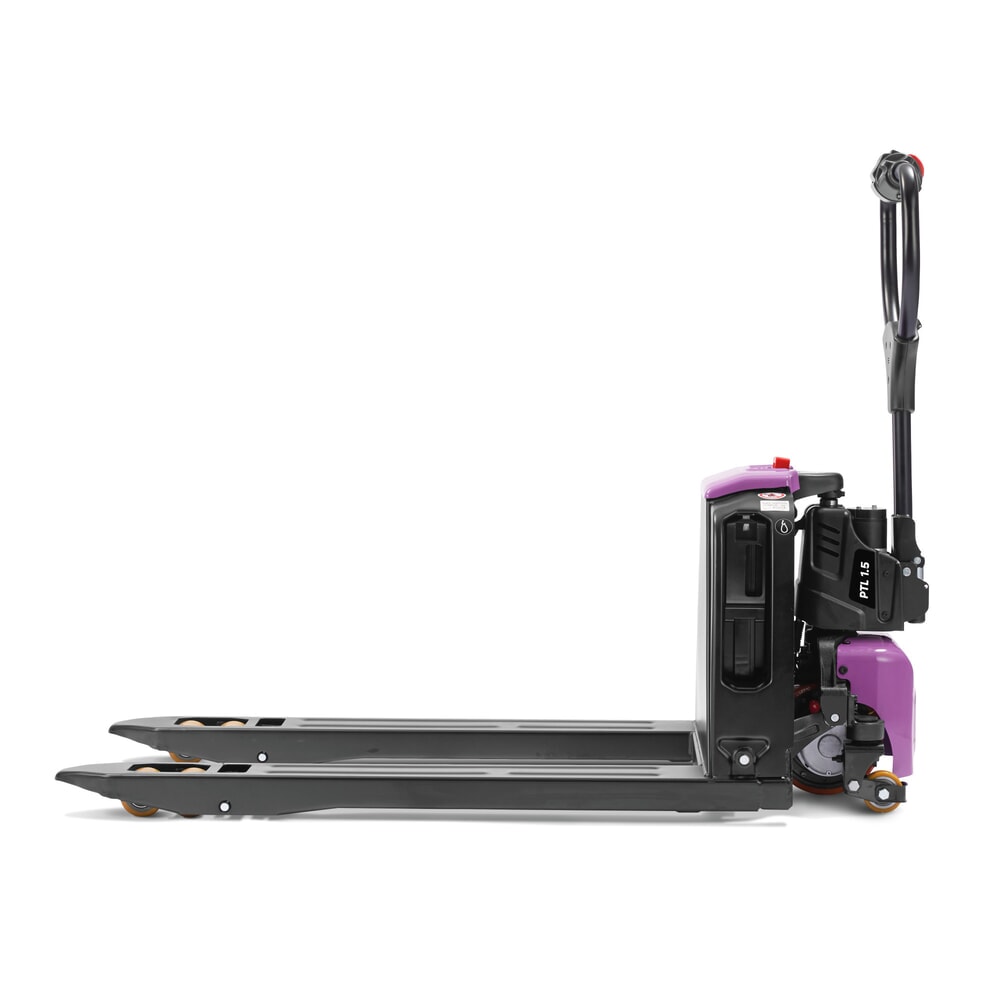

AntOn by Jungheinrich electric pallet truck PTL 1.5 with support wheels, load capacity 1,500 kg, fork length 1.150 mm
Compact electric pallet truck for ergonomic goods transport
-
Free shipping from £50 (plus VAT)
-
Secure data protection
-
Personal purchasing advice
Technical details
AntOn by Jungheinrich electric pallet truck PTL 1.5 with support wheels, load capacity 1,500 kg, fork length 1.150 mm
Article number: 602805 | EAN/GTIN: 4055091337579
| Access system |
key |
| Additional wheel width |
30 mm |
| Aisle width |
2025 mm |
| Battery capacity |
20 Ah/per unit |
| Battery type |
Lithium-ion |
| Battery voltage |
24 V/per unit |
| Battery weight |
5 kg |
| Brake |
electromagnetic |
| Brand |
AntOn by Jungheinrich |
| Capacity |
1500 kg |
| Control panel |
two-handed |
| Creep speed button |
Yes |
| Drive |
electric |
| Drive control type |
DC Speed Control Pulse controller |
| Drive motor power |
0.75 kW |
| Drive wheel diameter front |
210 mm |
| Drive wheel material |
Polyurethane (PU) |
| Drive wheel width front |
70 mm |
| Face of forks length |
400 mm |
| Fork height |
55 mm |
| Fork length |
1150 mm |
| Fork roller diameter |
80 mm |
| Fork roller equipment |
Tandem |
| Fork roller material |
Polyurethane (PU) |
| Fork roller width |
61 mm |
| Fork support width |
560 mm |
| Fork width |
150 mm |
| Ground clearance |
27 mm |
| Lift |
105 mm |
| Lift motor output |
0.5 kW |
| Lift range |
82 mm |
| Lift speed with/without load |
0,02 / 0,02 |
| Load centre |
600 mm |
| Lowering speed with/without load |
0,06 / 0,04 m/s |
| Max. gradeability laden/unladen |
6 / 16% |
| Net weight incl. battery |
117 kg |
| No. of batteries |
2 |
| Noise level as per EN 12053 (operator's ear) |
74 dB(A) |
| Operator type |
Pedestrian |
| Overall length |
1550 mm |
| Overall width |
590 mm |
| Route |
Medium distance |
| Section |
Performance |
| Spare wheel diameter |
74 mm |
| Tiller height |
645 - 1145 mm |
| Travel speed, laden/unladen |
4,0 / 4,5 km/h |
| Turning radius |
1360 mm |
| quality seal |
AntON LI-ION |
Item description
AntOn by Jungheinrich electric pallet truck PTL 1.5 with support wheels, load capacity 1,500 kg, fork length 1.150 mm
Article number: 602805 | EAN/GTIN: 4055091337579
The AntOn by Jungheinrich PTL 1.5 with support wheels and a load capacity of 1,500 kg is a reliable electric pallet truck for occasional goods transport over short distances – whether in the warehouse, outdoors or as a compact solution for HGV transport. Designed with a focus on robustness and functionality, it impresses with simple operation, solid construction and reliable lithium-ion technology. Thanks to its flexibility, the PTL 1.5 is suitable for a wide range of applications and ensures optimised workflows across various operational areas.
- Robust standard quality with a focus on functionality
- For occasional transport applications in warehouse, outdoors and HGVs
- Load capacity: 500 kg
- With support wheels for greater stability and manoeuvrability

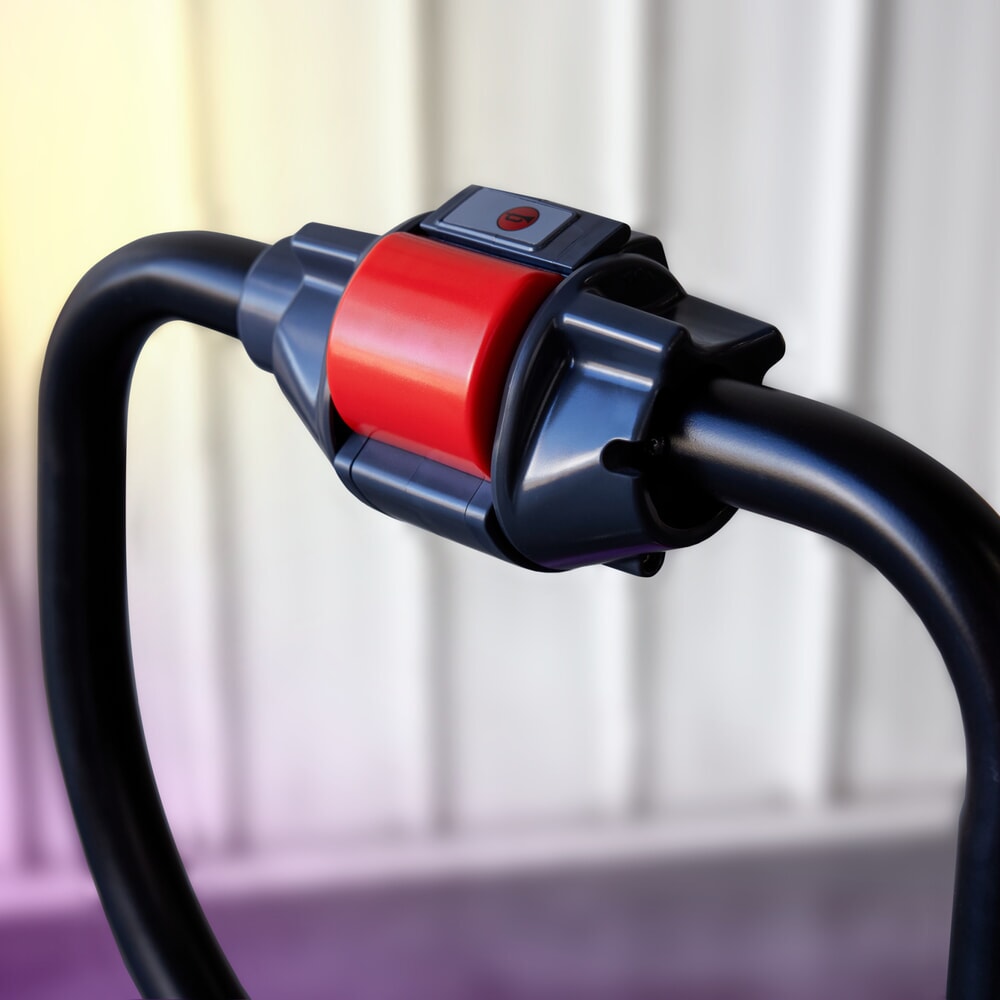

- Effortless manoeuvring thanks to slow travel button
- Lithium-ion technology for consistent performance
- Compact dimensions for tight work areas
- External charger for quick intermediate charging
- Optional second battery for increased availability
- Simple battery change thanks to boltless system
- Easy to use for all staff
- Fast availability for short-notice requirements
- Simple self-service with video tutorials
- Cost-efficient in purchase and operation
Flexible, robust and economical: the AntOn by Jungheinrich electric pallet truck PTL 1.5 with support wheels

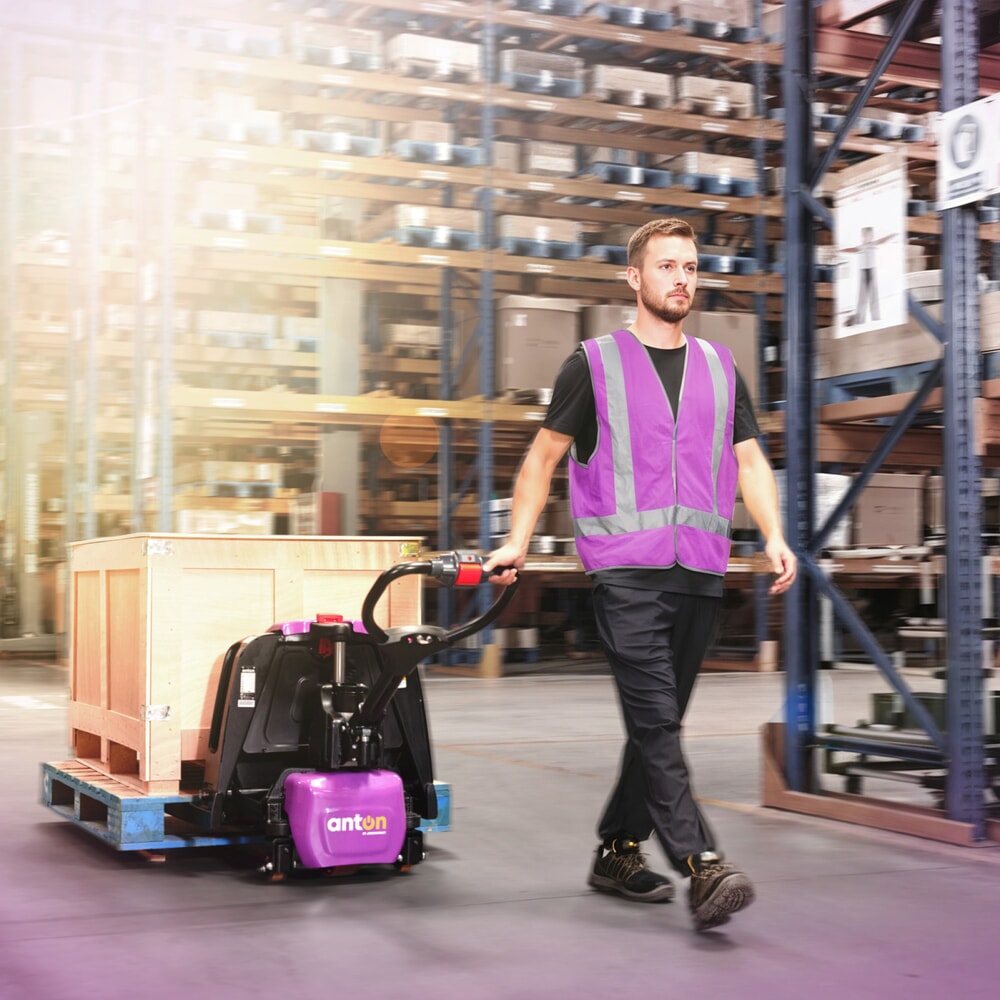

The AntOn by Jungheinrich electric pallet truck PTL 1.5 was developed for versatile use in a wide range of work environments. Whether for occasional transport tasks in the warehouse, loading and unloading HGVs or flexible use over shorter distances outdoors, its compact design makes it a manoeuvrable all-rounder that manoeuvres precisely even in the tightest spaces. The robust construction with stabilising support wheels also complies with all European regulations.

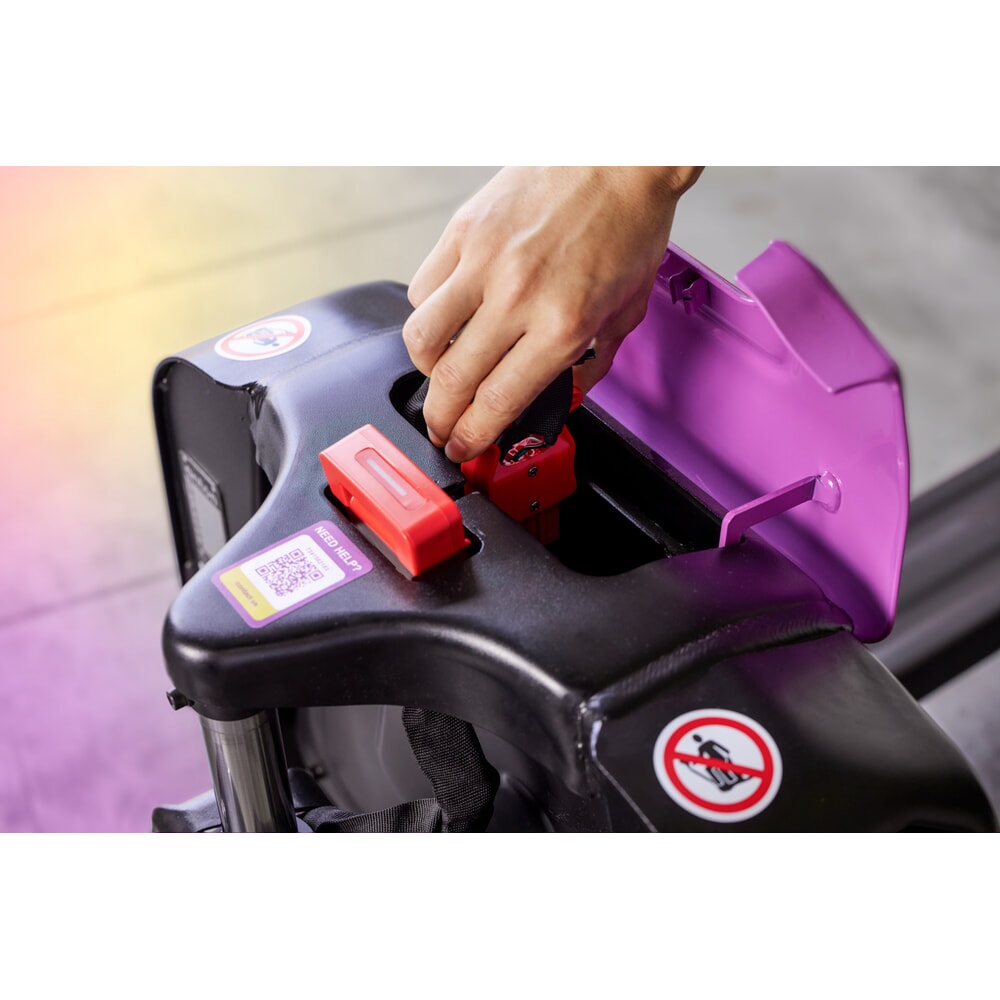

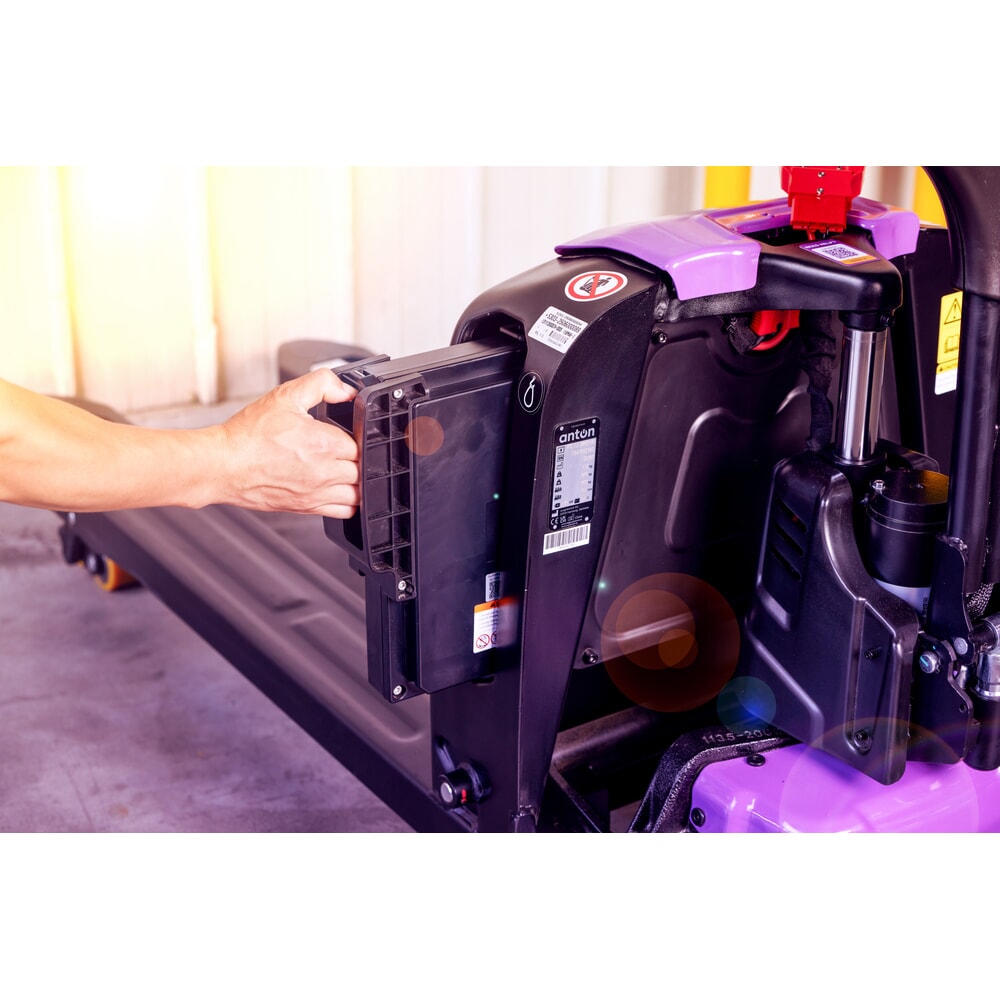

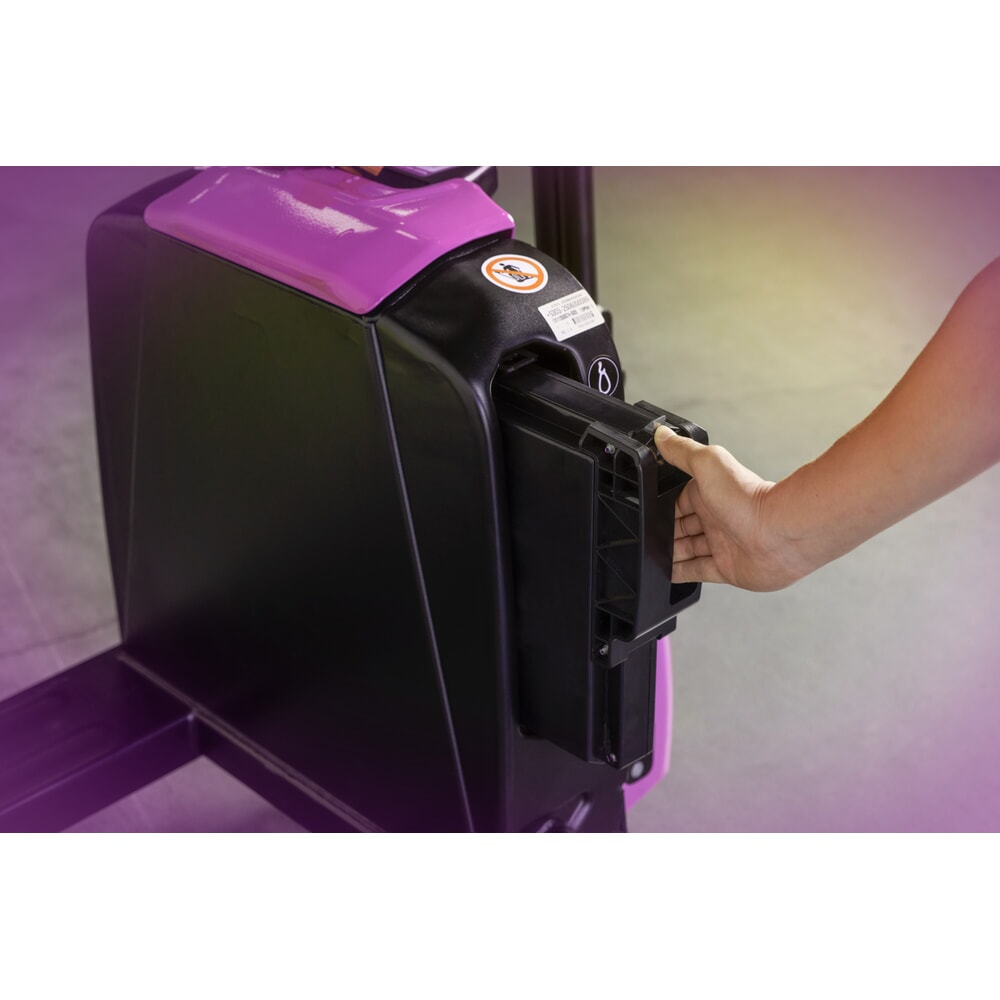

With a load capacity of up to 1,500 kg and reliable lithium-ion technology, the PTL 1.5 electric pallet truck delivers dependable and consistent performance throughout its service life. The rechargeable battery can be extended with a second removable unit if required, further increasing operating times. Thanks to the practical plug-in system, the battery change is straightforward and does not result in lengthy downtimes.
Its simple operation allows all employees to use the pallet truck safely without the need for extended training. Combined with high spare parts availability and the option for easy self-service, supported by video tutorials, the risk of extended downtimes is significantly reduced.
As a cost-effective solution, the AntOn by Jungheinrich PTL 1.5 impresses not only with its attractive price-performance ratio but also with its versatility – perfectly suited as an entry-level model with comprehensive basic functionality or as a flexible addition to existing fleets. With this model, you are investing in a reliable partner that noticeably simplifies occasional transport processes and increases efficiency.
The AntOn by Jungheinrich electric pallet truck PTL 1.5 was developed for versatile use in a wide range of work environments. Whether for occasional transport tasks in the warehouse, loading and unloading HGVs or flexible use over shorter distances outdoors, its compact design makes it a manoeuvrable all-rounder that manoeuvres precisely even in the tightest spaces. The robust construction with stabilising support wheels also complies with all European regulations.
With a load capacity of up to 1,500 kg and reliable lithium-ion technology, the PTL 1.5 electric pallet truck delivers dependable and consistent performance throughout its service life. The rechargeable battery can be extended with a second removable unit if required, further increasing operating times. Thanks to the practical plug-in system, the battery change is straightforward and does not result in lengthy downtimes.
Its simple operation allows all employees to use the pallet truck safely without the need for extended training. Combined with high spare parts availability and the option for easy self-service, supported by video tutorials, the risk of extended downtimes is significantly reduced.
As a cost-effective solution, the AntOn by Jungheinrich PTL 1.5 impresses not only with its attractive price-performance ratio but also with its versatility – perfectly suited as an entry-level model with comprehensive basic functionality or as a flexible addition to existing fleets. With this model, you are investing in a reliable partner that noticeably simplifies occasional transport processes and increases efficiency.
