Lithium-ion pallet trucks
Item number: 602802

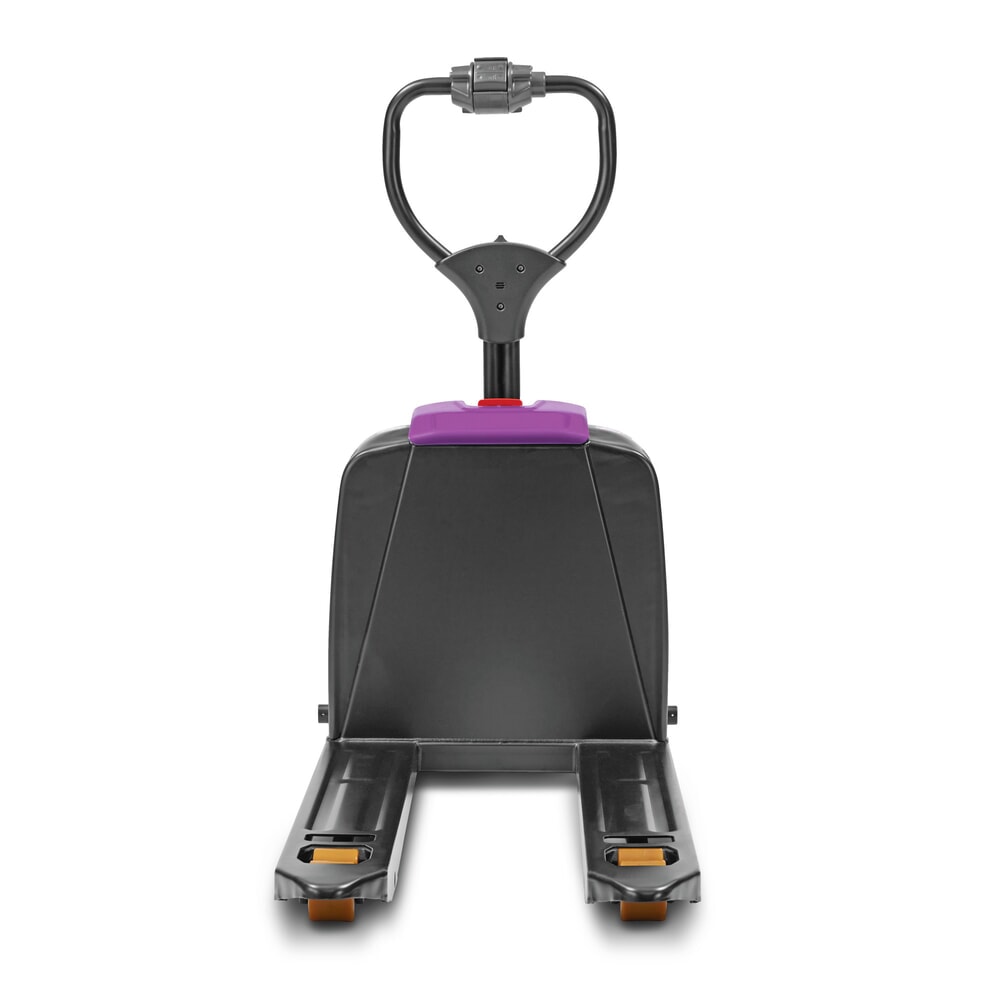

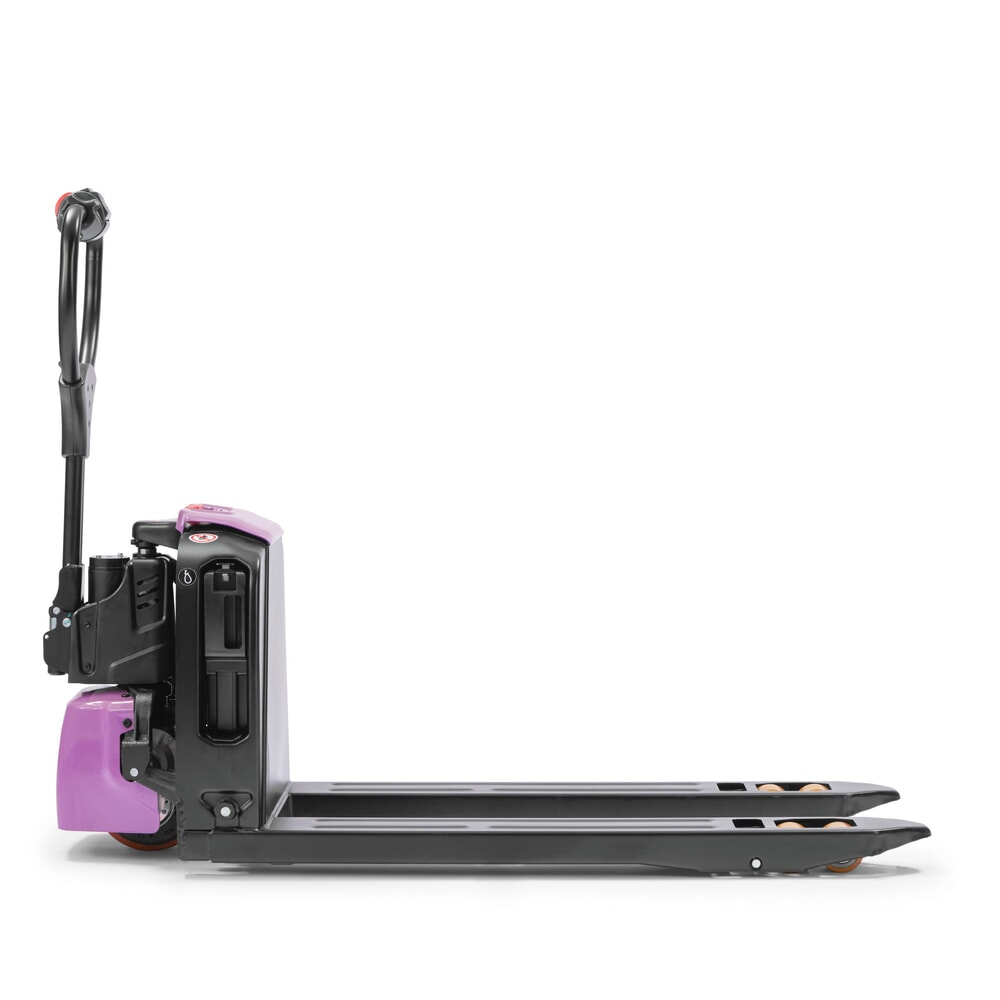

AntOn by Jungheinrich electric pallet truck PTL 1.5, extra wide for special pallets, load capacity 1,500 kg, fork length 1.150 mm

Compact electric pallet truck for ergonomic goods transport
Go to product description

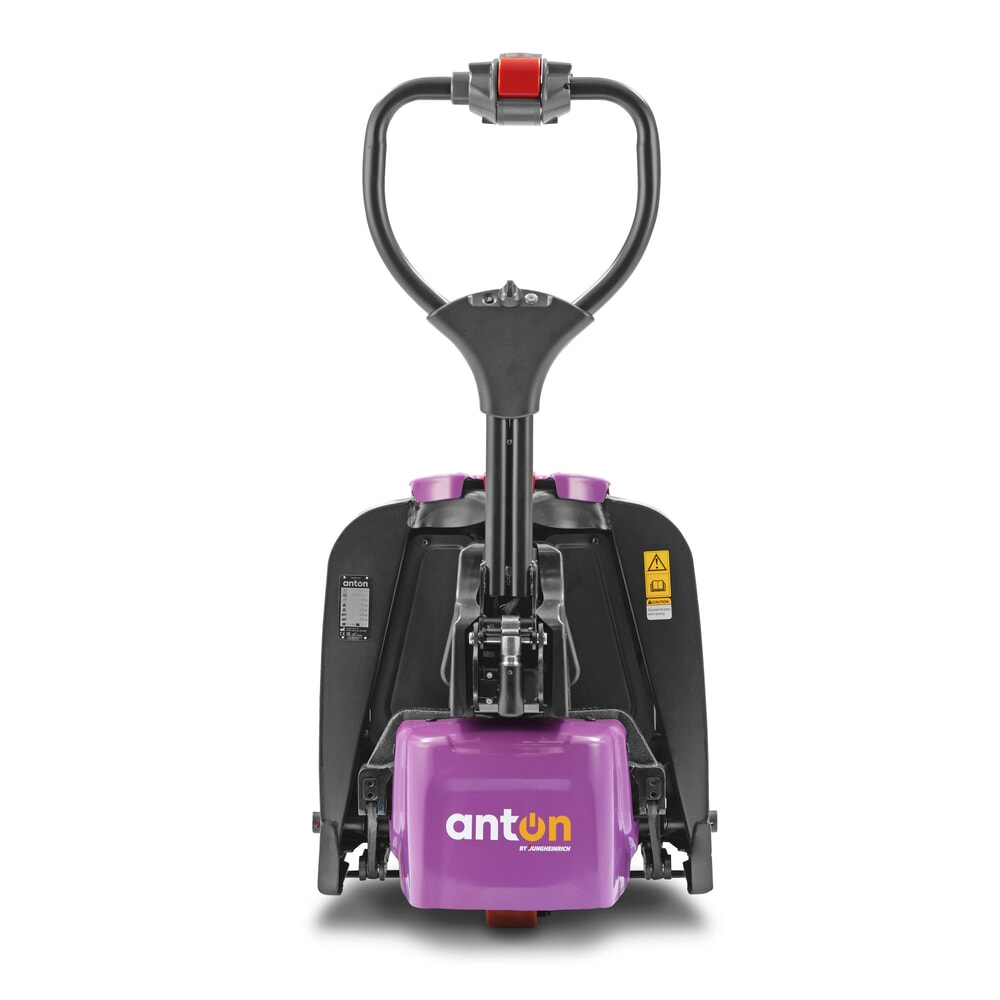

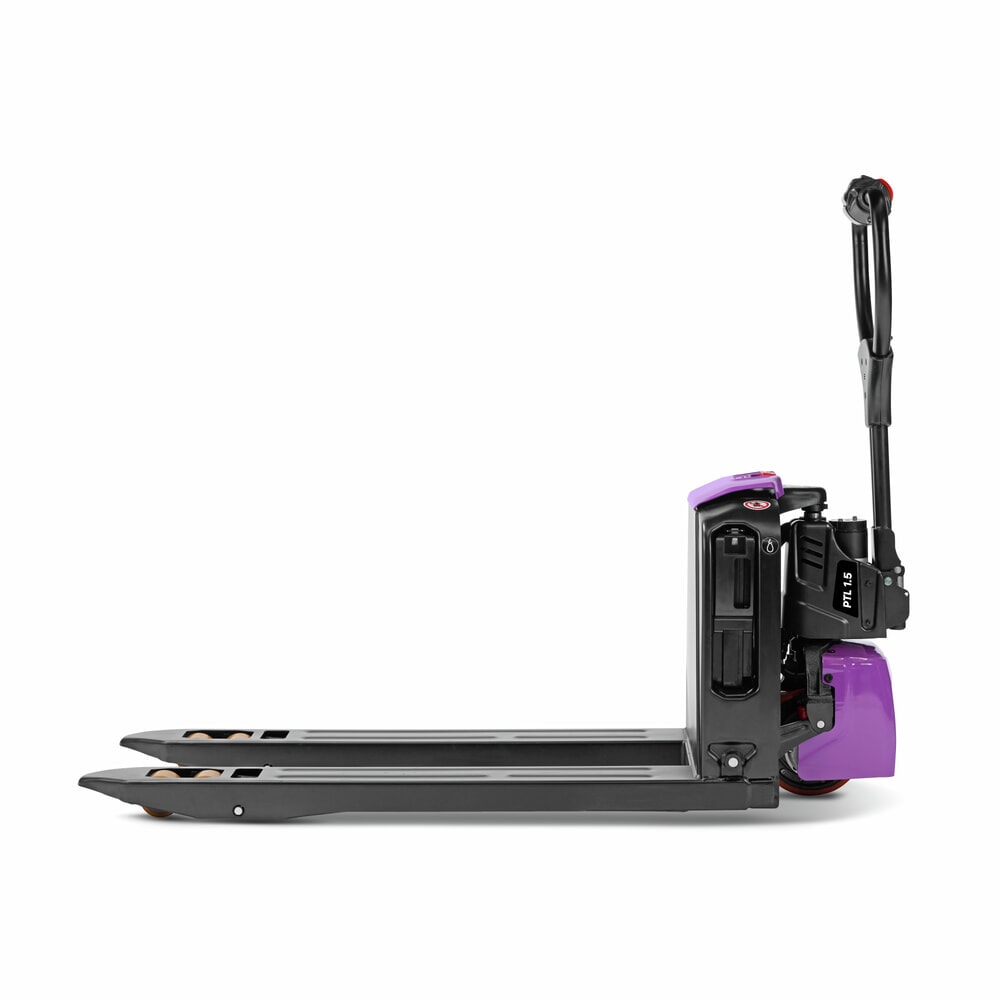

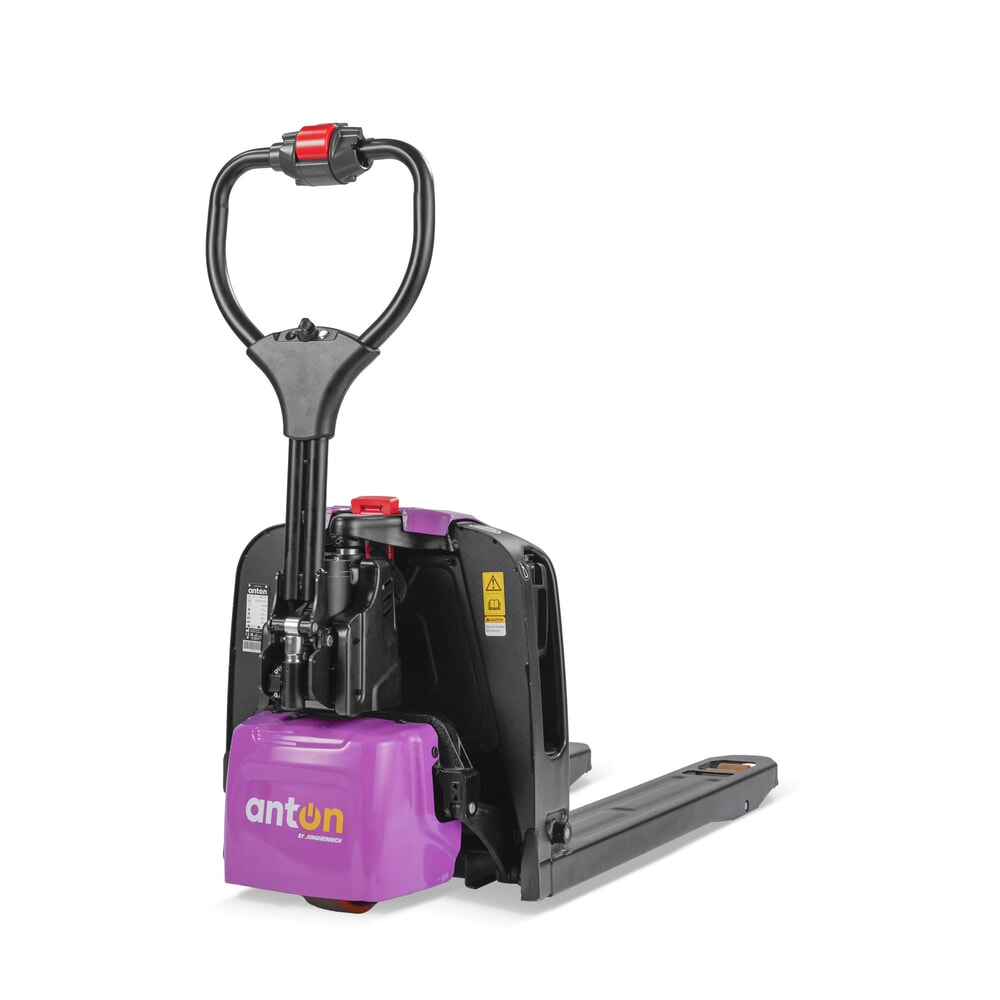

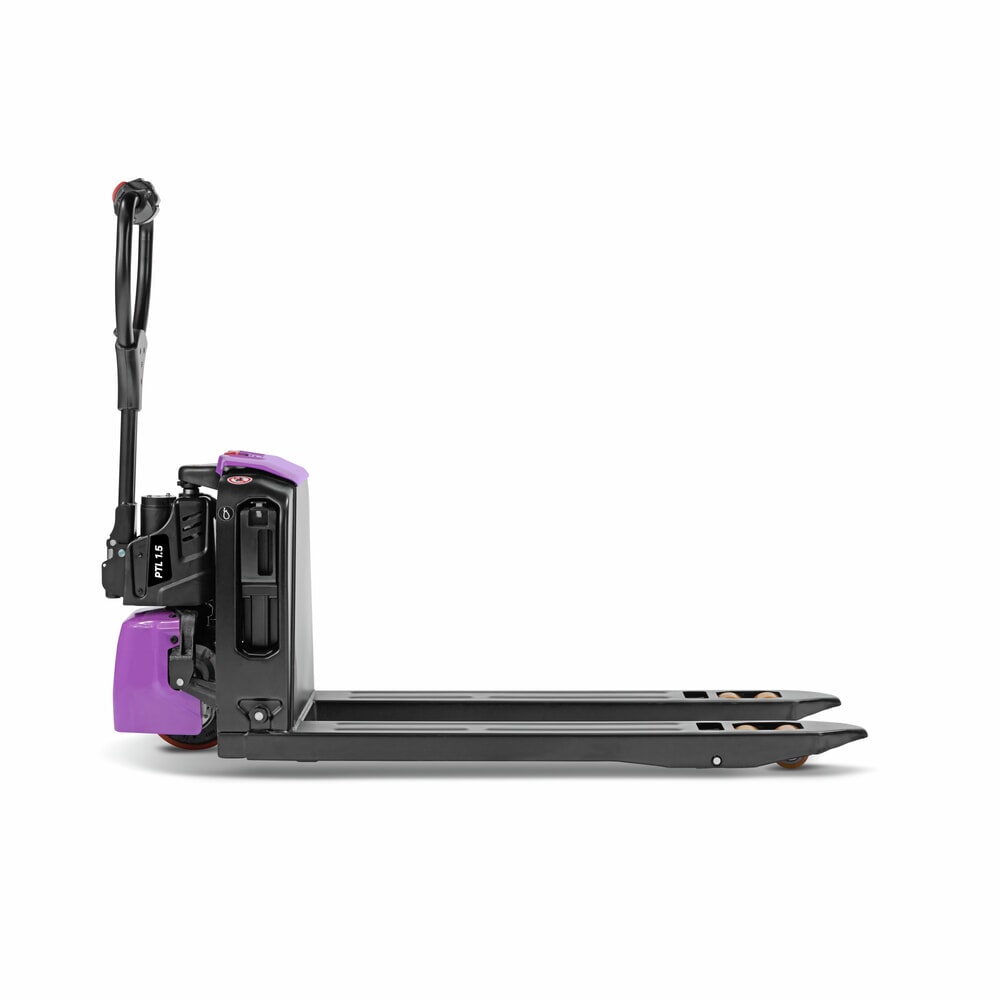

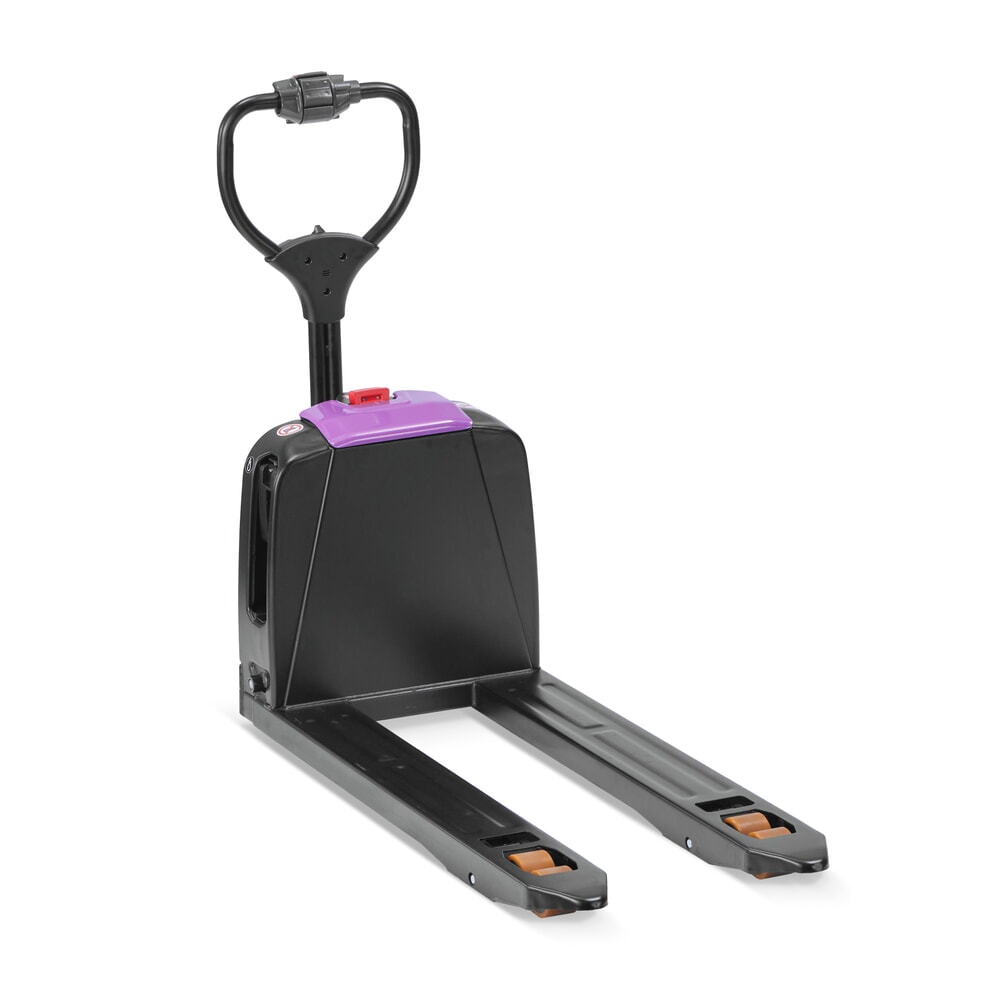

  • Product image no. 1: AntOn by Jungheinrich electric pallet truck PTL 1.5, extra wide for special pallets, load capacity 1,500 kg, fork length 1.150 mm
  • Product image no. 1: AntOn by Jungheinrich electric pallet truck PTL 1.5, extra wide for special pallets, load capacity 1,500 kg, fork length 1.150 mm
  • Product image no. 2: AntOn by Jungheinrich electric pallet truck PTL 1.5, extra wide for special pallets, load capacity 1,500 kg, fork length 1.150 mm
  • Product image no. 3: AntOn by Jungheinrich electric pallet truck PTL 1.5, extra wide for special pallets, load capacity 1,500 kg, fork length 1.150 mm
  • Product image no. 4: AntOn by Jungheinrich electric pallet truck PTL 1.5, extra wide for special pallets, load capacity 1,500 kg, fork length 1.150 mm
  • Product image no. 5: AntOn by Jungheinrich electric pallet truck PTL 1.5, extra wide for special pallets, load capacity 1,500 kg, fork length 1.150 mm
  • Product image no. 6: AntOn by Jungheinrich electric pallet truck PTL 1.5, extra wide for special pallets, load capacity 1,500 kg, fork length 1.150 mm
  • Product image no. 7: AntOn by Jungheinrich electric pallet truck PTL 1.5, extra wide for special pallets, load capacity 1,500 kg, fork length 1.150 mm
  • Product image no. 8: AntOn by Jungheinrich electric pallet truck PTL 1.5, extra wide for special pallets, load capacity 1,500 kg, fork length 1.150 mm
  • Product image no. 9: AntOn by Jungheinrich electric pallet truck PTL 1.5, extra wide for special pallets, load capacity 1,500 kg, fork length 1.150 mm
  • Product image no. 10: AntOn by Jungheinrich electric pallet truck PTL 1.5, extra wide for special pallets, load capacity 1,500 kg, fork length 1.150 mm
  • Product image no. 11: AntOn by Jungheinrich electric pallet truck PTL 1.5, extra wide for special pallets, load capacity 1,500 kg, fork length 1.150 mm
  • Product image no. 12: AntOn by Jungheinrich electric pallet truck PTL 1.5, extra wide for special pallets, load capacity 1,500 kg, fork length 1.150 mm
  • AntOn by Jungheinrich
  • Performance
  • AntON LI-ION
  • Display of product image no. 1
  • Display of product image no. 1
  • Display of product image no. 2
  • Display of product image no. 3
  • Display of product image no. 4
  • Display of product image no. 5
  • Display of product image no. 6
  • Display of product image no. 7
  • Display of product image no. 8
  • Display of product image no. 9
  • Display of product image no. 10
  • Display of product image no. 11
  • Display of product image no. 12

10 Working days

Topseller

£860.00

per pcs excl. VAT plus shipping

  • Free shipping from £50 (plus VAT)
  • Secure data protection
  • Personal purchasing advice

Technical details

AntOn by Jungheinrich electric pallet truck PTL 1.5, extra wide for special pallets, load capacity 1,500 kg, fork length 1.150 mm

Article number: 602802 | EAN/GTIN: 4055091337586 Main category: Lithium-ion pallet trucks

Access system
key
Aisle width
2025 mm
Battery capacity
20 Ah/per unit
Battery type
Lithium-ion
Battery voltage
24 V/per unit
Battery weight
5 kg
Brake
electromagnetic
Brand
AntOn by Jungheinrich
Capacity
1500 kg
Control panel
two-handed
Creep speed button
Yes
Drive
electric
Drive control type
DC Speed Control
Pulse controller
Drive motor power
0.75 kW
Drive wheel diameter front
210 mm
Drive wheel material
Polyurethane (PU)
Drive wheel width front
70 mm
Face of forks length
400 mm
Fork height
55 mm
Fork length
1150 mm
Fork roller diameter
80 mm
Fork roller equipment
Tandem
Fork roller material
Polyurethane (PU)
Fork roller width
61 mm
Fork support width
685 mm
Fork width
150 mm
Ground clearance
27 mm
Lift
105 mm
Lift motor output
0.5 kW
Lift range
82 mm
Lift speed with/without load
0,02 / 0,02
Load centre
600 mm
Lowering speed with/without load
0,06 / 0,04 m/s
Max. gradeability laden/unladen
6 / 16%
Net weight incl. battery
115 kg
No. of batteries
1
Noise level as per EN 12053 (operator's ear)
74 dB(A)
Operator type
Pedestrian
Overall length
1550 mm
Overall width
695 mm
Route
Medium distance
Section
Performance
Tiller height
645 - 1145 mm
Travel speed, laden/unladen
4,0 / 4,5 km/h
Turning radius
1360 mm
quality seal
AntON LI-ION

Item description

AntOn by Jungheinrich electric pallet truck PTL 1.5, extra wide for special pallets, load capacity 1,500 kg, fork length 1.150 mm

Article number: 602802 | EAN/GTIN: 4055091337586

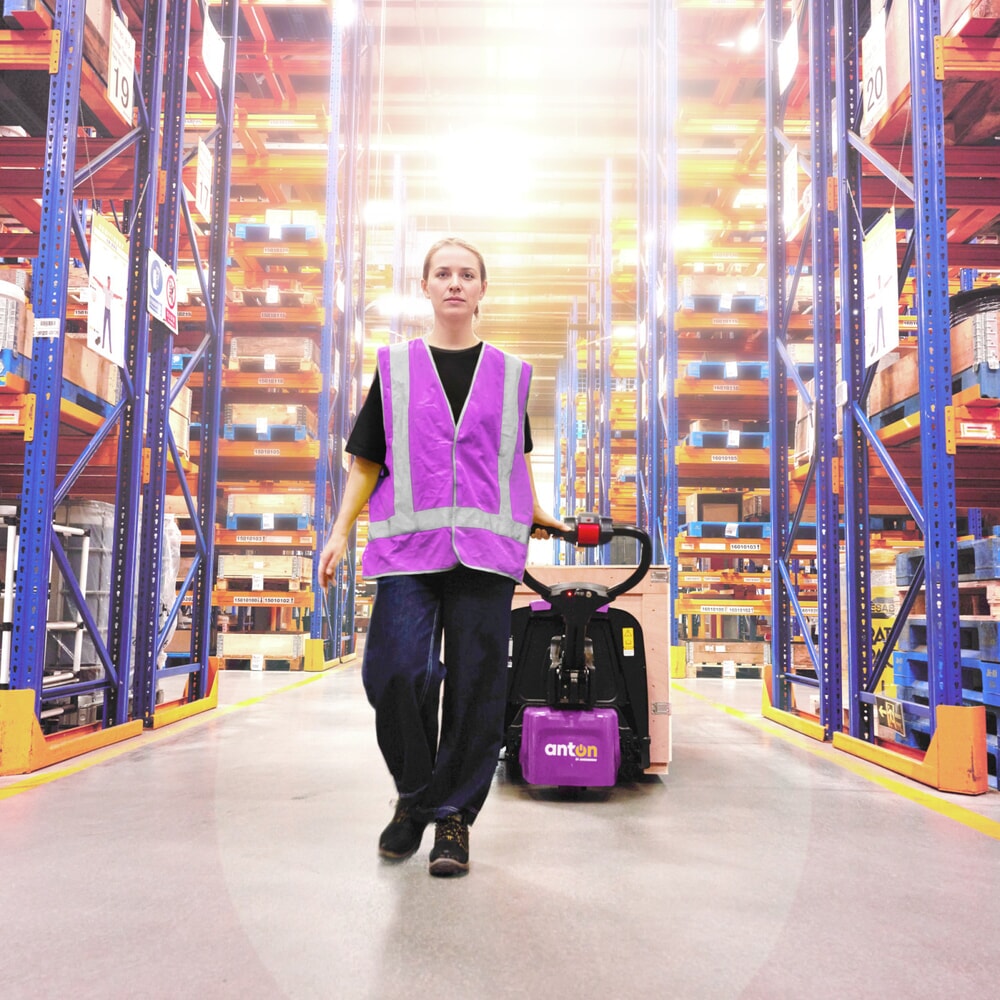

The extra-wide AntOn by Jungheinrich PTL 1.5 with a load capacity of 1,500 kg is a reliable electric pallet truck for occasional goods transport over short distances – whether in the warehouse, outdoors or as a compact solution for HGV transport. Designed with a focus on robustness and functionality, it impresses with simple operation, solid construction and reliable lithium-ion technology. Thanks to its flexibility, the PTL 1.5 is suitable for a wide range of applications and ensures optimised workflows across various operational areas.
  • Robust standard quality with a focus on functionality
  • For occasional transport applications in warehouse, outdoors and HGVs
  • Load capacity: 1.500 kg
  • Extra-wide design for transporting special pallets

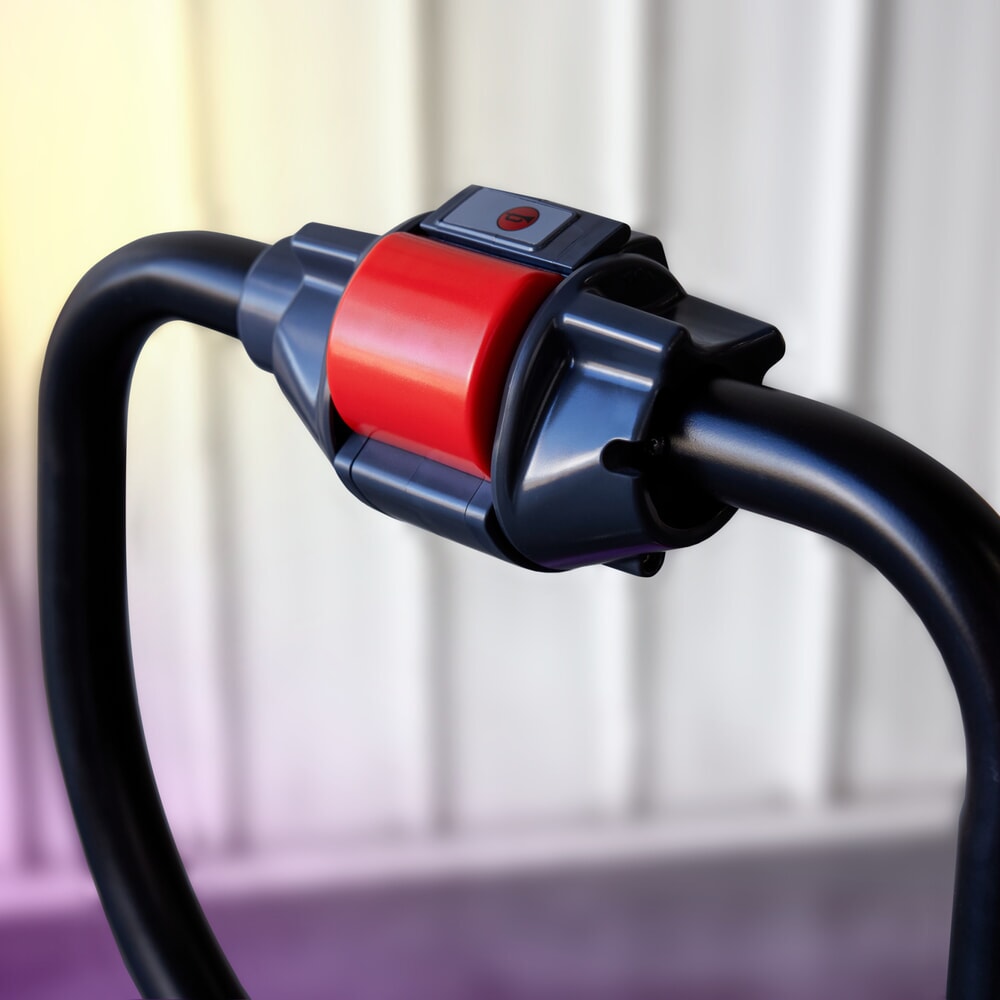

  • Effortless manoeuvring thanks to slow travel button
  • Lithium-ion technology for consistent performance
  • Compact dimensions for tight work areas
  • External charger for quick intermediate charging
  • Optional second battery for increased availability

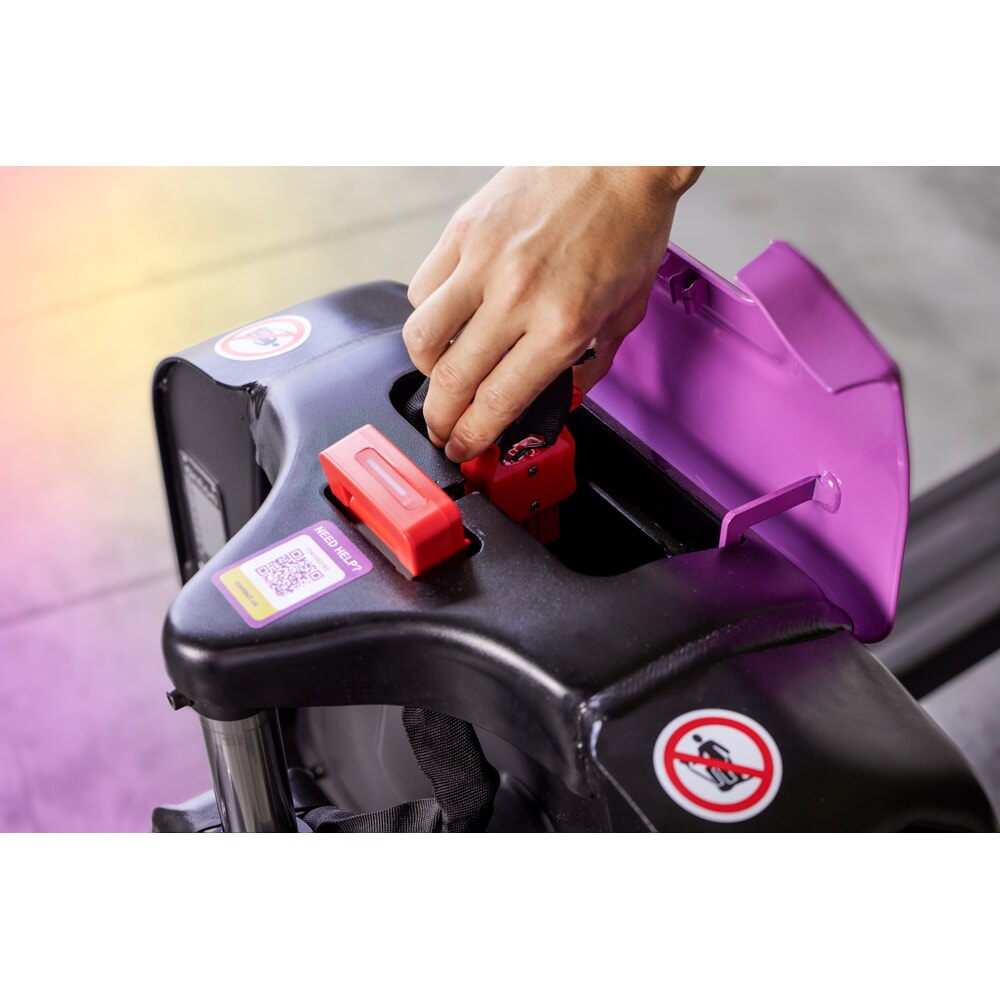

  • Simple battery change thanks to boltless system
  • Easy to use for all staff
  • Fast availability for short-notice requirements
  • Simple self-service with video tutorials
  • Cost-efficient in purchase and operation

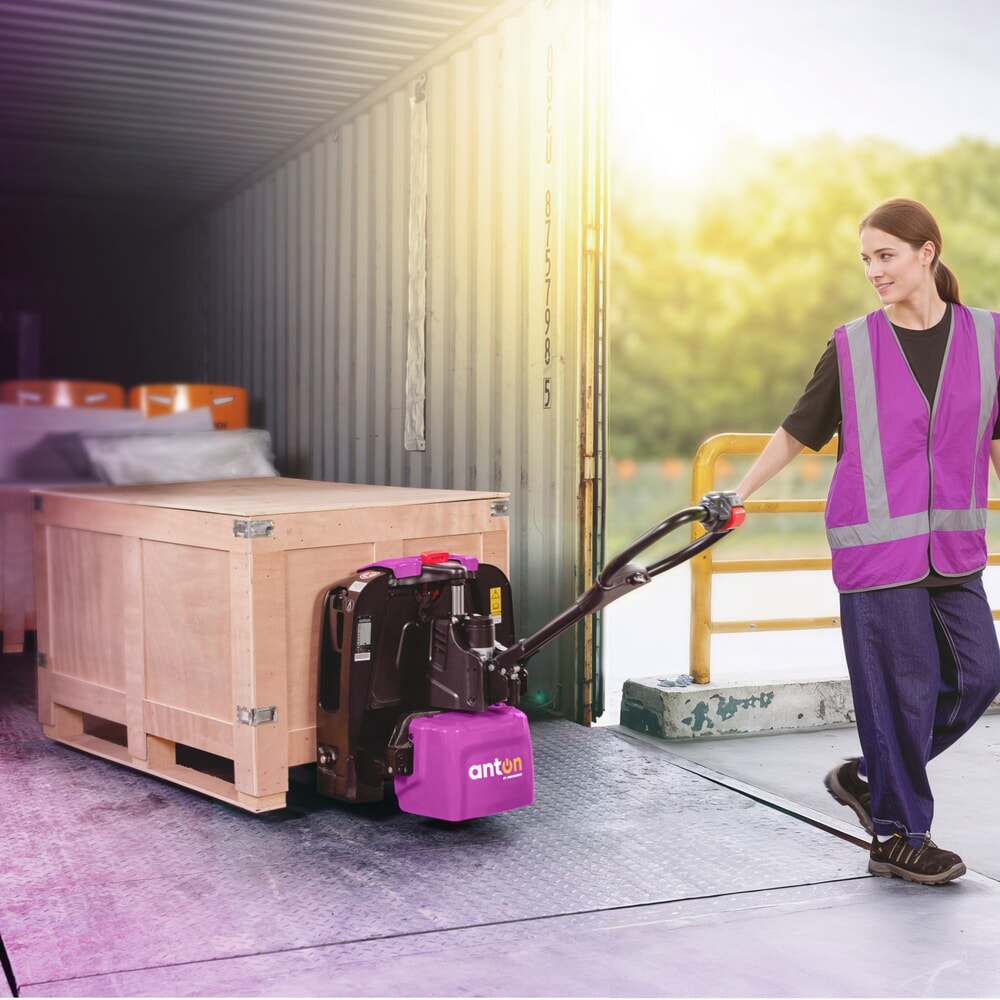

The AntOn by Jungheinrich electric pallet truck PTL 1.5 was developed for versatile use in a wide range of work environments. Thanks to its extra width, special pallets can also be manoeuvred easily and safely. Whether for occasional transport tasks in the warehouse, loading and unloading HGVs or flexible use over shorter distances outdoors, its compact design makes it a manoeuvrable all-rounder that manoeuvres precisely even in the tightest spaces. The robust construction also complies with all European regulations.

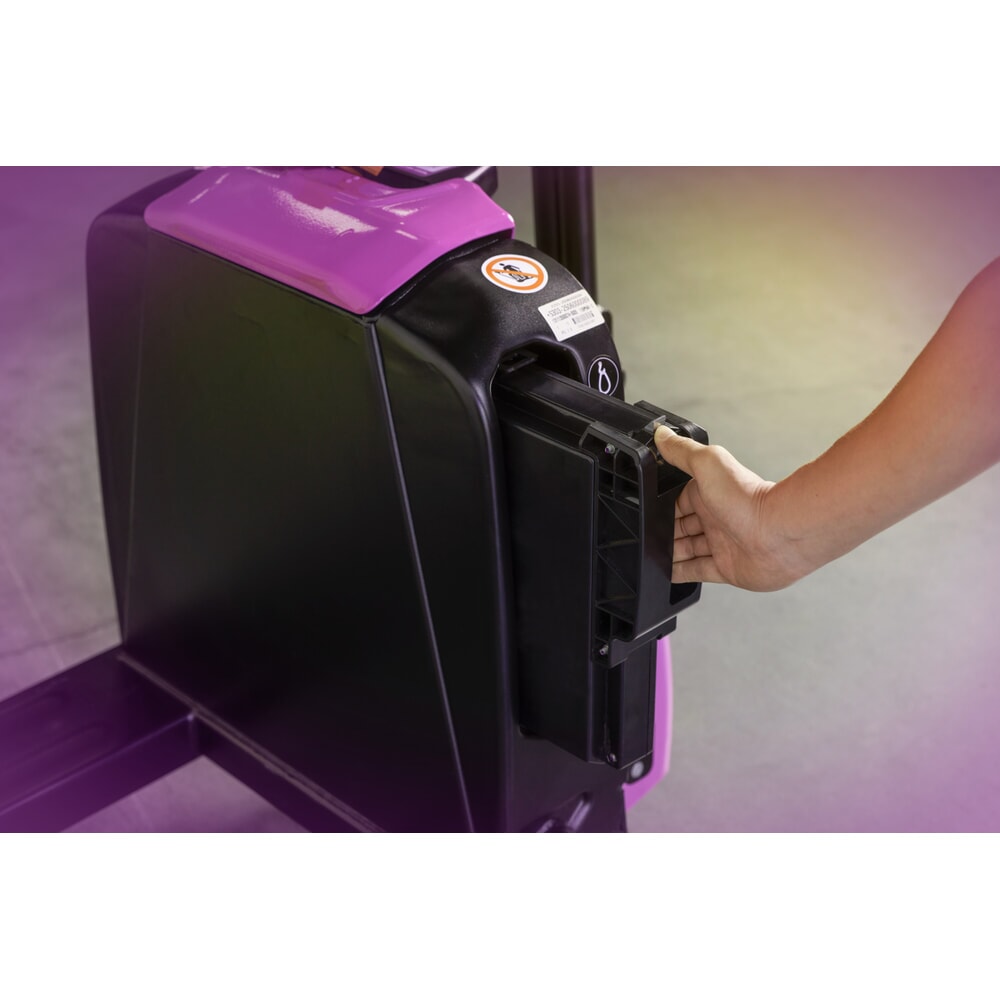

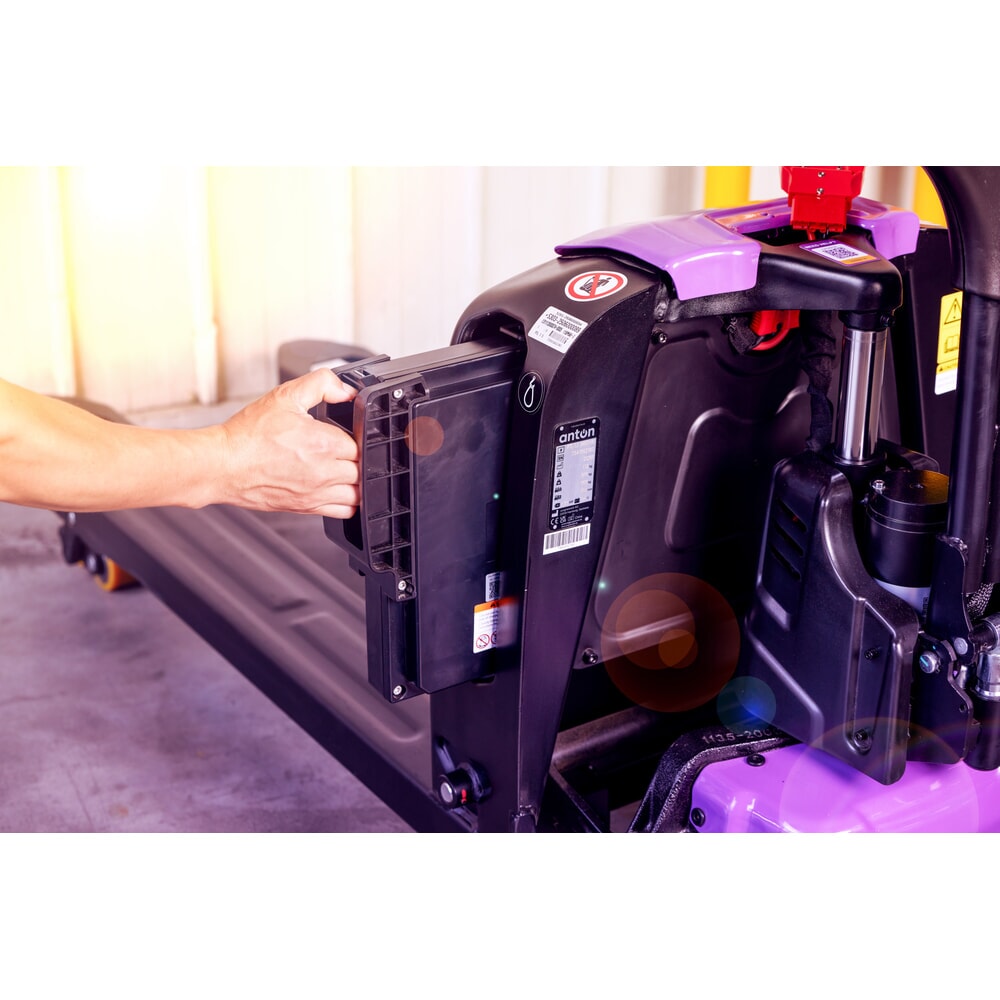

With a load capacity of up to 1,500 kg and reliable lithium-ion technology, the PTL 1.5 electric pallet truck delivers dependable and consistent performance throughout its service life. The rechargeable battery can be extended with a second removable unit if required, further increasing operating times. Thanks to the practical plug-in system, the battery change is straightforward and does not result in lengthy downtimes.

Its simple operation allows all employees to use the pallet truck safely without the need for extended training. Combined with high spare parts availability and the option for easy self-service, supported by video tutorials, the risk of extended downtimes is significantly reduced.

As a cost-effective solution, the AntOn by Jungheinrich PTL 1.5 impresses not only with its attractive price-performance ratio but also with its versatility – perfectly suited as an entry-level model with comprehensive basic functionality or as a flexible addition to existing fleets. With this model, you are investing in a reliable partner that noticeably simplifies occasional transport processes and increases efficiency.
