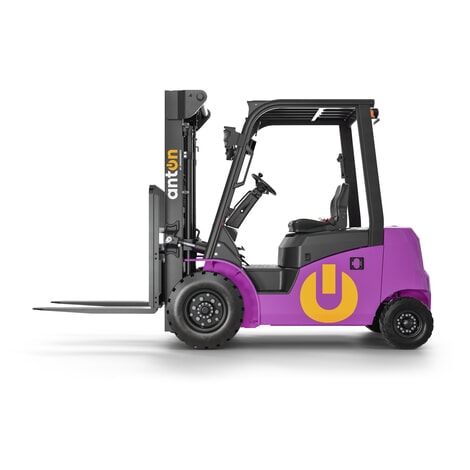

- Robust technology for daily use.
- Three-stage telescopic mast for efficient lifting and lowering.
- Load capacity of 2,500 kg up to a lift height of 4,800 mm.
10 Working days
- Robust technology for daily use.
- Two-stage telescopic mast for efficient lifting and lowering
- Load capacity of 3,000 kg up to a lift height of 3,300 mm.
10 Working days
- Robust technology for daily use.
- Two-stage telescopic mast for efficient lifting and lowering
- Load capacity of 2,500 kg up to a lift height of 3,300 mm.
10 Working days
- Robust technology for daily use.
- Three-stage telescopic mast for efficient lifting and lowering.
- Load capacity of 2,500 kg up to a lift height of 4,800 mm.
10 Working days
- Robust technology for daily use.
- Three-stage telescopic mast for efficient lifting and lowering.
- Load capacity of 3,000 kg up to a lift height of 4,800 mm.
27 Working days
- Robust technology for daily use.
- Three-stage telescopic mast for efficient lifting and lowering.
- Load capacity of 3,000 kg up to a lift height of 4,800 mm.
27 Working days
How to find the right electric forklift
Modern electric forklifts are transforming internal logistics through emission-free, quiet and cost-effective operation. The AntOn by Jungheinrich electric forklift trucks deliver everything you need for demanding day-to-day operations: robust technology, easy handling and reliable performance for light to medium-duty transport tasks.
Whether for internal transport, quick loading and unloading of lorries, or nimble manoeuvring in confined spaces: our electric forklifts are versatile and, thanks to lithium-ion technology, swiftly available – all at a price point that makes switching to electric particularly attractive.
At Jungheinrich PROFISHOP, you'll find the AntOn by Jungheinrich battery powered forklifts in two model types with a load capacity of 2500 kg or 3000 kg, featuring two-stage or three-stage telescopic masts. With maximum lift heights of up to 3300 mm or 4800 mm, these electric four-wheel forklifts meet a wide range of warehouse requirements with ease.
1. Benefits of the AntOn by Jungheinrich electric forklifts
- Emission-free and low-noise operation (below 74 dB(A)) for safe, clean workplaces – including indoors
- Maintenance-free lithium-ion technology enables rapid charging via an external charger with no memory effect and consistent performance throughout the entire shift
- Easy handling for use in narrow warehouse aisles, plus an integrated side shifter for precise positioning in confined areas
- Large tyres and increased ground clearance for use on uneven surfaces and outdoors
- Travel speed of up to 17 km/h for faster workflows
- Waterproof design (IP54 protection rating) for use in various working environments
- Ergonomic operator workstation with optionally heated comfort weather protection cabin
2. Comparing our AntOn by Jungheinrich CBH 2
The AntOn by Jungheinrich electric forklift comes in two base models, each with three equipment levels. This means there are six variants to choose from:
| Technical parameters | Base vehicle AntOn CBH 2.5 electric forklift | Base vehicle AntOn CBH 3.0 electric forklift |
|---|---|---|
| Load capacity |
up to 2500 kg |
up to 3000 kg |
| Available mast types & lift range |
Two-stage telescopic mast: 40–3300 mm Three-stage telescopic mast (with free lift): 40–4800 mm |
Two-stage telescopic mast: 45–3300 mm Three-stage telescopic mast (with free lift): 45–4800 mm |
| Lift speed (without load) |
0.56 m/s |
0.5 m/s |
| Travel speed (without load) |
up to 17 km/h |
up to 17 km/h |
| Ground clearance |
170 mm |
185 mm |
| Gradeability (without load) |
25% |
23% |
| Turning radius |
2300 mm |
2379 mm |
| Throughput capacity |
up to 150 t/h |
up to 180 t/h |
| Charging times |
2.1 h or 3.5 h (depending on external charger) |
2.1 h or 3.5 h (depending on external charger) |
| Variant 1 |
CBH 2.5 with two-stage telescopic mast:
|

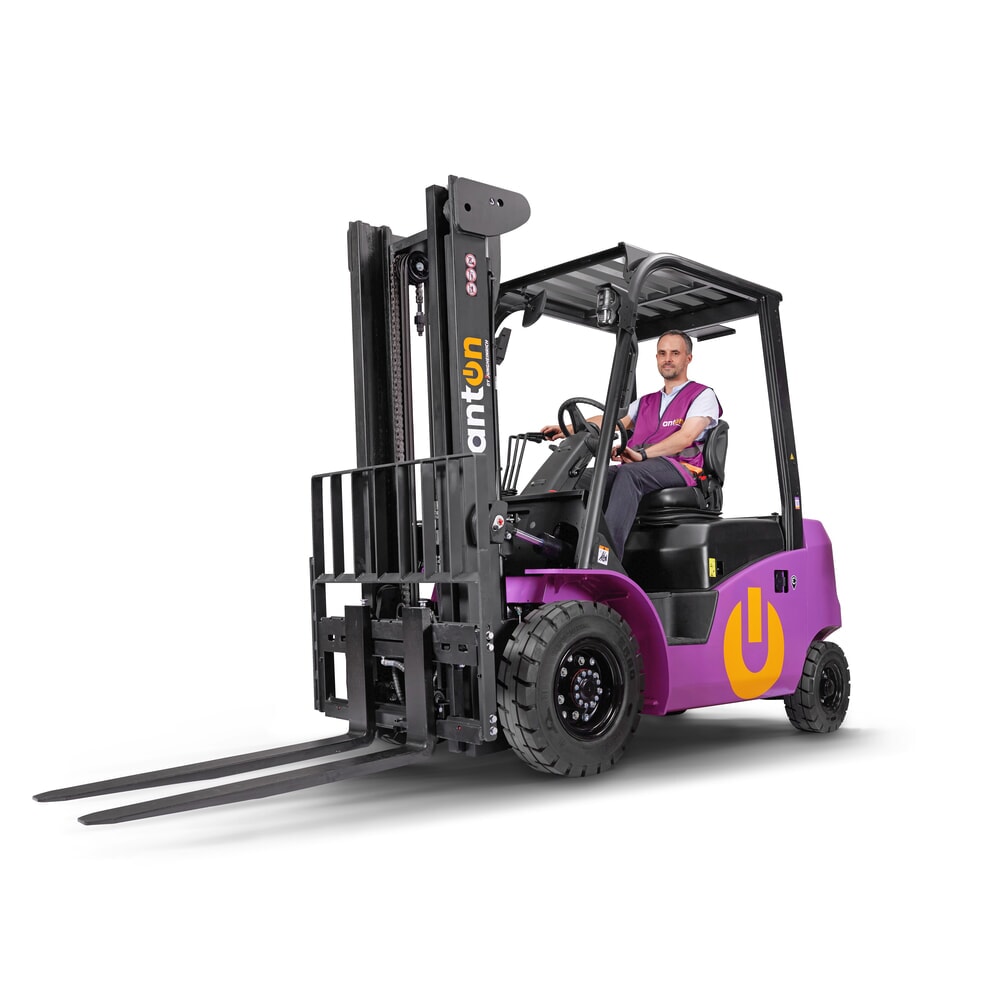

CBH 3.0 with two-stage telescopic mast:
|
| Variant 2 |

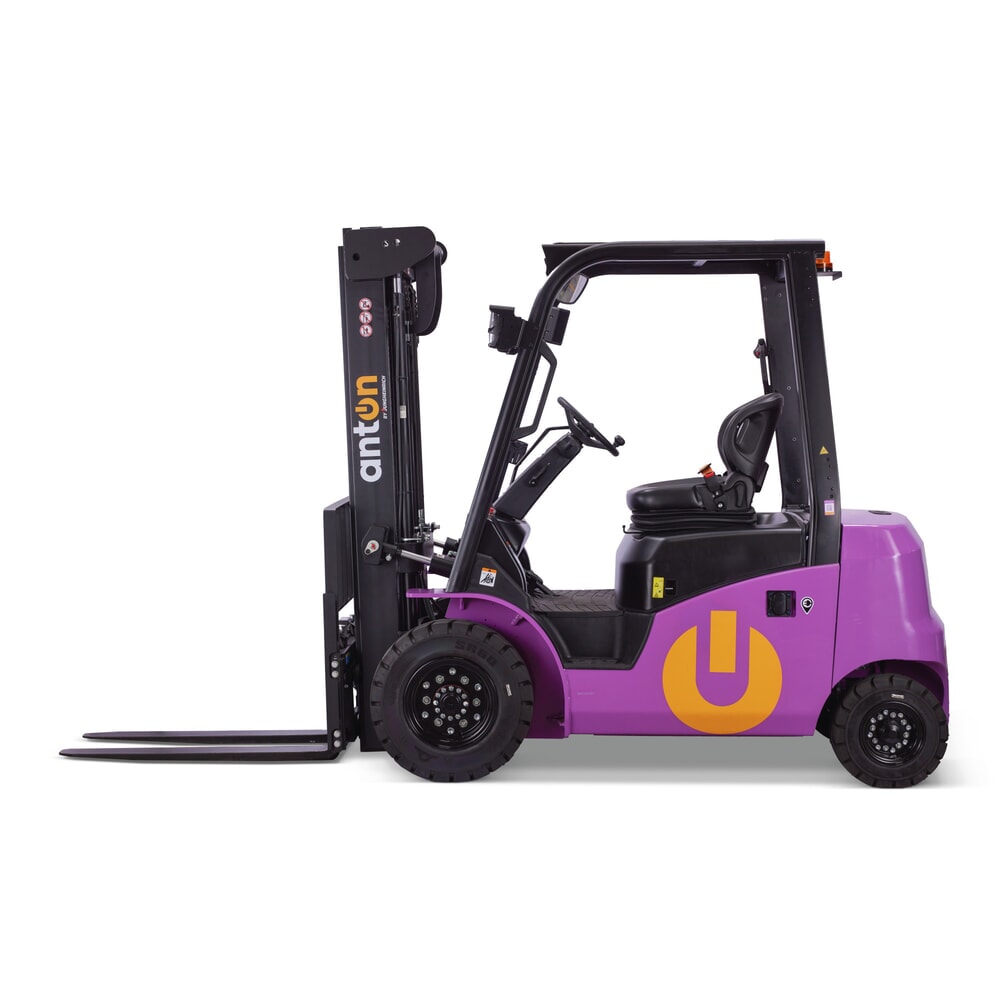

CBH 2.5 with three-stage telescopic mast and eco weather protection cabin:
|
CBH 3.0 with three-stage telescopic mast and eco weather protection cabin:
|
| Variant 3 |

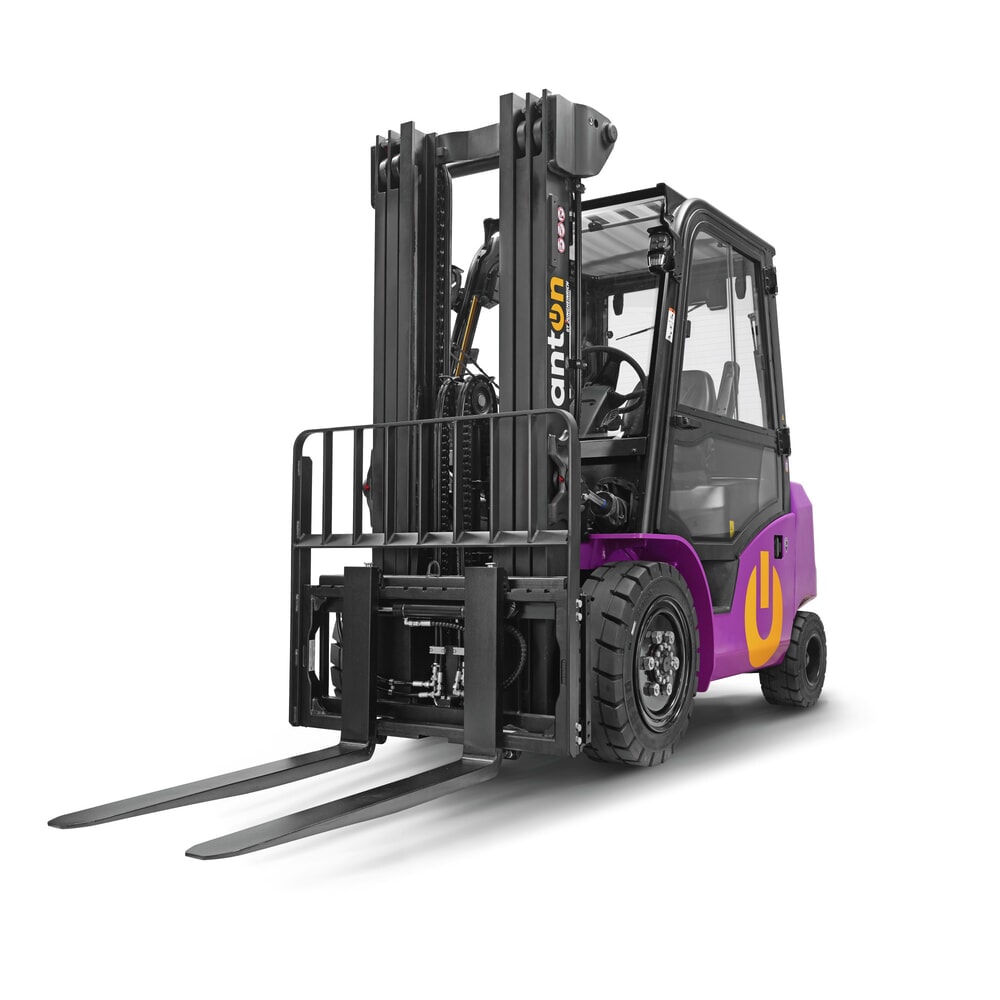

CBH 2.5 with three-stage telescopic mast and comfort weather protection cabin:
|
CBH 3.0 with three-stage telescopic mast and comfort weather protection cabin:
|
Both electric forklift types can be used with forklift attachments and accessories, allowing you to expand their range of applications to meet your needs.
3. Determining load capacity and handling for electric forklifts
The right load capacity for your needs depends on your typical transport requirements.
- The CBH 2.5 with 2500 kg load capacity handles standard pallets and medium-weight goods effortlessly. It's ideally suited for operations with mixed transport tasks.
- The CBH 3.0 with 3000 kg load capacity was developed for heavier loads and offers additional reserves for demanding transport tasks.
Both electric forklift trucks feature a side shifter (model-dependent) that enables millimetre-precise lateral positioning of loads. This reduces manoeuvring time and boosts efficiency in tight warehouse spaces.
Learn how to correctly determine forklift load capacity, including residual capacity and load centre of gravity, in our guide “Load capacity for industrial trucks – Dimensioning loads correctly”.
4. Considering mast and lift range for your electric forklift
AntOn by Jungheinrich electric forklift trucks are available with either a two-stage or three-stage telescopic mast. Both mast types feature a well-designed hydraulic hose arrangement and chain positioning for excellent mast visibility.
This increases precision when positioning loads and reduces the risk of accidents during pallet handling. Mechanical hydraulic levers ensure that you maintain precise control of mast functions even with heavy loads.
The mast types differ in lift range and other key parameters that determine each model's application range. Free lift is particularly important, as it indicates how high the forks can rise without increasing the overall mast height. This is essential when passing through low doorways or stacking in areas with limited headroom, such as basement levels.
| Technical parameters | Two-stage telescopic mast | Three-stage telescopic mast |
|---|---|---|
| Lift range |
CBH 2.5: 40–3300 mm CBH 3.0: 45–3300 mm |
CBH 2.5: 40–4800 mm CBH 3.0: 45–4800 mm |
| Free lift |
CBH 2.5: 195 mm CBH 3.0: 135 mm |
CBH 2.5: 1240 mm CBH 3.0: 1170 mm |
| Mast height lowered |
CBH 2.5: 2240 mm CBH 3.0: 2215 mm |
CBH 2.5: 2265 mm CBH 3.0: 2265 mm |
| Mast height extended |
CBH 2.5: 4360 mm CBH 3.0: 4430 mm |
CBH 2.5: 5895 mm CBH 3.0: 5975 mm |
5. FAQs for electric forklifts
Operators require a valid forklift operator certificate to drive an electric forklift on company premises. This is typically obtained through accredited training providers such as RTITB or ITSSAR. For driving on public roads, a valid driving licence and additional vehicle approvals are required.
Charging time depends on battery capacity and the charger used. The AntOn by Jungheinrich models feature lithium-ion technology, enabling rapid top-up charging even during short breaks. A full charge typically takes 2.1 to 3.5 hours.
The maintenance-free lithium-ion batteries in the CBH models can handle one to two shifts without intermediate charging, depending on usage intensity.
With proper use, these batteries last for years, delivering consistent performance with no memory effect. Their longer lifespan compared to lead-acid batteries makes them particularly economical.
Certain AntOn by Jungheinrich electric forklifts feature waterproof housings rated to IP54, making them suitable for outdoor use. The heated weather protection cabin (on certain models) also ensures comfortable working conditions. However, battery runtime may be reduced at low temperatures.
