Technical details
Technical details
Capacity 2200 kg
Fork length 1150 mm
Steering wheel diameter 170 mm
Fork roller equipment Single
Fork support width 520 mm
Overall width 520 mm
Infeed rollers yes
Lift height per pump stroke 25/10 mm
Turning radius 1274 mm
Net weight 58.5 kg
Chassis surface powder-coated
Drive manual
Fork height 53 mm
Fork width 150 mm
Handle fittings Steel
Lowering speed with/without load 0,09 / 0,02 m/s
Operator type Manual
Pump strokes to max. lift height 5/12
Steering wheel width 50 mm
Tiller height 1234 mm
Rapid lift yes
Steering wheel material Nylon (black)
Fork roller material Nylon (black)
Fork roller diameter 82 mm
Lift range 83 - 205 mm
Overall length 1520 mm
Load centre 600 mm
Pump strokes to lift pallet 3/7
Colour chassis Jungheinrich yellow
Aisle width 1784 mm
Control panel two-handed
Face of forks length 373 mm
Fork roller width 96 mm
Ground clearance 30 mm
Lift 122 mm
Model Jungheinrich AM 22
Pallet truck material Steel
Route Short distance
Tiller RAL colour RAL 7016 anthracite grey
Tiller surface powder-coated
Technical details
Capacity 2200 kg
Fork length 1150 mm
Steering wheel diameter 170 mm
Fork roller equipment Single
Fork support width 520 mm
Overall width 520 mm
Infeed rollers yes
Lift height per pump stroke 25/10 mm
Turning radius 1274 mm
Net weight 58.5 kg
Chassis surface powder-coated
Drive manual
Fork height 53 mm
Fork width 150 mm
Handle fittings Steel
Lowering speed with/without load 0,09 / 0,02 m/s
Operator type Manual
Pump strokes to max. lift height 5/12
Steering wheel width 50 mm
Tiller height 1234 mm
Rapid lift yes
Steering wheel material Nylon (black)
Fork roller material Nylon (black)
Fork roller diameter 82 mm
Lift range 83 - 205 mm
Overall length 1520 mm
Load centre 600 mm
Pump strokes to lift pallet 3/7
Colour chassis Jungheinrich yellow
Aisle width 1784 mm
Control panel two-handed
Face of forks length 373 mm
Fork roller width 96 mm
Ground clearance 30 mm
Lift 122 mm
Model Jungheinrich AM 22
Pallet truck material Steel
Route Short distance
Tiller RAL colour RAL 7016 anthracite grey
Tiller surface powder-coated
Product description
Product description
The Jungheinrich AM 22 hand pallet truck with quick lift and 1,150 mm fork length is a premium transport aid that will boost your productivity. Thanks to the quick lift function (up to 120 kg), you can increase your throughput while minimising the required effort.
Quick lift (up to 120 kg) Durability and stability Maintenance-free use: no regreasing required Extremely agile thanks to short headlength Entry rollers for easy pallet pick-up
Jungheinrich AM 22 hand pallet truck with quick lift – save time and energy with premium quality from Jungheinrich

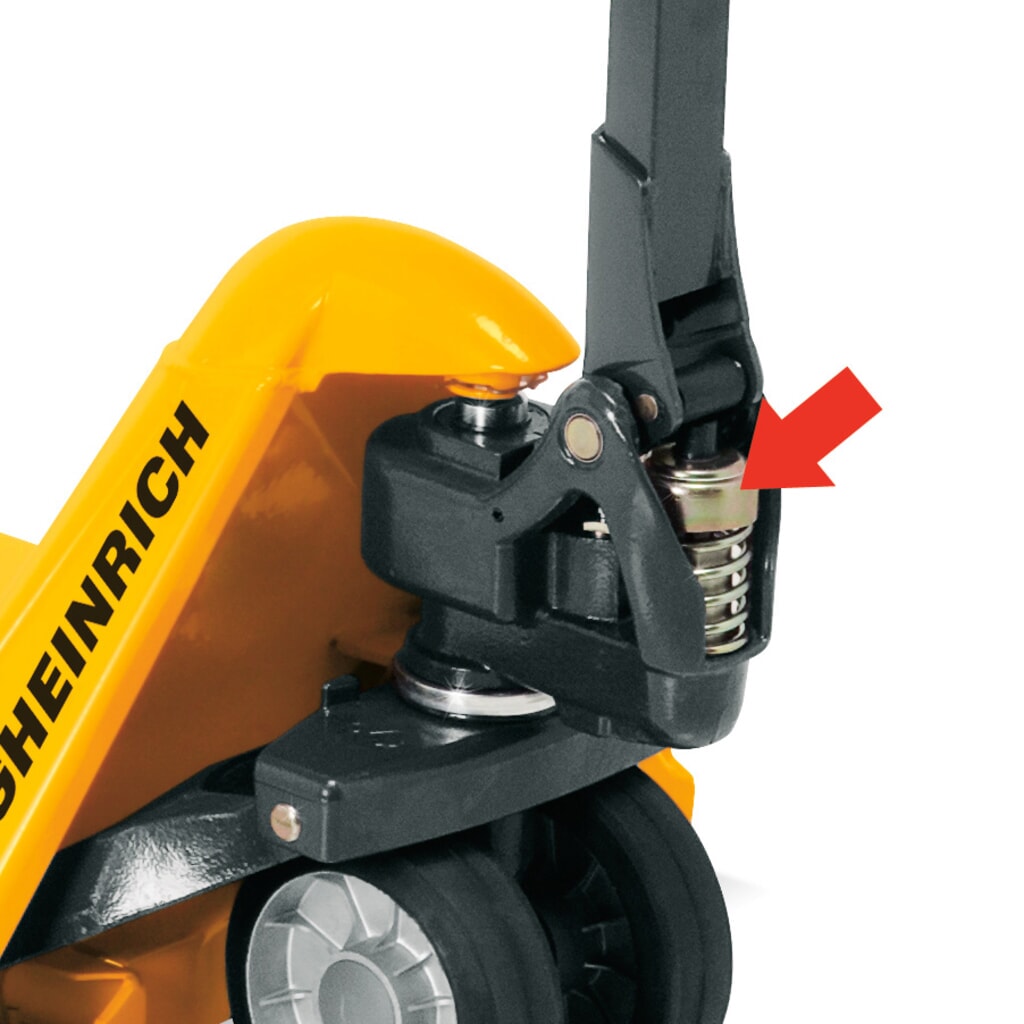

The AM 22 hand pallet truck is a premium Jungheinrich product combining outstanding quality with a long service life and maintenance-free operation. Thanks to the quick lift function (up to 120 kg), Euro pallets can be lifted clear of the ground with just three pump strokes. The maximum lift height is reached after just five strokes. This allows you to optimise the workflows of your in-house goods transport. Thanks to the special lowering valve, loads can be set down with utmost control and precision.

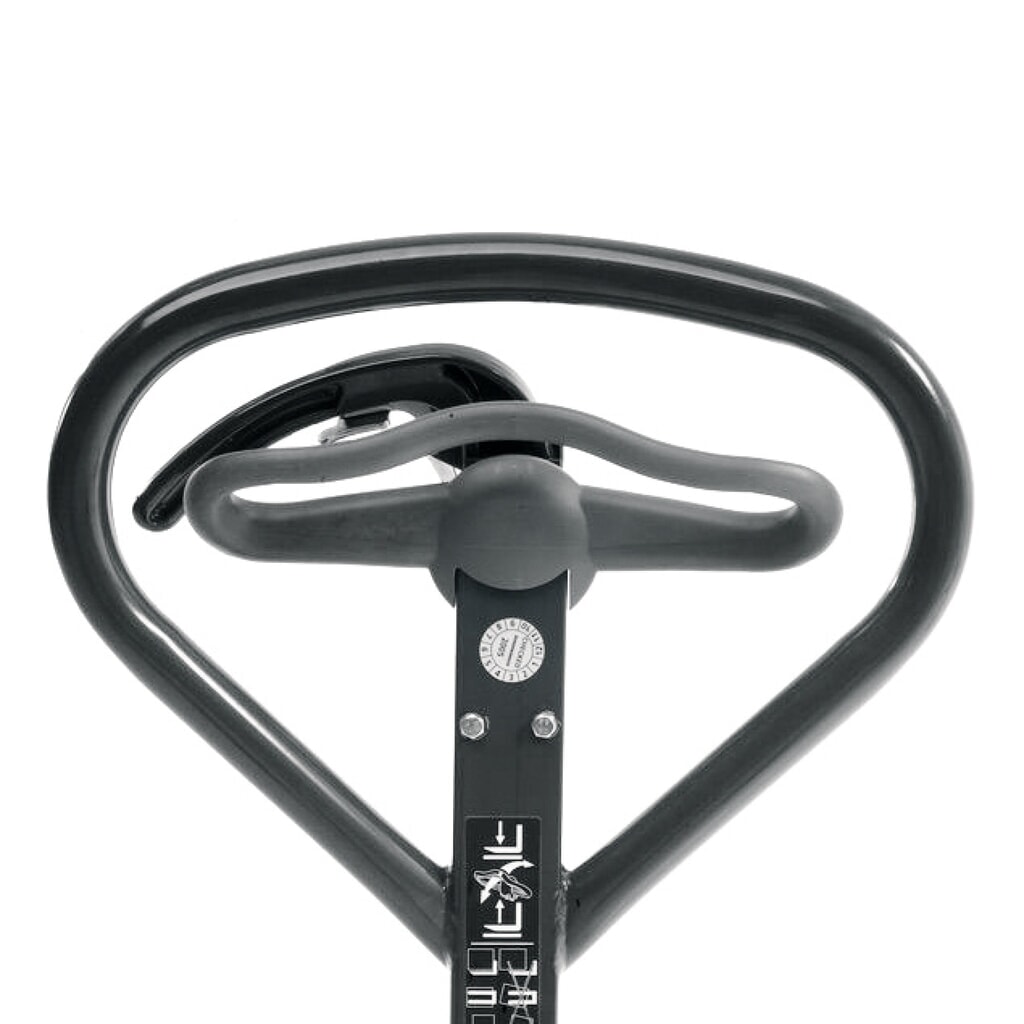

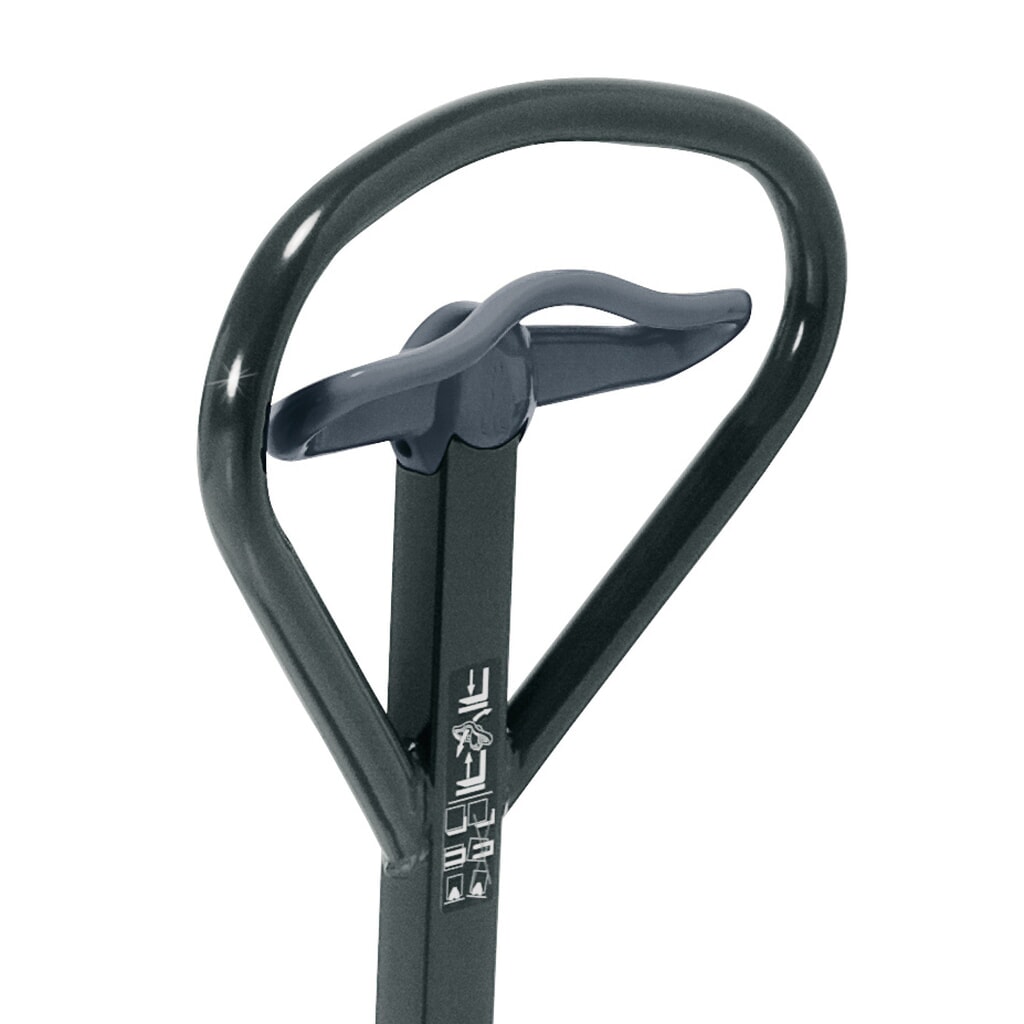

The pallet truck is operated via an ergonomic tiller that is equally well suited to right and left-handed users. The truck can thus be manoeuvred easily and safely with one hand on the tiller head. The short headlength of the hand pallet truck makes it extremely agile, thereby ensuring effortless use in tight spaces, such as in narrow warehouse aisles or on trucks. Rounded fork tips and covered entry rollers make insertion and retraction from the pallet particularly easy.

The joints and connecting pieces feature lifetime lubrication, meaning that you do not have to perform any maintenance. The robust pallet truck is made from extremely tough steel with a powder-coated surface and welded tiller mounting. In addition, the wheel bushings and joints are chromated to ensure quiet running and a long service life.

Depending on the ground conditions and specific application, you can choose between a range of roller materials. You can also opt for single or tandem fork rollers.

Benefit from a premium quality product by ordering the Jungheinrich AM 22 hand pallet truck with quick lift, 1,150 mm fork length and a capacity of 2,200 kg from our shop in your chosen configuration.
Product description
The Jungheinrich AM 22 hand pallet truck with quick lift and 1,150 mm fork length is a premium transport aid that will boost your productivity. Thanks to the quick lift function (up to 120 kg), you can increase your throughput while minimising the required effort.
Quick lift (up to 120 kg) Durability and stability Maintenance-free use: no regreasing required Extremely agile thanks to short headlength Entry rollers for easy pallet pick-up
Jungheinrich AM 22 hand pallet truck with quick lift – save time and energy with premium quality from Jungheinrich

The AM 22 hand pallet truck is a premium Jungheinrich product combining outstanding quality with a long service life and maintenance-free operation. Thanks to the quick lift function (up to 120 kg), Euro pallets can be lifted clear of the ground with just three pump strokes. The maximum lift height is reached after just five strokes. This allows you to optimise the workflows of your in-house goods transport. Thanks to the special lowering valve, loads can be set down with utmost control and precision.

The pallet truck is operated via an ergonomic tiller that is equally well suited to right and left-handed users. The truck can thus be manoeuvred easily and safely with one hand on the tiller head. The short headlength of the hand pallet truck makes it extremely agile, thereby ensuring effortless use in tight spaces, such as in narrow warehouse aisles or on trucks. Rounded fork tips and covered entry rollers make insertion and retraction from the pallet particularly easy.

The joints and connecting pieces feature lifetime lubrication, meaning that you do not have to perform any maintenance. The robust pallet truck is made from extremely tough steel with a powder-coated surface and welded tiller mounting. In addition, the wheel bushings and joints are chromated to ensure quiet running and a long service life.

Depending on the ground conditions and specific application, you can choose between a range of roller materials. You can also opt for single or tandem fork rollers.

Benefit from a premium quality product by ordering the Jungheinrich AM 22 hand pallet truck with quick lift, 1,150 mm fork length and a capacity of 2,200 kg from our shop in your chosen configuration.
