New
Item number:
601911
Jungheinrich AME 18 electric pallet truck, load capacity 1,800 kg, fork length 1,150 mm, special fork width 670 mm, tandem rollers
Compact and lightweight for flexible goods transport
26 Working days
-
Free shipping from £50 (plus VAT)
-
Secure data protection
-
Personal purchasing advice
Technical details
Jungheinrich AME 18 electric pallet truck, load capacity 1,800 kg, fork length 1,150 mm, special fork width 670 mm, tandem rollers
Article number: 601911 | EAN/GTIN: 4055091333632
| Additional wheel width | 45 mm |
| Aisle width | 2060 mm |
| Battery capacity | 25 Ah/per unit |
| Battery type | Lithium-ion |
| Battery voltage | 48 V/per unit |
| Battery weight | 10.5 kg |
| Brake | electromagnetic |
| Brand | Jungheinrich |
| Capacity | 1800 kg |
| Drive | electric |
| Drive control type | Pulse controller |
| Drive motor power | 1.0 kW |
| Face of forks length | 400 mm |
| Fork length | 1150 mm |
| Fork roller equipment | Tandem |
| Fork roller material | Polyurethane (PU) |
| Fork support width | 670 mm |
| Fork width | 160 mm |
| Ground clearance | 27 mm |
| Lift | 115 mm |
| Lift motor output | 0.8 kW |
| Lift range | 80 mm |
| Lift speed with/without load | 0,03 / 0,04 m/s |
| Load centre | 600 mm |
| Lowering speed with/without load | 0,06 / 0,05 m/s |
| Max. gradeability laden/unladen | 8 / 20 % |
| Net weight incl. battery | 166 kg |
| Noise level as per EN 12053 (operator's ear) | 70 dB(A) |
| Operator type | Pedestrian |
| Overall length | 1550 mm |
| Overall width | 670 mm |
| Section | Professional |
| Steering wheel material | Polyurethane (PU) |
| Tiller height | 700 - 1190 mm |
| Travel speed, laden/unladen | 5 / 5,5 |
| Turning radius | 1389 mm |
| quality seal | LI-ION technology |
Item description
Jungheinrich AME 18 electric pallet truck, load capacity 1,800 kg, fork length 1,150 mm, special fork width 670 mm, tandem rollers
Article number: 601911 | EAN/GTIN: 4055091333632

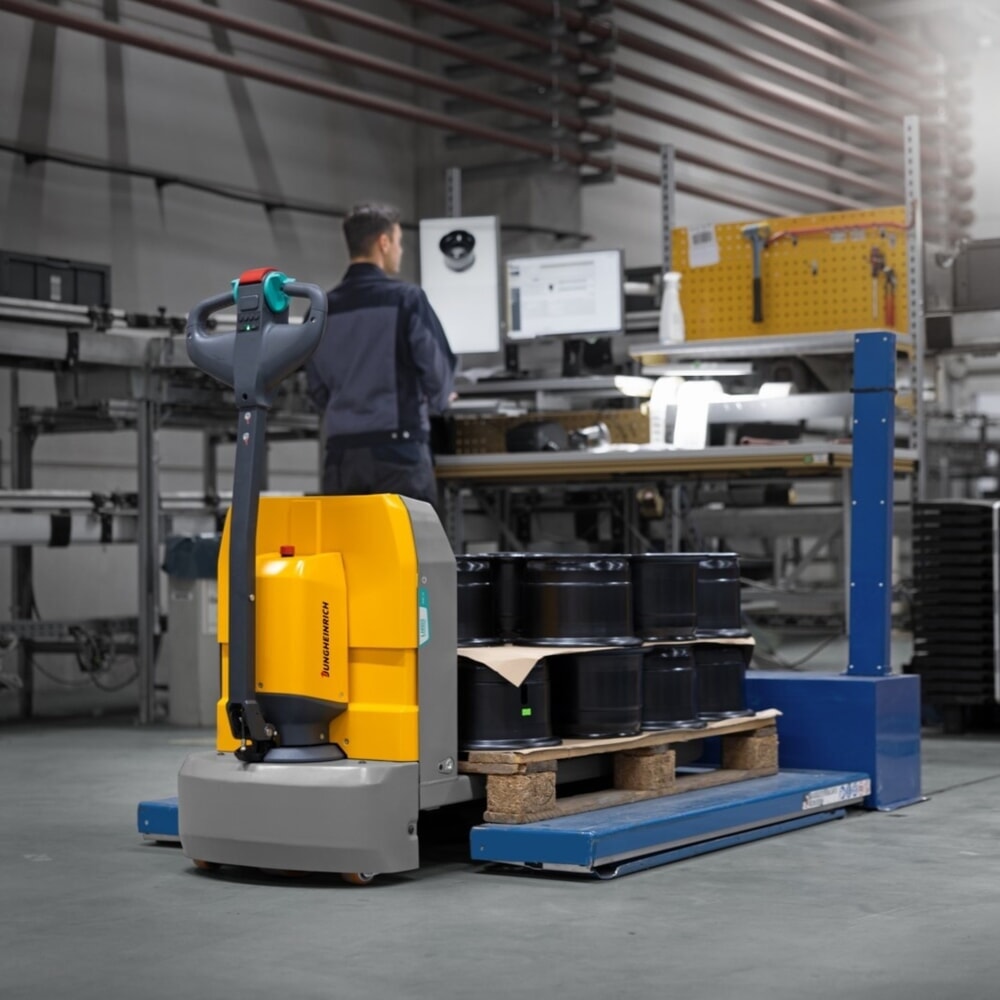

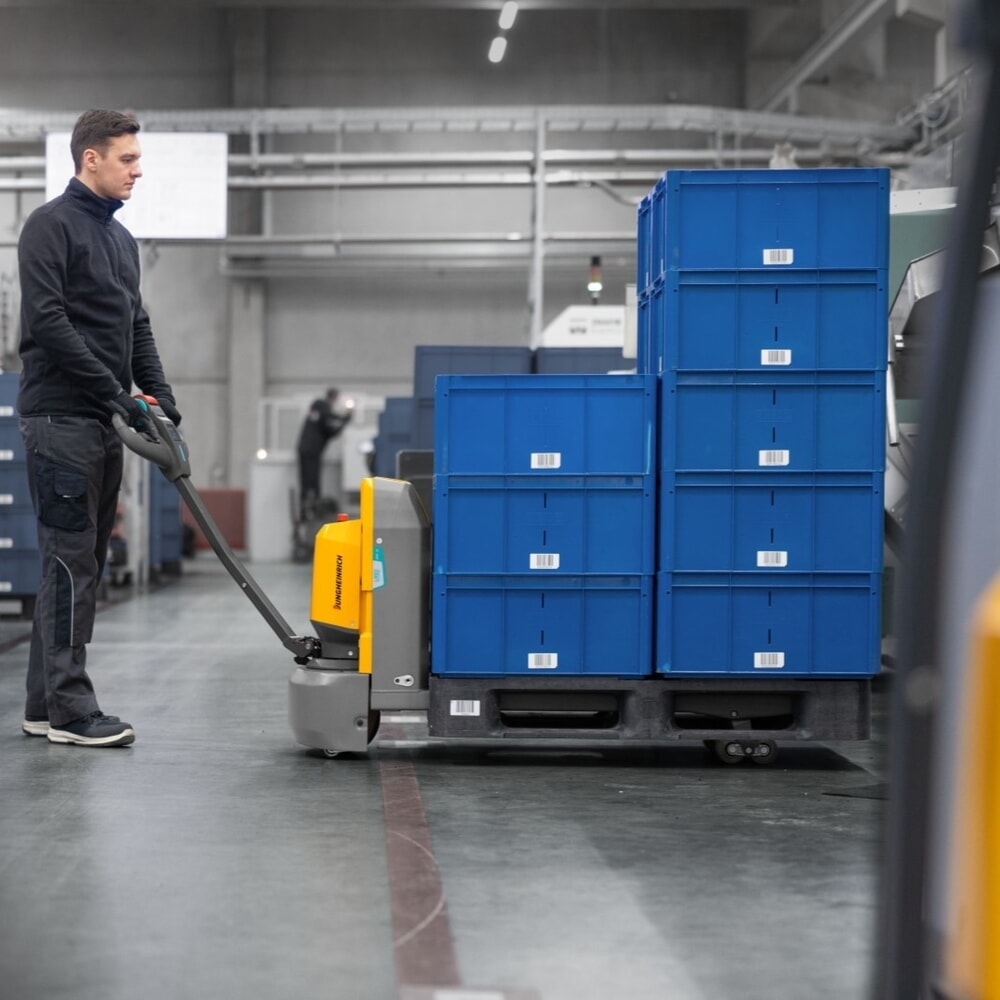

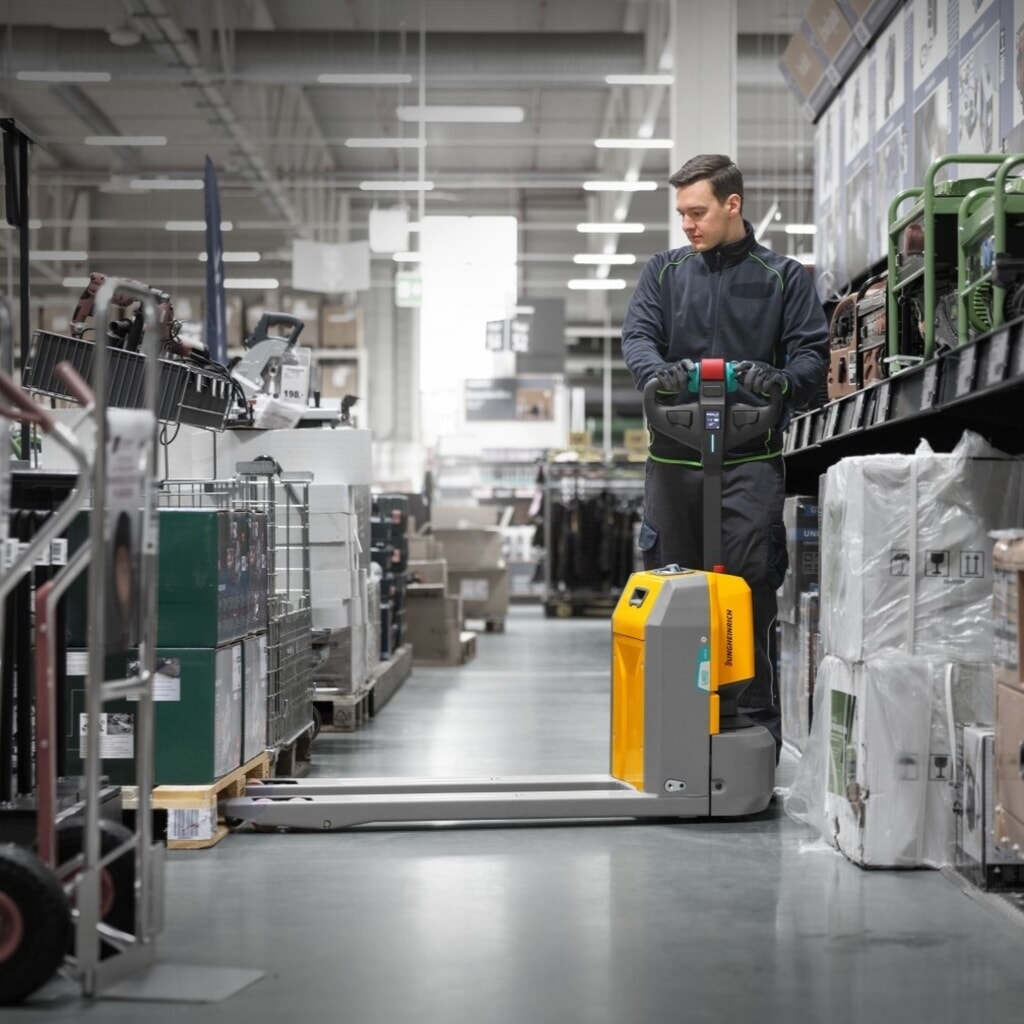

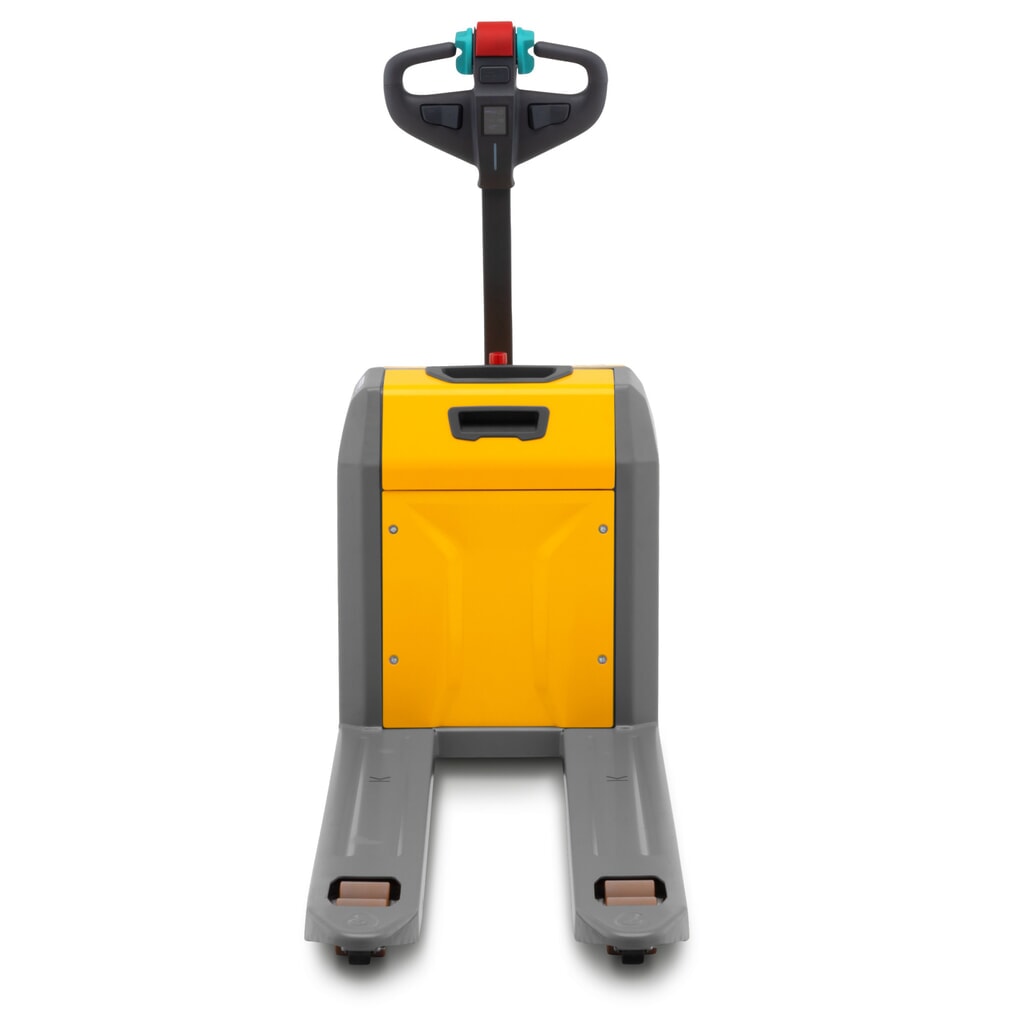

The Jungheinrich AME 18 electric pallet truck is the smart solution for daily pallet handling in confined work areas. With a load capacity of 1,800 kg and compact dimensions, it is especially suitable for carrying on HGVs as well as for internal transport. The special fork width of 670 mm allows safe transport of wider load units and significantly increases operational flexibility. Modern lithium-ion technology ensures high energy efficiency and truck availability, while the robust construction guarantees a long service life even under demanding conditions. Ease of operation, safety and cost-effectiveness are the priorities of the AME 18 – ideal for companies that rely on a well-considered transport solution.
- Load capacity of 1,800 kg
- Special fork width of 670 mm
- Especially manoeuvrable and compact for tight work areas
- Robust steel construction with protected support wheels
- Energy efficient thanks to maintenance-free lithium-ion battery
- Slow travel button for precise manoeuvring
- High safety thanks to precision handling and stable cornering
- Protected access via PIN code entry
- 2 travel programmes: 2.5 km/h and 5.5 km/h
- Slow travel button for precise manoeuvring
- Double-sided, ergonomic operation with either hand
- Automatic shutdown when not in use
- Fork marking at 800 mm for transverse pallet pick-up
- Choice between single and tandem rollers
- Available in different fork lengths
Maximum performance on a minimal space: the Jungheinrich AME 18 electric pallet truck with 1,800 kg load capacity and special fork width

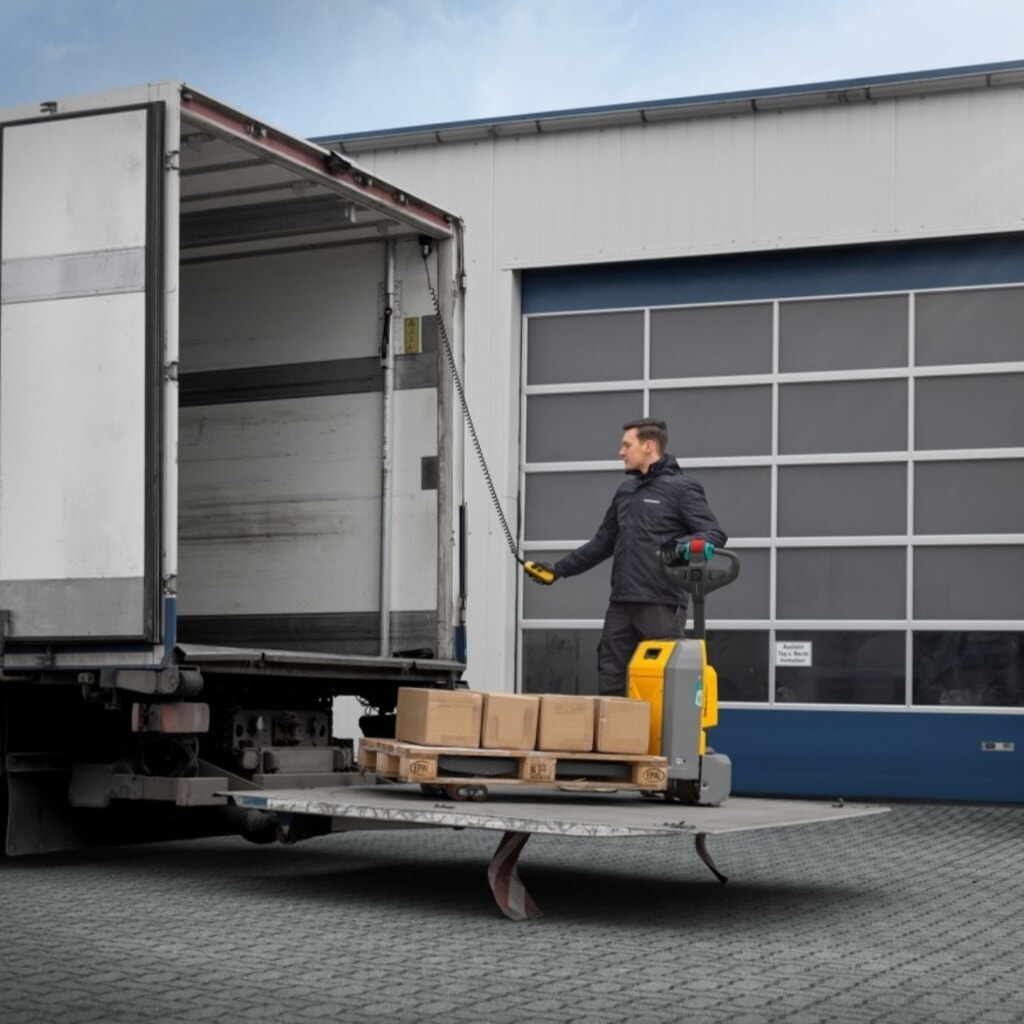

The Jungheinrich AME 18 electric pallet truck is designed for flexible use in warehouses, on ramps or directly in vehicles. With a low weight of up to 166 kg and various fork lengths of up to 1,150 mm, it offers an optimal balance of performance, manoeuvrability and stability. The reinforced steel construction combined with protected, sprung support wheels ensures utmost stability – even when loaded. Precise control of the drive system enables precise and safe manoeuvring in tight spaces. This is facilitated by a practical slow travel button, which allows especially precise manoeuvres – for example when entering narrow aisles or vehicles.

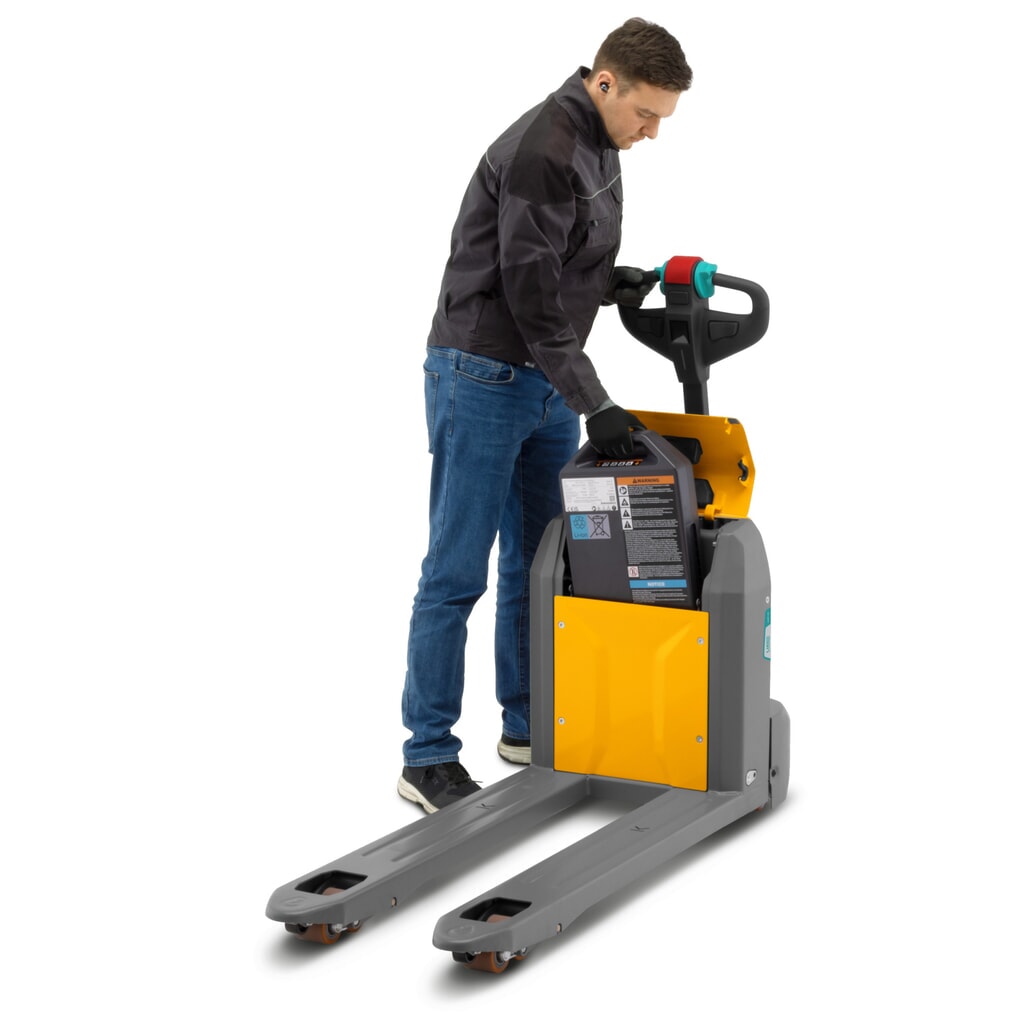

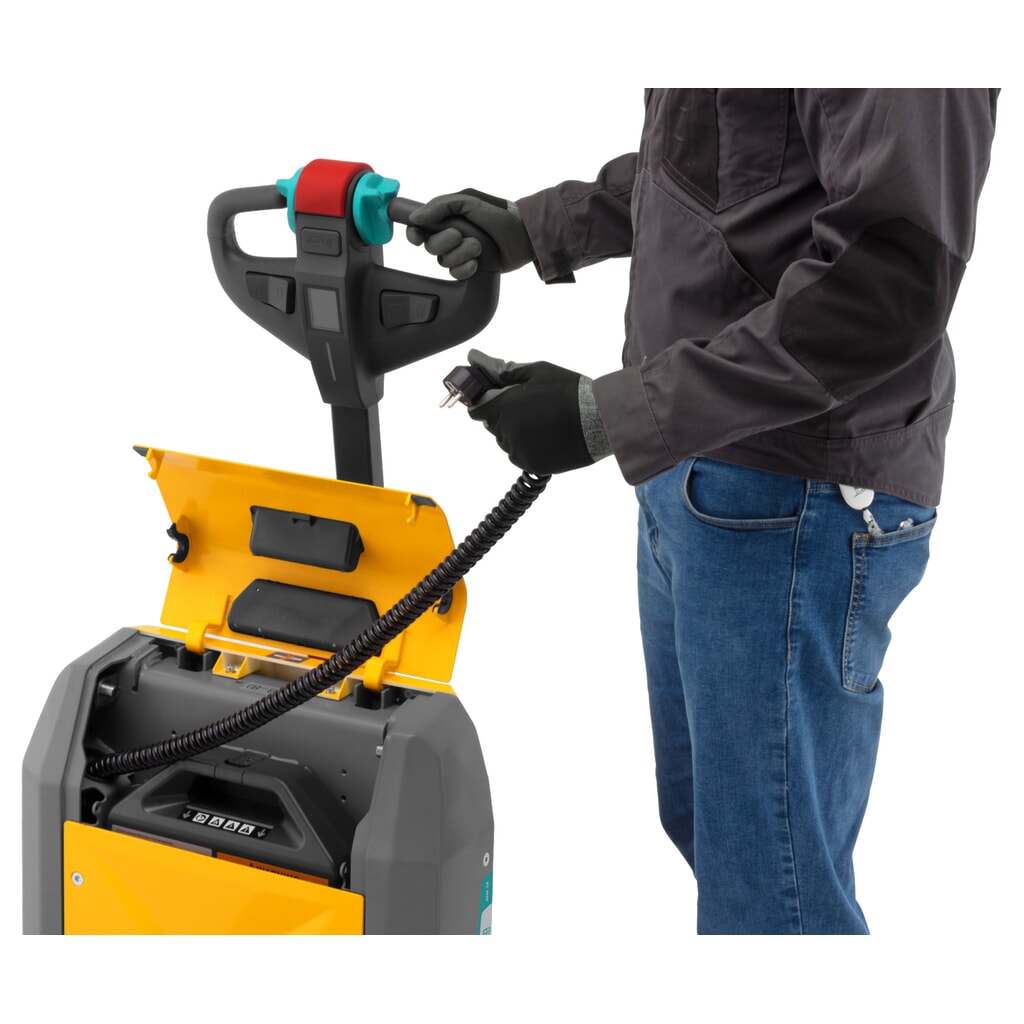

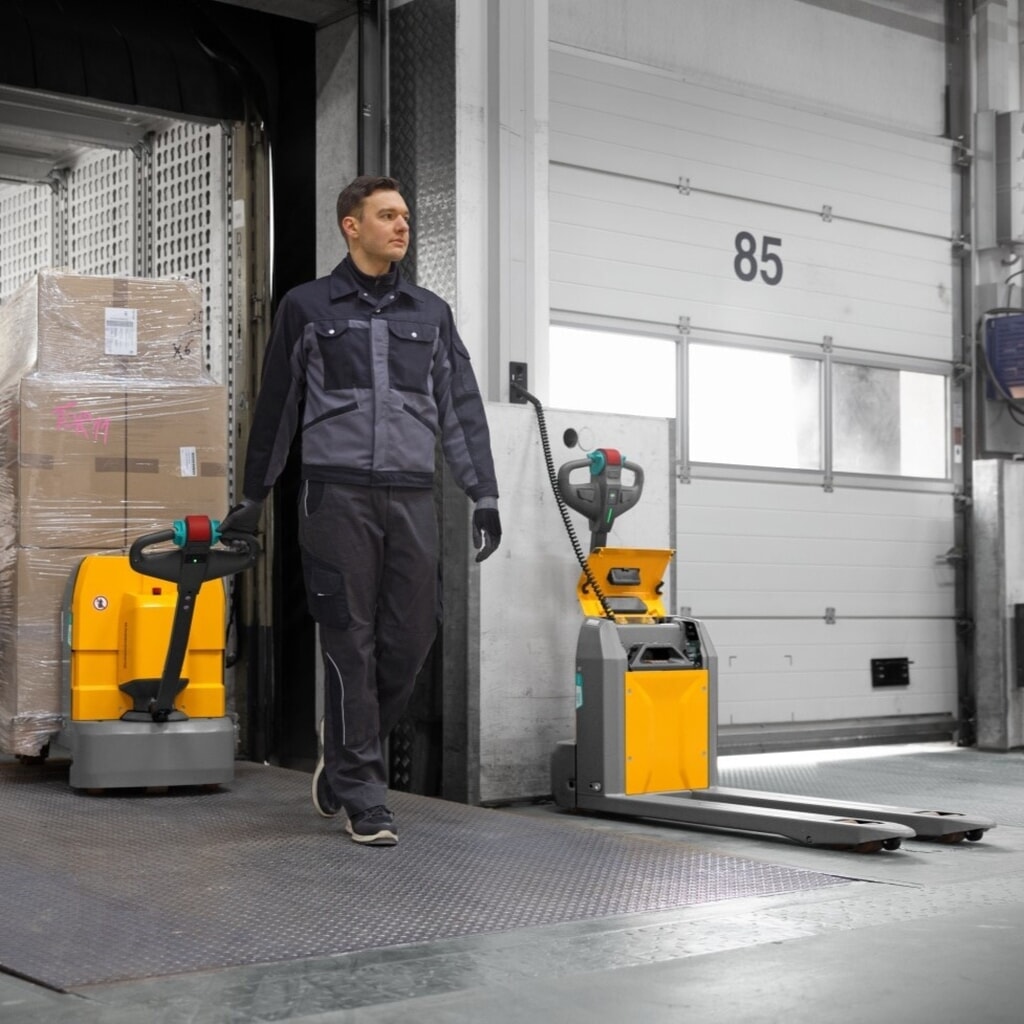

The lithium-ion battery of the AME 18 is not only maintenance-free but can also be easily charged via the supplied battery charger at any standard socket. This means intermediate charging is possible at any time. An integrated battery management system reliably protects against overcharging or deep discharge. At the same time, automatic shutdown during inactivity helps to save energy.
Intuitive operation via an ergonomic tiller with one-handed operation on either side, combined with a clearly visible LED truck status display, ensures maximum convenience in daily use. Two travel programmes allow for either fast or precision travel, depending on the situation. Additional features such as fork marking for precise transverse pick-up, tandem fork rollers and protected entry rollers support safe and fast pallet handling. Operational safety is further enhanced by PIN code access, ensuring that only authorised personnel can operate the device.
The AME 18 is available with both single rollers and tandem rollers. Single rollers are especially suitable for flat floors and short distances. Tandem rollers, however, offer advantages on uneven surfaces, ramps or when transporting across thresholds, as they distribute the weight more evenly and ensure smoother running. Depending on the operating environment, the pallet truck can be optimally configured to maximise both handling comfort and durability.
Whether in retail, production or logistics, the reliable Jungheinrich AME 18 impresses with intelligent technology, economical operation and maximum flexibility. It meets all requirements for a modern electric pallet truck designed for weight- and space-sensitive work environments.
Different fork lengths are also available: Combined with the special fork width of 670 mm, this provides logistical advantages, particularly for wide load units. Companies thus benefit from a durable, energy-efficient and versatile solution for all low-lift transport tasks.
The Jungheinrich AME 18 electric pallet truck is designed for flexible use in warehouses, on ramps or directly in vehicles. With a low weight of up to 166 kg and various fork lengths of up to 1,150 mm, it offers an optimal balance of performance, manoeuvrability and stability. The reinforced steel construction combined with protected, sprung support wheels ensures utmost stability – even when loaded. Precise control of the drive system enables precise and safe manoeuvring in tight spaces. This is facilitated by a practical slow travel button, which allows especially precise manoeuvres – for example when entering narrow aisles or vehicles.
The lithium-ion battery of the AME 18 is not only maintenance-free but can also be easily charged via the supplied battery charger at any standard socket. This means intermediate charging is possible at any time. An integrated battery management system reliably protects against overcharging or deep discharge. At the same time, automatic shutdown during inactivity helps to save energy.
Intuitive operation via an ergonomic tiller with one-handed operation on either side, combined with a clearly visible LED truck status display, ensures maximum convenience in daily use. Two travel programmes allow for either fast or precision travel, depending on the situation. Additional features such as fork marking for precise transverse pick-up, tandem fork rollers and protected entry rollers support safe and fast pallet handling. Operational safety is further enhanced by PIN code access, ensuring that only authorised personnel can operate the device.
The AME 18 is available with both single rollers and tandem rollers. Single rollers are especially suitable for flat floors and short distances. Tandem rollers, however, offer advantages on uneven surfaces, ramps or when transporting across thresholds, as they distribute the weight more evenly and ensure smoother running. Depending on the operating environment, the pallet truck can be optimally configured to maximise both handling comfort and durability.
Whether in retail, production or logistics, the reliable Jungheinrich AME 18 impresses with intelligent technology, economical operation and maximum flexibility. It meets all requirements for a modern electric pallet truck designed for weight- and space-sensitive work environments.
Different fork lengths are also available: Combined with the special fork width of 670 mm, this provides logistical advantages, particularly for wide load units. Companies thus benefit from a durable, energy-efficient and versatile solution for all low-lift transport tasks.
