Item number:
125010

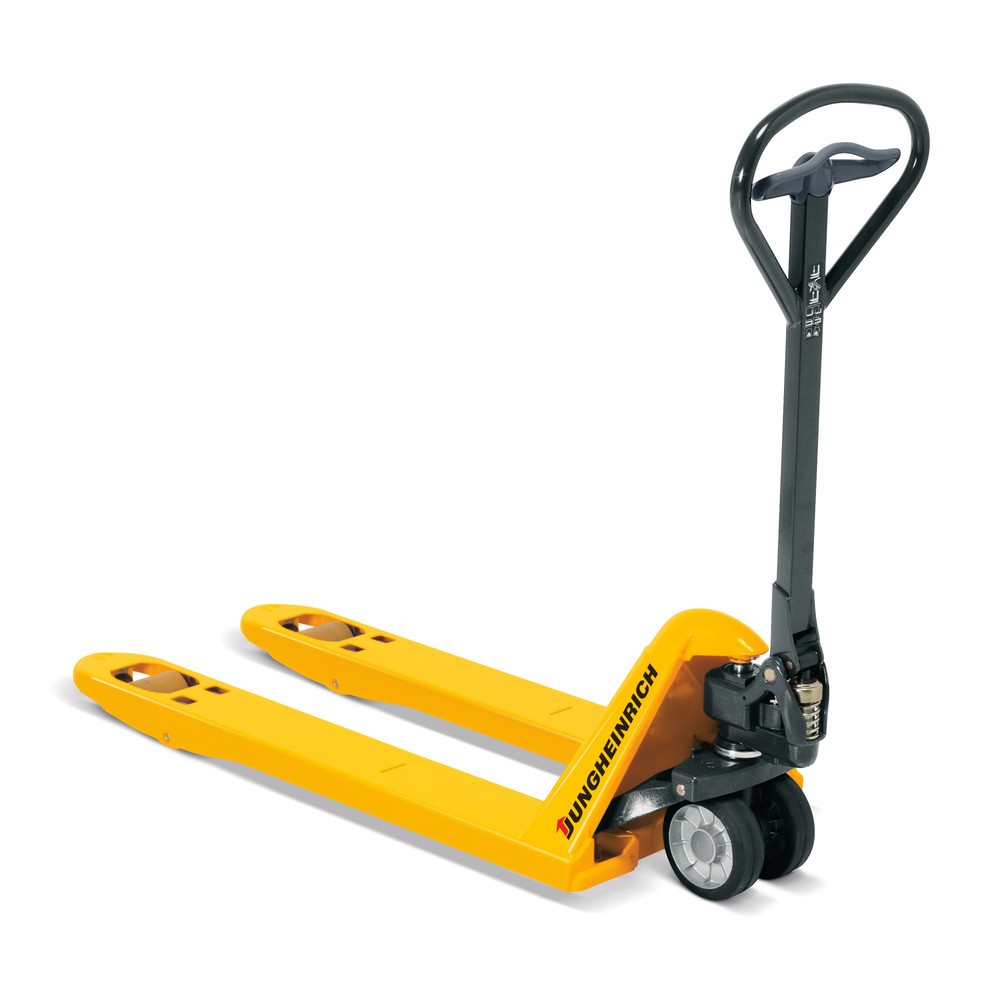

Jungheinrich AM 22 hand pallet truck, low-noise, load capacity 2,200 kg, fork length 1,150 mm, solid rubber / polyurethane, tandem rollers
Up to 50% quieter depending on floor surface
-
Free shipping from £50 (plus VAT)
-
Secure data protection
-
Personal purchasing advice
Technical details
Jungheinrich AM 22 hand pallet truck, low-noise, load capacity 2,200 kg, fork length 1,150 mm, solid rubber / polyurethane, tandem rollers
Article number: 125010 | EAN/GTIN: 4055091296012
| Aisle width |
1784 mm |
| Brand |
Jungheinrich |
| Capacity |
2200 kg |
| Chassis surface |
powder-coated |
| Colour chassis |
Jungheinrich yellow |
| Control panel |
two-handed |
| Drive |
manual |
| Face of forks length |
373 mm |
| Fork height |
53 mm |
| Fork length |
1150 mm |
| Fork roller diameter |
82 mm |
| Fork roller equipment |
Tandem |
| Fork roller material |
Polyurethane (PU) |
| Fork roller width |
62 mm |
| Fork support width |
520 mm |
| Fork width |
150 mm |
| Ground clearance |
30 mm |
| Handle fittings |
Steel |
| Infeed rollers |
Yes |
| Lift |
122 mm |
| Lift height per pump stroke |
10 mm |
| Lift range |
83 - 205 mm |
| Load centre |
600 mm |
| Lowering speed with/without load |
0,09 / 0,02 m/s |
| Net weight |
63 kg |
| Noise damping |
Yes |
| Operator type |
Manual |
| Overall length |
1520 mm |
| Overall width |
520 mm |
| Pallet truck material |
Steel |
| Pump strokes to lift pallet |
7 |
| Pump strokes to max. lift height |
12 |
| Route |
Short distance |
| Section |
Professional |
| Steering wheel diameter |
170 mm |
| Steering wheel material |
Solid rubber |
| Steering wheel width |
50 mm |
| Temperature range |
-10 - 50 °C |
| Tiller RAL colour |
RAL 7016 anthracite grey |
| Tiller height |
1234 mm |
| Tiller surface |
powder-coated |
| Turning radius |
1274 mm |
Item description
Jungheinrich AM 22 hand pallet truck, low-noise, load capacity 2,200 kg, fork length 1,150 mm, solid rubber / polyurethane, tandem rollers
Article number: 125010 | EAN/GTIN: 4055091296012
The low-noise Jungheinrich AM 22 hand pallet truck is extremely quiet, thus allowing you to use it for transport and deliveries in quiet zones. It offers capacity for loads weighing up to 2,200 kg, which are transported in virtual silence thanks to low-noise wheels and noise-absorbent mats.
- The professional solution: long-lasting peak performance thanks to the use of high-quality materials
- For continuous daily use and demanding transport tasks in retail, production, industry, warehouses and shipping
- Minimises the noise produced during load transports

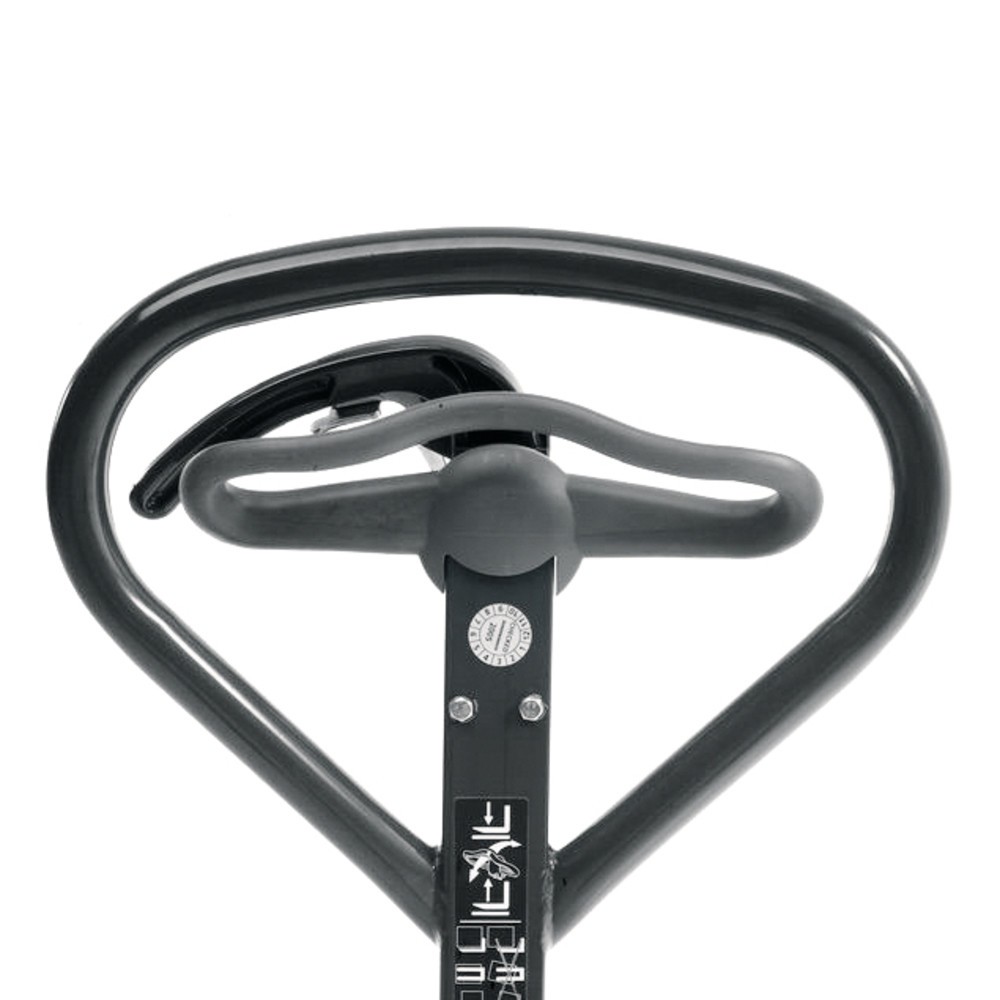

- Tiller for ergonomic operation by right and left-handed users
- Extremely agile in tight spaces thanks to short headlength
- Low-noise tandem fork rollers made from polyurethane
- Extremely quiet operation
Low-noise Jungheinrich pallet truck offering proven brand quality
The low-noise Jungheinrich AM 22 hand pallet truck with 2,200 kg capacity was developed in order to minimise the noise produced when transporting loads. This makes the pallet truck ideal for deliveries in the early morning or in low-noise areas. The pallet truck can also be used in salesrooms with direct customer contact.
Thanks to the short headlength, the hand pallet truck remains highly manoeuvrable in even the tightest of spaces. It can be operated from any position via the ergonomic, user-friendly control element, while minimum effort is required thanks to the optimised pump hydraulics, which make light work of heavy loads. The hand pallet truck features special noise damping for use in low-noise areas. This is achieved by means of special roller bearings, smooth-running steering castors with bushings and solid rubber tyres, tandem fork rollers made from polyurethane and special noise-absorbent mats. Depending on the floor surface, this special equipment allows you to reduce noise production by up to 50% when compared to the standard version. The Jungheinrich pallet truck also impresses with its robust, powder-coated steel construction, chromated wheel bushings and welded tiller mounting offering proven brand quality.
The low-noise Jungheinrich AM 22 hand pallet truck with 2,200 kg capacity is available with different fork lengths.
When you want to keep noise to a minimum, you can count on the low-noise Jungheinrich AM 22 hand pallet truck with 2,200 kg capacity. Order it from our shop today.
The low-noise Jungheinrich AM 22 hand pallet truck with 2,200 kg capacity was developed in order to minimise the noise produced when transporting loads. This makes the pallet truck ideal for deliveries in the early morning or in low-noise areas. The pallet truck can also be used in salesrooms with direct customer contact.
Thanks to the short headlength, the hand pallet truck remains highly manoeuvrable in even the tightest of spaces. It can be operated from any position via the ergonomic, user-friendly control element, while minimum effort is required thanks to the optimised pump hydraulics, which make light work of heavy loads. The hand pallet truck features special noise damping for use in low-noise areas. This is achieved by means of special roller bearings, smooth-running steering castors with bushings and solid rubber tyres, tandem fork rollers made from polyurethane and special noise-absorbent mats. Depending on the floor surface, this special equipment allows you to reduce noise production by up to 50% when compared to the standard version. The Jungheinrich pallet truck also impresses with its robust, powder-coated steel construction, chromated wheel bushings and welded tiller mounting offering proven brand quality.
The low-noise Jungheinrich AM 22 hand pallet truck with 2,200 kg capacity is available with different fork lengths.
When you want to keep noise to a minimum, you can count on the low-noise Jungheinrich AM 22 hand pallet truck with 2,200 kg capacity. Order it from our shop today.
