Item number:
170221

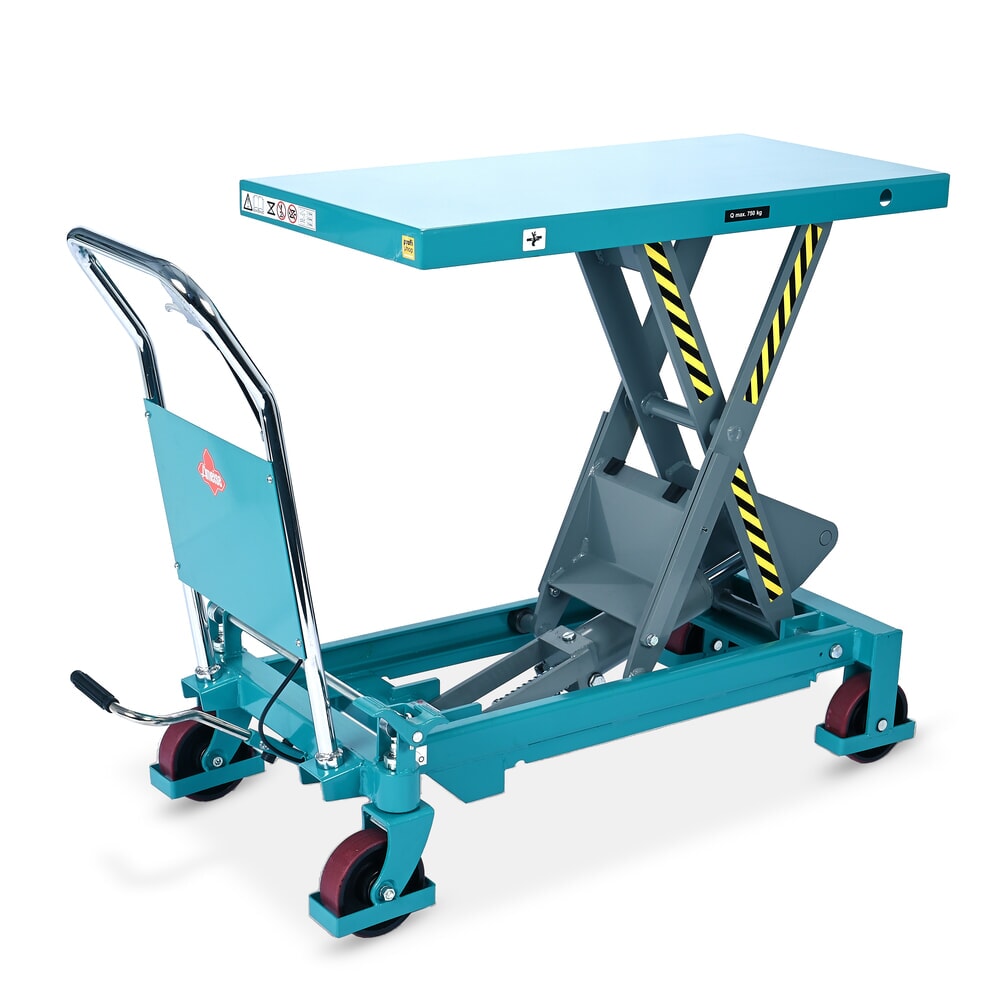

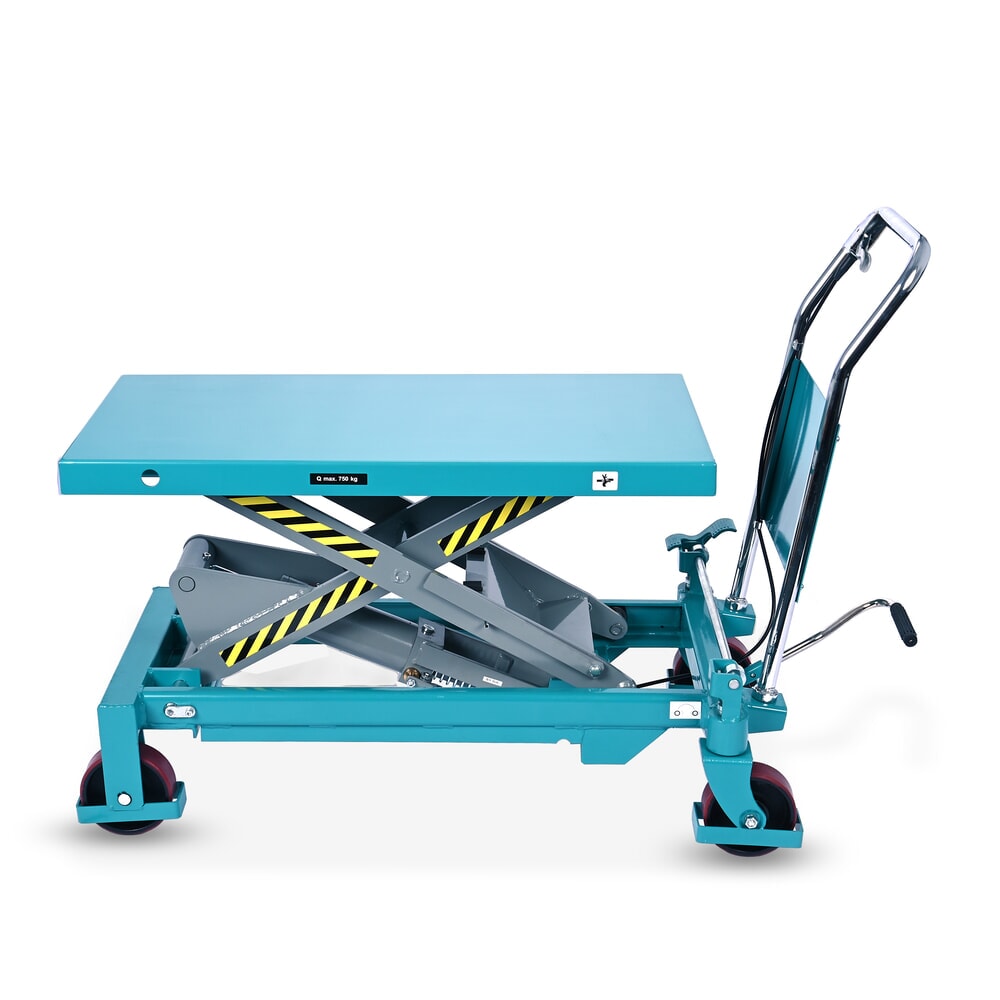

Scissor lift table on wheels, fixed handlebar, capacity 750 kg, dimensions 1,000 x 510 mm, Ameise®
For order picking and transporting at an ergonomic height
slide 1 of 2
Free shipping from £50 (plus VAT)
Secure data protection
Personal purchasing advice
Technical details
Scissor lift table on wheels, fixed handlebar, capacity 750 kg, dimensions 1,000 x 510 mm, Ameise®
Article number: 170221 | EAN/GTIN: 4055091127552
| Brand | Ameise® |
| Capacity | 750 kg |
| Castor locking function | Swivel castors with wheel stops |
| Castor material | Polyurethane (PU) |
| Cylinder diameter | 35 mm |
| Delivery | pre-assembled |
| Fixed castor diameter | 147 mm |
| Fixed castor width | 50 mm |
| Foot guard | Yes |
| Foot pedal to max. lift height | 45 |
| Handle height | 990 mm |
| Height | 990 mm |
| Hydraulic oil quantity | 0.4 l |
| Hydraulic oil type | Mineral oil |
| Hydraulic oil viscosity acc. to ISO-VG | 32 |
| Length | 1330 mm |
| Lift | 550 mm |
| Lift function | hydraulic |
| Lift range | 420 - 990 mm |
| Material | Steel |
| Net weight | 122 kg |
| No. of cylinders | 1 |
| No. of fixed castors | 2 Stk. |
| No. of swivel castors | 2 Stk. |
| Operator type | Foot, manual |
| Platform depth | 1000 mm |
| Platform height | 50 mm |
| Platform type | closed |
| Platform width | 510 mm |
| Push handle type | fixed |
| RAL colour | RAL 5018 turquoise blue, RAL 7046 telegrey 2 |
| Scissors type | Single scissors |
| Section | Performance |
| Surface | powder-coated |
| Swivel castor diameter | 147 mm |
| Swivel castor width | 50 mm |
| Brand | Ameise® |
| Capacity | 750 kg |
| Castor locking function | Swivel castors with wheel stops |
| Castor material | Polyurethane (PU) |
| Cylinder diameter | 35 mm |
| Delivery | pre-assembled |
| Lift range | 420 - 990 mm |
| Material | Steel |
| Net weight | 122 kg |
| No. of cylinders | 1 |
| No. of fixed castors | 2 Stk. |
| No. of swivel castors | 2 Stk. |
Product Notes
Our offer is aimed exclusively at commercial customers (entrepreneurs). In particular, the product is not intended for use by consumers.
Warning and safety information
Data sheets & instructions
Manufacturer information
PROFISHOP AG & Co. KG
Haferweg 24
Hamburg
Deutschland
service@jungheinrichshop.com
Item description
Scissor lift table on wheels, fixed handlebar, capacity 750 kg, dimensions 1,000 x 510 mm, Ameise®
Article number: 170221 | EAN/GTIN: 4055091127552
The robust scissor lift platform truck is ideal for the transport and provisioning of workpieces and working materials at an ergonomic height. It is very easy to work with thanks to the foot-operated hydraulic pump.

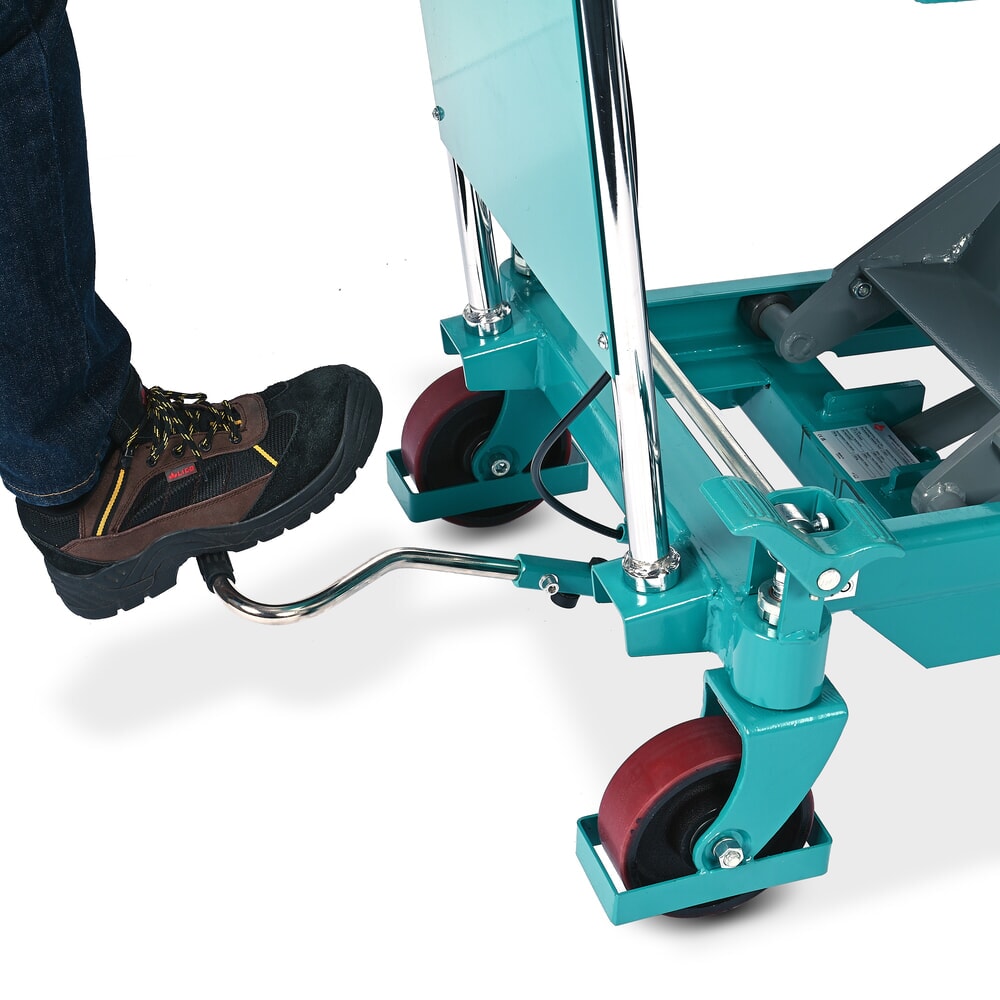

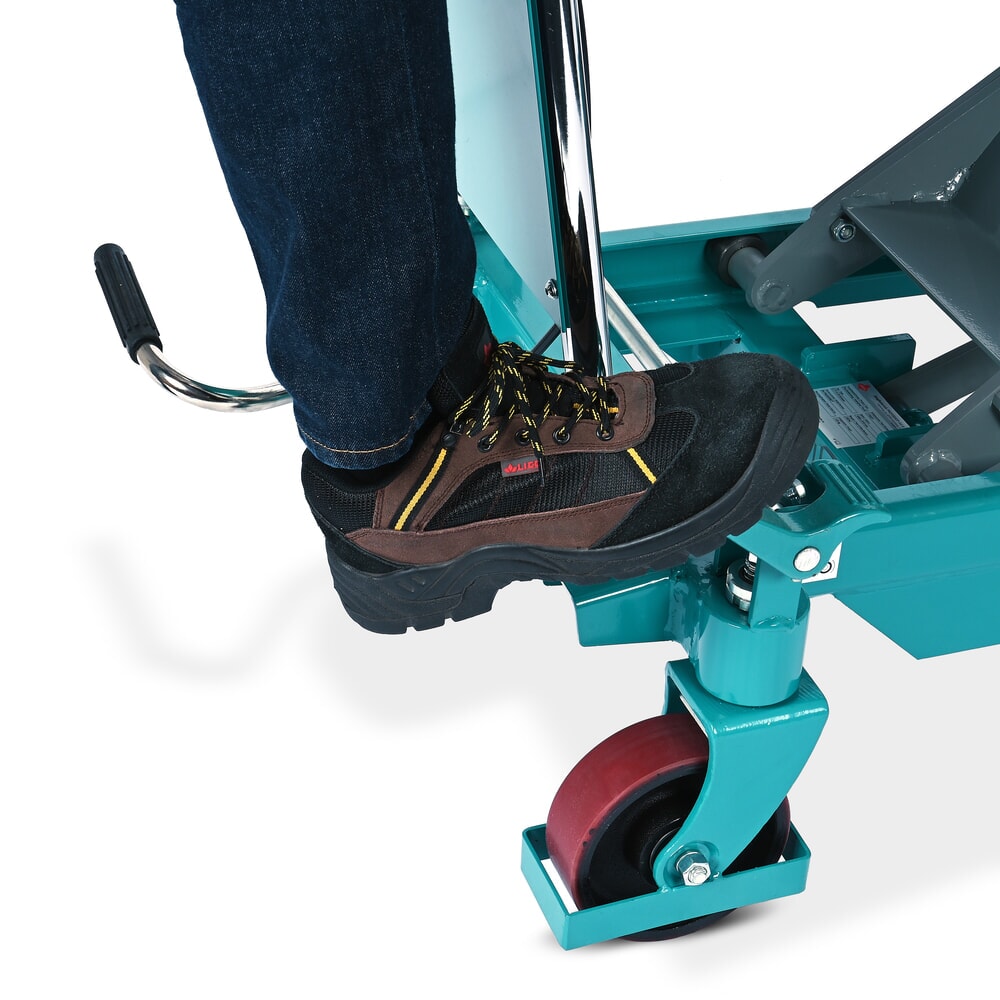

- Foot pedal for easy lifting
- Fully variable lowering valve for precision manual lowering
- Chrome-plated handlebar
- Steering and fixed castors made from robust polyurethane

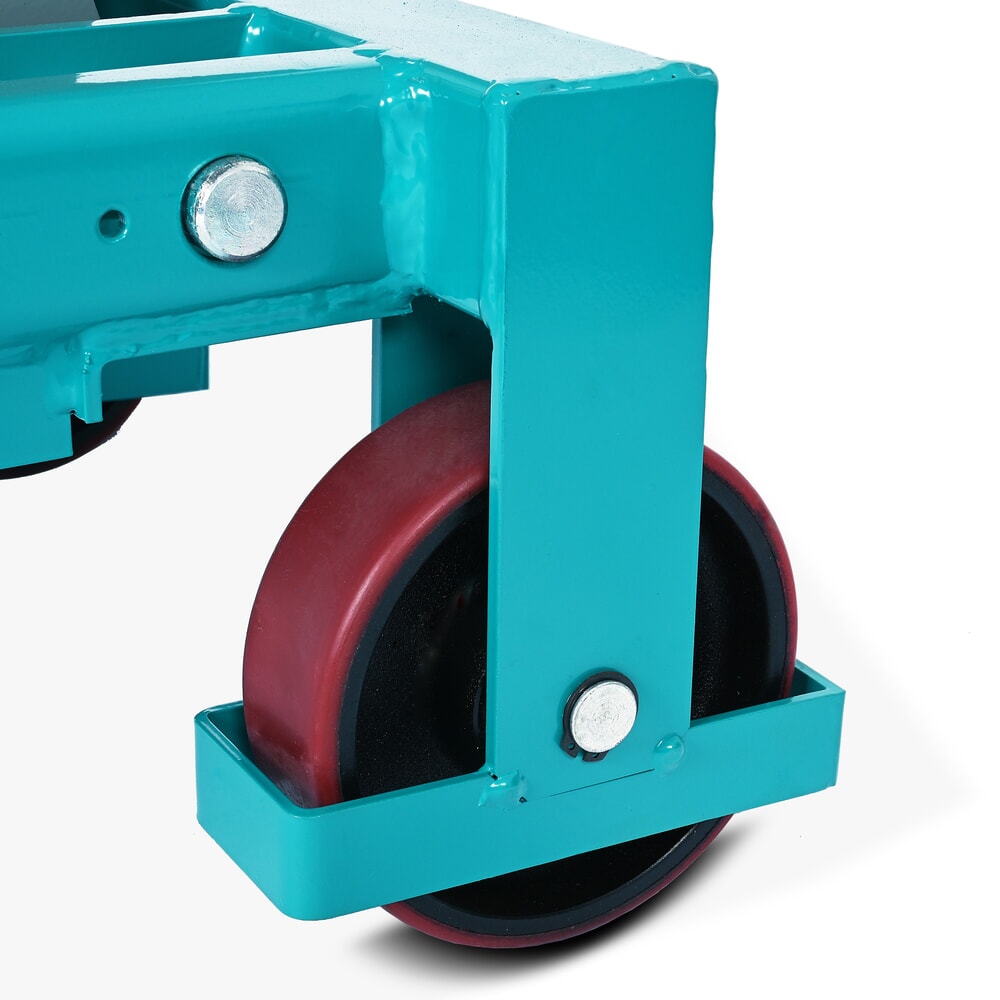

- Wheel stop and wheel guard
Convenient working with the Ameise® scissor lift table with wheels and fixed handlebar

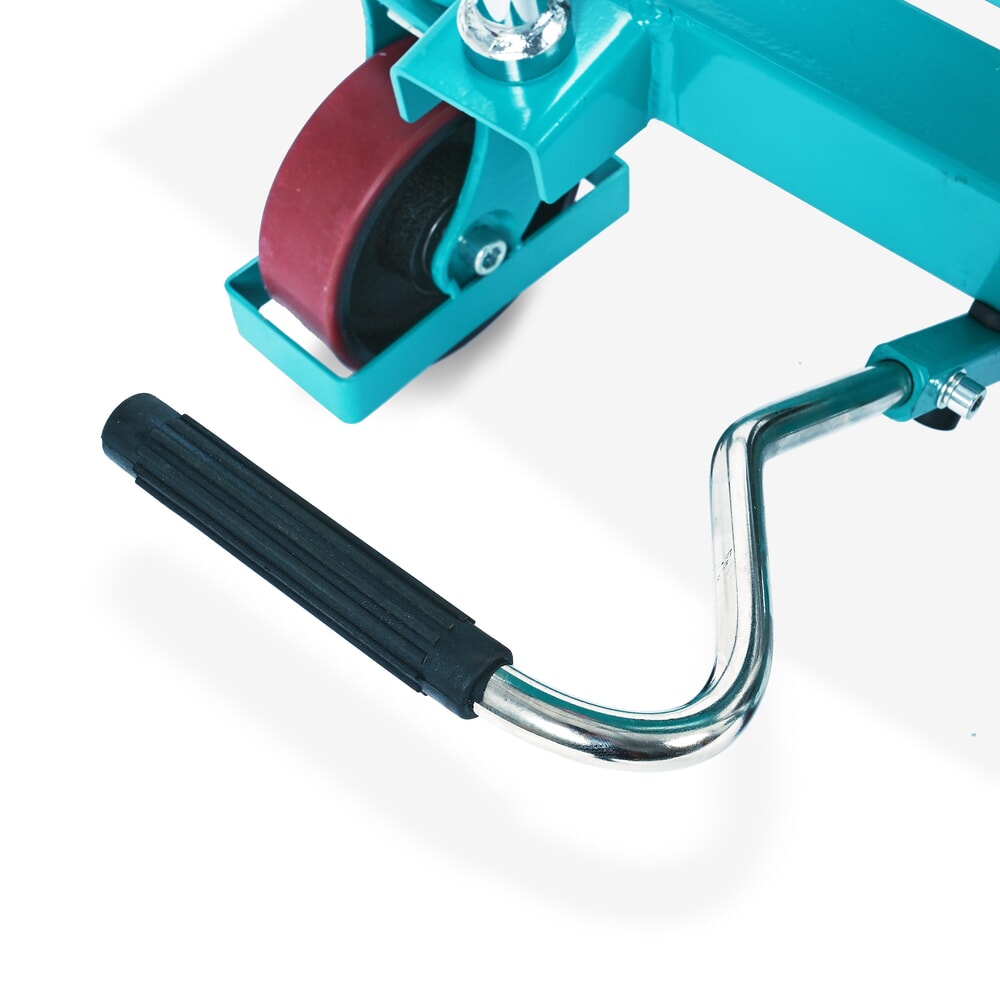

The powder-coated Ameise® scissor lift table with wheels is a high-quality product designed for everyday use. The mobile lift table is ideal for the transport and provisioning of goods at an ergonomic height, thus greatly reducing the strain on your back. You operate the high-quality hydraulic pump via a foot pedal, thereby raising the platform via the single scissor with utmost ease. The platform can be lowered gently and evenly using the fully variable lowering valve. The lowering handle on the chrome-plated handlebar is rubberised to ensure secure grip.

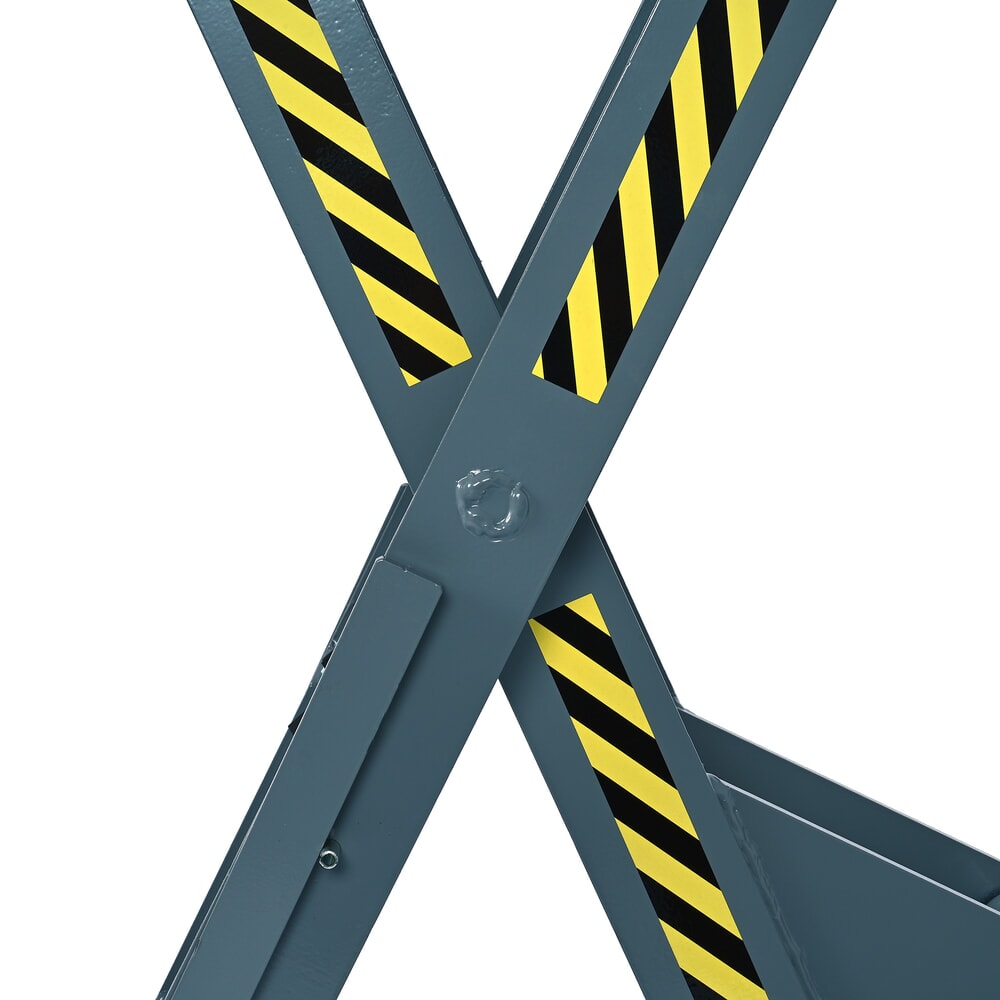

The inspection support on the lift table with wheels provides safe access to the lifting mechanism during service and maintenance work. The frame and scissors are made from welded sectional steel, while the table itself is constructed from rounded steel plate. Equipped with two steering castors and two fixed castors, all made from polyurethane, the scissor lift table can be moved with ease and minimal noise. The wheel stop on the steering castors ensures stability and security in use, while the wheel guards on all castors protect your feet when moving the lift table.
The Ameise® scissor lift table with wheels and fixed handlebar is available with different lift heights and capacities. Order the scissor lift table with wheels from our shop today.
The powder-coated Ameise® scissor lift table with wheels is a high-quality product designed for everyday use. The mobile lift table is ideal for the transport and provisioning of goods at an ergonomic height, thus greatly reducing the strain on your back. You operate the high-quality hydraulic pump via a foot pedal, thereby raising the platform via the single scissor with utmost ease. The platform can be lowered gently and evenly using the fully variable lowering valve. The lowering handle on the chrome-plated handlebar is rubberised to ensure secure grip.
The inspection support on the lift table with wheels provides safe access to the lifting mechanism during service and maintenance work. The frame and scissors are made from welded sectional steel, while the table itself is constructed from rounded steel plate. Equipped with two steering castors and two fixed castors, all made from polyurethane, the scissor lift table can be moved with ease and minimal noise. The wheel stop on the steering castors ensures stability and security in use, while the wheel guards on all castors protect your feet when moving the lift table.
The Ameise® scissor lift table with wheels and fixed handlebar is available with different lift heights and capacities. Order the scissor lift table with wheels from our shop today.
