Item number:
224225
Tennant® M20 ride-on scrubber dryer/sweeper, diesel/gas, 1,000 mm roller, incl. SST and ec-H2O™
Highly efficient cleaning: with combined scrubbing and sweeping function
Free shipping from £50 (plus VAT)
Secure data protection
Personal purchasing advice
Technical details
Tennant® M20 ride-on scrubber dryer/sweeper, diesel/gas, 1,000 mm roller, incl. SST and ec-H2O™
Article number: 224225 | EAN/GTIN: 4055091228167
| Battery capacity | 475 Ah/per unit |
| Battery type | Lead-gel battery |
| Battery voltage | 12 V/per unit |
| Body colour | green |
| Body material | ABS plastic |
| Brand | Tennant® |
| Brush diameter | 300 mm |
| Brush material | Polypropylene (PP) |
| Brush pressure | 177 kg |
| Brush rotary speed | 480 U/min |
| Brush shut-off automatic | Yes |
| Brush support drive | No |
| Castor material | Nylon, Polyester, Polypropylene (PP) |
| Charger | none |
| Dirt tank volume | 110 l |
| Drive | Diesel, Gas |
| Farbe | green |
| Filter area | 73000 cm² |
| Force transmission | Hydraulic |
| Frame colour | grey |
| Height | 1470 mm |
| Length | 2410 mm |
| Net weight | 2358 kg |
| Net weight without battery | 1497 kg |
| No. of batteries | 1 |
| No. of dustpans | 2 |
| No. of side brushes | 1 |
| No. of swivel castors | 1 Stk. |
| No. of wheels | 3 |
| Operator cockpit | Yes |
| Place of manufacture | Made in Europe |
| RAL colour | RAL 7026 granite grey |
| Removable fresh/waste water tank | No |
| Reverse gear | Yes |
| Rim material | Cast iron |
| Scope | Industrial |
| Seat material | Plastic |
| Section | Professional |
| Side brushes folding | Yes |
| Steering function | adjustable |
| Steering wheel material | PU foam |
| Suction cup width | 1300 mm |
| Suction lip material | Linatex |
| Sweeper filter cleaning | electric |
| Sweeper type | Ride-on sweeper |
| Sweeping capacity with 1 side brush in practice | 8190 m²/h |
| Sweeping capacity with 1 side brush theoretical | 14980 m²/h |
| Sweeping path side brushes | 400 mm |
| Sweeping path with 1 side brush | 1420 mm |
| Sweeping path without side brushes | 1020 mm |
| Sweeping principle | Dustpan |
| Tank volume fresh water | 212 l |
| Tank volume waste water | 276 l |
| Travel direction | Forward, Reverse |
| Travel speed | 48 - 13 km/h |
| Turning radius | 2790 mm |
| Tyre material | Rubber |
| Voltage | 12 V |
| Volume in dB(A) | 84 dB(A) |
| Wheel diameter | 406 mm |
| Wheels non-marking | Yes |
| Wheel width | 88.9 mm |
| Width | 1470 mm |
| Working width | 1370 mm |
Product Notes
Our offer is aimed exclusively at commercial customers (entrepreneurs). In particular, the product is not intended for use by consumers.
Warning and safety information
Item description

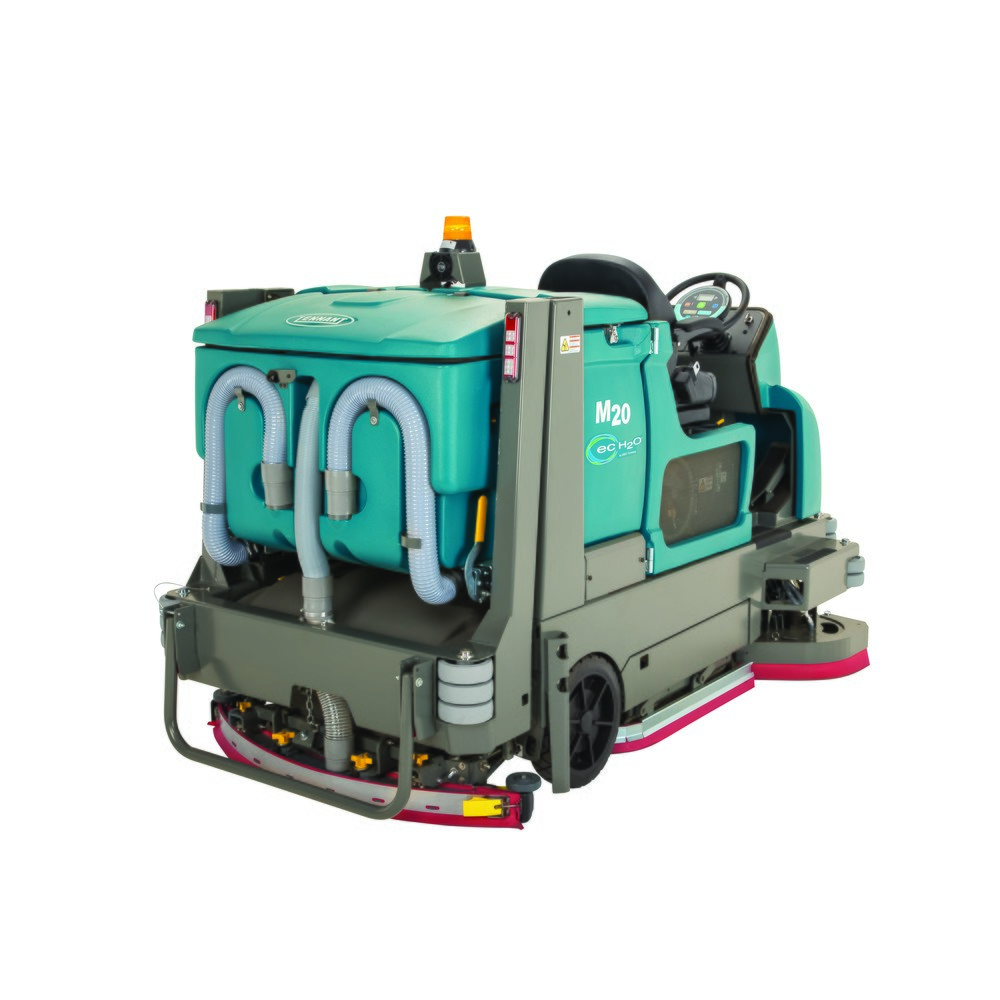

Tennant® M20 ride-on scrubber dryer/sweeper, diesel/gas, 1,000 mm roller, incl. SST and ec-H2O™
Article number: 224225 | EAN/GTIN: 4055091228167
Scrub and sweep in one pass – and chemical-free, thanks to ec-H2O™ technology in the battery-powered Tennant® M20 ride-on scrubber dryer/sweeper. The FloorSmart® cleaning system combines scrubbing and sweeping functions for highly efficient floor cleaning.
- FloorSmart® cleaning system with combined sweeping and scrubbing function
- Robust steel frame and corrosion-resistant Duramer™ housing
- Chemical-free ec-H2O™ technology for environmental, health and cost awareness
- Side scrubbing brush for wider cleaning path
- Intuitive operation via Touch-n-Go™ controls
- Hydraulic 110 l debris container – can be emptied at different heights
- Comfortable operator station with open sight lines and full frontal protection
Product Notes
Suction/brush motor power: hydraulic
Height-adjustable sweeper rollers and side brushes: depending on the brush pressure
Power: LPG 31.6 kW, diesel 18.5 kW
Practical cleaning performance: 11,150 sqm/h incl. ec-H2O
Dust extraction air volume: 20.9” of H2O
Gradeability: Transport gross weight 18%, working mode 14%
Delivery: fully assembled except for rollers and side brushes
Running time: powered by motor
Consumption: LPG 7.2 l/h, diesel 5.5 l/h
