Item number:
198297

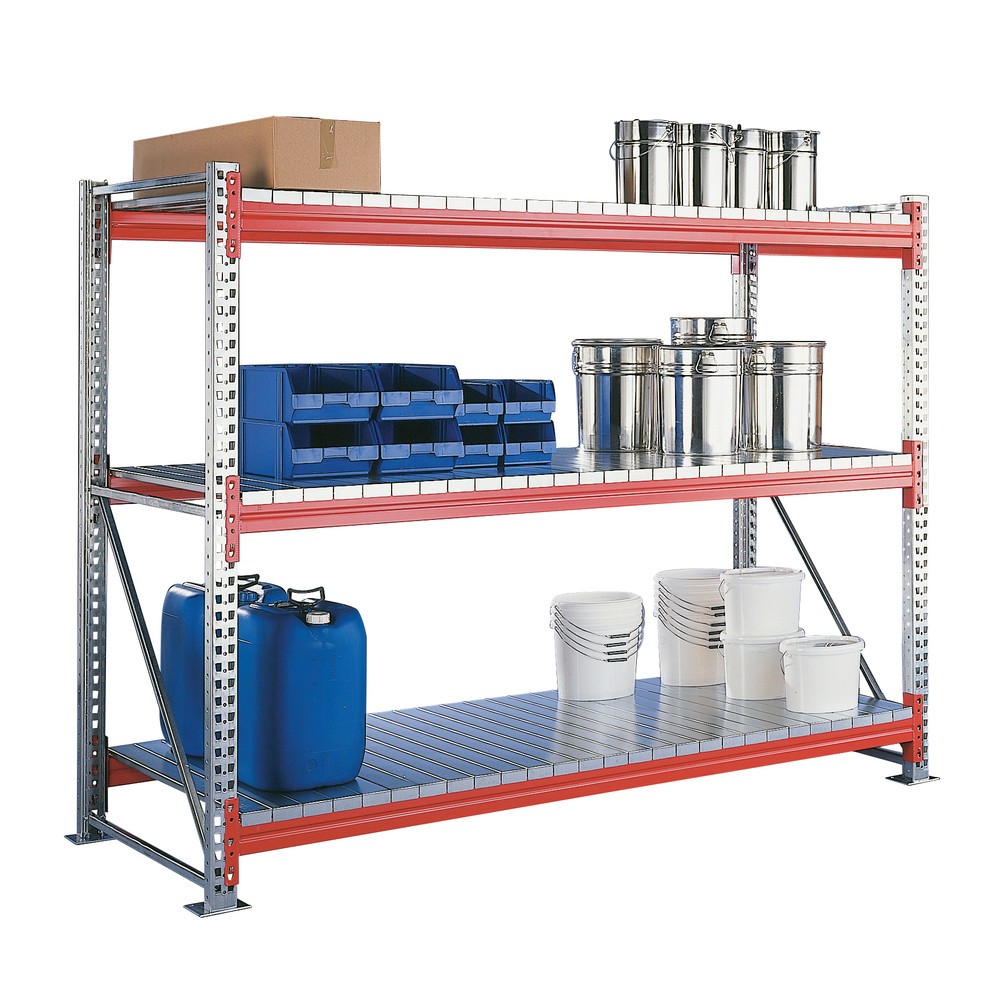

META wide-span rack, with steel panels, BU, galvanised/red orange, HxWxD 2,200 x 1,825 x 800 mm
Expandable rack system for heavyweight parts
11 Working days
Free shipping from £50 (plus VAT)
Secure data protection
Personal purchasing advice
Technical details
META wide-span rack, with steel panels, BU, galvanised/red orange, HxWxD 2,200 x 1,825 x 800 mm
Article number: 198297 | EAN/GTIN: 4026212342529
| Access options | one-sided |
| Assembly | Plug assembly, Screw assembly |
| Bay load max. | 6700 kg |
| Bay type | Base module |
| Beam RAL colour | RAL 2001 red orange |
| Brand | META |
| Compartment load max. | 1800 kg |
| Compatible with add-on unit | Yes |
| Exterior dimensions base unit | Nominal width + 170 mm |
| External dimension depth | 800 mm |
| External dimension height | 2200 mm |
| External dimension width | 1995 mm |
| Floor material | Steel panel |
| Floor surface | galvanised |
| Grid | 50 mm |
| Net weight | 130,93 kg |
| No. of shelves | 3 |
| Nominal depth | 800 mm |
| Nominal height | 2200 mm |
| Nominal width | 1825 mm |
| Place of manufacture | Made in Germany |
| Quality mark | MPA NRW Multipal S, RAL-RG 614/2 (pallet racks) |
| Rack as per standard | DIN EN 15512 |
| Rack type | Wide-span rack |
| Row type | single-line |
| Section | Professional |
| Shelf components | 198297 |
| Shelf type | Shelf |
| Stand surface | galvanised |
| configurable | Yes |
| quality seal | Certified security |
Item description
META wide-span rack, with steel panels, BU, galvanised/red orange, HxWxD 2,200 x 1,825 x 800 mm
Article number: 198297 | EAN/GTIN: 4026212342529
A META wide-span rack is ideal for storing all your oversized and heavy goods. You can also expand the base unit at any time with matching add-on units, thereby adapting it to changing space and storage conditions.
- META wide-span rack base unit with simple boltless assembly
- Height-adjustable shelves with steel panel decks
- Uprights made from galvanised high-grade steel
Racks for heavy loads – flexible storage for your bulky goods
Heavy goods with large dimensions are difficult to store in conventional racking systems. With its generous size, the META wide-span rack offers sufficient storage space for your bulky goods and is also able to accommodate heavy materials thanks to its high unit load.

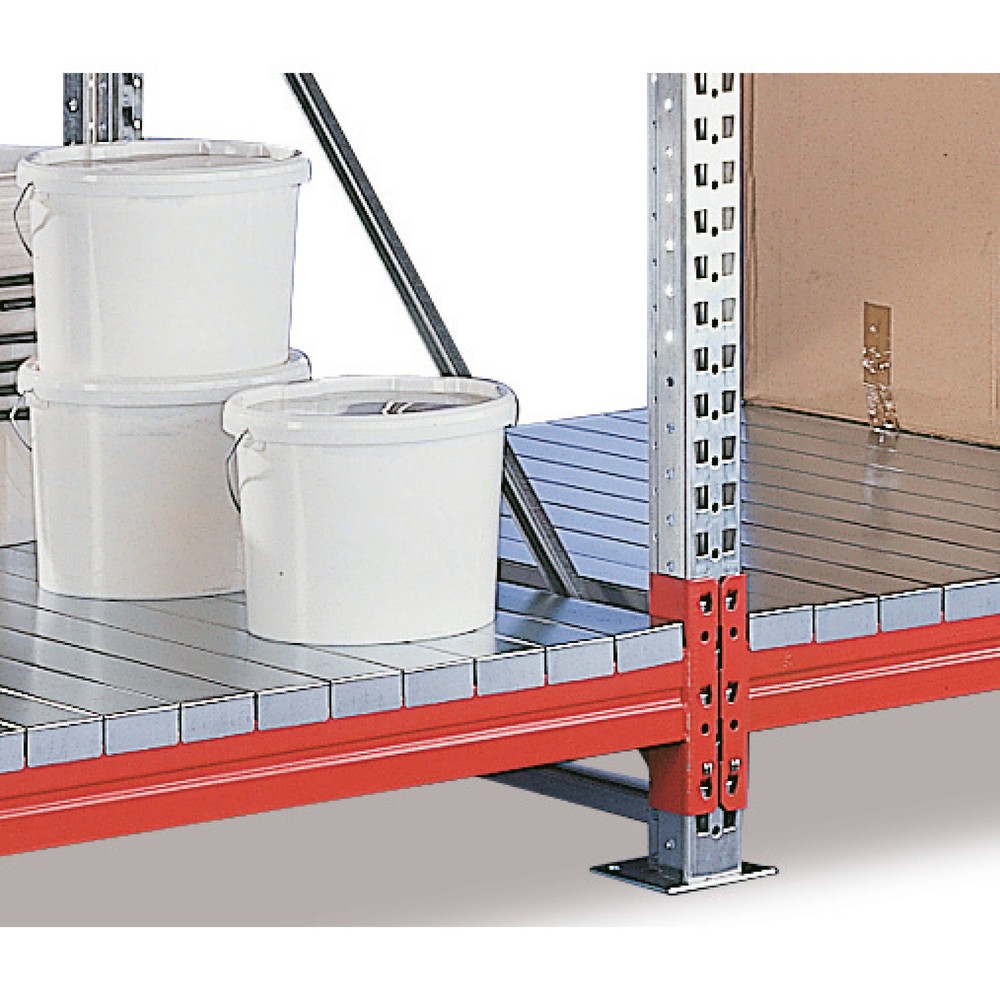

The rack features galvanised uprights to which the side members for the shelves are attached via practical boltless assembly. Thanks to this system, installation is a breeze while later conversions and expansions can also be completed with minimal effort. The steel panel shelves are extremely durable and robust. Their height can be adjusted in increments of 50 mm thanks to the hole pattern in the uprights. The flexible META wide-span rack can thus be adapted to the stored articles. In addition, double-sided access enables variable positioning of the rack, allowing you to make optimum use of your available space. The quality of the heavy-duty racks is certified by the quality mark RAL-RG 614/2 and the GS quality seal of MPA NRW. The rack is manufactured according to DIN EN 15512.
Create flexible storage for heavy and oversized goods by ordering the META wide-span rack base unit with steel panels, in a galvanised and red orange finish, from our shop today.
Heavy goods with large dimensions are difficult to store in conventional racking systems. With its generous size, the META wide-span rack offers sufficient storage space for your bulky goods and is also able to accommodate heavy materials thanks to its high unit load.
The rack features galvanised uprights to which the side members for the shelves are attached via practical boltless assembly. Thanks to this system, installation is a breeze while later conversions and expansions can also be completed with minimal effort. The steel panel shelves are extremely durable and robust. Their height can be adjusted in increments of 50 mm thanks to the hole pattern in the uprights. The flexible META wide-span rack can thus be adapted to the stored articles. In addition, double-sided access enables variable positioning of the rack, allowing you to make optimum use of your available space. The quality of the heavy-duty racks is certified by the quality mark RAL-RG 614/2 and the GS quality seal of MPA NRW. The rack is manufactured according to DIN EN 15512.
Create flexible storage for heavy and oversized goods by ordering the META wide-span rack base unit with steel panels, in a galvanised and red orange finish, from our shop today.
Product Notes
Fachlasten gelten bei gleichmäßig verteilter Last. Die Angaben der Feld- und Fachlasten gelten für Regaleinheiten mit min. 4 Regalfeldern bei Einsatz von min. 2 Auflagenpaaren. Zusätzliche Auflagen sind bei Einhaltung der max. Feldlast möglich.
Die Angaben der Feld- und Fachlasten gelten für Regaleinheiten mit min. 4 Regalfeldern bei Einsatz von min. 2 Auflagenpaaren. Die Belastbarkeit verringert sich bei weniger Feldern. Bitte beachten Sie die prozentuale Ablastung zu den aufgeführten Belastungswerten:
4 Felder: 100 % / 3 Felder: 93 % / 2 Felder: 87 % / 1 Feld: 80 %
