Item number: 141703

Complete package, META MULTIPAL pallet rack, shelf load 4,160 kg, HxWxD 3,800 x 5,700 x 1,100 mm

Name: Complete package, META MULTIPAL pallet rack, shelf load 4,160 kg, HxWxD 3,800 x 5,700 x 1,100 mm
Brand: META
SKU: 141703
Availability: InStock

Das Palettenregal für die einfache Lagerung von Waren auf Europaletten

Go to product description

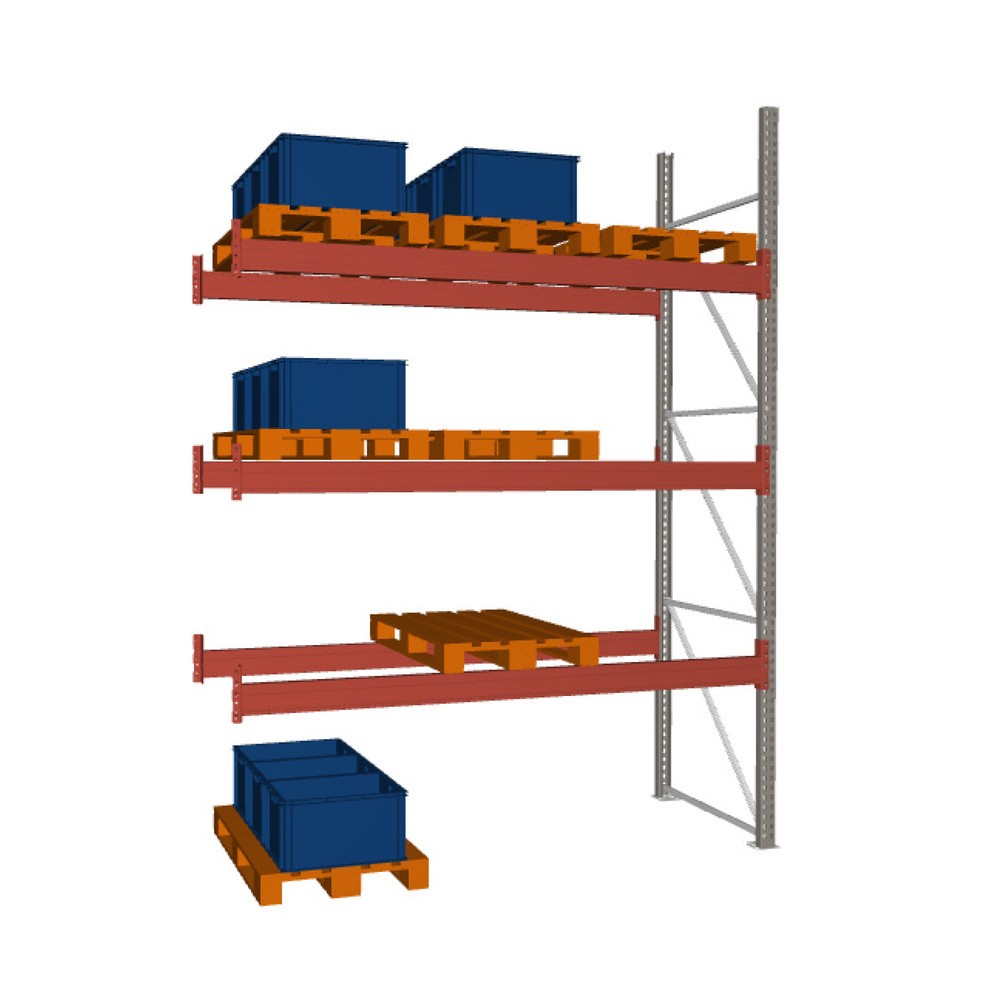

META MULTIPAL pallet rack, base unit, unit load up to 13,290 kg

Select variant:

Height:

2700 mm

3800 mm

4400 mm

Pallet positions:

Width:

2870 mm

2900 mm

5700 mm

11 Working days

Free shipping from £50 (plus VAT)

Secure data protection

Personal purchasing advice

Technical details

Complete package, META MULTIPAL pallet rack, shelf load 4,160 kg, HxWxD 3,800 x 5,700 x 1,100 mm

Article number: 141703 | EAN/GTIN: 4026212292640

Access options	one-sided
Approvals	general building approval (DIBt)
Assembly	Plug assembly, Screw assembly
Bar type	140/15
Bay load max.	11250 kg
Bay type	Complete package
Beam RAL colour	RAL 2001 red orange
Brand	META
Capacity per pallet	1250 kg
Compartment load max.	3750 kg
Compartment width	5400 mm
Compatible with add-on unit	Yes
Cross beam surface	powder-coated
Depth	1100 mm
Exterior dimensions base unit	Ständer 85/20: Auflagenlänge + 170 mm;Ständer 100/20: Auflagenlänge + 200 mm
Grid	50 mm
Height	3800 mm
Height of top edge 1st level max.	1000 mm
Net weight	337,96 kg
No. of levels	3
Pallet positions	24
Place of manufacture	Made in Germany
Quality mark	MPA NRW Multipal S, MPA NRW Statement of Compliance, RAL-RG 614/2 (pallet racks)
Rack as per standard	DIN EN 15512
Rack type	Pallet rack
Rack type	100/20
Row type	single-line
Stand surface	galvanised
Storage type	depth storage
Width	5700 mm
quality seal	Certified security

Item description

Complete package, META MULTIPAL pallet rack, shelf load 4,160 kg, HxWxD 3,800 x 5,700 x 1,100 mm

Article number: 141703 | EAN/GTIN: 4026212292640

Large goods are often transported on pallets. Storing these in a suitable rack will optimise your warehouse processes. The META pallet rack system can also be expanded with add-on units to suit different requirements.

META rack for convenient storage of goods on Euro pallets
Lift-out protection (securing pins) included
Frame uprights with galvanised surface
Unit load of up to 13,290 kg
Expandable with matching add-on units

Product Notes

Achtung: Abminderung der Belastungswerte für Holme und Ständerrahmen bei weniger als 4 Regalfeldern nebeneinander. Bei Palettenregalen gelten die Angaben der Feld- und Fachlasten für Regaleinheiten mit min. 4 Regalfeldern bei Einsatz von min. 2 Auflagenpaaren. Folgende Abminderungen sind zu berücksichtigen: 3 Felder = 93% / 2 Felder = 87% / 1 = Feld 80% der angegebenen Belastungswerte

Our offer is aimed exclusively at commercial customers (entrepreneurs). In particular, the product is not intended for use by consumers.

Warning and safety information
