Topseller
Item number:
129636
META cantilever rack, single-sided, LC 200 kg, 3 uprights
With welded arms of equal length
11 Working days
Free shipping from £50 (plus VAT)
Secure data protection
Personal purchasing advice
Technical details
META cantilever rack, single-sided, LC 200 kg, 3 uprights
Article number: 129636 | EAN/GTIN: 4026212275384
| Access options | one-sided |
| Assembly | Screw assembly |
| Bay load max. | 1000 kg |
| Bay type | Complete package |
| Brand | META |
| Depth | 630 mm |
| Effective depth | 500 mm |
| Exterior dimensions base unit | Nominal width + 55 mm / external dimension depth, one-sided = 630 mm |
| Grid | 100 mm |
| Height | 2000 mm |
| Kragarm-Abstand | 1350 mm |
| Load per arm max. | 200 kg |
| Net weight | 93,99 kg |
| No. of cantilever arms per upright (incl. foot) | 6 |
| No. of levels | 6 |
| No. of uprights | 3 |
| Nominal width | 2700 mm |
| Place of manufacture | Made in Europe |
| Quality mark | RAL-RG 614/5 (cantilever shelves) |
| Rack type | Cantilever rack |
| Section | Professional |
| Support arm RAL colour | RAL 5010 enzianblau |
| Uprights RAL colour | RAL 5010 gentian blue |
| Width | 2755 mm |
| quality seal | Certified security |
Item description

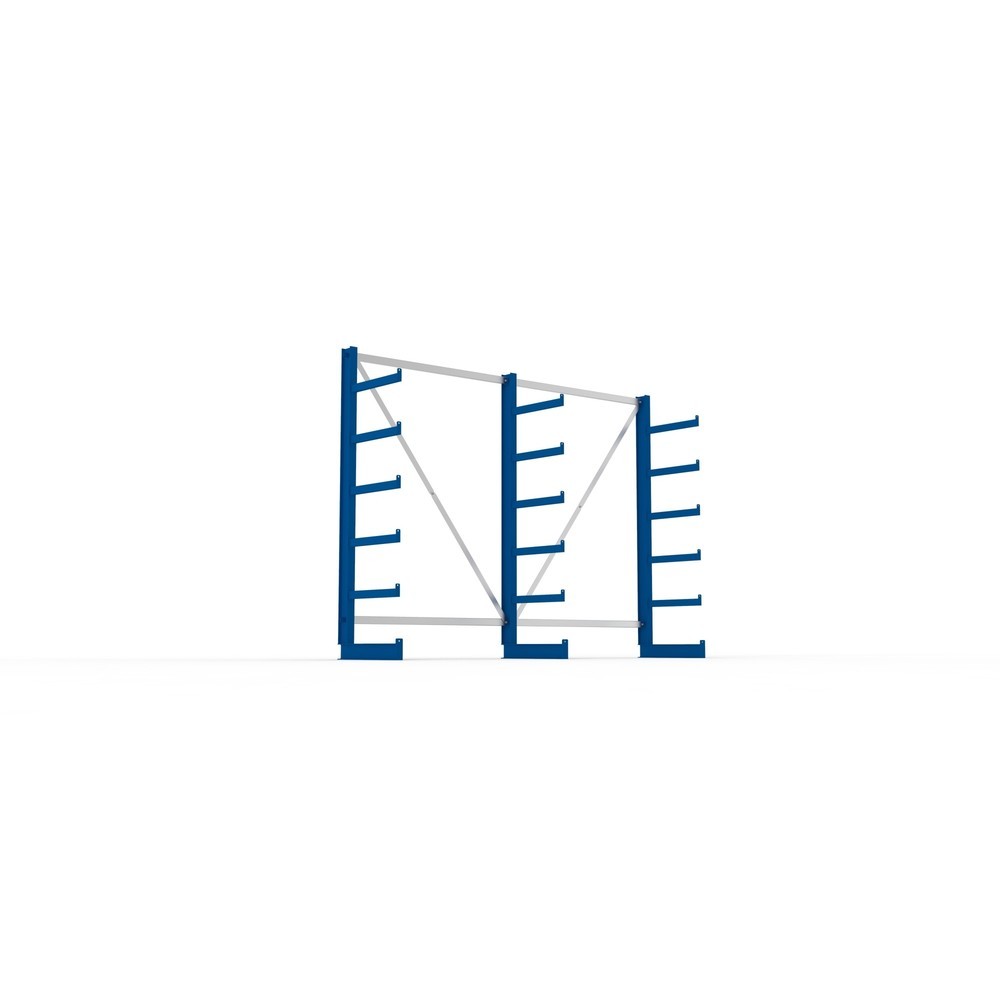

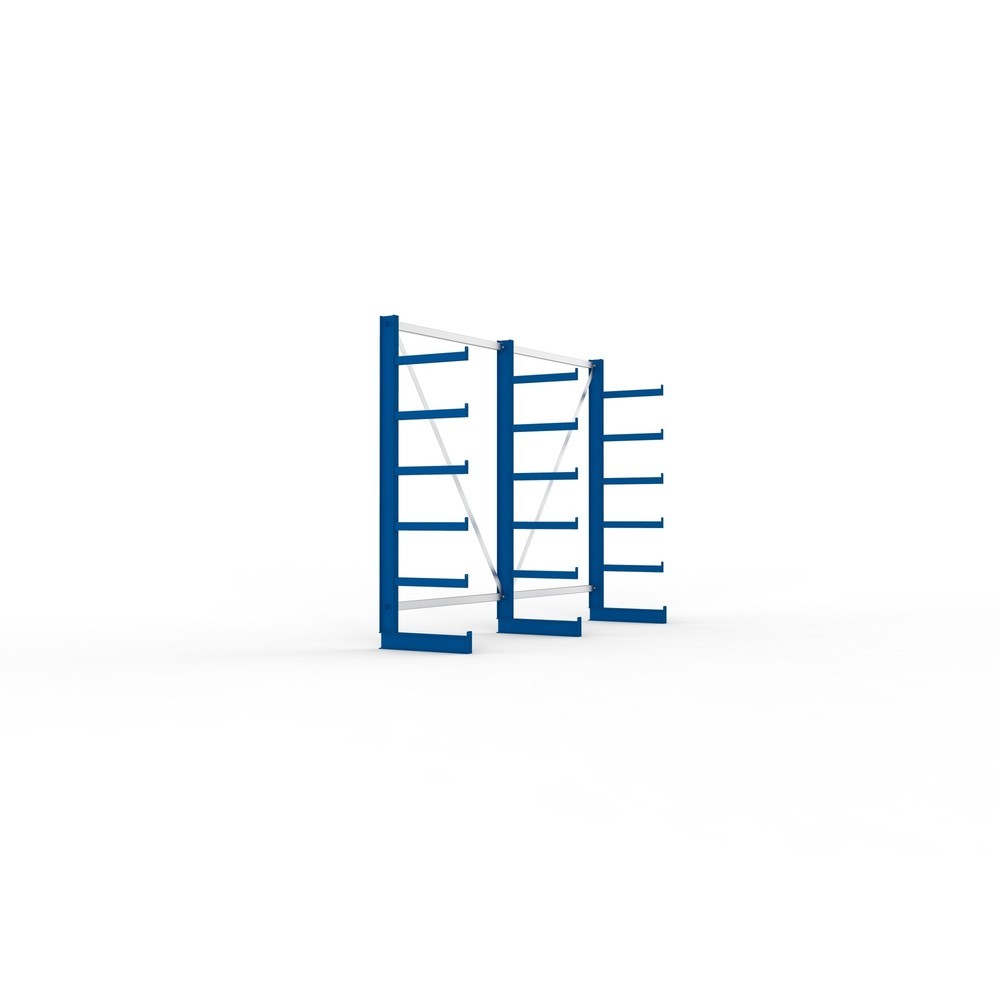

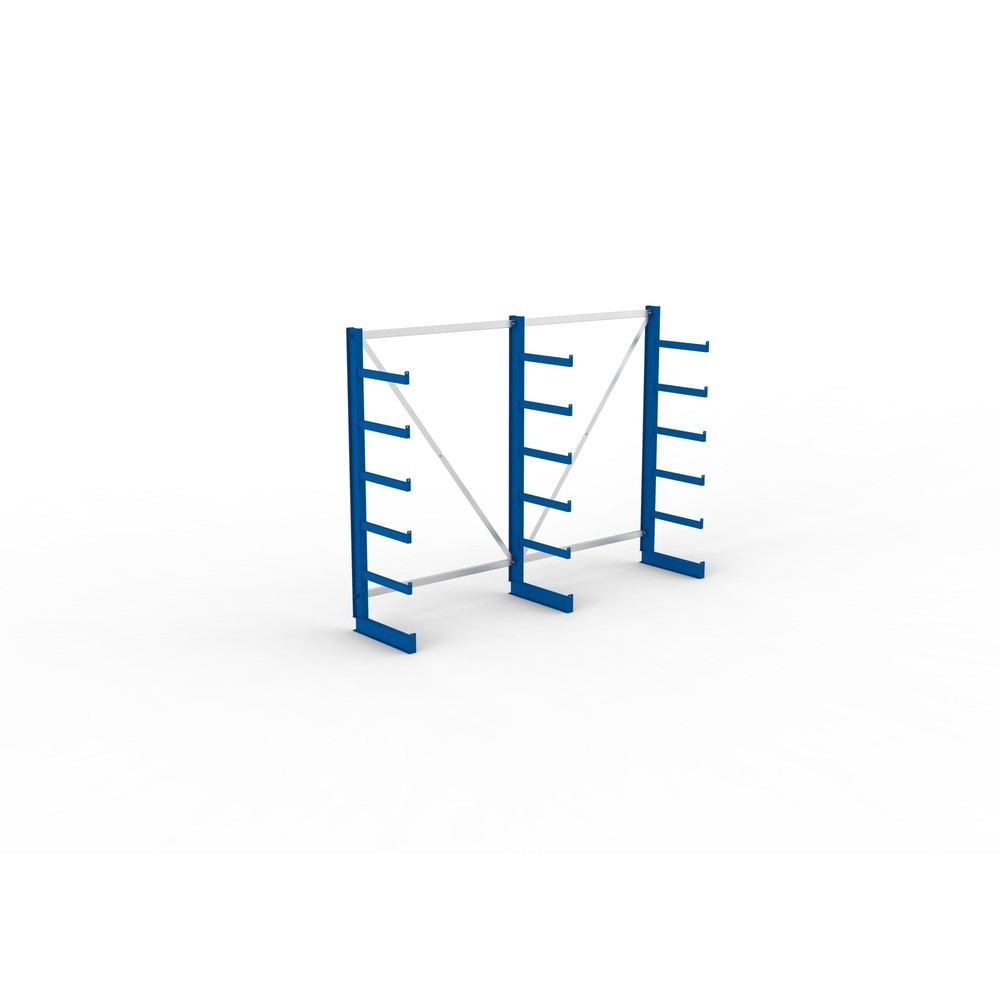

META cantilever rack, single-sided, LC 200 kg, 3 uprights
Article number: 129636 | EAN/GTIN: 4026212275384
Accommodate heavy, long goods in a space-saving manner in the META cantilever rack with a load capacity of 200 kg. Secure storage is guaranteed by the cantilevers welded to the uprights and roll-off protection on each arm.
- Cantilever rack with a storage side for wall spaces
- Ideal for storing long and heavy parts
- Cantilever arms of equal length welded to the uprights
- Secure storage due to roll-off protection
- In various upright designs
Loaded from only one side, the META cantilever rack is for the efficient storage of long goods weighing up to 200 kg
Metal pipes, wooden beams, poles, as well as sheet goods in over-long lengths pose special challenges for warehouse management. If these goods are among your regular warehouse items, you should facilitate their storage with specially designed racking systems. Since this META cantilever rack can be loaded only on one side, it is located on walls or against the back of other racks. It is suitable for all types of long goods because the integrated roll-off protection allows for the correct loading of all pipe and roll-shaped products.
The racks can be constructed quickly because the cantilever arms are already welded to the uprights. If the load is evenly distributed on one level, the arms of the same length can withstand loads of up to 200 kg. The cantilever racks are available in various sizes with different numbers of uprights.
Create space in your warehouse for over-long items and order the META cantilever rack from us here.
Metal pipes, wooden beams, poles, as well as sheet goods in over-long lengths pose special challenges for warehouse management. If these goods are among your regular warehouse items, you should facilitate their storage with specially designed racking systems. Since this META cantilever rack can be loaded only on one side, it is located on walls or against the back of other racks. It is suitable for all types of long goods because the integrated roll-off protection allows for the correct loading of all pipe and roll-shaped products.
The racks can be constructed quickly because the cantilever arms are already welded to the uprights. If the load is evenly distributed on one level, the arms of the same length can withstand loads of up to 200 kg. The cantilever racks are available in various sizes with different numbers of uprights.
Create space in your warehouse for over-long items and order the META cantilever rack from us here.
Product Notes
Die Belastungen der Kragarme gelten bei gleichmäßiger Lastverteilung. Doppelseitige Ständer haben bei einseitiger Nutzung nur die halbe Ständerlast. Die in der Tabelle angegebene Tiefe ist die Nutztiefe des längsten Armes je Seite.
