Item number:
129648

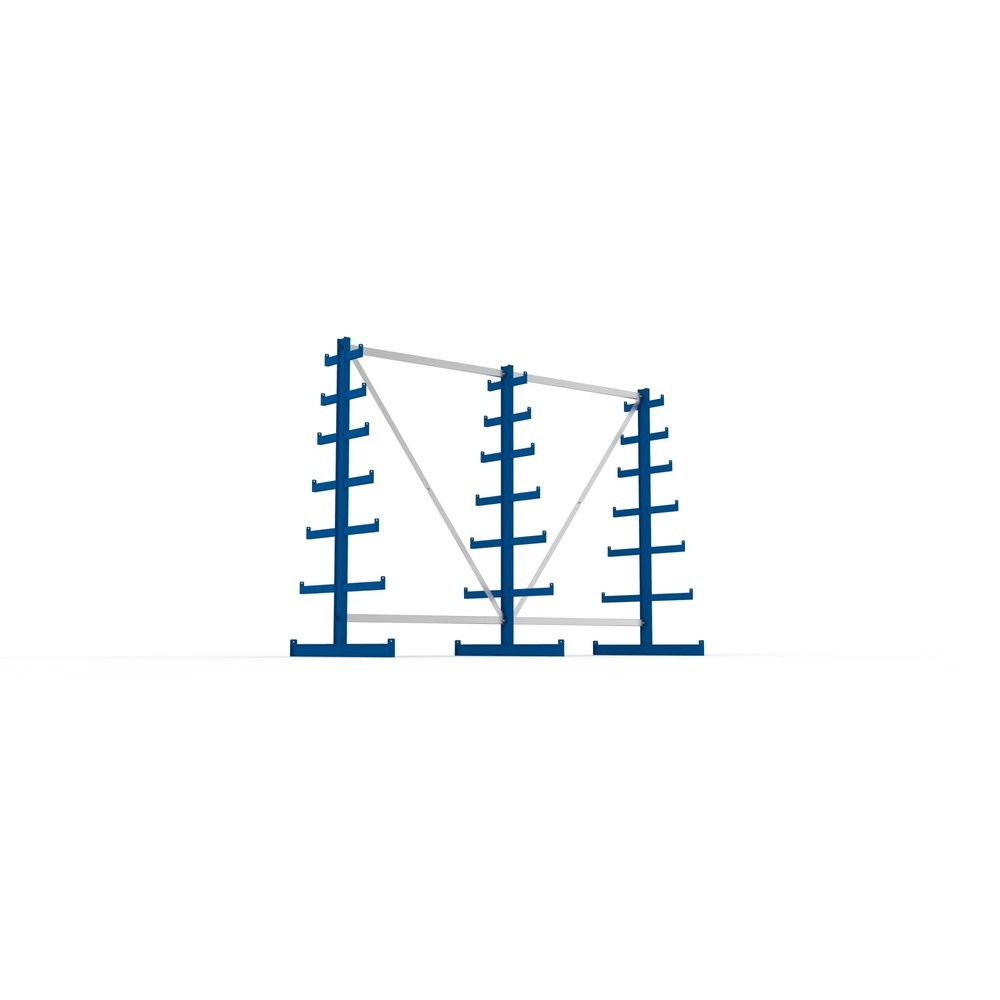

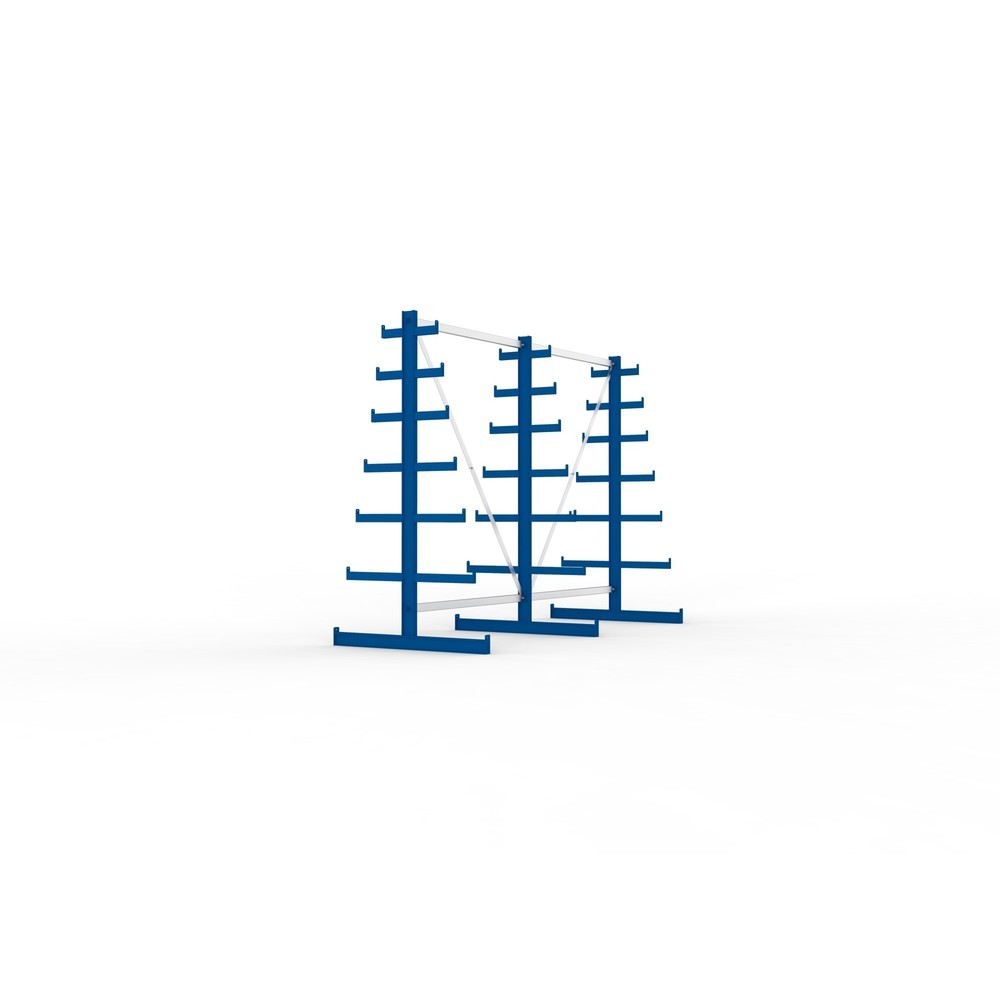

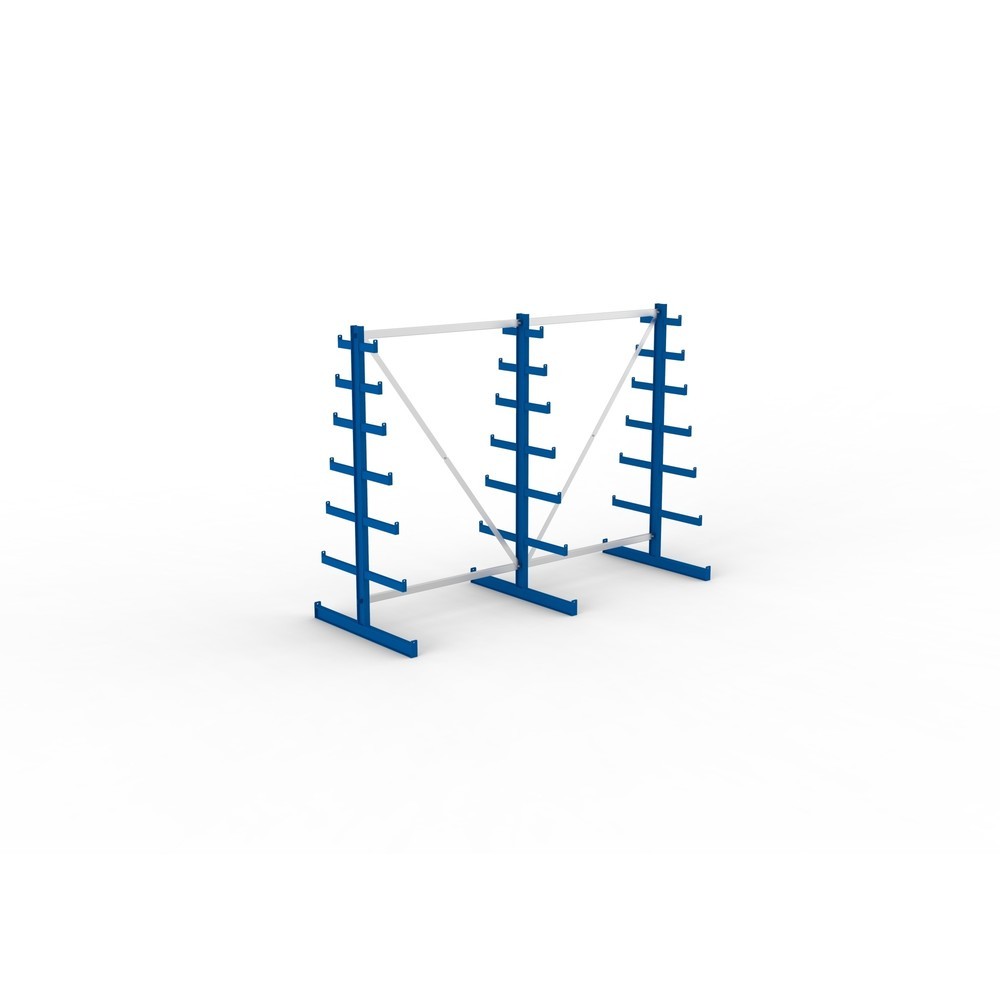

META cantilever rack, double-sided, LC 150 kg, 3 uprights
Space-saving storage of over-long and heavy individual parts
18 Working days
Free shipping from £50 (plus VAT)
Secure data protection
Personal purchasing advice
Technical details
META cantilever rack, double-sided, LC 150 kg, 3 uprights
Article number: 129648 | EAN/GTIN: 4026212275506
| Access options | double-sided |
| Assembly | Screw assembly |
| Bay load max. | 1800 kg |
| Bay type | Complete package |
| Brand | META |
| Depth | 1090 mm |
| Effective depth | 500 mm |
| Exterior dimensions base unit | Nominal width + 46 mm / external dimension depth, double-sided = 1.090 mm |
| Grid | 100 mm |
| Height | 2000 mm |
| Kragarm-Abstand | 1350 mm |
| Load per arm max. | 150 kg |
| Net weight | 94,77 kg |
| No. of cantilever arms per upright (incl. foot) | 14 |
| No. of levels | 7 |
| No. of uprights | 3 |
| Nominal width | 2700 mm |
| Place of manufacture | Made in Europe |
| Quality mark | RAL-RG 614/5 (cantilever shelves) |
| Rack type | Cantilever rack |
| Section | Professional |
| Support arm RAL colour | RAL 5010 enzianblau |
| Uprights RAL colour | RAL 5010 gentian blue |
| Width | 2746 mm |
| quality seal | Certified security |
Item description
META cantilever rack, double-sided, LC 150 kg, 3 uprights
Article number: 129648 | EAN/GTIN: 4026212275506
Cantilever racks are an indispensable aid in any warehouse when it comes to storing load carriers, cross members, shafts and similarly shaped heavy objects. The double-sided versions are particularly useful thanks to their impressive capacity.
- META cantilever rack, double-sided, ideal for storing long goods
- Pre-welded cantilever arms with different lengths
- Integrated roll-off protection on all arms
- Versions with 3 to 6 uprights possible
Cantilever rack for safe storage of long goods
It is not always easy to accommodate long and heavy items in a warehouse. Although it may be possible to stack wooden beams or load carriers relatively easily in a recess, this is not the case for metal pipes or shafts. If you decide on a cantilever rack, future storage will be absolutely uncomplicated.
You can load the double-sided META cantilever rack with loads of up to 150 kg per load arm. In addition, the arms of different lengths are equipped with integrated roll-off protection, so that you can easily store pipes or round bars with utmost safety. The cantilever rack is available in different sizes. This provides you with a flexible storage system, which you can adapt to the local conditions at any time.
Discover for yourself this flexible opportunity for storing long goods and order the double-sided cantilever rack from us here.
It is not always easy to accommodate long and heavy items in a warehouse. Although it may be possible to stack wooden beams or load carriers relatively easily in a recess, this is not the case for metal pipes or shafts. If you decide on a cantilever rack, future storage will be absolutely uncomplicated.
You can load the double-sided META cantilever rack with loads of up to 150 kg per load arm. In addition, the arms of different lengths are equipped with integrated roll-off protection, so that you can easily store pipes or round bars with utmost safety. The cantilever rack is available in different sizes. This provides you with a flexible storage system, which you can adapt to the local conditions at any time.
Discover for yourself this flexible opportunity for storing long goods and order the double-sided cantilever rack from us here.
Product Notes
Die Belastungen der Kragarme gelten bei gleichmäßiger Lastverteilung. Doppelseitige Ständer haben bei einseitiger Nutzung nur die halbe Ständerlast. Die in der Tabelle angegebene Tiefe ist die Nutztiefe des längsten Armes je Seite.
Our offer is aimed exclusively at commercial customers (entrepreneurs). In particular, the product is not intended for use by consumers.
