Item number:
105414

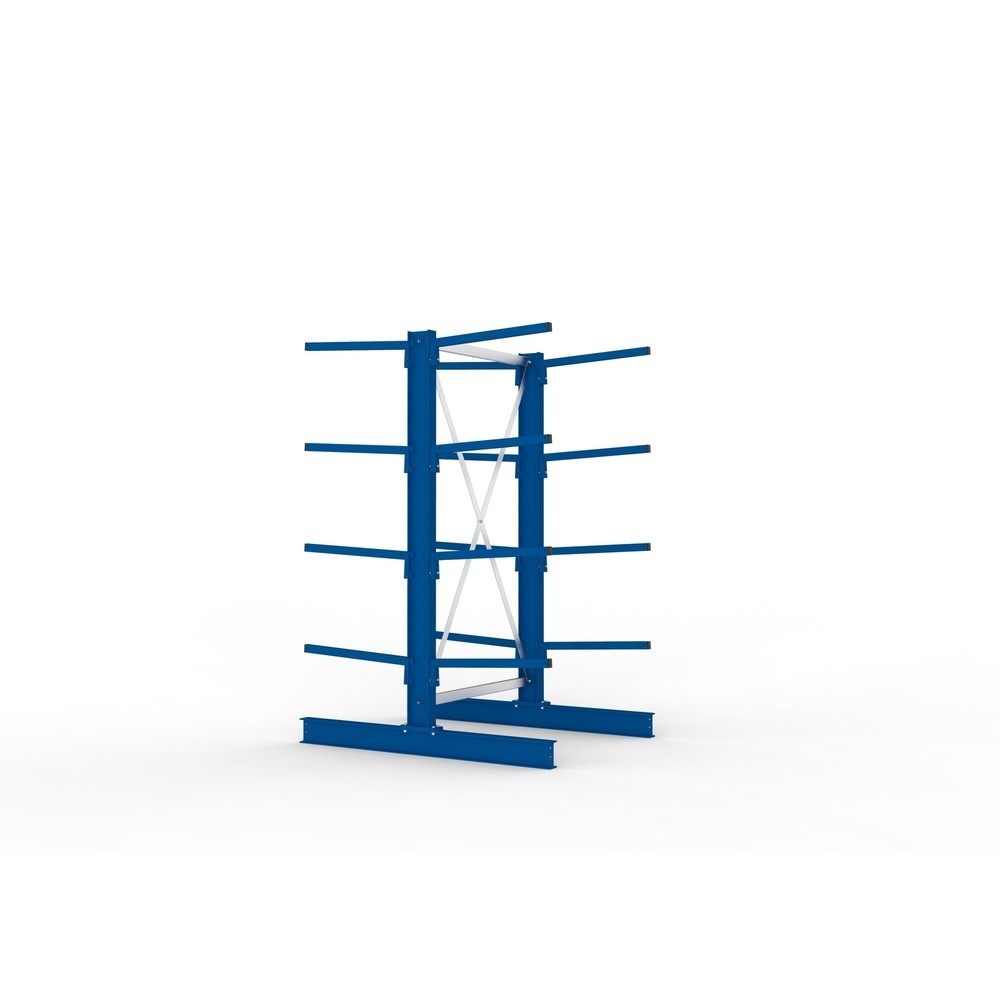

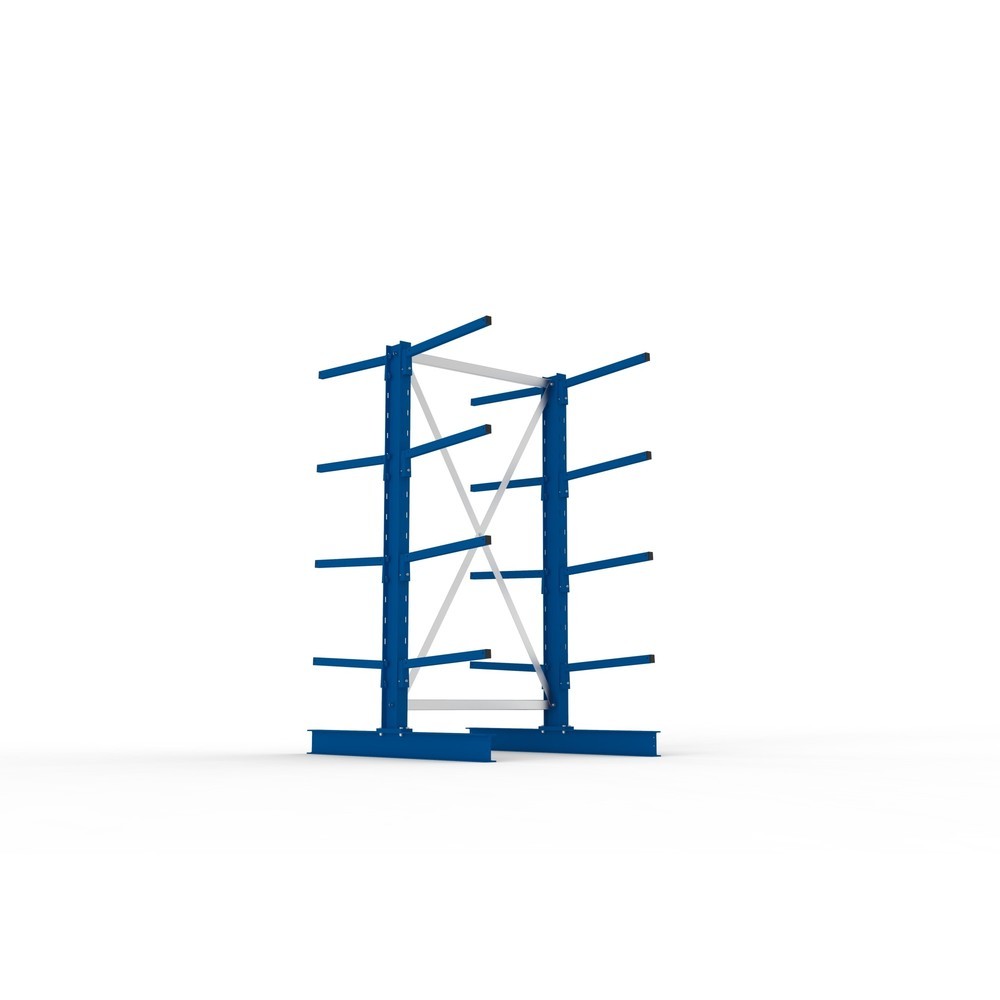

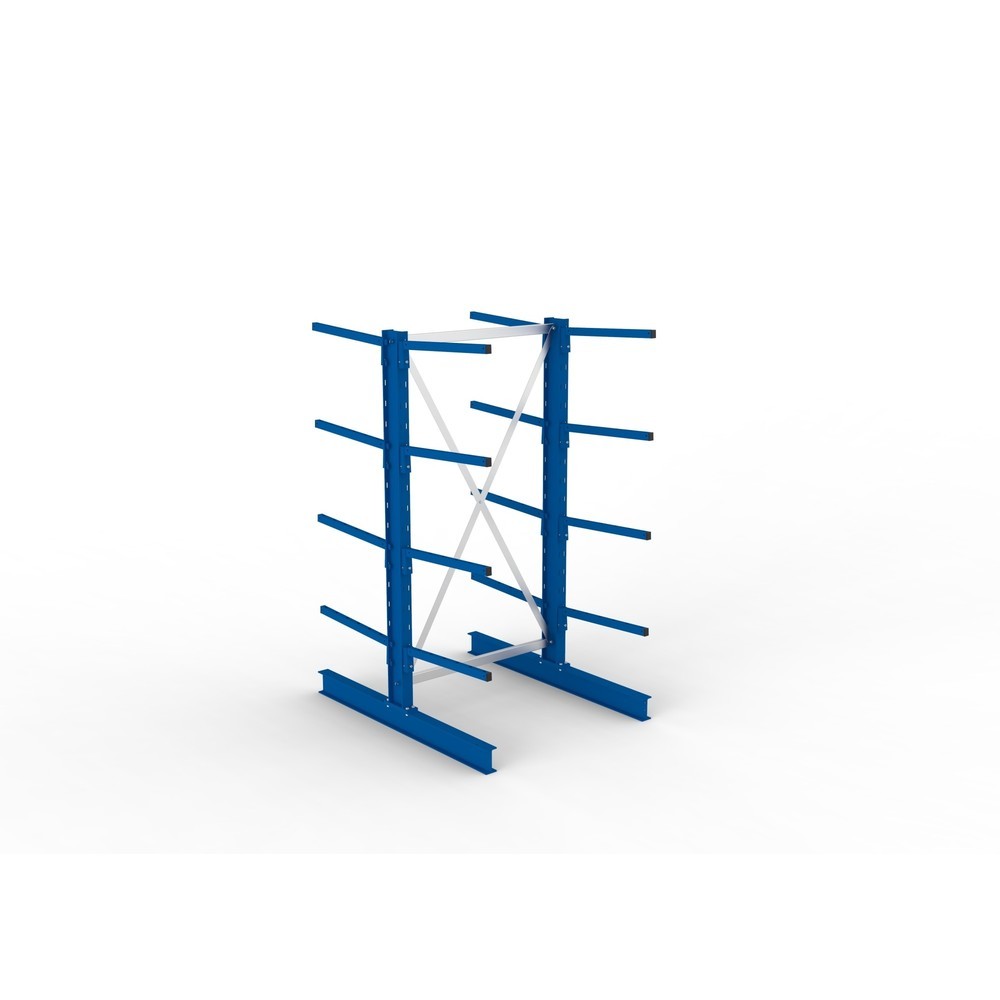

META cantilever rack, BU, double-sided, LC 140 kg, height 2,000 mm
Space-saving storage of over-long and heavy individual parts
11 Working days
Free shipping from £50 (plus VAT)
Secure data protection
Personal purchasing advice
Technical details
META cantilever rack, BU, double-sided, LC 140 kg, height 2,000 mm
Article number: 105414 | EAN/GTIN: 4026212119299
| Access options | double-sided |
| Assembly | Screw assembly |
| Bay load max. | 2600 kg |
| Bay type | Base module |
| Brand | META |
| Compatible with add-on unit | Yes |
| Depth | 1420 mm |
| Effective depth | 600 mm |
| Exterior dimensions base unit | Axle distance + 64 mm / 2x nominal depth + 220 mm |
| External dimension depth | 600 mm |
| External dimension height | 2000 mm |
| External dimension width | 1094 mm |
| Grid | 100 mm |
| Height | 2000 mm |
| Kragarm-Abstand | 1030 mm |
| Load per arm max. | 140 kg |
| Net weight | 108,95 kg |
| No. of cantilever arms per upright (incl. foot) | 10 |
| No. of levels | 5 |
| No. of uprights | 2 |
| Nominal depth | 1200 mm |
| Nominal height | 2000 mm |
| Nominal width | 1000 mm |
| Place of manufacture | Made in Europe |
| Quality mark | RAL-RG 614/5 (cantilever shelves) |
| Rack type | Cantilever rack |
| Section | Professional |
| Shelf components | 105414 |
| Support arm RAL colour | RAL 5010 enzianblau |
| Uprights RAL colour | RAL 5010 gentian blue |
| Width | 1094 mm |
| configurable | Yes |
| quality seal | Certified security |
Item description
META cantilever rack, BU, double-sided, LC 140 kg, height 2,000 mm
Article number: 105414 | EAN/GTIN: 4026212119299
Cantilever racks are an indispensable aid in any warehouse when it comes to storing load carriers, cross members, shafts and similarly shaped heavy objects. The double-sided versions are particularly useful thanks to their impressive capacity.
- META cantilever rack, double-sided, ideal for storing long goods
- Quick, simple assembly via boltless assembly and locking screws
- Up to 220 kg load capacity per arm
Cantilever rack for safe storage of long goods
It is not always easy to accommodate long and heavy items in a warehouse. Although it may be possible to stack wooden beams or load carriers relatively easily in a recess, this is not the case for metal pipes or shafts. If you decide on a cantilever rack, future storage will be absolutely uncomplicated.
You can load the double-sided META cantilever rack with loads of up to 220 kg per load arm. In addition, the arms are equipped with integrated roll-off protection, so that you can easily store pipes or round bars with utmost safety. The cantilever rack is available in different base unit sizes. All versions can be retrofitted with the appropriate add-on units. This provides you with a flexible storage system, which you can adapt to the local conditions at any time.
Benefit from a flexible storage solution for your long goods by ordering the cantilever rack from our shop today.
It is not always easy to accommodate long and heavy items in a warehouse. Although it may be possible to stack wooden beams or load carriers relatively easily in a recess, this is not the case for metal pipes or shafts. If you decide on a cantilever rack, future storage will be absolutely uncomplicated.
You can load the double-sided META cantilever rack with loads of up to 220 kg per load arm. In addition, the arms are equipped with integrated roll-off protection, so that you can easily store pipes or round bars with utmost safety. The cantilever rack is available in different base unit sizes. All versions can be retrofitted with the appropriate add-on units. This provides you with a flexible storage system, which you can adapt to the local conditions at any time.
Benefit from a flexible storage solution for your long goods by ordering the cantilever rack from our shop today.
Product Notes
Regale mit Höhen-Tiefen-Verhältnis ≥ 5:1 gegen Kippen sichern. Die Belastungen der Kragarme gelten bei gleichmäßiger Lastverteilung. Doppelseitige Ständer haben bei einseitiger Nutzung nur die halbe Ständerlast. Die in der Tabelle angegebene Tiefe ist die Nutztiefe der Arme je Seite.
