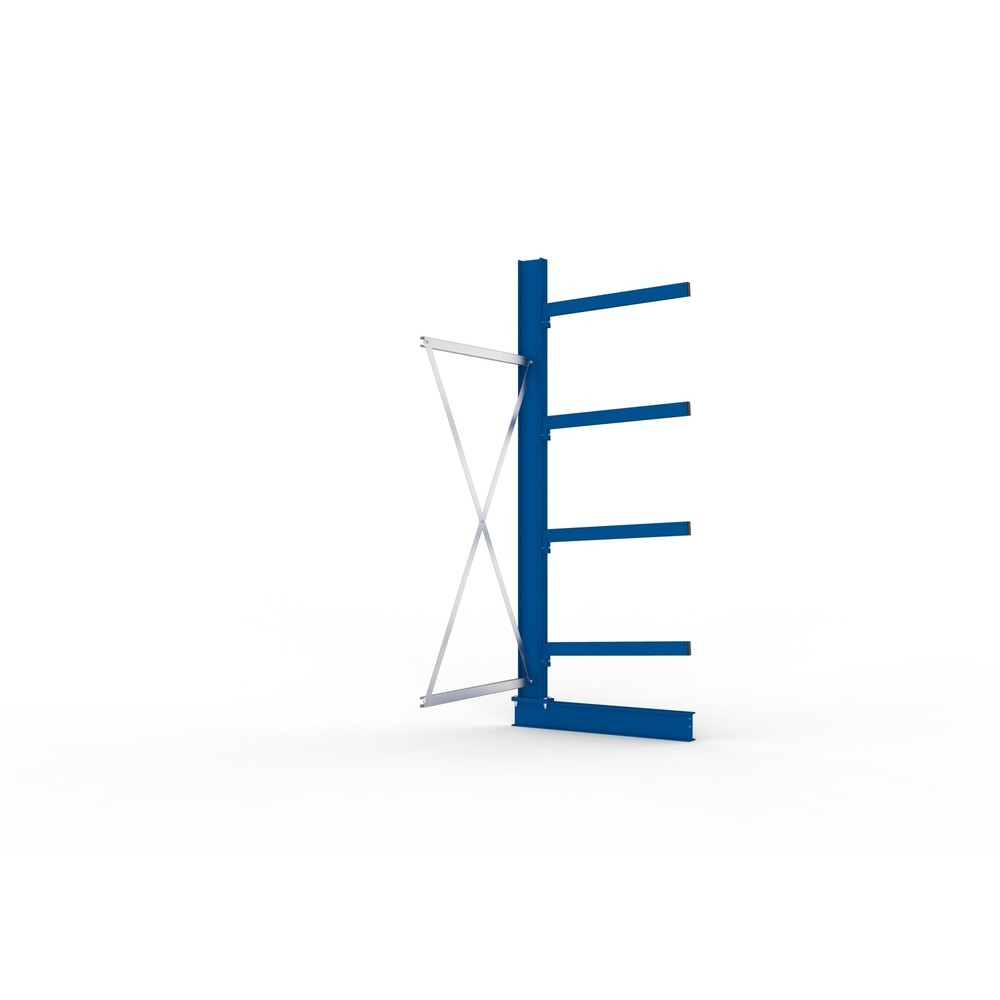

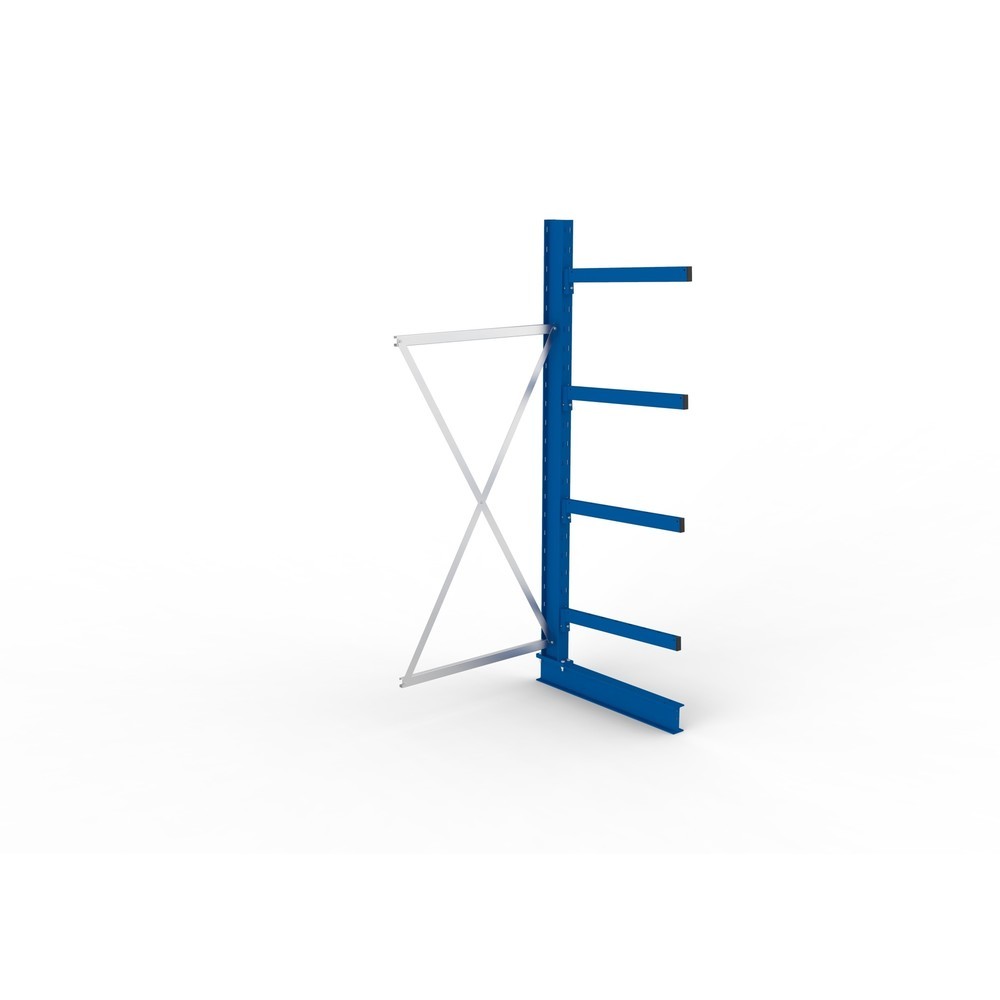

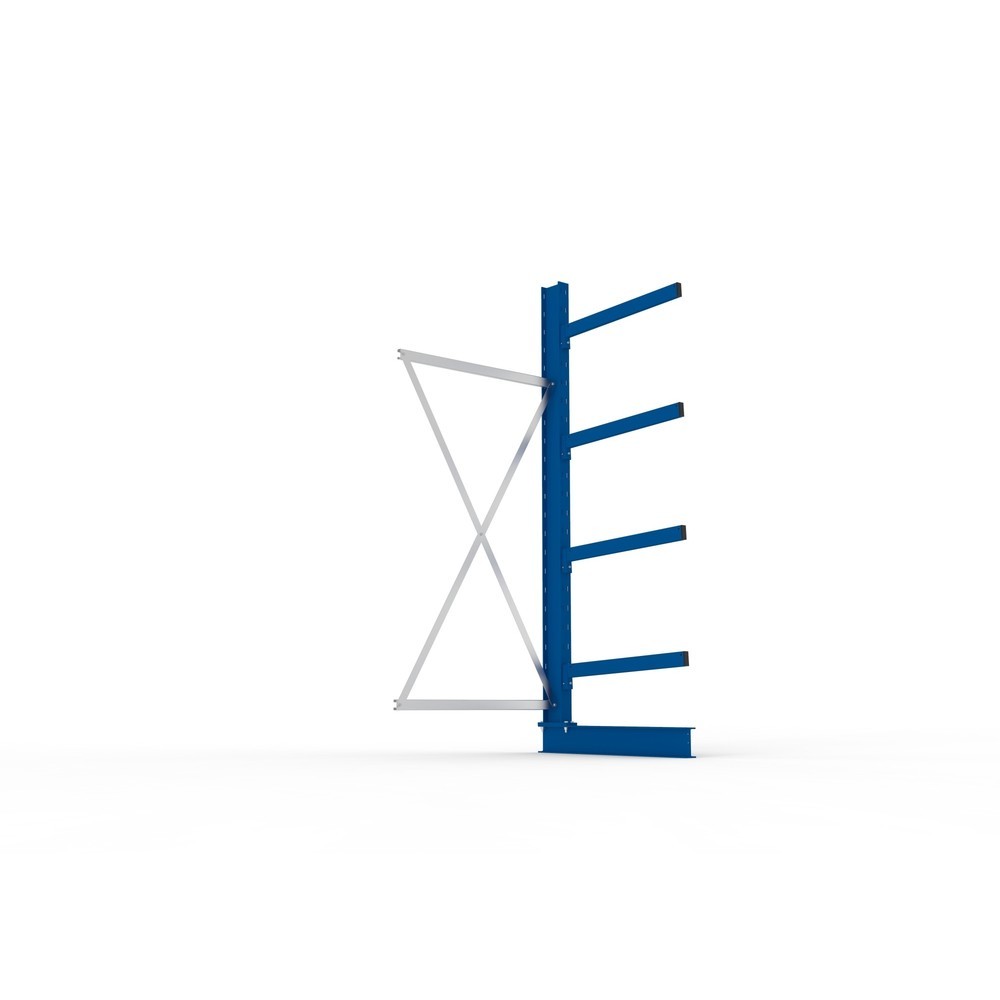

Name: META cantilever rack, AU, single-sided, LC 250 kg, height 2,500 mm
Brand: META
SKU: 105448
Availability: InStock

Technical details

META cantilever rack, AU, single-sided, LC 250 kg, height 2,500 mm

Article number: 105448 | EAN/GTIN: 4026212119800

Access options	one-sided
Assembly	Screw assembly
Bay load max.	1500 kg
Bay type	Extension module
Brand	META
Depth	1030 mm
Effective depth	800 mm
Exterior dimensions add-on unit	Axle distance + 73 mm / nominal depth + 230 mm
External dimension depth	800 mm
External dimension height	2500 mm
External dimension width	1103 mm
Grid	100 mm
Height	2500 mm
Kragarm-Abstand	1030 mm
Load per arm max.	250 kg
Net weight	63,66 kg
No. of cantilever arms per upright (incl. foot)	5
No. of levels	5
No. of uprights	1
Nominal depth	800 mm
Nominal height	2500 mm
Nominal width	1000 mm
Place of manufacture	Made in Europe
Quality mark	RAL-RG 614/5 (cantilever shelves)
Rack type	Cantilever rack
Section	Professional
Support arm RAL colour	RAL 5010 enzianblau
Uprights RAL colour	RAL 5010 gentian blue
Width	1103 mm
configurable	Yes
next fitting rack is base field	Yes
quality seal	Certified security

Item description

META cantilever rack, AU, single-sided, LC 250 kg, height 2,500 mm

Article number: 105448 | EAN/GTIN: 4026212119800

Are you looking for a way to expand your existing storage system in a space-saving manner? If you already use META one-sided cantilever racks, the one-sided add-on units will be ideal for your purposes.

One-sided cantilever rack add-on unit for existing META cantilever racks
Max. load capacity 430 kg per arm
Ideal for the storage of long and heavy goods
Quick, simple assembly via boltless assembly and locking screws

The add-on unit for one-sided cantilever racks for rapid expansion of your storage area

Products such as metal pipes, poles or plate goods take up a great deal of space. The META add-on units for one-sided cantilever racks ensure that your warehouses always have sufficient capacity for additional goods. With the quick and easy-to-handle boltless system, you attach the add-on unit to your existing META rack to create an additional space in your warehouse in no time at all.
Like the META base units, the META add-ons are also available in various sizes and designs. So you will quickly find the appropriate add-on unit for your rack. The different dimensions have different load capacities. You will very easily be able to tailor your rack system to your individual needs. If you decide on a one-sided add-on unit, you have the option at any time to convert it to a double-sided add-on unit by replacing the base section and base unit. The cantilever arms have the same arm length and are height-adjustable in increments of 100 mm. Each arm can withstand a load of up to 430 kg.

Take advantage of the versatile opportunities for storage systems by purchasing add-on units and appropriate cantilever racks from us here.

Product Notes

Regale mit Höhen-Tiefen-Verhältnis ≥ 5:1 gegen Kippen sichern. Die Belastungen der Kragarme gelten bei gleichmäßiger Lastverteilung. Doppelseitige Ständer haben bei einseitiger Nutzung nur die halbe Ständerlast. Die in der Tabelle angegebene Tiefe ist die Nutztiefe der Arme je Seite.

Our offer is aimed exclusively at commercial customers (entrepreneurs). In particular, the product is not intended for use by consumers.
