Item number:
105407

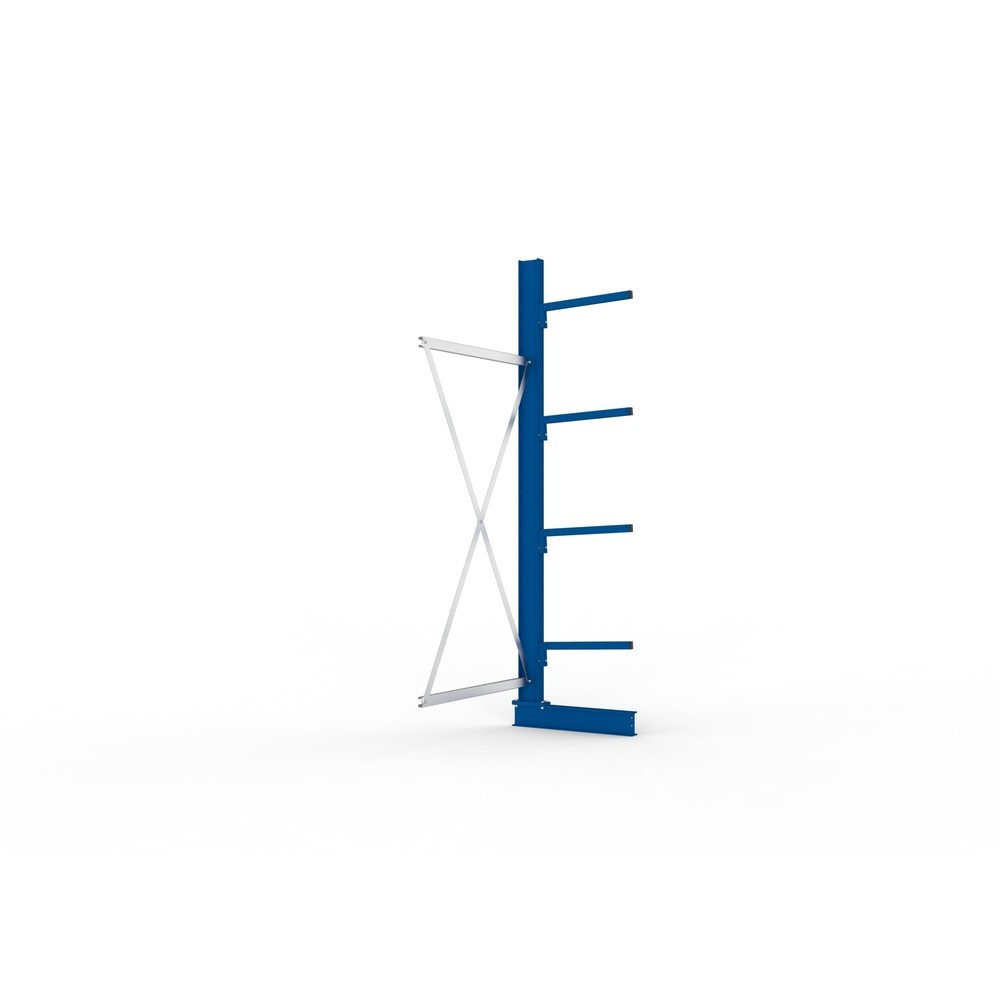

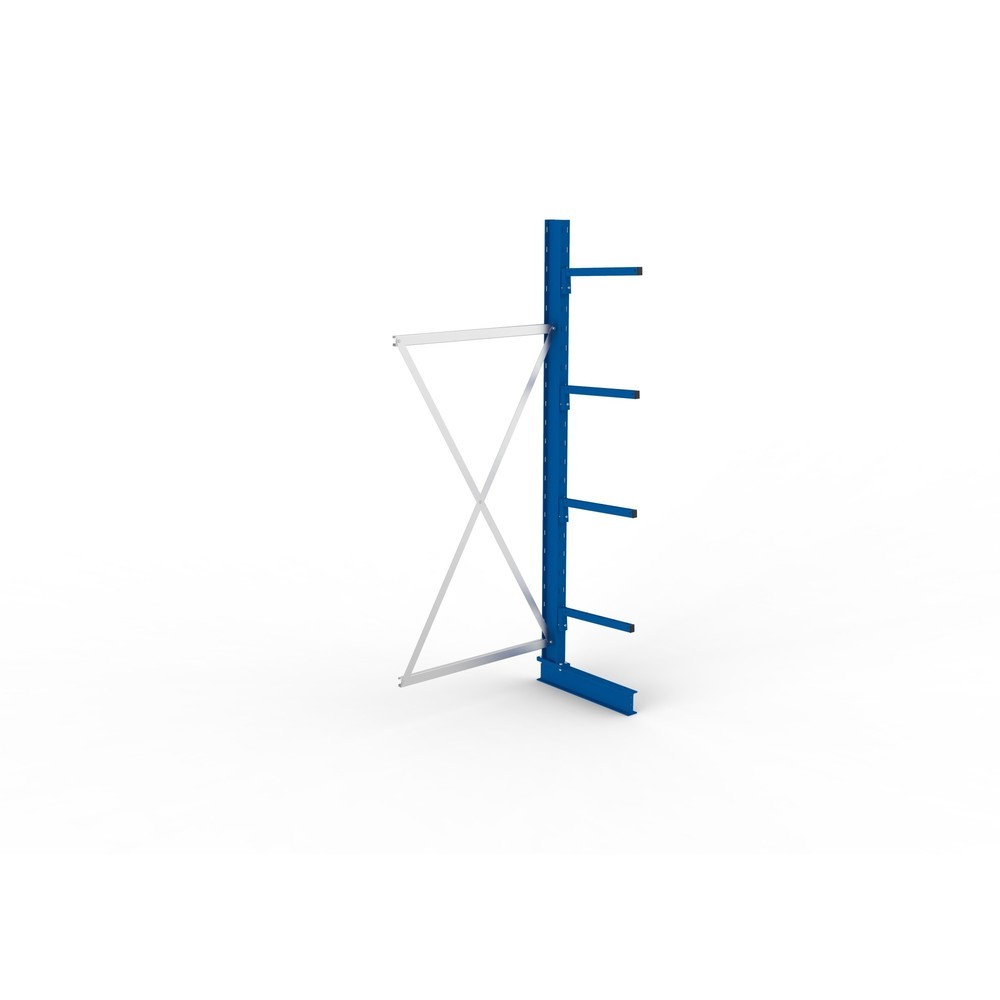

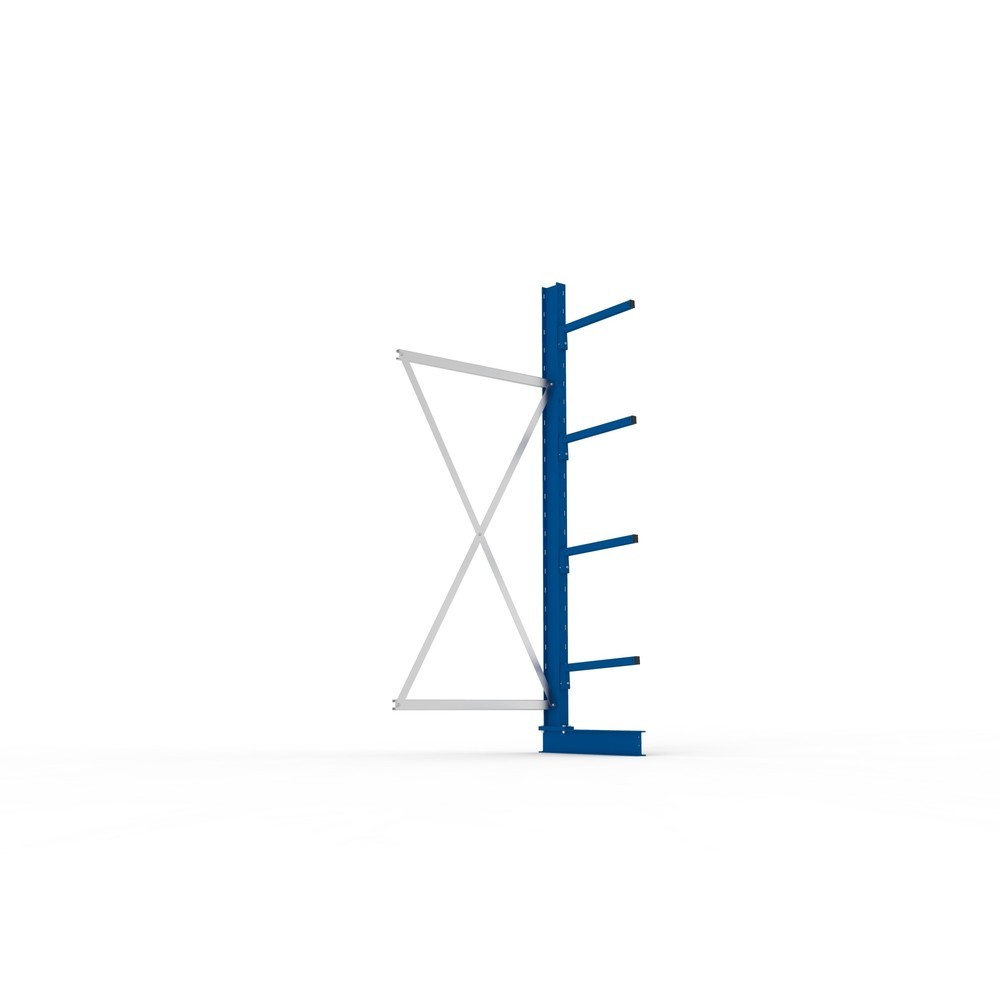

META cantilever rack, AU, single-sided, LC 175 kg, height 2,500 mm
One-sided add-on unit for additional storage space in racks
11 Working days
Free shipping from £50 (plus VAT)
Secure data protection
Personal purchasing advice
Technical details
META cantilever rack, AU, single-sided, LC 175 kg, height 2,500 mm
Article number: 105407 | EAN/GTIN: 4026212118896
| Access options | one-sided |
| Assembly | Screw assembly |
| Bay load max. | 1300 kg |
| Bay type | Extension module |
| Brand | META |
| Depth | 710 mm |
| Effective depth | 500 mm |
| Exterior dimensions add-on unit | Axle distance + 64 mm / nominal depth + 210 mm |
| External dimension depth | 500 mm |
| External dimension height | 2500 mm |
| External dimension width | 1030 mm |
| Grid | 100 mm |
| Height | 2500 mm |
| Kragarm-Abstand | 1030 mm |
| Load per arm max. | 175 kg |
| Net weight | 45,67 kg |
| No. of cantilever arms per upright (incl. foot) | 5 |
| No. of levels | 5 |
| No. of uprights | 1 |
| Nominal depth | 500 mm |
| Nominal height | 2500 mm |
| Nominal width | 1000 mm |
| Place of manufacture | Made in Europe |
| Quality mark | RAL-RG 614/5 (cantilever shelves) |
| Rack type | Cantilever rack |
| Section | Professional |
| Support arm RAL colour | RAL 5010 enzianblau |
| Uprights RAL colour | RAL 5010 gentian blue |
| Width | 1030 mm |
| configurable | Yes |
| next fitting rack is base field | Yes |
| quality seal | Certified security |
Item description
META cantilever rack, AU, single-sided, LC 175 kg, height 2,500 mm
Article number: 105407 | EAN/GTIN: 4026212118896
Are you looking for a way to expand your existing storage system in a space-saving manner? If you already use META one-sided cantilever racks, the one-sided add-on units will be ideal for your purposes.
- One-sided cantilever rack add-on unit for existing META cantilever racks
- Max. load capacity 220 kg per arm
- Ideal for the storage of long and heavy goods
- Quick, simple assembly via boltless assembly and locking screws
The add-on unit for one-sided cantilever racks for rapid expansion of your storage area
Products such as metal pipes, poles or plate goods take up a great deal of space. The META add-on units for one-sided cantilever racks ensure that your warehouses always have sufficient capacity for additional goods. With the quick and easy-to-handle boltless system, you attach the add-on unit to your existing META rack to create an additional space in your warehouse in no time at all.
Like the META base units, the META add-ons are also available in various sizes and designs. So you will quickly find the appropriate add-on unit for your rack. The different dimensions have different load capacities. You will very easily be able to tailor your rack system to your individual needs. If you decide on a one-sided add-on unit, you have the option at any time to convert it to a double-sided add-on unit by replacing the base section and base unit. The cantilever arms have the same arm length and are height-adjustable in increments of 100 mm.
Take advantage of the versatile opportunities for storage systems by purchasing add-on units and appropriate cantilever racks from us here.
Products such as metal pipes, poles or plate goods take up a great deal of space. The META add-on units for one-sided cantilever racks ensure that your warehouses always have sufficient capacity for additional goods. With the quick and easy-to-handle boltless system, you attach the add-on unit to your existing META rack to create an additional space in your warehouse in no time at all.
Like the META base units, the META add-ons are also available in various sizes and designs. So you will quickly find the appropriate add-on unit for your rack. The different dimensions have different load capacities. You will very easily be able to tailor your rack system to your individual needs. If you decide on a one-sided add-on unit, you have the option at any time to convert it to a double-sided add-on unit by replacing the base section and base unit. The cantilever arms have the same arm length and are height-adjustable in increments of 100 mm.
Take advantage of the versatile opportunities for storage systems by purchasing add-on units and appropriate cantilever racks from us here.
Product Notes
Regale mit Höhen-Tiefen-Verhältnis ≥ 5:1 gegen Kippen sichern. Die Belastungen der Kragarme gelten bei gleichmäßiger Lastverteilung. Doppelseitige Ständer haben bei einseitiger Nutzung nur die halbe Ständerlast. Die in der Tabelle angegebene Tiefe ist die Nutztiefe der Arme je Seite.
Our offer is aimed exclusively at commercial customers (entrepreneurs). In particular, the product is not intended for use by consumers.
