Item number:
602062
Jungheinrich HC 110 electric high-lift stacker truck, semi-electric, two-stage telescopic mast, lift height 2,500 mm, load capacity 1,000 kg
Efficient support for occasional stacking and retrieving in warehouses, production and shipping
-
Free shipping from £50 (plus VAT)
-
Secure data protection
-
Personal purchasing advice
Technical details
Jungheinrich HC 110 electric high-lift stacker truck, semi-electric, two-stage telescopic mast, lift height 2,500 mm, load capacity 1,000 kg
Article number: 602062 | EAN/GTIN: 4055091333731
| Aisle width |
2175 mm |
| Battery capacity |
150 Ah/per unit |
| Battery type |
Lead-gel battery |
| Battery voltage |
12 V/per unit |
| Battery weight |
45 kg |
| Brake |
Parking brakes |
| Brand |
Jungheinrich |
| Capacity |
1000 kg |
| Colour |
Jungheinrich yellow |
| Drive |
manual |
| Drive wheel diameter front |
180 |
| Drive wheel material |
Nylon |
| Drive wheel width front |
50 mm |
| Face of forks length |
620 mm |
| Fork height |
60 mm |
| Fork length |
1100 mm |
| Fork roller diameter |
74 mm |
| Fork roller material |
Nylon |
| Fork roller width |
93 mm |
| Fork support width |
570 mm |
| Fork width |
180 mm |
| Lift |
2500 mm |
| Lift height maximum |
2500 mm |
| Lift motor output |
1.5 kW |
| Lift speed with/without load |
0,08 / 0,11 |
| Load centre |
600 mm |
| Lowering speed with/without load |
0,19 / 0,13 |
| Mast height |
1830 mm |
| Net weight incl. battery |
435 kg |
| Operator type |
Pedestrian |
| Overall length |
1720 mm |
| Overall width |
777 mm |
| Section |
Professional |
| Tiller height |
790 - 1156 mm |
| Turning radius |
1335 mm |
| quality seal |
LI-ION technology |
Item description
Jungheinrich HC 110 electric high-lift stacker truck, semi-electric, two-stage telescopic mast, lift height 2,500 mm, load capacity 1,000 kg
Article number: 602062 | EAN/GTIN: 4055091333731

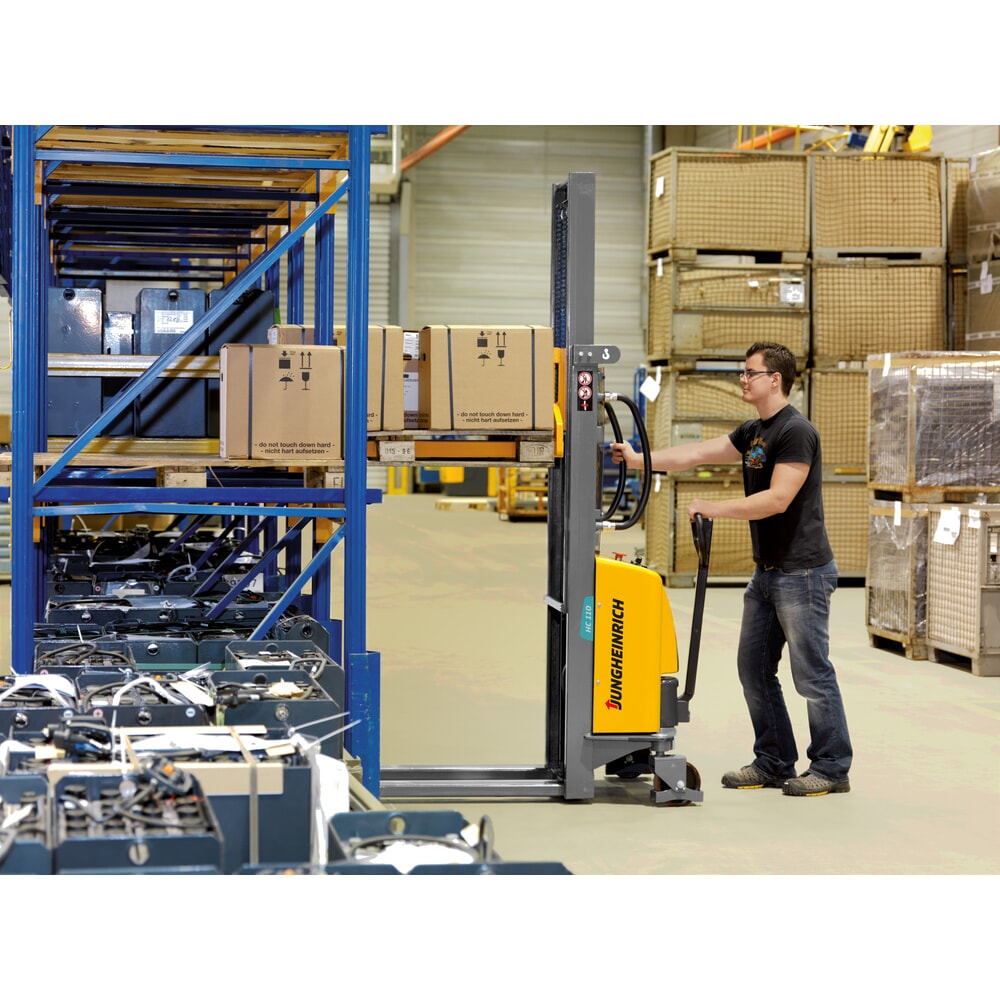

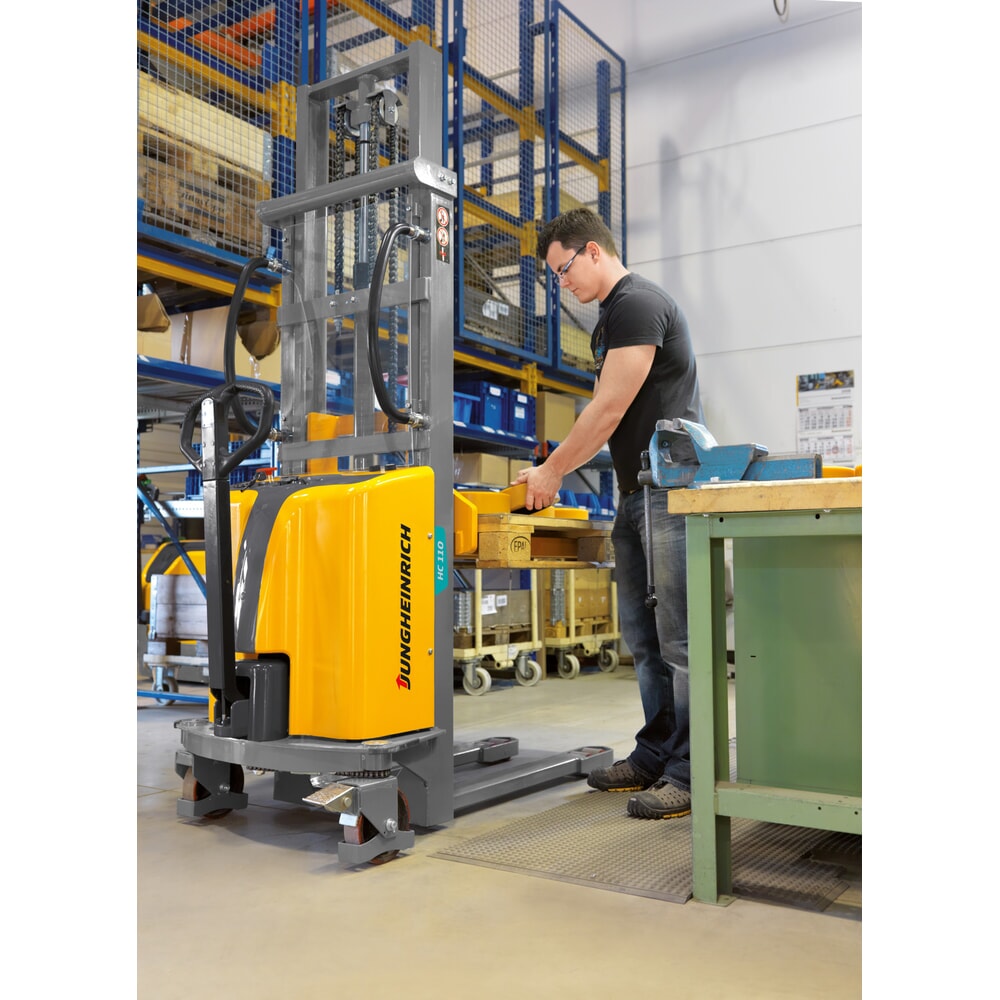

The Jungheinrich HC 110 electric high-lift stacker truck with single mast combines lifting with manual movement – ideal for occasional stacking and retrieving as well as for use as a mobile work bench. The electro-hydraulic lift motor with 1.5 kW output enables fast lifting of loads, while the tiller guidance allows precise and safe manual manoeuvring. Thanks to the maintenance-free battery, integrated charger and robust construction, this semi-electric hand stacker is particularly economical and practical. The HC 110 is the ideal solution for anyone seeking flexibility and functionality in a compact design.
- Manual transport of up to 1,000 kg for cost-effective applications
- Lift height of up to 3,000 mm with two-stage telescopic mast
- Electro-hydraulic lift control for precise positioning
- 1.5 kW lift motor for fast lifting operations
- Maintenance-free lead-gel battery with discharge indicator
- Integrated high-frequency charger with charge status indicator
- Guide handles for easy manoeuvring
- Long tiller ensures a safe distance between the operator and truck
- Steering castors with integrated foot protection
- Mechanical foot brake for secure parking on any surface
Compact design for efficient working: the Jungheinrich HC 110 electric high-lift stacker truck with two-stage telescopic mast
The semi-electric Jungheinrich HC 110 electric high-lift stacker truck with two-stage telescopic mast was designed for flexible use in warehouses, workshops and shipping. With its 1.5 kW lift motor, it lifts loads quickly and reliably up to 3,000 mm.
Electro-hydraulic control allows precise adjustment of the fork height. Manual movement is facilitated by guide handles, a long tiller and forced guidance of the steering castors via a connecting chain. Additionally, a transparent Plexiglas protective screen between the steel frames provides enhanced safety and a clear view in the direction of travel.
In everyday use, the HC 110 impresses with high availability: The maintenance-free lead-gel battery requires no water refilling and is easily charged via the integrated high-frequency charger at any standard 230 V socket. The current charge level can be read at any time on the charge status and battery discharge indicators.
The HC 110 also satisfies daily safety requirements: A mechanical foot parking brake ensures maximum stability during lifting operations, while the steering castors are additionally equipped with foot protection.
The Jungheinrich HC 110 with two-stage telescopic mast is a reliable, versatile and economical solution for anyone looking to improve efficiency and safety in warehouse processes.
The semi-electric Jungheinrich HC 110 electric high-lift stacker truck with two-stage telescopic mast was designed for flexible use in warehouses, workshops and shipping. With its 1.5 kW lift motor, it lifts loads quickly and reliably up to 3,000 mm.
Electro-hydraulic control allows precise adjustment of the fork height. Manual movement is facilitated by guide handles, a long tiller and forced guidance of the steering castors via a connecting chain. Additionally, a transparent Plexiglas protective screen between the steel frames provides enhanced safety and a clear view in the direction of travel.
In everyday use, the HC 110 impresses with high availability: The maintenance-free lead-gel battery requires no water refilling and is easily charged via the integrated high-frequency charger at any standard 230 V socket. The current charge level can be read at any time on the charge status and battery discharge indicators.
The HC 110 also satisfies daily safety requirements: A mechanical foot parking brake ensures maximum stability during lifting operations, while the steering castors are additionally equipped with foot protection.
The Jungheinrich HC 110 with two-stage telescopic mast is a reliable, versatile and economical solution for anyone looking to improve efficiency and safety in warehouse processes.
