New
Item number:
602564
Jungheinrich electric high-lift stacker truck ERC 112zi ZT with platform, two-stage telescopic mast, lift height 3,600 mm, load capacity 1,200 kg, proportional hydraulics, double-deck function
Ergonomic, compact and flexible thanks to the foldable platform for riding.
65 Working days
-
Free shipping from £50 (plus VAT)
-
Secure data protection
-
Personal purchasing advice
Technical details
Jungheinrich electric high-lift stacker truck ERC 112zi ZT with platform, two-stage telescopic mast, lift height 3,600 mm, load capacity 1,200 kg, proportional hydraulics, double-deck function
Article number: 602564 | EAN/GTIN: 4055091336077
| Access system |
PIN-Code |
| Additional wheel width |
54 mm |
| Aisle width |
2248 mm |
| Battery capacity |
150 Ah/per unit |
| Battery charging time |
4.20 h |
| Battery type |
Lithium-ion |
| Battery voltage |
25.6 V/per unit |
| Battery weight |
45 kg |
| Brake |
generator |
| Brand |
Jungheinrich |
| Capacity |
1200 kg |
| Charger |
integrated |
| Chassis surface |
powder-coated |
| Colour chassis |
Jungheinrich yellow |
| Control panel |
two-handed |
| Creep speed button |
Yes |
| Display |
|
| Drive |
electric |
| Drive control type |
AC |
| Drive motor power |
0.9 kW |
| Driver-controlled truck |
Yes |
| Drive wheel diameter front |
230 mm |
| Drive wheel material |
Polyurethane (PU) |
| Drive wheel width front |
70 mm |
| Face of forks length |
832 mm |
| Fork height |
56 mm |
| Fork length |
1150 mm |
| Fork roller diameter |
85 mm |
| Fork roller equipment |
Single |
| Fork roller material |
Polyurethane (PU) |
| Fork roller width |
95 mm |
| Fork support width |
570 mm |
| Fork width |
185 mm |
| Free lift |
100 mm |
| Ground clearance |
18 mm |
| Hydraulic |
proportional |
| Lift |
3600 mm |
| Lift motor output |
2.2 kW |
| Lift speed with/without load |
0,16 / 0,29 m/s |
| Load centre |
600 mm |
| Lowering speed with/without load |
0,41 / 0,37 m/s |
| Mast |
Two-stage telescopic mast (ZT) |
| Mast height |
2300 - 4075 mm |
| Max. gradeability laden/unladen |
5 / 10% |
| Net weight incl. battery |
925 kg |
| Noise level as per EN 12053 (operator's ear) |
64.6 dB(A) |
| Operator type |
Pedestrian |
| Overall length |
1982 mm |
| Overall width |
800 mm |
| Place of manufacture |
Made in Germany |
| Platform |
folding |
| Platform depth |
383 mm |
| Platform width |
507 mm |
| Seat height/stand height |
176 mm |
| Section |
Professional |
| Spare wheel diameter |
140 mm |
| Telematics box |
Yes |
| Tiller RAL colour |
RAL 7016 anthracite grey |
| Tiller height |
1037 - 1293 mm |
| Tiller surface |
powder-coated |
| Travel speed, laden/unladen |
6 / 6 km/h |
| Turning radius |
1813 mm |
| quality seal |
LI-ION technology |
Item description
Jungheinrich electric high-lift stacker truck ERC 112zi ZT with platform, two-stage telescopic mast, lift height 3,600 mm, load capacity 1,200 kg, proportional hydraulics, double-deck function
Article number: 602564 | EAN/GTIN: 4055091336077
The Jungheinrich electric high-lift stacker truck ERC 112zi ZT combines compact design with advanced lithium-ion technology. The integrated platform and two-stage telescopic mast enable efficient pallet handling over medium to long distances and lift heights of up to 3,600 mm – even in tight warehouse spaces. The double-deck function enables time-saving transport of 2 pallets stacked on top of each other. The truck impresses with intuitive operation, a load capacity of up to 1,200 kg and comprehensive safety features. Thanks to the additional lift, the ground clearance can be increased whenever needed. This makes it suitable for use on ramps, uneven floors or drive-over plates. The robust construction and maintenance-free lithium-ion battery ensure long service life and high availability in daily operation.

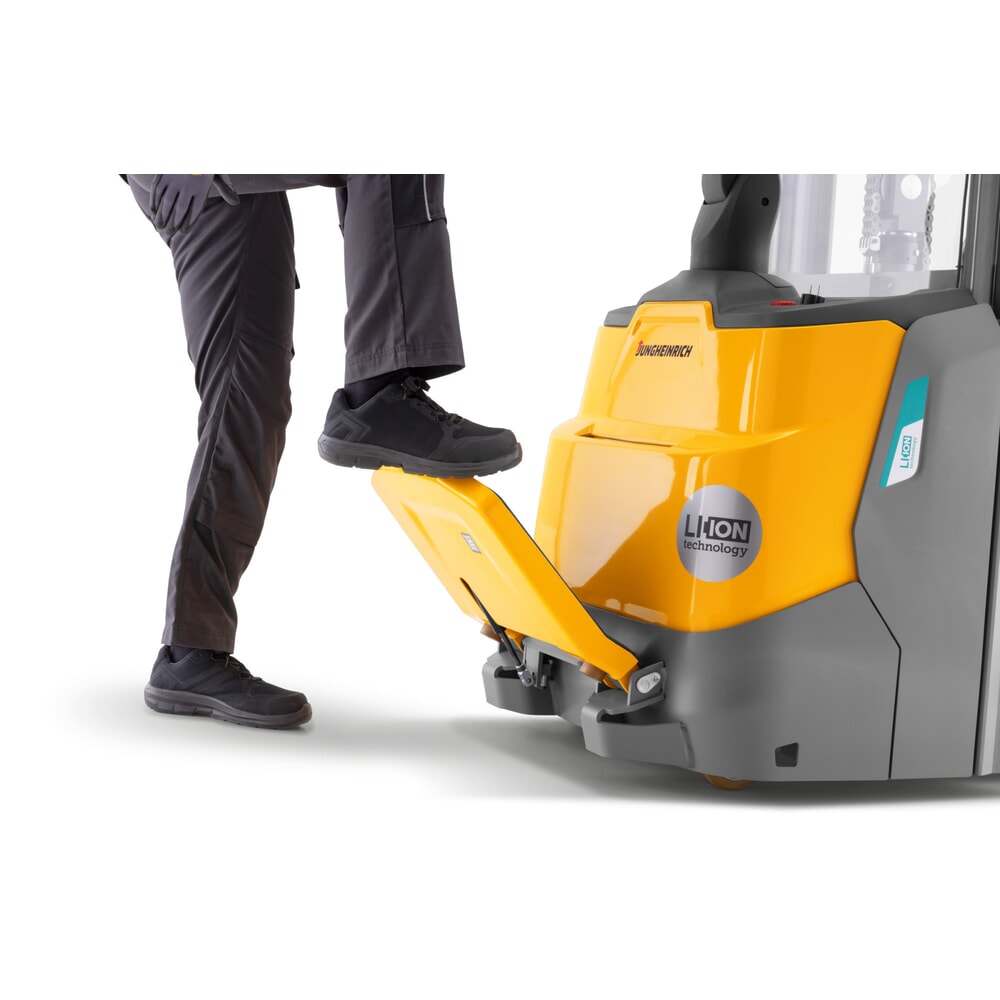

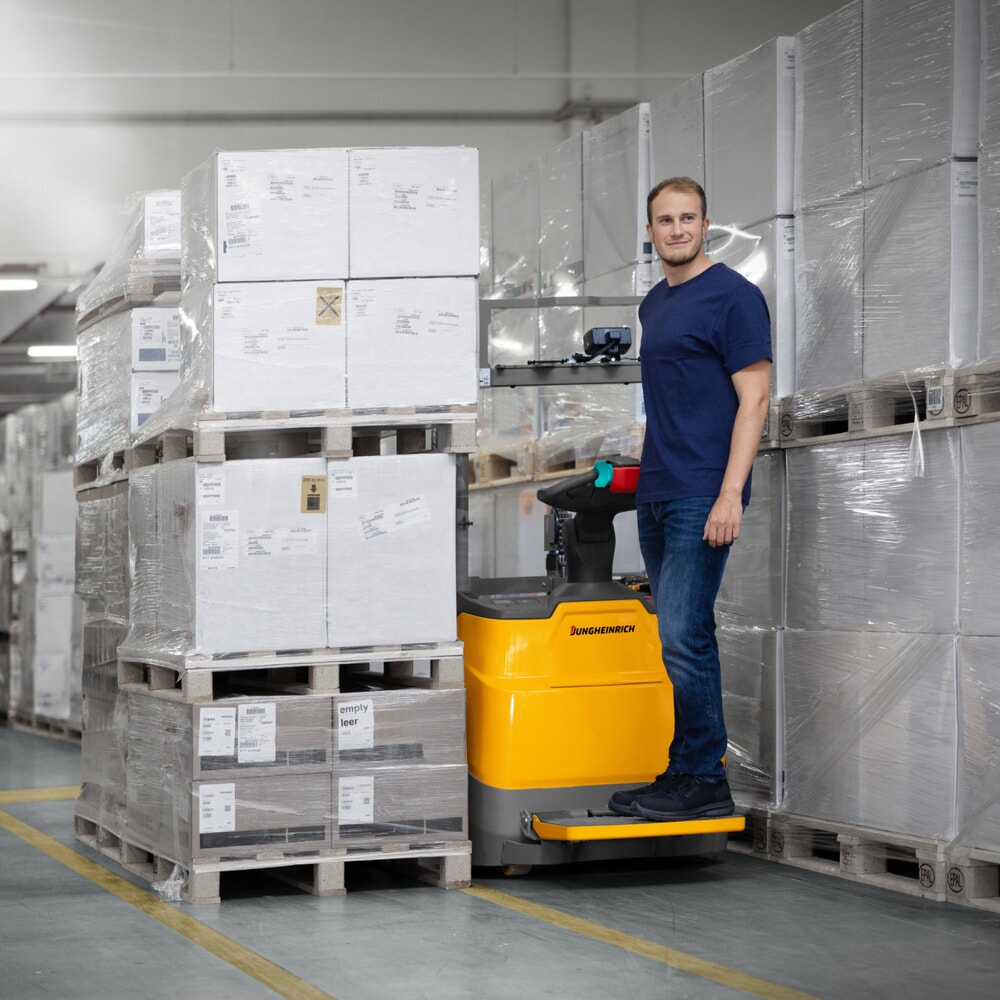

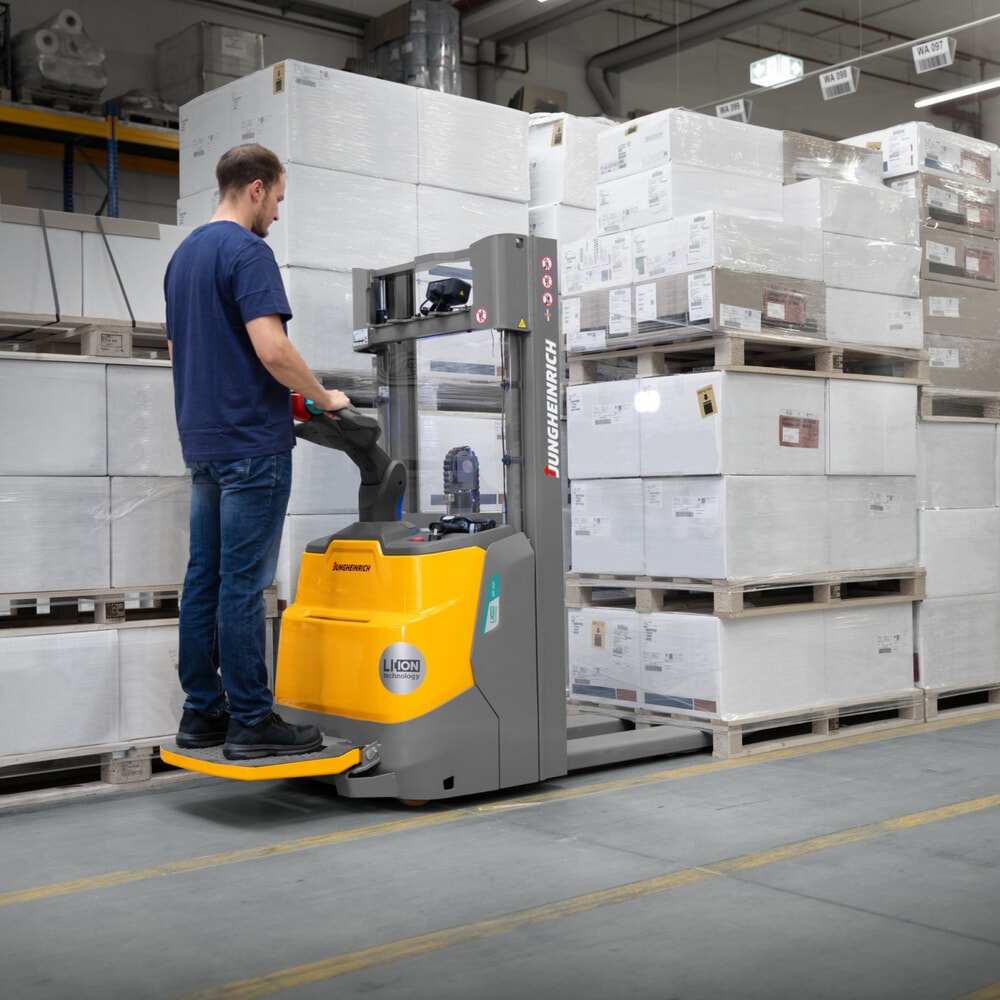

- Foldable platform for riding along, offering ergonomic goods transport.

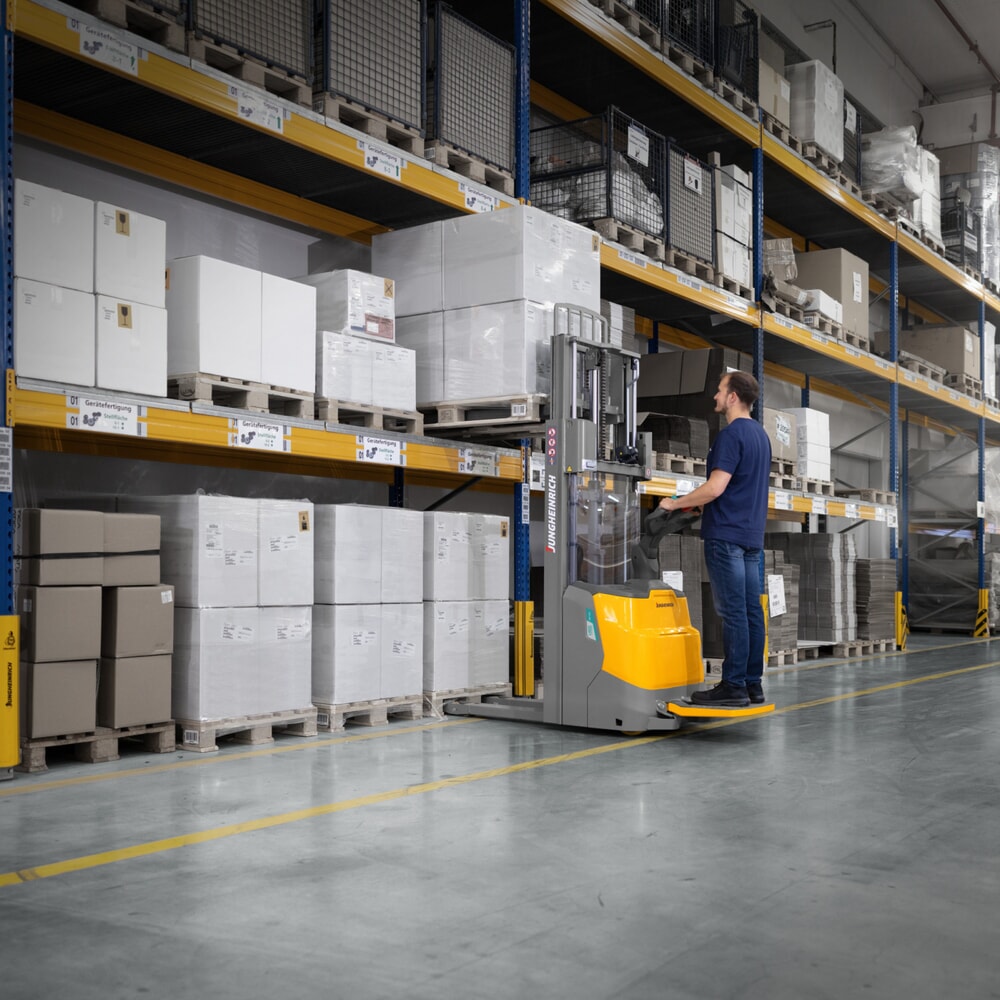

- Lift height up to 3,600 mm for storage on high shelves.

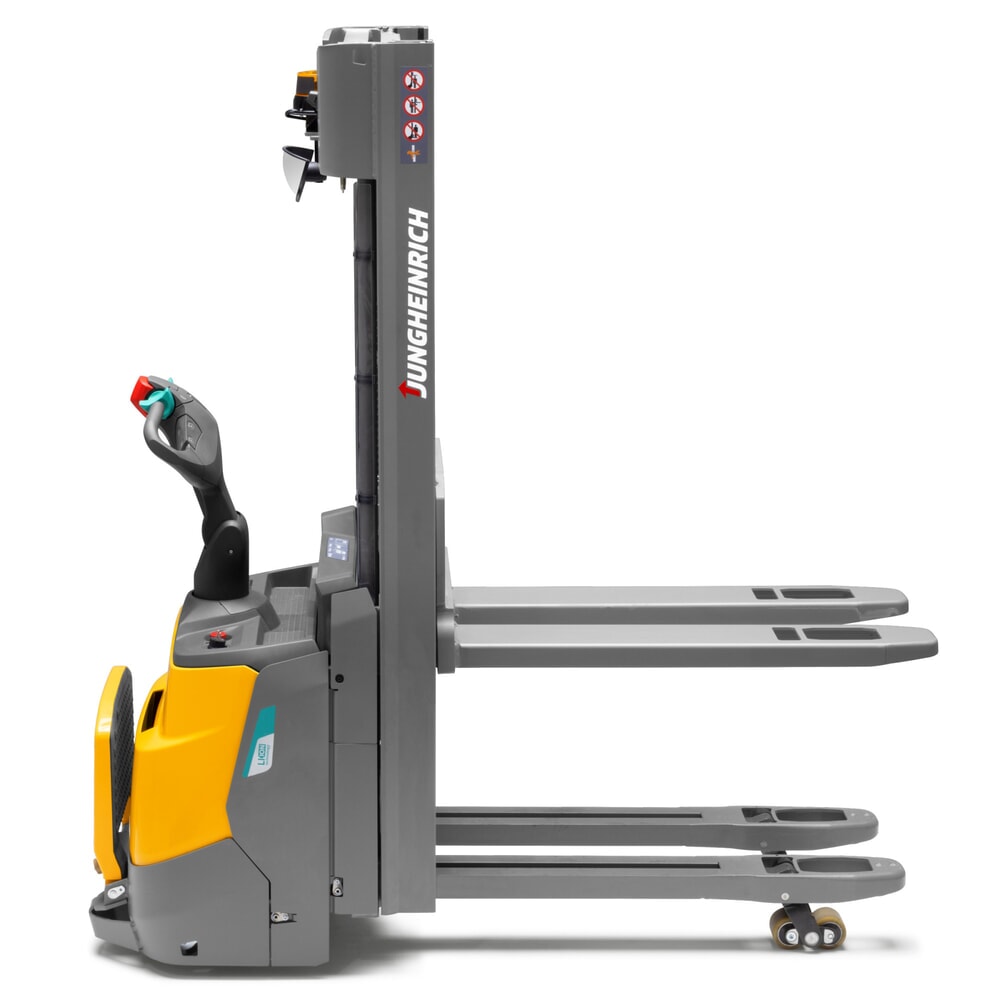

- Double-deck function for the simultaneous transport of 2 pallets.
- Additional lift for flexible increase of ground clearance.
- Load capacity of up to 1.200 kg.
- Compact vehicle geometry for narrow aisles and tight turning radii.
- Four-wheel chassis for high stability.
- Maintenance-free lithium-ion battery

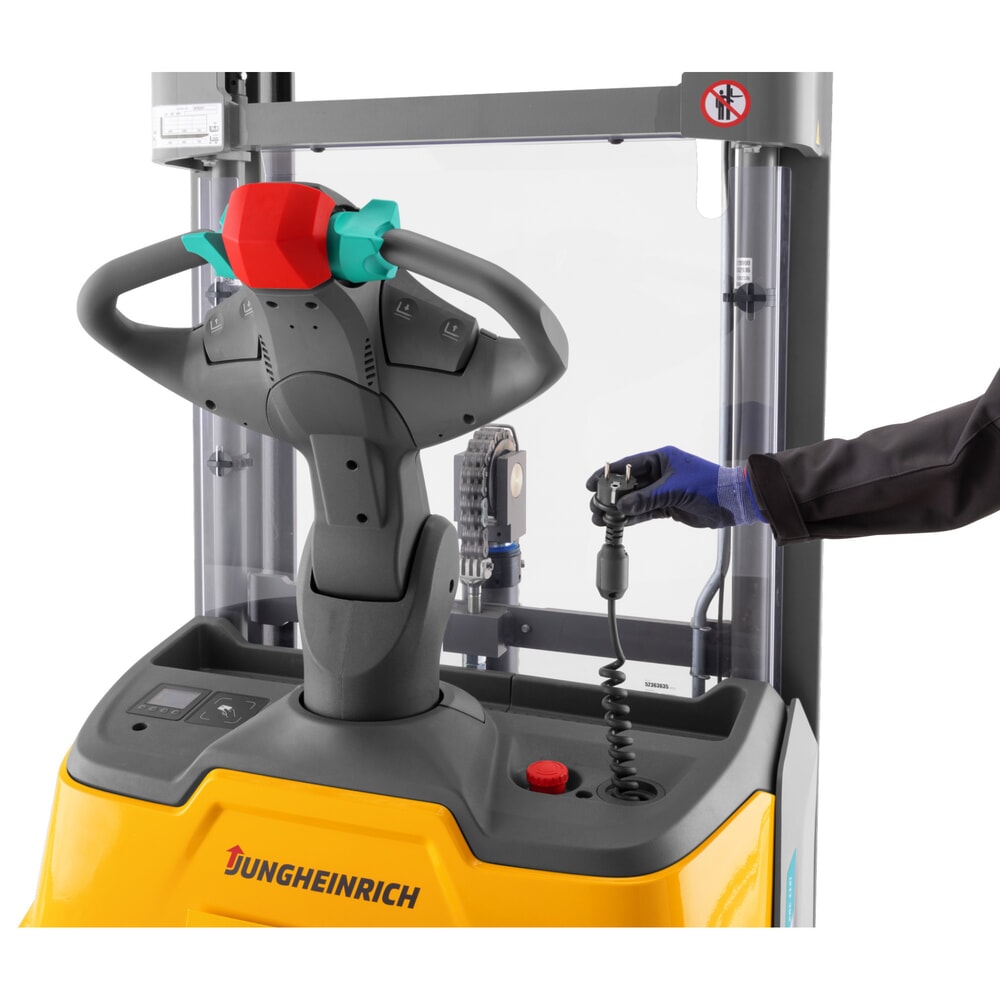

- Flexible charging at any standard socket.

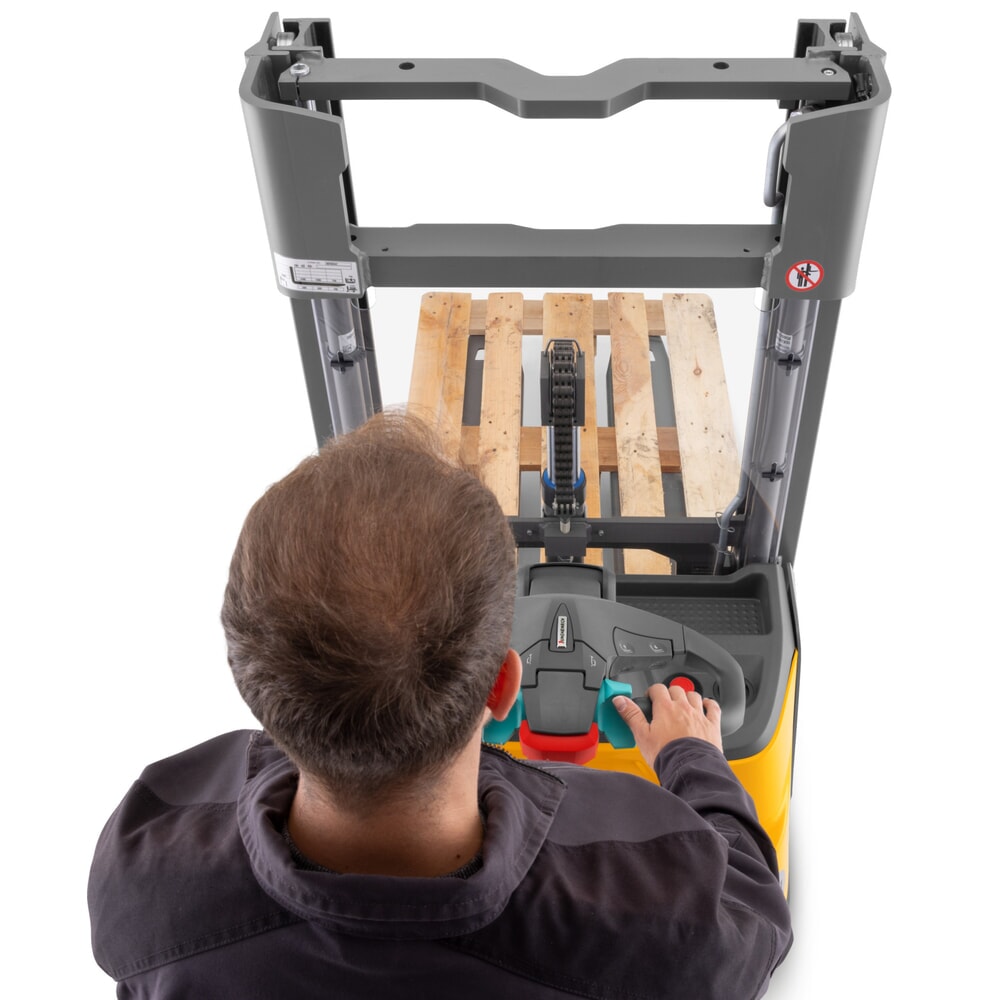

- Proportional lifting and lowering for precise load positioning.
- 2-inch display with symbols for easy truck status check.
- Four-wheel chassis for high stability and smooth driving behaviour.
- Energy-saving function with automatic shutdown during inactivity.
- Premium quality "Made in Germany".
Efficient pallet handling meets ergonomics: the Jungheinrichelectric high-lift stacker truck ERC 112zi ZT.

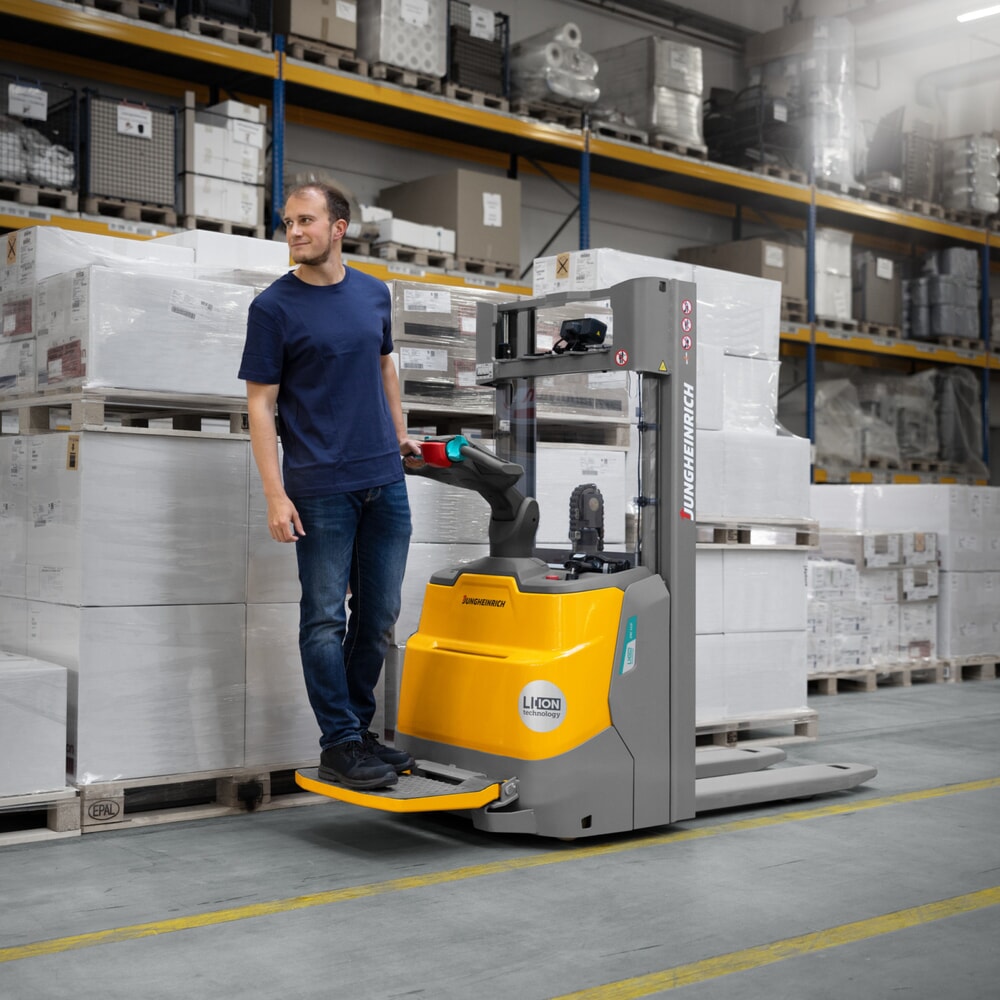

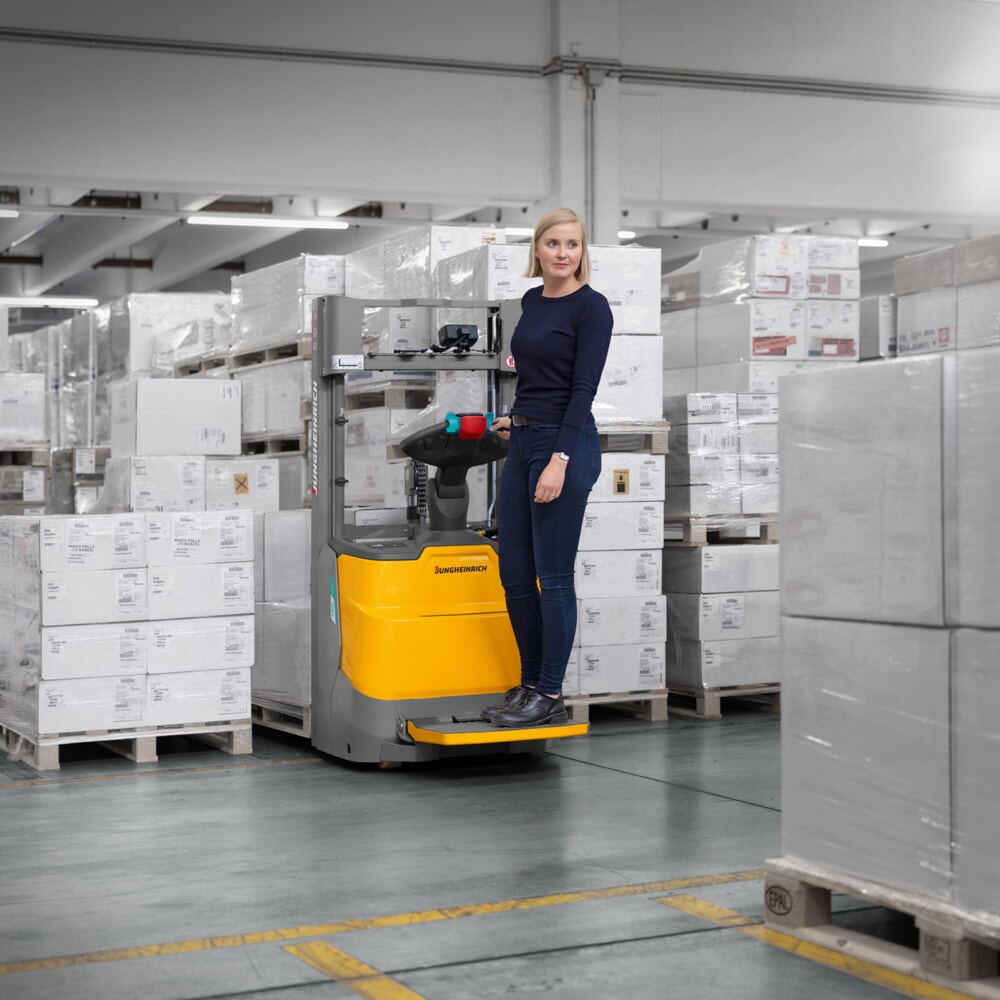

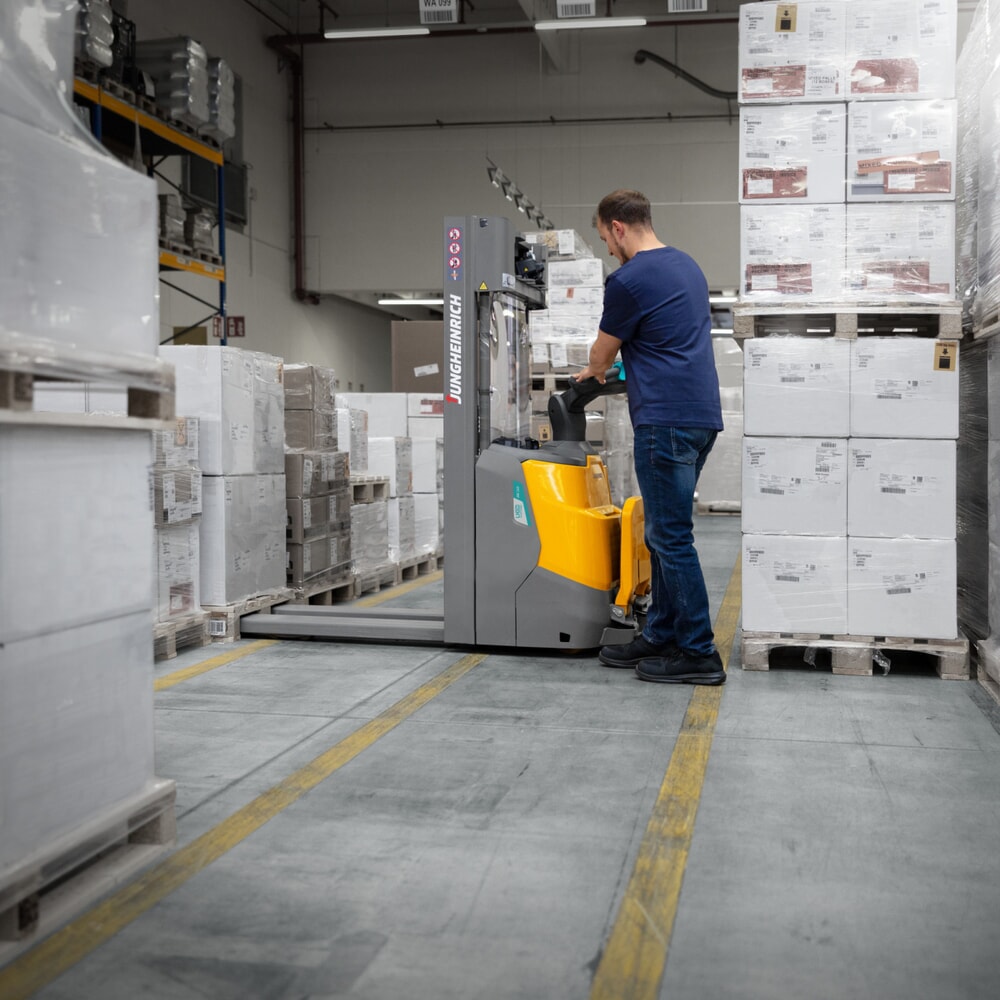

The Jungheinrichelectric high-lift stacker truck ERC 112zi ZT with platform, two-stage telescopic mast and double-deck function was developed for demanding warehouse applications in confined spaces. With its compact design, short front overhang and small turning radius, the pedestrian stacker is especially suitable for narrow aisles and tight storage areas. The foldable platform can be used flexibly – for ergonomic riding on medium and long routes or as a pedestrian truck in confined spaces.
The ERC 112zi ZT with free lift raises loads of up to 1,000 kg to heights of up to 3,600 mm. Thanks to the robust construction and increased residual capacity, even heavy pallets can be safely positioned on higher shelf levels. An integrated double-deck function ensures that up to 2 pallets can be transported simultaneously stacked on top of each other, saving time. Sensitive lifting and lowering via proportional hydraulics facilitates the storage and retrieval of particularly delicate loads on racks or floors.
Equipped with modern lithium-ion technology, the truck offers high energy efficiency with low operating costs. The battery is maintenance-free and can be flexibly recharged at conventional sockets to ensure high truck availability. Intelligent energy management guarantees consistently high performance and long service life.
Numerous equipment options provide additional comfort and safety: Electric power steering eases manoeuvring, while features such as curveCONTROL, panorama mirror and load backrest enhance work safety. The intuitive user interface with display provides information about all relevant truck and battery status symbols – language-independent and easy to understand.
The ERC 112zi ZT tackles almost every logistical challenge – from goods transport and storage to use as a mobile work bench. Companies benefit from a universal truck that effectively covers multiple task areas and sustainably optimises the fleet of industrial trucks.

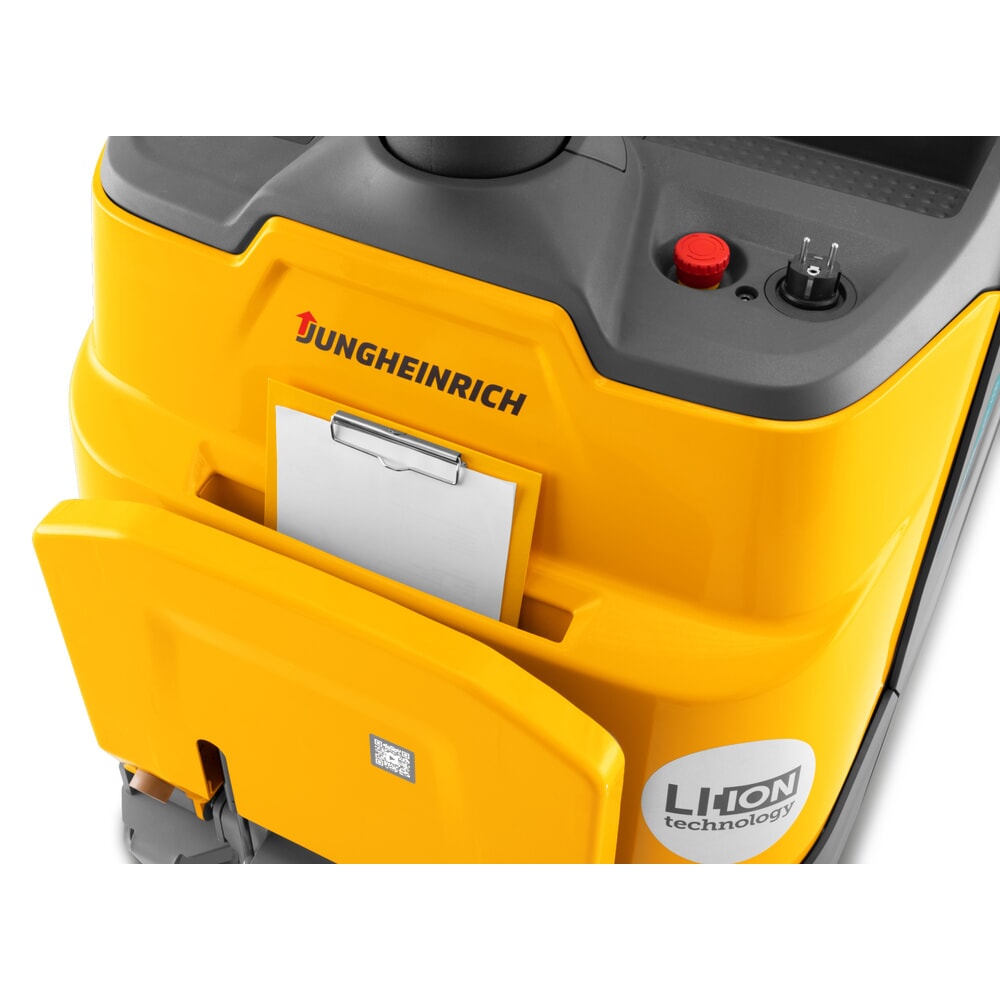

For an additional charge, the ERC 112zi ZT can be equipped with options such as a holder for writing tablets, a cold storage version down to -28 °C or a custom paint finish. This allows the truck to be perfectly tailored to specific operating conditions, providing maximum flexibility in everyday warehouse operations.
The Jungheinrichelectric high-lift stacker truck ERC 112zi ZT with platform, two-stage telescopic mast and double-deck function was developed for demanding warehouse applications in confined spaces. With its compact design, short front overhang and small turning radius, the pedestrian stacker is especially suitable for narrow aisles and tight storage areas. The foldable platform can be used flexibly – for ergonomic riding on medium and long routes or as a pedestrian truck in confined spaces.
The ERC 112zi ZT with free lift raises loads of up to 1,000 kg to heights of up to 3,600 mm. Thanks to the robust construction and increased residual capacity, even heavy pallets can be safely positioned on higher shelf levels. An integrated double-deck function ensures that up to 2 pallets can be transported simultaneously stacked on top of each other, saving time. Sensitive lifting and lowering via proportional hydraulics facilitates the storage and retrieval of particularly delicate loads on racks or floors.
Equipped with modern lithium-ion technology, the truck offers high energy efficiency with low operating costs. The battery is maintenance-free and can be flexibly recharged at conventional sockets to ensure high truck availability. Intelligent energy management guarantees consistently high performance and long service life.
Numerous equipment options provide additional comfort and safety: Electric power steering eases manoeuvring, while features such as curveCONTROL, panorama mirror and load backrest enhance work safety. The intuitive user interface with display provides information about all relevant truck and battery status symbols – language-independent and easy to understand.
The ERC 112zi ZT tackles almost every logistical challenge – from goods transport and storage to use as a mobile work bench. Companies benefit from a universal truck that effectively covers multiple task areas and sustainably optimises the fleet of industrial trucks.
For an additional charge, the ERC 112zi ZT can be equipped with options such as a holder for writing tablets, a cold storage version down to -28 °C or a custom paint finish. This allows the truck to be perfectly tailored to specific operating conditions, providing maximum flexibility in everyday warehouse operations.
