New
Item number:
602511
Jungheinrich electric high-lift stacker truck ERC 110i DZ with platform, three-stage telescopic mast, lift height 4,300 mm, load capacity 1,000 kg, proportional hydraulics
Ergonomic, compact and flexible thanks to the foldable platform for riding.
65 Working days
-
Free shipping from £50 (plus VAT)
-
Secure data protection
-
Personal purchasing advice
Technical details
Jungheinrich electric high-lift stacker truck ERC 110i DZ with platform, three-stage telescopic mast, lift height 4,300 mm, load capacity 1,000 kg, proportional hydraulics
Article number: 602511 | EAN/GTIN: 4055091335575
| Access system |
PIN-Code |
| Additional wheel width |
54 mm |
| Aisle width |
2156 mm |
| Battery capacity |
150 Ah/per unit |
| Battery charging time |
4.20 h |
| Battery type |
Lithium-ion |
| Battery voltage |
25.6 V/per unit |
| Battery weight |
45 kg |
| Brake |
generator |
| Brand |
Jungheinrich |
| Capacity |
1000 kg |
| Charger |
integrated |
| Chassis surface |
powder-coated |
| Colour chassis |
Jungheinrich yellow |
| Control panel |
two-handed |
| Creep speed button |
Yes |
| Display |
|
| Drive |
electric |
| Drive control type |
AC |
| Drive motor power |
0.9 kW |
| Driver-controlled truck |
Yes |
| Drive wheel diameter front |
230 mm |
| Drive wheel material |
Polyurethane (PU) |
| Drive wheel width front |
70 mm |
| Face of forks length |
737 mm |
| Fork height |
60 mm |
| Fork length |
1150 mm |
| Fork roller diameter |
75 mm |
| Fork roller equipment |
Single |
| Fork roller material |
Polyurethane (PU) |
| Fork roller width |
105 mm |
| Fork support width |
570 mm |
| Fork width |
178 mm |
| Free lift |
1408 mm |
| Ground clearance |
30 mm |
| Hydraulic |
proportional |
| Lift |
4300 mm |
| Lift motor output |
2.2 kW |
| Lift speed with/without load |
0,15 / 0,27 m/s |
| Load centre |
600 mm |
| Lowering speed with/without load |
0,34 / 0,34 m/s |
| Mast |
Three-stage telescopic mast with free lift (DZ) |
| Mast height |
1915 - 4807 mm |
| Max. gradeability laden/unladen |
6 / 14% |
| Net weight incl. battery |
730 kg |
| Noise level as per EN 12053 (operator's ear) |
64.6 dB(A) |
| Operator type |
Pedestrian |
| Overall length |
1887 mm |
| Overall width |
800 mm |
| Place of manufacture |
Made in Germany |
| Platform |
folding |
| Platform depth |
383 mm |
| Platform width |
507 mm |
| Seat height/stand height |
176 mm |
| Section |
Professional |
| Spare wheel diameter |
140 mm |
| Telematics box |
Yes |
| Tiller RAL colour |
RAL 7016 anthracite grey |
| Tiller height |
1037 - 1293 mm |
| Tiller surface |
powder-coated |
| Travel speed, laden/unladen |
6 / 6 km/h |
| Turning radius |
1463 mm |
| quality seal |
LI-ION technology |
Item description

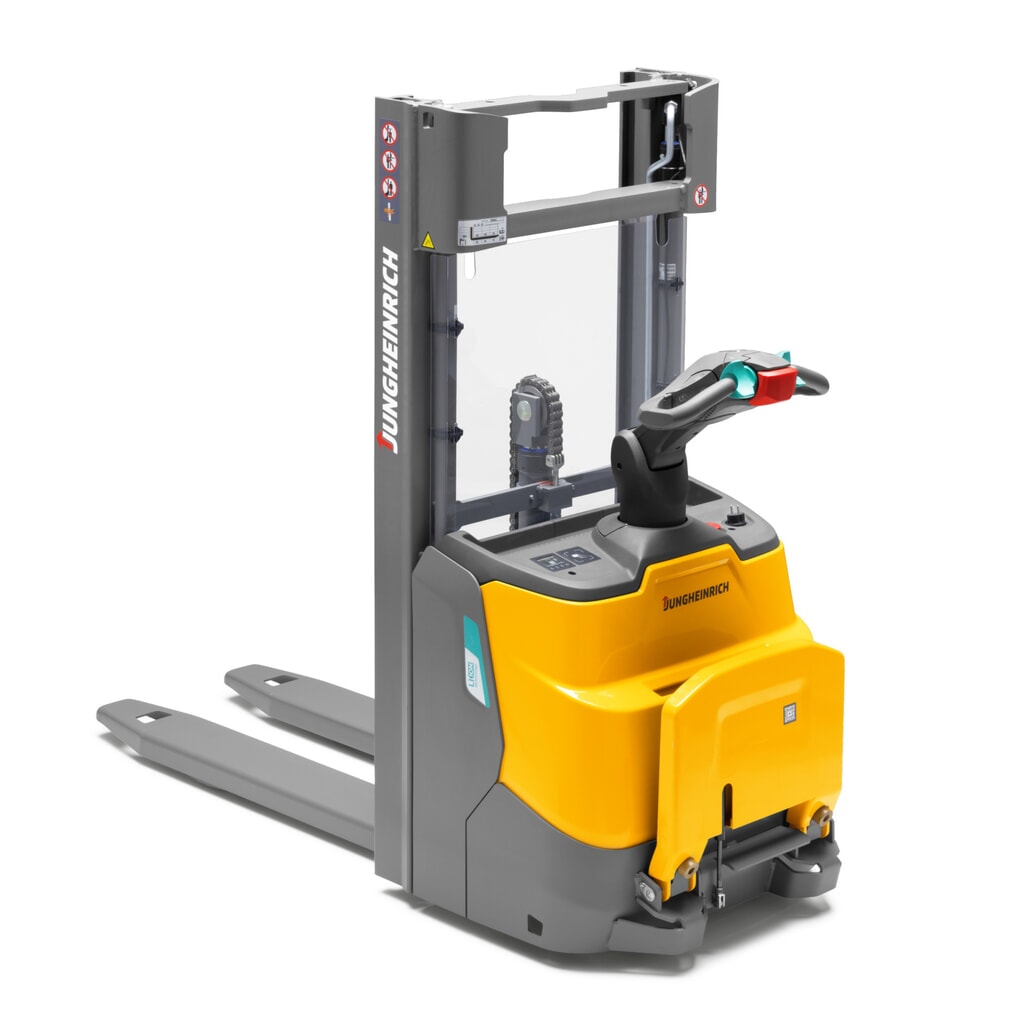

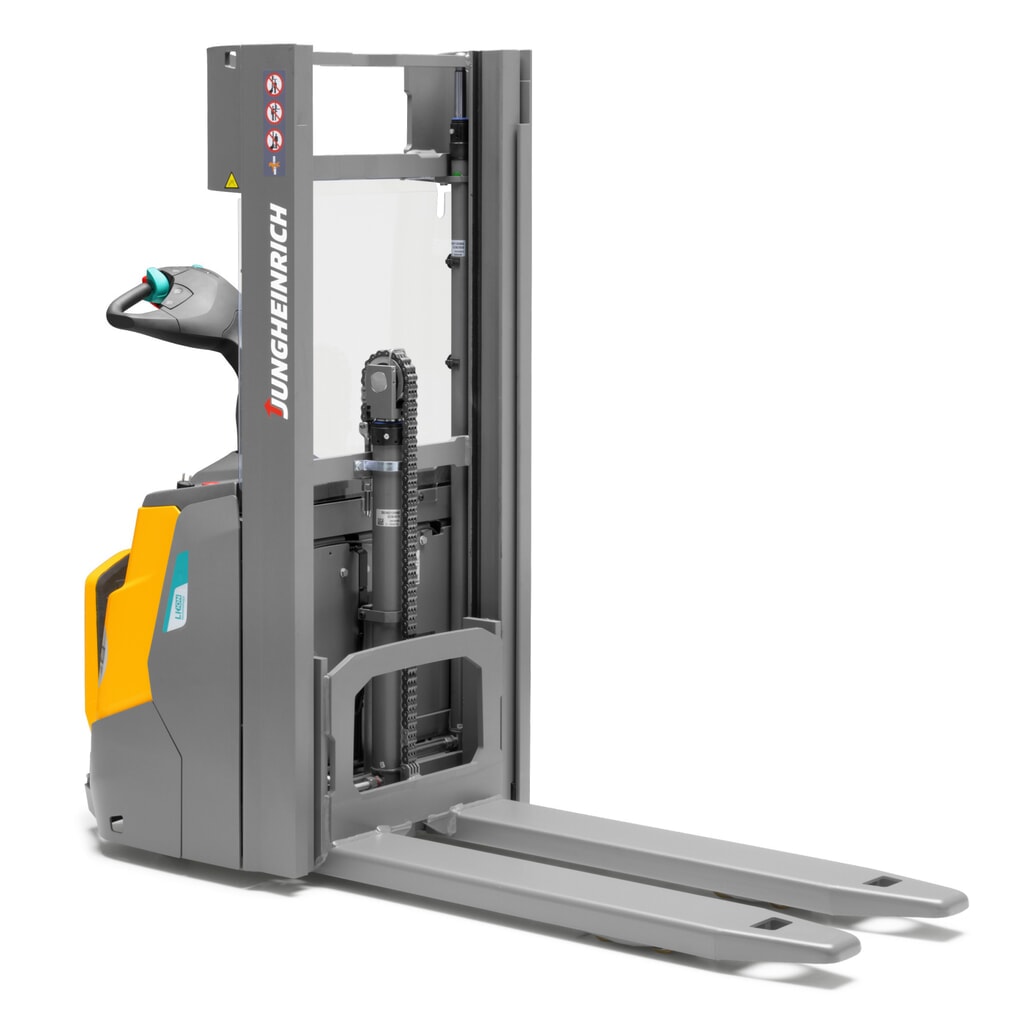

Jungheinrich electric high-lift stacker truck ERC 110i DZ with platform, three-stage telescopic mast, lift height 4,300 mm, load capacity 1,000 kg, proportional hydraulics
Article number: 602511 | EAN/GTIN: 4055091335575

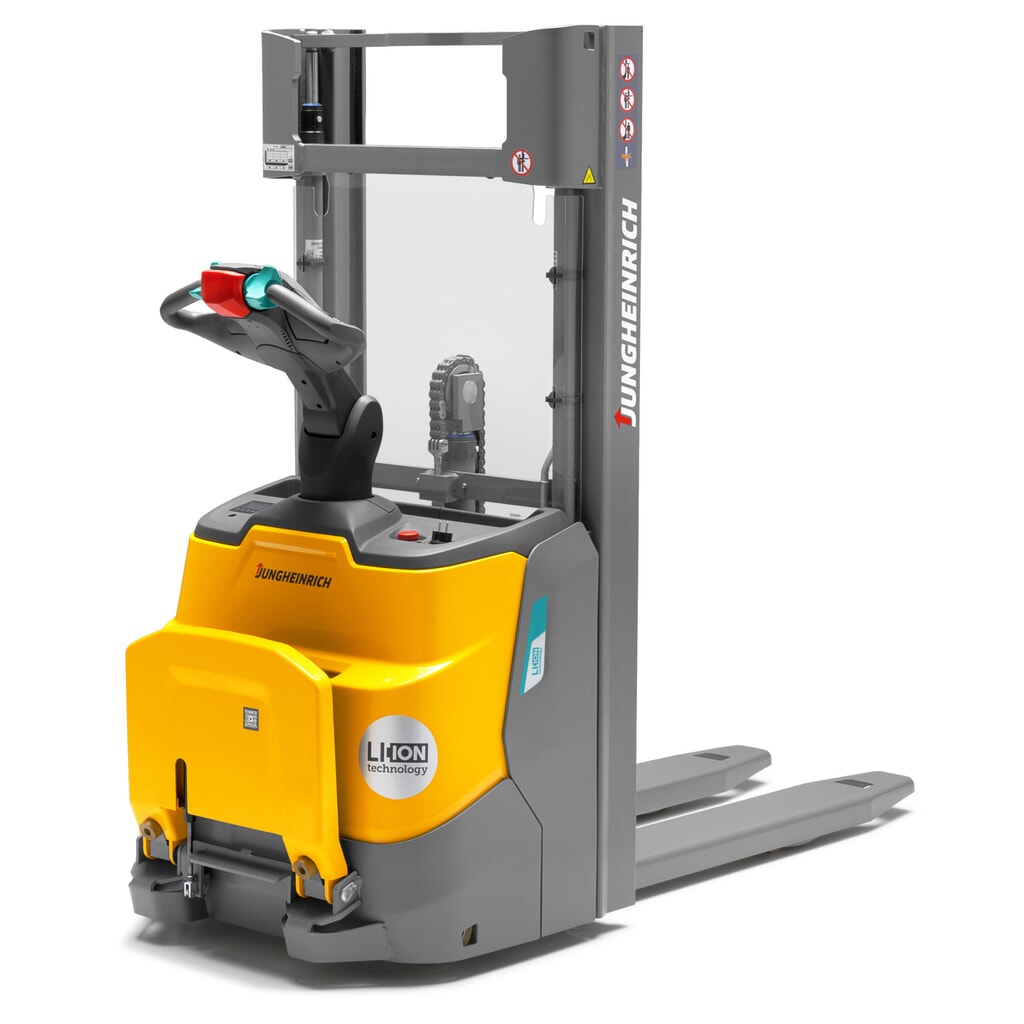

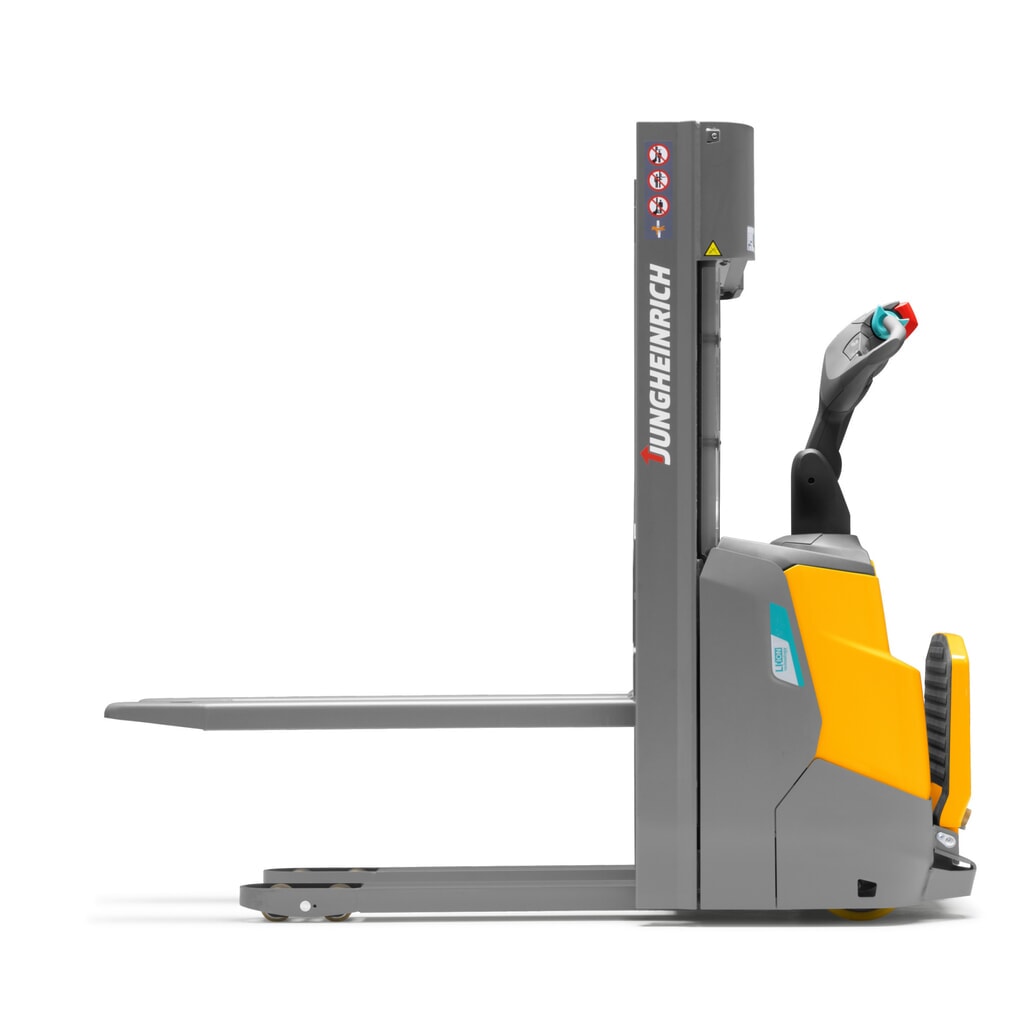

The Jungheinrich electric high-lift stacker truck ERC 110i DZ combines compact design with modern lithium-ion technology. The integrated platform and the three-stage telescopic mast with free lift enable efficient pallet handling over medium to long distances with a lift height of up to 4,300 mm – even in tight warehouse spaces. The truck impresses with intuitive operation, a load capacity of up to 1,000 kg and extensive safety features. The robust construction and maintenance-free lithium-ion battery ensure long service life and high availability in daily operation.

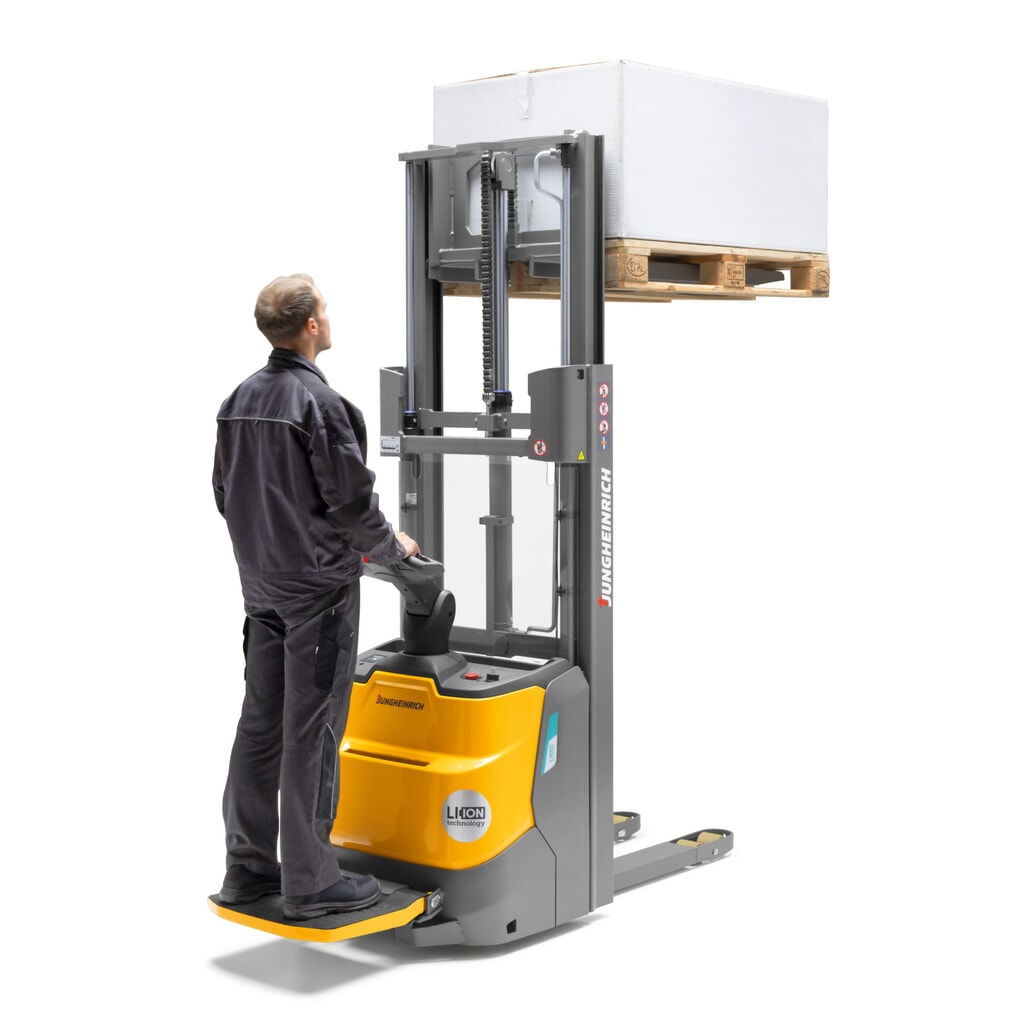

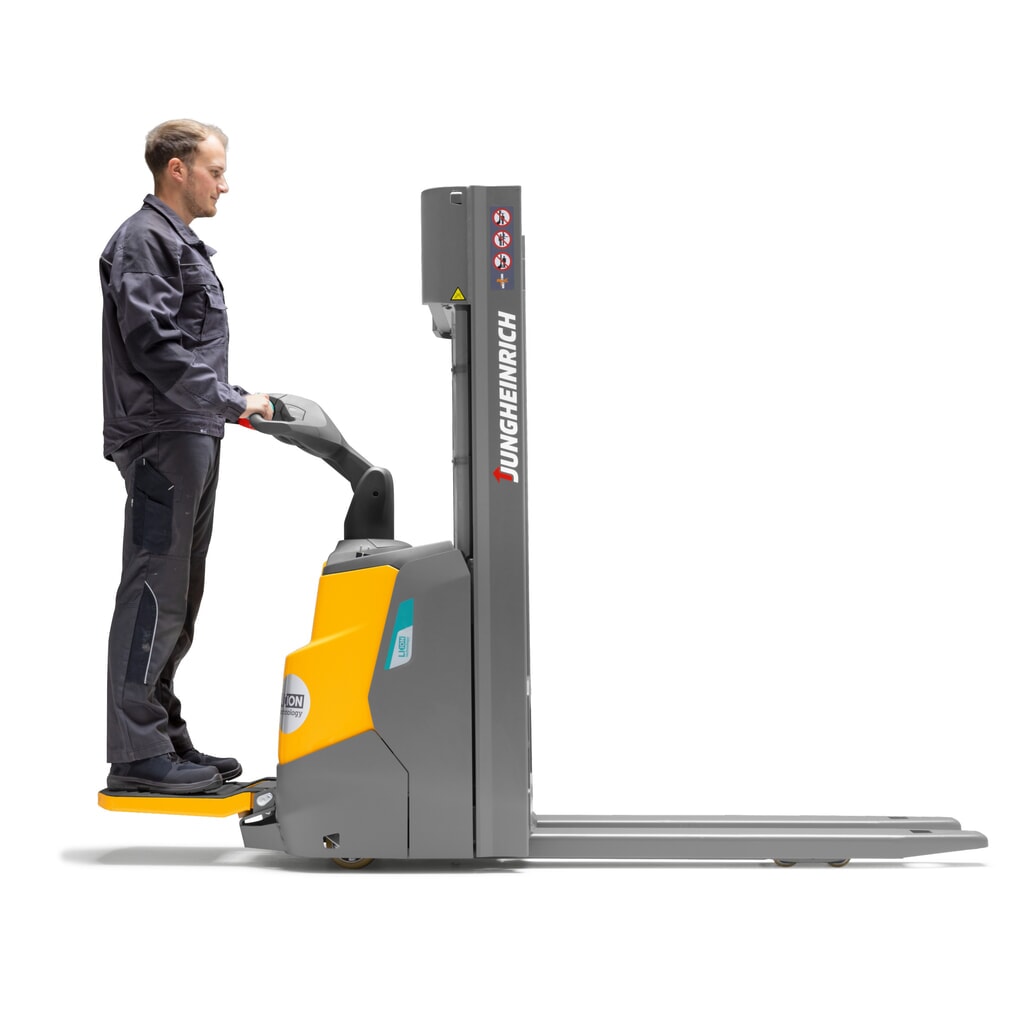

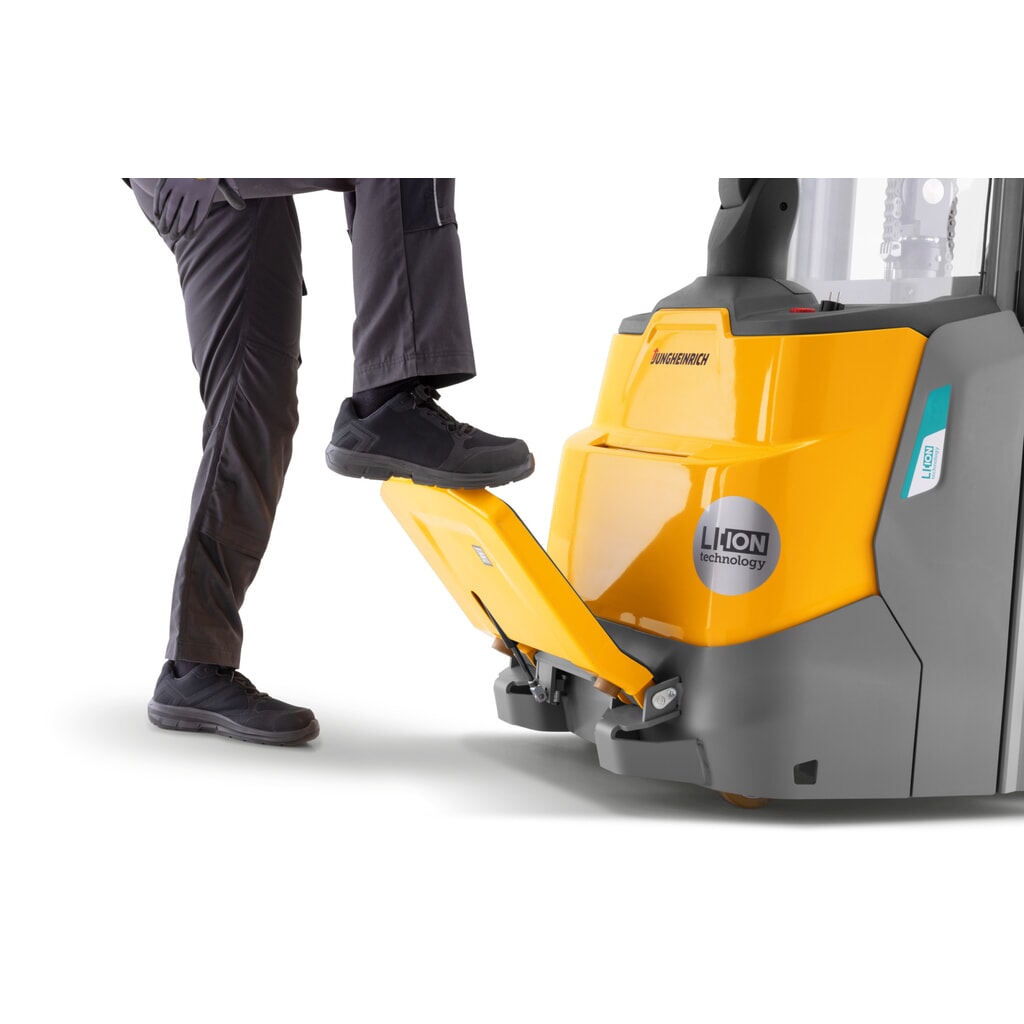

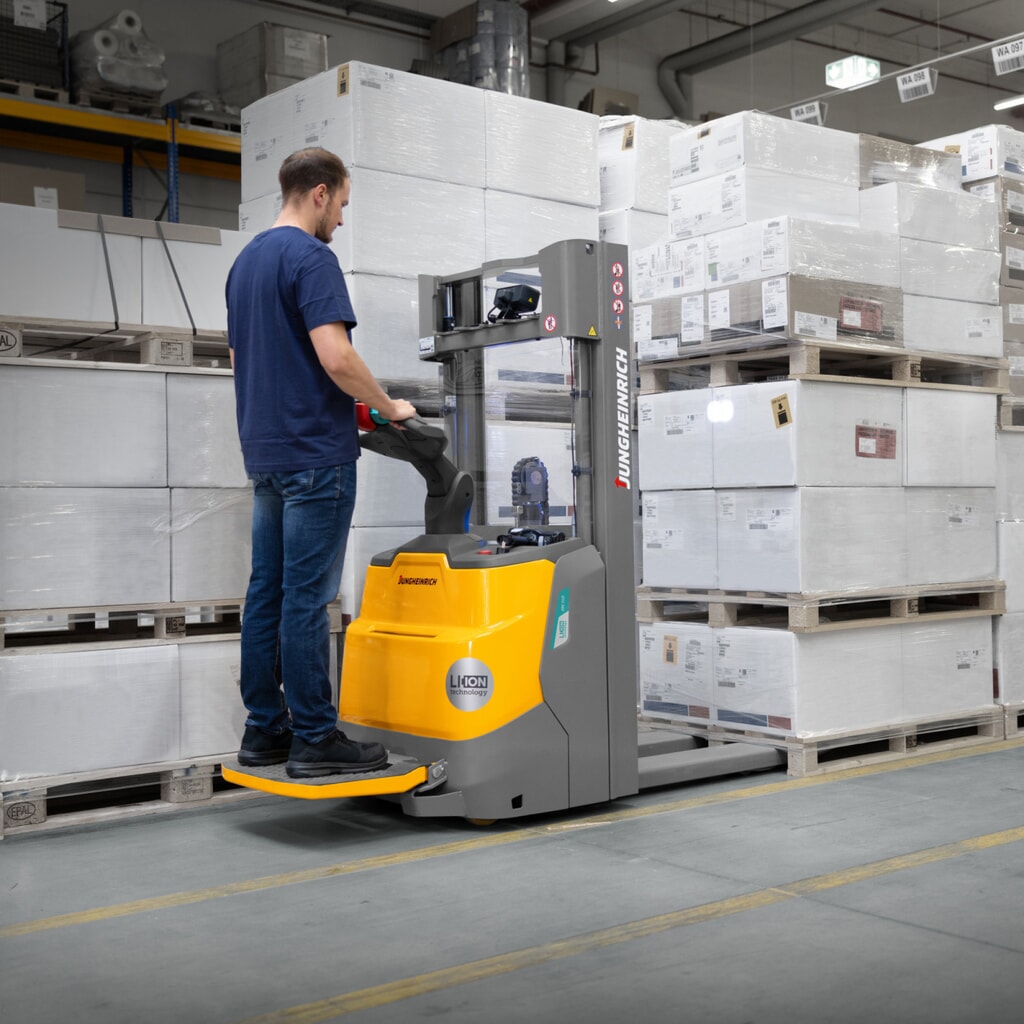

- Foldable platform for riding along, offering ergonomic goods transport.
- Lift height up to 4,300 mm for storage in high shelves.
- Load capacity of up to 1.000 kg.
- Compact vehicle geometry for narrow aisles and tight turning radii.
- Four-wheel chassis for high stability.
- Maintenance-free lithium-ion battery

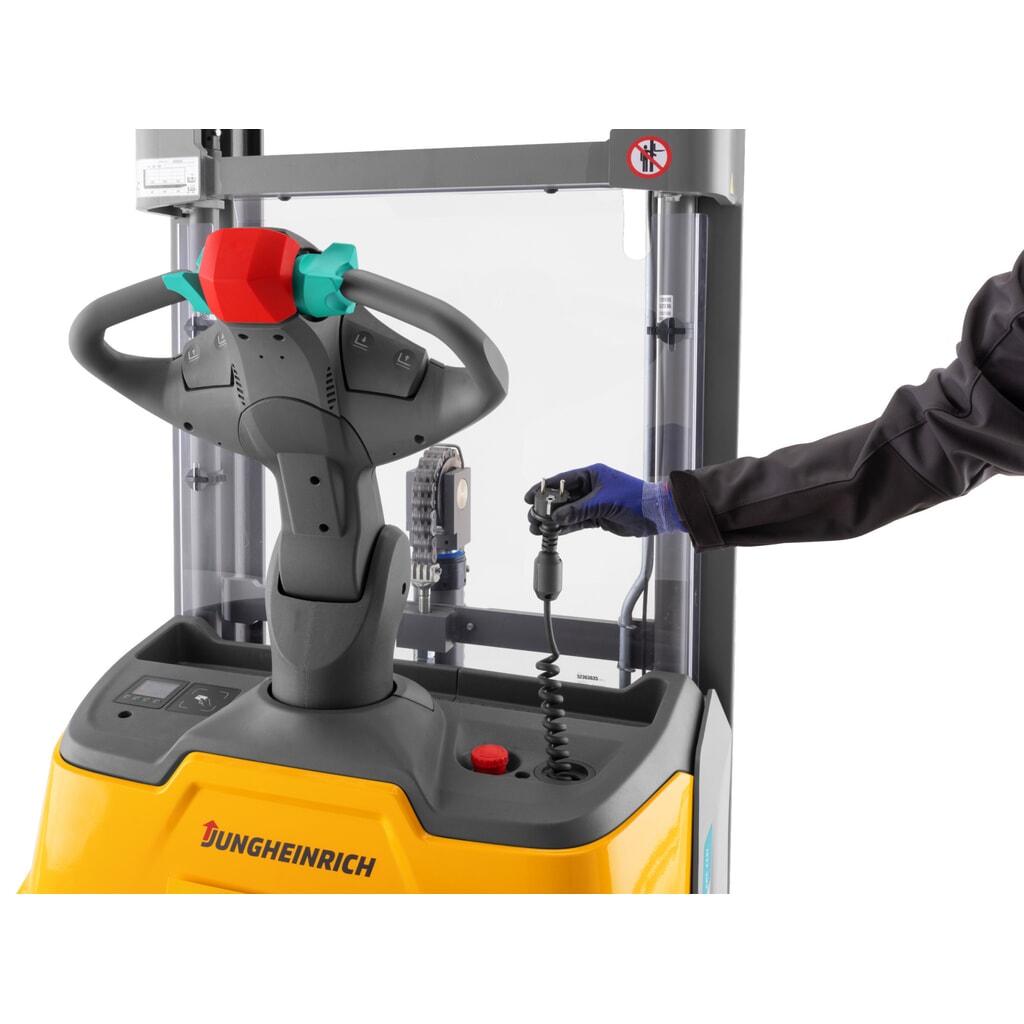

- Flexible charging at any standard socket.
- Proportional lifting and lowering for precise load positioning.
- 2-inch display with symbols for easy truck status check.
- Four-wheel chassis for high stability and smooth driving behaviour.
- Energy-saving function with automatic shutdown during inactivity.
- Premium quality "Made in Germany".
Efficient pallet handling meets ergonomics: the Jungheinrich electric high-lift stacker truck ERC 110i DZ

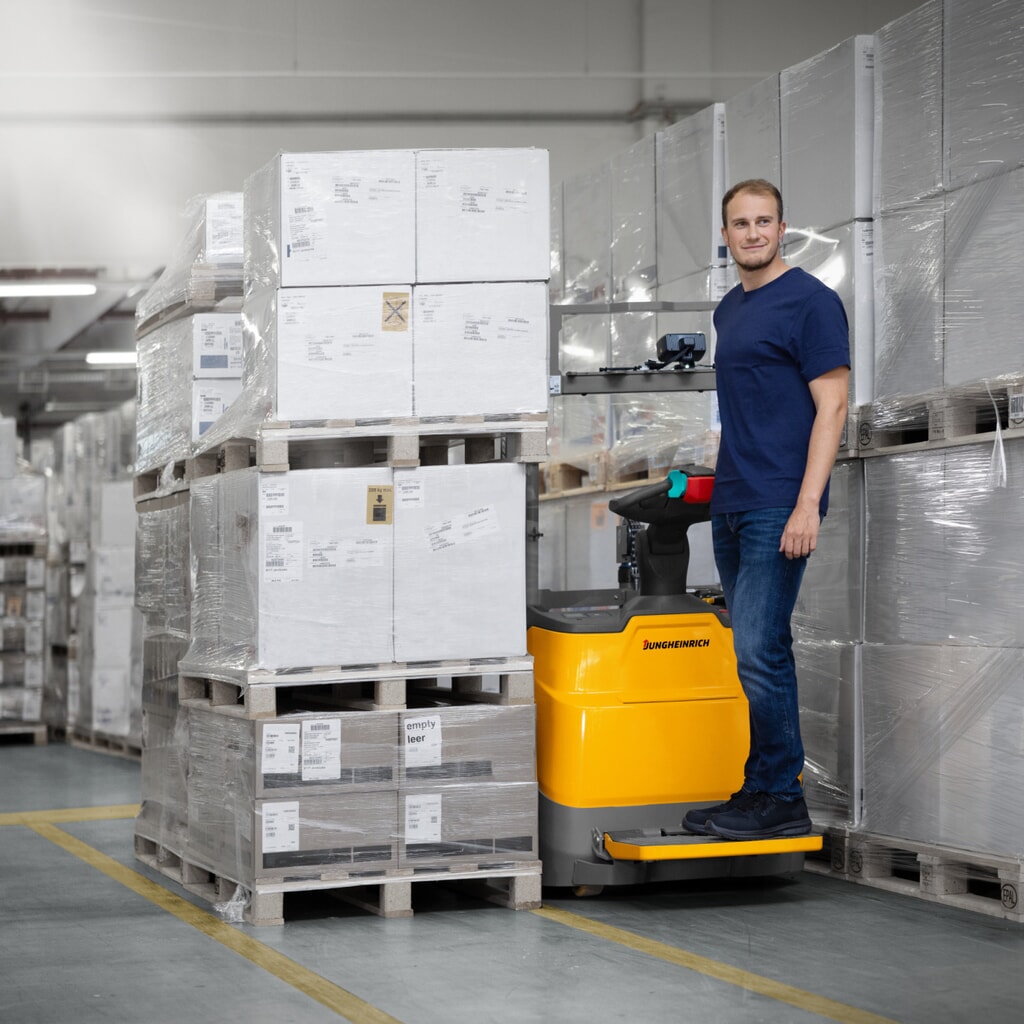

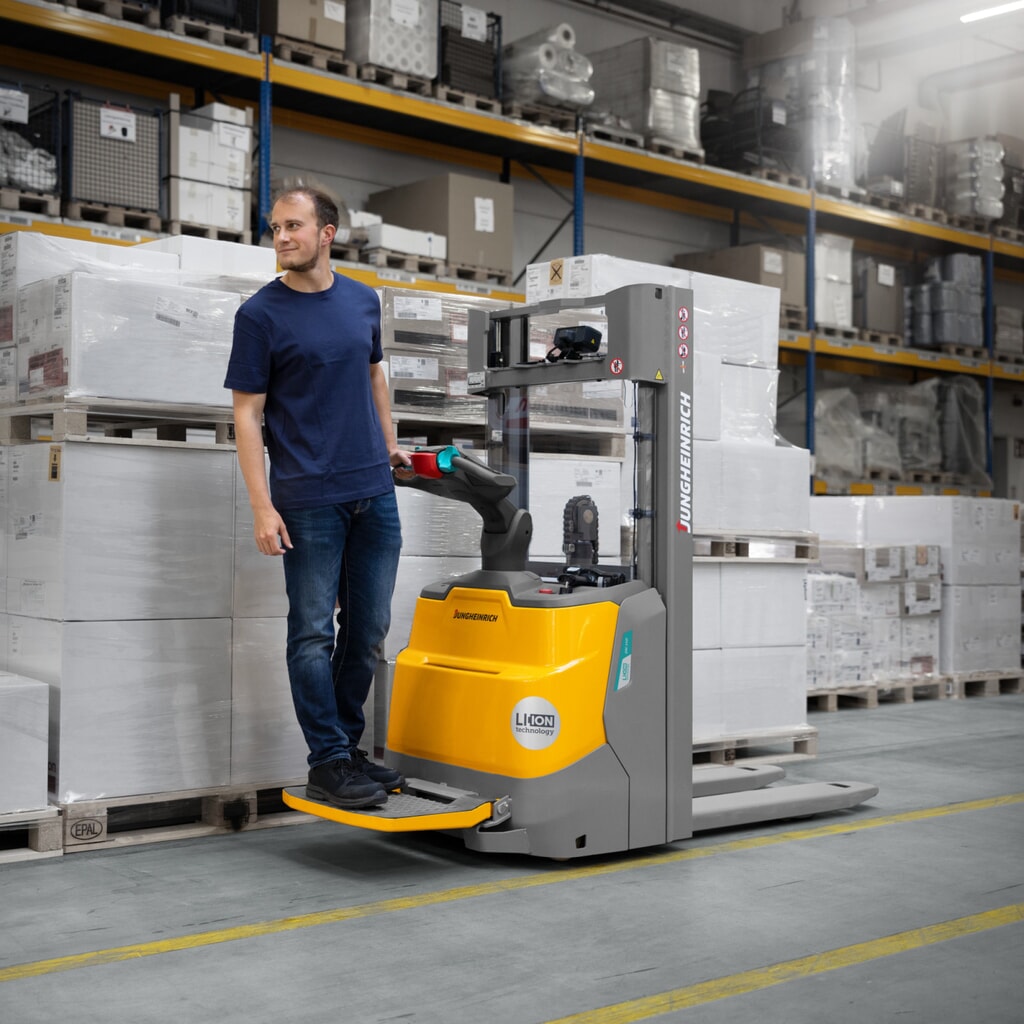

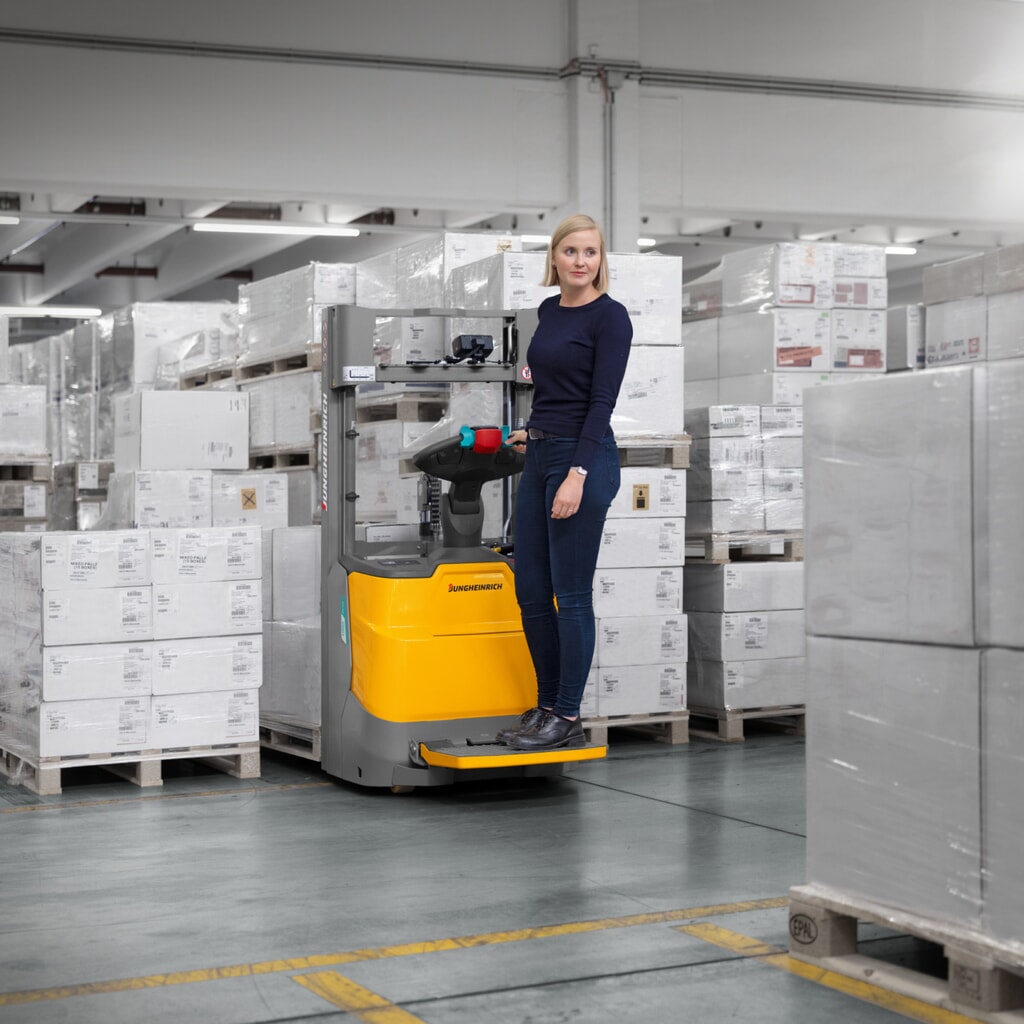

The Jungheinrich electric high-lift stacker truck ERC 110i DZ with platform and three-stage telescopic mast with free lift is designed for demanding warehouse applications in confined spaces. With its compact design, short front overhang and small turning radius, the pedestrian stacker is especially suitable for narrow aisles and tight storage areas. The foldable platform can be used flexibly – for ergonomic riding on medium and long routes or as a pedestrian truck in confined spaces.
The ERC 110i DZ with free lift raises loads of up to 1,000 kg to heights of up to 4,300 mm. Thanks to the robust construction and increased residual capacity, even heavy pallets can be safely positioned on higher shelf levels. Sensitive lifting and lowering via proportional hydraulics facilitates the storage and retrieval of particularly delicate loads on racks or floors.
Equipped with modern lithium-ion technology, the truck offers high energy efficiency with low operating costs. The battery is maintenance-free and can be flexibly recharged at conventional sockets to ensure high truck availability. Intelligent energy management guarantees consistently high performance and long service life.

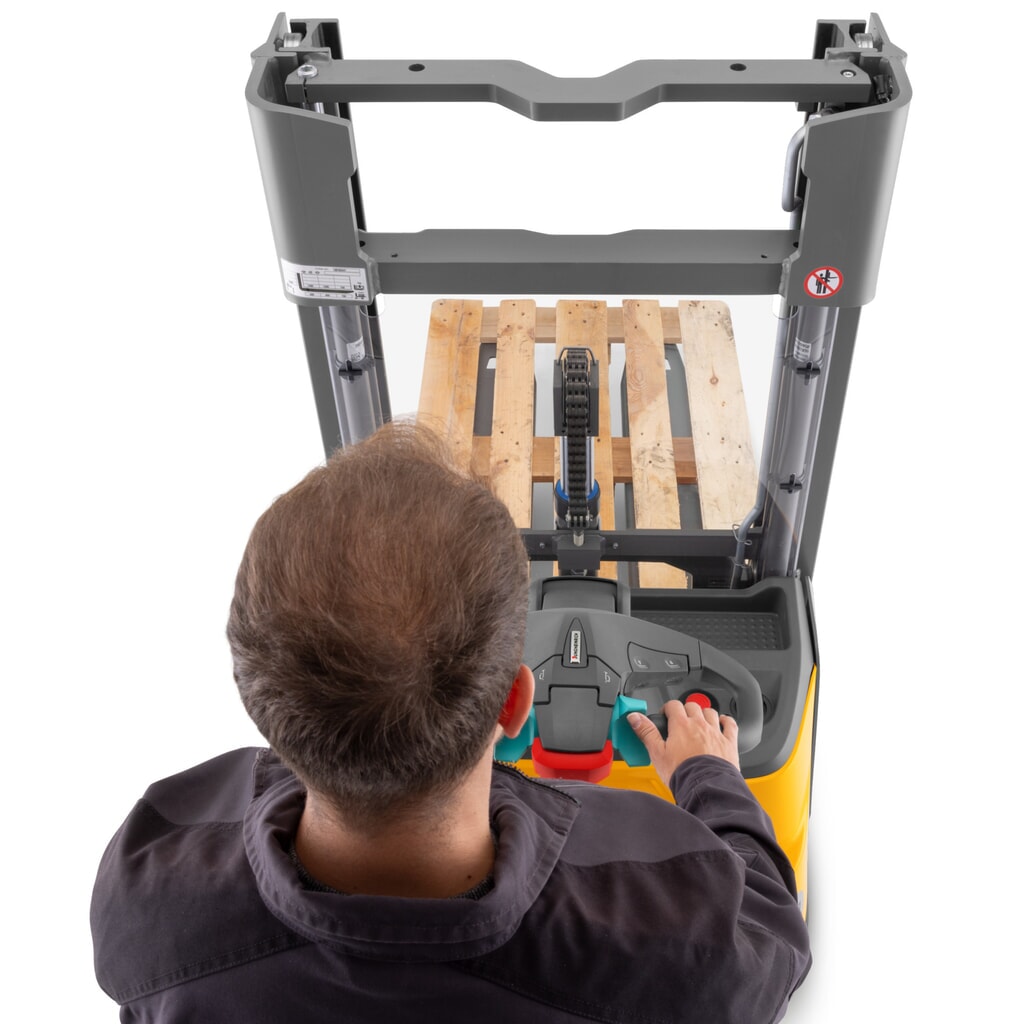

Numerous equipment options provide additional comfort and safety: Electric power steering eases manoeuvring, while features such as curveCONTROL, panorama mirror and load backrest enhance work safety. The intuitive user interface with display provides information about all relevant truck and battery status symbols – language-independent and easy to understand.
The ERC 110i DZ tackles almost every logistical challenge – from goods transport and storage to use as a mobile work bench. Companies benefit from a universal truck that effectively covers multiple task areas and sustainably optimises the fleet of industrial trucks.

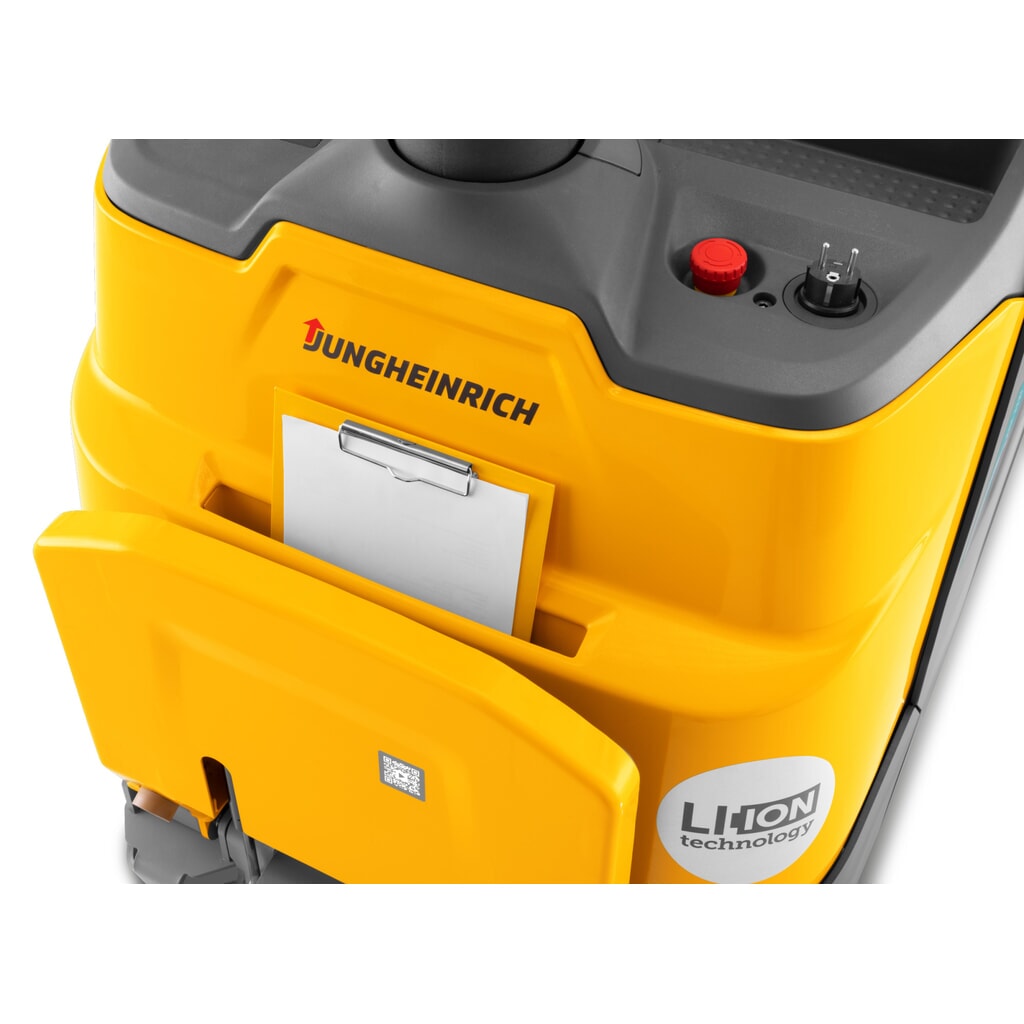

For an additional charge, the ERC 110i DZ can be equipped with options such as a holder for writing tablets, a cold storage version down to -28 °C, or a bespoke special paint finish. This allows the truck to be perfectly tailored to specific operating conditions, providing maximum flexibility in everyday warehouse operations.
The Jungheinrich electric high-lift stacker truck ERC 110i DZ with platform and three-stage telescopic mast with free lift is designed for demanding warehouse applications in confined spaces. With its compact design, short front overhang and small turning radius, the pedestrian stacker is especially suitable for narrow aisles and tight storage areas. The foldable platform can be used flexibly – for ergonomic riding on medium and long routes or as a pedestrian truck in confined spaces.
The ERC 110i DZ with free lift raises loads of up to 1,000 kg to heights of up to 4,300 mm. Thanks to the robust construction and increased residual capacity, even heavy pallets can be safely positioned on higher shelf levels. Sensitive lifting and lowering via proportional hydraulics facilitates the storage and retrieval of particularly delicate loads on racks or floors.
Equipped with modern lithium-ion technology, the truck offers high energy efficiency with low operating costs. The battery is maintenance-free and can be flexibly recharged at conventional sockets to ensure high truck availability. Intelligent energy management guarantees consistently high performance and long service life.
Numerous equipment options provide additional comfort and safety: Electric power steering eases manoeuvring, while features such as curveCONTROL, panorama mirror and load backrest enhance work safety. The intuitive user interface with display provides information about all relevant truck and battery status symbols – language-independent and easy to understand.
The ERC 110i DZ tackles almost every logistical challenge – from goods transport and storage to use as a mobile work bench. Companies benefit from a universal truck that effectively covers multiple task areas and sustainably optimises the fleet of industrial trucks.
For an additional charge, the ERC 110i DZ can be equipped with options such as a holder for writing tablets, a cold storage version down to -28 °C, or a bespoke special paint finish. This allows the truck to be perfectly tailored to specific operating conditions, providing maximum flexibility in everyday warehouse operations.
