Item number:
164704

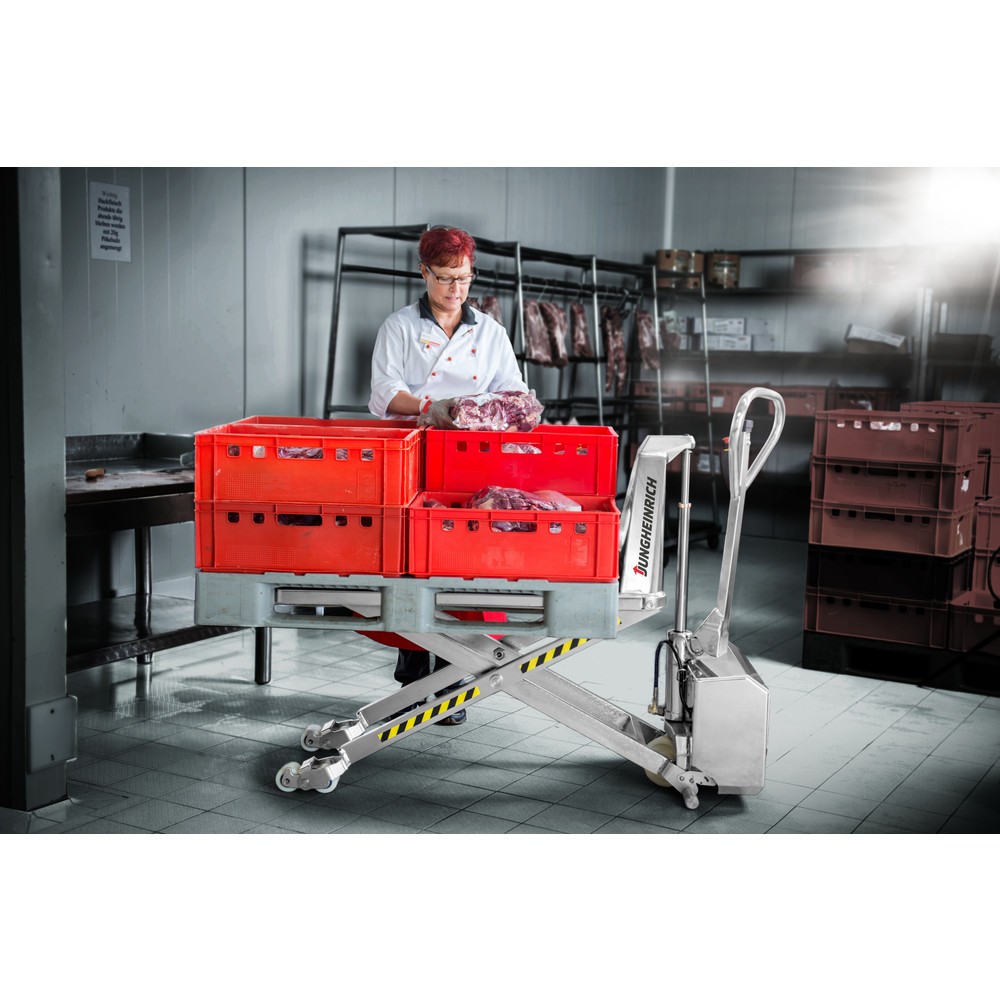

Jungheinrich AMX I15ep stainless steel scissor lift pallet truck, professional, load capacity 1,500 kg, fork length 1,200 mm, nylon
With electric lift – for harsh environments and exacting hygiene standards
Free shipping from £50 (plus VAT)
Secure data protection
Personal purchasing advice
Technical details
Jungheinrich AMX I15ep stainless steel scissor lift pallet truck, professional, load capacity 1,500 kg, fork length 1,200 mm, nylon
Article number: 164704 | EAN/GTIN: 4055091146386
| Aisle width | 1890 mm |
| Battery capacity | 70 Ah/per unit |
| Battery type | Lead-gel battery |
| Battery voltage | 12 V/per unit |
| Battery weight | 21 kg |
| Brand | Jungheinrich |
| Capacity | 1500 kg |
| Charger | integrated |
| Chassis surface | glass-bead blasted |
| Control panel | two-handed |
| Drive | manual |
| Face of forks length | 445 mm |
| Fork height | 50 mm |
| Fork length | 1200 mm |
| Fork roller diameter | 80 mm |
| Fork roller equipment | Tandem |
| Fork roller material | Nylon |
| Fork roller width | 60 mm |
| Fork support width | 540 mm |
| Fork width | 163 mm |
| Grease nipple | Yes |
| Ground clearance | 19 mm |
| Handle fittings | Stainless steel |
| Lift | 710 mm |
| Lift motor output | 1.2 kW |
| Lift range | 85 - 795 mm |
| Lift speed with/without load | 0.05 / 0.08 m/s |
| Lift type | electric |
| Load centre | 600 mm |
| Lowering speed with/without load | 0,07 / 0,05 m/s |
| Model | Jungheinrich AMX I15ep |
| Net weight | 140 kg |
| Operator type | Manual |
| Overall length | 1645 mm |
| Overall width | 540 mm |
| Pallet truck material | Stainless steel |
| Route | Short distance |
| Section | Professional |
| Steering radius | 180 ° |
| Steering wheel diameter | 150 mm |
| Steering wheel material | Nylon |
| Steering wheel width | 45 mm |
| Temperature range | 5 - 40 °C |
| Tiller height | 1270 mm |
| Tiller surface | glass-bead blasted |
| Turning radius | 1540 mm |
Product Notes
Our offer is aimed exclusively at commercial customers (entrepreneurs). In particular, the product is not intended for use by consumers.
Warning and safety information
Data sheets & instructions
Manufacturer information
Jungheinrich AG
Friedrich-Ebert-Damm 129
Hamburg
Deutschland
products@jungheinrich.de
Item description
Jungheinrich AMX I15ep stainless steel scissor lift pallet truck, professional, load capacity 1,500 kg, fork length 1,200 mm, nylon
Article number: 164704 | EAN/GTIN: 4055091146386
The Inox professional version of the electro-hydraulic Jungheinrich AMX I15ep scissor lift pallet truck is a premium stainless steel pallet truck. It is fully corrosion and acid-resistant and meets the most stringent hygiene requirements. This makes the electric scissor lift pallet truck ideal for humid and harsh environments or applications with stringent hygiene requirements. It is particularly well suited to the chemical, pharmaceutical and food industries.
- Fully corrosion-, salt- and acid-resistant
- Sealed hydraulics prevent ingress of water
- Easy to clean
- Food-grade lubricants (class H1/H2)
- 1.2 kW lift motor for easy load handling
- 1500 kg capacity
The AMX I15ep - the Jungheinrich premium model for exacting demands
The Inox professional version of the stainless steel scissor lift pallet truck is fully corrosion- and acid-resistant and was designed specifically for harsh working environments. In addition, the scissor lift pallet truck with electric lift meets the most stringent hygiene requirements. This makes the AMX I15ep ideal for use in the chemical, pharmaceutical and food industries.
The pallet truck hydraulics are specially protected to prevent ingress of foreign bodies and water. Closed fork tips ensure that the fork rollers do not spray any water or dirt onto the transported load. Cavities are either freely accessible or fully sealed to enable effective cleaning – bacteria have no place to hide! This is further facilitated by the electrically polished surfaces. Only food-grade lubricants of class H1/H2 are used.
The robust and reliable scissor lift pallet truck is operated via a functional control element. With the electrohydraulics, you can easily raise and lower the loads at the touch of a button. The scissor lift pallet truck can transport loads weighing up to 1500 kg or raise them to an ergonomic working height. As of a lift height of 470 mm, the capacity is reduced to 1000 kg. You can adjust your individual working height up to a maximum of 795 mm. As of a lift height of approx. 400 mm, side-mounted support feet secure the scissor lift pallet truck for additional safety and stability.
A pressure relief valve protects the hydraulic system against overload. The robust, torsion-free construction of the fork arms retains its shape even when subjected to maximum loads.
Depending on your specific application, you can opt for steering castors and fork rollers in either nylon or polyurethane. Polyurethane tyres ensure maximum comfort and quiet operation, while nylon tyres are characterised by their robustness and high chemical resistance. The tandem fork rollers ensure smooth running over uneven floors.
The Jungheinrich AMX I15ep stainless steel scissor lift pallet truck with electric lift is an ideal choice for harsh chemical environments or areas with stringent hygiene standards. Order the premium model for the most exacting demands from our shop in your chosen configuration.
The Inox professional version of the stainless steel scissor lift pallet truck is fully corrosion- and acid-resistant and was designed specifically for harsh working environments. In addition, the scissor lift pallet truck with electric lift meets the most stringent hygiene requirements. This makes the AMX I15ep ideal for use in the chemical, pharmaceutical and food industries.
The pallet truck hydraulics are specially protected to prevent ingress of foreign bodies and water. Closed fork tips ensure that the fork rollers do not spray any water or dirt onto the transported load. Cavities are either freely accessible or fully sealed to enable effective cleaning – bacteria have no place to hide! This is further facilitated by the electrically polished surfaces. Only food-grade lubricants of class H1/H2 are used.
The robust and reliable scissor lift pallet truck is operated via a functional control element. With the electrohydraulics, you can easily raise and lower the loads at the touch of a button. The scissor lift pallet truck can transport loads weighing up to 1500 kg or raise them to an ergonomic working height. As of a lift height of 470 mm, the capacity is reduced to 1000 kg. You can adjust your individual working height up to a maximum of 795 mm. As of a lift height of approx. 400 mm, side-mounted support feet secure the scissor lift pallet truck for additional safety and stability.
A pressure relief valve protects the hydraulic system against overload. The robust, torsion-free construction of the fork arms retains its shape even when subjected to maximum loads.
Depending on your specific application, you can opt for steering castors and fork rollers in either nylon or polyurethane. Polyurethane tyres ensure maximum comfort and quiet operation, while nylon tyres are characterised by their robustness and high chemical resistance. The tandem fork rollers ensure smooth running over uneven floors.
The Jungheinrich AMX I15ep stainless steel scissor lift pallet truck with electric lift is an ideal choice for harsh chemical environments or areas with stringent hygiene standards. Order the premium model for the most exacting demands from our shop in your chosen configuration.
