Item number:
447072

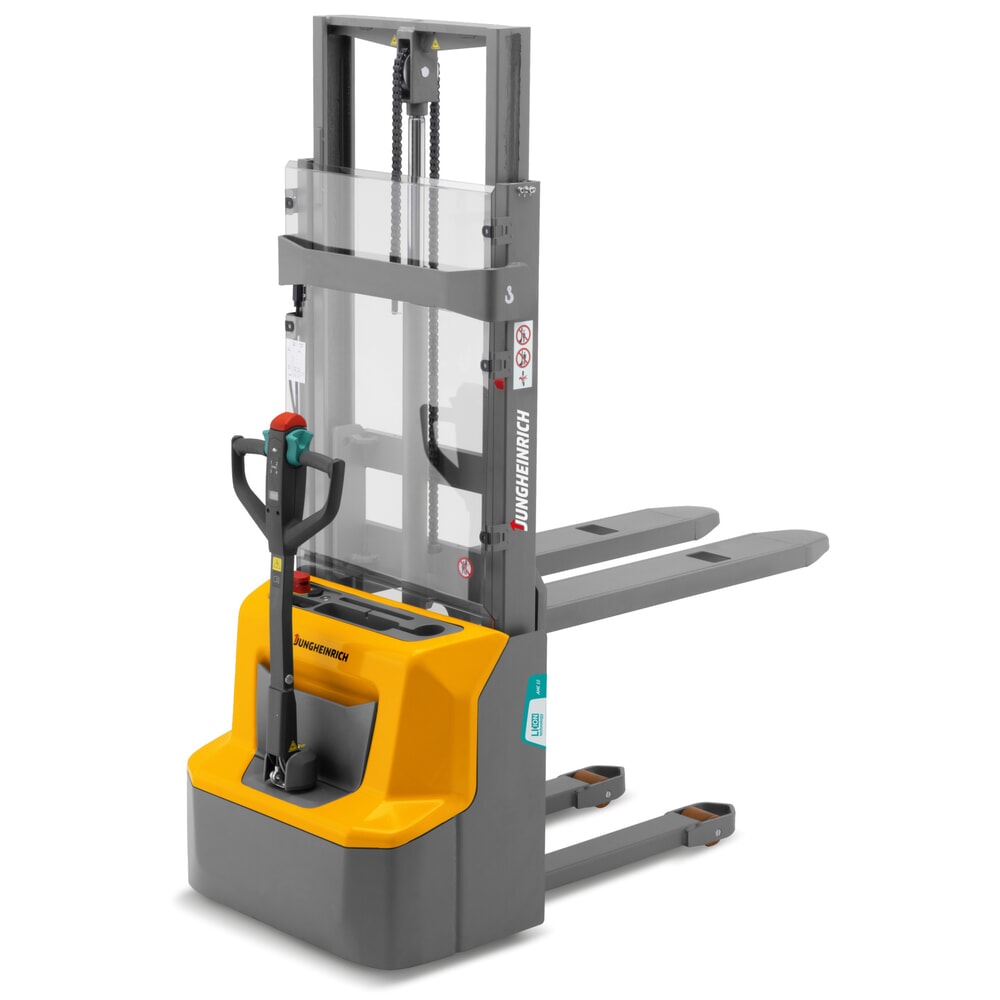

Jungheinrich AMC 12 electric high-lift stacker truck, two-stage telescopic mast, lift height 3,200 mm, load capacity 1,200 kg
Ideal for efficient stacking and retrieving of pallets at heights of up to 3600 mm
-
Free shipping from £50 (plus VAT)
-
Secure data protection
-
Personal purchasing advice
Technical details
Jungheinrich AMC 12 electric high-lift stacker truck, two-stage telescopic mast, lift height 3,200 mm, load capacity 1,200 kg
Article number: 447072 | EAN/GTIN: 4055091270951
| Access system |
PIN-Code |
| Additional wheel width |
50 mm |
| Aisle width |
2197 mm |
| Battery capacity |
60 Ah/per unit |
| Battery charging time |
2.5 h |
| Battery type |
Lithium-ion |
| Battery voltage |
24 V/per unit |
| Battery weight |
19 kg |
| Brake |
electromagnetic |
| Brand |
Jungheinrich |
| Capacity |
1200 kg |
| Charger |
integrated |
| Chassis surface |
powder-coated |
| Colour chassis |
Jungheinrich grey |
| Creep speed button |
Yes |
| Drive |
electric |
| Drive control type |
DC Speed Control |
| Drive motor power |
0.65 kW |
| Drive wheel diameter front |
210 mm |
| Drive wheel material |
Polyurethane (PU) |
| Drive wheel width front |
75 mm |
| Face of forks length |
560 mm |
| Fork height |
60 mm |
| Fork length |
1150 mm |
| Fork roller diameter |
84 mm |
| Fork roller equipment |
Single |
| Fork roller material |
Polyurethane (PU) |
| Fork roller width |
93 mm |
| Fork support width |
570 mm |
| Fork width |
180 mm |
| Ground clearance |
24 mm |
| Hour meter |
Yes |
| Lift |
3114 mm |
| Lift height maximum |
3200 mm |
| Lift motor output |
2.2 kW |
| Lift range |
86 - 3200 mm |
| Lift speed with/without load |
0.11 / 0.16 m/s |
| Load centre |
600 mm |
| Lowering speed with/without load |
0.13 / 0.11 m/s |
| Mast |
Two-stage telescopic mast (ZT) |
| Mast height |
2080 - 3637 mm |
| Max. gradeability laden/unladen |
5 / 10 % |
| Net weight incl. battery |
575 kg |
| No. of batteries |
1 |
| Operating hours per year |
700 h |
| Operator type |
Pedestrian |
| Overall length |
1710 mm |
| Overall width |
800 mm |
| Residual load capacity |
1,000 kg (at lift height: 2,900 mm) 1,200 kg (at lift height: 2,600 mm) 800 kg (at lift height: 3,200 mm) |
| Route |
Short distance |
| Scope |
Indoor use Outdoor use (occasional) |
| Section |
Starter |
| Spare wheel diameter |
100 mm |
| Temperature range |
5 - 40 °C |
| Tiller height |
1150 mm |
| Tiller surface |
powder-coated |
| Travel speed, laden/unladen |
4.2 / 4.5 km/h |
| Turning radius |
1350 mm |
| quality seal |
LI-ION technology |
Item description
Jungheinrich AMC 12 electric high-lift stacker truck, two-stage telescopic mast, lift height 3,200 mm, load capacity 1,200 kg
Article number: 447072 | EAN/GTIN: 4055091270951
The Jungheinrich AMC 12 electric high-lift stacker truck – lithium-ion is Jungheinrich's entry-level model in the electric high-lift truck segment with lithium-ion technology. The lithium-ion truck with 1,200 kg load capacity has a two-stage telescopic mast and is available in 4 lift heights ranging up to 3,600 mm. This versatile tool assists you in light-duty applications involving internal pallet handling across short distances. The maintenance-free lithium-ion battery with integrated charger impresses with its constant performance levels, short charging times and long service life, thereby ensuring maximum availability and flexibility.
- 1200 kg load capacity
- 4 lift heights available (2600, 2900, 3200, 3600 mm)
- Maintenance-free lithium-ion battery
- On-board charger for flexible application
- Compact design for confined warehouse environments
- Slim mast profiles for optimum visibility
- curveCONTROL ensures safe cornering
- PIN code access and slow travel button
- Visual support for reading the residual load capacity
- USB interfaces for charging external devices
Efficient lithium-ion technology for maximum flexibility
With the AMC 12, Jungheinrich offers an effective entry point into its range of electric high-lift truck trucks with lithium-ion technology. The reliable electric stacker truck was designed for light-duty in-house use, making it the perfect entry-level solution for small and medium-sized companies. Be it for transporting loads weighing up to 1200 kg over short distances, for efficient storage and retrieval of pallets at heights of up to 3600 mm or as a mobile workbench for simple and ergonomic order picking – the versatile AMC 12 is the perfect tool for the job. The flexible and agile electric stacker truck is equipped with a two-stage telescopic mast and is available in 4 lift heights.
The AMC 12 electric stacker truck impresses with its ergonomic operation and ease of use. You control all electric travel, lifting and lowering functions via the intuitive multifunction tiller handle, which can be operated with either hand. The collision safety switch ensures effective collision protection. The display integrated in the tiller keeps you up to date on all relevant truck status information, such as the battery charge level. PIN code access provides reliable protection against unauthorised use. The emergency disconnect switch and integrated charger are positioned centrally on the chassis along with a storage compartment and USB interfaces for charging external devices.
The AMC 12 creates the perfect conditions for safe working. Thanks to the slim mast profiles and compact design with low chassis, you always have optimum visibility through the mast, thus providing you with a clear view of the fork tips and the transported load. The Plexiglas panel in front of the mast prevents you from reaching through accidentally. The drive unit is fully enclosed in steel which, along with the ground clearance of just 24 mm, ensures effective protection against foot injuries.
Due to its compact design, small turning circle and low net weight, the AMC 12 is also ideal for use in confined spaces such as lifts and mezzanines. And if things get really tight, you can manoeuvre the electric truck with maximum safety and precision in slow travel mode with the tiller in an upright position. Safety is further enhanced by the curveCONTROL function, which automatically reduces the travel speed when cornering. A coloured marking attached to the mast provides visual support when reading the change in residual capacity in relation to the lift height, thereby preventing incorrect operation.
With the AMC 12 electric stacker truck, you benefit from all the advantages of lithium-ion technology: The maintenance-free lithium-ion battery impresses with its constant performance levels and long service life. Short charging times and, in particular, fast intermediate charging without memory effect ensure optimum availability of the electric forklift truck. The integrated charger offers maximum flexibility by allowing you to easily recharge the truck at any 230-V socket. A display keeps you up to date on the charging progress.
All Jungheinrich electric stacker trucks are backed up by our outstanding Jungheinrich service. With more than 3000 service engineers worldwide, we guarantee a partner in your vicinity at all times along with an optimum spare parts supply.
The Jungheinrich AMC 12 electric stacker truck – lithium-ion serves as an efficient solution for storing and retrieving goods at heights of up to 3600 mm. Order the versatile electric stacker truck with 1200 kg load capacity from our shop in your required lift height.
With the AMC 12, Jungheinrich offers an effective entry point into its range of electric high-lift truck trucks with lithium-ion technology. The reliable electric stacker truck was designed for light-duty in-house use, making it the perfect entry-level solution for small and medium-sized companies. Be it for transporting loads weighing up to 1200 kg over short distances, for efficient storage and retrieval of pallets at heights of up to 3600 mm or as a mobile workbench for simple and ergonomic order picking – the versatile AMC 12 is the perfect tool for the job. The flexible and agile electric stacker truck is equipped with a two-stage telescopic mast and is available in 4 lift heights.
The AMC 12 electric stacker truck impresses with its ergonomic operation and ease of use. You control all electric travel, lifting and lowering functions via the intuitive multifunction tiller handle, which can be operated with either hand. The collision safety switch ensures effective collision protection. The display integrated in the tiller keeps you up to date on all relevant truck status information, such as the battery charge level. PIN code access provides reliable protection against unauthorised use. The emergency disconnect switch and integrated charger are positioned centrally on the chassis along with a storage compartment and USB interfaces for charging external devices.
The AMC 12 creates the perfect conditions for safe working. Thanks to the slim mast profiles and compact design with low chassis, you always have optimum visibility through the mast, thus providing you with a clear view of the fork tips and the transported load. The Plexiglas panel in front of the mast prevents you from reaching through accidentally. The drive unit is fully enclosed in steel which, along with the ground clearance of just 24 mm, ensures effective protection against foot injuries.
Due to its compact design, small turning circle and low net weight, the AMC 12 is also ideal for use in confined spaces such as lifts and mezzanines. And if things get really tight, you can manoeuvre the electric truck with maximum safety and precision in slow travel mode with the tiller in an upright position. Safety is further enhanced by the curveCONTROL function, which automatically reduces the travel speed when cornering. A coloured marking attached to the mast provides visual support when reading the change in residual capacity in relation to the lift height, thereby preventing incorrect operation.
With the AMC 12 electric stacker truck, you benefit from all the advantages of lithium-ion technology: The maintenance-free lithium-ion battery impresses with its constant performance levels and long service life. Short charging times and, in particular, fast intermediate charging without memory effect ensure optimum availability of the electric forklift truck. The integrated charger offers maximum flexibility by allowing you to easily recharge the truck at any 230-V socket. A display keeps you up to date on the charging progress.
All Jungheinrich electric stacker trucks are backed up by our outstanding Jungheinrich service. With more than 3000 service engineers worldwide, we guarantee a partner in your vicinity at all times along with an optimum spare parts supply.
The Jungheinrich AMC 12 electric stacker truck – lithium-ion serves as an efficient solution for storing and retrieving goods at heights of up to 3600 mm. Order the versatile electric stacker truck with 1200 kg load capacity from our shop in your required lift height.
