Pallet trucks with scales
Item number: 601070

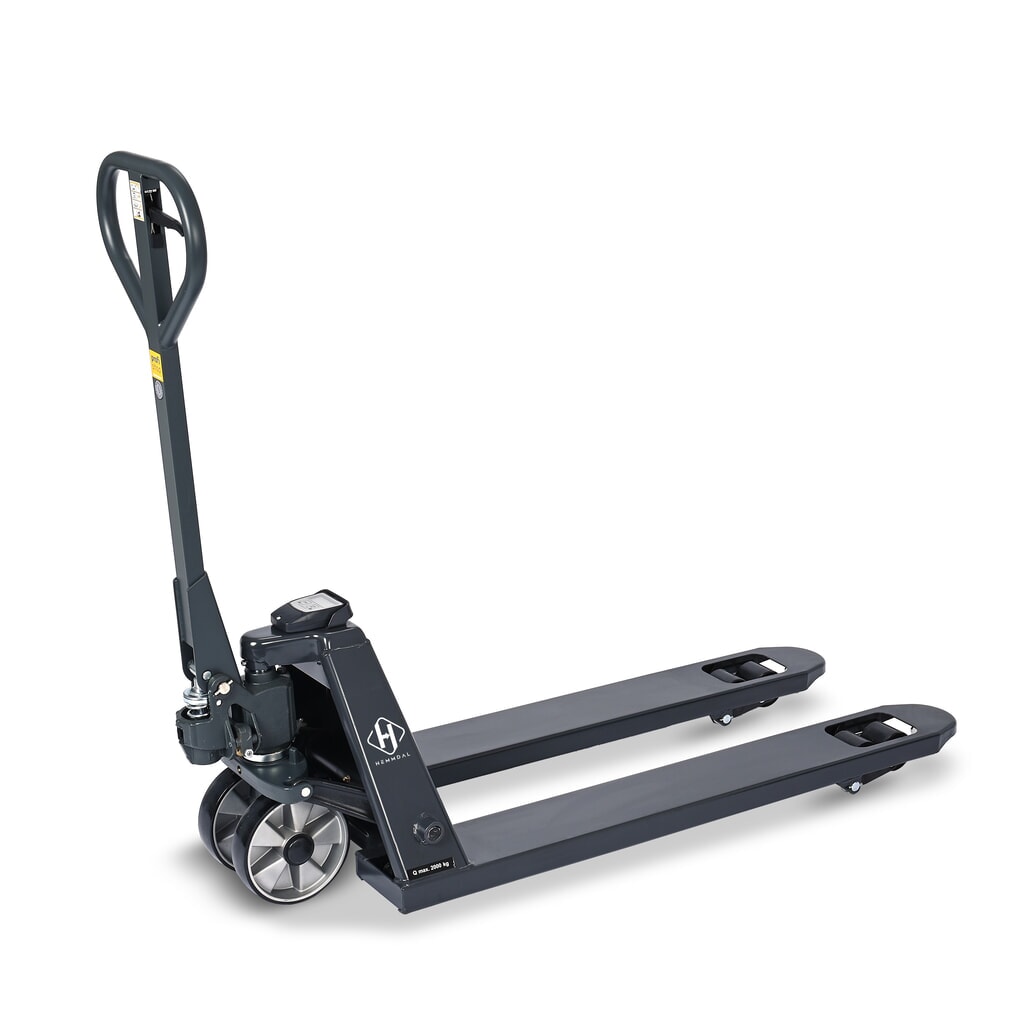

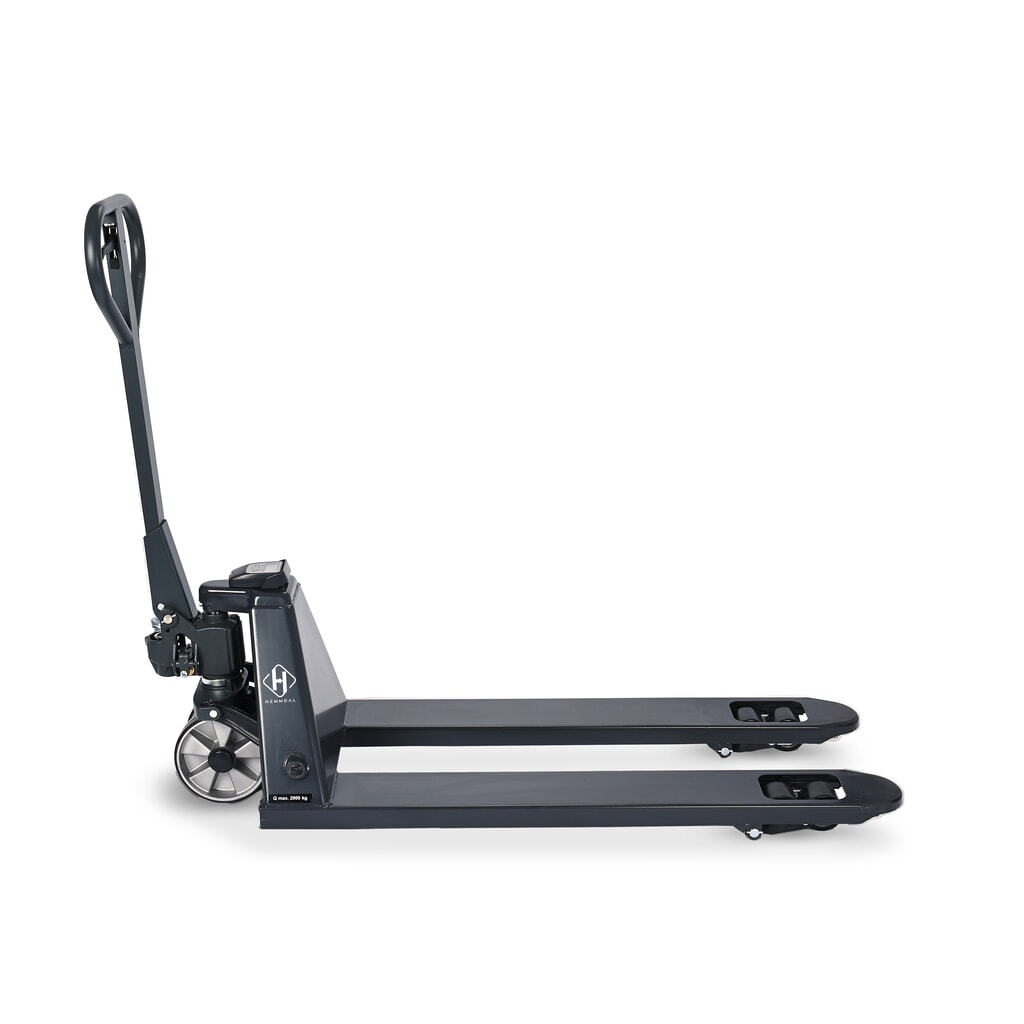

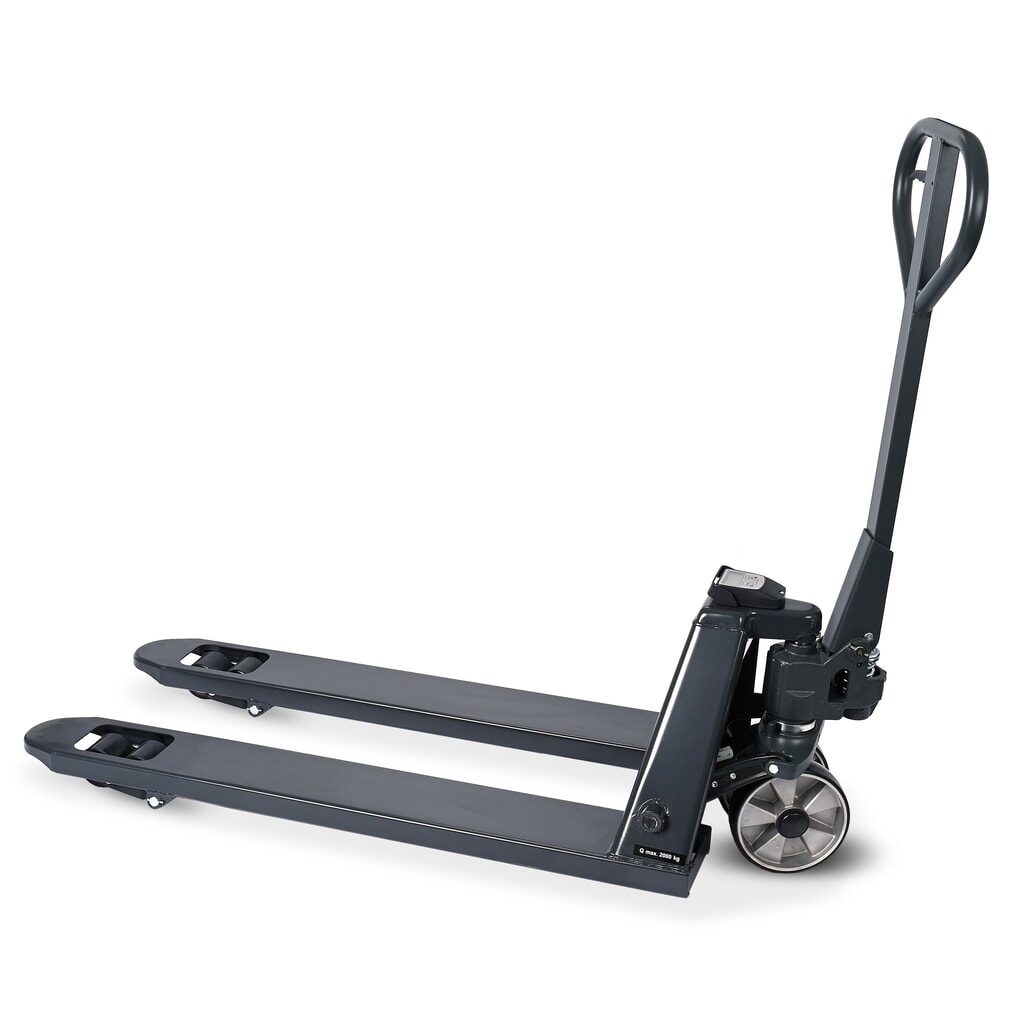

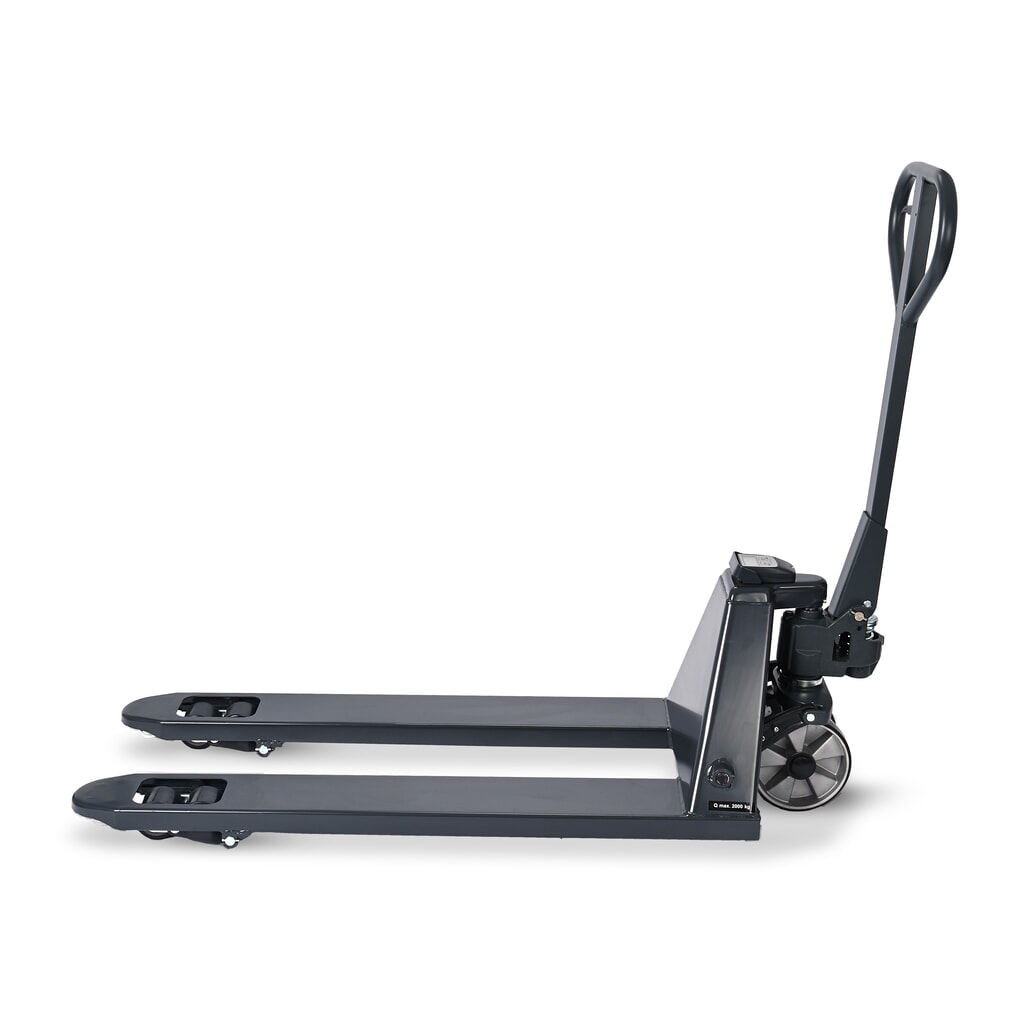

HEMMDAL PTM 2.0 Scale pallet truck with scale, load capacity 2,000 kg, 5 kg increments, tandem fork rollers

Intuitive scale for simple control weighing in warehouse, forwarding and dispatch.
Go to product description
  • Product image no. 1: HEMMDAL PTM 2.0 Scale pallet truck with scale, load capacity 2,000 kg, 5 kg increments, tandem fork rollers
  • Product image no. 2: HEMMDAL PTM 2.0 Scale pallet truck with scale, load capacity 2,000 kg, 5 kg increments, tandem fork rollers

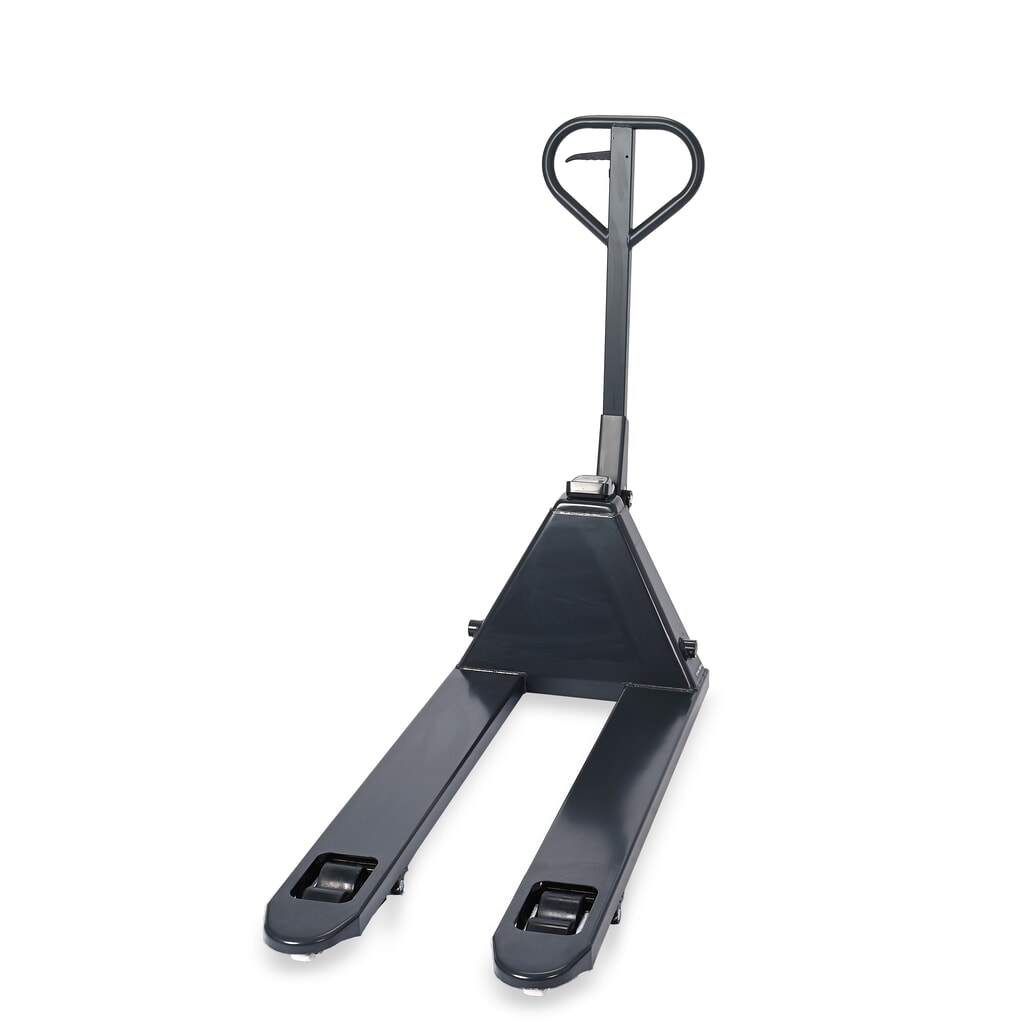

  • Product image no. 3: HEMMDAL PTM 2.0 Scale pallet truck with scale, load capacity 2,000 kg, 5 kg increments, tandem fork rollers

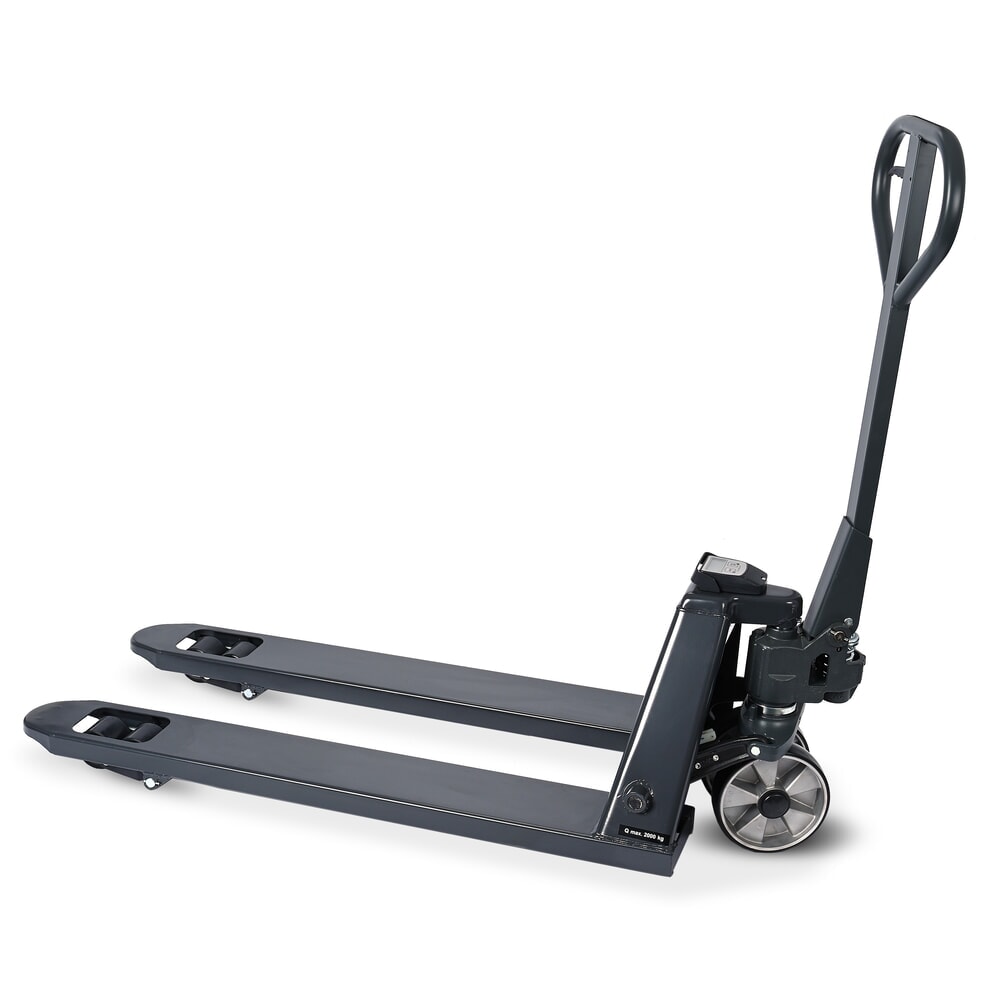

  • Product image no. 4: HEMMDAL PTM 2.0 Scale pallet truck with scale, load capacity 2,000 kg, 5 kg increments, tandem fork rollers
  • Product image no. 5: HEMMDAL PTM 2.0 Scale pallet truck with scale, load capacity 2,000 kg, 5 kg increments, tandem fork rollers
  • Product image no. 6: HEMMDAL PTM 2.0 Scale pallet truck with scale, load capacity 2,000 kg, 5 kg increments, tandem fork rollers
  • Product image no. 7: HEMMDAL PTM 2.0 Scale pallet truck with scale, load capacity 2,000 kg, 5 kg increments, tandem fork rollers
  • Product image no. 8: HEMMDAL PTM 2.0 Scale pallet truck with scale, load capacity 2,000 kg, 5 kg increments, tandem fork rollers
  • Product image no. 9: HEMMDAL PTM 2.0 Scale pallet truck with scale, load capacity 2,000 kg, 5 kg increments, tandem fork rollers

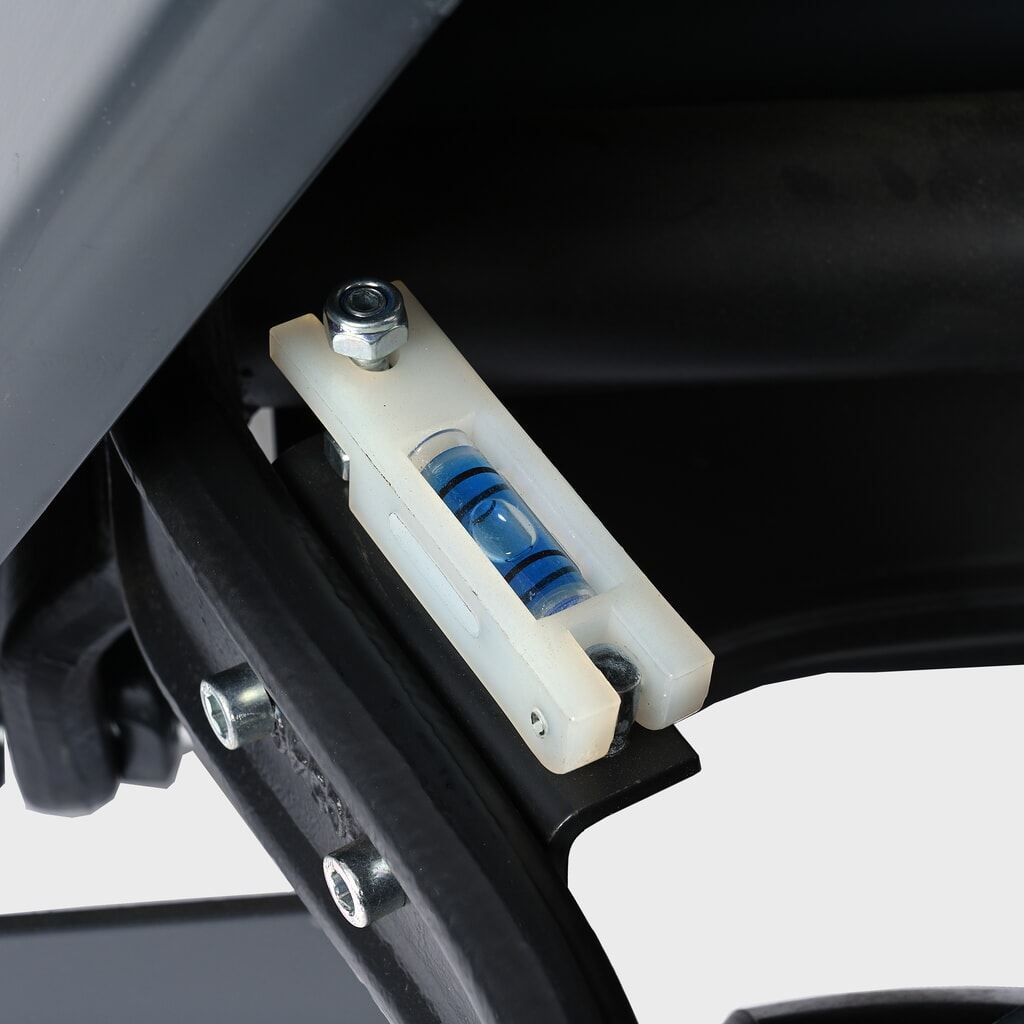

  • Product image no. 10: HEMMDAL PTM 2.0 Scale pallet truck with scale, load capacity 2,000 kg, 5 kg increments, tandem fork rollers

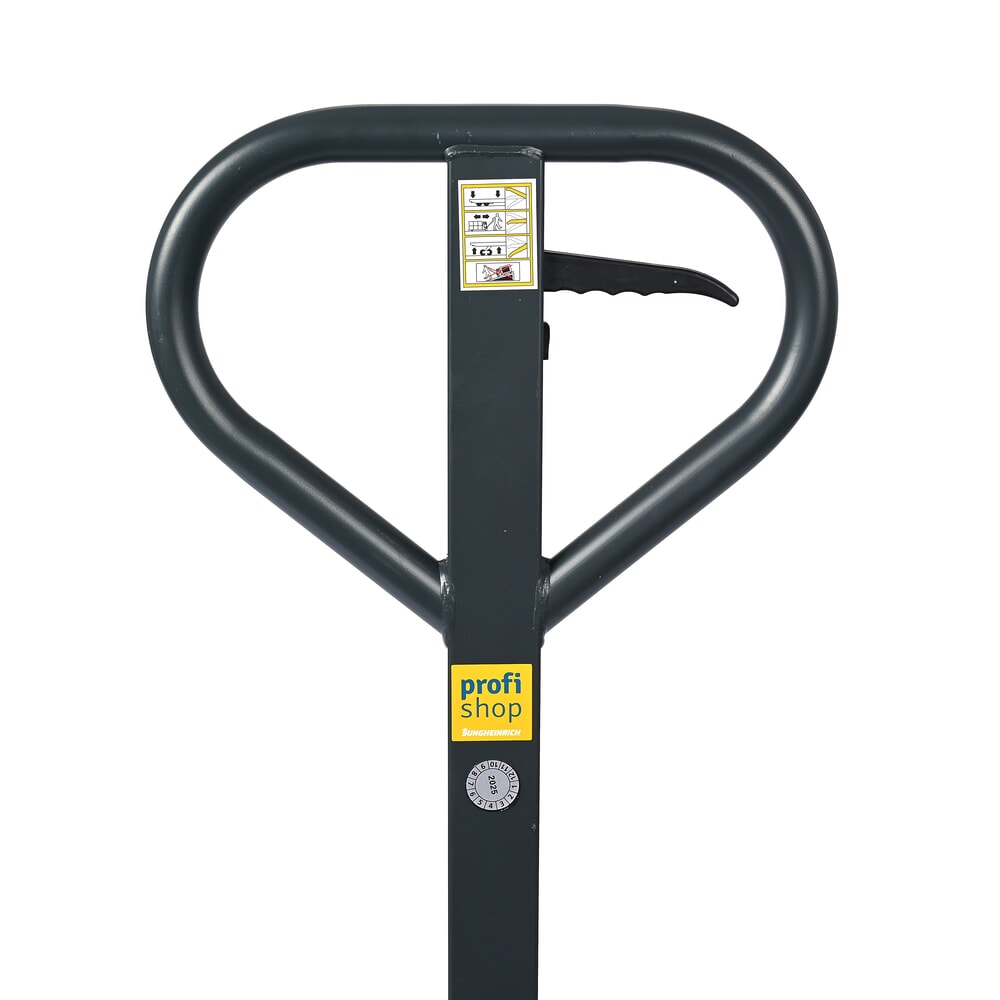

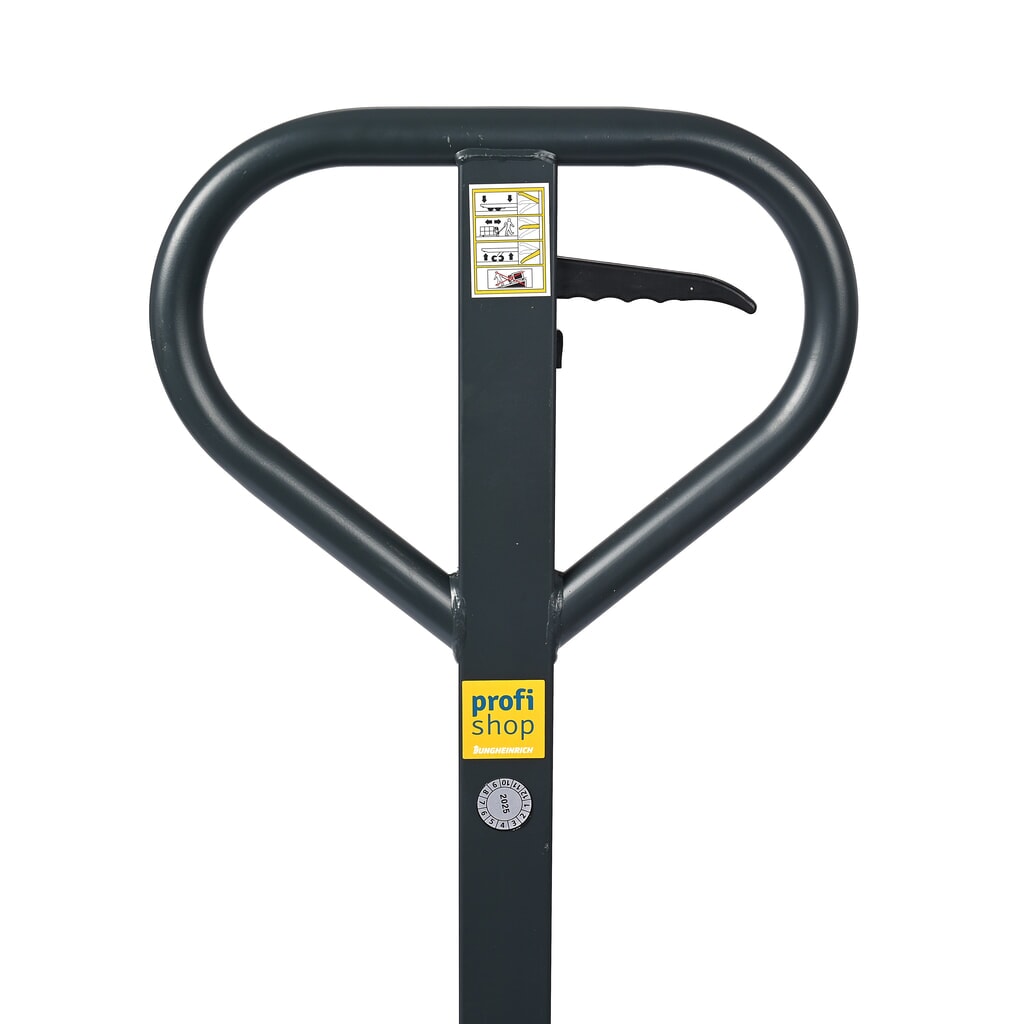

  • Product image no. 11: HEMMDAL PTM 2.0 Scale pallet truck with scale, load capacity 2,000 kg, 5 kg increments, tandem fork rollers
  • Product image no. 12: HEMMDAL PTM 2.0 Scale pallet truck with scale, load capacity 2,000 kg, 5 kg increments, tandem fork rollers
  • Product image no. 13: HEMMDAL PTM 2.0 Scale pallet truck with scale, load capacity 2,000 kg, 5 kg increments, tandem fork rollers
  • Product image no. 14: HEMMDAL PTM 2.0 Scale pallet truck with scale, load capacity 2,000 kg, 5 kg increments, tandem fork rollers
  • HEMMDAL
  • Starter
  • Display of product image no. 1
  • Display of product image no. 1
  • Display of product image no. 2
  • Display of product image no. 3
  • Display of product image no. 4
  • Display of product image no. 5
  • Display of product image no. 6
  • Display of product image no. 7
  • Display of product image no. 8
  • Display of product image no. 9
  • Display of product image no. 10
  • Display of product image no. 11
  • Display of product image no. 12
  • Display of product image no. 13
Current variant:
Fork roller equipment:
Tandem

8 Working days

£430.00

per pcs excl. VAT plus shipping

  • Free shipping from £50 (plus VAT)
  • Secure data protection
  • Personal purchasing advice

Tailored solutions for your applications

Whether compact, flexible or particularly powerful – the AntOn by Jungheinrich PSM electric stacker truck offers the right solution for every requirement.

Request your quote now.

Technical details

HEMMDAL PTM 2.0 Scale pallet truck with scale, load capacity 2,000 kg, 5 kg increments, tandem fork rollers

Article number: 601070 | EAN/GTIN: 4055091323176 Main category: Pallet trucks with scales

Aisle width
1792 mm
Automatic shut-off without insert
2 min
Battery capacity
1,2 Ah/per unit
Battery voltage
1.5 V/per unit
Brand
HEMMDAL
Capacity
2000 kg
Chassis surface
powder-coated
Control panel
right-handed
Digit unit
  • Up to 500 kg in 5 kg Increments
  • over 500 kg in 20 kg increments
Drive
manual
Face of forks length
390 mm
Fork height
48 mm
Fork length
1150 mm
Fork roller diameter
74 mm
Fork roller equipment
Tandem
Fork roller material
Polyurethane (PU)
Fork roller width
70 mm
Fork support width
540 mm
Fork width
160 mm

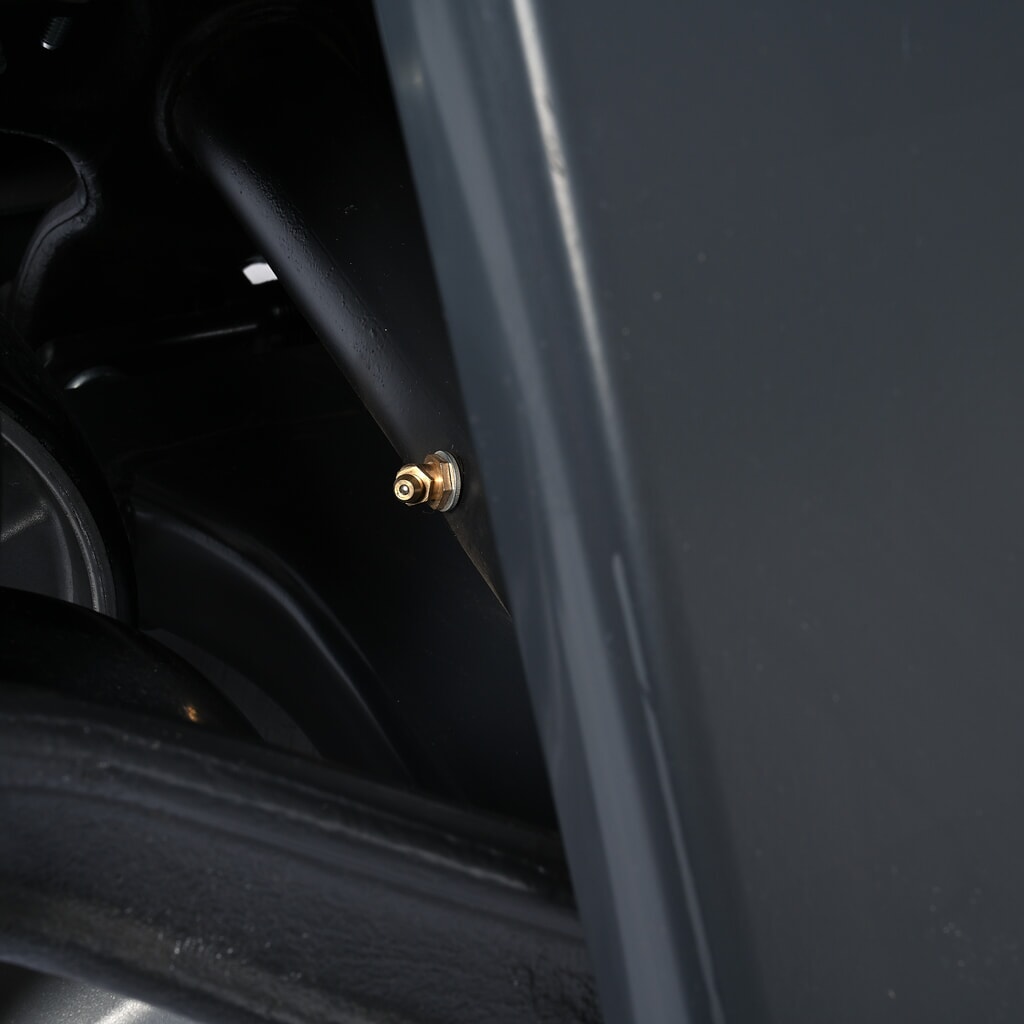

Grease nipple
Yes
Ground clearance
15 mm
Handle fittings
Steel
Hydraulic oil quantity
0.3 l
Hydraulic oil type
Mineral oil
Hydraulic oil viscosity acc. to ISO-VG
32
IP protection type display
IP 65
IP protection type measuring cells
IP 65
Infeed rollers
Yes
Lift
115 mm
Lift height per pump stroke
7,5 mm
Lift range
85 - 200 mm
Load centre
600 mm
Net weight incl. battery
68 kg
No. of batteries
2
Operator type
Manual
Overall length
1545 mm
Overall width
540 mm
Pallet truck material
Steel
Power supply scale
Battery
Route
Short distance
Scale type
digital
Section
Starter
Steering wheel diameter
180 mm
Steering wheel material
Polyurethane (PU)
Steering wheel width
50 mm
Temperature range
5 - 40 °C
Tiller RAL colour
RAL 7016 anthracite grey
Tiller height
1230 mm
Tiller surface
powder-coated
Turning radius
1275 mm
Weighing range
500 / 2.000 kg
Zero adjustment via keyboard
Yes

Item description

HEMMDAL PTM 2.0 Scale pallet truck with scale, load capacity 2,000 kg, 5 kg increments, tandem fork rollers

Article number: 601070 | EAN/GTIN: 4055091323176

The robust HEMMDAL PTM 2.0 Scale pallet truck with scale, for loads up to 2,000 kg, offers an integrated weighing function for simple weight checks. Thanks to its straightforward operation, it is the ideal entry-level model for incoming goods inspection, determining shipping weights or avoiding HGV overloading.
  • Integrated scale with 5 kg display increments up to 500 kg and 20 kg increments from 500 kg upwards.
  • With tare function and manual zero correction.
  • Battery supports up to 3000 weighing operations
  • Load capacity up to 2000 kg.
  • IP 65 protection rating against dust and moisture for the electronics and display.
  • Glare-free LCD display.
  • Torsion-resistant sectional steel frame in robust welded construction.
  • Polyurethane steering castors and fork rollers.
  • Available with either single or tandem fork rollers.

The advantages of the HEMMDAL PTM 2.0 Scale pallet truck with integrated scale

Simple weight checks: The weighing function of the pallet truck with scale, for loads up to 2,000 kg, enables measurements with specified tolerances (up to 500 kg ±15 kg, up to 1,000 kg ±20 kg, up to 1,500 kg ±30 kg, up to 2,000 kg ±40 kg).

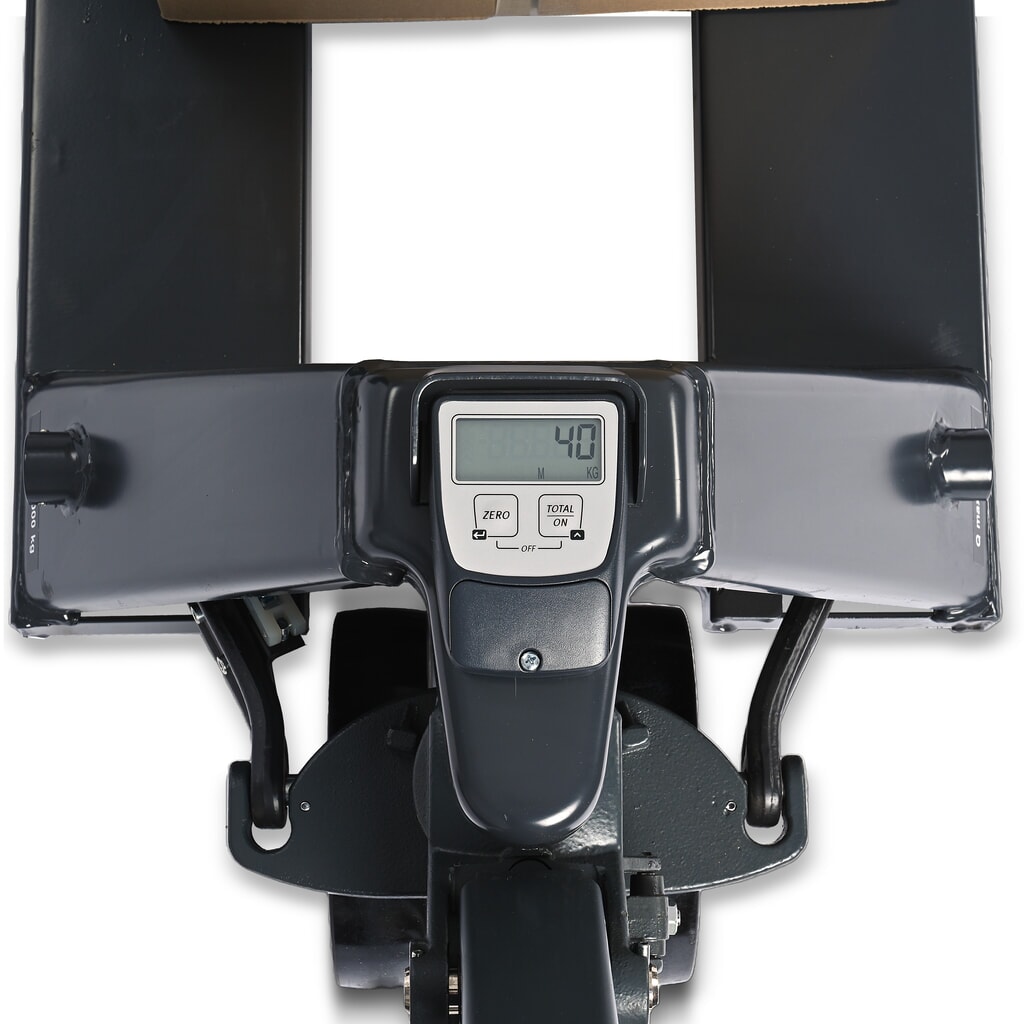

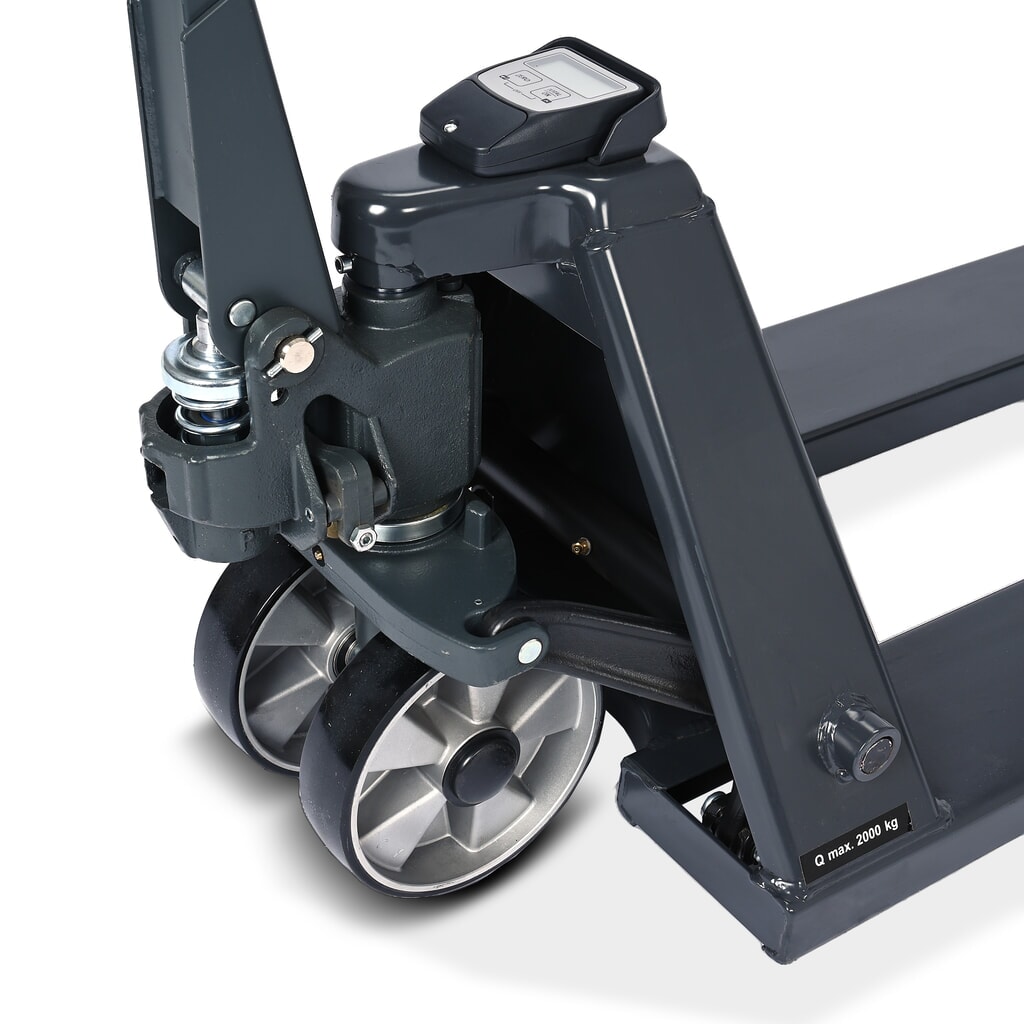

User-friendly display: The LCD display with 18 mm digit height is mounted on the front end and can be read clearly from all sides without glare – for comfortable, efficient working.
Energy-efficient and long-lasting: Up to 3,000 weighing operations are possible with two 1.5 V AA batteries. The automatic shut-off after approximately 2 minutes of inactivity saves additional energy.

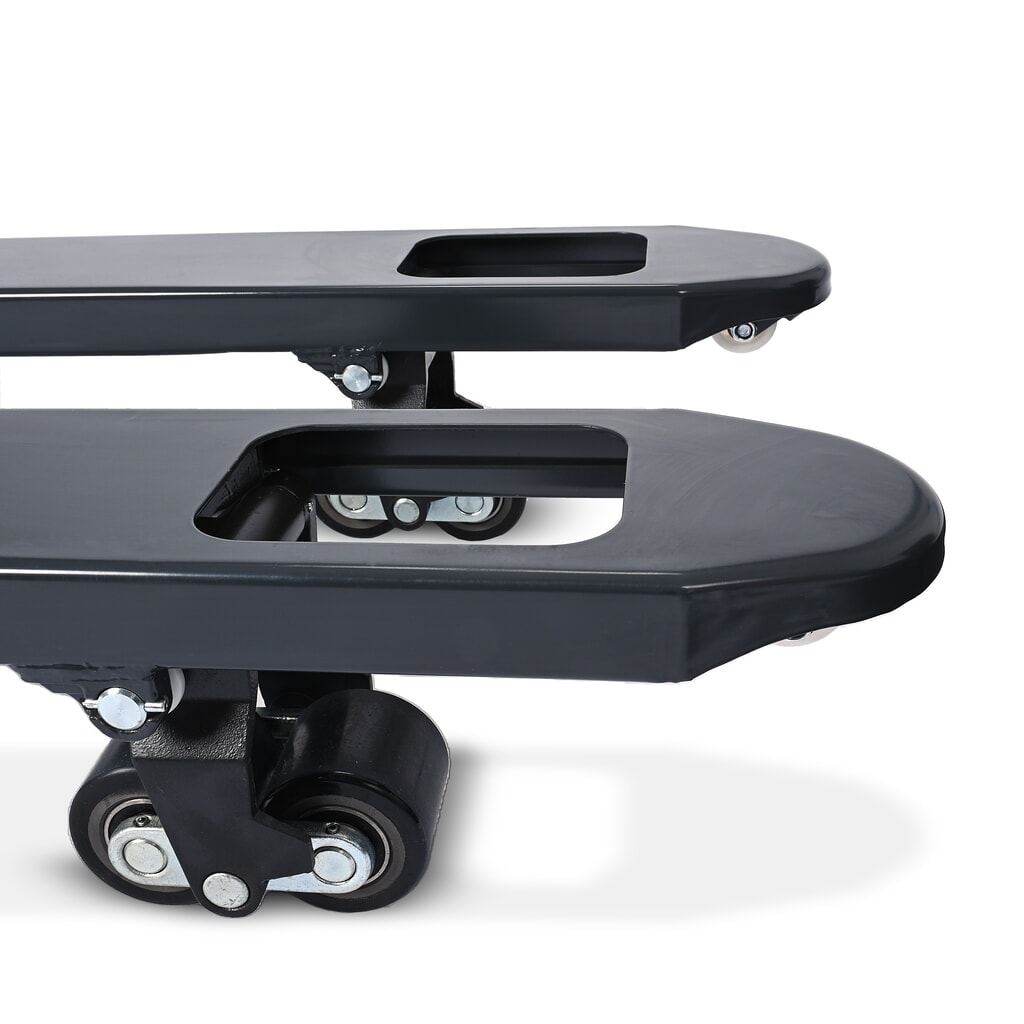

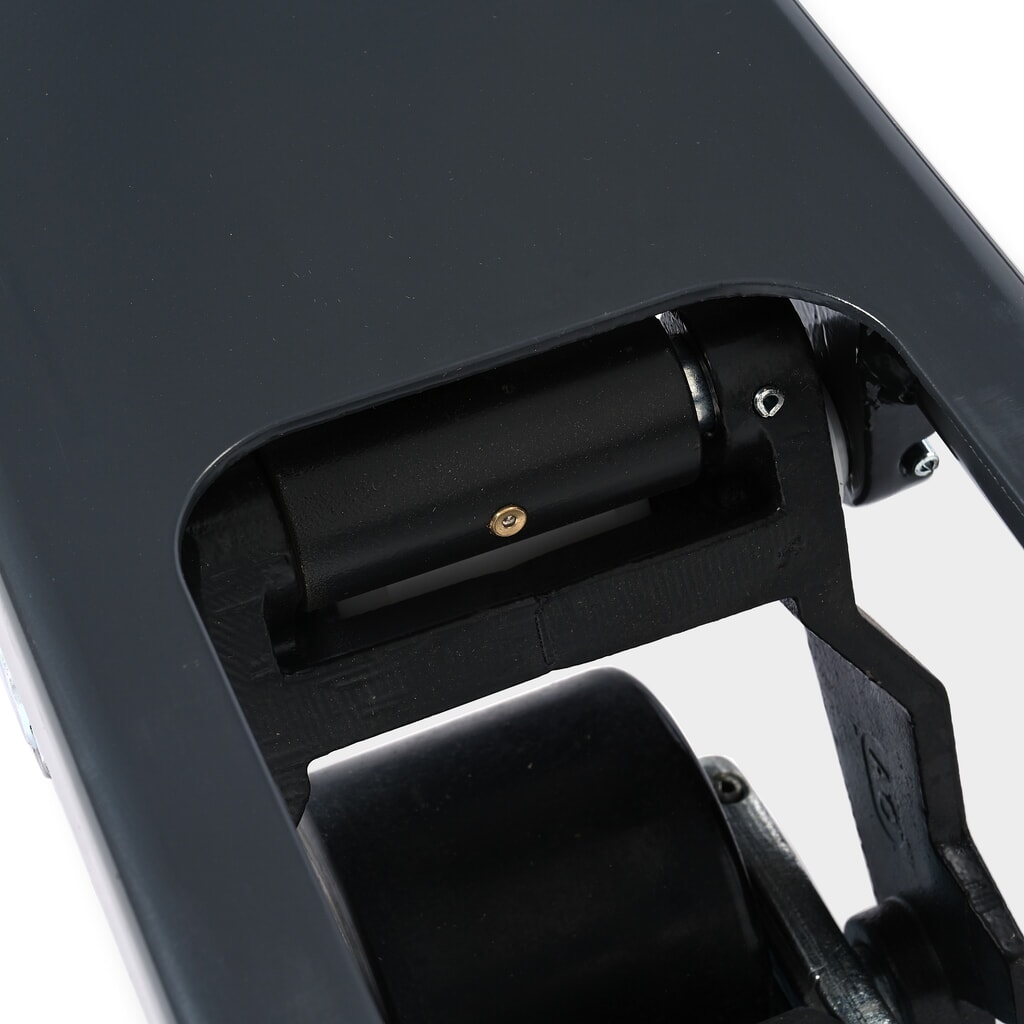

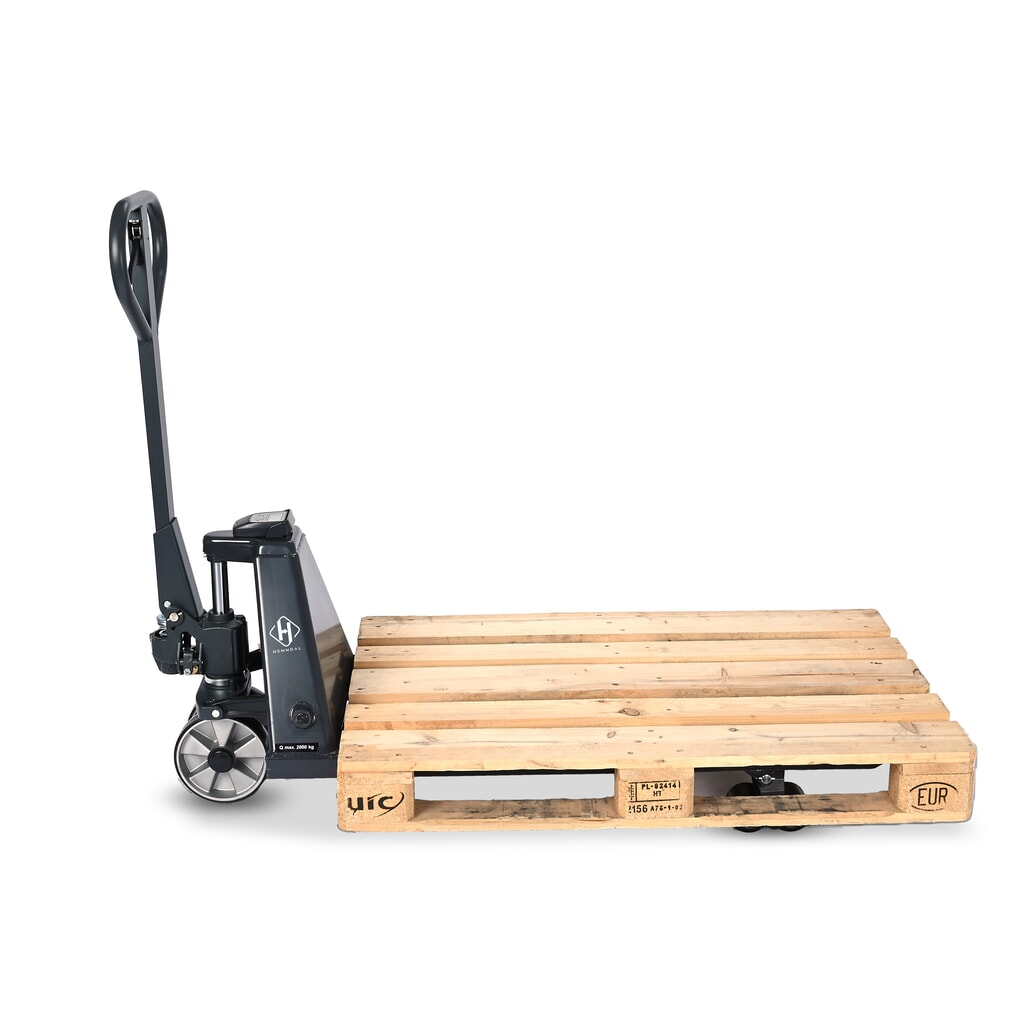

Easy to manoeuvre: Entry rollers make it easier to enter the pallet. The polyurethane steering castors and fork rollers also ensure excellent traction and low-noise travel. The fork rollers are available as either single or tandem rollers.

Delivery

  • Items included in delivery: HEMMDAL PTM 2.0 Scale pallet truck with scale, 2 x 1.5 V AA batteries (already inserted), including operating instructions.
  • The HEMMDAL PTM 2.0 Scale pallet truck with integrated scale is delivered ready for immediate operation.
