Pallet trucks with scales
Item number: 601070

HEMMDAL PTM 2.0 Scale pallet truck with scale, 2,000 kg capacity, 5 kg increments, tandem fork rollers

For precise weight measurement directly during transport
Go to product description
  • Product image no. 1: HEMMDAL PTM 2.0 Scale pallet truck with scale, 2,000 kg capacity, 5 kg increments, tandem fork rollers
  • Product image no. 2: HEMMDAL PTM 2.0 Scale pallet truck with scale, 2,000 kg capacity, 5 kg increments, tandem fork rollers
  • Product image no. 3: HEMMDAL PTM 2.0 Scale pallet truck with scale, 2,000 kg capacity, 5 kg increments, tandem fork rollers
  • Product image no. 4: HEMMDAL PTM 2.0 Scale pallet truck with scale, 2,000 kg capacity, 5 kg increments, tandem fork rollers
  • Product image no. 5: HEMMDAL PTM 2.0 Scale pallet truck with scale, 2,000 kg capacity, 5 kg increments, tandem fork rollers
  • Product image no. 6: HEMMDAL PTM 2.0 Scale pallet truck with scale, 2,000 kg capacity, 5 kg increments, tandem fork rollers
  • Product image no. 7: HEMMDAL PTM 2.0 Scale pallet truck with scale, 2,000 kg capacity, 5 kg increments, tandem fork rollers
  • Product image no. 8: HEMMDAL PTM 2.0 Scale pallet truck with scale, 2,000 kg capacity, 5 kg increments, tandem fork rollers
  • Product image no. 9: HEMMDAL PTM 2.0 Scale pallet truck with scale, 2,000 kg capacity, 5 kg increments, tandem fork rollers
  • Product image no. 10: HEMMDAL PTM 2.0 Scale pallet truck with scale, 2,000 kg capacity, 5 kg increments, tandem fork rollers
  • Product image no. 11: HEMMDAL PTM 2.0 Scale pallet truck with scale, 2,000 kg capacity, 5 kg increments, tandem fork rollers
  • Product image no. 12: HEMMDAL PTM 2.0 Scale pallet truck with scale, 2,000 kg capacity, 5 kg increments, tandem fork rollers
  • Product image no. 13: HEMMDAL PTM 2.0 Scale pallet truck with scale, 2,000 kg capacity, 5 kg increments, tandem fork rollers
  • Product image no. 14: HEMMDAL PTM 2.0 Scale pallet truck with scale, 2,000 kg capacity, 5 kg increments, tandem fork rollers
  • HEMMDAL
  • Starter
  • Display of product image no. 1
  • Display of product image no. 1
  • Display of product image no. 2
  • Display of product image no. 3
  • Display of product image no. 4
  • Display of product image no. 5
  • Display of product image no. 6
  • Display of product image no. 7
  • Display of product image no. 8
  • Display of product image no. 9
  • Display of product image no. 10
  • Display of product image no. 11
  • Display of product image no. 12
  • Display of product image no. 13
Current variant:
Fork roller equipment:
Tandem

17 Working days

£480.00

per pcs excl. VAT plus shipping

  • Free shipping from £50 (plus VAT)
  • Secure data protection
  • Personal purchasing advice

Technical details

HEMMDAL PTM 2.0 Scale pallet truck with scale, 2,000 kg capacity, 5 kg increments, tandem fork rollers

Article number: 601070 | EAN/GTIN: 4055091323176 Main category: Pallet trucks with scales

Aisle width
1792 mm
Automatic shut-off without insert
2 min
Battery capacity
1,2 Ah/per unit
Battery voltage
1.5 V/per unit
Brand
HEMMDAL
Capacity
2000 kg
Chassis surface
powder-coated
Control panel
right-handed
Digit unit
  • Up to 500 kg in 5 kg Increments
  • over 500 kg in 20 kg increments
Drive
manual
Face of forks length
390 mm
Fork height
48 mm
Fork length
1150 mm
Fork roller diameter
74 mm
Fork roller equipment
Tandem
Fork roller material
Polyurethane (PU)
Fork roller width
70 mm
Fork support width
540 mm
Fork width
160 mm
Grease nipple
Yes
Ground clearance
15 mm
Handle fittings
Steel
Hydraulic oil quantity
0.3 l
Hydraulic oil type
Mineral oil
Hydraulic oil viscosity acc. to ISO-VG
32
IP protection type display
IP 65
IP protection type measuring cells
IP 65
Infeed rollers
Yes
Lift
115 mm
Lift height per pump stroke
7,5 mm
Lift range
85 - 200 mm
Load centre
600 mm
Net weight incl. battery
68 kg
No. of batteries
2
Operator type
Manual
Overall length
1545 mm
Overall width
540 mm
Pallet truck material
Steel
Power supply scale
Battery
Route
Short distance
Scale type
digital
Section
Starter
Steering wheel diameter
180 mm
Steering wheel material
Solid rubber
Steering wheel width
50 mm
Temperature range
5 - 40 °C
Tiller RAL colour
RAL 7016 anthracite grey
Tiller height
1230 mm
Tiller surface
powder-coated
Turning radius
1275 mm
Weighing range
500 / 2.000 kg
Zero adjustment via keyboard
Yes

Item description

HEMMDAL PTM 2.0 Scale pallet truck with scale, 2,000 kg capacity, 5 kg increments, tandem fork rollers

Article number: 601070 | EAN/GTIN: 4055091323176

The HEMMDAL PTM 2.0 Scale pallet truck with scale is the ideal solution for simple check-weighing in storage and logistics. With its integrated scale, load capacity of 2,000 kg and robust steel frame, it facilitates incoming goods inspection and shipping weight determination. The user-friendly operation and the protected display also ensure efficient handling in everyday work.
  • Reliable performance thanks to solid workmanship
  • Load capacity: up to 2,000 kg
  • Display in 5 kg increments up to 500 kg and 20 kg increments from 500 kg
  • IP65 protection: display and electronics protected against dust and moisture
  • Easy operation with tare function and manual zero correction
  • Battery supports up to 3,000 weighing operations
  • Automatic shutdown after approx. 2 minutes
  • LCD display with 18 mm digit height, glare-free readability
  • Robust welded construction made from profile steel
  • Solid rubber steering castors; polyurethane fork rollers

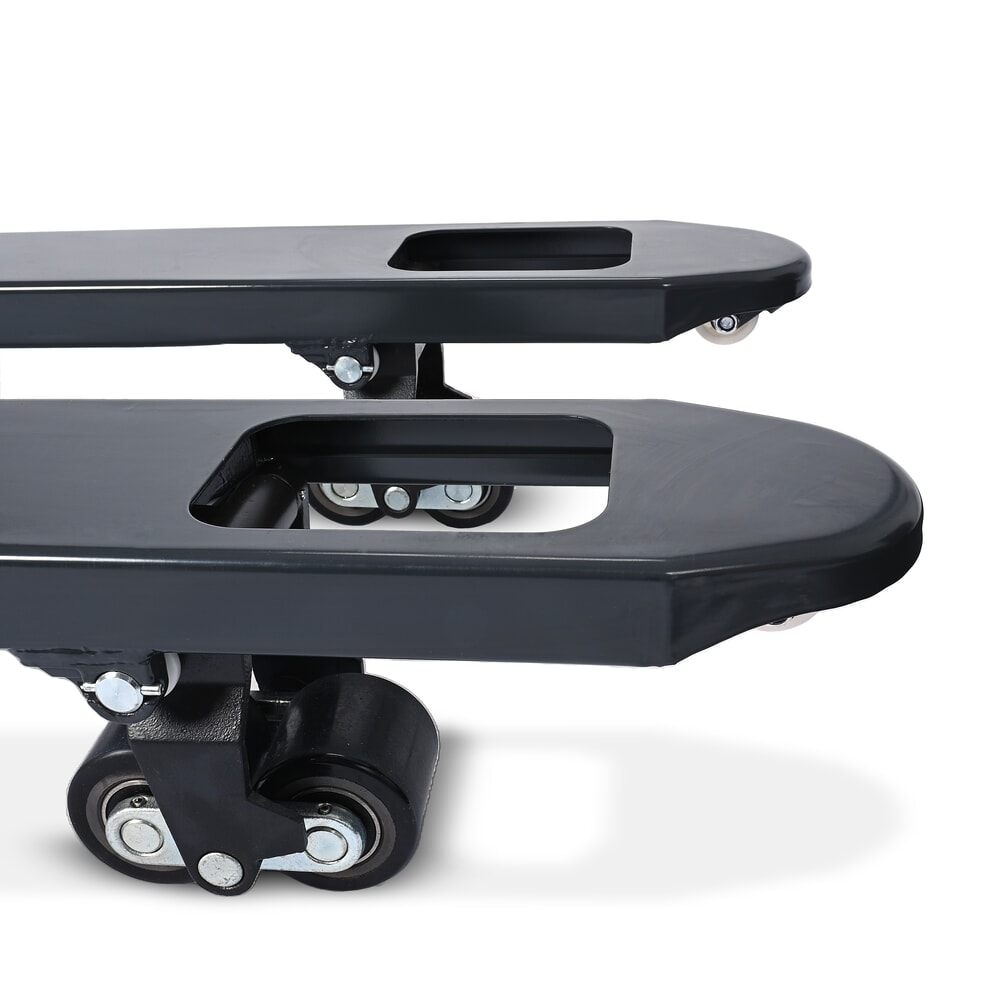

  • Available with tandem fork rollers for smoother operation and negotiation of uneven floors (depending on model)

Simple weight control: The weighing function of the pallet truck with scale with 2,000 kg capacity enables measurements with defined tolerances (up to 500 kg ±15 kg, up to 1,000 kg ±20 kg, up to 1,500 kg ±30 kg, up to 2,000 kg ±40 kg).
User-friendly display: The LCD display with its 18 mm digit height is positioned at the front and can be read glare-free from all sides for comfortable and efficient working.
Energy-efficient and long-lasting: With two 1.5 V AA batteries, there are 3,000 different possible weighing operations. It automatically switches off after approximately 2 minutes of non-use to save energy.
Easy to manoeuvre: The entry rollers facilitate driving under a pallet. The combination of the solid rubber steering wheels and the polyurethane fork rollers also ensures optimal ground grip and quiet running. The fork rollers are available as either single or tandem rollers.
