Technical details

HEMMDAL PTM 2.0 Scale pallet truck with scale, 5 kg increments, load capacity 2,000 kg

Article number: 601069 | EAN/GTIN: 4055091323169

Aisle width
1792 mm
Automatic shut-off without insert
2 min
Battery capacity
1,2 Ah/per unit
Battery voltage
1.5 V/per unit
Brand
HEMMDAL
Capacity
2000 kg
Chassis surface
powder-coated
Control panel
right-handed
Digit unit
  • Up to 500 kg in 5 kg Increments
  • over 500 kg in 20 kg increments
Drive
manual
Face of forks length
390 mm
Fork height
48 mm
Fork length
1150 mm
Fork roller diameter
74 mm
Fork roller equipment
Single
Fork roller material
Polyurethane (PU)
Fork roller width
93 mm
Fork support width
540 mm
Fork width
160 mm

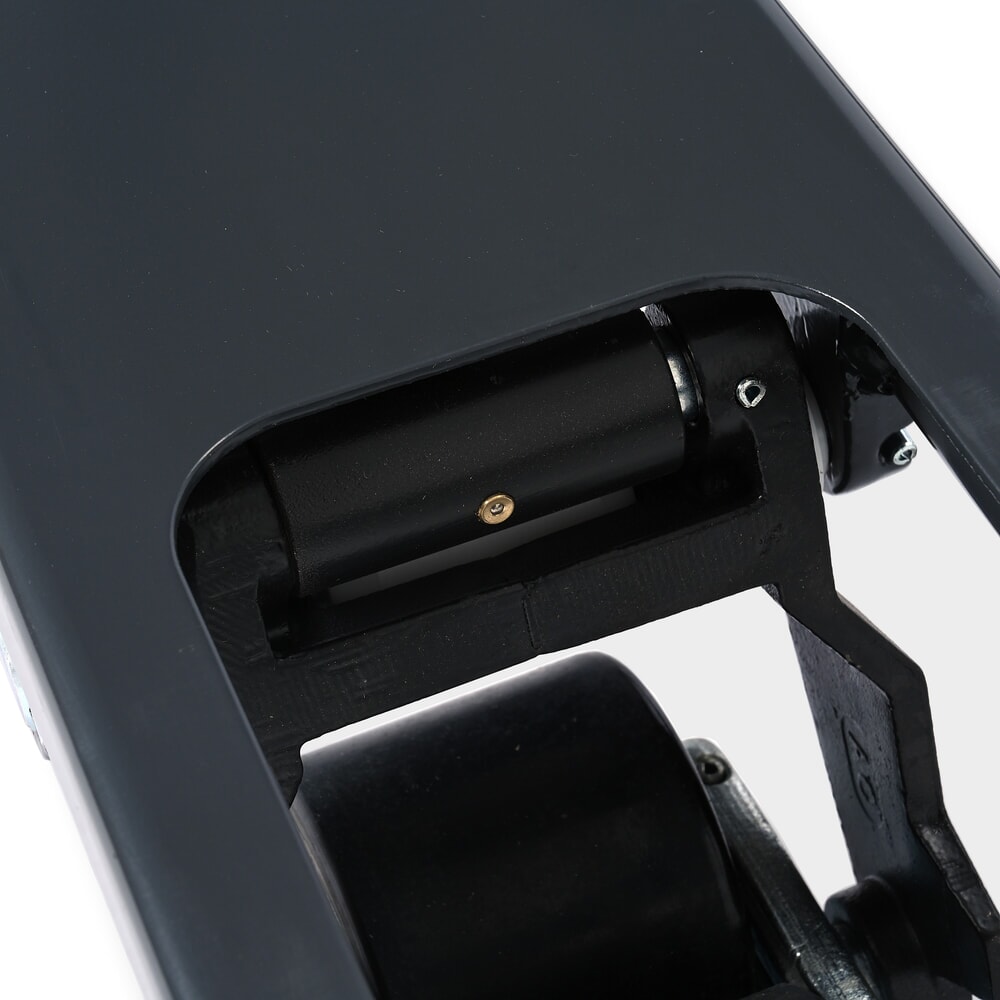

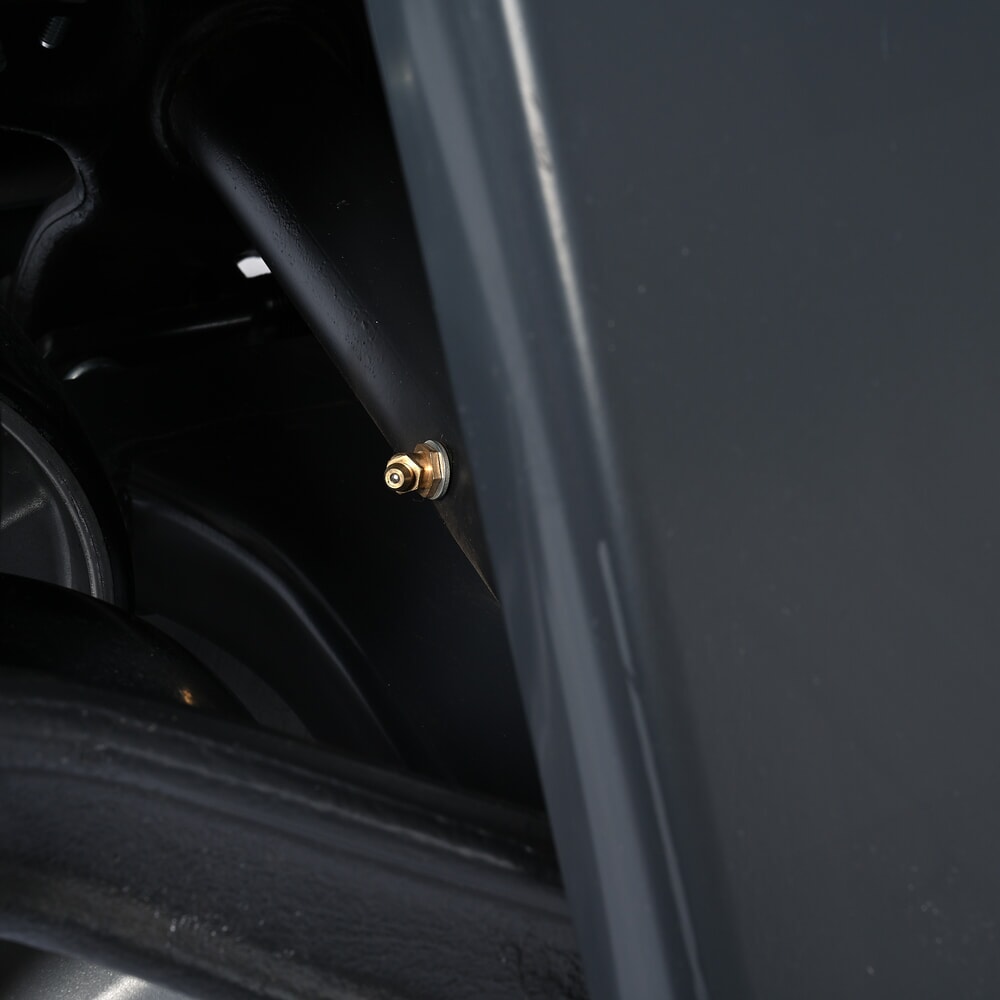

Grease nipple
Yes
Ground clearance
15 mm
Handle fittings
Steel
Hydraulic oil quantity
0.3 l
Hydraulic oil type
Mineral oil
Hydraulic oil viscosity acc. to ISO-VG
32
IP protection type display
IP 65
IP protection type measuring cells
IP 65
Infeed rollers
Yes
Lift
115 mm
Lift height per pump stroke
7,5 mm
Lift range
85 - 200 mm
Load centre
600 mm
Net weight incl. battery
69 kg
No. of batteries
2
Operator type
Manual
Overall length
1545 mm
Overall width
540 mm
Pallet truck material
Steel
Power supply scale
Battery
Route
Short distance
Scale type
digital
Section
Starter
Steering wheel diameter
180 mm
Steering wheel material
Solid rubber
Steering wheel width
50 mm
Temperature range
5 - 40 °C
Tiller RAL colour
RAL 7016 anthracite grey
Tiller height
1230 mm
Tiller surface
powder-coated
Turning radius
1275 mm
Weighing range
500 / 2.000 kg
Zero adjustment via keyboard
Yes

Item description

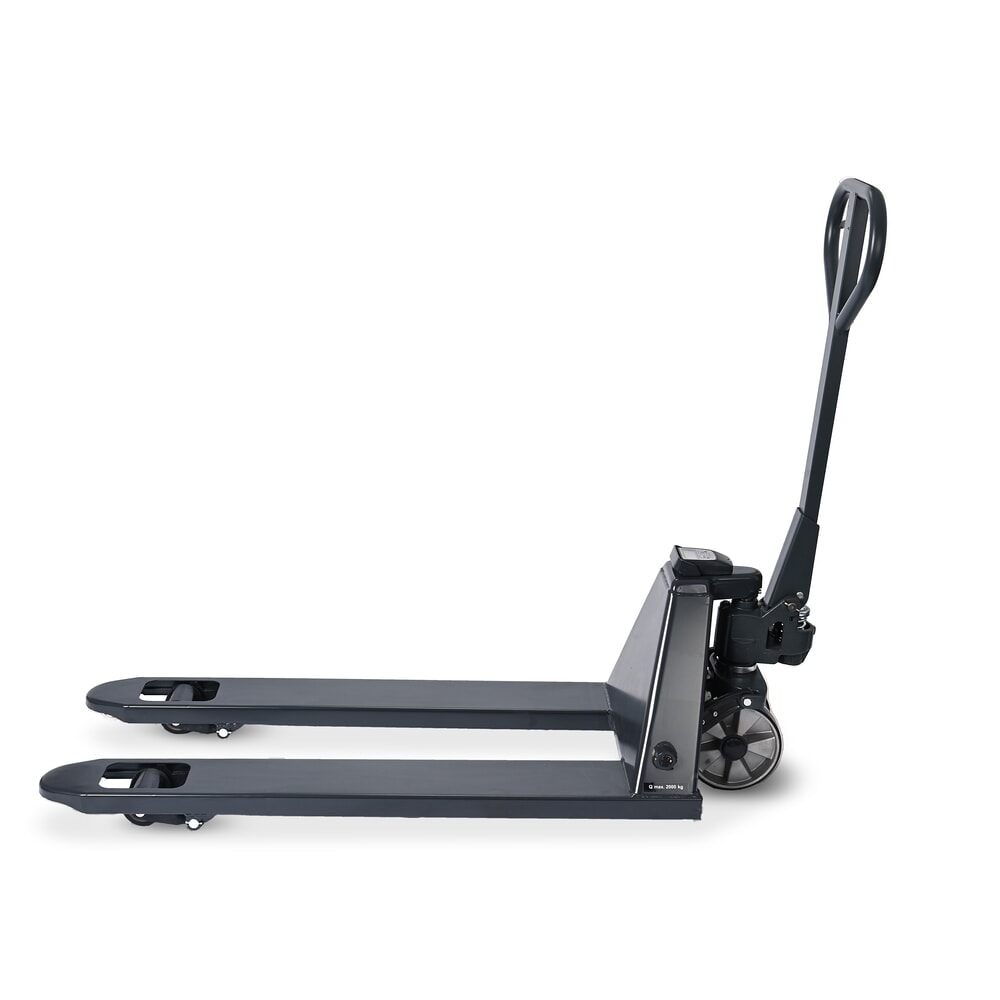

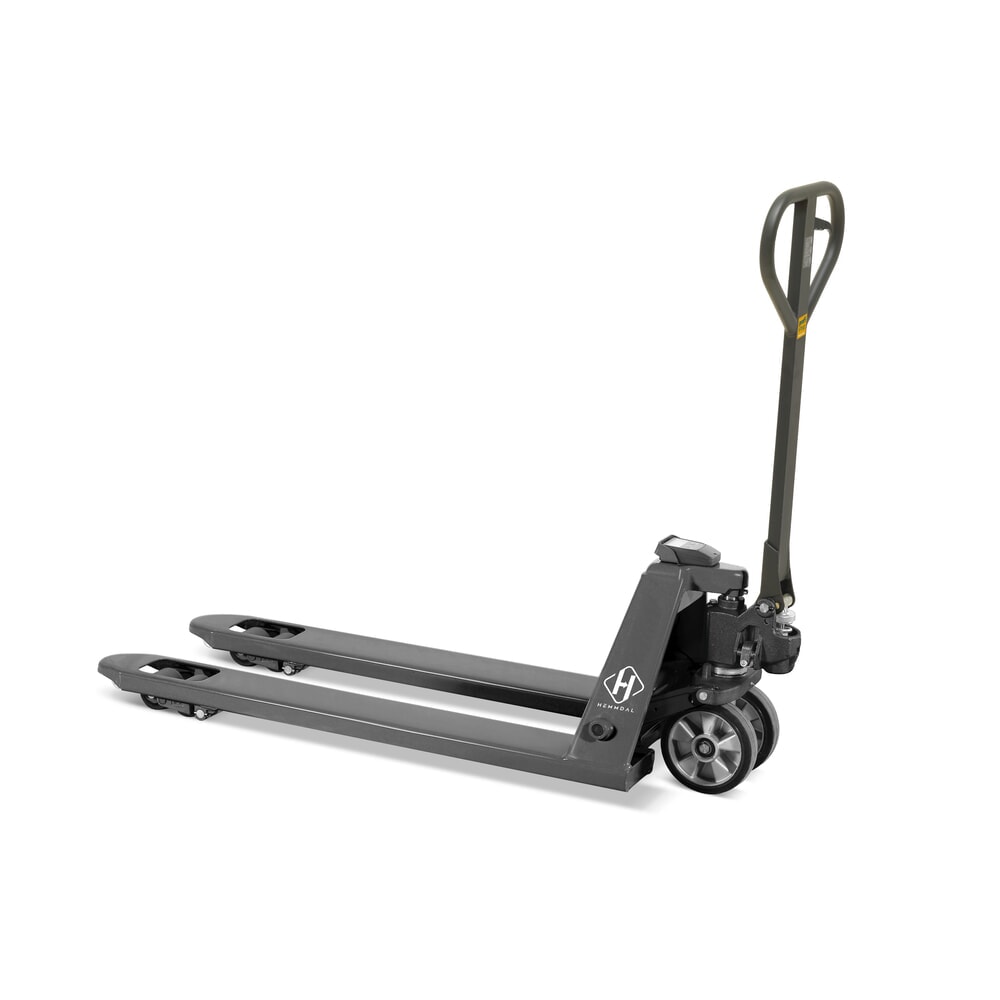

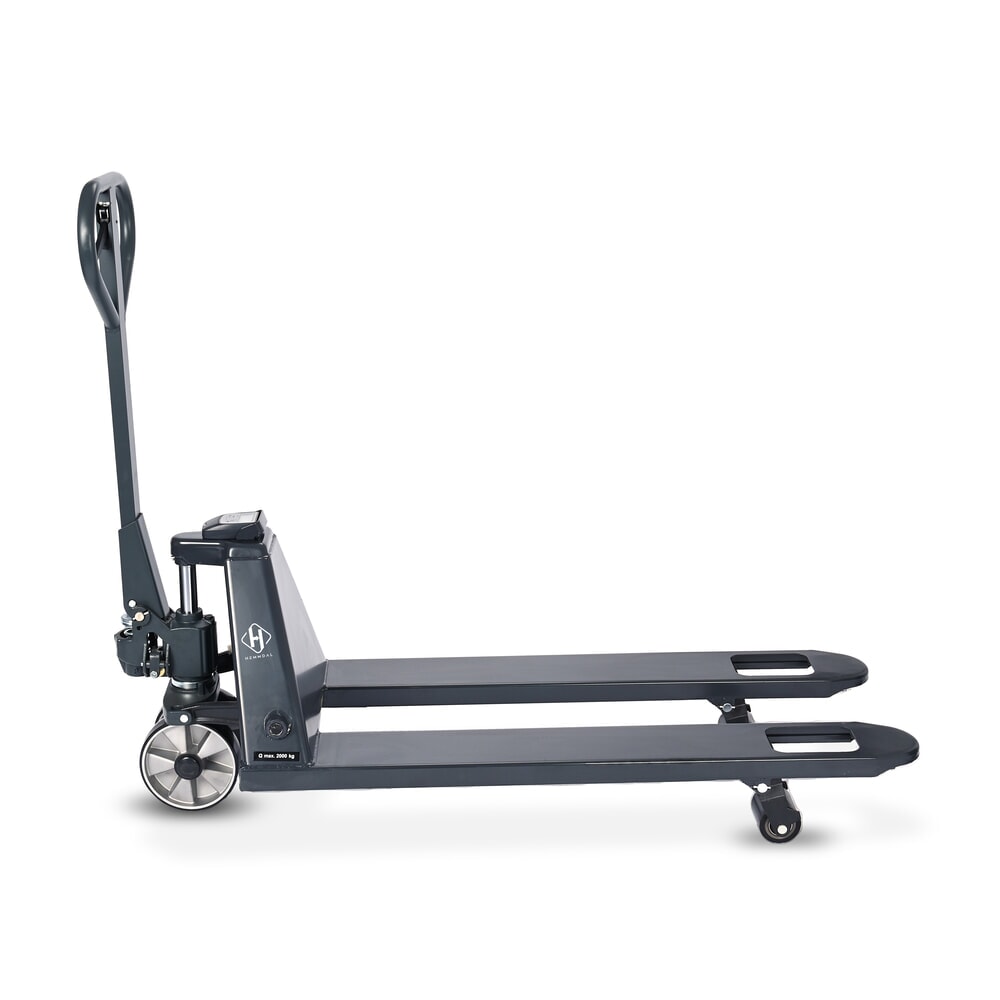

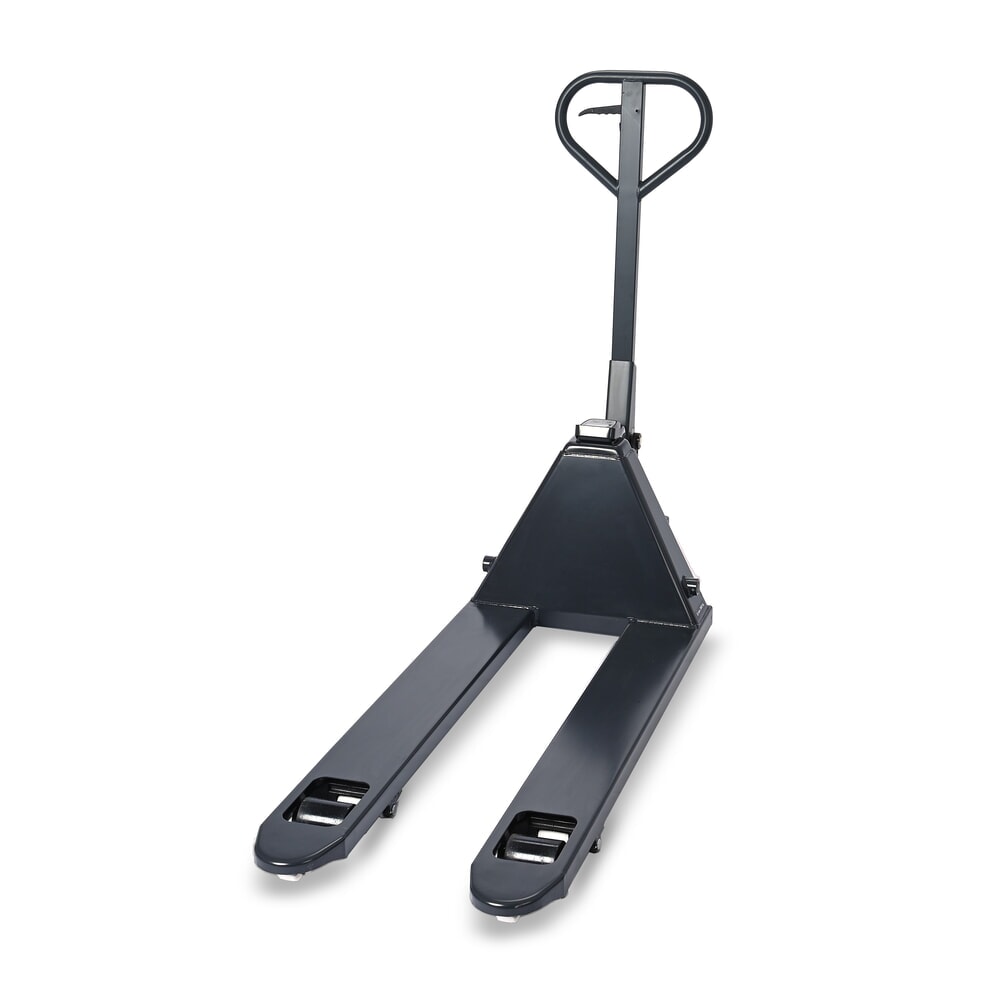

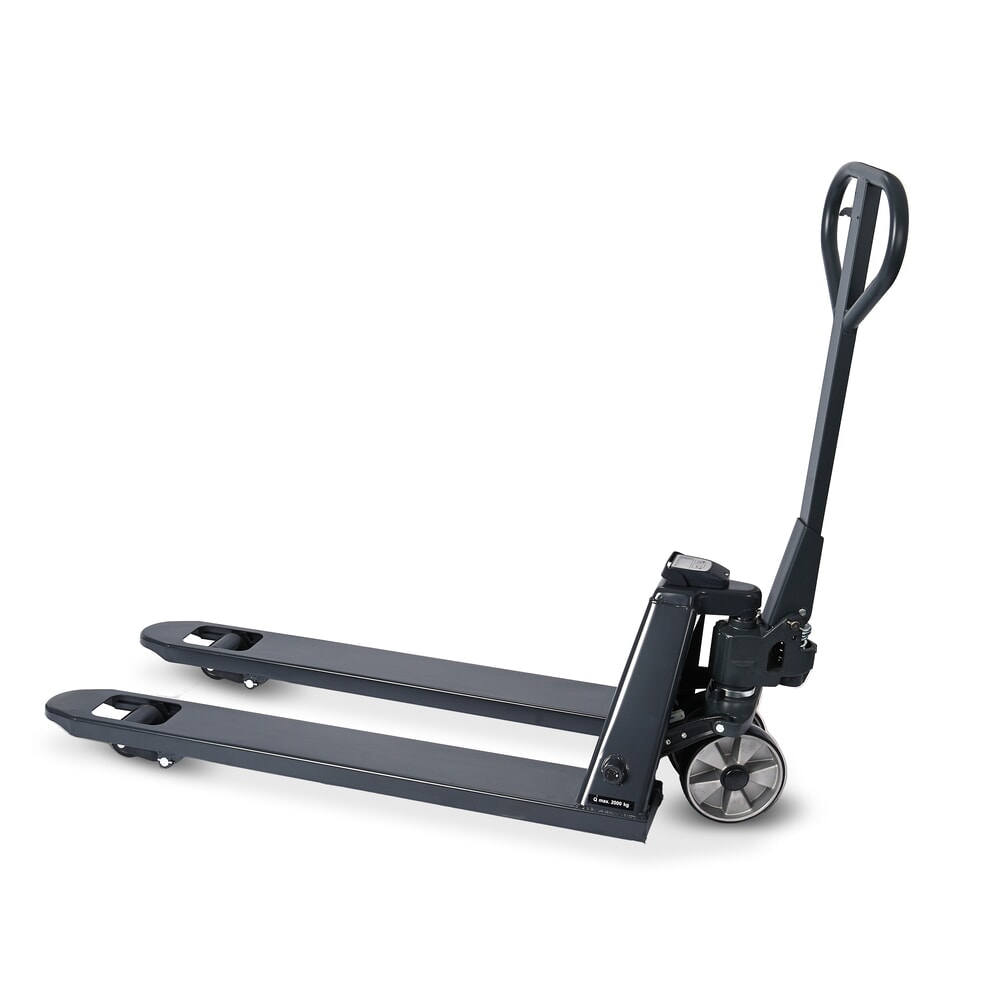

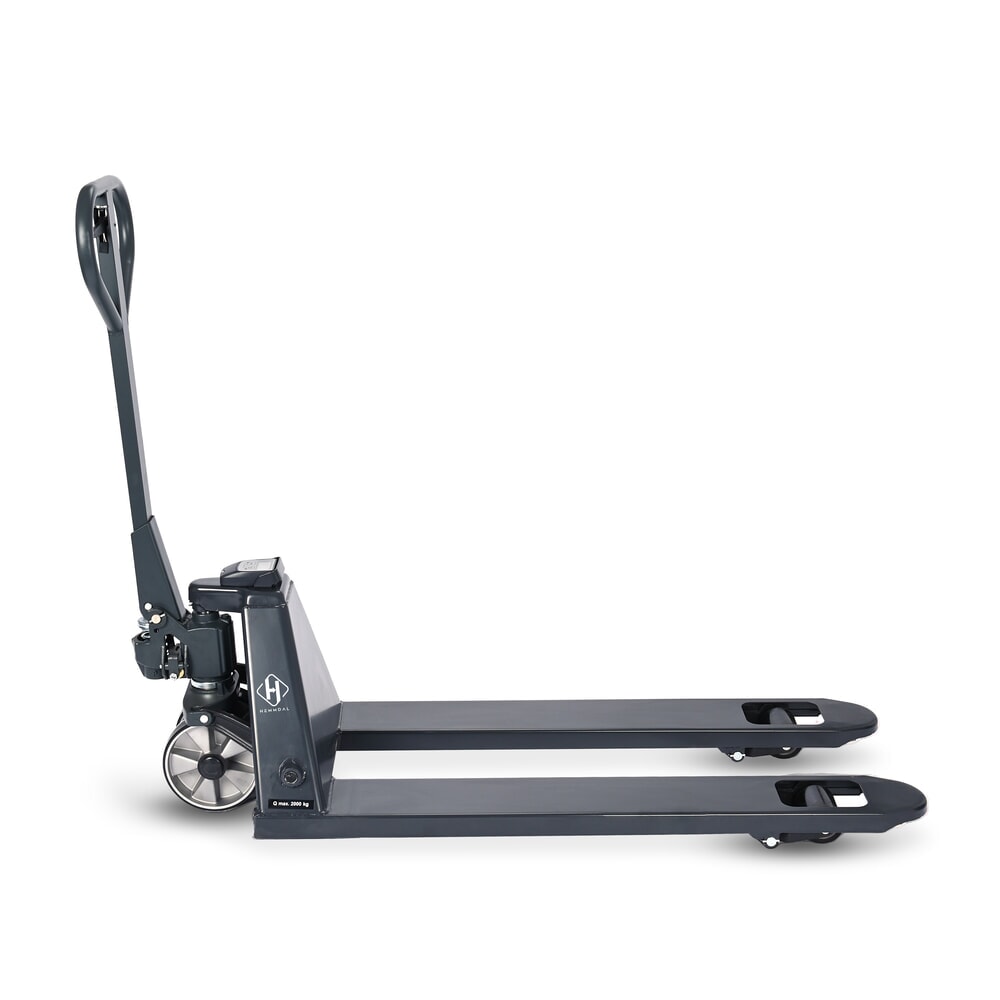

HEMMDAL PTM 2.0 Scale pallet truck with scale, 5 kg increments, load capacity 2,000 kg

Article number: 601069 | EAN/GTIN: 4055091323169

The HEMMDAL PTM 2.0 Scale pallet truck with scale is the ideal solution for simple check-weighing in storage and logistics. With its integrated scale, load capacity of 2,000 kg and robust steel frame, it facilitates incoming goods inspection and shipping weight determination. The user-friendly operation and the protected display also ensure efficient handling in everyday work.
  • Reliable performance thanks to solid workmanship
  • Load capacity: up to 2,000 kg
  • Display in 5 kg increments up to 500 kg and 20 kg increments from 500 kg
  • IP65 protection: display and electronics protected against dust and moisture
  • Easy operation with tare function and manual zero correction
  • Battery supports up to 3,000 weighing operations
  • Automatic shutdown after approx. 2 minutes

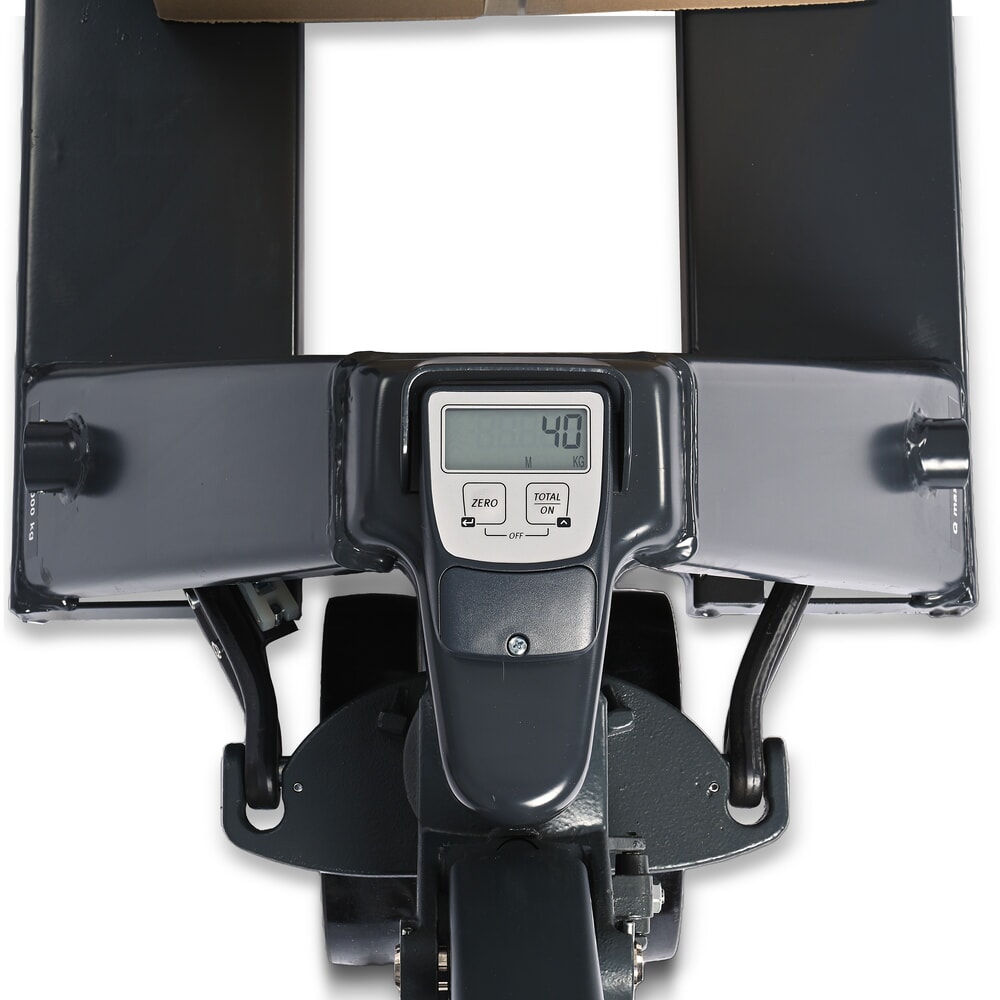

  • LCD display with 18 mm digit height, glare-free readability
  • Robust welded construction made from profile steel

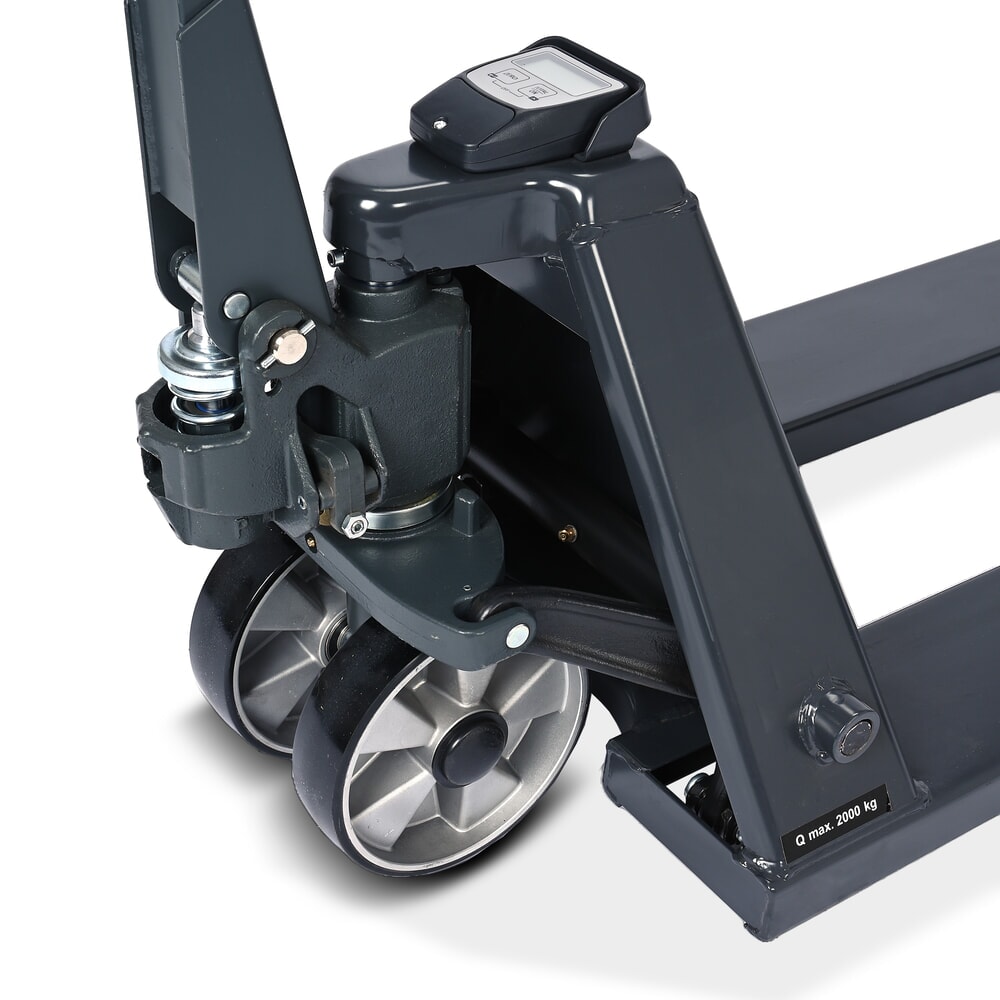

  • Solid rubber steering castors; polyurethane fork rollers
  • Available with tandem fork rollers for smoother operation and negotiation of uneven floors (depending on model)

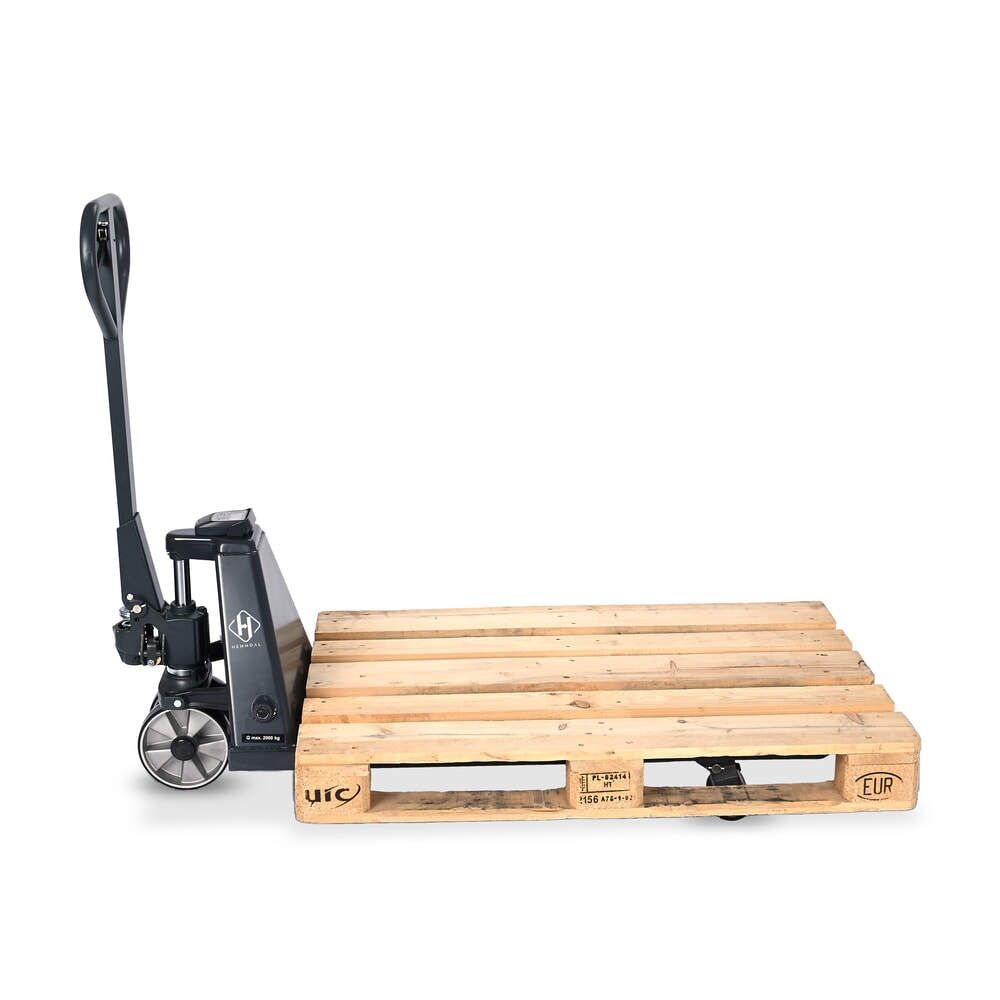

Efficient weight determination with the HEMMDAL PTM 2.0 Scale pallet truck with scale

The HEMMDAL PTM 2.0 Scale pallet truck with integrated scale is ideal for simple weight checks, particularly for incoming goods inspections, shipping weight determination or preventing truck overloading. The weighing result is displayed in 5 kg increments up to 500 kg and in 20 kg increments above 500 kg. The measurement tolerances are ± 15 kg up to 500 kg, ± 20 kg between 500 and 1,000 kg, ± 30 kg between 1,000 and 1,500 kg, and ± 40 kg from 1,500 to 2,000 kg.

The display and electronics feature IP65 protection against dust and moisture, allowing the pallet truck to be used even in demanding environments. Operation is intuitive: After inserting the 2 x 1.5 V AA batteries, the scale is immediately ready for use, allowing approximately 3,000 weighing operations. To conserve energy, the device switches off automatically after about 2 minutes.

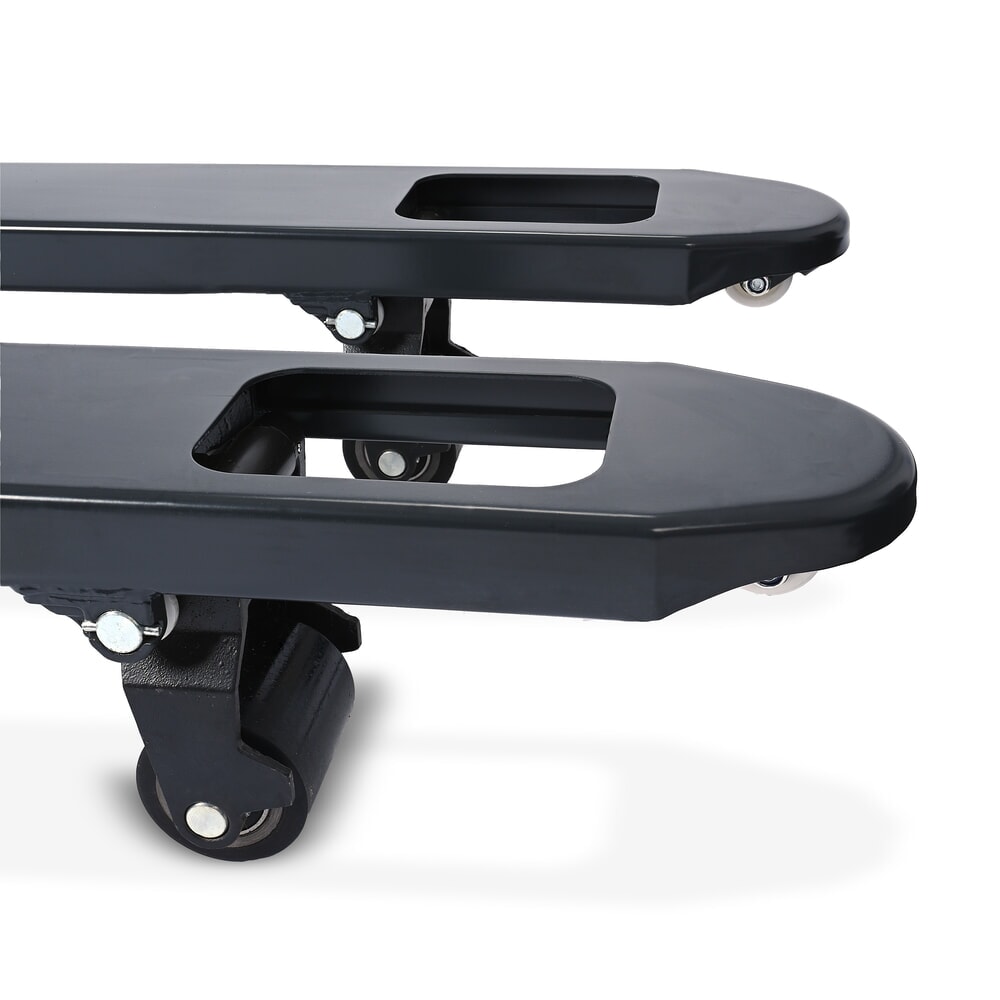

The solid welded construction made from profile steel ensures high stability and torsion resistance, even when subjected to the maximum load of 2,000 kg. Entry rollers facilitate pallet pick-up, while the combination of solid rubber steering castors and polyurethane fork rollers ensures optimal grip and quiet operation. Depending on the model, tandem fork rollers are also available, which offer even smoother running and are better at handling uneven floors.

The HEMMDAL PTM 2.0 Scale pallet truck with scale and a load capacity of up to 2,000 kg is a reliable and economical entry-level option for simple check-weighing and boosts efficiency in warehouses and logistics.
