Item number:
600912
HEMMDAL PTM 1.0 Scissor pallet truck with scissor lift, load capacity 1,000 kg, fork length 1,150 mm, polyurethane, single roller
For ergonomic working at a fatigue-free height
-
Free shipping from £50 (plus VAT)
-
Secure data protection
-
Personal purchasing advice
Technical details
HEMMDAL PTM 1.0 Scissor pallet truck with scissor lift, load capacity 1,000 kg, fork length 1,150 mm, polyurethane, single roller
Article number: 600912 | EAN/GTIN: 4055091323183 Main category: Scissor lift pallet trucks
Loading...
| Aisle width |
1800 mm |
| Brand |
HEMMDAL |
| Capacity |
1000 kg |
| Chassis RAL colour |
RAL 2002 blood orange |
| Chassis surface |
powder-coated |
| Control panel |
right-handed |
| Drive |
manual |
| Face of forks length |
430 mm |
| Fork height |
50 mm |
| Fork length |
1150 mm |
| Fork roller diameter |
80 mm |
| Fork roller equipment |
Single |
| Fork roller material |
Polyurethane (PU) |
| Fork roller width |
50 mm |
| Fork support width |
540 mm |
| Fork width |
160 mm |
| Grease nipple |
Yes |
| Ground clearance |
85 mm |
| Handle fittings |
Steel |
| Hydraulic oil quantity |
0.685 l |
| Lift |
715 mm |
| Lift height per pump stroke |
24 mm |
| Lift range |
85 - 800 mm |
| Lift type |
manual |
| Load centre |
600 mm |
| Lowering speed with/without load |
0,031 / 0,031 m/s |
| Model |
BASIC PSL 1000 |
| Movable to height |
400 mm |
| Net weight |
110 kg |
| Operator type |
Manual |
| Overall length |
1580 mm |
| Overall width |
540 mm |
| Pallet truck material |
Steel |
| Pump strokes to lift pallet |
1 |
| Pump strokes to max. lift height |
30 |
| Route |
Short distance |
| Section |
Starter |
| Steering wheel diameter |
180 mm |
| Steering wheel material |
Polyurethane (PU) |
| Steering wheel width |
50 mm |
| Temperature range |
5 - 40 °C |
| Tiller RAL colour |
RAL 7016 anthracite grey |
| Tiller height |
1220 mm |
| Tiller surface |
powder-coated |
| Turning radius |
1265 mm |
Item description

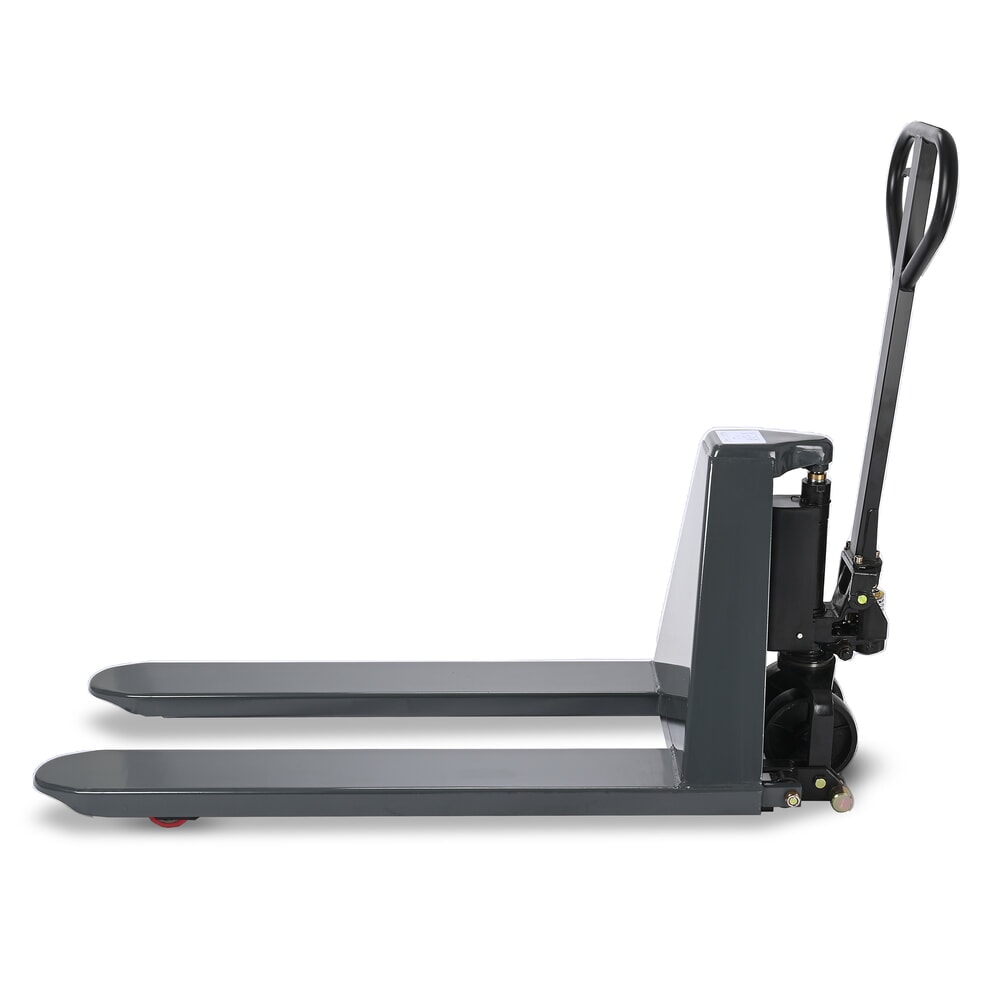

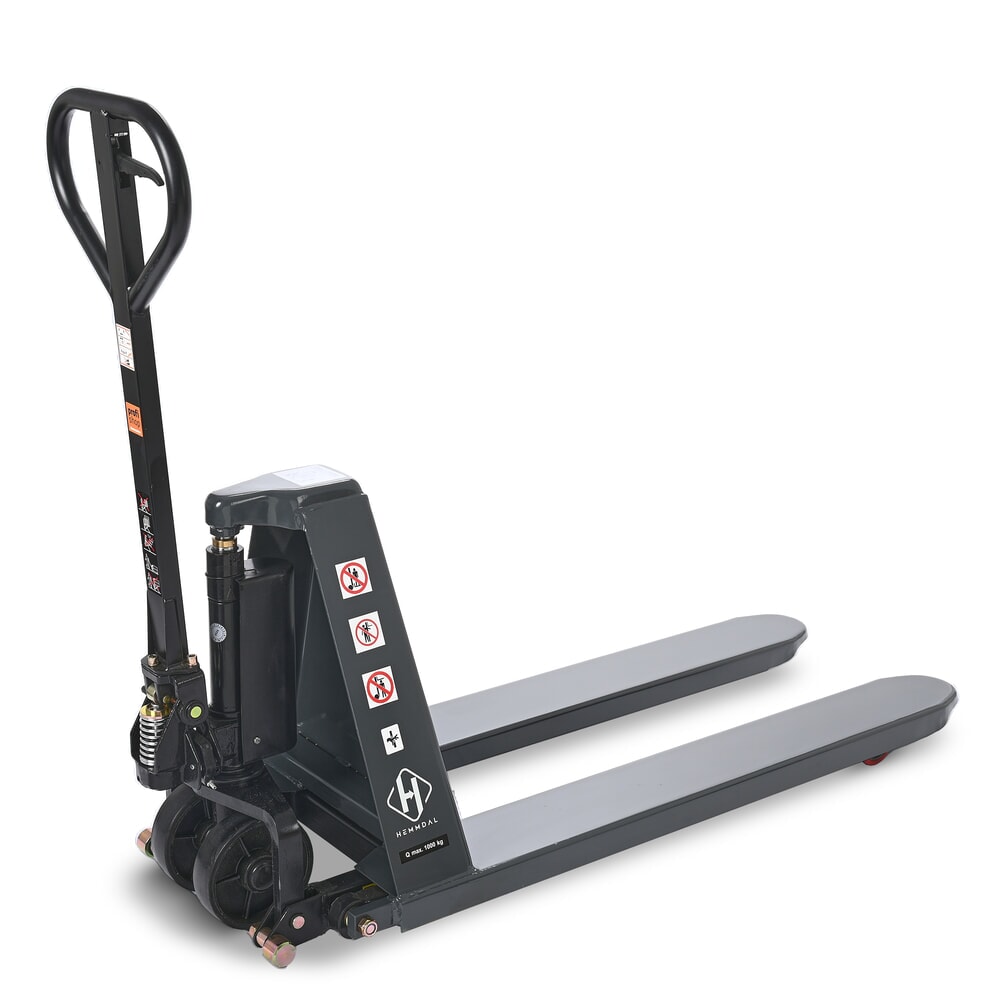

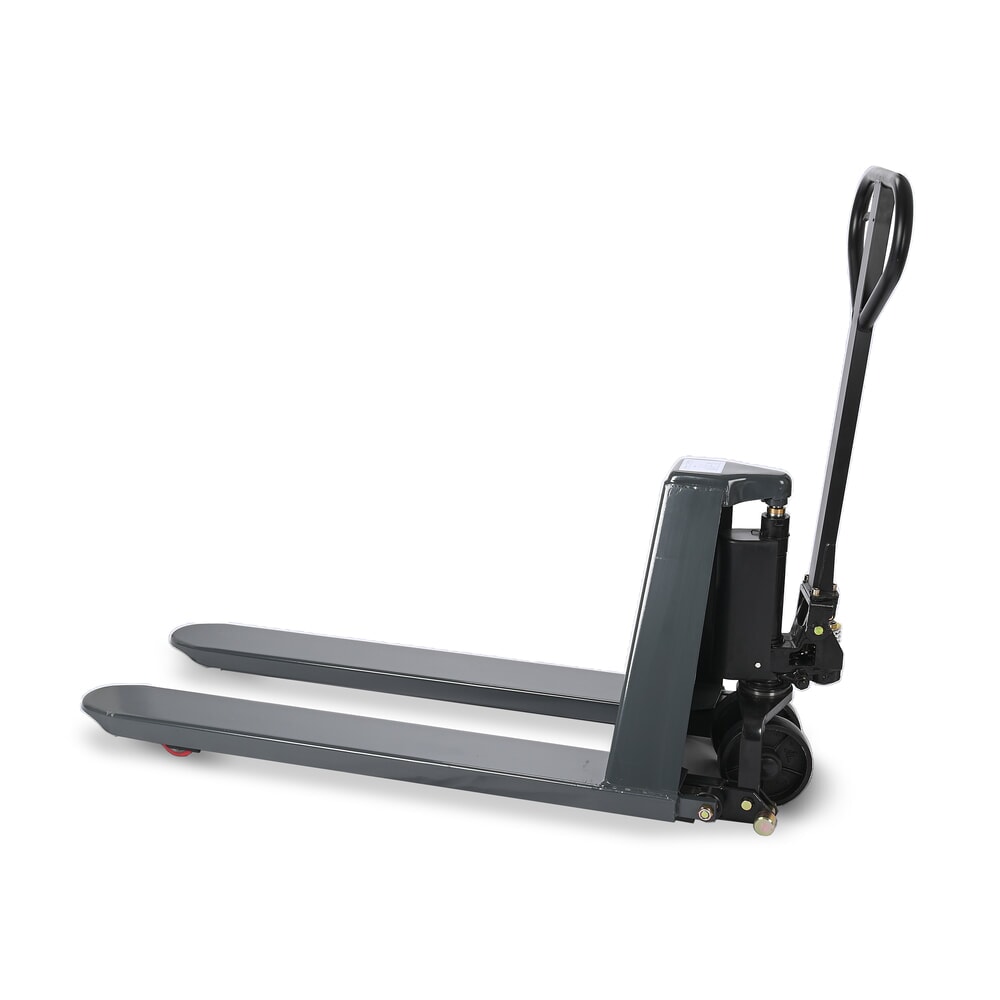

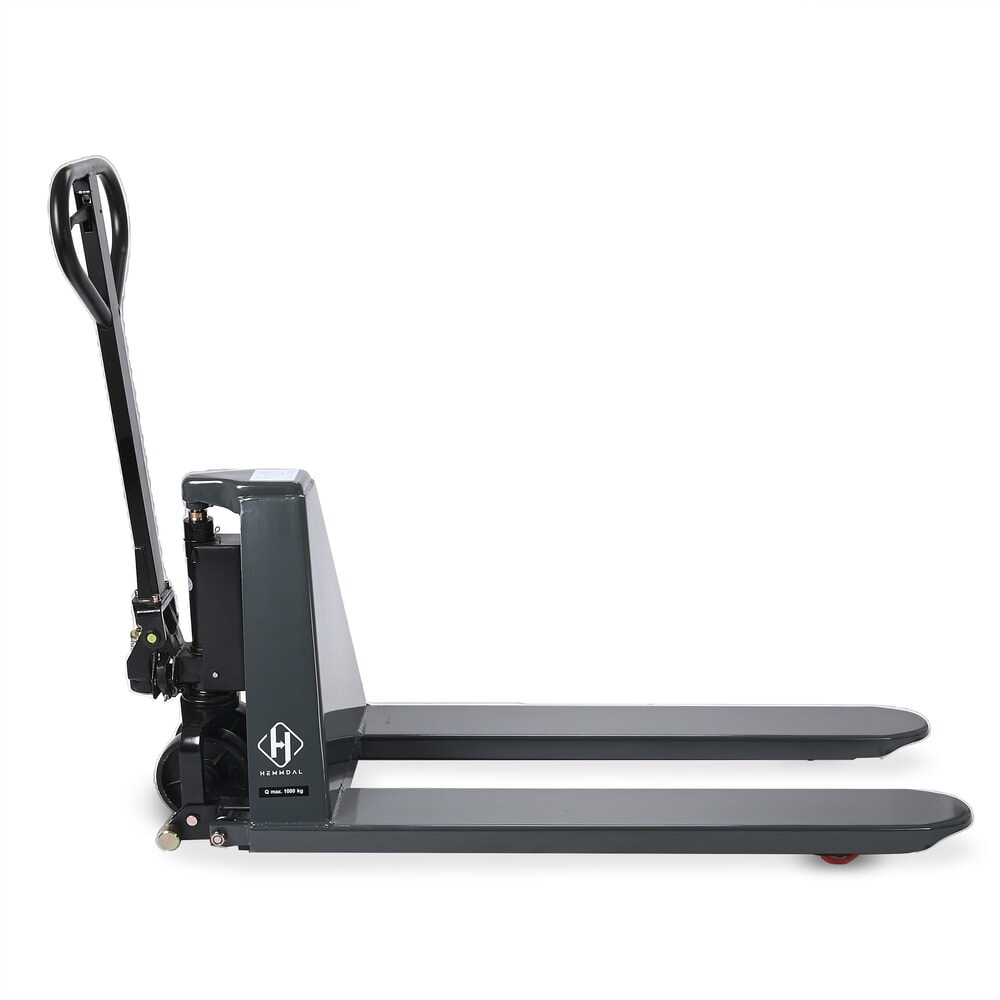

HEMMDAL PTM 1.0 Scissor pallet truck with scissor lift, load capacity 1,000 kg, fork length 1,150 mm, polyurethane, single roller
Article number: 600912 | EAN/GTIN: 4055091323183

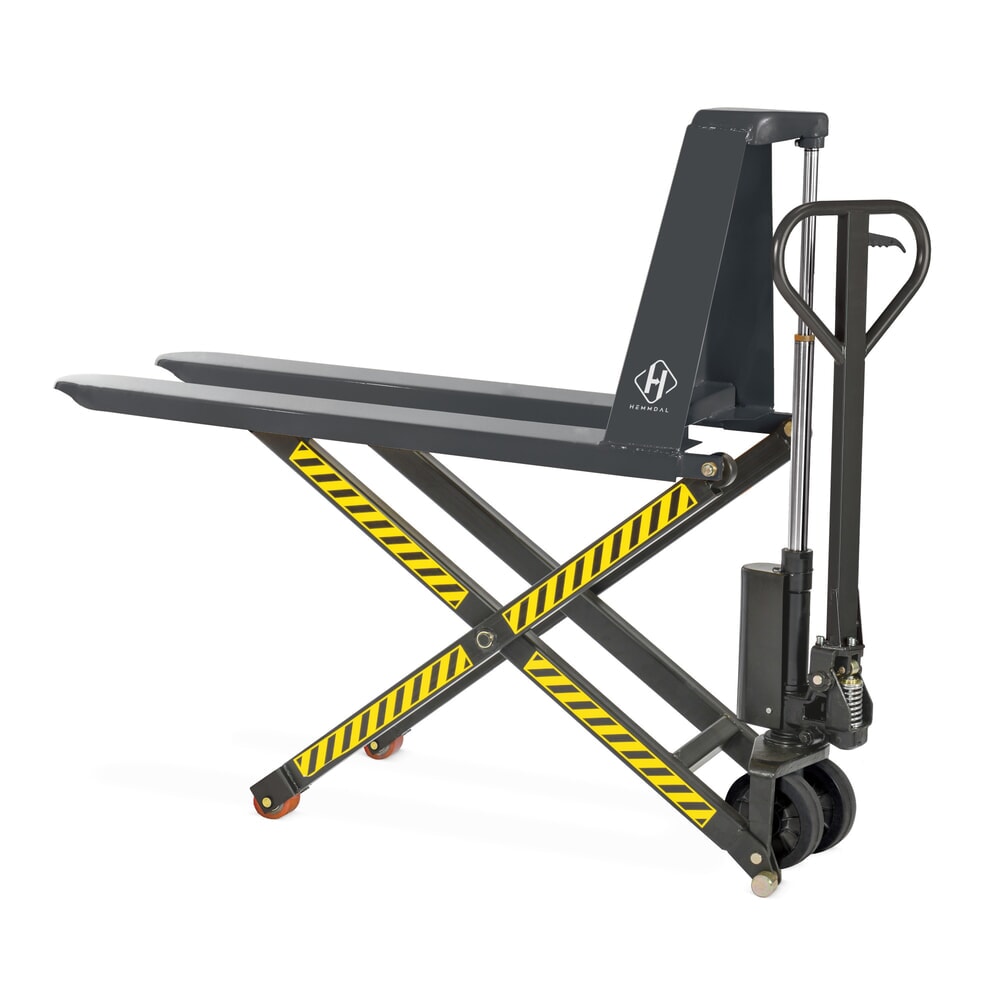

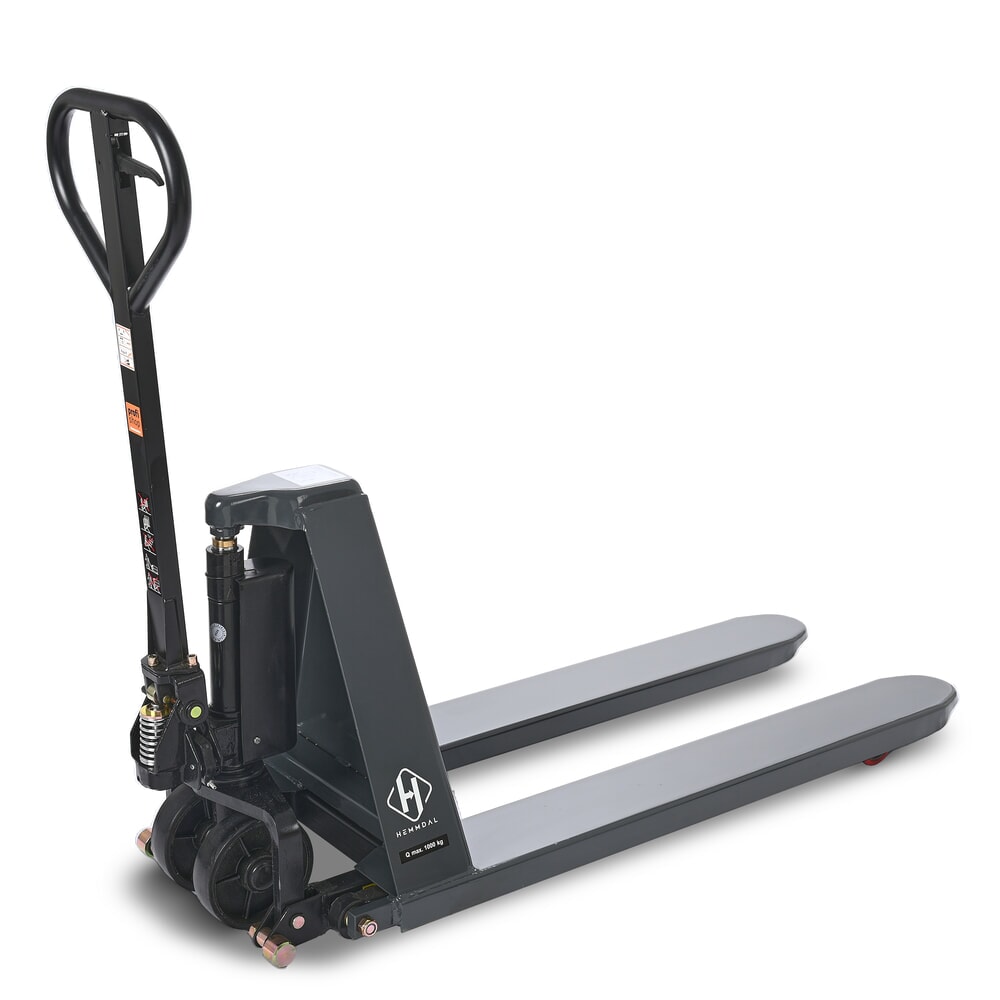

The HEMMDAL PTM 1.0 Scissor pallet truck with scissor lift offers reliable quality at an affordable price. It enables manual lifting, moving and provisioning of loads weighing up to 1,000 kg. The HEMMDAL scissor lift pallet truck can be used as a hand pallet truck, lift table, provisioning table or workbench, making it a highly versatile tool that supports ergonomic working at a fatigue-free height.
- Load capacity: 1000 kg
- Fork length: 1150 mm
- Can be used as a hand pallet truck or lift table
- 800 mm lift height for ergonomic working
- Automatic fixation as of a lift height of 400 mm
- Side supports for optimal stability

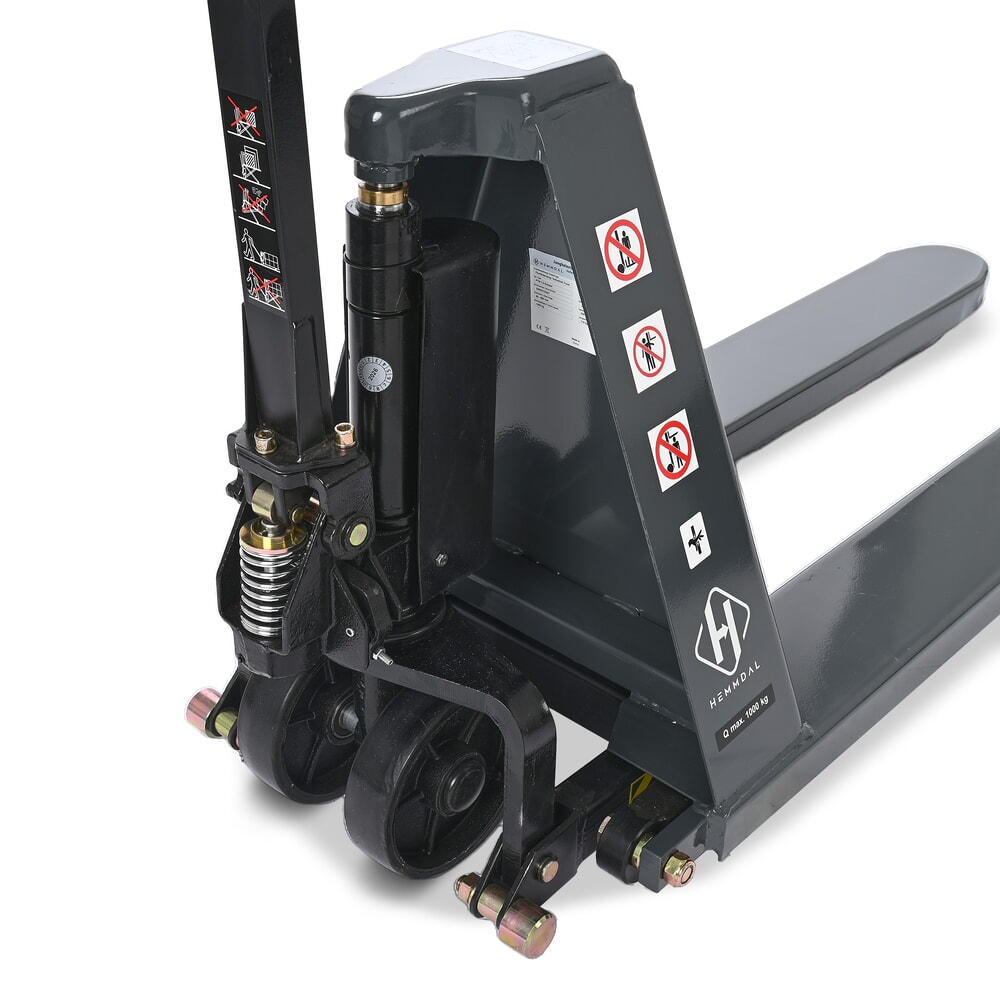

- Two-cylinder telescopic hydraulics
Affordable entry-level model offering reliable quality for back-friendly working

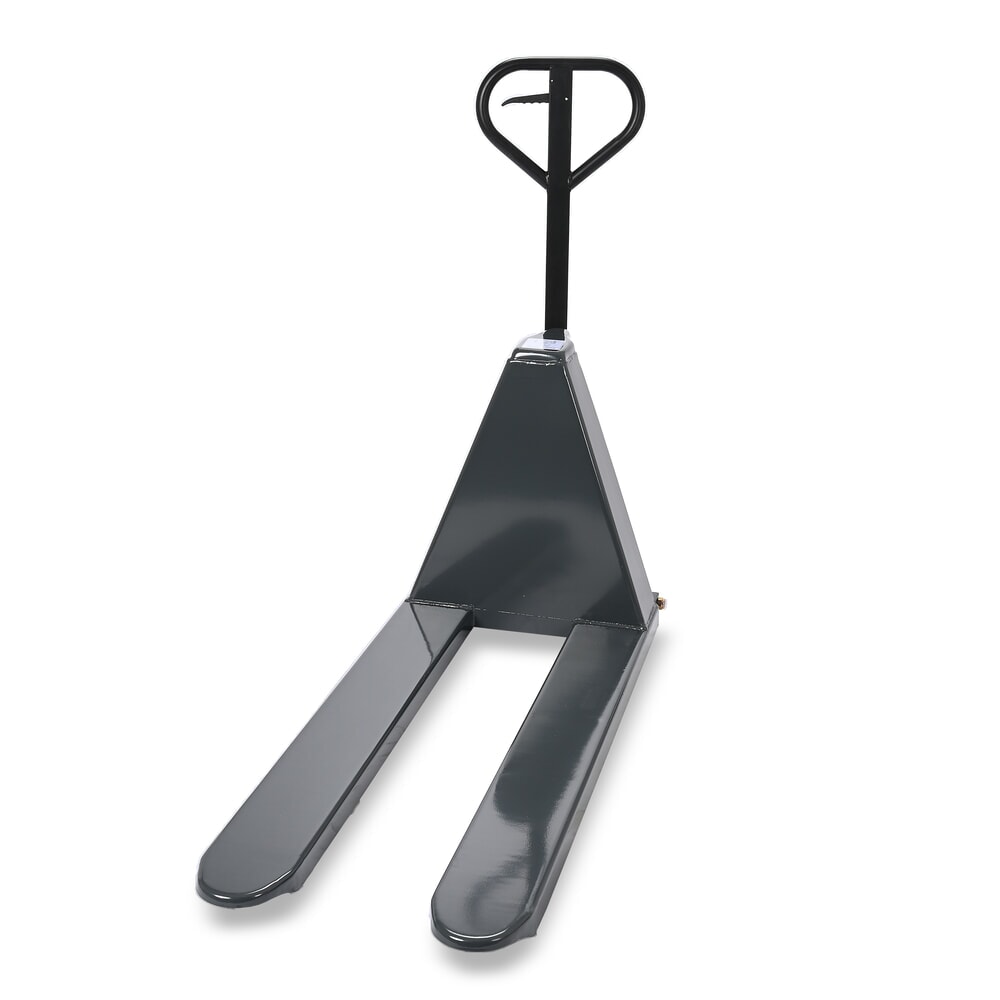

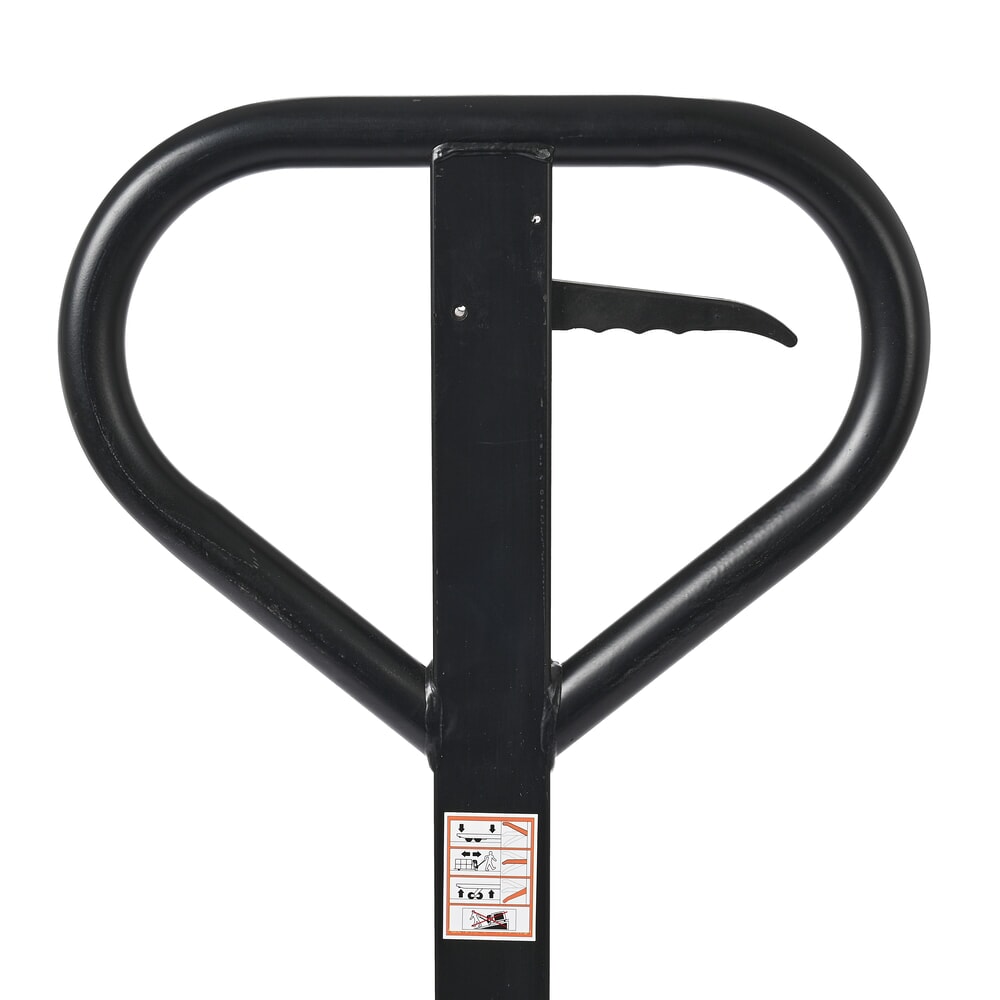

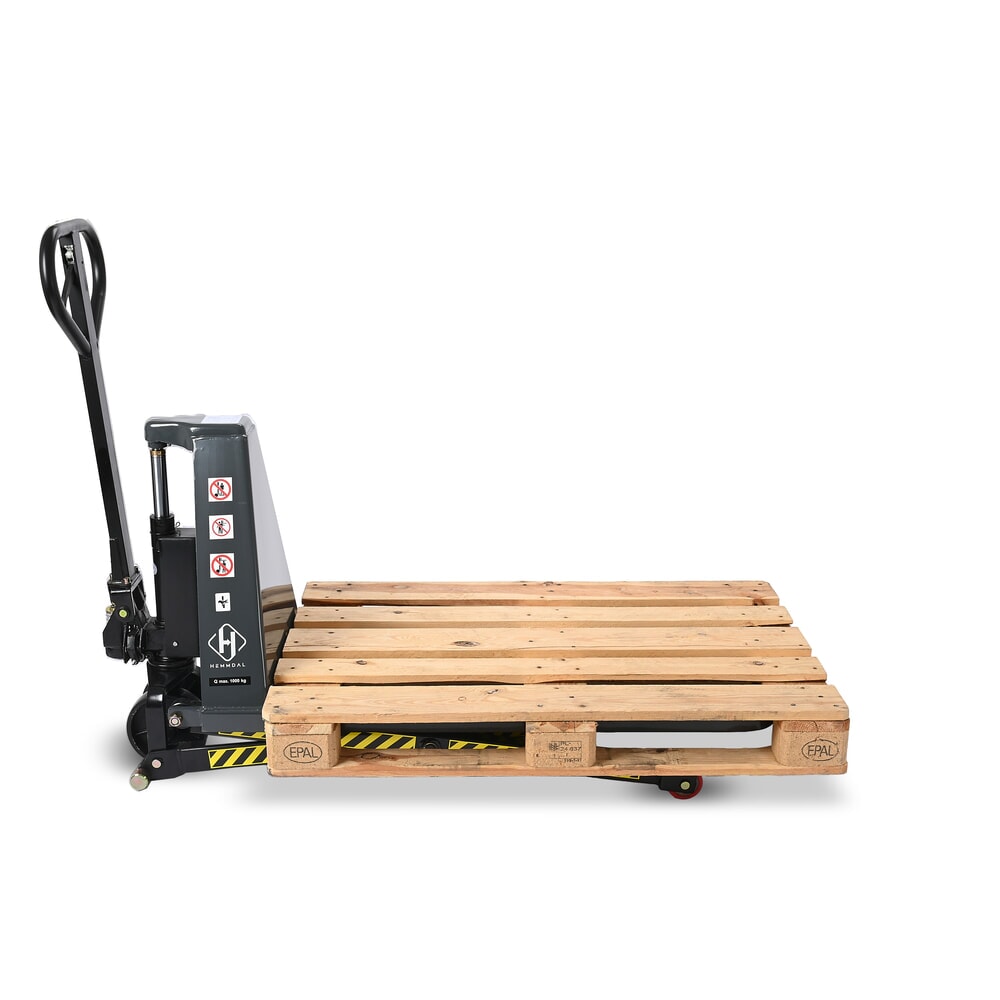

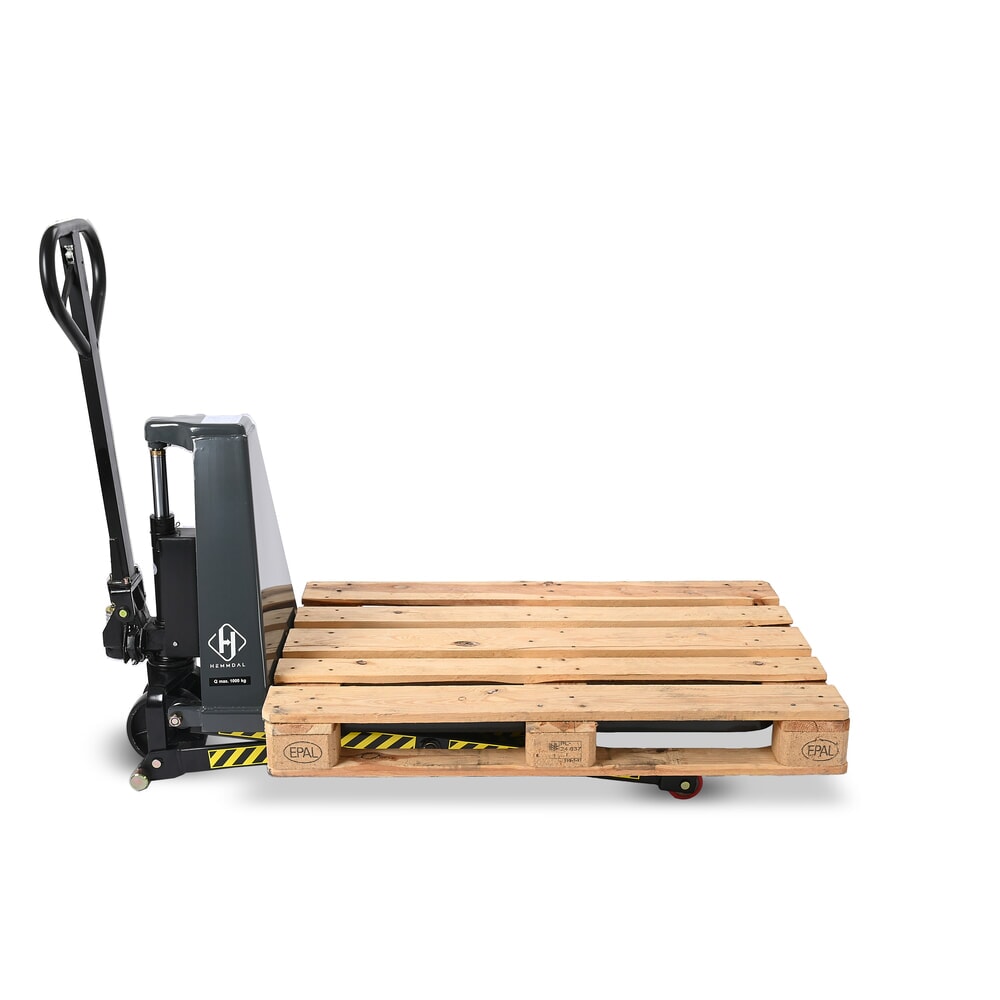

The HEMMDAL PTM 1.0 Scissor pallet truck with scissor lift impresses as an affordable entry-level model offering reliable quality. You manually lift and move loads weighing up to 1,000 kg and lower them at the destination with fully variable precision via the hand lever. The HEMMDAL scissor lift pallet truck represents a versatile combination of hand pallet truck, lift table, workbench and provisioning table. Whether in warehouses or factories, the standard fork length of 1,150 mm makes the PTM 1.0 Scissor ideal for the occasional transport of Euro pallets, mesh boxes and other load carriers.

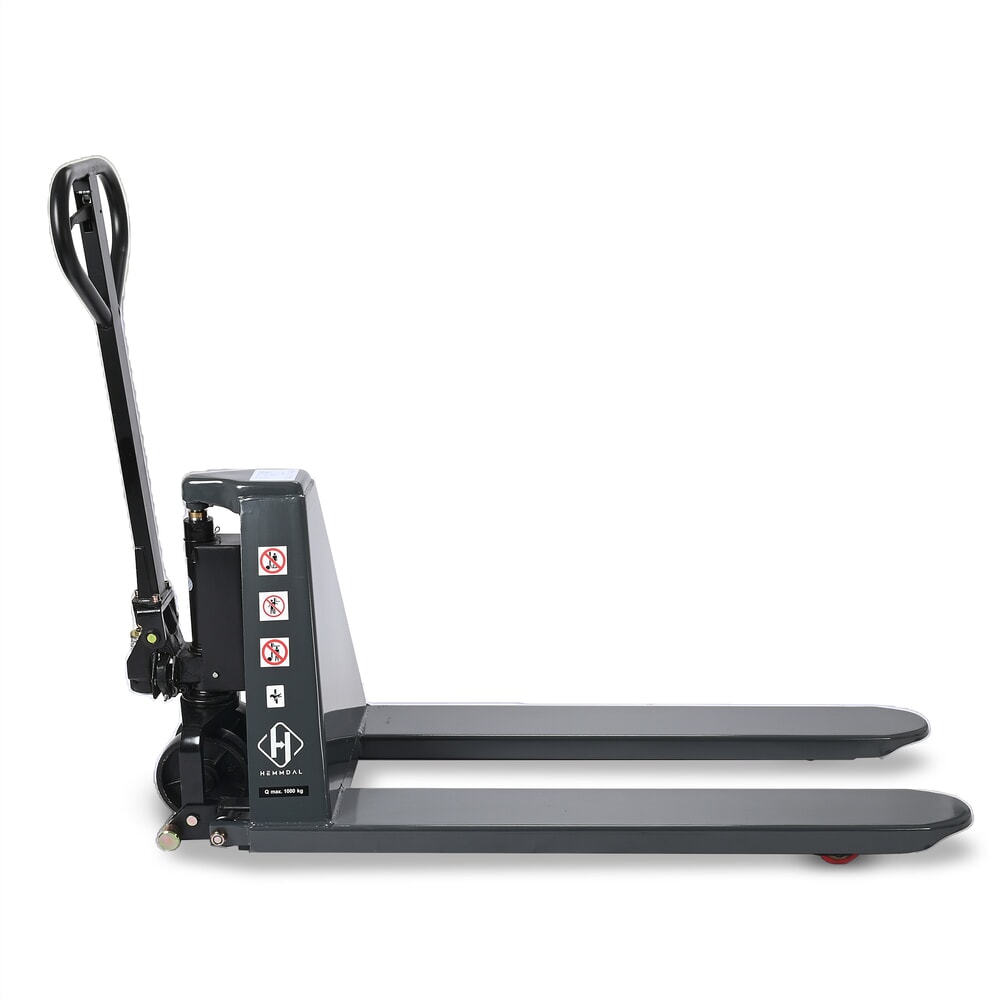

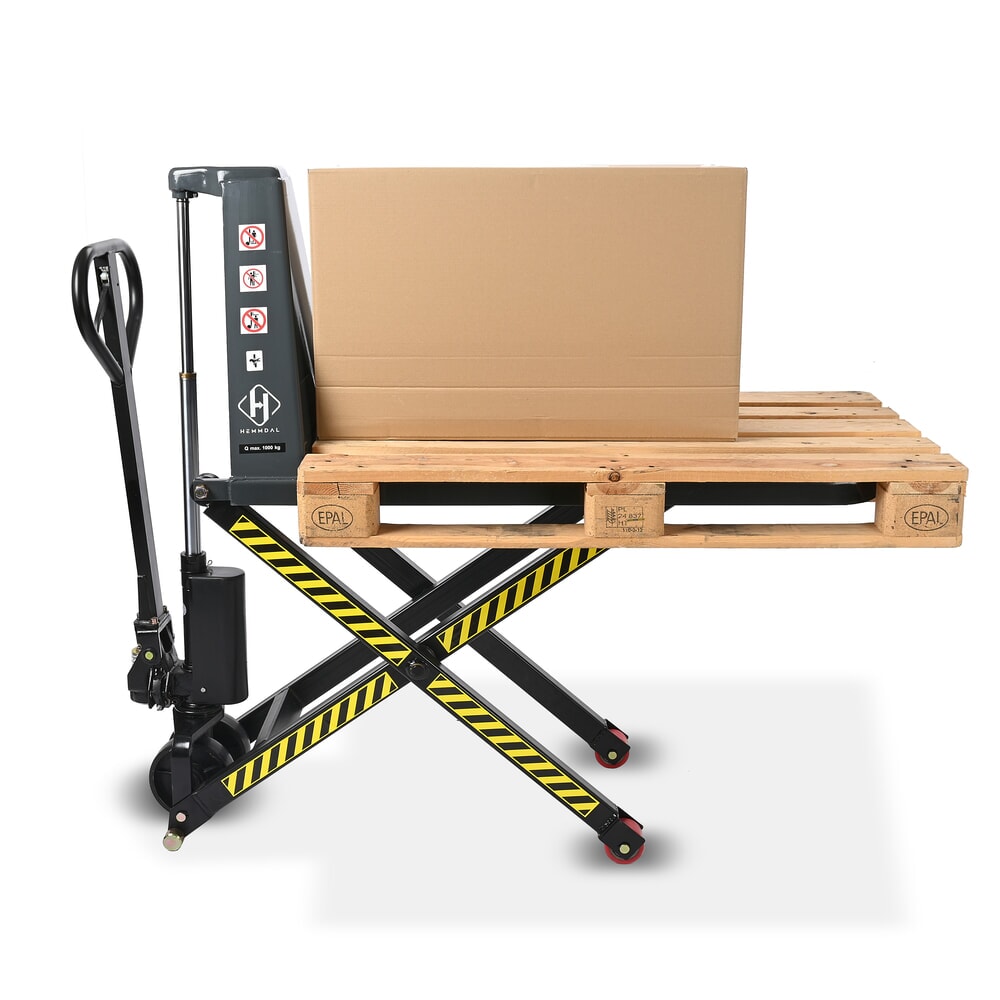

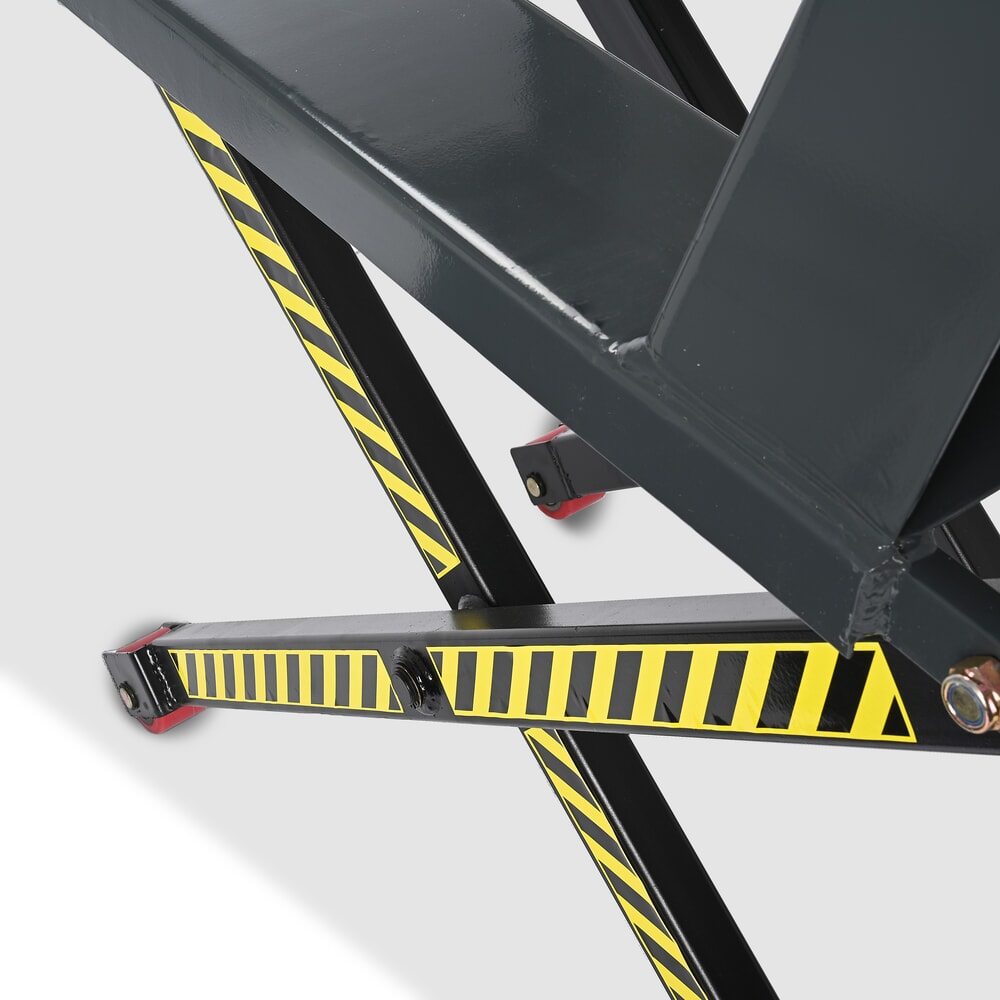

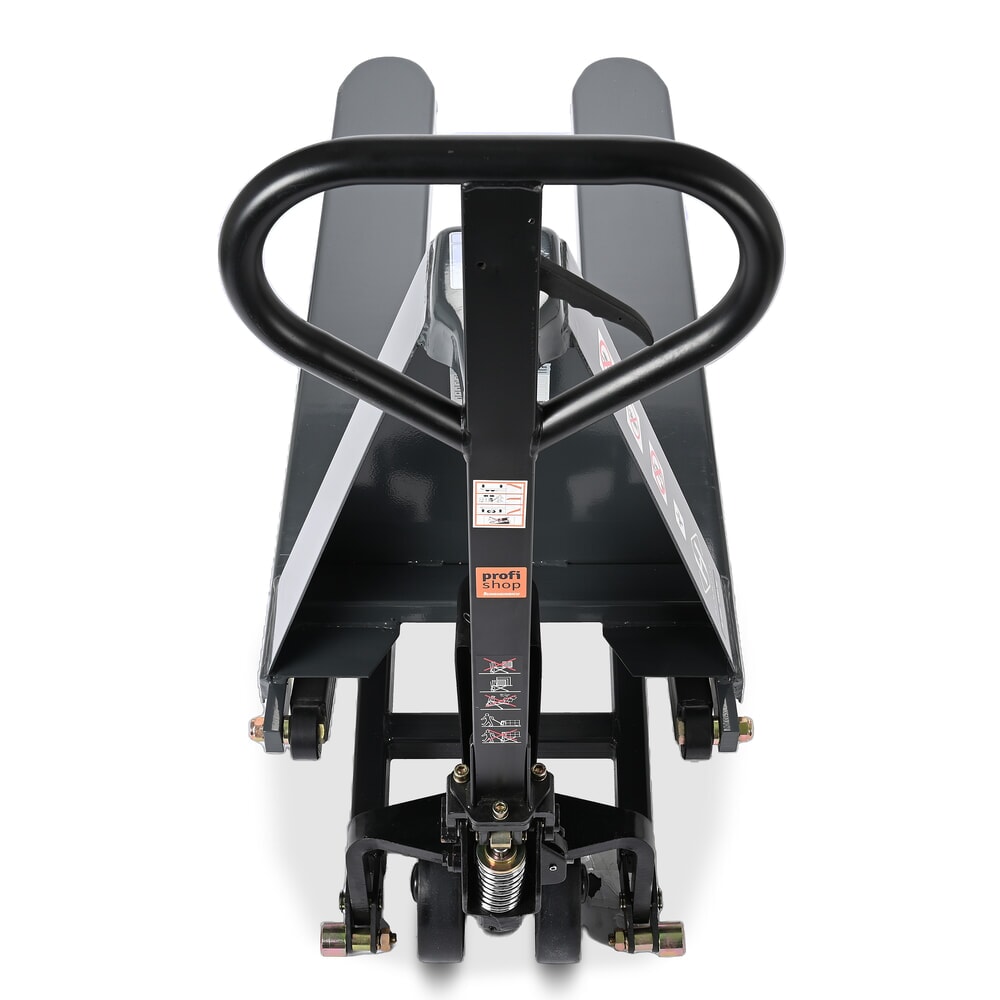

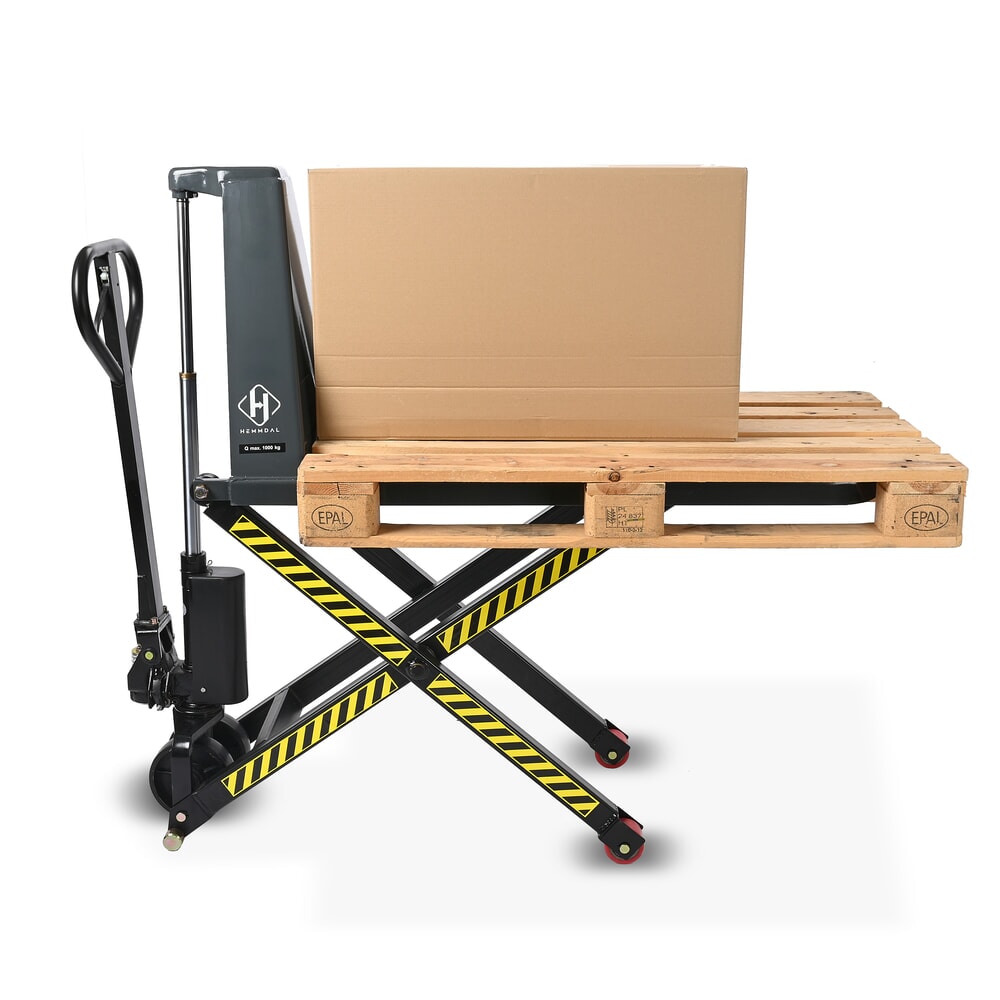

Using the tiller handle, you can easily manoeuvre the scissor lift pallet truck up to a lift height of 400 mm. At a lift height of 400 mm and above, the side-mounted supports secure the scissor lift pallet truck for optimum stability. With just a few strokes of the tiller, you can raise the pallet to your ergonomic working height, which is adjustable up to a lift height of 800 mm. The scissor lift pallet truck now functions as a lifting or provisioning table, thereby ensuring ergonomic working. Material storage and retrieval or machine loading can then be conducted at a comfortable, back-friendly working height.

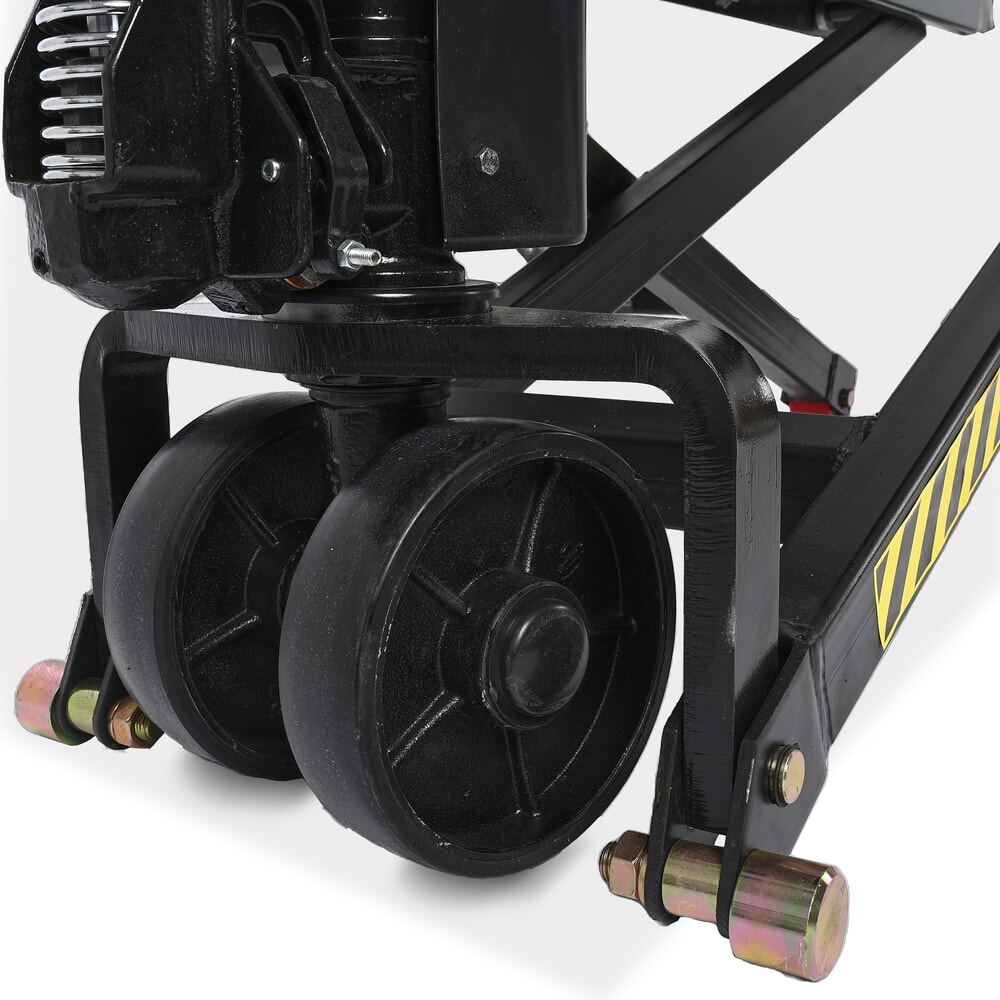

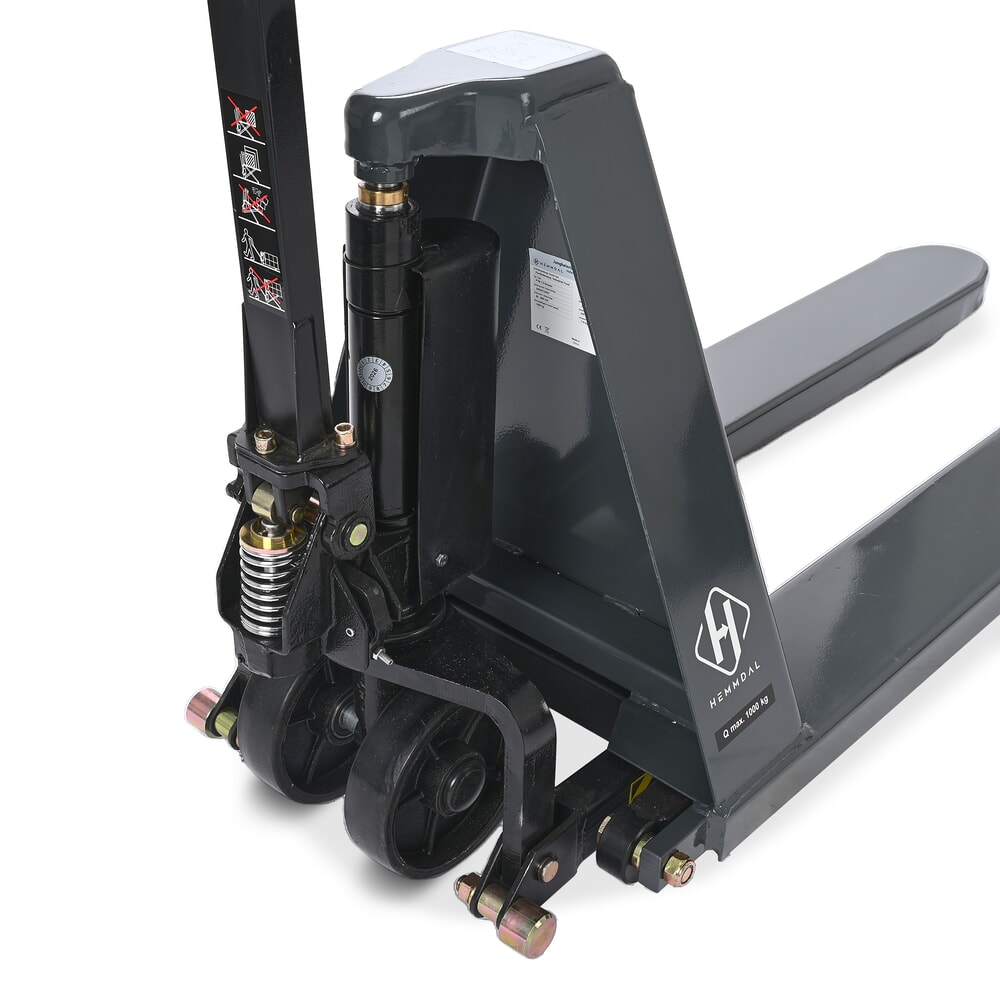

The polyurethane steering castors and fork rollers are ideal for both hard and delicate floors. They are characterised by their smooth operation and low rolling resistance, and are both shock-absorbing and durable. Overall, they offer high-quality, comfortable and quiet operation.
Experience the benefits for yourself by ordering the versatile HEMMDAL PTM 1.0 Scissor pallet truck with scissor lift and a load capacity of 1,000 kg from our shop today.
The HEMMDAL PTM 1.0 Scissor pallet truck with scissor lift impresses as an affordable entry-level model offering reliable quality. You manually lift and move loads weighing up to 1,000 kg and lower them at the destination with fully variable precision via the hand lever. The HEMMDAL scissor lift pallet truck represents a versatile combination of hand pallet truck, lift table, workbench and provisioning table. Whether in warehouses or factories, the standard fork length of 1,150 mm makes the PTM 1.0 Scissor ideal for the occasional transport of Euro pallets, mesh boxes and other load carriers.
Using the tiller handle, you can easily manoeuvre the scissor lift pallet truck up to a lift height of 400 mm. At a lift height of 400 mm and above, the side-mounted supports secure the scissor lift pallet truck for optimum stability. With just a few strokes of the tiller, you can raise the pallet to your ergonomic working height, which is adjustable up to a lift height of 800 mm. The scissor lift pallet truck now functions as a lifting or provisioning table, thereby ensuring ergonomic working. Material storage and retrieval or machine loading can then be conducted at a comfortable, back-friendly working height.
The polyurethane steering castors and fork rollers are ideal for both hard and delicate floors. They are characterised by their smooth operation and low rolling resistance, and are both shock-absorbing and durable. Overall, they offer high-quality, comfortable and quiet operation.
Experience the benefits for yourself by ordering the versatile HEMMDAL PTM 1.0 Scissor pallet truck with scissor lift and a load capacity of 1,000 kg from our shop today.
