Item number:
204802
EdmoLift® scissor lift table with tilt function
Ergonomic workplace for loading and unloading trolley and route trains
50 Working days
-
Free shipping from £50 (plus VAT)
-
Secure data protection
-
Personal purchasing advice
Technical details
EdmoLift® scissor lift table with tilt function
Article number: 204802 | EAN/GTIN: 4055091201313 Main category: Lift-tilt tables
Loading...
| Brand |
EdmoLift® |
| Capacity |
750 kg |
| Height |
190 mm |
| Lift motor output |
0.75 kW |
| Lift range |
190 - 850 mm |
| Lift time |
14 s |
| Net weight |
315 kg |
| No. of cylinders |
1 |
| Operator type |
Deadman switch |
| Pallet holder |
Platform |
| Platform depth |
1200 mm |
| Platform type |
With angle |
| Platform width |
550 mm |
| Power supply |
Three-phase current |
| Section |
Professional |
| Tiltability |
40° |
| Voltage |
400 V |
Item description
EdmoLift® scissor lift table with tilt function
Article number: 204802 | EAN/GTIN: 4055091201313

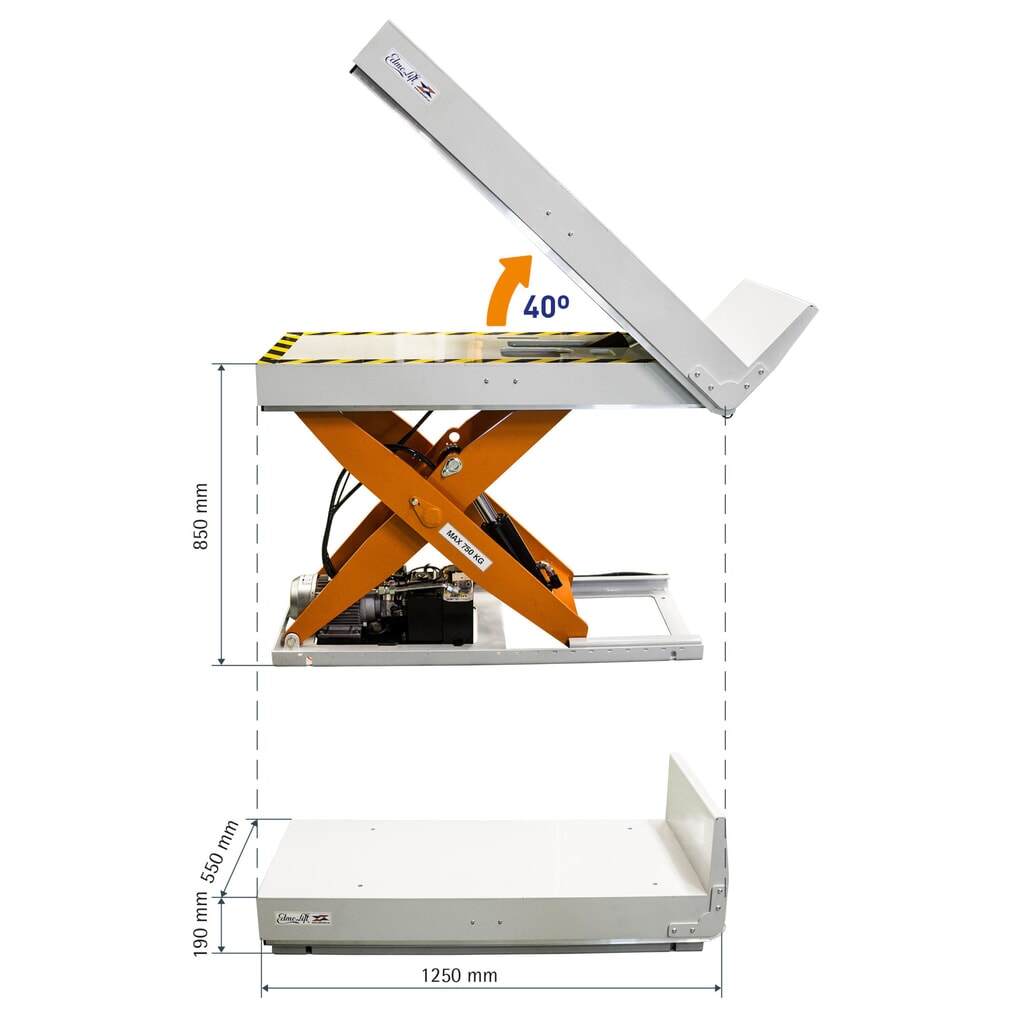

Two high-quality devices in one: The EdmoLift® scissor lift table with tilt function combines a lift table and tilting device in a single solution with a load capacity of 750 kg. Along with its low height of 190 mm, the lifting and tilting device impresses with its straight lifting movement without horizontal displacement.
- Combination of lift table and tilting device with a 0° to 40° tilt angle
- Ideal for loading and unloading wagons and tugger trains
- Low height of 190 mm
- Straight lift movement – no horizontal displacement
- 750 kg load capacity
Product Notes
Our offer is aimed exclusively at commercial customers (entrepreneurs). In particular, the product is not intended for use by consumers.
