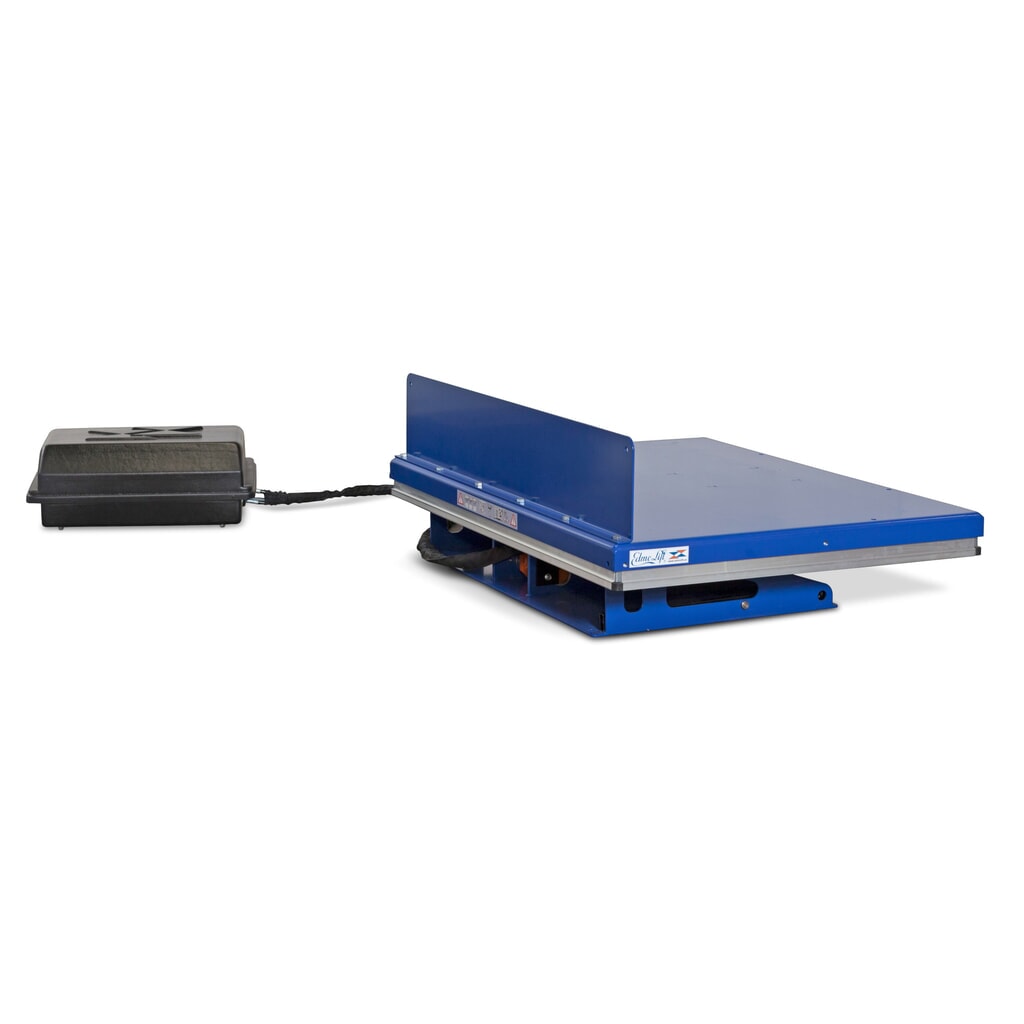

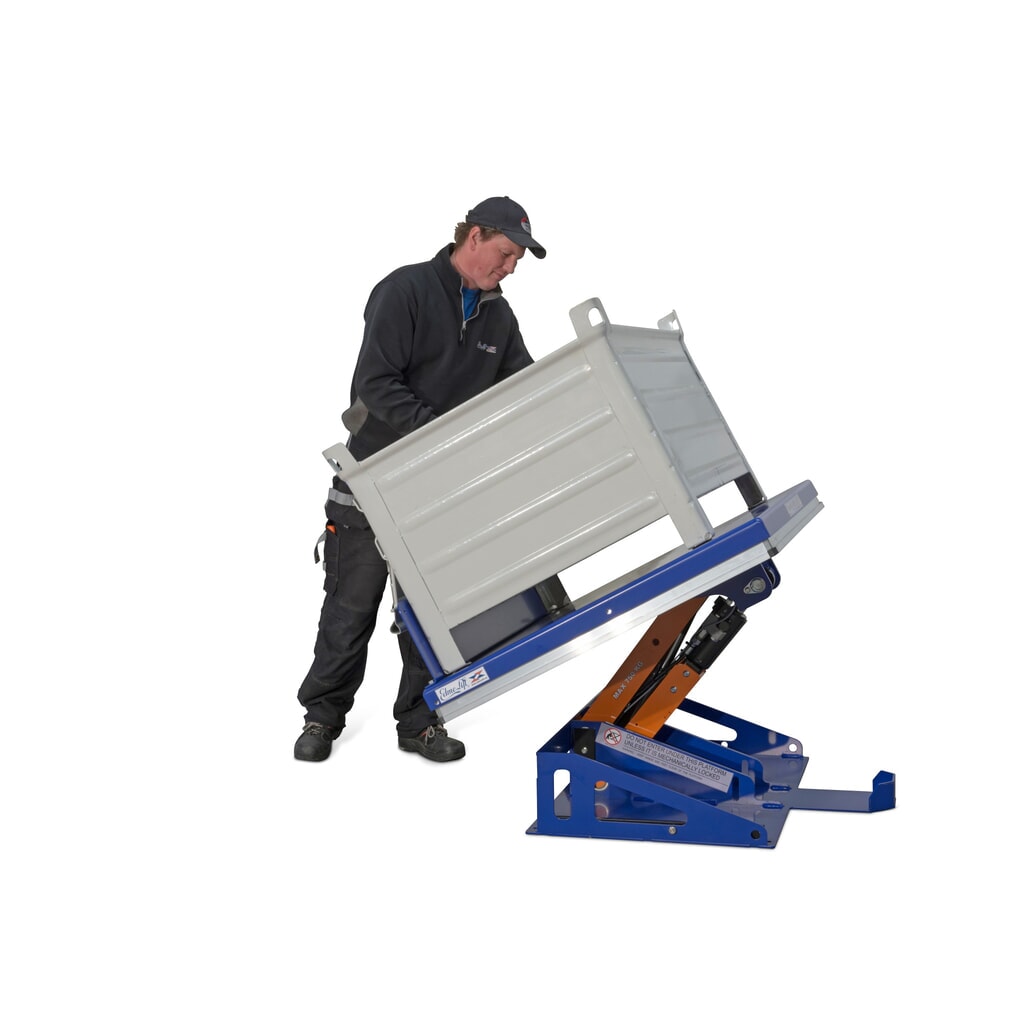

EdmoLift® lifting and tilting device with closed platform, lift 235 - 550 mm, LC 750 kg
50 Working days
-
Free shipping from £50 (plus VAT)
-
Secure data protection
-
Personal purchasing advice
Technical details
EdmoLift® lifting and tilting device with closed platform, lift 235 - 550 mm, LC 750 kg
Article number: 107474 | EAN/GTIN: 4055091078090 Main category: Lift-tilt tables
| Brand |
EdmoLift® |
| Capacity |
750 kg |
| Depth |
1000 mm |
| Height |
235 - 785 mm |
| Lift motor output |
0.75 kW |
| Lift range |
235 - 550 mm |
| Lift time |
18 s |
| Net weight |
270 kg |
| No. of cylinders |
1 |
| Operator type |
Deadman switch |
| Pallet holder |
Platform |
| Platform depth |
945 mm |
| Platform type |
With angle |
| Platform width |
1300 mm |
| Power supply |
Three-phase current |
| Section |
Professional |
| Tiltability |
40° |
| Voltage |
400 V |
| Width |
1300 mm |
Item description
EdmoLift® lifting and tilting device with closed platform, lift 235 - 550 mm, LC 750 kg
Article number: 107474 | EAN/GTIN: 4055091078090
- Made from powder-coated sectional steel
- Load capacity of up to 1,500 kg
- Lift range of up to 550 mm or 820 mm
- Tilt angle of +5° to -40°
- With remote control
Product Notes
Our offer is aimed exclusively at commercial customers (entrepreneurs). In particular, the product is not intended for use by consumers.
