Item number:
107454

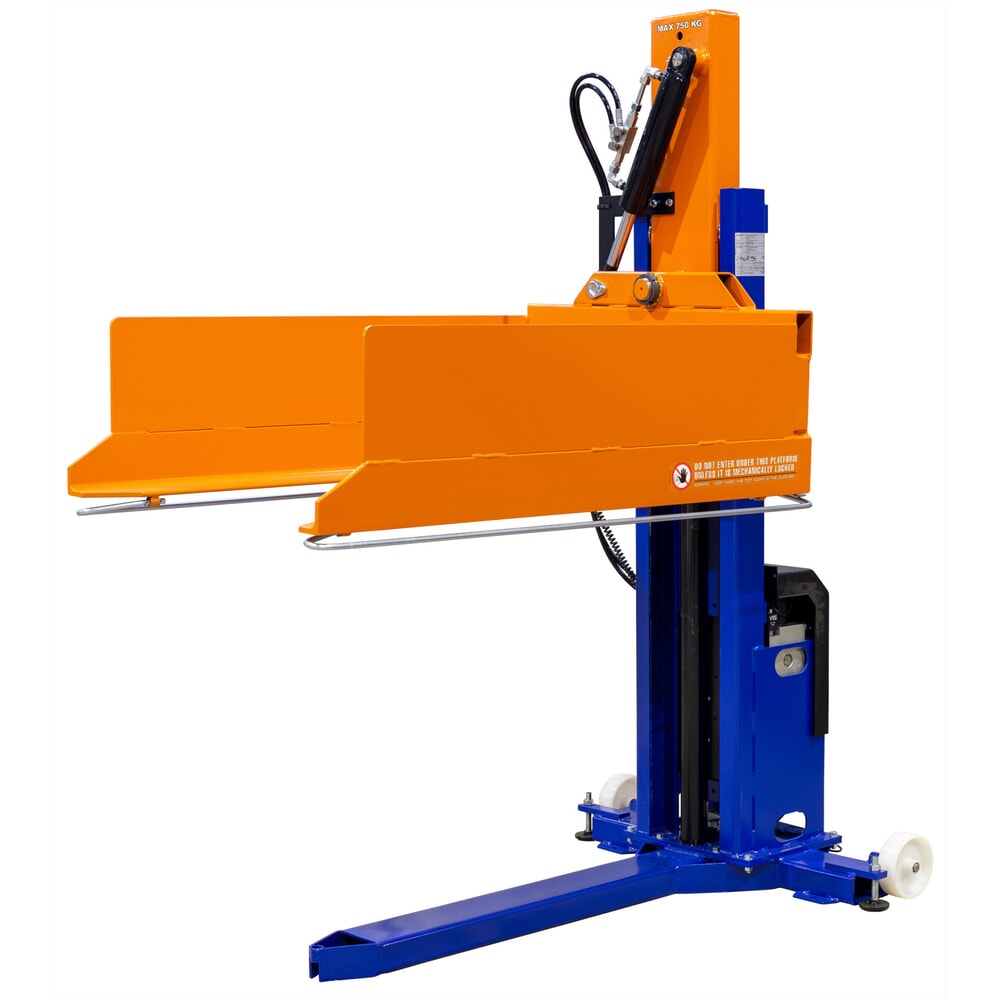

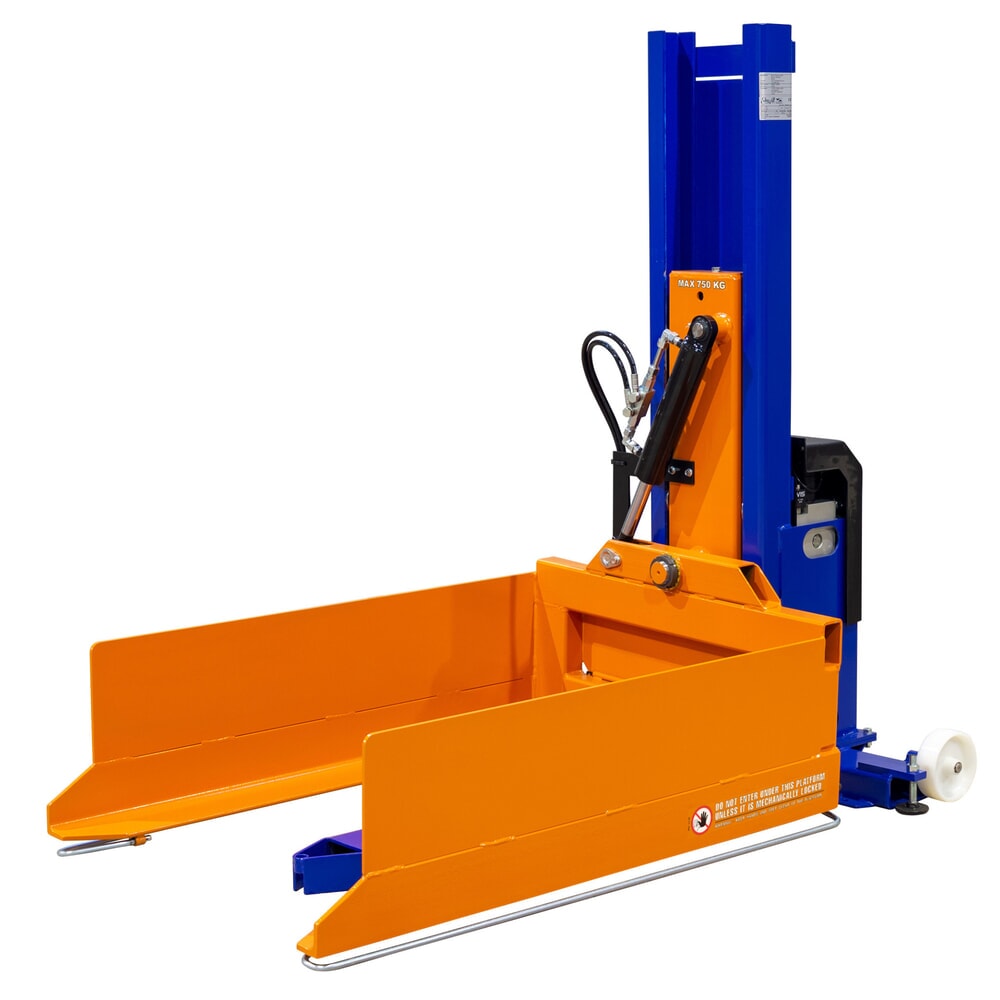

EdmoLift® electro-hydraulic pallet lift with tilt function, load capacity 750 kg
The forks can swivel by up to 40° to the left and right
-
Free shipping from £50 (plus VAT)
-
Secure data protection
-
Personal purchasing advice
Technical details
EdmoLift® electro-hydraulic pallet lift with tilt function, load capacity 750 kg
Article number: 107454 | EAN/GTIN: 4055091077413 Main category: Pallet lifter with tilting function
Loading...
| Brand |
EdmoLift® |
| Capacity |
750 kg |
| Castor material |
Nylon |
| Depth |
1950 mm |
| Fork length |
1245 mm |
| Fork support width |
978 mm |
| Fork width |
850 mm |
| Height |
2005 mm |
| Lift motor output |
0.75 kW |
| Lift range |
70 - 900 mm |
| Lift time |
13 s |
| Lift type |
hydraulic |
| Material |
Steel |
| Net weight |
275 kg |
| No. of fixed castors |
2 Stk. |
| RAL colour |
RAL 2010 signal orange RAL 5002 ultramarine blue |
| Section |
Professional |
| Slewing range per side |
40 ° |
| Surface |
powder-coated |
| Voltage |
3 - 400 V |
| Width |
978 mm |
Item description
EdmoLift® electro-hydraulic pallet lift with tilt function, load capacity 750 kg
Article number: 107454 | EAN/GTIN: 4055091077413
The electro-hydraulic forks of this pallet lifter allow goods to be lifted to an ergonomic working height and tilted on both sides by up to 40°. Integrated dead man function and overload protection function ensure safe work flows.
- Forks electro-hydraulically tilted by 40° to the left or right
- Electro-hydraulic safety valves and deadman switch
- Adjustable, highly-sensitive protective frame under the fork sides
- Good accessibility on 3 sides due to T-shaped base frame
EdmoLift® electro-hydraulic pallet lifter with tilt function
The EdmoLift® pallet lifter with swivelling forks is especially suitable for use on production lines or in shipping departments. The T-shaped base frame offers good accessibility from 3 sides for easy loading and unloading. The forks can be swivelled to the left or right by 40° using the infinitely adjustable tilt function. This avoids stretching movements, while at the same time providing a good overview of the contents of the load unit.
Electro-hydraulic safety valves, overload protection and a deadman function ensure safe work flows. In addition, there are two safety frames below the fork sides, which prevent the lowering movement during compression. The EdmoLift® pallet lifter, including 3 m connection cable and CEE plug, is supplied for immediate commissioning.
Order the EdmoLift® electro-hydraulic pallet lifter with tilt function here in the shop.
The EdmoLift® pallet lifter with swivelling forks is especially suitable for use on production lines or in shipping departments. The T-shaped base frame offers good accessibility from 3 sides for easy loading and unloading. The forks can be swivelled to the left or right by 40° using the infinitely adjustable tilt function. This avoids stretching movements, while at the same time providing a good overview of the contents of the load unit.
Electro-hydraulic safety valves, overload protection and a deadman function ensure safe work flows. In addition, there are two safety frames below the fork sides, which prevent the lowering movement during compression. The EdmoLift® pallet lifter, including 3 m connection cable and CEE plug, is supplied for immediate commissioning.
Order the EdmoLift® electro-hydraulic pallet lifter with tilt function here in the shop.
Product Notes
Our offer is aimed exclusively at commercial customers (entrepreneurs). In particular, the product is not intended for use by consumers.
