Item number:
225326
Complete package, META shelf rack, bolted, SL 80 kg, galvanised, HxWxD 2,000 x 3,000 x 400 mm
Comprising 1 base and 2 add-on units
11 Working days
Free shipping from £50 (plus VAT)
Secure data protection
Personal purchasing advice
Technical details
Complete package, META shelf rack, bolted, SL 80 kg, galvanised, HxWxD 2,000 x 3,000 x 400 mm
Article number: 225326 | EAN/GTIN: 4026212335323
| Access options | double-sided |
| Assembly | Screw assembly |
| Bay load max. | 600 kg |
| Bay type | Complete package |
| Brand | META |
| Compartment load max. | 80 kg |
| Compatible with add-on unit | Yes |
| Exterior dimensions add-on unit | Nominal width + 2 mm / nominal depth + 4 mm |
| Exterior dimensions base unit | Nominal width + 4 mm / nominal depth + 4 mm |
| External dimension depth | 404 mm |
| External dimension height | 2000 mm |
| External dimension width | 3008 mm |
| Floor material | Steel plate |
| Floor surface | galvanised |
| Frame construction | screwed |
| Frame pre-assembled | Yes |
| Grid | 25 mm |
| Net weight | 52,75 kg |
| No. of shelves | 15 |
| Nominal depth | 400 mm |
| Nominal height | 2000 mm |
| Nominal width | 3000 mm |
| Quality mark | RAL-RG 614/1 (shelving racks) |
| Rack type | Shelf rack |
| Row type | single-line |
| Section | Professional |
| Shelf type | Shelf |
| Stand surface | galvanised |
| Supplier warranty | 5 |
Item description
Complete package, META shelf rack, bolted, SL 80 kg, galvanised, HxWxD 2,000 x 3,000 x 400 mm
Article number: 225326 | EAN/GTIN: 4026212335323
The complete META shelf rack package can be quickly and simply assembled with the uncomplicated bolted system and also individually modulated. It is manufactured in galvanised steel plate and therefore resistant to corrosion.
- In galvanised steel plate
- Shelf load 80 kg
- 5 shelves per bay
- Bolted system, easily expandable
Effective storage and simple expansion with bolted system

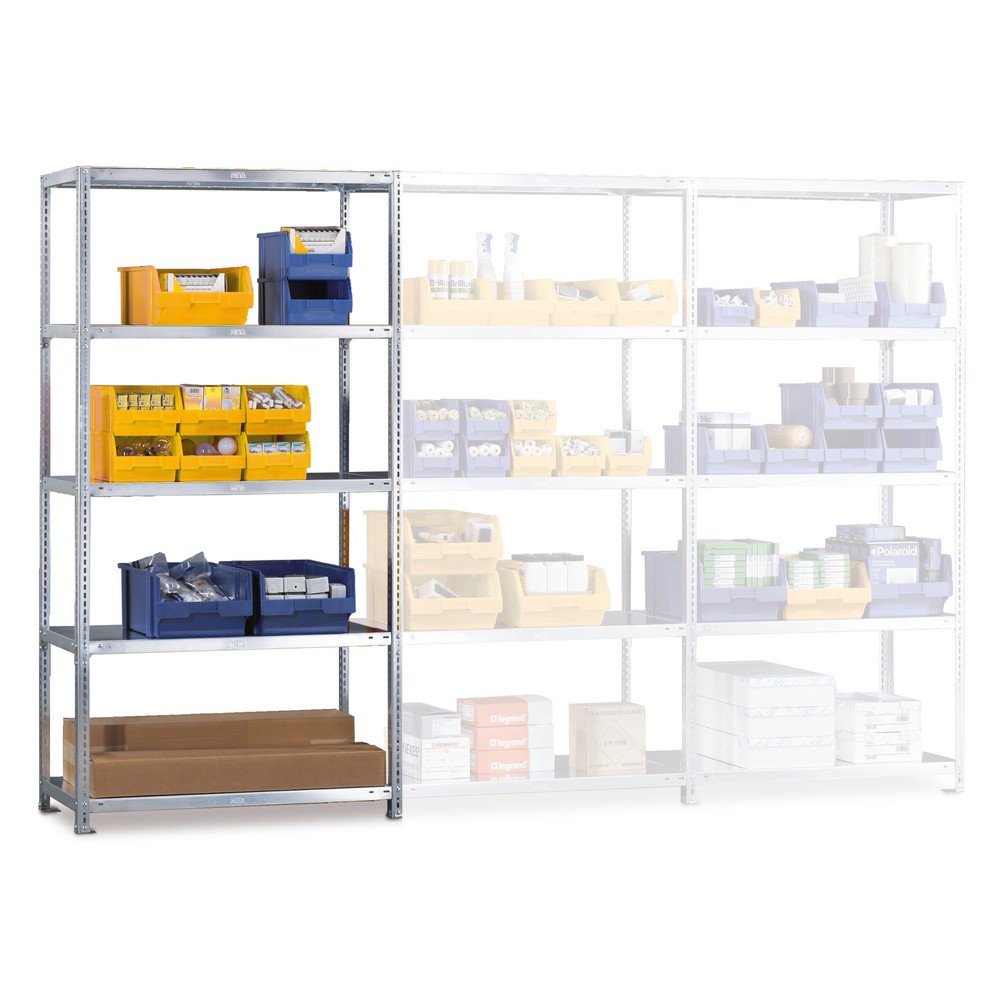

This complete package of the META shelf rack comprises 1 base and 2 add-on units, thus offering an optimal storage solution. The bolted system and the included Allen key make assembly very easy.

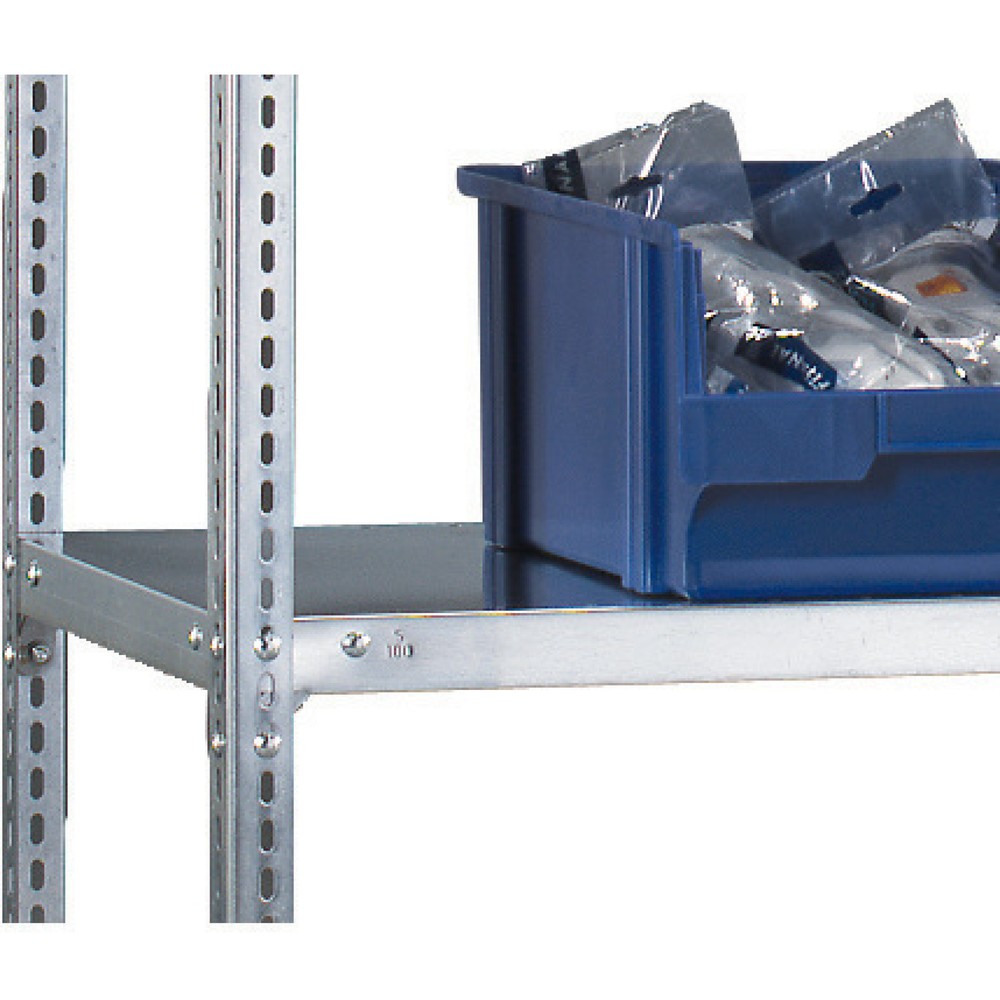

The shelf rack can thus be securely and quickly assembled. Each unit has 5 shelves with a load capacity of 80 kg per shelf. The shelves are made of high-quality steel plate with a 3-point safety edge, which means that the shelves do not warp under load. The punched holes in the frame enable the shelves to be mounted at any height in increments of 25 mm. The galvanised surface of the shelf rack is durable and resistant to corrosion, making it ideally suited tor everyday industrial use. Flexible as both sides can be used.
It is to be noted that the shelf load applies to an even load distribution and that expansion with additional shelves from the range of accessories is only possible with compliance to the maximum shelf load. The data for the shelf loads applies for racking rows with more than 3 bays. Certified safety with RAL-RG 614 quality mark and 5-year warranty
Purchase the complete META shelf rack package with bolted system from us here.
This complete package of the META shelf rack comprises 1 base and 2 add-on units, thus offering an optimal storage solution. The bolted system and the included Allen key make assembly very easy.
The shelf rack can thus be securely and quickly assembled. Each unit has 5 shelves with a load capacity of 80 kg per shelf. The shelves are made of high-quality steel plate with a 3-point safety edge, which means that the shelves do not warp under load. The punched holes in the frame enable the shelves to be mounted at any height in increments of 25 mm. The galvanised surface of the shelf rack is durable and resistant to corrosion, making it ideally suited tor everyday industrial use. Flexible as both sides can be used.
It is to be noted that the shelf load applies to an even load distribution and that expansion with additional shelves from the range of accessories is only possible with compliance to the maximum shelf load. The data for the shelf loads applies for racking rows with more than 3 bays. Certified safety with RAL-RG 614 quality mark and 5-year warranty
Purchase the complete META shelf rack package with bolted system from us here.
Product Notes
Regale mit Höhen-Tiefen-Verhältnis ≥ 5:1 gegen Kippen sichern. Fach-/Feldlasten gelten bei gleichmäßig verteilter Last. Feldlasten gelten für Regalzeilen mit 3 und mehr Feldern.
