Item number:
167215
BASIC PSM 1.0 hydraulic stacker truck with two-stage telescopic mast, lift height 2,500 mm, load capacity 1,000 kg
The affordable entry-level model for occasional stacking operations at up to 2000 or 2500 mm lift height
-
Free shipping from £50 (plus VAT)
-
Secure data protection
-
Personal purchasing advice
Technical details
BASIC PSM 1.0 hydraulic stacker truck with two-stage telescopic mast, lift height 2,500 mm, load capacity 1,000 kg
Article number: 167215 | EAN/GTIN: 4055091146980
| Aisle width |
2000 mm |
| Brand |
BASIC |
| Capacity |
1000 kg |
| Chassis RAL colour |
RAL 2002 blood orange |
| Chassis surface |
powder-coated |
| Drive |
manual |
| Fork height |
60 mm |
| Fork length |
1150 mm |
| Fork roller diameter |
80 mm |
| Fork roller equipment |
Single |
| Fork roller material |
Nylon |
| Fork roller width |
58 mm |
| Fork support width |
550 mm |
| Fork width |
160 mm |
| Ground clearance |
28 mm |
| Lift |
2500 mm |
| Lift height maximum |
2500 mm |
| Lift height per pump stroke |
14 mm |
| Lift range |
85 - 2500 mm |
| Load centre |
500 mm |
| Mast |
Two-stage telescopic mast (ZT) |
| Mast height |
1840 - 2870 mm |
| Net weight |
310 kg |
| Operator type |
Manual |
| Overall length |
1700 mm |
| Overall width |
770 mm |
| Section |
Starter |
| Support arm height |
80 mm |
| Support arm length |
870 mm |
| Support arms outer distance |
470 mm |
| Support arm width |
100 mm |
| Swivel castor diameter |
180 mm |
| Swivel castor width |
50 mm |
| Temperature range |
5 - 40 °C |
| Tiller RAL colour |
RAL 7016 anthracite grey |
| Tiller height |
1855 mm |
| Tiller surface |
powder-coated |
| Turning radius |
1380 mm |
Item description
BASIC PSM 1.0 hydraulic stacker truck with two-stage telescopic mast, lift height 2,500 mm, load capacity 1,000 kg
Article number: 167215 | EAN/GTIN: 4055091146980

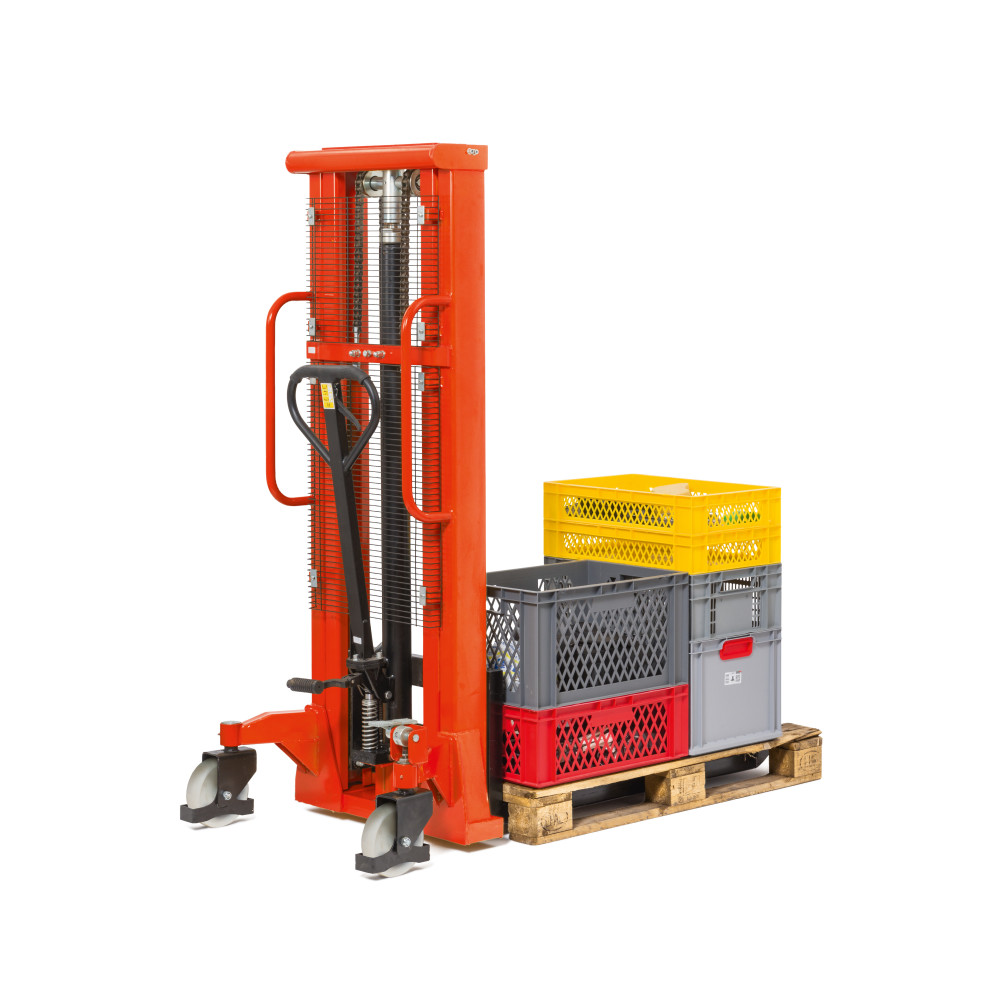

The BASIC hydraulic stacker truck with telescopic mast assists with your pallet transport tasks and occasional stacking and retrieving of palletised goods. These trucks are also ideal for loading and unloading transport vehicles without the aid of a ramp.
- Low-maintenance and highly robust
- Loads can be raised via the tiller or foot pedal
- Rubberised tiller handle
- Maximum stability even under heavy loads
The BASIC hydraulic stacker truck with telescopic mast is the affordable entry-level model for occasional stacking operations

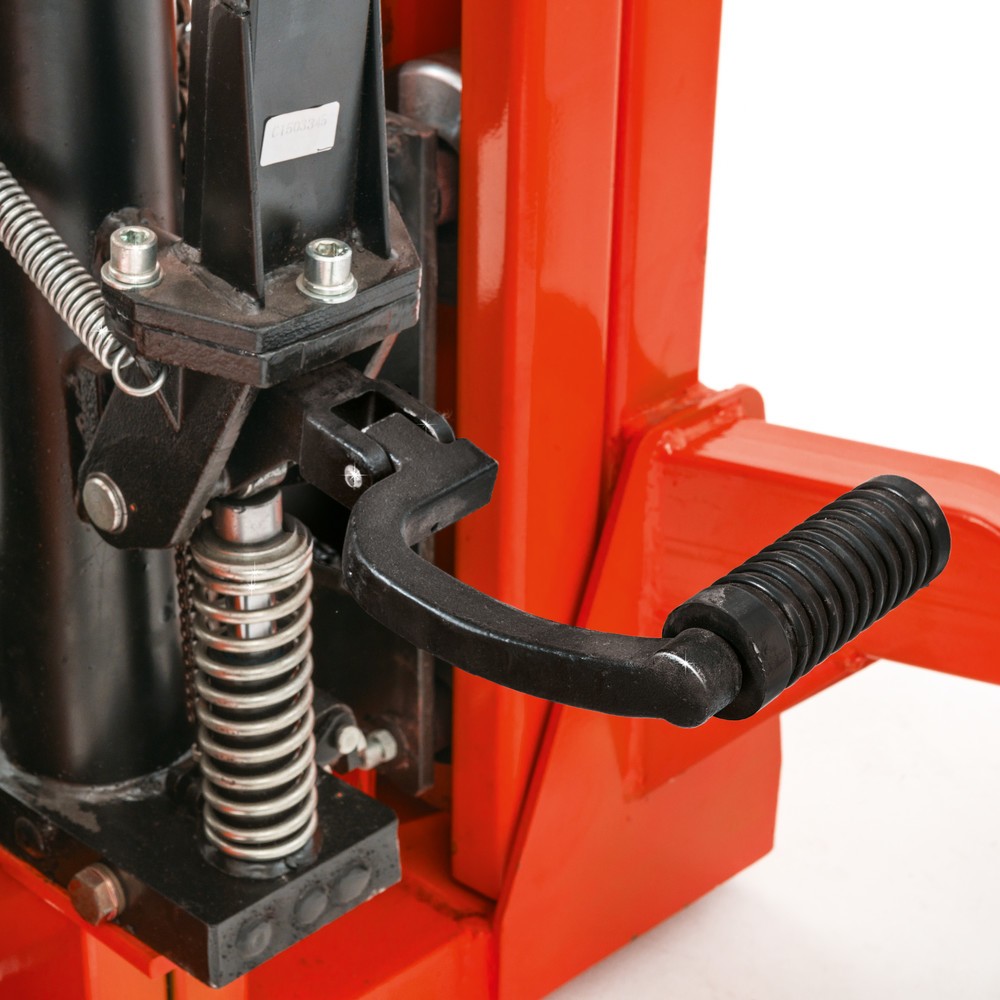

You can lift pallets either using the foot pedal or by pumping the reinforced tiller. The load can be lowered with fully variable precision via the hand lever on the tiller head. The tiller handle is rubberised for maximum comfort, which is particularly welcome in colder temperatures.
The large tubular push handles on the steel frame are mounted at the perfect height for easy manoeuvring. Thanks to its compact dimensions, the truck can be operated safely in the even the tightest of spaces. The low height of the BASIC hydraulic stacker truck with the mast retracted allows it to fit through virtually any door.

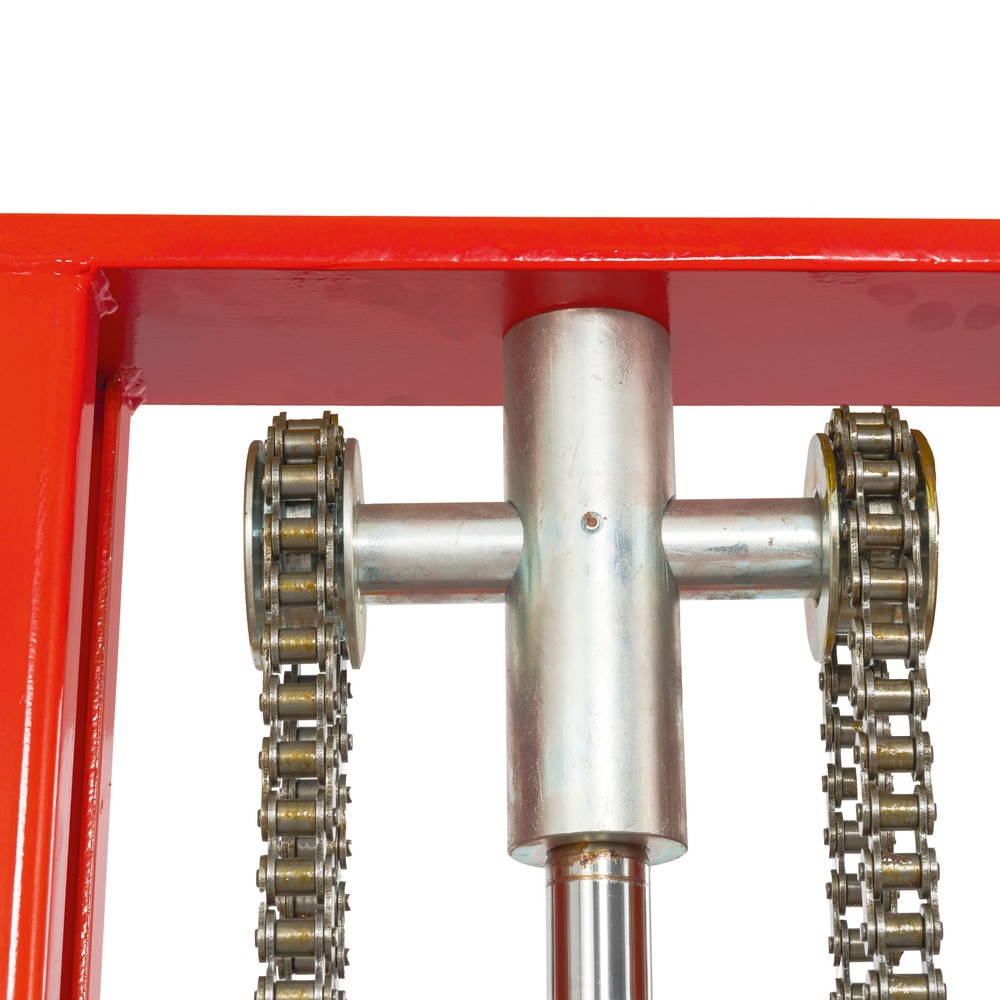

The welded frame with central support and load forks made from torsion-resistant sectional steel is extremely tough and easily withstands loads of up to 1000 kg. The robustness of the truck is further enhanced by the guide profiles made from precision mast steel as well as the maintenance-free, ball-bearing-mounted guide rollers.
The telescopic mast offers a lift height of 2000 or 2500 mm, allowing pallets to be easily picked up or deposited on higher levels, such is in racks. The mechanical parking brakes on both steering castors and the fixed fork wheel arms ensure maximum stability when lifting and lowering your pallets.
The metal grid fitted within the steel frame offers protection against falling objects and provides a clear view in the direction of travel.

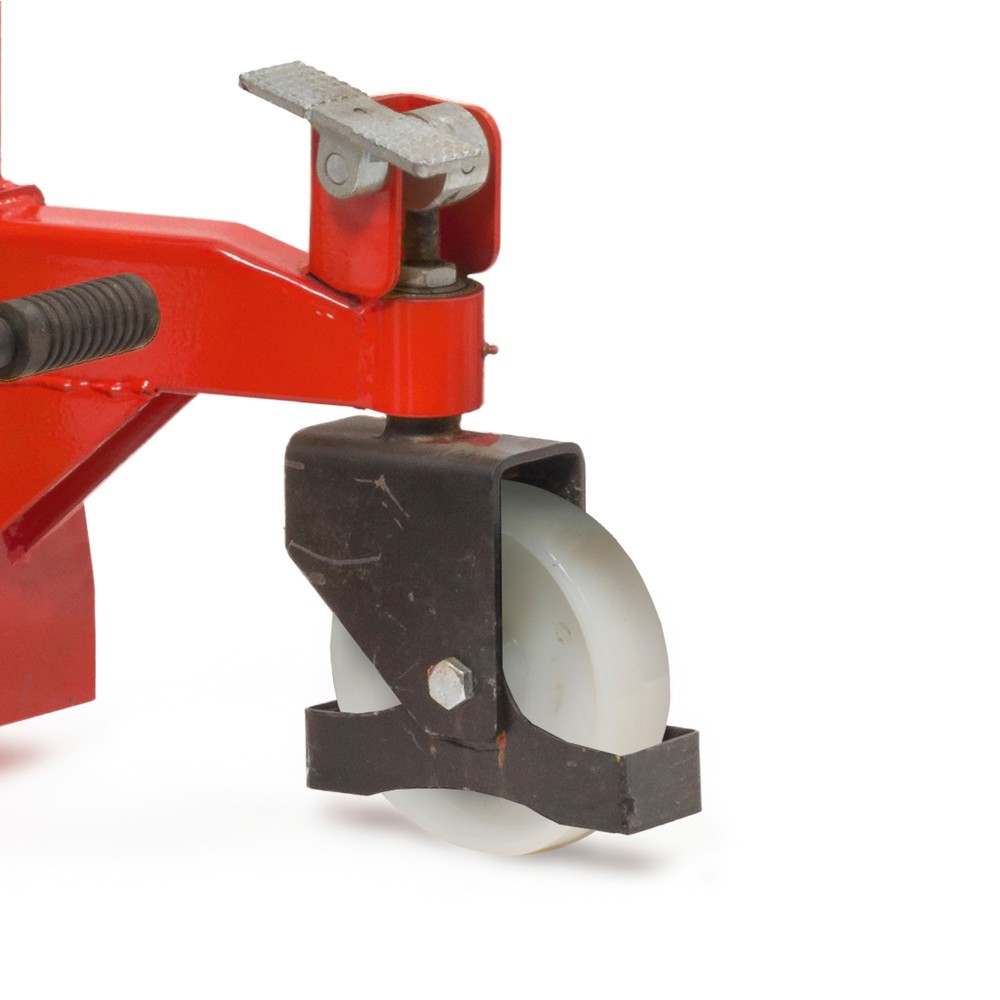

The two large steering castors and single fork rollers are made from wear-resistant nylon, thereby ensuring extremely smooth running.
Purchase the BASIC hydraulic stacker truck from our shop today.
You can lift pallets either using the foot pedal or by pumping the reinforced tiller. The load can be lowered with fully variable precision via the hand lever on the tiller head. The tiller handle is rubberised for maximum comfort, which is particularly welcome in colder temperatures.
The large tubular push handles on the steel frame are mounted at the perfect height for easy manoeuvring. Thanks to its compact dimensions, the truck can be operated safely in the even the tightest of spaces. The low height of the BASIC hydraulic stacker truck with the mast retracted allows it to fit through virtually any door.
The welded frame with central support and load forks made from torsion-resistant sectional steel is extremely tough and easily withstands loads of up to 1000 kg. The robustness of the truck is further enhanced by the guide profiles made from precision mast steel as well as the maintenance-free, ball-bearing-mounted guide rollers.
The telescopic mast offers a lift height of 2000 or 2500 mm, allowing pallets to be easily picked up or deposited on higher levels, such is in racks. The mechanical parking brakes on both steering castors and the fixed fork wheel arms ensure maximum stability when lifting and lowering your pallets.
The metal grid fitted within the steel frame offers protection against falling objects and provides a clear view in the direction of travel.
The two large steering castors and single fork rollers are made from wear-resistant nylon, thereby ensuring extremely smooth running.
Purchase the BASIC hydraulic stacker truck from our shop today.
