Item number:
605334

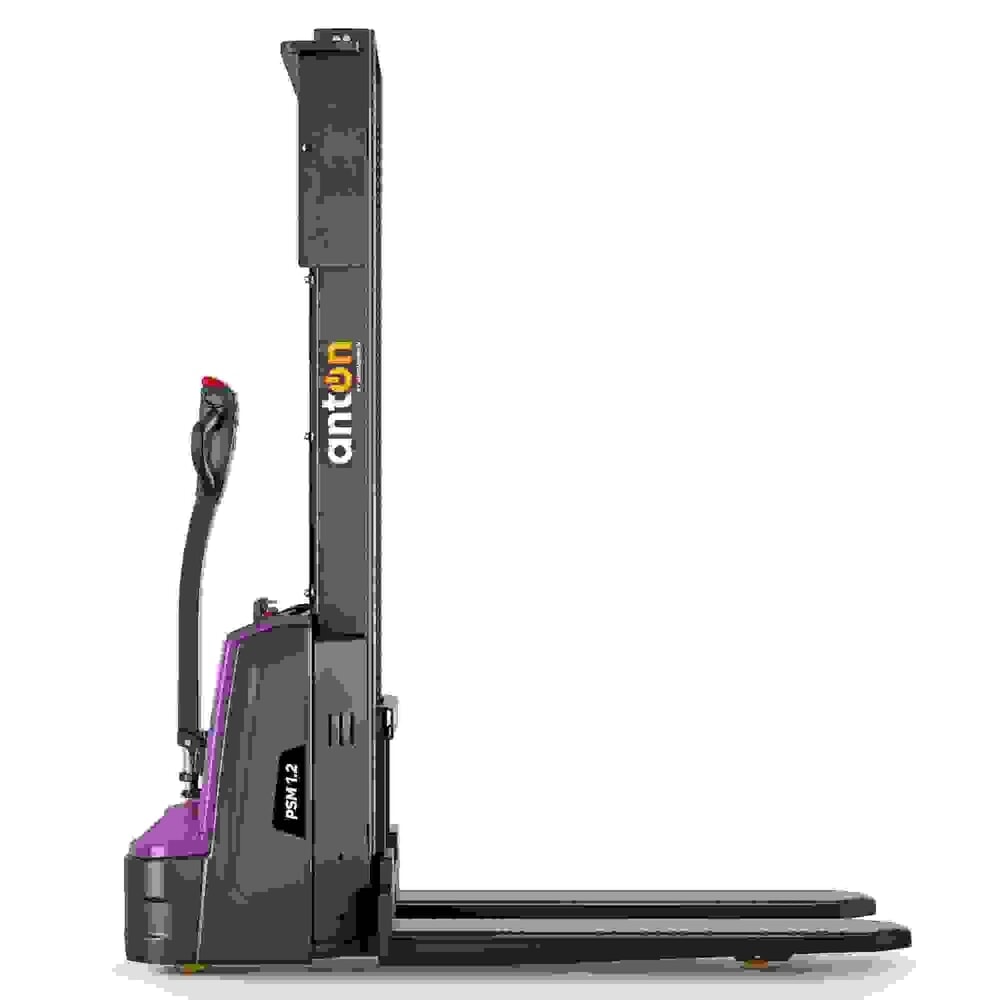

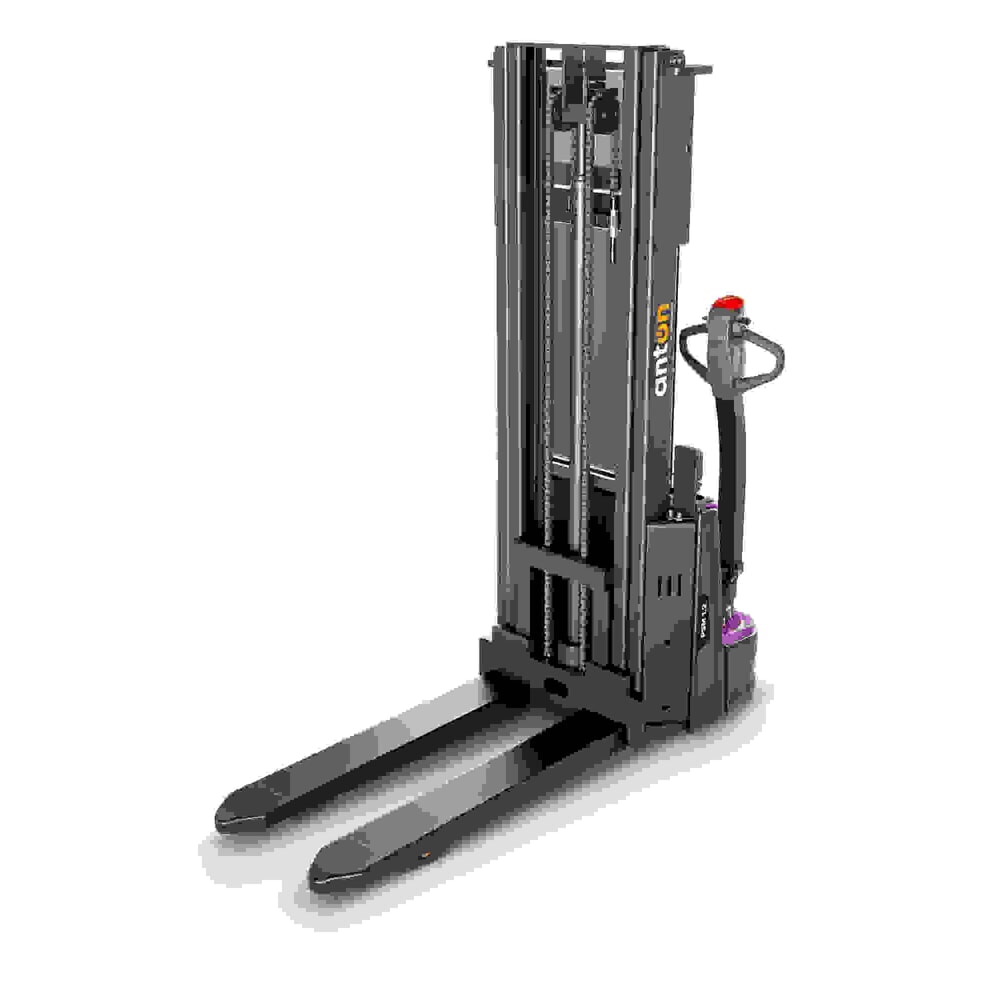

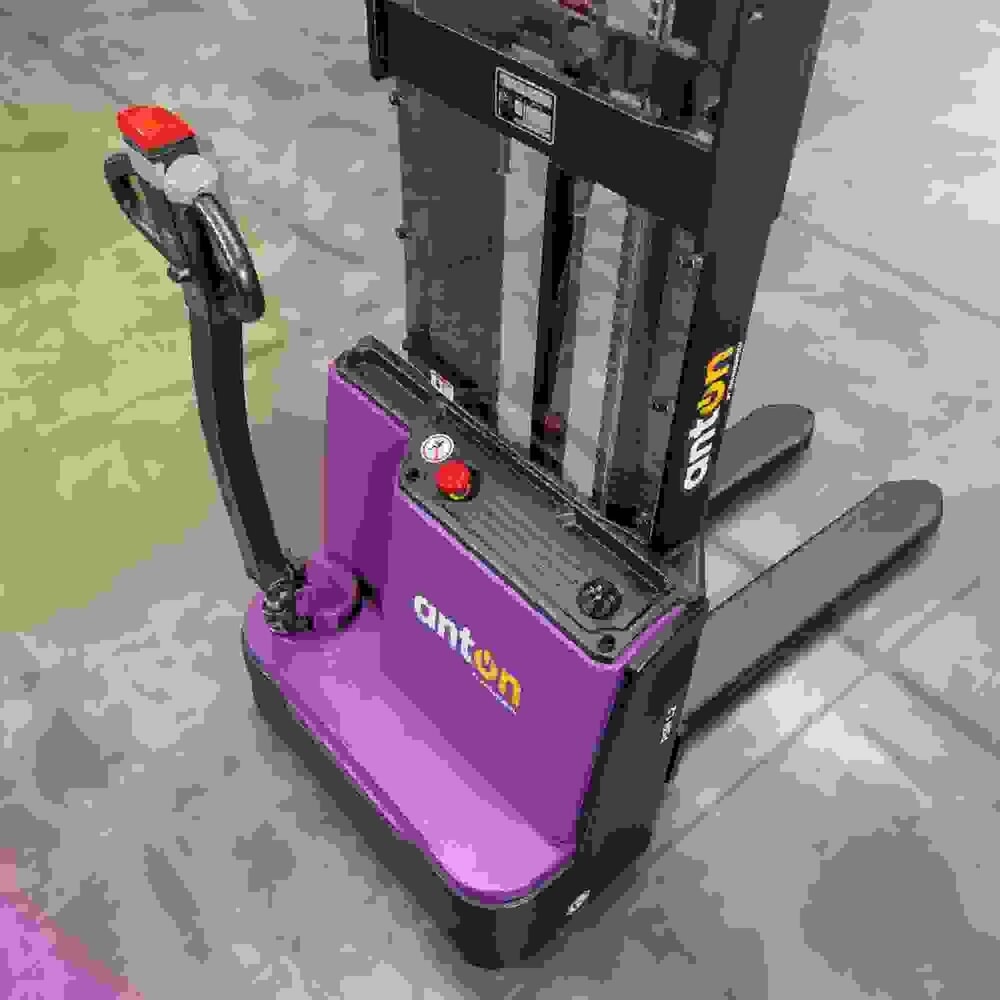

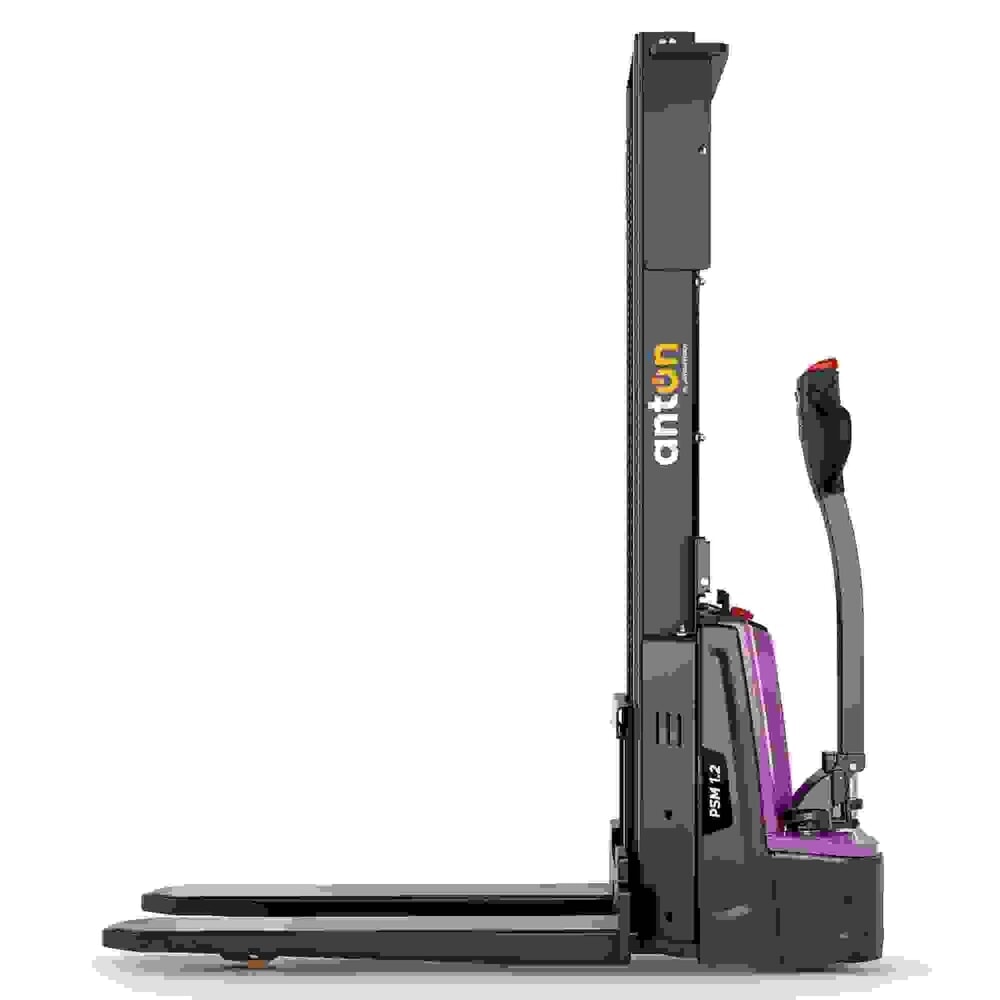

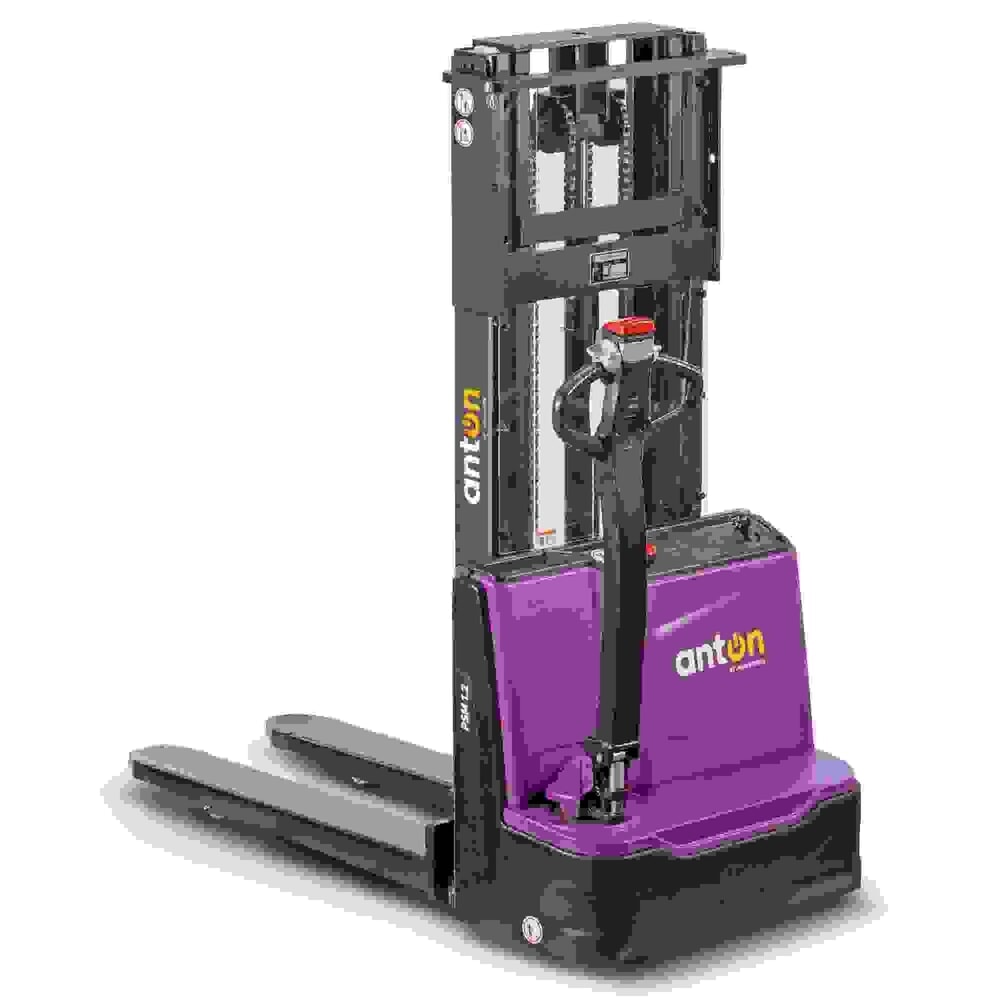

AntOn by Jungheinrich electric high-lift stacker truck PSM 1.2 with two-stage telescopic mast, load capacity 1,200 kg, lift height 3622 mm
Compact pedestrian stacker for ergonomic pallet handling
21 Working days
New
-
Free shipping from £50 (plus VAT)
-
Secure data protection
-
Personal purchasing advice
Technical details
AntOn by Jungheinrich electric high-lift stacker truck PSM 1.2 with two-stage telescopic mast, load capacity 1,200 kg, lift height 3622 mm
Article number: 605334 | EAN/GTIN: 4055091344126 Main category: Lithium-Ion stacker trucks
Loading...
| Access system |
key |
| Additional wheel width |
50 mm |
| Aisle width |
2225 mm |
| Battery capacity |
40 Ah/per unit |
| Battery type |
Lithium-ion |
| Battery voltage |
24 V/per unit |
| Battery weight |
11 kg |
| Brake |
electromagnetic |
| Brand |
AntOn by Jungheinrich |
| Capacity |
1200 kg |
| Charger |
integrated |
| Chassis surface |
powder-coated |
| Colour chassis |
purple |
| Creep speed button |
Yes |
| Drive control type |
DC Speed Control Pulse controller |
| Drive motor power |
0.75 kW |
| Drive wheel diameter front |
190 mm |
| Drive wheel material |
Polyurethane (PU) |
| Drive wheel width front |
55 mm |
| Face of forks length |
583 mm |
| Fork height |
75 mm |
| Fork length |
1150 mm |
| Fork roller diameter |
74 mm |
| Fork roller equipment |
Single |
| Fork roller material |
Polyurethane (PU) |
| Fork roller width |
88 mm |
| Fork support width |
570 mm |
| Fork width |
170 mm |
| Ground clearance |
30 mm |
| Lift |
3530 mm |
| Lift height maximum |
3622 mm |
| Lift motor output |
2.2 kW |
| Lift range |
92 - 3530 mm |
| Lift speed with/without load |
0,11 / 0,15 m/s |
| Load centre |
600 mm |
| Lowering speed with/without load |
0,11 / 0,11 m/s |
| Mast |
Two-stage telescopic mast (ZT) |
| Mast height |
2367 - 4132 mm |
| Max. gradeability laden/unladen |
3 / 10 % |
| Net weight incl. battery |
560 kg |
| No. of batteries |
1 |
| Operator type |
Pedestrian |
| Overall length |
1733 mm |
| Overall width |
832 mm |
| Residual load capacity |
800 kg (at lift height: 3,622 mm) |
| Route |
Short distance |
| Scope |
Indoor use Outdoor use (occasional) |
| Section |
Performance |
| Spare wheel diameter |
128 mm |
| Temperature range |
5 - 40 °C |
| Tiller height |
1140 mm |
| Tiller surface |
powder-coated |
| Travel speed, laden/unladen |
4.0 / 4.5 km/h |
| Turning radius |
1460 mm |
| quality seal |
LI-ION technology |
Item description
AntOn by Jungheinrich electric high-lift stacker truck PSM 1.2 with two-stage telescopic mast, load capacity 1,200 kg, lift height 3622 mm
Article number: 605334 | EAN/GTIN: 4055091344126
The AntOn by Jungheinrich electric high-lift stacker truck PSM 1.2 with a load capacity of 1,200 kg is designed for in-house lifting and transport tasks involving pallets. This user-friendly entry-level model moves loads to lift heights of up to 3,622 mm using its two-stage telescopic mast. The compact electric high-lift stacker truck supports workflows in the warehouse, in production and in retail, even in confined spaces, and impresses with consistent performance at an attractive price. The integrated charger makes it easier to recharge the lithium-ion battery throughout the day and supprots high availability.
- Compact and manoeuvrable in confined spaces
- Intuitive operation in day-to-day use
- Smooth lifting thanks to twin-chain mast
- Two-stage telescopic mast for medium racking heights
- 1,200 kg load capacity for typical pallet loads
- 1,150 mm fork length for handling standard pallets
- Maintenance-free lithium-ion battery that can be recharged flexibly

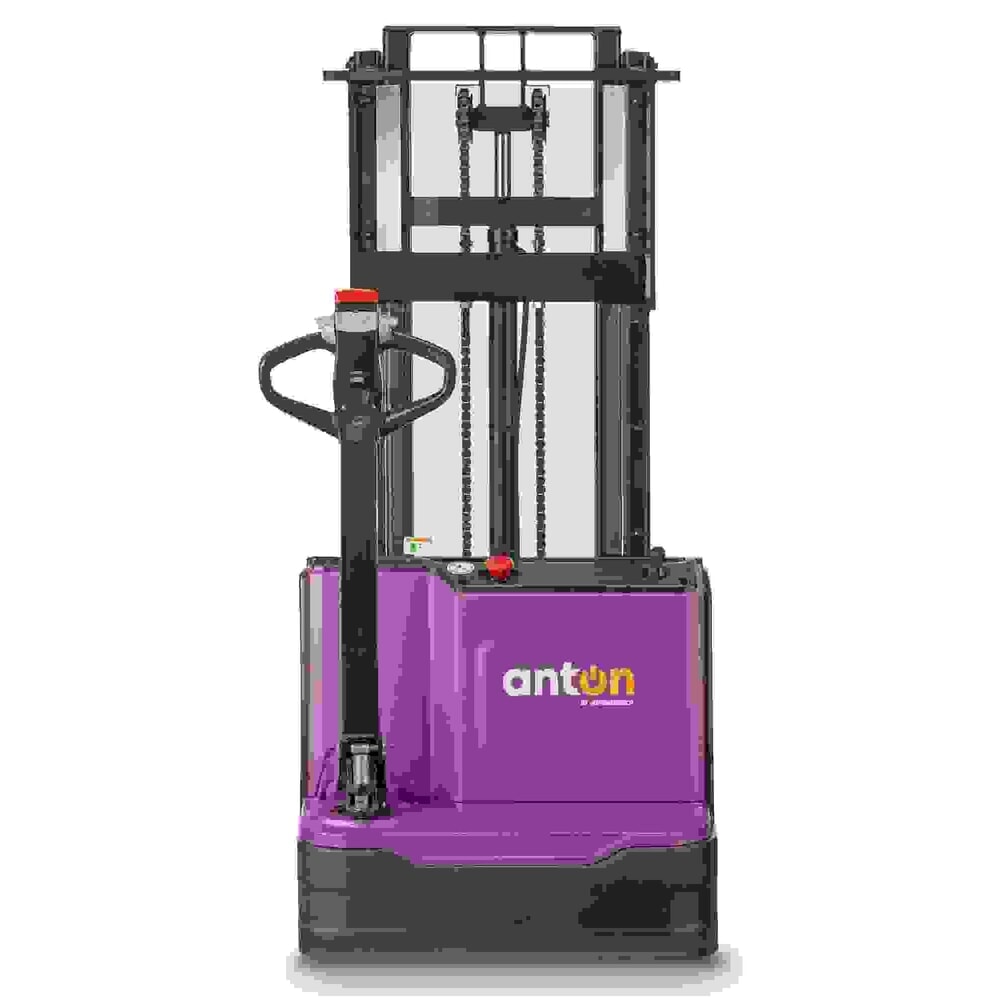

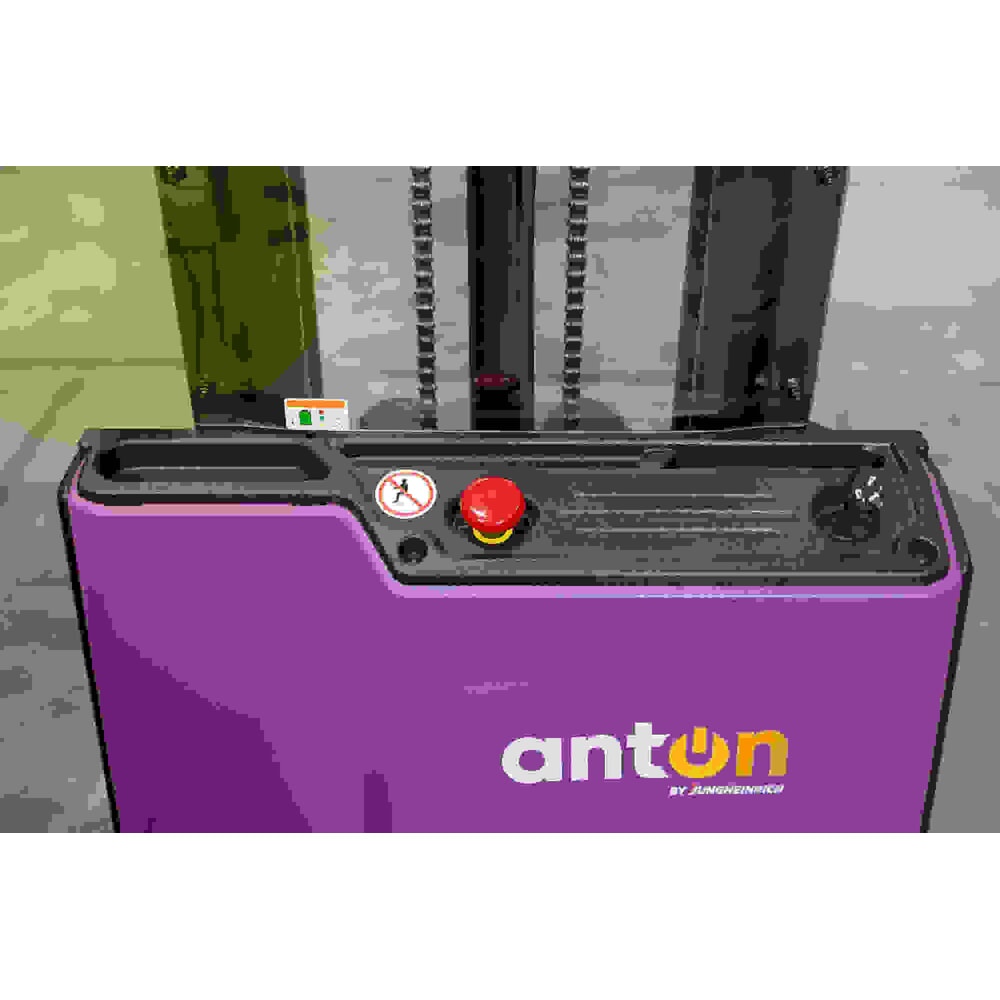

- Good view of the mast thanks to Plexiglas panel
Flexible, robust and economical: the AntOn by Jungheinrich electric high-lift stacker truck PSM 1.2

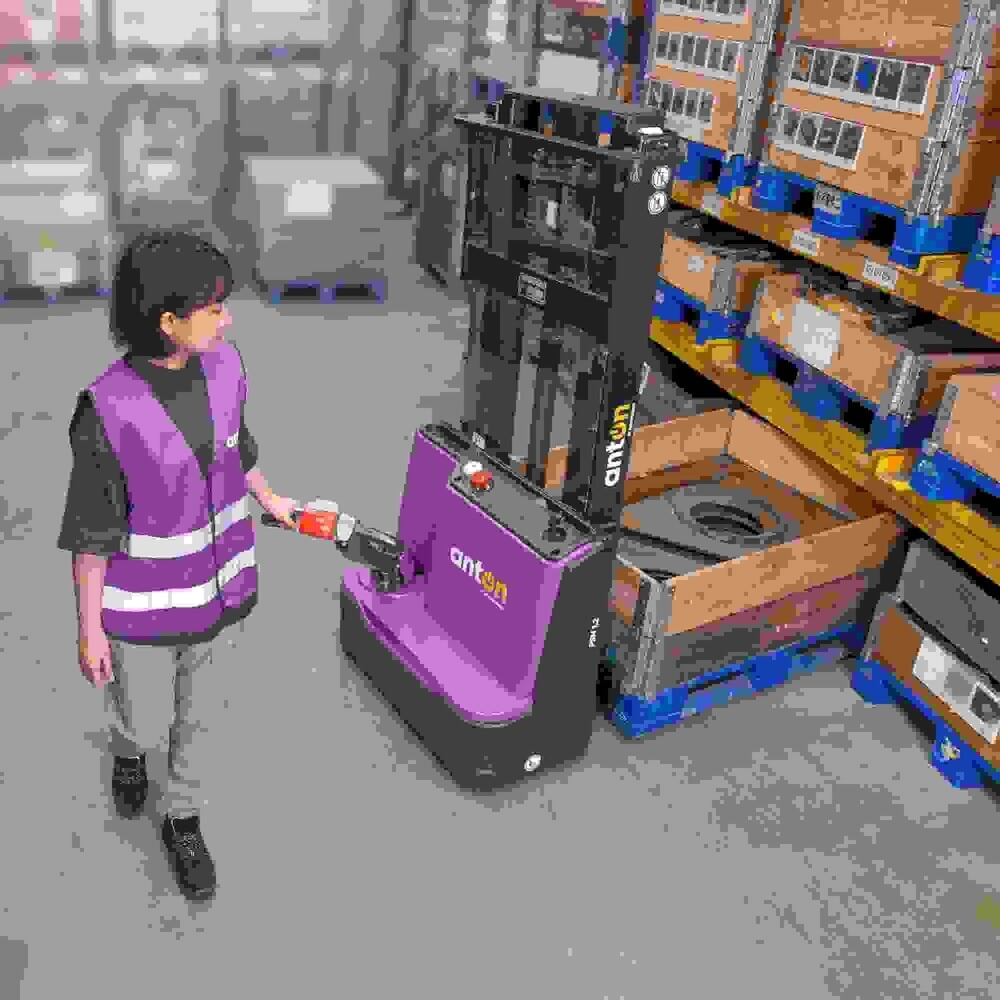

The AntOn by Jungheinrich electric high-lift stacker truck PSM 1.2 is designed for daily in-house goods transport and for storing and retrieving pallets in the warehouse, in production and in retail. As a compact truck, it supports workflows wherever loads need to be picked up, lifted and safely transported to their destination in confined spaces.

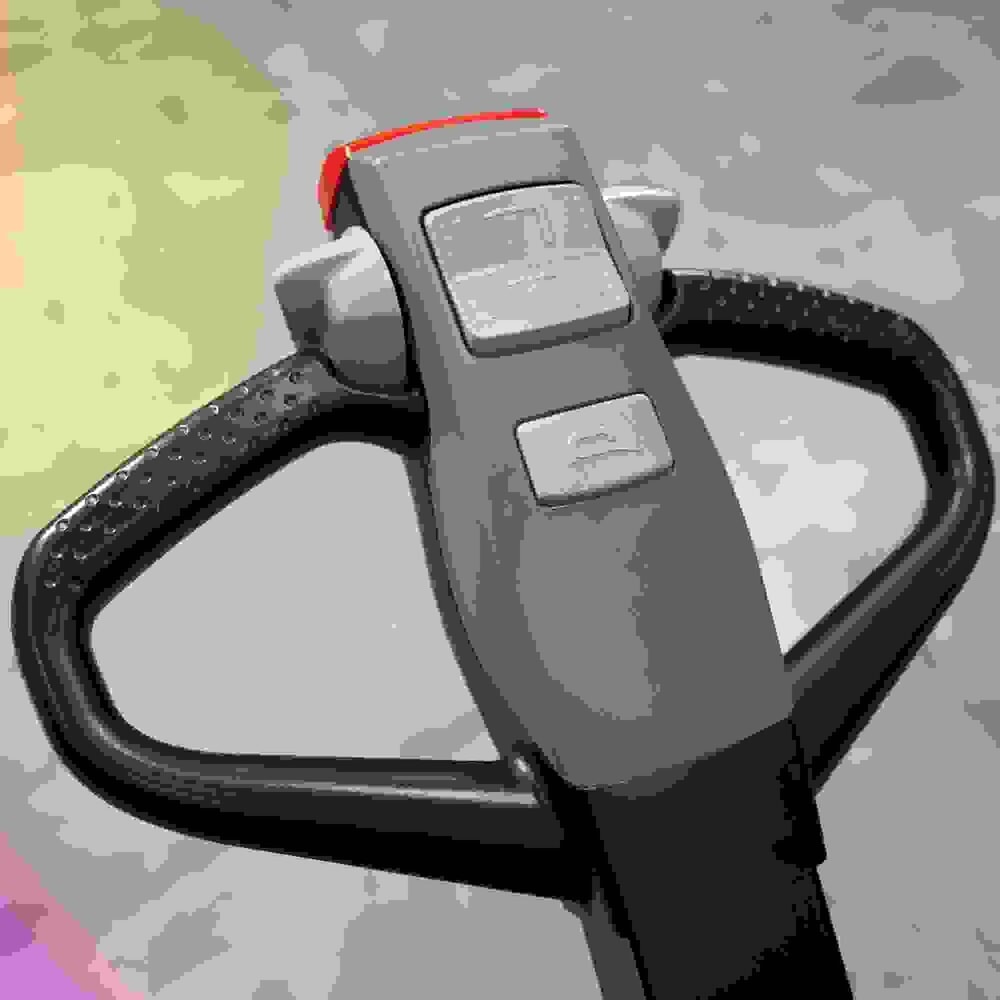

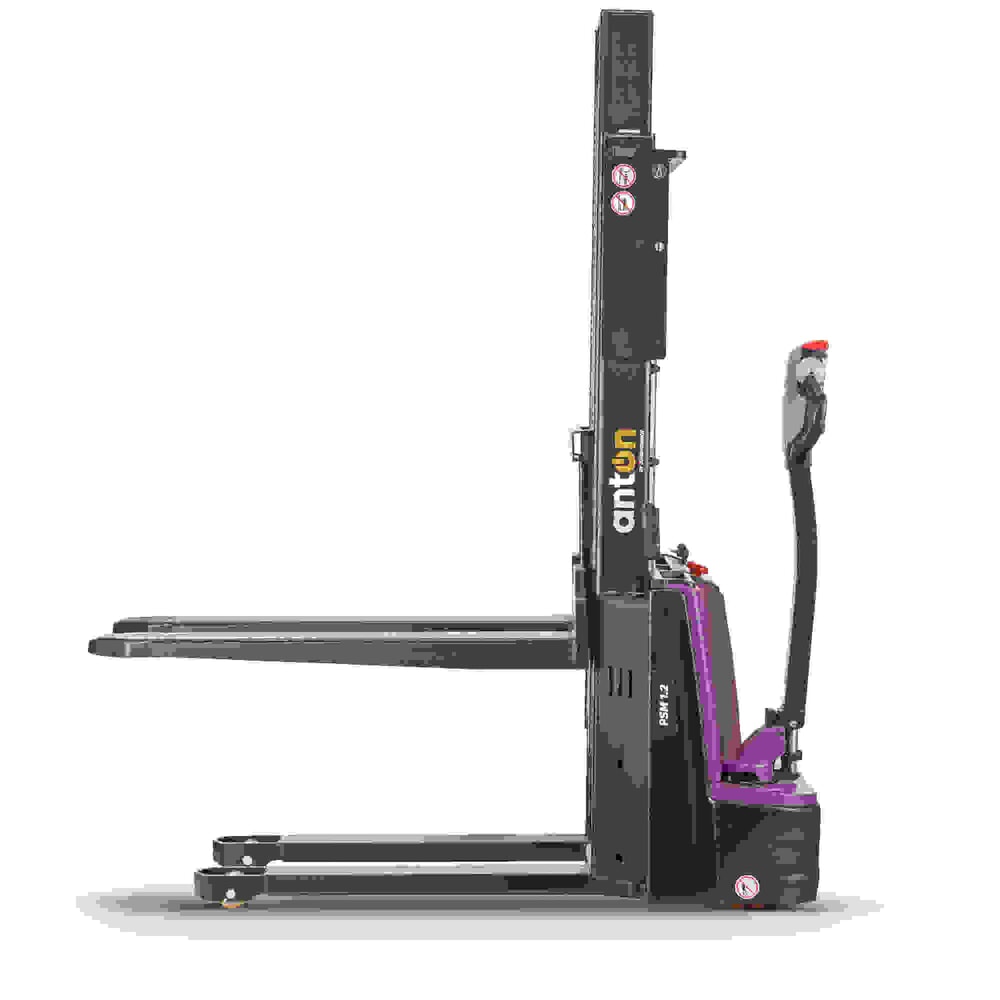

Depending on the model selected, the two-stage telescopic mast extends the range of use to a lift height of up to 3,622 mm. At the same time, the PSM 1.2 is designed for a load capacity of 1,200 kg and is therefore suitable for typical pallet and transport tasks in day-to-day operations. The ergonomically arranged control elements on the tiller head, the body protection button, the speed reduction in the raised position and the good view of the mast support controlled operation and user-friendly handling.

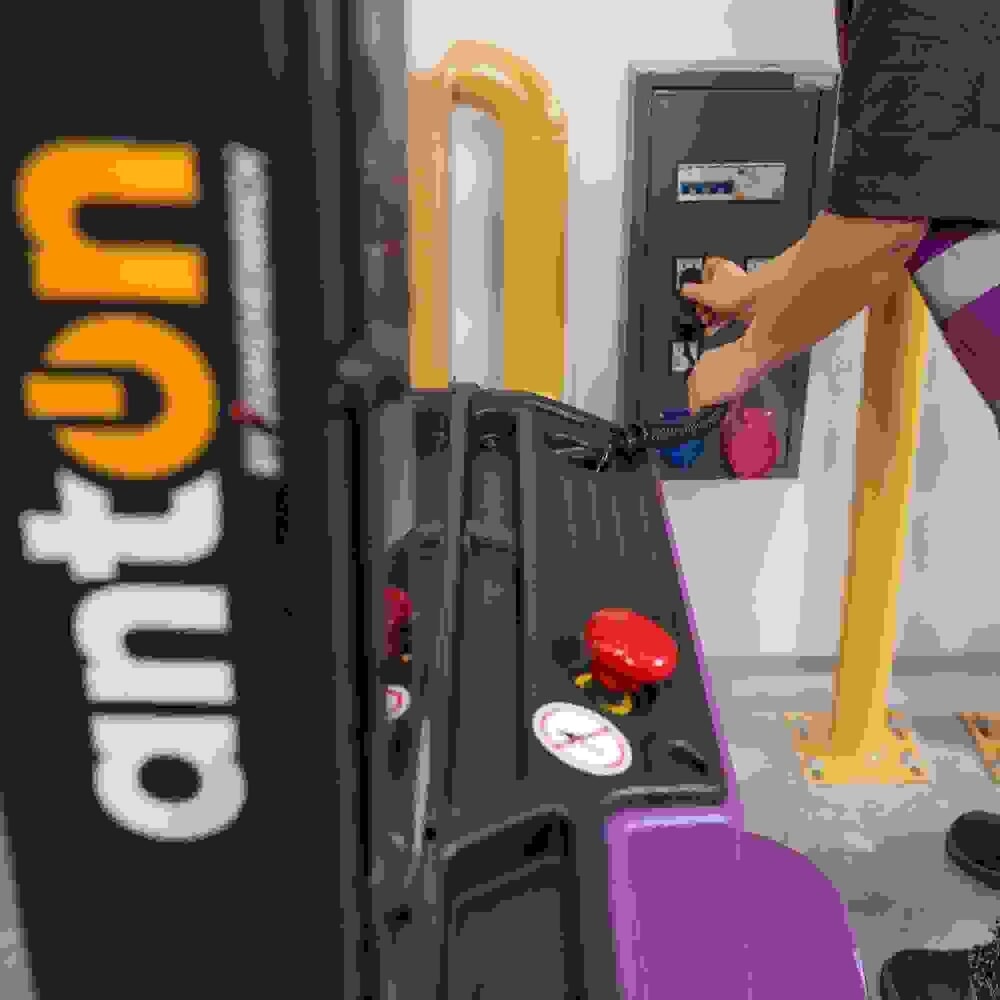

For ongoing operation, the electric high-lift stacker truck combines a maintenance-free lithium-ion battery with an integrated charger for suitable sockets. This makes recharging easier during work breaks and supports high availability in day-to-day work.
Depending on the model selected, the two-stage telescopic mast extends the range of use to a lift height of up to 3,622 mm. At the same time, the PSM 1.2 is designed for a load capacity of 1,200 kg and is therefore suitable for typical pallet and transport tasks in day-to-day operations. The ergonomically arranged control elements on the tiller head, the body protection button, the speed reduction in the raised position and the good view of the mast support controlled operation and user-friendly handling.
For ongoing operation, the electric high-lift stacker truck combines a maintenance-free lithium-ion battery with an integrated charger for suitable sockets. This makes recharging easier during work breaks and supports high availability in day-to-day work.
