Electric forklifts
Item number: 603050

AntOn by Jungheinrich electric forklift truck CBH 3.0 with two-stage telescopic mast, lift height 3,300 mm, load capacity 3.000 kg, incl. external charger 80 V, 60 A, CEE, 5-pin

Robustly constructed for easy handling across versatile applications.
Go to product description

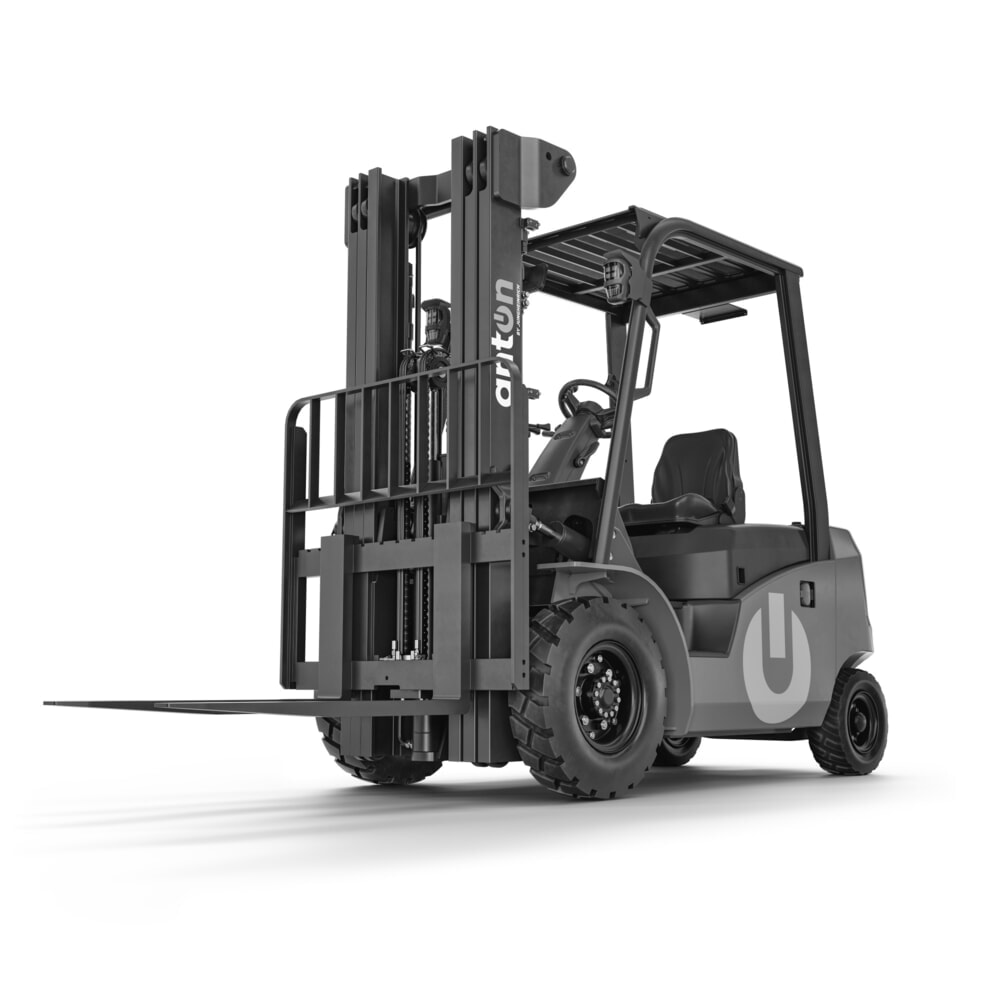

  • Product image no. 1: AntOn by Jungheinrich electric forklift truck CBH 3.0 with two-stage telescopic mast, lift height 3,300 mm, load capacity 3.000 kg, incl. external charger 80 V, 60 A, CEE, 5-pin
  • Product image no. 1: AntOn by Jungheinrich electric forklift truck CBH 3.0 with two-stage telescopic mast, lift height 3,300 mm, load capacity 3.000 kg, incl. external charger 80 V, 60 A, CEE, 5-pin

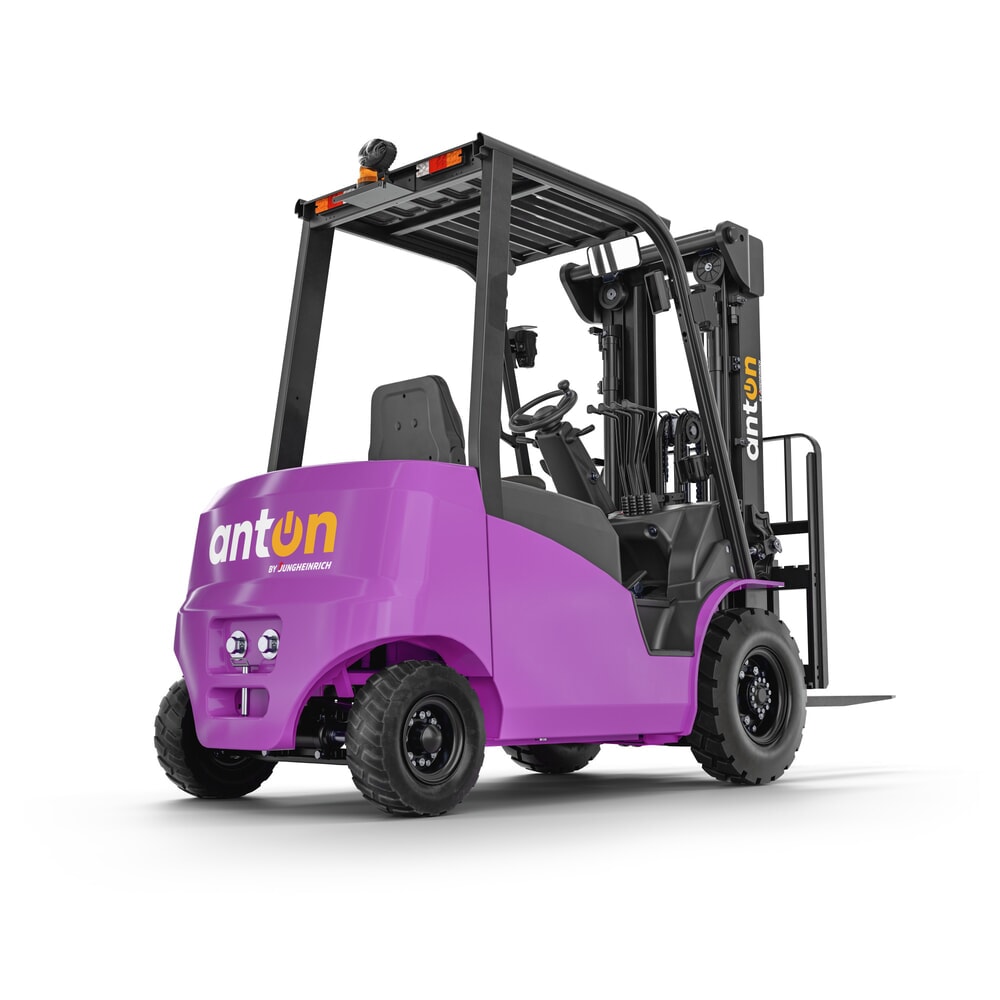

  • Product image no. 2: AntOn by Jungheinrich electric forklift truck CBH 3.0 with two-stage telescopic mast, lift height 3,300 mm, load capacity 3.000 kg, incl. external charger 80 V, 60 A, CEE, 5-pin

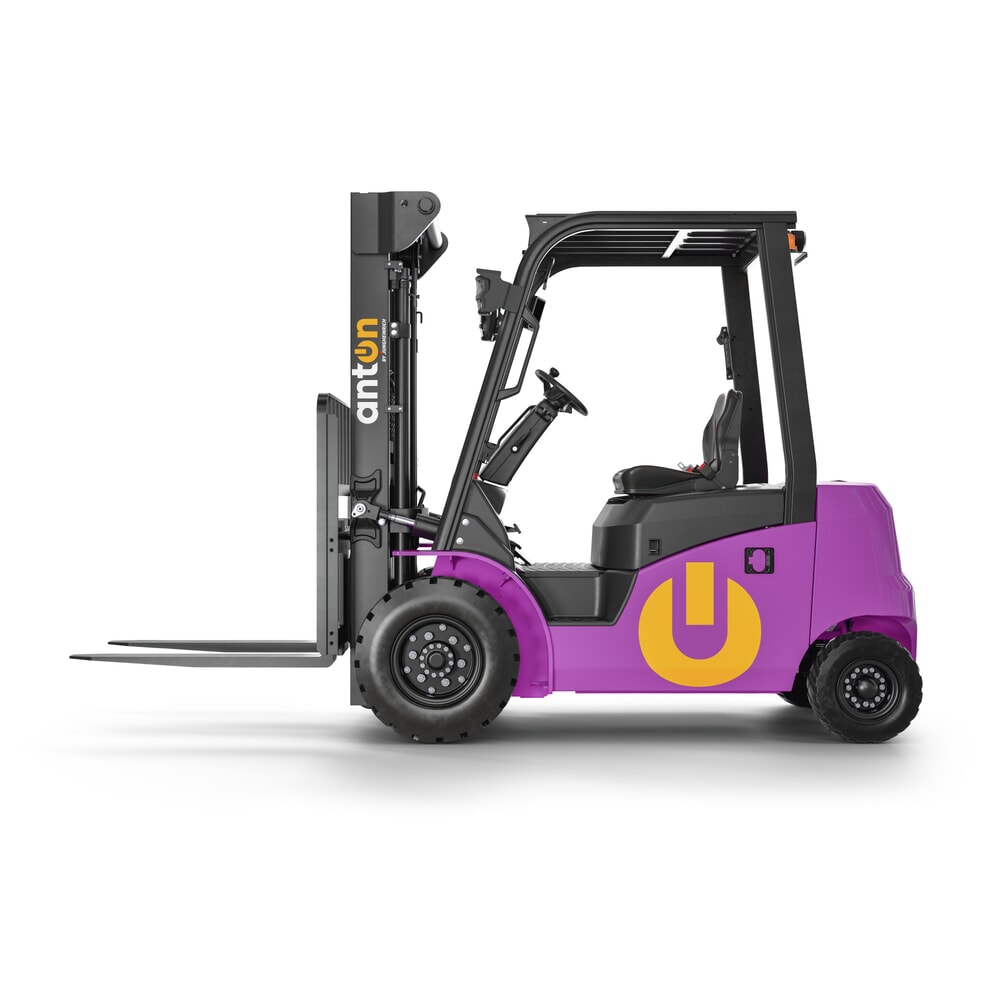

  • Product image no. 3: AntOn by Jungheinrich electric forklift truck CBH 3.0 with two-stage telescopic mast, lift height 3,300 mm, load capacity 3.000 kg, incl. external charger 80 V, 60 A, CEE, 5-pin

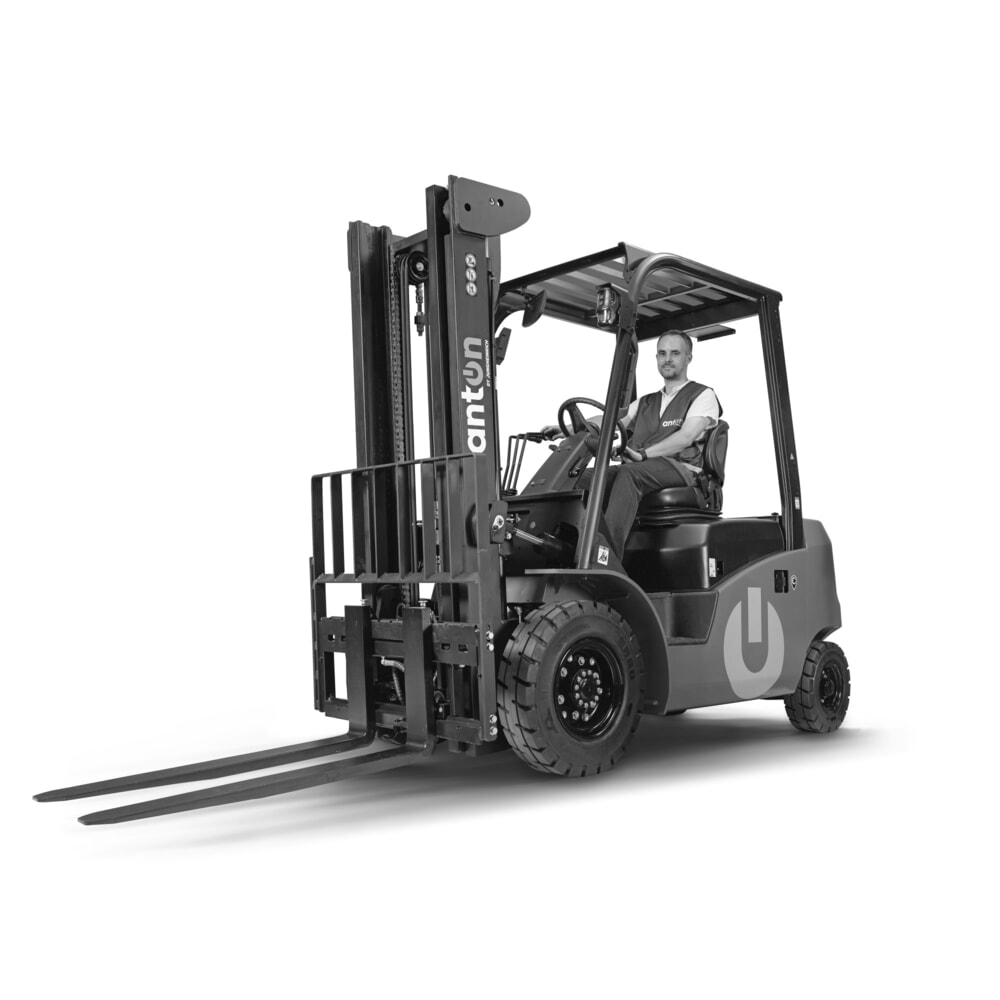

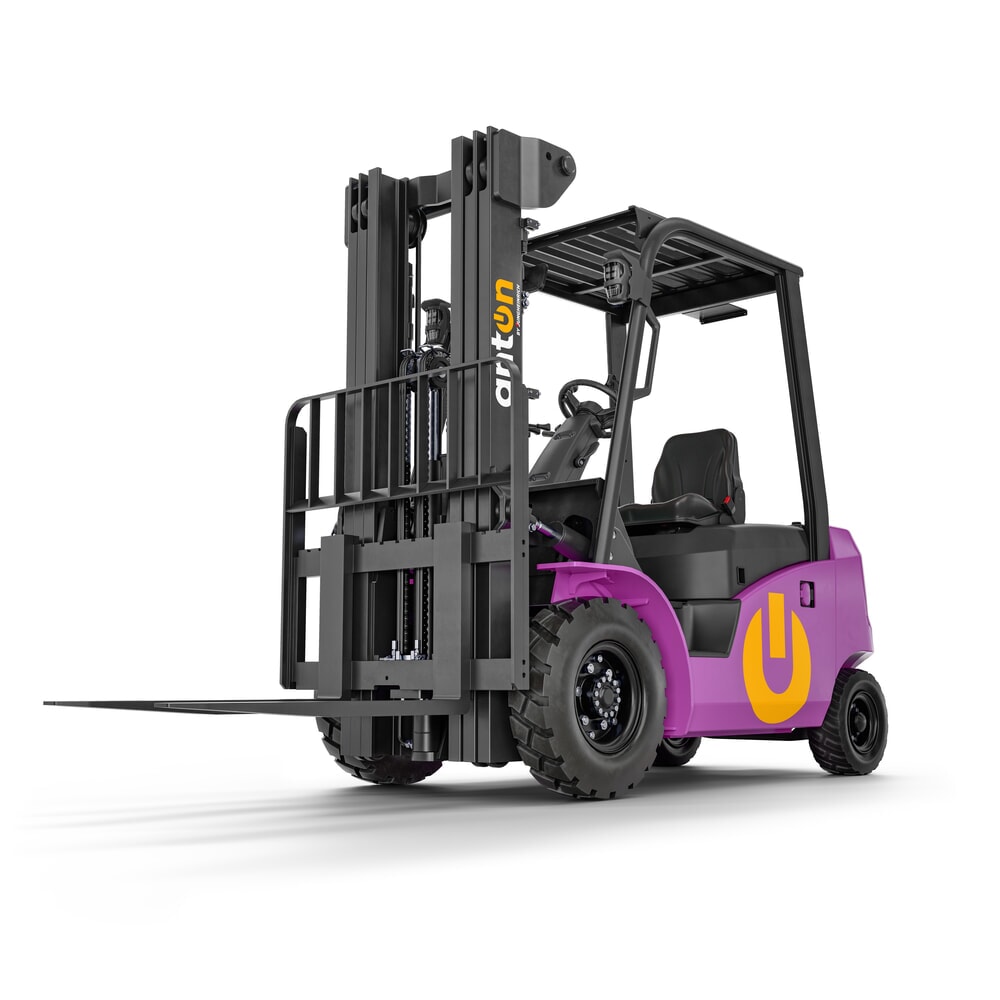

  • Product image no. 4: AntOn by Jungheinrich electric forklift truck CBH 3.0 with two-stage telescopic mast, lift height 3,300 mm, load capacity 3.000 kg, incl. external charger 80 V, 60 A, CEE, 5-pin
  • Product image no. 5: AntOn by Jungheinrich electric forklift truck CBH 3.0 with two-stage telescopic mast, lift height 3,300 mm, load capacity 3.000 kg, incl. external charger 80 V, 60 A, CEE, 5-pin
  • Product image no. 6: AntOn by Jungheinrich electric forklift truck CBH 3.0 with two-stage telescopic mast, lift height 3,300 mm, load capacity 3.000 kg, incl. external charger 80 V, 60 A, CEE, 5-pin
  • Product image no. 7: AntOn by Jungheinrich electric forklift truck CBH 3.0 with two-stage telescopic mast, lift height 3,300 mm, load capacity 3.000 kg, incl. external charger 80 V, 60 A, CEE, 5-pin
  • AntOn by Jungheinrich
  • Performance
  • AntON LI-ION
  • Display of product image no. 1
  • Display of product image no. 1
  • Display of product image no. 2
  • Display of product image no. 3
  • Display of product image no. 4
  • Display of product image no. 5
  • Display of product image no. 6
  • Display of product image no. 7
Current variant:
Charger:
D400, 80 V, 60 A, CEE red 32 A, 5-pin-3P+N+E
Charging time:
3,5 h

10 Working days

£19,800.00

per pcs excl. VAT plus shipping

  • Free shipping from £50 (plus VAT)
  • Secure data protection
  • Personal purchasing advice

Technical details

AntOn by Jungheinrich electric forklift truck CBH 3.0 with two-stage telescopic mast, lift height 3,300 mm, load capacity 3.000 kg, incl. external charger 80 V, 60 A, CEE, 5-pin

Article number: 603050 | EAN/GTIN: 4055091338286 Main category: Electric forklifts

Acceleration time, laden/unladen
6,7 / 6,3 s
Aisle width
4260 mm
Battery capacity
230 Ah/per unit
Battery type
Lithium-ion
Battery voltage
80 V/per unit
Brake
hydraulic
Brand
AntOn by Jungheinrich
Capacity
3000 kg
Charger
D400, 80 V, 60 A, CEE red 32 A, 5-pin-3P+N+E
Charging time
3,5 h
Coupling height
307 mm
Display type
LED, Touch
Drive
electric
Drive control type
AC
Drive motor power
17 kW
Drive wheel material
Superelastik (SE)
Energy consumption with maximum throughput
10.01 kWh/h
Equipment
Gurtschlossüberwachung
Rear-view mirror
Trailer coupling
Fork carriage width
1100 mm
Fork carrier ISO
3A
Fork height
45 mm
Fork length
1150 mm
Fork width
122 mm
Free lift
135 mm
Ground clearance
185 mm
Ground clearance, laden, below mast
130 mm
Height of overhead guard/cab
2180 mm
Lift
3300 mm
Lift motor output
26 kW
Lift range
45 - 3300 mm
Lift speed with/without load
0,42 / 0,5 m/s
Lighting
2 Arbeitsscheinwerfer, vorn (LED)
Blitzleuchte (LED)
Load centre
500 mm
Lowering speed with/without load
0,43 / 0,44 m/s
Mast
Two-stage telescopic mast (ZT)
Mast height
2070 - 4095 mm
Max. drawbar pull, laden/unladen
16280 / 16280 N
Max. gradeability laden/unladen
12 / 23 %
Net weight incl. battery
4335 kg
Noise level as per EN 12053 (operator's ear)
74 dB(A)
Oil volume for attachments
35 l/min
Operating pressure for attachments
180 bar
Operator type
Seat
Overall length
3712 mm
Overall width
1210 mm
Reifengröße, hinten
18x7-8
Reifengröße, vorn
7.00-12
Seat height/stand height
1110 mm
Section
Performance
Seitenschieber
integriert (ISS)
Smallest internal turning radius
838 mm
Throughput
180 t/h
Tilt of mast/fork carriage forward/backward (α/β)
6 / 10 °
Travel speed, laden/unladen
16 / 17 km/h
Turning radius
2379 mm
USB port
Yes
Zusatzhydraulik
ZH1 - 1x Festanschluss
quality seal
AntON LI-ION

Item description

AntOn by Jungheinrich electric forklift truck CBH 3.0 with two-stage telescopic mast, lift height 3,300 mm, load capacity 3.000 kg, incl. external charger 80 V, 60 A, CEE, 5-pin

Article number: 603050 | EAN/GTIN: 4055091338286

The AntOn by Jungheinrich CBH 3.0 electric forklift truck combines robust construction, ease of handling and high cost-effectiveness in a reliable truck. With its two-stage telescopic mast and a lift height of 3,300 mm, it is ideal for goods turnover in warehouse areas with uniform shelving arrangements, where there are no low passageways or particularly tall shelves. Whether loading and unloading HGVs, transporting pallets or operating in narrow aisles – the cbh 3.0 electric forklift truck impresses with compact design, excellent manoeuvrability and reliable performance. Lithium-ion technology ensures extended operating times and short charging breaks during daily use, so the forklift truck is always ready for operation.
  • Robust technology for daily use.
  • Two-stage telescopic mast for efficient lifting and lowering
  • Load capacity of 3,000 kg for lift heights up to 3,300 mm
  • Compact design for operation in narrow warehouse aisles.
  • Lithium-ion battery for long runtimes and fast charging.
  • High ground clearance for outdoor use on uneven terrain.
  • Travel speed up to 17 km/h for fast material flow.
  • Ergonomic driver's seat with adjustable steering wheel.
  • Optimal view for precise work and enhanced safety.
  • External charging option for continuous availability.

The AntOn by Jungheinrich cbh 3.0 electric forklift truck is designed for versatility and cost-effectiveness. The two-stage telescopic mast offers a lift height of 3,300 mm, enabling goods to be stored or retrieved quickly and safely from medium-height shelves. Thanks to its compact geometry and small turning radius, the four-wheel forklift remains easy to manoeuvre even in tight warehouse spaces. Large tyres and increased ground clearance ensure that the cbh 3.0 can be used just as reliably outdoors.

The integrated lithium-ion battery delivers consistent power without memory effect and enables fast intermediate charging, avoiding long downtimes. The ergonomic driver's seat with adjustable steering wheel and generous legroom ensures fatigue-free working. An LED truck status display clearly provides all relevant operating data, whilst the well-arranged control elements simplify handling. Clear view of the fork tips and working environment enhances precision and safety.

With a travel speed of up to 17 km/h, the cbh 3.0 significantly accelerates internal material flow. Thanks to its attractive price-performance ratio, the AntOn by Jungheinrich cbh 3.0 electric forklift truck is a future-proof investment for companies prioritising efficient, quiet and emission-free warehouse logistics.
