Item number:
603054
AntOn by Jungheinrich electric forklift truck CBH 2.5 with two-stage telescopic mast, lift height 3,300 mm, load capacity 2.500 kg, incl. external charger 80 V, 60 A, CEE, 4-pin
Robustly constructed for easy handling across versatile applications.
-
Free shipping from £50 (plus VAT)
-
Secure data protection
-
Personal purchasing advice
Technical details
AntOn by Jungheinrich electric forklift truck CBH 2.5 with two-stage telescopic mast, lift height 3,300 mm, load capacity 2.500 kg, incl. external charger 80 V, 60 A, CEE, 4-pin
Article number: 603054 | EAN/GTIN: 4055091338316
| Acceleration time, laden/unladen |
6,6 / 6,4 s |
| Aisle width |
4195 mm |
| Battery capacity |
230 Ah/per unit |
| Battery type |
Lithium-ion |
| Battery voltage |
80 V/per unit |
| Brake |
hydraulic |
| Brand |
AntOn by Jungheinrich |
| Capacity |
2500 kg |
| Charger |
80 V, 60 A, CEE, 4-pin |
| Charging time |
3,5 h |
| Coupling height |
311 mm |
| Display type |
LED, Touch |
| Drive |
electric |
| Drive control type |
AC |
| Drive motor power |
17 kW |
| Drive wheel material |
Superelastik (SE) |
| Energy consumption with maximum throughput |
6.21 kWh/h |
| Equipment |
Rear-view mirror Strobe light |
| Fork carriage ISO 2328, class/type A,B |
2A |
| Fork carriage width |
1040 mm |
| Fork height |
40 mm |
| Fork length |
1150 mm |
| Fork width |
122 mm |
| Free lift |
120 mm |
| Ground clearance |
170 mm |
| Ground clearance, laden, below mast |
125 mm |
| Height of overhead guard/cab |
2165 mm |
| Lift |
3300 mm |
| Lift motor output |
26 kW |
| Lift range |
40 - 3300 mm |
| Lift speed with/without load |
0,5 / 0,56 m/s |
| Load centre |
500 mm |
| Lowering speed with/without load |
0,54 / 0,56 m/s |
| Mast |
Two-stage telescopic mast (ZT) |
| Mast height |
2090 - 4025 mm |
| Max. drawbar pull, laden/unladen |
13760 / 13760 N |
| Max. gradeability laden/unladen |
14 / 25 % |
| Net weight incl. battery |
3977 kg |
| Noise level as per EN 12053 (operator's ear) |
74 dB(A) |
| Oil volume for attachments |
35 l/min |
| Operating pressure for attachments |
180 bar |
| Operator type |
Seat |
| Overall length |
3695 mm |
| Overall width |
1154 mm |
| Seat height/stand height |
1095 mm |
| Section |
Performance |
| Smallest internal turning radius |
838 mm |
| Throughput |
150 t/h |
| Tilt of mast/fork carriage forward/backward (α/β) |
6 / 10 ° |
| Travel speed, laden/unladen |
16 / 17 km/h |
| Turning radius |
2300 mm |
| USB port |
Yes |
| quality seal |
AntON LI-ION |
Item description
AntOn by Jungheinrich electric forklift truck CBH 2.5 with two-stage telescopic mast, lift height 3,300 mm, load capacity 2.500 kg, incl. external charger 80 V, 60 A, CEE, 4-pin
Article number: 603054 | EAN/GTIN: 4055091338316
The AntOn by Jungheinrich c 2.5 electric forklift truck combines robust construction, easy handling and high cost-effectiveness in a reliable truck. With its two-stage telescopic mast and a lift height of 3,300 mm, it is ideal for goods turnover in warehouse areas with uniform shelving arrangements, where there are no low passageways or particularly tall shelves. Whether loading and unloading HGVs, transporting pallets or use in narrow aisles – the c 2.5 electric forklift excels with its compact design, excellent manoeuvrability and reliable performance. Lithium-ion technology ensures extended operating times and short charging breaks during daily use, so the forklift truck is always ready for operation.
- Robust technology for daily use.
- Two-stage telescopic mast for efficient lifting and lowering
- Load capacity of 2,500 kg for lift heights up to 3,300 mm
- Compact design for operation in narrow warehouse aisles.
- Lithium-ion battery for long runtimes and fast charging.
- High ground clearance for outdoor use on uneven terrain.
- Travel speed up to 17 km/h for fast material flow.
- Ergonomic driver's seat with adjustable steering wheel.
- Optimal view for precise work and enhanced safety.
- External charging option for continuous availability.
Robust technology, easy handling and reliable performance: the AntOn by Jungheinrich electric forklift truck c 2.5 with 2,500 kg load capacity
The AntOn by Jungheinrich c 2.5 electric forklift truck is designed for versatility and cost-effectiveness. The two-stage telescopic mast offers a lift height of 3,300 mm, enabling goods to be stored or retrieved quickly and safely from medium-height shelves. Thanks to its compact geometry and small turning radius, the four-wheel forklift remains easy to manoeuvre even in tight warehouse spaces. Large tyres and increased ground clearance ensure that the c 2.5 can be used reliably outdoors as well.

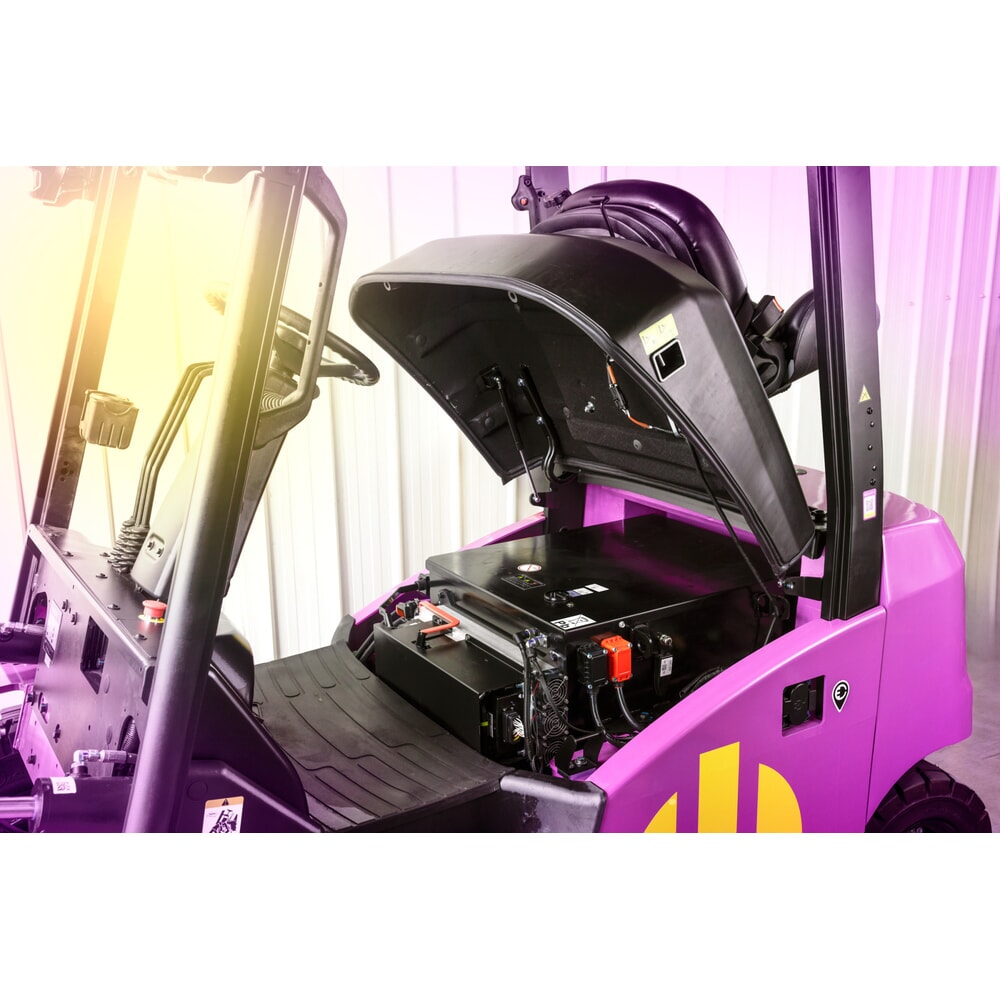

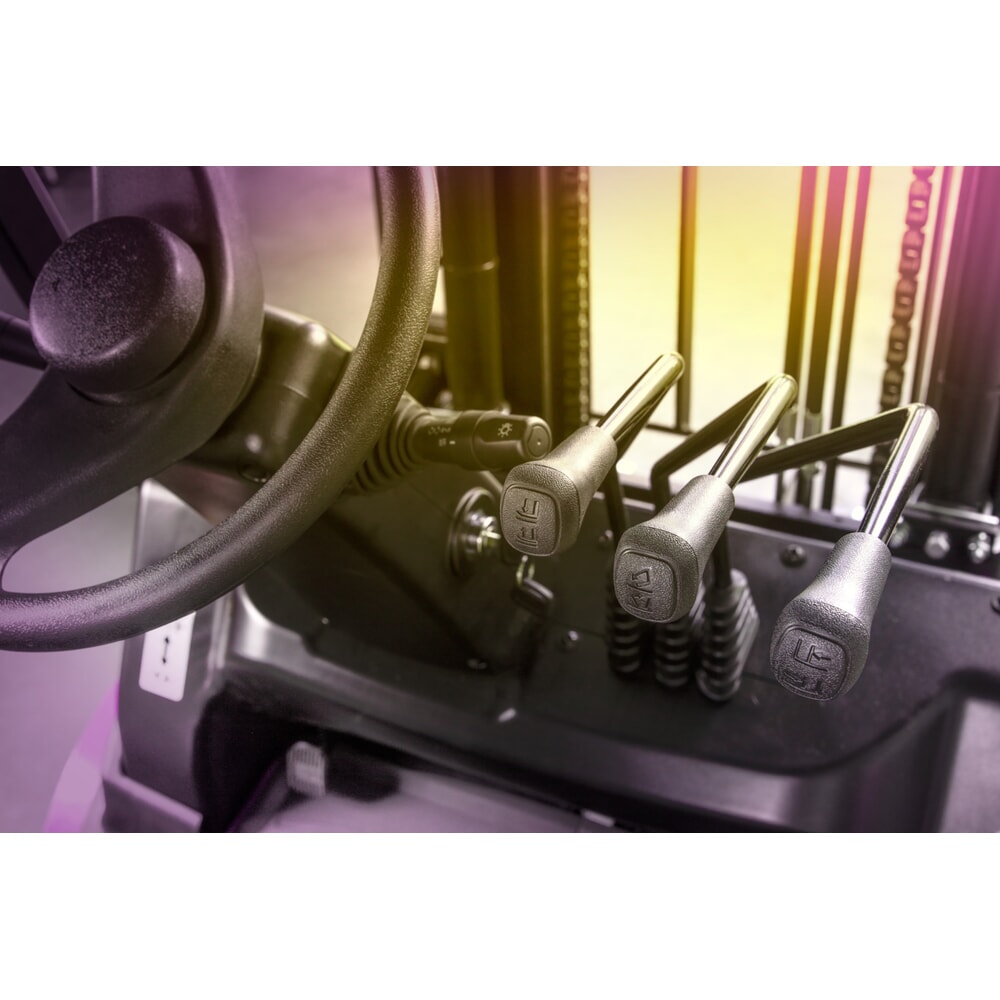

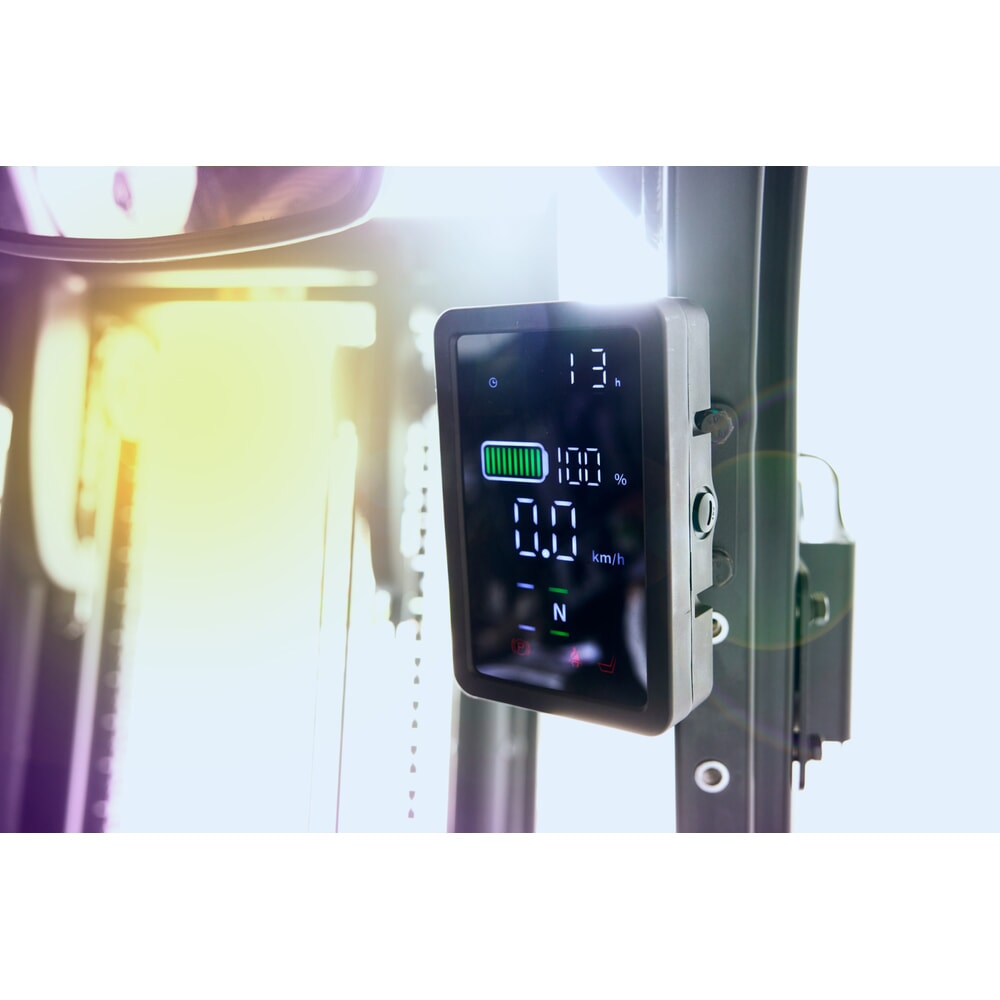

The integrated lithium-ion battery delivers consistent power without memory effect and enables fast intermediate charging, avoiding long downtimes. The ergonomic driver's seat with adjustable steering wheel and generous legroom ensures fatigue-free working. An LED truck status display clearly provides all relevant operating data, whilst the well-arranged control elements simplify handling. Clear view of the fork tips and working environment enhances precision and safety.
With a travel speed of up to 17 km/h, the c 2.5 significantly speeds up internal material flow. Thanks to its attractive price-performance ratio, the AntOn by Jungheinrich c 2.5 electric forklift truck is a future-proof investment for companies focusing on efficient, quiet and emission-free warehouse logistics.
The AntOn by Jungheinrich c 2.5 electric forklift truck is designed for versatility and cost-effectiveness. The two-stage telescopic mast offers a lift height of 3,300 mm, enabling goods to be stored or retrieved quickly and safely from medium-height shelves. Thanks to its compact geometry and small turning radius, the four-wheel forklift remains easy to manoeuvre even in tight warehouse spaces. Large tyres and increased ground clearance ensure that the c 2.5 can be used reliably outdoors as well.
The integrated lithium-ion battery delivers consistent power without memory effect and enables fast intermediate charging, avoiding long downtimes. The ergonomic driver's seat with adjustable steering wheel and generous legroom ensures fatigue-free working. An LED truck status display clearly provides all relevant operating data, whilst the well-arranged control elements simplify handling. Clear view of the fork tips and working environment enhances precision and safety.
With a travel speed of up to 17 km/h, the c 2.5 significantly speeds up internal material flow. Thanks to its attractive price-performance ratio, the AntOn by Jungheinrich c 2.5 electric forklift truck is a future-proof investment for companies focusing on efficient, quiet and emission-free warehouse logistics.
