Item number:
604727
AntOn by Jungheinrich electric forklift truck CBH 2.0 with two-stage telescopic mast, lift height 3300 mm, load capacity 2000 kg, including external charger 80 V, 100 A, CEE, 5-pin
Robustly constructed for easy handling across versatile applications.
-
Free shipping from £50 (plus VAT)
-
Secure data protection
-
Personal purchasing advice
Technical details
AntOn by Jungheinrich electric forklift truck CBH 2.0 with two-stage telescopic mast, lift height 3300 mm, load capacity 2000 kg, including external charger 80 V, 100 A, CEE, 5-pin
Article number: 604727 | EAN/GTIN: 4055091340081 Main category: Electric forklifts
Loading...
| Acceleration time, laden/unladen |
7,9 / 7,5 s |
| Aisle width |
4024 mm |
| Auxiliary hydraulics |
ZH1 - 1x fixed connection |
| Battery capacity |
230 Ah/per unit |
| Battery type |
Lithium-ion |
| Battery voltage |
80 V/per unit |
| Brake |
hydraulic |
| Brand |
AntOn by Jungheinrich |
| Capacity |
2000 kg |
| Charger |
integrated |
| Charging time |
2,1 h |
| Colour |
black purple |
| Coupling height |
310 mm |
| Design |

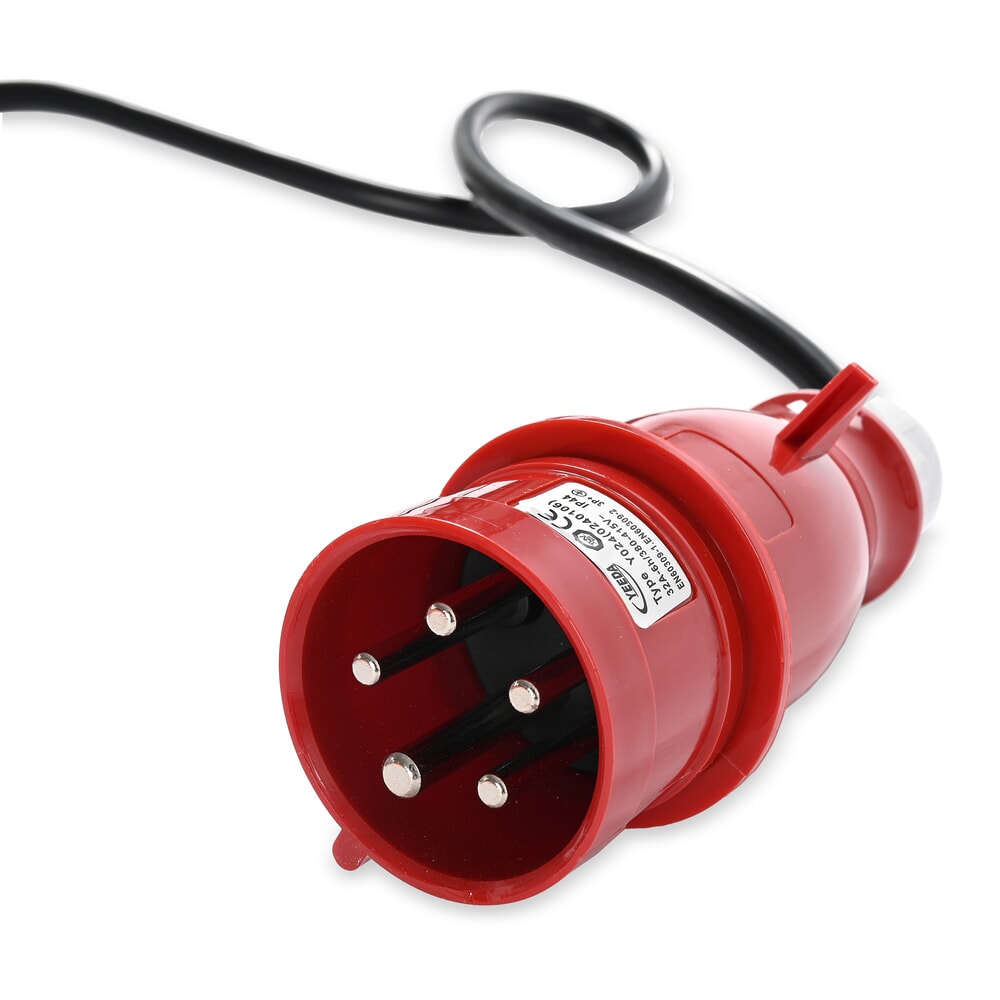

Charger with a charging current of 100 A, 5-pin plug |
| Display type |
LED, touch |
| Drawbar pull, laden/unladen |
2090 / 2090 N |
| Drive |
electric |
| Drive control type |
AC |
| Drive motor power |
10 kW |
| Drive wheel material |
Superelastic (SE) |
| Energy consumption with maximum throughput |
5.88 kWh/h |
| Equipment |
Rear-view mirror Seat belt buckle monitoring Trailer hitch |
| Face of forks length |
2385 mm |
| Fork carriage width |
1040 mm |
| Fork carrier ISO |
2A |
| Fork height |
40 mm |
| Fork length |
1150 mm |
| Fork width |
122 mm |
| Free lift |
195 mm |
| Ground clearance |
150 mm |
| Ground clearance, laden, below mast |
125 mm |
| Height of overhead guard/cab |
2165 mm |
| Lift |
3300 mm |
| Lift motor output |
16 kW |
| Lift range |
40 - 3300 mm |
| Lift speed with/without load |
0,4 / 0,41 m/s |
| Lighting |
2 work lights, front (LED) Combination lamp, rear (LED) Strobe light (LED) |
| Load centre |
500 mm |
| Lowering speed with/without load |
0,54 / 0,56 m/s |
| Mast |
Two-stage telescopic mast (ZT) |
| Mast height |
2240 - 4360 mm |
| Max. gradeability laden/unladen |
7/14 % |
| Net weight incl. battery |
3650 kg |
| No. of batteries |
1 |
| Noise level as per EN 12053 (operator's ear) |
74 dB(A) |
| Oil volume for attachments |
35 l/min |
| Operating pressure for attachments |
180 bar |
| Operator type |
Seat |
| Overall length |
3535 mm |
| Overall width |
1154 mm |
| Seat height/stand height |
1095 mm |
| Section |
Performance |
| Side shift |
integrated |
| Smallest internal turning radius |
662 mm |
| Throughput |
116 t/h |
| Tilt of mast/fork carriage forward/backward (α/β) |
6 / 10 ° |
| Travel speed, laden/unladen |
14/15 km/h |
| Turning radius |
2129 mm |
| Tyre size, front |
7.00-12 |
| Tyre size, rear |
18x7-8 |
| USB port |
Yes |
| quality seal |
LI-ION technology |
Item description
AntOn by Jungheinrich electric forklift truck CBH 2.0 with two-stage telescopic mast, lift height 3300 mm, load capacity 2000 kg, including external charger 80 V, 100 A, CEE, 5-pin
Article number: 604727 | EAN/GTIN: 4055091340081
The AntOn by Jungheinrich electric forklift truck CBH 2.0, including external charger, combines robust construction, easy handling and high cost-effectiveness. As a reliable truck with a two-stage telescopic mast and a lift height of 3300 mm, it is ideal for goods turnover in warehouse areas with low clearances and high racking. Whether loading and unloading HGVs, transporting pallets or operating in narrow aisles – the CBH 2.0 electric forklift truck impresses with compact design, excellent manoeuvrability and reliable performance. The lithium-ion technology also provides extended operating times and short charging breaks during daily use, ensuring the forklift truck is always ready for operation.
- Robust technology for daily use.
- Two-stage telescopic mast for efficient lifting and lowering
- Load capacity of 2000 kg up to a lift height of 3300 mm.
- With attached side shifter for the precise positioning of pallets in racking or on HGVs.
- Double auxiliary hydraulics for convenient control of attachments.
- Includes windscreen wipers and washer.
- Floor-Spot as an optical warning system.
- Compact design for operation in narrow warehouse aisles.
- Lithium-ion battery for long runtimes and fast charging.
- High ground clearance for outdoor use on uneven terrain.
- Travel speed up to 15 km/h for fast material flow.
- Ergonomic driver's seat with armrests and adjustable steering wheel
- Optimal view for precise work and enhanced safety.
- External charging option for continuous availability.
Robust technology, easy handling and reliable performance: the AntOn by Jungheinrich electric forklift truck CBH 2.0 with 2000 kg load capacity and external charger
The AntOn by Jungheinrich CBH 2.0 electric forklift truck is designed for versatility and cost-effectiveness. The two-stage telescopic mast offers a lift height of 3300 mm, enabling goods to be stored or retrieved quickly and safely from medium-height shelves. Thanks to its compact geometry and small turning radius, the four-wheel forklift remains easy to manoeuvre even in tight warehouse spaces. Large tyres and increased ground clearance ensure that the CBH 2.0 can be used just as reliably outdoors.

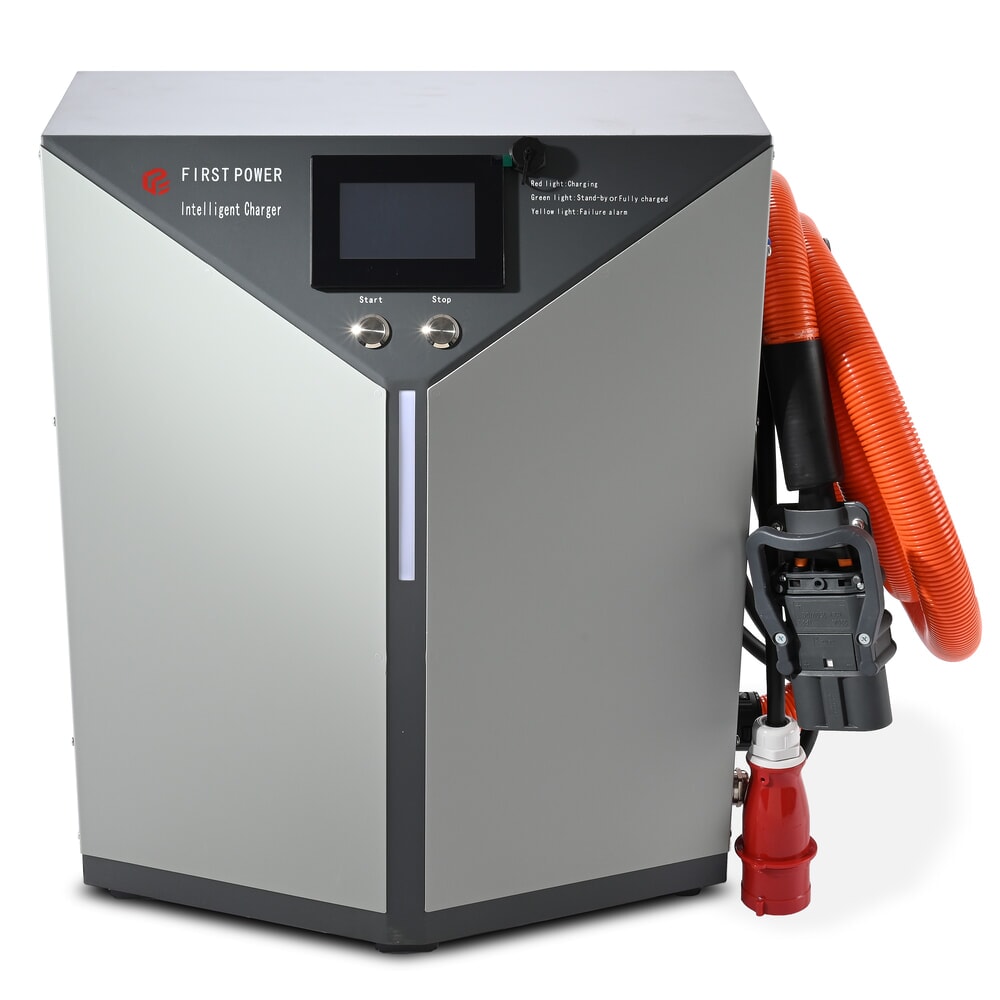

The integrated lithium-ion battery delivers constant power without memory effect and allows for quick intermediate charging via the included external charger. This prevents long downtimes.
An attached side shifter enables loads to be positioned laterally with millimetre precision, without the need to realign the forklift truck. In combination with the double auxiliary hydraulics, complex attachments with multiple hydraulic functions can be operated simultaneously, such as tine adjustments or clamping devices. This increases flexibility in daily use and reduces unnecessary travel distances.
The ergonomic comfort seat with armrests, adjustable steering wheel and generous legroom ensures fatigue-free working. An LED truck status display clearly provides all relevant operating data, whilst the well-arranged control elements simplify handling. Clear view of the fork tips and surrounding work area further enhances precision and safety.
With a travel speed of up to 15 km/h, the CBH 2.0 significantly accelerates internal material flow. Thanks to its attractive price-performance ratio, the AntOn by Jungheinrich CBH 2.0 electric forklift truck is a future-proof investment for companies prioritising efficient, quiet and emission-free warehouse logistics.
The integrated lithium-ion battery delivers constant power without memory effect and allows for quick intermediate charging via the included external charger. This prevents long downtimes.
An attached side shifter enables loads to be positioned laterally with millimetre precision, without the need to realign the forklift truck. In combination with the double auxiliary hydraulics, complex attachments with multiple hydraulic functions can be operated simultaneously, such as tine adjustments or clamping devices. This increases flexibility in daily use and reduces unnecessary travel distances.
The ergonomic comfort seat with armrests, adjustable steering wheel and generous legroom ensures fatigue-free working. An LED truck status display clearly provides all relevant operating data, whilst the well-arranged control elements simplify handling. Clear view of the fork tips and surrounding work area further enhances precision and safety.
With a travel speed of up to 15 km/h, the CBH 2.0 significantly accelerates internal material flow. Thanks to its attractive price-performance ratio, the AntOn by Jungheinrich CBH 2.0 electric forklift truck is a future-proof investment for companies prioritising efficient, quiet and emission-free warehouse logistics.
