Item number:
603063
AntOn by Jungheinrich electric forklift truck c 2.5 with three-stage telescopic mast, lift height 4,800 mm, load capacity 2,500 kg, Eco weather protection cabin, incl. external charger 80 V, 60 A, CEE, 5-pin
Robustly constructed for easy handling across versatile applications.
-
Free shipping from £50 (plus VAT)
-
Secure data protection
-
Personal purchasing advice
Technical details
AntOn by Jungheinrich electric forklift truck c 2.5 with three-stage telescopic mast, lift height 4,800 mm, load capacity 2,500 kg, Eco weather protection cabin, incl. external charger 80 V, 60 A, CEE, 5-pin
Article number: 603063 | EAN/GTIN: 4055091338262
| Acceleration time, laden/unladen |
6,6 / 6,4 s |
| Aisle width |
4195 mm |
| Battery capacity |
230 Ah/per unit |
| Battery type |
Lithium-ion |
| Battery voltage |
80 V/per unit |
| Brake |
hydraulic |
| Brand |
AntOn by Jungheinrich |
| Capacity |
2500 kg |
| Charger |
80 V, 60 A, CEE, 5-pin |
| Charging time |
3,5 h |
| Coupling height |
311 mm |
| Display type |
LED, Touch |
| Drive |
electric |
| Drive control type |
AC |
| Drive motor power |
17 kW |
| Drive wheel material |
Superelastik (SE) |
| Energy consumption with maximum throughput |
6.21 kWh/h |
| Equipment |
Rear-view mirror Strobe light |
| Fork carriage ISO 2328, class/type A,B |
2A |
| Fork carriage width |
1040 mm |
| Fork height |
40 mm |
| Fork length |
1150 mm |
| Fork width |
122 mm |
| Free lift |
1240 mm |
| Ground clearance |
170 mm |
| Ground clearance, laden, below mast |
120 mm |
| Height of overhead guard/cab |
2165 mm |
| Lift |
4800 mm |
| Lift motor output |
26 kW |
| Lift speed with/without load |
0,5 / 0,56 m/s |
| Load centre |
500 mm |
| Lowering speed with/without load |
0,54 / 0,56 m/s |
| Mast |
Three-stage telescopic mast with free lift (DZ) |
| Mast height |
2265 - 5895 mm |
| Max. drawbar pull, laden/unladen |
13760 / 13760 N |
| Max. gradeability laden/unladen |
14/25 % |
| Net weight incl. battery |
3977 kg |
| Noise level as per EN 12053 (operator's ear) |
74 dB(A) |
| Oil volume for attachments |
35 l/min |
| Operating pressure for attachments |
180 bar |
| Operator type |
Seat |
| Overall length |
3695 mm |
| Overall width |
1154 mm |
| Seat height/stand height |
1095 mm |
| Section |
Performance |
| Smallest internal turning radius |
838 mm |
| Throughput |
150 t/h |
| Tilt of mast/fork carriage forward/backward (α/β) |
6 / 6 ° |
| Travel speed, laden/unladen |
16 / 17 km/h |
| Turning radius |
2300 mm |
| USB port |
Yes |
| quality seal |
AntON LI-ION |
Item description
AntOn by Jungheinrich electric forklift truck c 2.5 with three-stage telescopic mast, lift height 4,800 mm, load capacity 2,500 kg, Eco weather protection cabin, incl. external charger 80 V, 60 A, CEE, 5-pin
Article number: 603063 | EAN/GTIN: 4055091338262

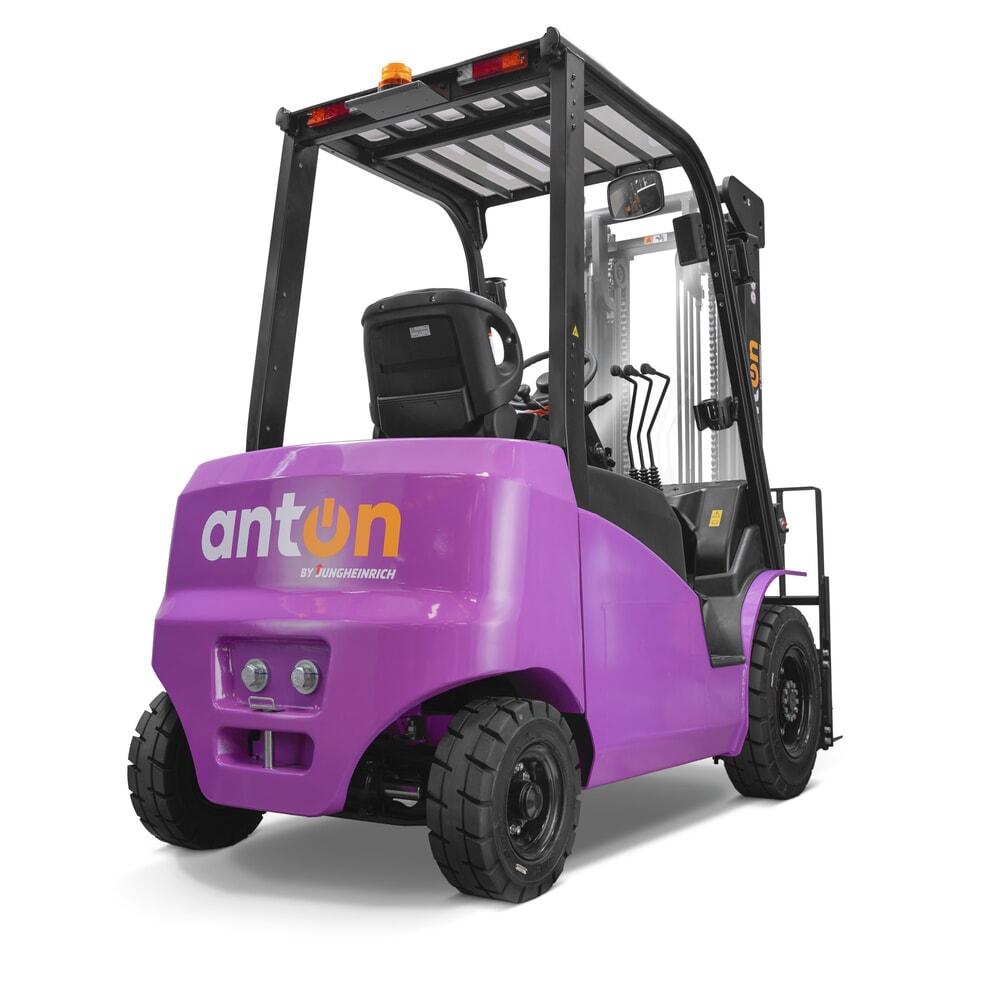

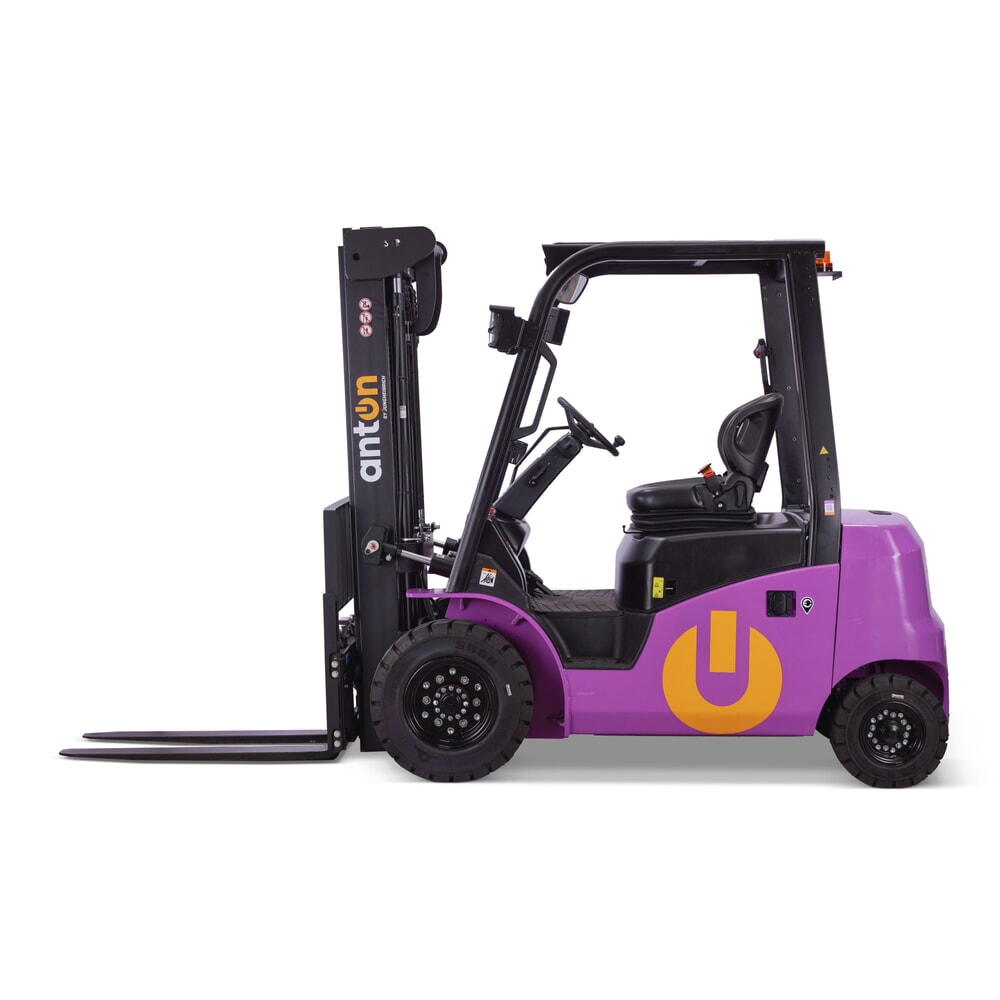

The AntOn by Jungheinrich c 2.5 electric forklift truck combines robust construction, easy handling and high cost-effectiveness in a reliable truck. With its three-stage telescopic mast and a lift height of 4,800 mm, it is ideal for goods turnover in warehouse areas with low clearances and high shelving. Whether loading and unloading HGVs, transporting pallets or use in narrow aisles – the c 2.5 electric forklift excels with its compact design, excellent manoeuvrability and reliable performance. For added comfort, this model is equipped with a weather protection cabin made from tempered glass. The lithium-ion technology also provides extended operating times and short charging breaks during daily use, ensuring the forklift truck is always ready for operation.
- Robust technology for daily use.
- Three-stage telescopic mast for efficient lifting and lowering.
- Load capacity of 2,500 kg for lift heights up to 4,800 mm
- With weather protection cabin made of tempered glass.
- Integrated side shifter for precise positioning in confined spaces.
- Double auxiliary hydraulics for convenient control of attachments.
- Includes windscreen wipers and washer.
- Floor-Spot as an optical warning system.
- Compact design for operation in narrow warehouse aisles.
- Lithium-ion battery for long runtimes and fast charging.
- High ground clearance for outdoor use on uneven terrain.
- Travel speed up to 17 km/h for fast material flow.
- Ergonomic driver's seat with adjustable steering wheel.
- Optimal view for precise work and enhanced safety.

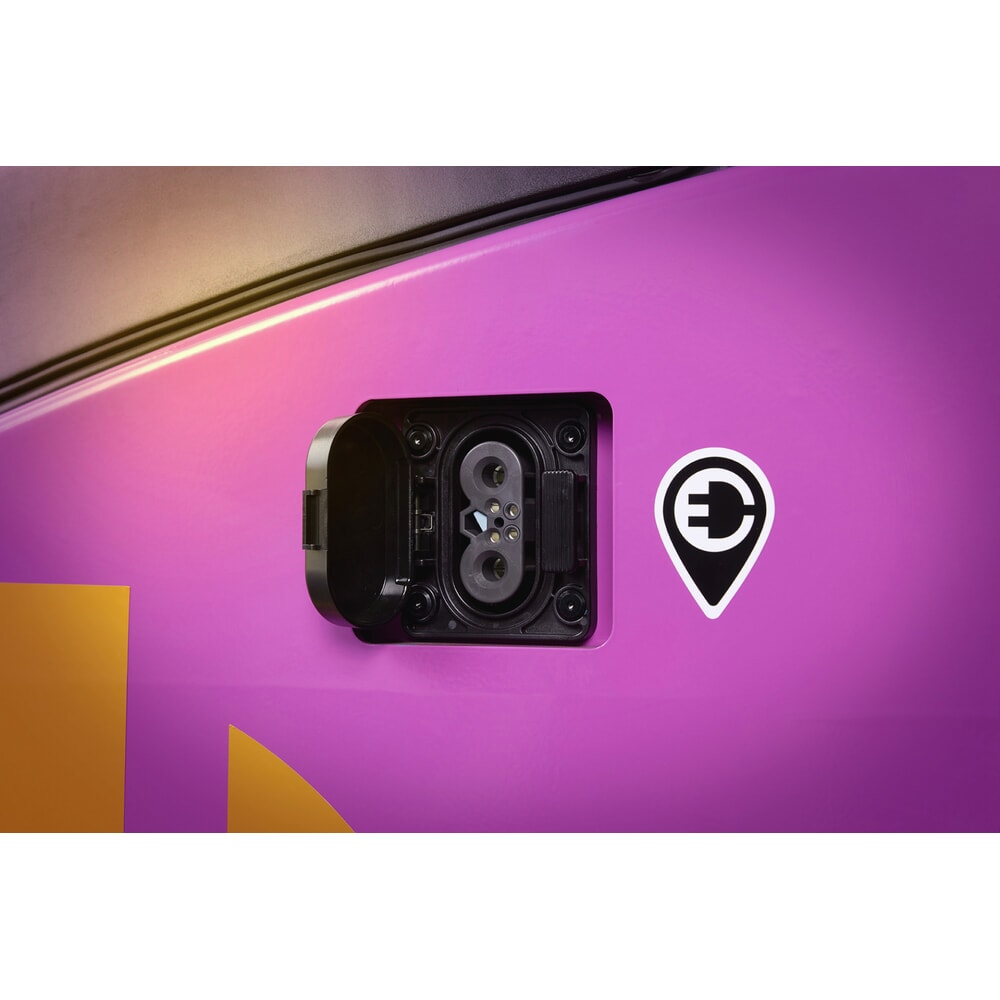

- External charging option for continuous availability.
Robust technology, easy handling and reliable performance: the AntOn by Jungheinrich c 2.5 electric forklift truck with 2,500 kg load capacity and weather protection cabin
The AntOn by Jungheinrich c 2.5 electric forklift truck is designed for versatility and cost-effectiveness. The three-stage telescopic mast offers a lift height of 4,800 mm, enabling goods to be stored or retrieved quickly and safely at higher shelf levels. Thanks to its compact geometry and small turning radius, the four-wheel forklift remains easy to manoeuvre even in tight warehouse spaces. Large tyres and increased ground clearance ensure that the c 2.5 can be used reliably outdoors as well.

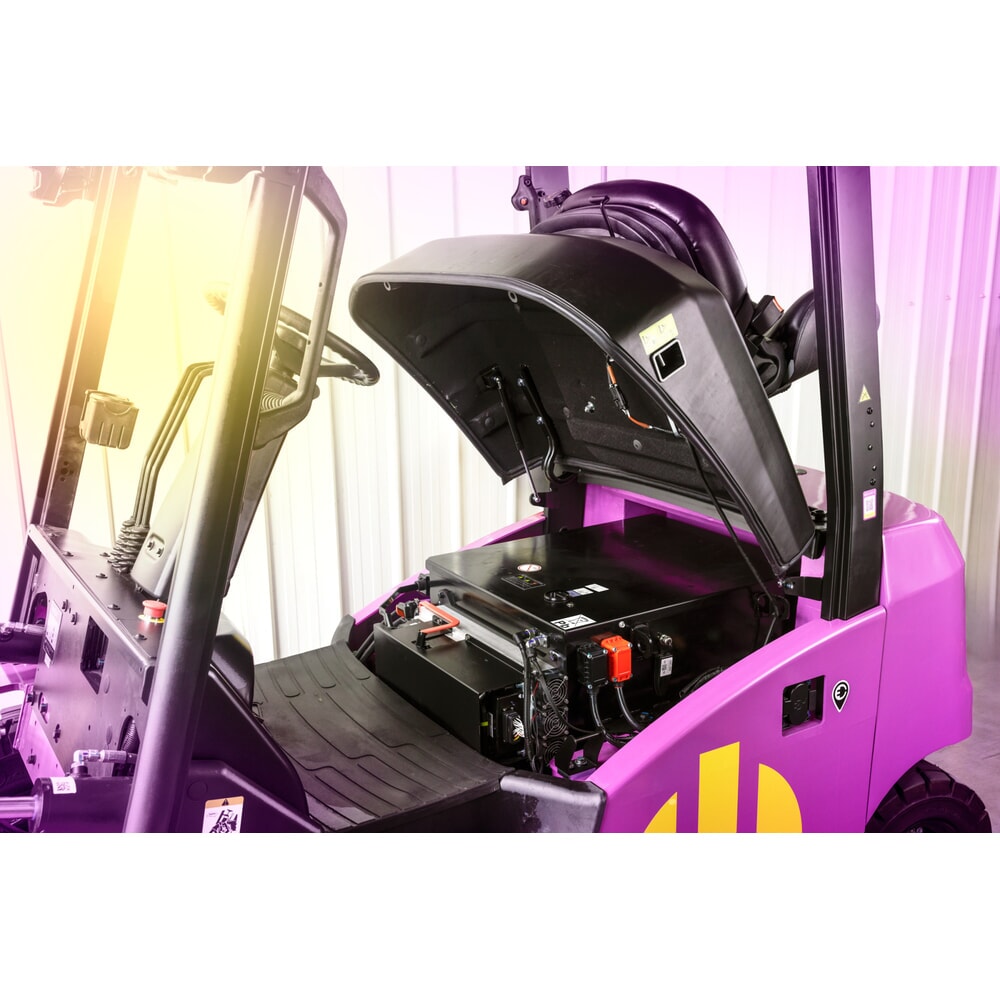

The integrated lithium-ion battery delivers consistent power without memory effect and enables fast intermediate charging, avoiding long downtimes. For added comfort and safety, this electric forklift is equipped with a weather protection cabin. It features a tempered glass windscreen with wipers and washer, as well as a tempered glass roof, ensuring clear visibility in all weather conditions.

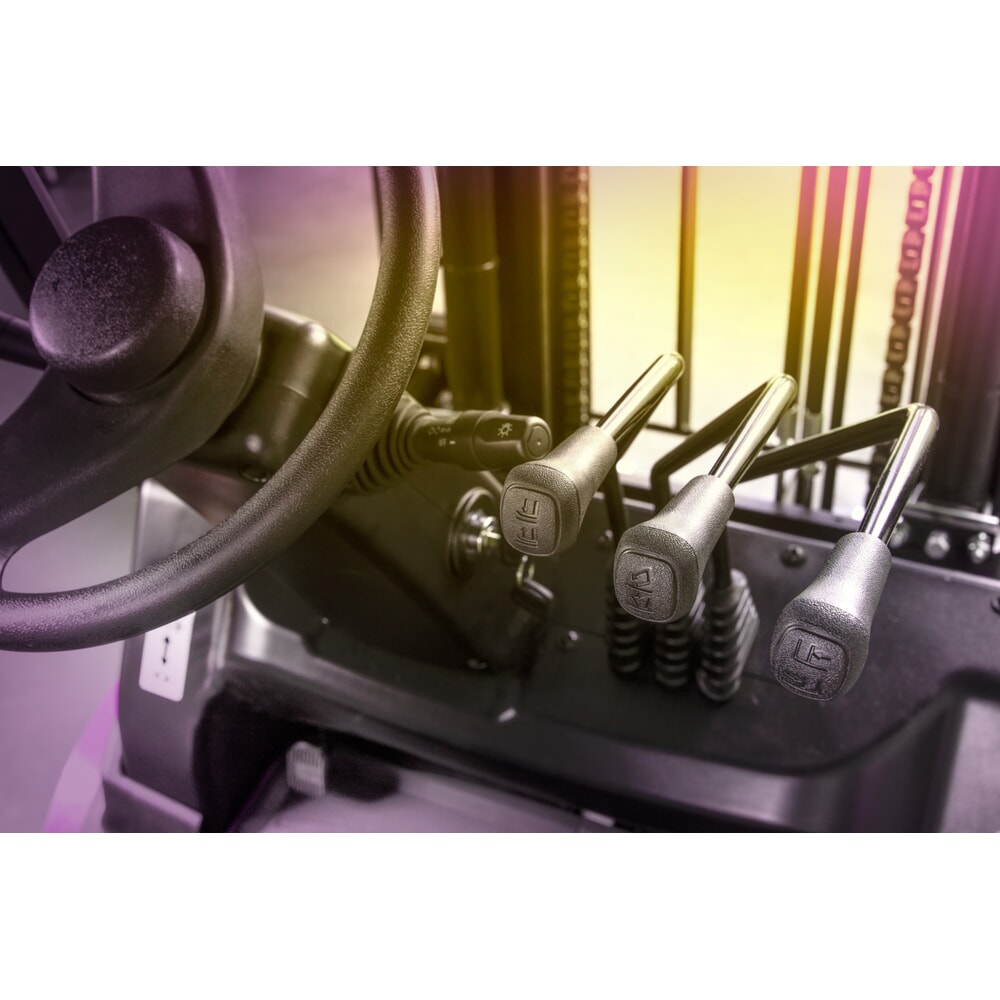

An integrated side shifter allows loads to be positioned laterally with millimetre precision without the need to realign the forklift truck. In combination with the double auxiliary hydraulics, complex attachments with multiple hydraulic functions can be operated simultaneously, such as tine adjustments or clamping devices. This increases flexibility in daily use and reduces unnecessary travel distances.
The ergonomic driver's seat with adjustable steering wheel and generous legroom ensures fatigue-free working. An LED truck status display clearly provides all relevant operating data, whilst the well-arranged control elements simplify handling. Clear view of the fork tips and surrounding work area further enhances precision and safety.
With a travel speed of up to 17 km/h, the c 2.5 significantly speeds up internal material flow. Thanks to its attractive price-performance ratio, the AntOn by Jungheinrich c 2.5 electric forklift truck is a future-proof investment for companies focusing on efficient, quiet and emission-free warehouse logistics.
The AntOn by Jungheinrich c 2.5 electric forklift truck is designed for versatility and cost-effectiveness. The three-stage telescopic mast offers a lift height of 4,800 mm, enabling goods to be stored or retrieved quickly and safely at higher shelf levels. Thanks to its compact geometry and small turning radius, the four-wheel forklift remains easy to manoeuvre even in tight warehouse spaces. Large tyres and increased ground clearance ensure that the c 2.5 can be used reliably outdoors as well.
The integrated lithium-ion battery delivers consistent power without memory effect and enables fast intermediate charging, avoiding long downtimes. For added comfort and safety, this electric forklift is equipped with a weather protection cabin. It features a tempered glass windscreen with wipers and washer, as well as a tempered glass roof, ensuring clear visibility in all weather conditions.
An integrated side shifter allows loads to be positioned laterally with millimetre precision without the need to realign the forklift truck. In combination with the double auxiliary hydraulics, complex attachments with multiple hydraulic functions can be operated simultaneously, such as tine adjustments or clamping devices. This increases flexibility in daily use and reduces unnecessary travel distances.
The ergonomic driver's seat with adjustable steering wheel and generous legroom ensures fatigue-free working. An LED truck status display clearly provides all relevant operating data, whilst the well-arranged control elements simplify handling. Clear view of the fork tips and surrounding work area further enhances precision and safety.
With a travel speed of up to 17 km/h, the c 2.5 significantly speeds up internal material flow. Thanks to its attractive price-performance ratio, the AntOn by Jungheinrich c 2.5 electric forklift truck is a future-proof investment for companies focusing on efficient, quiet and emission-free warehouse logistics.
