Technical details

Ameise PTM® 2.0 Scale pallet truck with weighing scale, 1 kg increments, load capacity 2,000 kg

Article number: 199562 | EAN/GTIN: 4055091198842

Automatic shut-off without insert
3 min
Battery capacity
1,5 Ah/per unit
Battery voltage
1.5 V/per unit
Battery weight
0.03 kg
Brand
Ameise®
Capacity
2000 kg
Chassis RAL colour
RAL 5018 turquoise blue
Chassis surface
powder-coated
Control panel
right-handed
Digit unit
1 kg increments
Drive
manual
Face of forks length
410 mm
Fork length
1150 mm
Fork roller diameter
74 mm
Fork roller equipment
Single
Fork roller material
Polyurethane (PU)
Fork roller width
93 mm
Fork width
180 mm
Ground clearance
22 mm
Handle fittings
Rubber sheath
Hydraulic oil quantity
0.3 l
Hydraulic oil type
Mineral oil
Hydraulic oil viscosity acc. to ISO-VG
32
IP protection type display
IP 65
IP protection type measuring cells
IP 67
Lift
110 mm
Lift height per pump stroke
18 mm
Lift range
90 - 200 mm
Load centre
600 mm
Measuring tolerance
0.1 %
Net weight
104 kg
No. of batteries
4
Noise damping
Yes
Operator type
Manual
Overall length
1560 mm
Overall width
555 mm
Pallet truck material
Steel
Power supply scale
Battery
Pump strokes to lift pallet
2
Pump strokes to max. lift height
6
Rapid lift
Yes
Route
Short distance
Scale type
digital
Section
Performance
Steering radius
110 °
Steering wheel diameter
180 mm
Steering wheel material
Solid rubber
Steering wheel width
50 mm
Temperature range
-10 - 40 °C
Tiller RAL colour
RAL 9005 deep black
Tiller height
1210 mm
Tiller surface
powder-coated
Turning radius
1350 mm
Weighing range
2.000 kg
Zero adjustment via keyboard
Yes

Item description

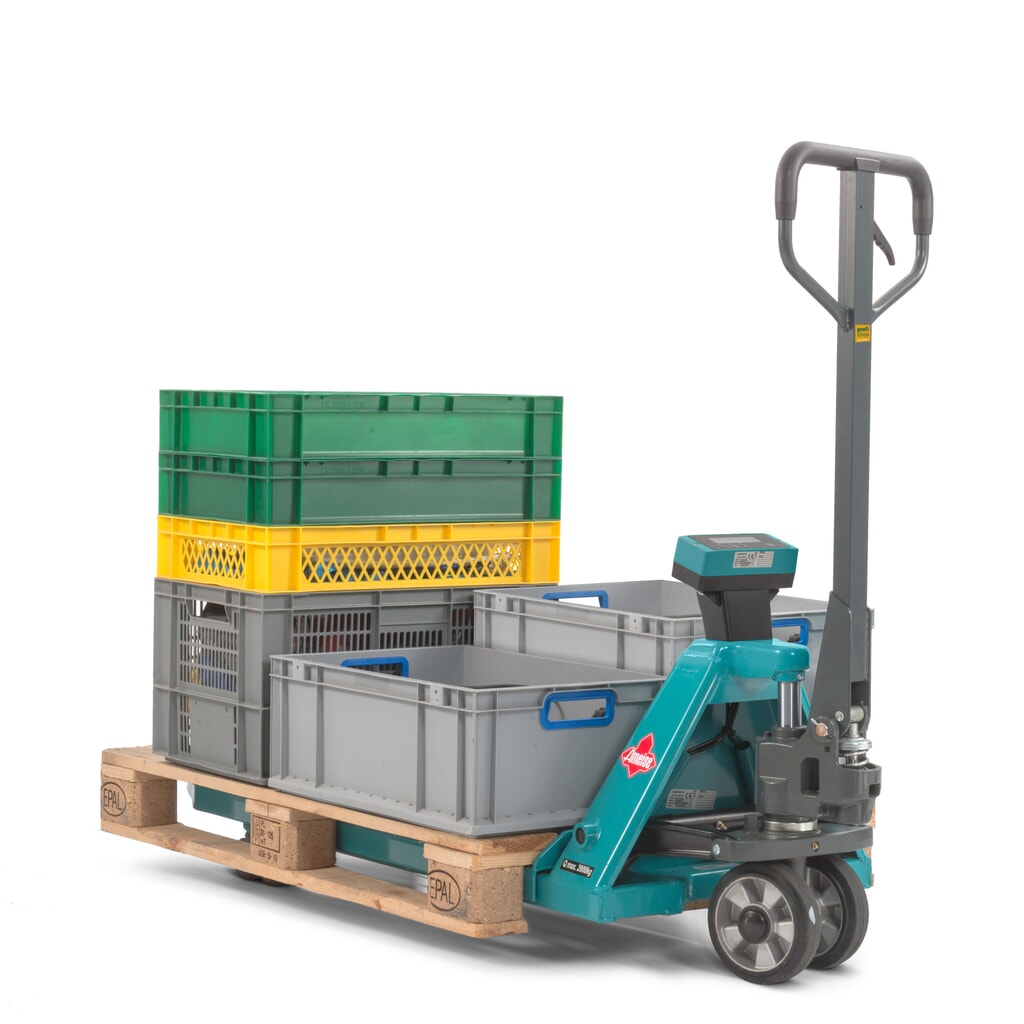

Ameise PTM® 2.0 Scale pallet truck with weighing scale, 1 kg increments, load capacity 2,000 kg

Article number: 199562 | EAN/GTIN: 4055091198842

The Ameise® weighing scale pallet truck with 1 kg display increments is ideal for simple weighing operations and weight controls in dispatch and goods receipt. 4 weighing cells and a measuring tolerance of 0.1% of the measured range ensure precise results at all times. The hand pallet truck impresses with its 2000 kg capacity, versatile application and robust quality. The high-quality Ameise® pump technology and quick lift function up to 120 kg save you time and energy during everyday pallet handling.
  • 1 kg display increments
  • Measuring tolerance max. 0.1% deviation from measuring range

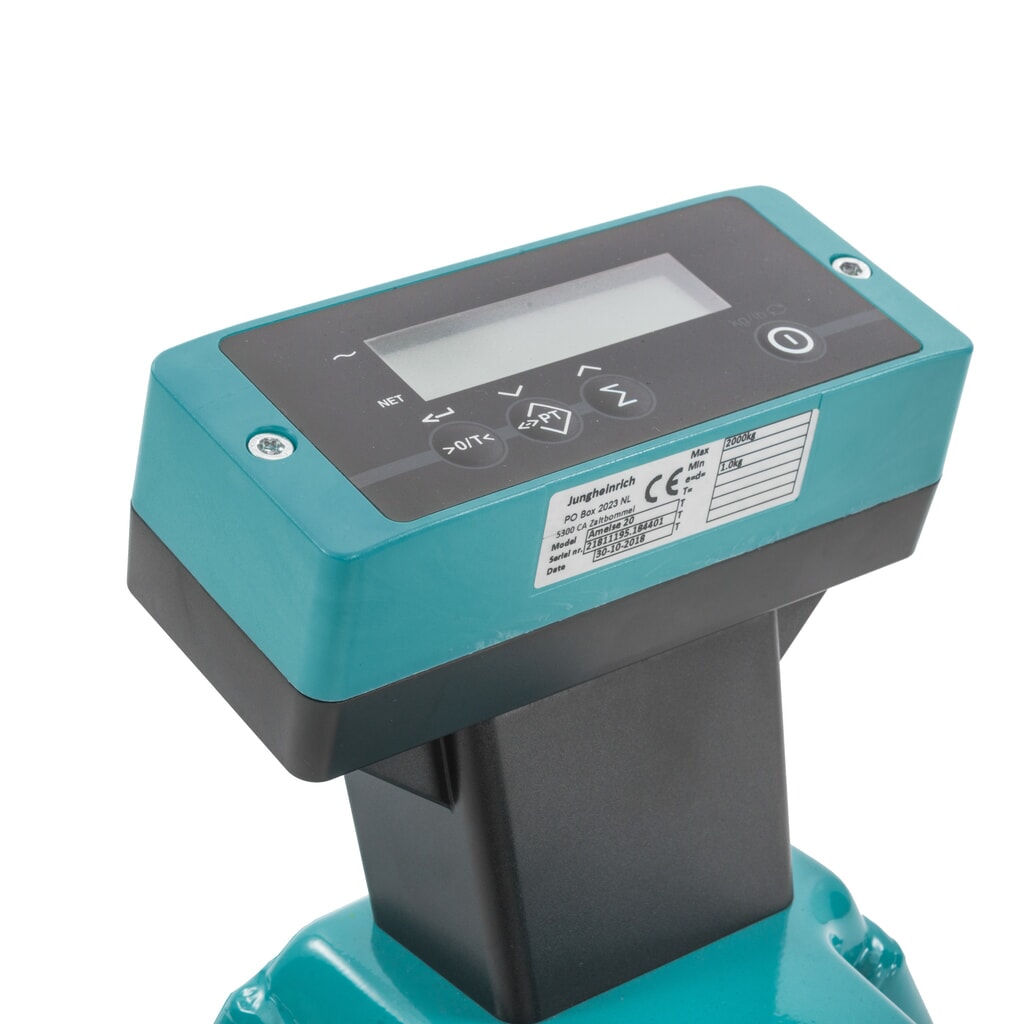

  • Tare, manual zero correction and totals memory
  • Gross and net weight display
  • Automatic deactivation after 3 minutes
  • Protection rating: weigher operating and display unit: IP65, load cells: IP67

The Ameise® weighing scale pallet truck for precision weighing

If you require a tool for performing simple weight checks with utmost precision, then the Ameise® hand pallet truck with weighing scale is the ideal solution. Be it for incoming goods inspections, establishing shipping weights or avoiding truck overloads – the weighing scale pallet truck offers accurate results in 1 kg display increments for all applications. This is ensured by the 4 weighing cells and a measuring tolerance of max. 0.1% of the measured range. Boasting robust Ameise® quality with a capacity of 2000 kg, the pallet truck is the perfect aid for weighing and transporting your goods.

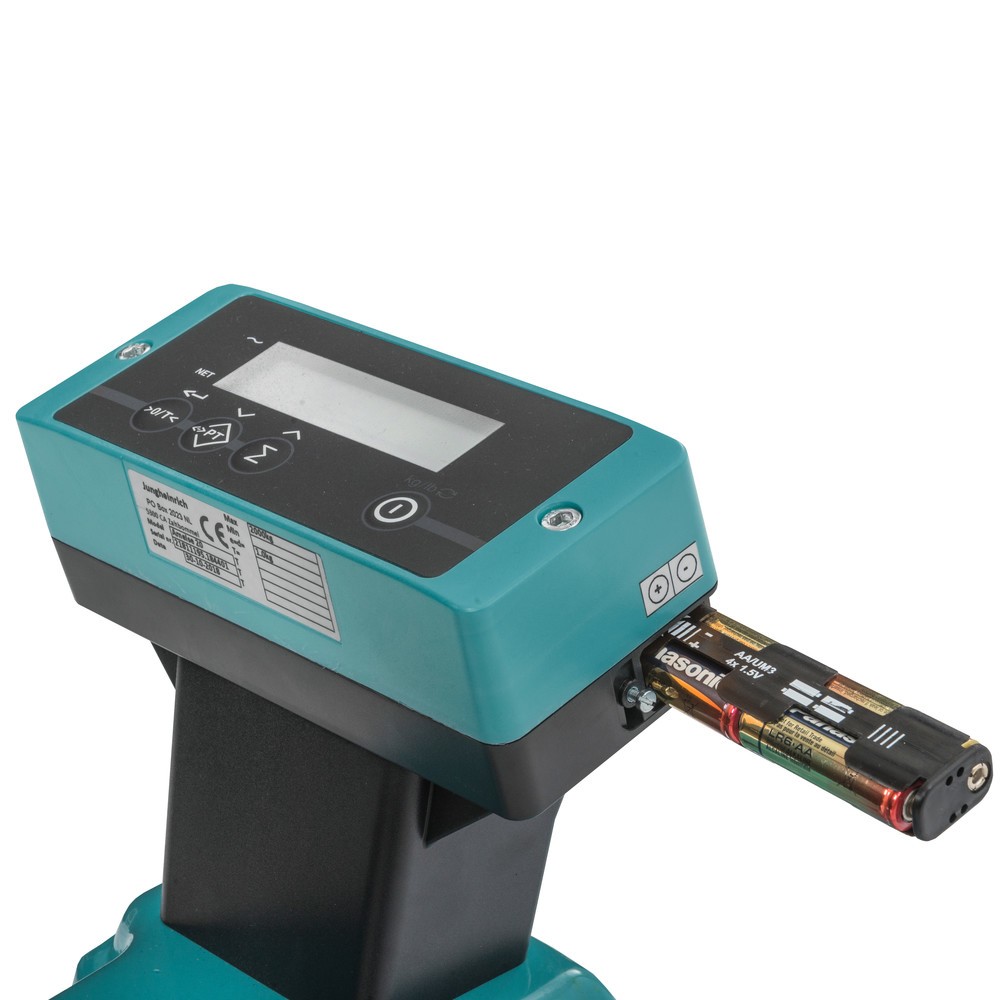

Operation of the scale could not be simpler. After inserting the batteries (4 x 1.5 V / AA), you can use the scale for approx. one year when performing 5 weighing operations per day. To minimise energy consumption, the scale switches off automatically when not used for approx. 3 minutes. The other functions available to you include a gross and net weight display, tare function, manual zero correction and a totals memory.

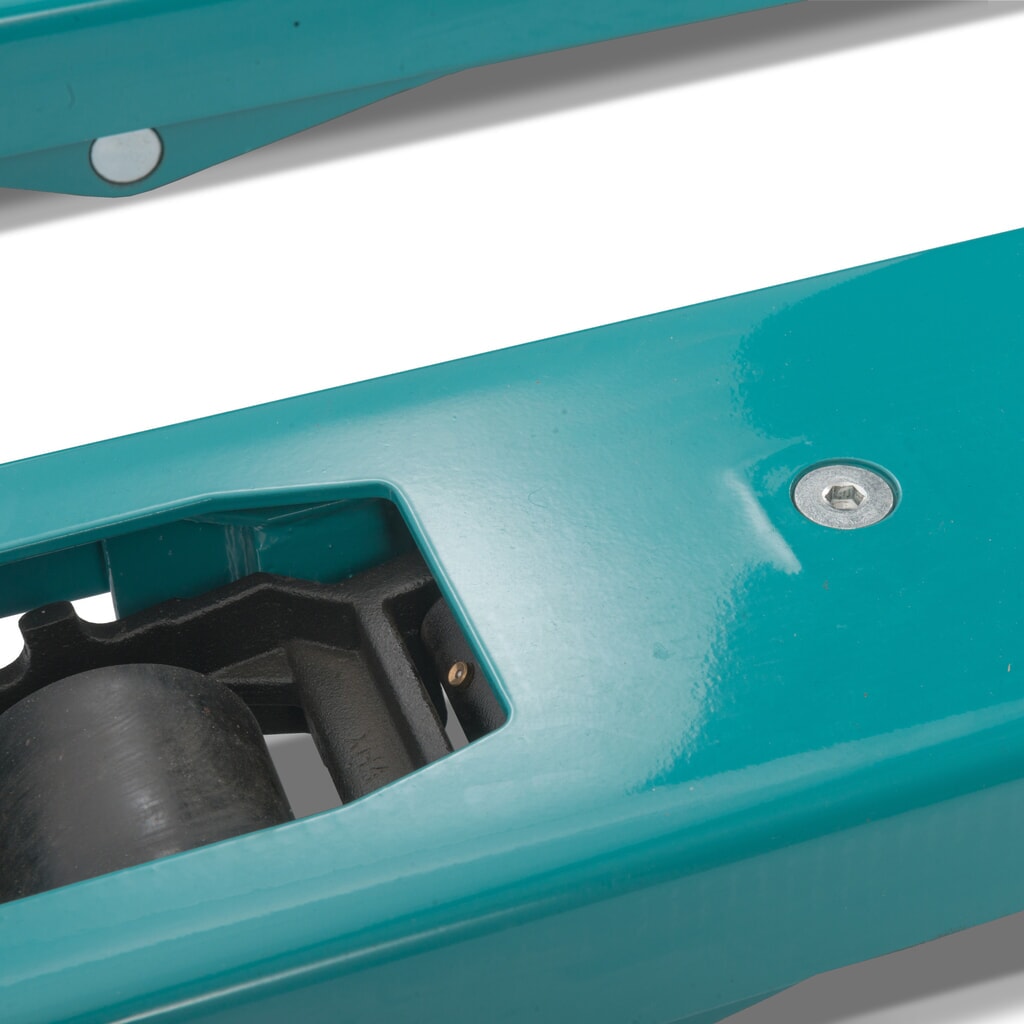

The rubber-coated handle allows you to raise, lower and transport your loads manually with utmost ease. The durable high-performance hydraulic pump is made from high-quality steel with hard chrome-plated pressure pistons to cope with the rigours of continuous daily use. Thanks to the quick lift function up to 120 kg, you can lift the pallet clear of the ground with just 2 strokes of the pump. The steering castors with solid rubber tyres combined with the polyurethane fork rollers ensure comfortable, low-noise travel with perfect grip. Depending on the ground conditions, you can choose between single or tandem rollers. Tandem rollers ensure smooth running over thresholds and uneven floors.

The Ameise® weighing scale pallet truck combines the functionality of a high-precision scale with the mobility and flexibility of a hand pallet truck. Experience the benefits for yourself by purchasing the versatile weighing scale pallet truck from our shop.

Product Notes

Our offer is aimed exclusively at commercial customers (entrepreneurs). In particular, the product is not intended for use by consumers.
