Item number: 105443

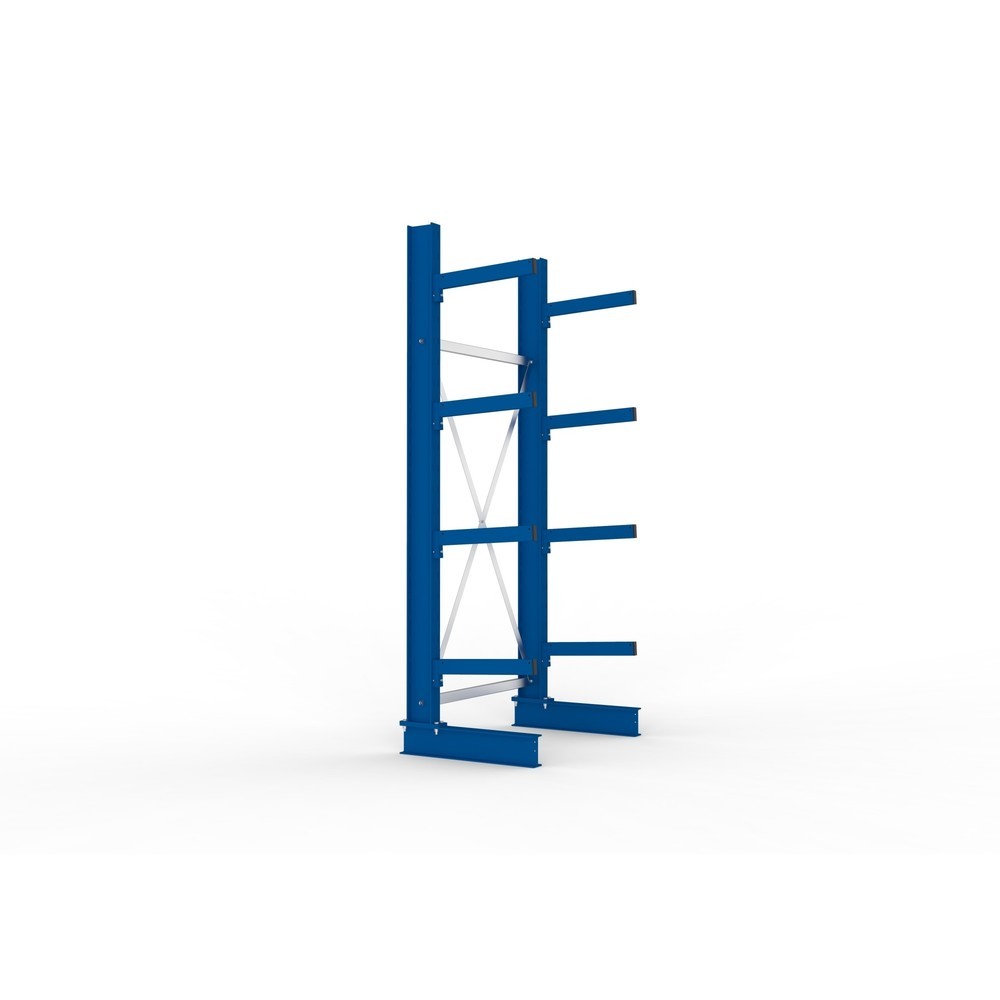

META cantilever rack, BU, single-sided, LC 430 kg, height 2,500 mm

Name: META cantilever rack, BU, single-sided, LC 430 kg, height 2,500 mm
Brand: META
SKU: 105443
Availability: InStock

Store heavy long goods reliably and in a space-saving manner

Go to product description

Select variant:

Depth:

730 mm

830 mm

1030 mm

Height:

2000 mm

2500 mm

Load per arm max.:

250 kg

355 kg

430 kg

Width:

11 Working days

Free shipping from £50 (plus VAT)

Secure data protection

Personal purchasing advice

Technical details

META cantilever rack, BU, single-sided, LC 430 kg, height 2,500 mm

Article number: 105443 | EAN/GTIN: 4026212119756

Access options	one-sided
Assembly	Screw assembly
Bay load max.	2200 kg
Bay type	Base module
Brand	META
Compatible with add-on unit	Yes
Depth	730 mm
Effective depth	500 mm
Exterior dimensions base unit	Axle distance + 73 mm / nominal depth + 230 mm
External dimension depth	500 mm
External dimension height	2500 mm
External dimension width	1103 mm
Grid	100 mm
Height	2500 mm
Kragarm-Abstand	1030 mm
Load per arm max.	430 kg
Net weight	106,33 kg
No. of cantilever arms per upright (incl. foot)	5
No. of levels	5
No. of uprights	2
Nominal depth	500 mm
Nominal height	2500 mm
Nominal width	1000 mm
Place of manufacture	Made in Europe
Quality mark	RAL-RG 614/5 (cantilever shelves)
Rack type	Cantilever rack
Section	Professional
Shelf components	105443
Support arm RAL colour	RAL 5010 enzianblau
Uprights RAL colour	RAL 5010 gentian blue
Width	1103 mm
configurable	Yes
quality seal	Certified security

Item description

META cantilever rack, BU, single-sided, LC 430 kg, height 2,500 mm

Article number: 105443 | EAN/GTIN: 4026212119756

Does your warehouse have to accommodate long goods in the form of heavy pipes, beams or poles? Then special racks are a great help. META cantilever racking is ideal for limited storage space on walls as it has a one-sided design.

One-sided cantilever racks for walls
Cantilever arms in different lengths
Maximum load capacity per arm 430 kg
Expansion possible with add-on units

Cantilever racks for the efficient storage of pipes and long goods

Metal pipes, wooden beams, poles, as well as sheet and plate goods in over-long lengths pose special challenges for warehouse management. If these goods are among your regular warehouse items, you should facilitate their storage with specially designed racking systems. As this META cantilever rack can be loaded only from one side, it is located on walls or against the back of other racks. It is suitable for all types of long goods because the integrated roll-off protection allows for the correct loading of all pipe and roll-shaped products.
The racks can be constructed quickly. As a base unit, the cantilever racks are available in various sizes. They can easily be expanded with the appropriate add-on units.

Create space in your warehouse for over-long items and purchase the cantilever racks from us here.

Product Notes

Regale mit Höhen-Tiefen-Verhältnis ≥ 5:1 gegen Kippen sichern. Die Belastungen der Kragarme gelten bei gleichmäßiger Lastverteilung. Doppelseitige Ständer haben bei einseitiger Nutzung nur die halbe Ständerlast. Die in der Tabelle angegebene Tiefe ist die Nutztiefe der Arme je Seite.

Our offer is aimed exclusively at commercial customers (entrepreneurs). In particular, the product is not intended for use by consumers.

Warning and safety information
