Item number:
105398

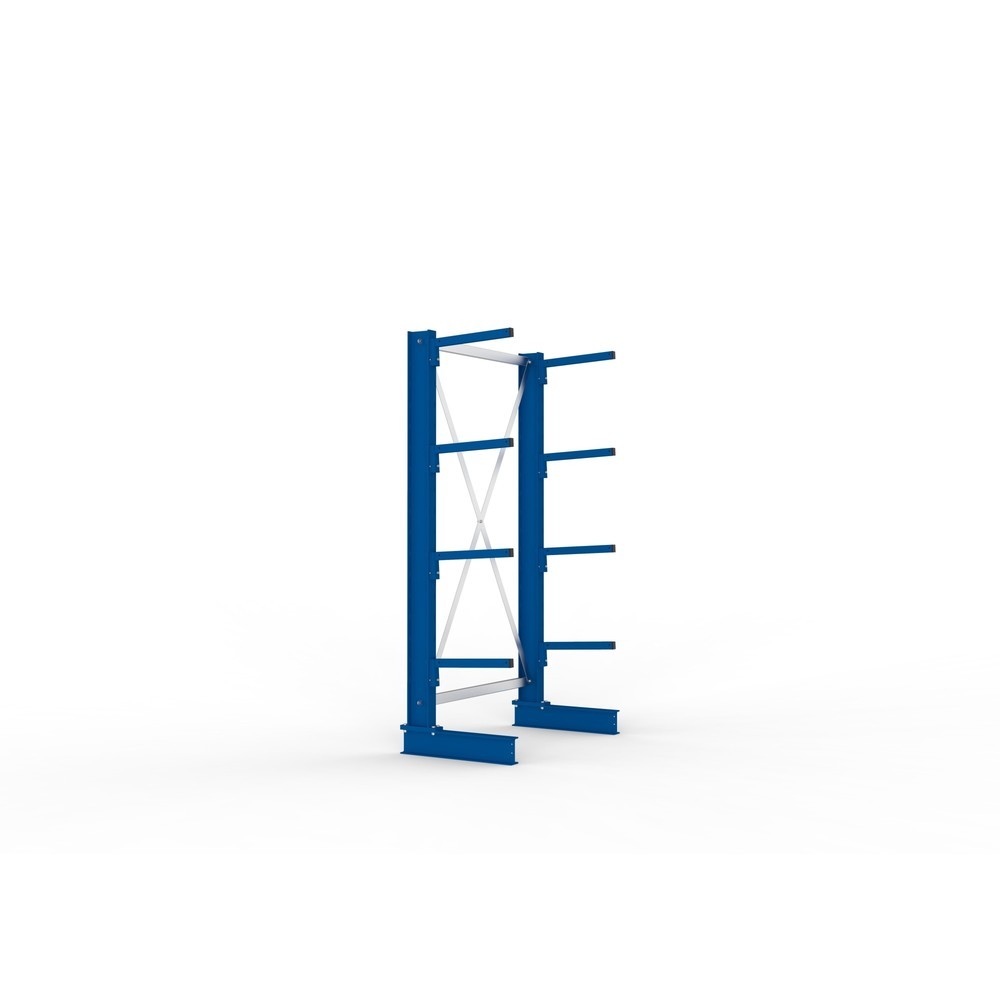

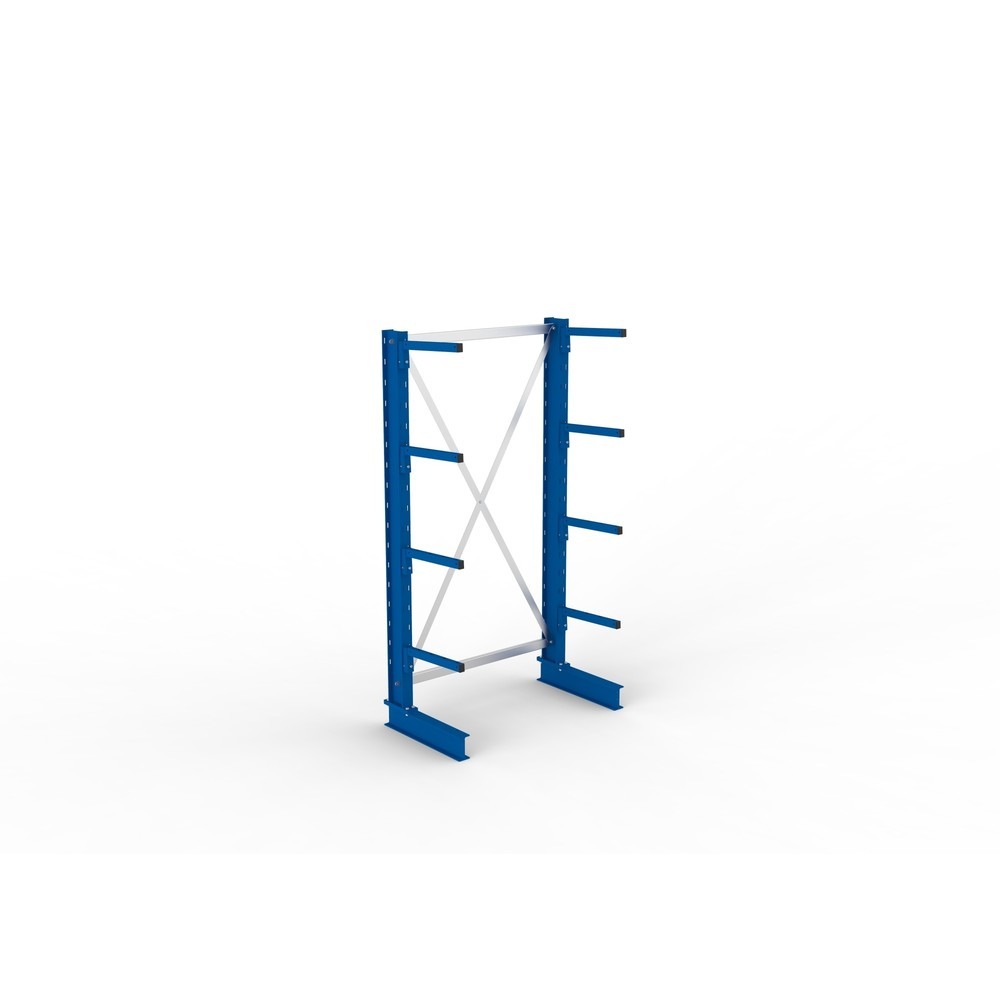

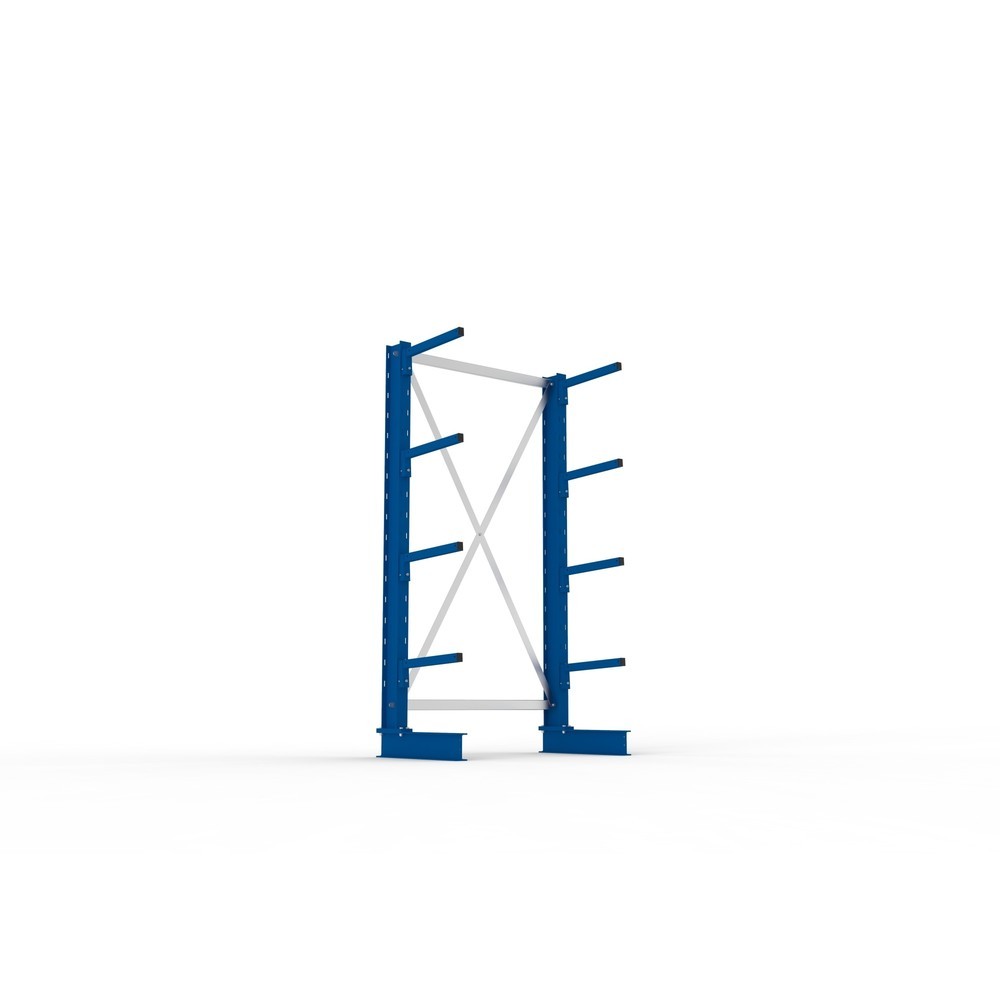

META cantilever rack, BU, single-sided, LC 220 kg, height 2,000 mm
Store heavy long goods reliably and in a space-saving manner
11 Working days
Free shipping from £50 (plus VAT)
Secure data protection
Personal purchasing advice
Technical details
META cantilever rack, BU, single-sided, LC 220 kg, height 2,000 mm
Article number: 105398 | EAN/GTIN: 4026212118674
| Access options | one-sided |
| Assembly | Screw assembly |
| Bay load max. | 1750 kg |
| Bay type | Base module |
| Brand | META |
| Compatible with add-on unit | Yes |
| Depth | 610 mm |
| Effective depth | 400 mm |
| Exterior dimensions base unit | Axle distance + 64 mm / nominal depth + 210 mm |
| External dimension depth | 400 mm |
| External dimension height | 2000 mm |
| External dimension width | 1094 mm |
| Grid | 100 mm |
| Height | 2000 mm |
| Kragarm-Abstand | 1030 mm |
| Load per arm max. | 220 kg |
| Net weight | 72,02 kg |
| No. of cantilever arms per upright (incl. foot) | 5 |
| No. of levels | 5 |
| No. of uprights | 2 |
| Nominal depth | 400 mm |
| Nominal height | 2000 mm |
| Nominal width | 1000 mm |
| Place of manufacture | Made in Europe |
| Quality mark | RAL-RG 614/5 (cantilever shelves) |
| Rack type | Cantilever rack |
| Section | Professional |
| Shelf components | 105398 |
| Support arm RAL colour | RAL 5010 enzianblau |
| Uprights RAL colour | RAL 5010 gentian blue |
| Width | 1094 mm |
| configurable | Yes |
| quality seal | Certified security |
Item description
META cantilever rack, BU, single-sided, LC 220 kg, height 2,000 mm
Article number: 105398 | EAN/GTIN: 4026212118674
Does your warehouse have to accommodate long goods in the form of heavy pipes, beams or poles? Then special racks are a great help. META cantilever racking is ideal for limited storage space on walls as it has a one-sided design.
- One-sided cantilever racks for walls
- Cantilever arms in different lengths
- Maximum load capacity per arm 220 kg
- Expansion possible with add-on units
Cantilever racks for the efficient storage of pipes and long goods
Metal pipes, wooden beams, poles, as well as sheet and plate goods in over-long lengths pose special challenges for warehouse management. If these goods are among your regular warehouse items, you should facilitate their storage with specially designed racking systems. As this META cantilever rack can be loaded only from one side, it is located on walls or against the back of other racks. It is suitable for all types of long goods because the integrated roll-off protection allows for the correct loading of all pipe and roll-shaped products.
The racks can be constructed quickly. If the load is evenly distributed on one level, the arms of the same length can withstand loads of up to 220 kg. As a base unit, the cantilever racks are available in various sizes. They can easily be expanded with the appropriate add-on units.
Create space in your warehouse for over-long items and purchase the cantilever racks from us here.
Metal pipes, wooden beams, poles, as well as sheet and plate goods in over-long lengths pose special challenges for warehouse management. If these goods are among your regular warehouse items, you should facilitate their storage with specially designed racking systems. As this META cantilever rack can be loaded only from one side, it is located on walls or against the back of other racks. It is suitable for all types of long goods because the integrated roll-off protection allows for the correct loading of all pipe and roll-shaped products.
The racks can be constructed quickly. If the load is evenly distributed on one level, the arms of the same length can withstand loads of up to 220 kg. As a base unit, the cantilever racks are available in various sizes. They can easily be expanded with the appropriate add-on units.
Create space in your warehouse for over-long items and purchase the cantilever racks from us here.
Product Notes
Regale mit Höhen-Tiefen-Verhältnis ≥ 5:1 gegen Kippen sichern. Die Belastungen der Kragarme gelten bei gleichmäßiger Lastverteilung. Doppelseitige Ständer haben bei einseitiger Nutzung nur die halbe Ständerlast. Die in der Tabelle angegebene Tiefe ist die Nutztiefe der Arme je Seite.
Our offer is aimed exclusively at commercial customers (entrepreneurs). In particular, the product is not intended for use by consumers.
