Technical details
Technical details
Capacity 2200 kg
Rapid lift Yes
Weighing range 200 / 500 / 2.200 kg
calibrated design No
Steering wheel material Solid rubber
Fork roller equipment Single
Fork support width 540 mm
Overall length 1546 mm
Load centre 600 mm
Colour chassis Jungheinrich yellow
Aisle width 1813 mm
Battery capacity 1.2 Ah/per unit
Charger external
Control panel two-handed
Face of forks length 396 mm
Fork roller diameter 82 mm
Fork width 170 mm
IP protection type display IP 65
Infeed rollers Yes
Lift height per pump stroke 25/10 mm
Model Jungheinrich AMW 22p
Pallet truck material Steel
Pump strokes to lift pallet 3/7
Route Short distance
Steering wheel diameter 170 mm
Temperature range -10 - 40 °C
Tiller height 1234 mm
Zero adjustment via keyboard Yes
Fork length 1.150 mm
Scale type digital
Digit unit Up to 200 kg in 200 g increments
up to 500 kg in 500 g increments
up to 2200 kg in 1000 g increments
Measuring tolerance 0.1 %
Fork roller material Polyurethane (PU)
Lift range 86 - 208 mm
Overall width 540 mm
Ground clearance 24 mm
Turning radius 1303 mm
Net weight 105 kg
Automatic shut-off without insert 30 min
Battery voltage 12 V/per unit
Chassis surface powder-coated
Drive manual
Fork height 62 mm
Fork roller width 96 mm
Handle fittings Steel
IP protection type measuring cells IP 65
Lift 122 mm
Lowering speed with/without load 0,09 / 0,02 m/s
Operator type Manual
Power supply scale Battery
Pump strokes to max. lift height 5/12
Scale display Comfort
Steering wheel width 50 mm
Tiller RAL colour RAL 7016 anthracite grey
Tiller surface powder-coated
Technical details
Capacity 2200 kg
Rapid lift Yes
Weighing range 200 / 500 / 2.200 kg
calibrated design No
Steering wheel material Solid rubber
Fork roller equipment Single
Fork support width 540 mm
Overall length 1546 mm
Load centre 600 mm
Colour chassis Jungheinrich yellow
Aisle width 1813 mm
Battery capacity 1.2 Ah/per unit
Charger external
Control panel two-handed
Face of forks length 396 mm
Fork roller diameter 82 mm
Fork width 170 mm
IP protection type display IP 65
Infeed rollers Yes
Lift height per pump stroke 25/10 mm
Model Jungheinrich AMW 22p
Pallet truck material Steel
Pump strokes to lift pallet 3/7
Route Short distance
Steering wheel diameter 170 mm
Temperature range -10 - 40 °C
Tiller height 1234 mm
Zero adjustment via keyboard Yes
Fork length 1.150 mm
Scale type digital
Digit unit Up to 200 kg in 200 g increments
up to 500 kg in 500 g increments
up to 2200 kg in 1000 g increments
Measuring tolerance 0.1 %
Fork roller material Polyurethane (PU)
Lift range 86 - 208 mm
Overall width 540 mm
Ground clearance 24 mm
Turning radius 1303 mm
Net weight 105 kg
Automatic shut-off without insert 30 min
Battery voltage 12 V/per unit
Chassis surface powder-coated
Drive manual
Fork height 62 mm
Fork roller width 96 mm
Handle fittings Steel
IP protection type measuring cells IP 65
Lift 122 mm
Lowering speed with/without load 0,09 / 0,02 m/s
Operator type Manual
Power supply scale Battery
Pump strokes to max. lift height 5/12
Scale display Comfort
Steering wheel width 50 mm
Tiller RAL colour RAL 7016 anthracite grey
Tiller surface powder-coated
Product description
Product description
Professional premium weighing system with a multitude of intelligent weighing functions

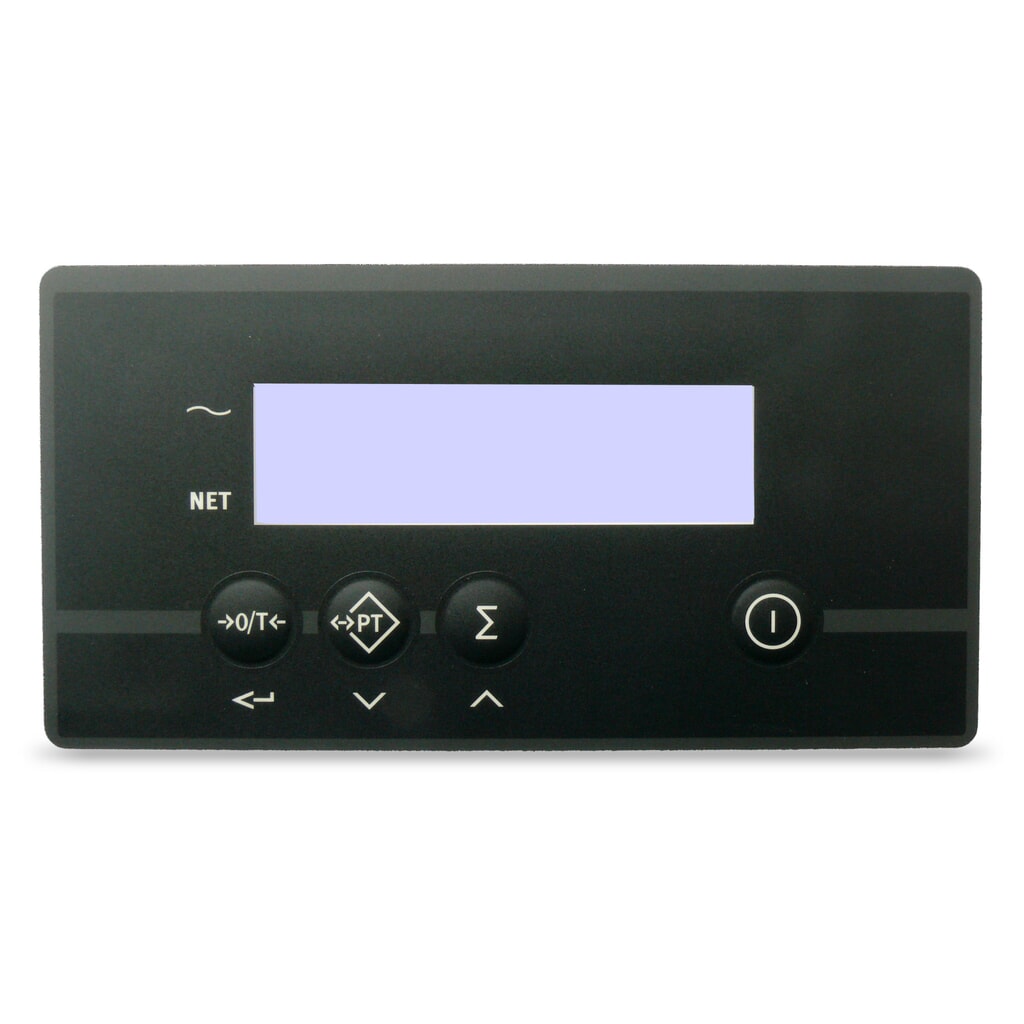

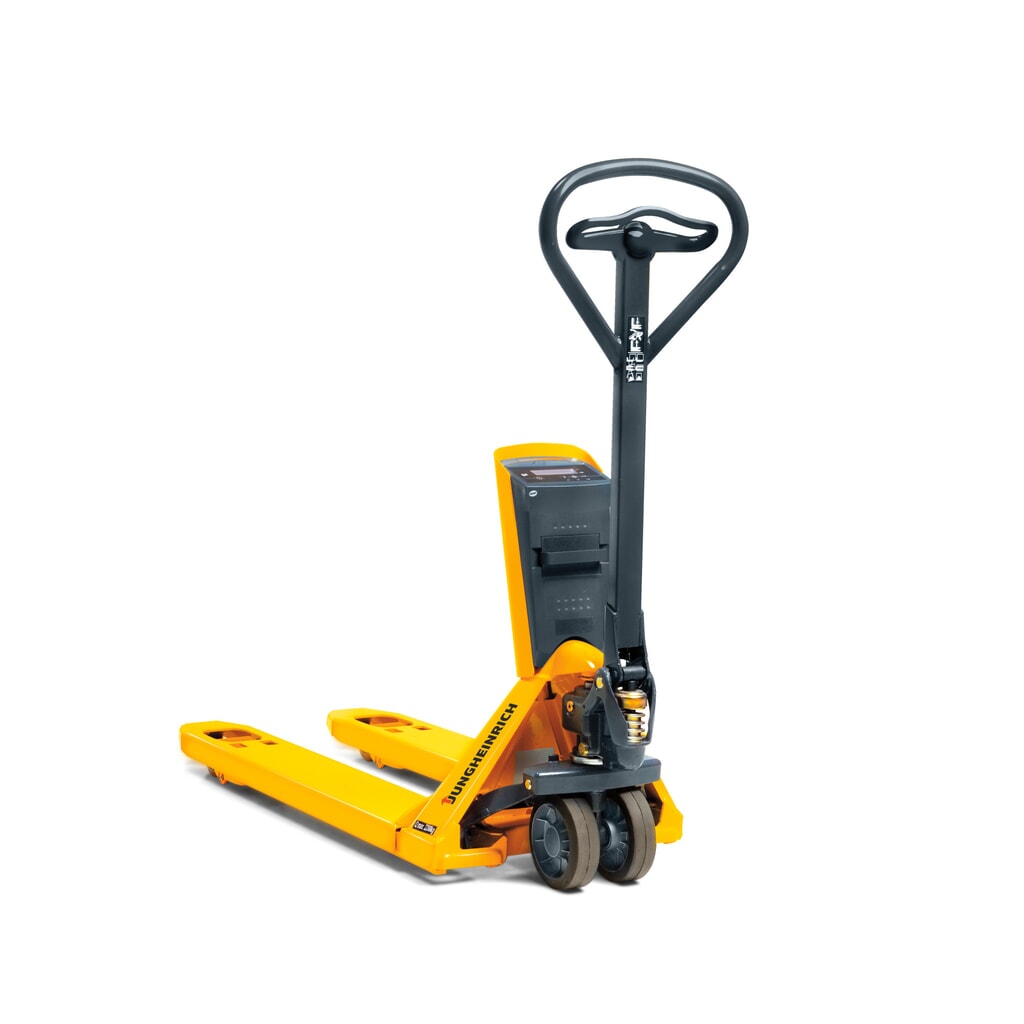

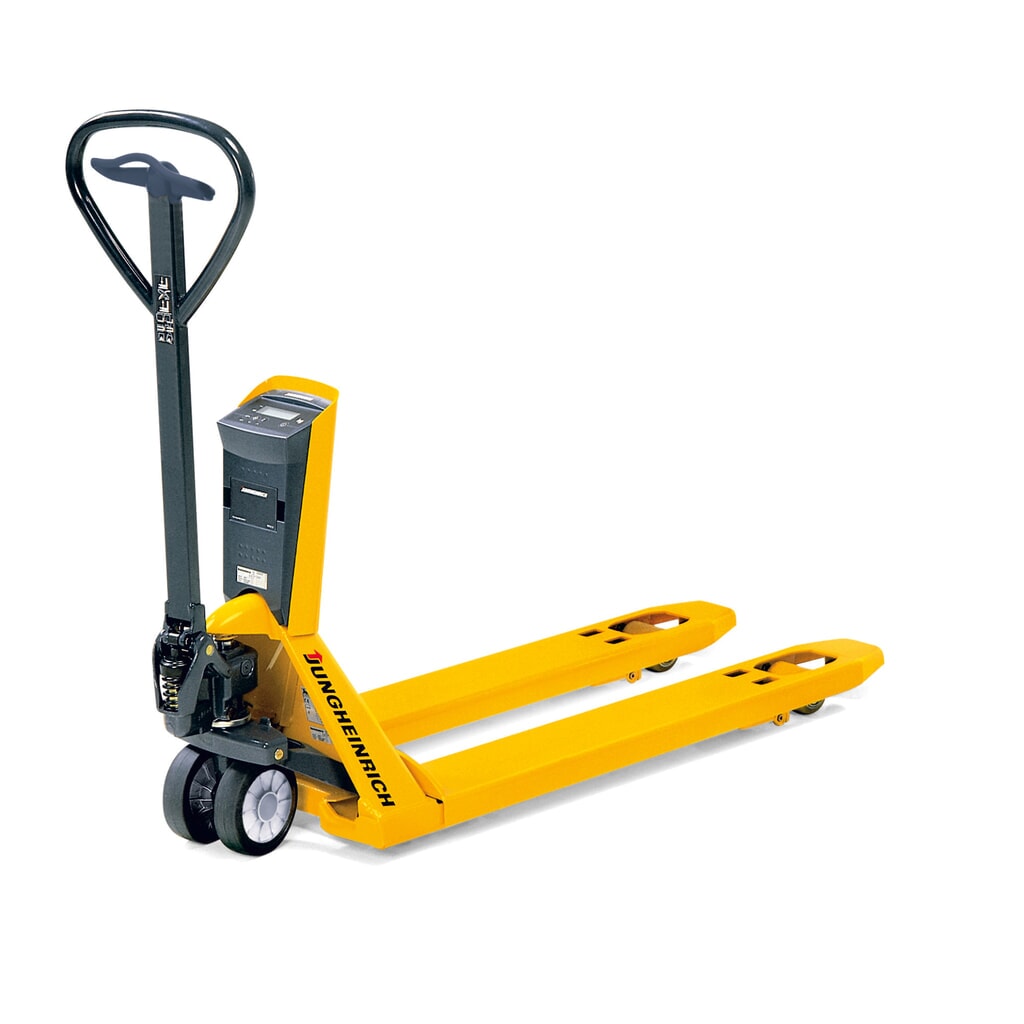

The Jungheinrich AMW 22p weighing scale pallet truck provides you with a professional weighing system suitable for all manner of applications thanks to a multitude of intelligent functions. With its convenient multi-range display, outstanding weighing accuracy (min. 99.9% of the measured weight), wide range of special equipment and sophisticated battery change module, the AMW 22p is a device of the highest calibre.

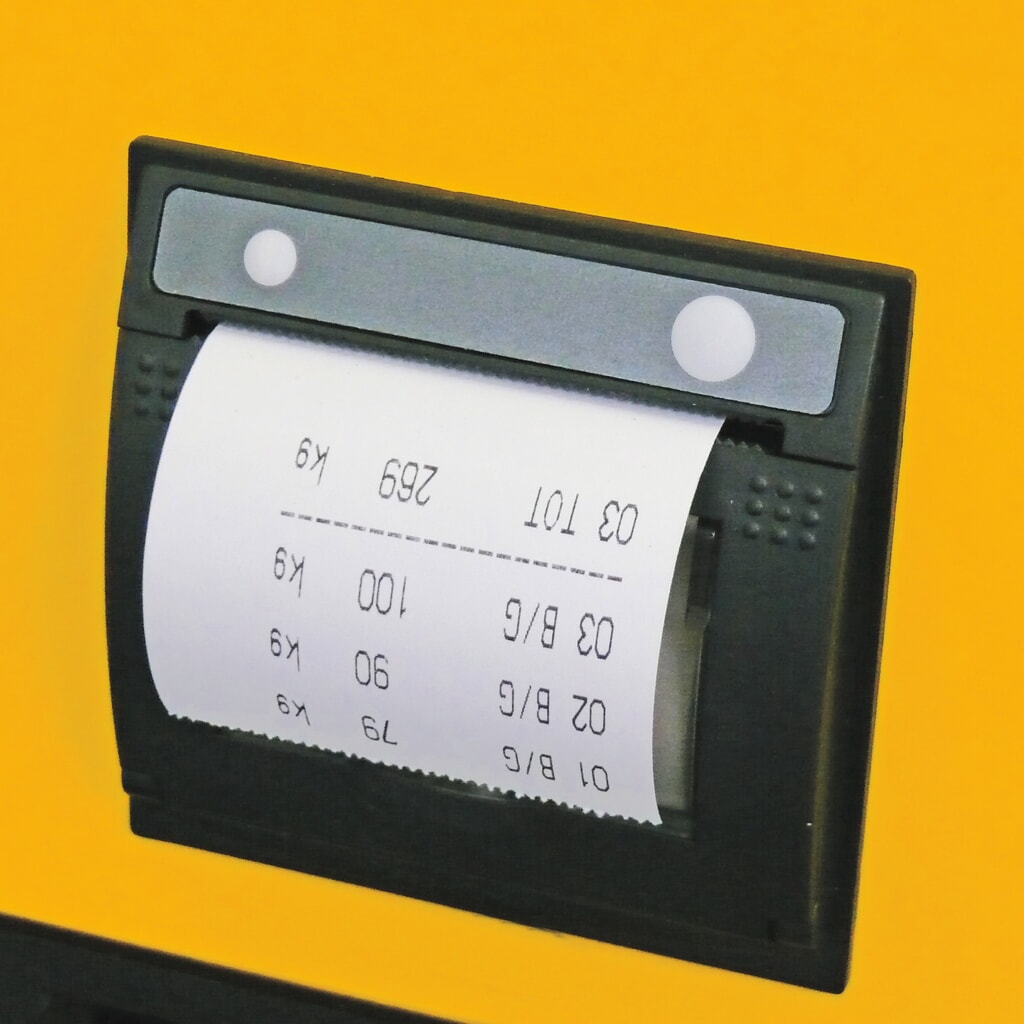

The weighing cells are positioned at the four end points of the forks to ensure highly accurate weight measurement – even on inclines of up to 2 degrees. As well as all functions of the basic display, the AMW 22p offers a date and time function as well as an automatic multi-range display with different measurement intervals: 0.2 - 200 kg, 0.5 - 500 kg, 1 – 2,200 kg. The optional thermal printer allows you to document and analyse your weighing operations.

The plug-in battery change module (12 V / 1.2 Ah) with charger can be easily recharged at any 230 V socket. The battery life is approx. 60 hours. The scales switch off automatically when not used for 30 minutes. The electronics and display feature IP 65 protection against moisture and dust.

You benefit from all the equipment features of the classic AM 22. This includes the ergonomic, user-friendly control element. The special lowering valve allows sensitive loads to be set down with utmost control and precision. Thanks to the standard quick lift function (up to 120 kg), Euro pallets can be lifted clear of the ground with just three pump strokes. The maximum lift height is reached after five strokes. This saves you both time and effort.

The AMW 22p weighing scale pallet truck with 2,200 kg capacity and comfort display is available with different wheel configurations. Depending on the ground conditions and specific application, you can choose between a range of tyre materials. You can also opt for single or tandem fork rollers.

Depending on your requirements, you can equip the AMW 22p with range of additional functions:

- Optional special functions
- Calibrated versions according to class III (EU type approval no. T2782)
- Additional battery change module
- Integrated printer
- Special fork dimensions

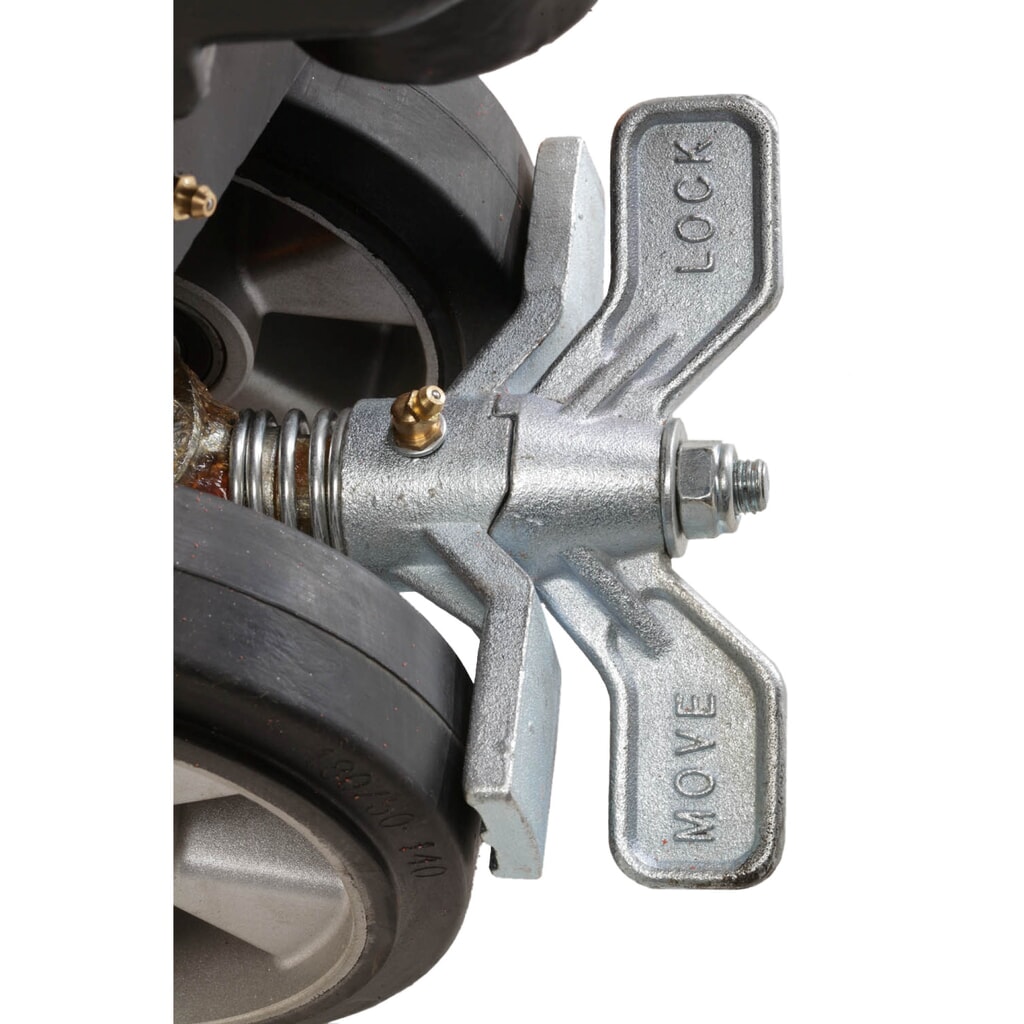

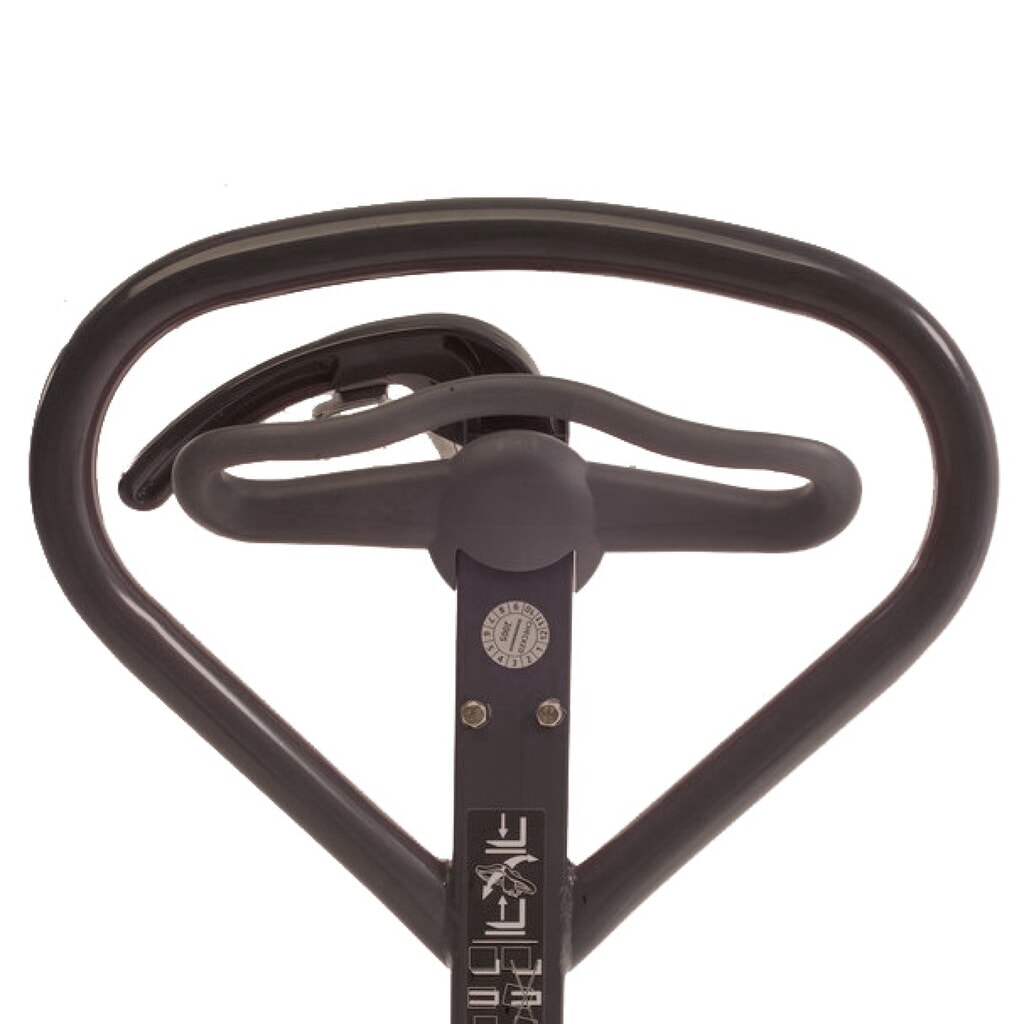

- Travel and parking brake, foot brake
- Antistatic steering castor
- Finer multi-range display: 0.1 – 200 kg, 0.2 – 400 kg, 0.5 – 2,000 kg

Information about all optional equipment is provided in our shop. We are always happy to help! Please note that calibration at a later date is not possible.

Order the weighing scale pallet truck for the most exacting demands from our shop in your chosen configuration.
Product description
Professional premium weighing system with a multitude of intelligent weighing functions

The Jungheinrich AMW 22p weighing scale pallet truck provides you with a professional weighing system suitable for all manner of applications thanks to a multitude of intelligent functions. With its convenient multi-range display, outstanding weighing accuracy (min. 99.9% of the measured weight), wide range of special equipment and sophisticated battery change module, the AMW 22p is a device of the highest calibre.

The weighing cells are positioned at the four end points of the forks to ensure highly accurate weight measurement – even on inclines of up to 2 degrees. As well as all functions of the basic display, the AMW 22p offers a date and time function as well as an automatic multi-range display with different measurement intervals: 0.2 - 200 kg, 0.5 - 500 kg, 1 – 2,200 kg. The optional thermal printer allows you to document and analyse your weighing operations.

The plug-in battery change module (12 V / 1.2 Ah) with charger can be easily recharged at any 230 V socket. The battery life is approx. 60 hours. The scales switch off automatically when not used for 30 minutes. The electronics and display feature IP 65 protection against moisture and dust.

You benefit from all the equipment features of the classic AM 22. This includes the ergonomic, user-friendly control element. The special lowering valve allows sensitive loads to be set down with utmost control and precision. Thanks to the standard quick lift function (up to 120 kg), Euro pallets can be lifted clear of the ground with just three pump strokes. The maximum lift height is reached after five strokes. This saves you both time and effort.

The AMW 22p weighing scale pallet truck with 2,200 kg capacity and comfort display is available with different wheel configurations. Depending on the ground conditions and specific application, you can choose between a range of tyre materials. You can also opt for single or tandem fork rollers.

Depending on your requirements, you can equip the AMW 22p with range of additional functions:

- Optional special functions
- Calibrated versions according to class III (EU type approval no. T2782)
- Additional battery change module
- Integrated printer
- Special fork dimensions
- Travel and parking brake, foot brake
- Antistatic steering castor
- Finer multi-range display: 0.1 – 200 kg, 0.2 – 400 kg, 0.5 – 2,000 kg

Information about all optional equipment is provided in our shop. We are always happy to help! Please note that calibration at a later date is not possible.

Order the weighing scale pallet truck for the most exacting demands from our shop in your chosen configuration.
